Antioxidant capacity and anthocyanin composition of Bulgarian bilberry (Vaccinium myrtillus L.) fruits

Mariya Georgieva,1,3 Kiril Mihalev,1 Nikolina Yoncheva,2 Gabriella Giovanelli3

1Department of Food Preservation and Refrigeration Technology, University of Food Technologies, Bulgaria
2Department of Analytical Chemistry, University of Food Technologies, Bulgaria
3Department of Food, Environmental and Nutritional Sciences, University of Milan, Italy

Correspondence: Mariya Georgieva, Department of Food Preservation and Refrigeration Technology, University of Food Technologies, 26 Maritza Boulevard, 4000 Plovdiv, Bulgaria

Received: October 03, 2017 | Published: March 16, 2018

Citation: Georgieva M, Mihalev K, Yoncheva N, et al. Antioxidant capacity and anthocyanin composition of Bulgarian bilberry (Vaccinium myrtillus L.) fruits. MOJ Food Process Technol. 2018;6(2):181–184. DOI: 10.15406/mojfpt.2018.06.00162

Download PDF

Abstract

Antioxidant capacity of Bulgarian bilberry (Vaccinium myrtillus L.) fruits from two different picking regions, Velingrad and Troyan, was studied using the FRAP (ferric reducing antioxidant power) assay and amperometric method. In addition, the anthocyanin composition was characterised by high performance liquid chromatography ‒diode array detection. Antioxidant capacity of the bilberries from the region of Velingrad was 15 and 20% higher than that of the Troyan region sample for the FRAP and EC +0.5 V values, respectively. Among the 12 individual anthocyanins identified, delphinidin glycosides were the predominant compounds. In accordance with the content of total anthocyanins, higher concentrations (20‒64%) of individual compounds were observed for the bilberries from the region of Velingrad. The results obtained demonstrate that the environmental conditions within the picking regions have significant effects on the antioxidant capacity and anthocyanin content of Bulgarian bilberry fruits, which may affect their applications as functional foods or ingredients.

Keywords: Vaccinium myrtillus, anthocyanins, amperometric method, FRAP, HPLC

Abbreviations

HPLC‒DAD, high performance liquid chromatography‒diode array detection; FC, folin-ciocalteau’s; TE, trolox equivalents; GAE, gallic acid equivalents; CGE, cyanidin 3‒glucoside, HPLC, high‒performance liquid chromatography; FRAP, ferric reducing antioxidant power

Introduction

Epidemiological studies have shown an inverse correlation of increased fruit and vegetable consumption with a reduced risk of chronic disorders including cardiovascular diseases. Plant‒derived foods contain a broad spectrum of secondary plant metabolites such as polyphenols that inhibit human low density lipoprotein oxidation, thus are made responsible for the beneficial effects on human health.1,2

Bilberry (Vaccinium myrtillus L.) is one of the most important wild berry species in Europe and is widespread in Bulgaria occurring in the semi‒mountain regions at 1200-1500 meters of altitude. Among the different bioactive substances in berries, phenolic compounds including anthocyanins, flavonols, flavonols and phenolic acids have received considerable interest due to their multiple biological effects such as antioxidant, antimutagenic, antiinflammatory, antiproliferative and antimicrobial activities.3

A great number of in vitro studies showing berry polyphenols as powerful dietary antioxidants are available.4,5 The antioxidant activity is strongly dependent on the berry species, wild berries having generally higher total antioxidant capacity than the cultivated ones.6 However, extensive variations in the anthocyanin content have recently been observed for the bilberry populations,7 indicating a high degree of environmental influence. Furthermore, the proportions of specific anthocyanidins in bilberries differ between altitudes and between plants with different parental origins.8

Therefore, the present study evaluated the antioxidant capacity of Bulgarian bilberries originating from two picking regions. In addition to applying different methods to measure antioxidant capacity, the anthocyanin composition was analysed using high performance liquid chromatography‒diode array detection.

Materials and methods

Chemicals

For identification and quantification purposes by high performance liquid chromatography‒diode array detection (HPLC‒DAD) cyanidin 3‒O‒glucoside, malvidin 3‒O‒glucoside and peonidin 3‒O‒glucoside (Extrasynthese, Genay, France) were used. For other analytical purposes the following reagents were used: Trolox [(±)‒6‒hydroxy‒2,5,7,8-tetramethyl‒chroman‒2‒carboxylic acid] (Sigma‒Aldrich, Steinheim, Germany); TPTZ [2,4,6‒tripyridyl‒s‒triazine] and gallic acid monohydrate (Fluka, Buchs, Switzerland); Folin‒Ciocalteau’s (FC) reagent (Merck, Darmstadt, Germany). All other reagents and solvents were of analytical or HPLC grade.

Plant material

Bilberry (Vaccinium myrtillus L.) fruits (harvest 2010) were hand-picked from their natural habitats in two different regions of Bulgaria, Velingrad and Troyan, located in the Rodopa and Stara Planina Mountain, respectively. After sorting to eliminate unripe, overripe or damaged fruits, berries were placed in polyethylene bags (~200 g) and frozen stored (‒20°C, 18 months) until lyophilized and transported to the laboratory in Milano.

Sample preparation

5 g of the finely ground lyophilized fruits were mixed with 50 ml of distilled water and rehydrated overnight at 4°C. The homogenate (5 g) was extracted with 15 mL of acidified methanol (0.1% HCl, v/v) under stirring for 1 h in the dark at ambient temperature. After centrifugation (10000g, 10 min, 15°C), the solid phase was extracted for 15 min two more times using 15 and 10 mL of the extraction solvent. All supernatants were collected and the extract volume was made up to 50 mL with the extraction solvent. Each extraction was carried out in triplicate.

Analytical methods

Total antioxidant capacity was determined by two different methods: FRAP (ferric reducing antioxidant power) assay as described by Aaby et al.;9 amperometric method as described by Buratti et al.10 This method required a flow injection system consisting of a pump (model 880 PU, Jasco, Tokyo, Japan) and an electrochemical detector (model 400, EG & G Princeton Applied Research, Princeton, NJ) with a flow cell equipped with a double glassy carbon working electrode, an Ag/AgCl reference electrode and a platinum counter electrode; the carrier solution was 0.1 mol/L acetate buffer pH 4.0 and 0.050 mol/L NaCl at a flow rate of 1 mL/min; the measurements were taken at a potential of +0.5 V. Trolox, a water-soluble vitamin E analogue, was used as a reference in both methods and the antioxidant capacity values were expressed as μmol Trolox equivalents (TE) per g of the lyophilized fruits.

Total polyphenols were determined by the Folin Ciocalteau method and expressed as mg gallic acid equivalents (GAE) per 100 g of the lyophilized fruits.11

Total monomeric anthocyanins were determined by the pH differential method.12 The results were calculated using a molar absorptivity of 26900 L/(mol cm) and molecular weight of 449.2 g/mol and expressed as equivalents of cyanidin 3‒glucoside (CGE) in mg per 100 g of the lyophilized fruits.

Identification and quantification of individual anthocyanins was performed as previously reported by Giovanelli et al.6 using a Waters HPLC system (Waters, Millford, USA) equipped with a model 600 pump, a model 2996 photodiode array detector and Empower 2 data management programme. The column used was a C18 Spherisorb ODS 2 (4.6 mm´250 mm, Waters, Millford, USA). The mobile phase consisted of acetonitrile (eluent A) and 10% formic acid in water (eluent B). The gradient programme was as follows: 7% to 15% B (17 min), 15% B to 30% B (5 min), 30% B to 100% B (2 min), 100% B isocratic (3 min), 100% B to 7% B (5 min), 7% B isocratic (10 min), at a flow rate of 1.2 mL/min. Monitoring was performed at 528 nm. The injection volume was 20 μL. The extracts were diluted with 25 mmol/L KCl buffer pH 1.0 before membrane filtration (0.45 µm) and injection in the HPLC system. All analyses were carried out at least in triplicate.

Results and discussion

The two methods used represent different approaches for the evaluation of antioxidant capacity. While the FRAP assay quantifies the total concentration of redox-active compounds,13 the amperometric method at +0.5 V has been demonstrated to selectively discriminate those compounds having effective antioxidant power.14‒16

Antioxidant capacity (Table 1) of the bilberries from the region of Velingrad was 15 and 20% higher than that of the Troyan region sample for the FRAP and EC +0.5 V values, respectively. This fact may be attributed to the 34% higher concentration of total anthocyanins, since the total polyphenolic contents were not significantly different. These results are in agreement with those reported in previous studies on Bulgarian bilberry fruits.17,18

As shown in Figure 1, HPLC analysis allowed identification of 12 individual anthocyanins being glucosides, galactosides and arabinosides of five anthocyanidins (delphinidin, cyanidin, peonidin, malvidin, petunidin). In general, the anthocyanin profile of the Bulgarian bilberries studied is similar to that reported for bilberry fruits from Italy,6 Finland7 and Slovenia.19 In line with these studies, delphinidin glycosides were the predominant compounds (Table 2). Derivatives of cyanidin and peonidin were found in concentrations 2.4‒3.1 times lower than that of the delphinidin-derived anthocyanins and malvidin and petunidin glycosides had the lowest contents.

In accordance with the content of total anthocyanins (Table 1), higher concentrations (20‒64%) of individual compounds were observed for the bilberries from the region of Velingrad, thus suggesting the importance of environmental, e.g. climatic and edaphic, factors. Such explanation is plausible taking into account the functions of anthocyanins in plants,20 particularly to act as osmotic adjusters during periods of drought and low temperatures. The latter assumption is supported by results from other studies,7,21 where extensive variations in the anthocyanin contents have been reported between bilberry populations from different geographic regions. Moreover, through multivariate analysis using the contents of 27 individual polyphenols, including anthocyanins, the possibility for identification of the bilberry picking region has been recently shown.19

Interestingly, some variations in the proportions of anthocyanins were observed (Figure 2); the relative content was 3% higher and 2% lower in bilberries from the Velingrad region for cyanidin and delphinidin glycosides, respectively. These results are in accordance with the study of in which the differences observed in the proportions of bilberry anthocyanins between southern and northern Finland were supposed to be genetically determined.8 Presumably, the light and temperature as well as other factors may cause genetic differentiation in the bilberry populations occurring in different geographic regions.

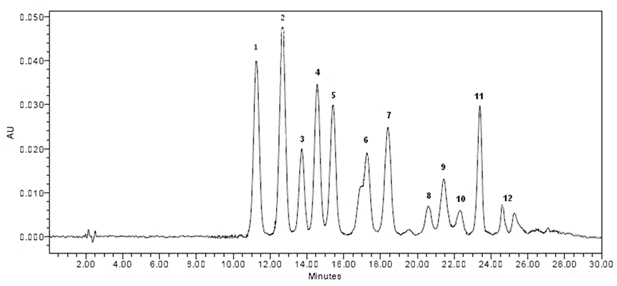

Figure 1 HPLC profile of anthocyanins extracted from Bulgarian bilberry fruits. Peak identification: 1, delphinidin 3-galactoside; 2, delphinidin 3‒glucoside; 3, cyanidin 3‒galactoside; 4, delphinidin 3‒arabinoside; 5, cyanidin 3‒glucoside; 6, petunidin 3‒galactoside+cyanidin 3‒arabinoside; 7, peonidin 3‒galactoside; 8, petunidin 3‒arabinoside; 9, peonidin 3‒glucoside; 10, malvidin 3‒galactoside; 11, malvidin 3‒glucoside; 12, malvidin 3‒arabinoside.

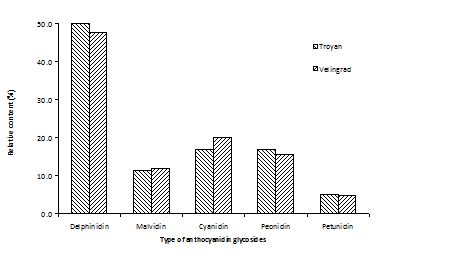

Figure 2 Proportions of anthocyanins of Bulgarian bilberry fruits from two picking regions (Troyan, Velingrad).



Picking region

Total polyphenols (mg GAE/100ga)

Total anthocyanins (mg CGE/100ga)

Antioxidant capacity
(µmol TE/ga)

FRAP

EC+0.5 V

Troyan

893.1

162.4

2.68

7.26

Velingrad

940.3

217.0

3.06

8.74

p-value

0.021

0.002

< 0.001

< 0.001

Table 1 Contents of total polyphenols and total anthocyanins and antioxidant capacity values of Bulgarian bilberry fruits from two picking regions

a Values of medians are significantly different at 95% confidence level as obtained by the Mann‒Whitney test (Non‒parametric method).



Compound

Picking region



Troyan

Velingrad

pvalue

Delphinidin 3‒galactosideb

924.7

1190.9

< 0.001

Delphinidin 3‒glucosideb

1115.5

1466.5

< 0.001

Delphinidin 3‒arabinosideb

769.5

909.0

< 0.001

Malvidin 3‒galactosidec

115.1

186.3

< 0.001

Malvidin 3‒glucoside

440.5

605.7

< 0.001

Malvidin 3‒arabinosidec

81.6

107.2

< 0.001

Cyanidin 3‒galactosided

281.2

454.5

< 0.001

Cyanidin 3‒glucoside

676.2

1037.1

< 0.001

Peonidin 3‒galactosideb

611.5

779.6

< 0.001

Peonidin 3‒glucoside

323.4

382.7

< 0.001

Petunidin 3‒galactosided

168.3

201.5

< 0.001

Petunidin 3‒arabinosided

125.2

150.3

< 0.001

Table 2 Contentsa of individual anthocyanins of Bulgarian bilberry fruits from two picking regions

a All data are expressed as µmol/kg lyophilized fruits. Values of medians are significantly different at 95% confidence level as obtained by the Mann‒Whitney test (Non-parametric method).
b Calculated as peonidin 3‒glucoside.
c Calculated as malvidin 3‒glucoside.
d Calculated as cyanidin 3‒glucoside.

Conclusion

In conclusion, the results obtained demonstrate that the environmental conditions within the picking regions have significant effects on the antioxidant capacity and anthocyanin content of Bulgarian bilberry fruits. This may affect their applications in functional food industry, especially in the light of recent22 that the effect of storage and technological processing on the content, for most of the polyphenolic classes and subclasses, is negligible in comparison to the differences between the raw materials of different plant species and/or varieties.
