Research Article Volume 1 Issue 3
^{1}Division of Natural Resource Management, Central Agricultural Research Institute, India
^{2}Division of Agricultural Engineering, Indian Agricultural Research Institute, India
^{3}Division of Post Harvest Technology, Indian Agricultural Research Institute, India
^{4}College of Agriculture, Jawaharlal Nehru Agricultural University, India
^{5}Gandhi Institute of Excellent Technocrats, BBSR, India
Correspondence: Sachidananda Swain, Division of Natural Resource Management, Central Agricultural Research Institute, Port Blair744101, India, Tel 919531868394
Received: April 30, 2014  Published: May 26, 2014
Citation: Swain S, Samuel DVK, Kar A, Bal LM, et al. Mathematical modelling of microwave assisted dehydration of osmotically pretreated yellow sweet pepper (Capsicum annum L) . J Nutr Health Food Eng. 2014;1(2):8190. DOI: 10.15406/jnhfe.2014.01.00013
Drying kinetics modeling and effective moisture diffusivity (D_{eff}) of osmotically dehydrated yellow sweet pepper (Capsicum annum L.) during microwave assisted convective drying at power levels of 70, 140, 210 and 280W, air temperature of 35, 45 and 60°C and constant air velocity of 1.5m/s were investigated. Among the 11 proposed models, Page model gave a better fit for all drying conditions used. D_{eff} decreased from 1.21x10^{7} to 8.91x108m^{2}/s with decrease of drying temperature from 60 to 35°C which is 102 to103times reported earlier. The frequency factor (D_{0}) values decreased from 9.7564×10^{5} to 0.8806×10^{5}m^{2}/s while the activation energy of diffusion (E_{a}) decreased from 21.8741 to 10.7167KJ/mole with the increase in microwave power from 0.35 to 1.4W/g. So, pretreatment can be used as criteria for faster drying thereby maintaining final product quality. These mathematical models have much more practical utility as far as process design of food industry is concerned.
Keywords: m_{i}crowave drying, drying kinetics, moisture diffusivity, activation energy
Fruits and vegetables play a significant role in human nutrition as they provide many essential vitamins and minerals.^{1} However, they are usually in shortage during offseasons because of high perishability. A very common method of preservation for these agricultural corps is to dry them in order to reduce storage volume, minimizing packaging, storage, transportation costs and makes possible storage of the product under ambient temperatures and thereby extend their shelf life.^{2‒4} Conventional drying involves exposure of food and agricultural products to high temperature and for long times, which can result in serious damage to flavor, color, rehydration capacity and nutrients of the treated material as well as low energy efficiency.^{5‒8} However, in recentyears, microwave drying has gained popularity as an alternative drying method to overcome above problems for a wide variety of food products.^{9‒11} It has several advantages over conventional hot air drying, such as higher drying rate, minimal heating at locations with less water, thus reducing overheating of atmosphere.^{12} In microwave heating, as the temperature inside the material approaches the boiling point of water, pressure development becomes significant. This increase in vapour pressure facilitates the transfer of water to the outside^{13} and generates higher drying rates than conventional drying, where heat is transferred from the surface to the inside of the solids.^{10,14‒16}
M_{i}crowave drying system is widely used in combination with air drying system during drying via microwave energy.^{17} These combined drying systems not only increase the drying rate of the product, but also increase the quality of the dry product.^{18 }Numerous studies were carried out with microwaveair combined dryers and many agricultural products have been dried successfully. Crops such as carrots,^{19} apple and mushroom^{17,20} could be dried successfully using combined drying technique.
Peppers are an important source of nutrients in the human diet, and an excellent source of vitamin A and C as well as neutral and acidic phenolic compounds, which are important antioxidants for a variety of plant defense responses. However, heating causes losses of sensorial (texture, taste, flavor and color) and nutritional quality attributes, such as reduction of ascorbic acid content.^{21} Thus, to minimize the above losses, a study was conducted for the effect of the microwaveassisted drying on the characteristics of yellow sweet pepper. The overall goal of modeling a drying process is to understand and predict the influence of extrinsic factors such as temperature, contact time and pressure (vacuum) and intrinsic factors such as the nature of the food material, size and shape, on the mass transfer phenomena of moisture loss, color degradation, losses of biochemical parameters etc which influence the characteristics of the final product and hence its quality. Therefore, objectives of the present study are to compare the developed mathematical models for predicting the kinetics of drying, to investigate the drying rates and also the moisture diffusivity of yellow sweet pepper during combined microwaveconvective drying as a function of the microwave power and air temperature.
Practical applications
The research findings of the study would give an innovative facet for food preservation and drying of yellow sweet pepper for enhancing the commercial potential of these commodities and open new avenues for food Industry. Modelling to application of microwave drying to food products which is part of a continuous from fresh foods to value added products manufacturing line helps to, calculate the residual moisture content of products as well as determination of diffusion rate and activation energy which saved the drying time on the basis of continuously generated data from univariate sensors. Next to monitoring, the application of continuous processes demands also realtime adjustment of critical input variables to ensure that the process stays within the design Space. M_{e}chanistic models are very useful for this purpose as, once validated, several tools can be applied to gain further process knowledge, for example uncertainty and sensitivity analysis in large scale. Further, this article will help the researchers and academicians working in drying of agricultural commodities in general and yellow sweet pepper in particular.
Material
Fresh yellow sweet pepper samples were procured from the Center of Protected Cultivation Technology, Indian Agricultural Research Institute, New Delhi. The samples were washed and stored at 7±0.5°C in the cold storage until analysis. Before the drying experiments, the samples were taken out of the cold storage and sliced with a knife. At least 10 measurements of length, breadth and thickness were made at different points of the sliced pepper with a vernier caliper (M_{i}tutoyo, Japan) having an accuracy of 0.02mm; only slices that fell within a 5% range of the average dimensions (length, breadth and thickness) were used. The average value of length (60±1.5mm) breadth (6±0.5mm) and thickness (4±0.41mm) were calculated. Initial moisture content was measured by taking 30g samples, dried in an oven at 70°C for 24h which was calculated as 89.01±0.45% (w.b.).^{22}
Pretreatment (osmotic dehydration)
The samples were osmotically dehydrated as a pretreatment using parameters, such as salt, sucrose, RPM, solution to sample ratio (SSR) and time, inside the incubator shaker by using Central Composite Rotatable Design (CCRD) given elsewhere.^{23} These were optimized based on the objective requirements of weight loss, moisture loss and solid gain, and optimized dehydrated samples containing 71.29±0.65% (w.b.) moisture were taken for microwave drying.
Drying equipment and drying method
Drying experiments were performed in a laboratory scale microwaveconvective dryer consists of four subsystems: air supply unit, heating unit, drying unit, and control unit, available in the Division of Post Harvest Technology, Indian Agricultural Research Institute, New Delhi. The blower (model: 0.24HP, 50Hz, continuous single phase) blows the air to the heating section to maintain the temperature up to desire level, regulated by thermostat from where it passes to the microwave oven. A thermostat (Multispan, MDC2901) was mounted over the blower to detect the change in the air temperature, which can be varied by manually using the regulator unit. The microwave oven (WP700L17.3 MW Oven, LG make, 17L Capacity) with technical features of ~230V, 50Hz, and 700W with a frequency of 2450MHz has the dimensions of 295, 458 and 370mm and consisted of a turn table of 270mm diameter at the base of the oven and it also operates in pulsed mode. The microwave oven has the capability of operating at ten different microwave output powers between 70 and 700W measured using the IMPI2L test.^{24} The adjustment of microwave power level and processing time was done with the aid of an analogue control facility located on the microwave oven. The dryer was run without the sample placed in, for about 30min to set the desired drying conditions before each drying experiment. Air velocity was measured with an hot wire anemometer (Model No: AM4204; Make: LT Lutron, Taipei, Taiwan) having a least count of 0.1m/s. Preliminary experiments of microwavehot air drying of yellow sweet pepper resulted in charring of the product towards the end of drying at power level higher than 280W. The combined microwavehot air drying experiments were thus conducted with continuous microwave power of 280Wand step down intervals of 70W, in conjunction with hot air at 30, 45 and 60°C temperatures at constant air velocity of 1.5m/s.
Two hundred (200) grams of osmoticallydehydrated yellow sweet pepper was arranged in a single layer on the rotating glass plate and placed in the centre of the oven and the drying process was started for different combinations of microwave power and air temperature. Then, the samples were removed from the oven periodically and moisture loss was measured by weighing on the digital balance (Panacea GX 4000, Germany) with 0.01g precision. Three replications of each experiment were performed according to preset conditions and the data given are an average of these results. The reproducibility of the experiments was within the range of ±5%. Drying process continued until the moisture content of samples fell down to about 6% (w.b.). All weighing processes were completed in <10s during the drying process.
Theoretical consideration
Mathematical modeling of the drying curves: To determine the most suitable drying model, the drying cures were fitted to experimental data using eleven different thin layer drying models (Table 1). The moisture ratio and drying rate of yellow sweet pepper were calculated using the following equations:
$MR\text{\hspace{0.17em}}=\text{\hspace{0.17em}}\frac{M{M}_{e}}{{M}_{i}{M}_{e}}$ (1)
Where, MR is the moisture ratio, M is the moisture content at a specific time (kg/kg d.b.), M_{i} is the initial moisture content (kg/kg d.b.), and M_{e} is the equilibrium moisture content (kg/kg d.b.). The equilibrium moisture content was assumed to be zero for microwave drying as stated by Doymaz.^{25} The MR, however, was simplified to M/M_{i}.
Drying rate = $\frac{{M}_{t+dt}{M}_{t}}{dt}\text{\hspace{0.17em}}$ (2)
Where, M_{t} and M_{t+dt} are the moisture content (kg/kg d.b.) at drying time t and t+dt (min), respectively.
Effective moisture diffusivity
Generally, drying of foods takes place in two periods, a constant rate and falling rate period. After a short heating period, a constant rate period followed by a falling rate period which is a dominating period during drying process. The mechanism of moisture movement within a hygroscopic solid during the fallingrate period could be represented by effective moisture diffusion phenomenon (liquid diffusion, vapour diffusion, vaporizationcondensation, hydrodynamic flow and other possible mass transfer mechanisms) is used and represents an overall mass transport property of water in the material. During drying, it can be assumed that diffusivity, explained with Fick’s diffusion equation, is the only physical mechanism to transfer the water to surface.^{26} Effective moisture diffusivity, which is affected by composition, moisture content, temperature and porosity of the material, is used due to the limited information on the mechanism of moisture movement during drying and complexity of the process.^{27} The effective moisture diffusivity D_{eff}, at any given moisture content can be determined using ‘methods of slopes’ technique.^{28} Several researchers have utilized this technique for estimating the moisture diffusivity of food materials.^{29‒31} So, Fick’s second law equation for non steadystate diffusion, assuming that the samples used can be approximated to cylinders, the diffusion is expressed by Crank.^{32}
$\frac{\partial M}{\partial t}\text{\hspace{0.17em}}=\text{\hspace{0.17em}}\frac{1}{r}\text{\hspace{0.17em}}\left\{\frac{\partial}{\partial r}\left({D}_{eff}r\text{\hspace{0.17em}}\frac{\partial M}{\partial r}\right)\text{\hspace{0.17em}}+\text{\hspace{0.17em}}\frac{\partial}{\partial Z}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\left({D}_{eff}r\frac{\partial M}{\partial Z}\right)\right\}$ (3)
For the solution of Fick’s diffusion equation, the yellow sweet pepper slices were assumed as an infinite slab because of the thickness of the sample (4±0.4mm) was much less than its diameter. The effective moisture diffusivity for infinite slab was therefore calculated by the following solution.^{32}
$\frac{M{M}_{e}}{{M}_{0}{M}_{e}}\text{\hspace{0.17em}}=\text{\hspace{0.17em}}\frac{8}{{\pi}^{2}}\text{\hspace{0.17em}}{\displaystyle \sum _{}^{}{}_{n=0}^{\infty}}\text{\hspace{0.17em}}\frac{1}{{\left(2\text{n}+1\right)}^{2}}\text{\hspace{0.17em}}\text{x}\mathrm{exp}\text{\hspace{0.17em}}\left(\frac{{\left(2\text{n}+1\right)}^{2}{\text{\pi}}^{2}{\text{D}}_{\text{eff}}}{4{\text{L}}^{2}}\text{\hspace{0.17em}}\text{t}\right)$ (4)
Where, D_{eff} is the effective diffusivity (m^{2}/s); L_{0} is the half thickness of slab (m). For long drying times; n=1, then Eq. (4) can be reduced to the following form:
$MR\text{\hspace{0.17em}}=\text{\hspace{0.17em}}\frac{8}{{\pi}^{2}}\text{\hspace{0.17em}}\mathrm{exp}\text{\hspace{0.17em}}\left(\frac{{\pi}^{2}{D}_{eff}}{4{L}^{2}}\text{\hspace{0.17em}}t\right)$ (5)
Diffusivities are typically determined by plotting experimental drying data in terms of ln MR versus drying time t in Eq. (5), because the plot gives a straight line with a slope as follows:
$\mathrm{ln}\text{\hspace{0.17em}}MR\text{\hspace{0.17em}}=\text{\hspace{0.17em}}In\text{\hspace{0.17em}}\frac{8}{{\pi}^{2}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\frac{{\pi}^{2}{D}_{eff}}{4{L}^{2}}\text{\hspace{0.17em}}t$ (6)
Slope = $\frac{{\pi}^{2}{D}_{eff}}{4{L}^{2}}$ (7)
Calculation of activation energy
The temperature dependence of the effective diffusivity may be described by an Arrheniustype relationship^{33‒35 }as follows:
${D}_{eff}={D}_{0}\mathrm{exp}\left(\frac{{E}_{a}}{RT}\right)$ (8)
$\mathrm{ln}{D}_{eff}=\mathrm{ln}{D}_{0}\frac{Ea}{RT}$ (9)
Plotting ln D_{eff} vs 1/T gives the slope of E_{a}/R to calculate the activation energy. Where, D_{0} is the preexponential/Frequency factor of the Arrhenius equation (m^{2}/s), E_{a} is the activation energy (J/mol), R is the universal gas constant (J/mol K), and T is the absolute temperature (K). From the slope of the straight line of ln D_{eff} versus reciprocal of T, described by the Arrhenius equation, the activation energy, E_{a}, could be calculated. The model described by equations (4) and (9) can be expressed in the simplified form:
MR = f (T,t,L,D_{0},E_{a})
Where, t and T are variables and L, D_{0} and E are the model parameters.
Statistical test
The nonlinear regression procedure was used to obtain the drying parameters of the above equations using the MATLAB 7.1 (R2008a) software package. The coefficient of determination (R^{2}) root mean square error (RSME) and residual sum of square (RSS) were used as primary criteria to select the best fit of the tested mathematical model to the experimental data. The higher the value of R^{2} and lower the value of RSS and RSME, the better the model was taken to fit. By definition:
RSS=$\frac{{\displaystyle \sum _{}^{}{}_{i=1}^{N}\left({C}_{exp,i}{C}_{pre,i}\right)}}{NP}$(10)
RMSE =$\sqrt{\frac{{{\displaystyle \sum}}_{i}^{N}{\left({C}_{exp,i}{C}_{pre,i}\right)}^{2}}{N}}a$ (11)
Where, C_{exp,i} is the i^{th }experimental value, C_{pre,i} is the i^{th} predicted value, N is the total number of observations, p is the number of constants in a particular model.
Drying kinetics
The moisture ratio versus drying time curves for microwaveconvective drying of the osmotically dehydrated yellow sweet pepper samples (moisture content: 71.29±0.65%, w.b.) at different microwave output power levels (70, 140, 210 and 280W) and temperatures (30, 45 and 60°C) are shown in Figure 1. When the microwave power increased, the time needed to achieve a certain moisture ratio decreased being highest (122min) for 0.35W/g at 30°C and lowest (30min) for 1.4 W/g at 60 °C, which indicated that high power level saved 76% of the drying time for yellow sweet pepper to approximately 6% (w.b.) moisture content. Thus, it is obvious that the moisture ratio decreased more rapidly when the microwave power is increased. It was due to high electric field for high power, so that the rate of orientation of water molecules inside the heterogeneous food matrix were more causing more friction to be changed into heat for the evaporation of water molecules. Hence, the drying times were inversely proportional to applied microwave power levels applied. Similar observations were reported by Soysal^{36} for parsley, Wang and Xi^{37} for carrot slices, Giri and Prasad^{38} for mushroom and Karaaslan and Tuncer^{39} for spinach. However, Student’s ttest revealed that, keeping the power level constant, the moisture ratio had non significant effect (p<0.05) with increase in air temperature from 30 to 60°C.
The relations between drying rate with drying time are shown in Figure 2. It was observed that with the increase in drying time the drying rate increased up to certain level with the increase in microwave power and air temperature and then gradually decreased. It was due to the fact that, after certain period, a small amount of water was present which required more time to drive out from the samples causing less drying rate. The maximum drying rate was 0.096 and 0.088 (g. water g. solid^{1}.min^{1}) for the samples. The initial moisture content of yellow sweet pepper was relatively constant (2.48g. water g. solid^{1}), but the difference in the drying time requirements were mainly due to difference in the drying rate. The higher the power level, the greater the increase in drying rates. Nevertheless, a limit for power application was established on the basis of retaining the color stability of the product, otherwise browning may be detected due to sugar caramelisation by excessive local heating. Drying rate showed a fast increase at the beginning of the process due to microwave heating and a subsequent decrease, showing two differentiated periods: the first, where drying rate decreases slowly to reach a plateau with a practically constant value, and the second with a gradually decreasing drying rate from a given critical moisture content (Figure 3). So, drying rate curves showed a sigmoid shape, where the influence of microwave power can be observed practically in the entire range of sample moisture content. Nevertheless, at a higher power level, the initial rates are more greatly enhanced. The constant rate periods were more prominent at lower power level, being maximum at 0.7W/g and 30°C which gradually decreased with the increase in the power levels, being almost absent in 1.4W/g. It was because of thin layer of arrangement of samples and too rapid heating by high power, providing instant drying. The constant rate period ranged from 0.011 to 0.096g. Water g.solid^{1}.min^{1} for the microwave output powers between 0.35 to 1.4W/g. After a short heating period, the time requirements during constant rate period varied with microwave output powers. The constant rate period was changed nearly from 1.84 to about 0.46g water g dry base^{1}, nearly from 1.84 to about 0.56, nearly from 2.22 to about 0.28, nearly from 2.48 to about 0.21g water g dry base^{1} for the microwave output powers between 0.35 to 1.4W/g. A constant rate period was followed by a falling rate period in which moisture content decreased to 0.063g water g dry base^{1} for all drying conditions. These results were in agreement with the study of parsley leaves by Soysal^{36} and spinach by Dadali et al.,^{26} dried in a domestic microwave oven who reported that after a short heating period, a long constant rate period and a falling rate period was observed.
Modeling the thin layer drying data
The moisture content data obtained at different microwave powers and air temperatures were converted to the moisture ratio and then the curvefitting procedure was performed for eleven wellknown semiempirical models in Table 1, among which Page model (Eq. 12) gave better fit for all drying data under all conditions tested with a higher R^{2}, less root mean square error (RMSE) and residual sum of square (RSS), shown in Table 2. The equation for Page model is,
$MR\left(k,\text{\hspace{0.17em}}n\right)=\text{\hspace{0.17em}}\frac{M{M}_{e}}{{M}_{o}{M}_{e}}=\text{\hspace{0.17em}}\mathrm{exp}\text{\hspace{0.17em}}\left(k{t}^{n}\right)$ (12)
Where, k and n are empirical constant, t is the temperature.
Where, k and n are empirical constant, t is the temperature.
A good agreement was found between experimental and fitted values for yellow sweet pepper under all conditions. The parameters k and n of semiempirical Page’s equation (Eq. 12) were estimated using nonlinear regression technique (Table 3) and the fitness is illustrated in Figure 1. From Table 3, the k value increases as the microwave output power increases during the drying process. Its values ranged from 0.016 to 0.102min^{1} and the model gave a better fit for all the experimental data points with R^{2} greater than 0.98. As high R^{2} and low RMSE and RSS values (<0.006) predicted for the sample, it is best suited for Page model. The best R^{2} is 0.9992 for 1.4W/g microwave power at 30°C among all drying conditions. Based on the multiple regression analysis, the temperature dependence of the coefficients (k and n) was fitted to second order polynomial equation shown in Table 4.
Moisture diffusivity and activation energy
The results have shown that internal mass transfer resistance controls the drying time due to the presence of a falling rate drying period. Therefore, the values of effective diffusivity at different drying temperatures could be obtained by using Eq. 8. The average values of effective diffusivities in the drying process varied in the range of 1.21×1078.91×108m^{2}/s. As it is expected, the values of D_{eff} increased with the increase of drying temperature. Its values reached a maximum and then decreased as drying progresses. Diffusivity was not identifiable for moisture content values below 2.07kg/kg db for all conditions of microwave power and air temperature, is due to the hypotheses which impose equilibrium moisture content at the boundary on one hand and consider the migration of humidity depends on the parameters of drying air at the beginning of the process on the other hand.^{40} However, the effective moisture diffusivities were 10^{2} to 10^{3}times more than the previous investigations for food materials which lie in range of 10^{11} to 10^{9}m^{2}/s.^{33} The reason may be due to the effect of pretreatment (osmotic dehydration) where the texture and chemical constituents of the food were altered.^{41} during rotation inside the incubatorshaker which created different channeling paths for the water molecules to migrate outward resulting greater diffusivity by subsequent microwave drying. Hence, the pretreatment helped in enhancing the diffusion coefficient by which the drying time got reduced by faster removal the moisture and thereby the final product quality could be maintained. Effect of temperature on effective diffusivity is generally described using Arrheniustype relationship (Eq. 8) to obtain better agreement of the predicted curve with experimental data. The frequency factor (D_{0}) and activation energy are shown in Table 5. The frequency factor (D_{0}) values decreased from 9.7564×10^{5} to 0.8806×10^{5}m^{2}/s while the activation energy decreased from 21.8741 to 10.7167KJ/mole with the increase in microwave power from 0.35 to 1.4W/g. The activation energy barrier must be overcome to activate moisture diffusion, and although it would be beneficial to use high temperatures so as to increase the drying rates by increasing moisture diffusion,^{42} it is advisable to dry yellow sweet pepper at optimum temperatures to maintain quality. The values of ln D_{eff} with inverse of temperatures are plotted (Figure 4), the slope of which gives the activation energy (Table 5). This activation energy is in reasonable agreement with the data presented by several other authors, for example 20.00KJ/mol for potato,^{43} 27.61KJ/mol for corn,44 28.36KJ/mol for carrot.^{25}

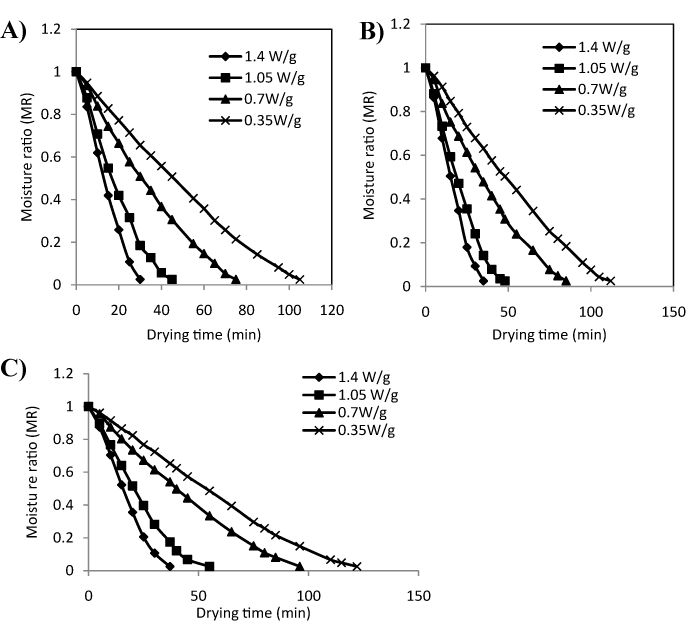

Figure 1 Effect of moisture ratio on drying time at different levels of power at air temperature of 60, 45 & 30 oC.

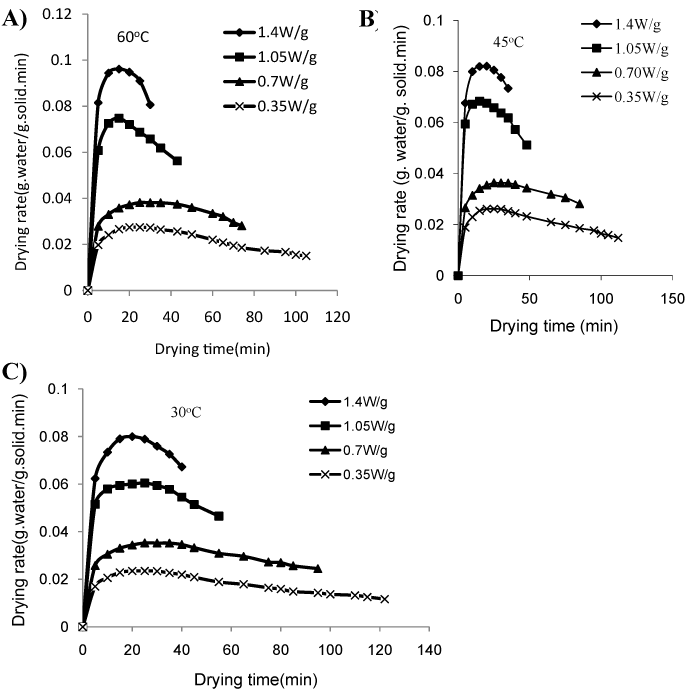

Figure 2 Effect of drying rate on drying time at different levels of power at air temperature of 60, 45 & 30 oC.

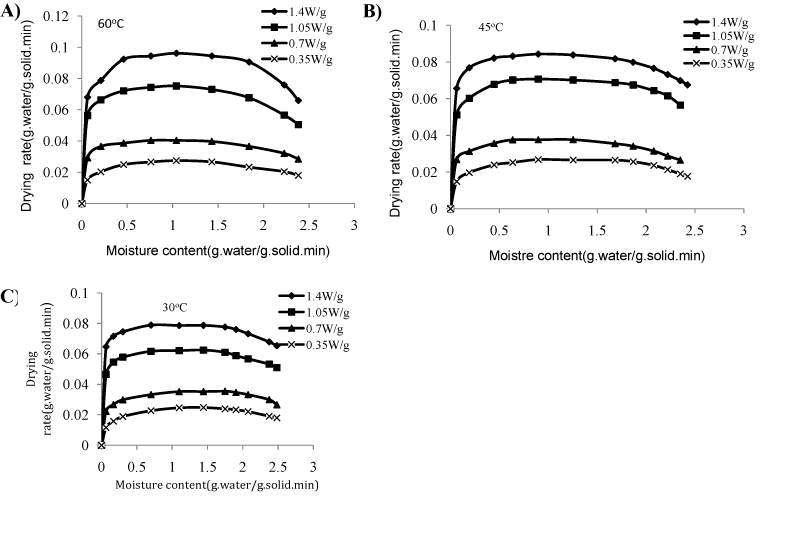

Figure 3 Effect of drying rate on moisture content at different levels of power at air temperature of 60, 45 & 30 oC.

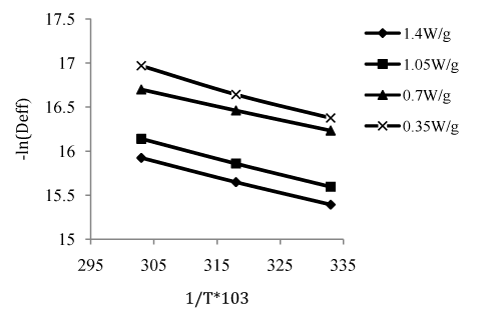

Figure 4 Arrhenius type relationship between effective moisture diffusivity and reciprocal of absolute temperature.
Model No.
Model Name
Model Equation
References
1
Newton
MR= ekt
Ayensu45
2
Page
MR =
Agrawal and Singh46
3
Modified Page
MR =
White et al.47
4
Henderson and Pabis
MR = a ekt
Akpinar et al.48
5
Logarithmic
MR = a ekt +c
Yaldiz et al.49
6
Wang and Singh
MR = 1+at+bt2
Wang and Singh50
7
Diffusion approach
MR = a ekt + (1_a) ekbt
Togrul and Pehlivan51
8
Verma
MR = a ekt + (1_a) egt
Verma et al.52
9
Twoterm exponential
MR = a ekt + (1_a) ekat
SharafElden et al.53
10
Simplified Fick’s diffusion equation
MR =
Togrul and Pehlivan51
11
Midilli–Kucuk equation
MR =
Sacilik and Elicin 54
Table 1 Thin layer drying models used
Model no.
Model name
Power, W/g
Temp,°C
R^{2}
RMSE
RSS
1
Newton’s model
1.4
60
0.9438
0.0872
0.0456
45
0.9938
0.0889
0.0553

30
0.9384
0.0896
0.0563

1.05
60
0.9596
0.0697
0.0438

45
0.9523
0.0760
0.0579

30
0.9531
0.0744
0.0554

0.70
60
0.9573
0.0673
0.0634

45
0.9634
0.0607
0.0552

30
0.9550
0.0685
0.0704

0.35
60
0.9514
0.0697
0.0875

45
0.9464
0.0747
0.1063

30
0.9424
0.0792
0.1132

2
Page’s model
1.4
60
0.9965
0.0240
0.0028
45
0.9959
0.0232
0.0032

30
0.9992
0.0169
0.0017

1.05
60
0.9974
0.0188
0.0028

45
0.9961
0.0229
0.0027

30
0.9978
0.0170
0.0026

0.70
60
0.9948
0.0244
0.0031

45
0.9945
0.0243
0.0032

30
0.9941
0.0256
0.0042

0.35
60
0.9982
0.0187
0.0140

45
0.9934
0.0269
0.0130

30
0.9945
0.0251
0.0107

3
Modified Page’s model
1.4
60
0.9438
0.0955
0.0456
45
0.9398
0.0960
0.0553

30
0.9384
0.0968
0.0563

1.05

60
0.9596
0.0740
0.0438

45
0.9523
0.0802
0.0579

30
0.9531
0.0785
0.0554

0.70

60
0.9573
0.0698
0.0634

45
0.9608
0.0828
0.0552

30
0.9550
0.0709
0.0704

0.35
60
0.9514
0.1717
0.0875

45
0.9464
0.0768
0.1060

30
0.9424
0.0815
0.1132

4
Handerson and Pabis
1.4

60
0.9530
0.0874
0.0382
45
0.9510
0.0866
0.0450

30
0.9508
0.0865
0.0449

1.05

60
0.9689
0.0649
0.0337

45
0.9627
0.0709
0.0452

30
0.9647
0.0681
0.0418

0.70

60
0.9690
0.0595
0.0460

45
0.9734
0.0536
0.0402

30
0.9677
0.0600
0.0505

0.35

60
0.9639
0.0619
0.0651

45
0.9625
0.0642
0.0743

30
0.9597
0.0682
0.0792

5

Logarithmic

1.4

60
0.9963
0.0258
0.0030
45
0.9945
0.0317
0.0050

30
0.9901
0.0380
0.0072

1.05

60
0.9960
0.0247
0.0042

45
0.9960
0.0245
0.0048

30
0.9929
0.0323
0.0083

0.70

60
0.9963
0.0090
0.0011

45
0.9989
0.0114
0.0076

30
0.9890
0.0111
0.0096

0.35

60
0.9992
0.0093
0.0214

45
0.9891
0.0293
0.0317

30
0.9878
0.0365
0.0243

6
Wang and Singh
1.4

60
0.9960
0.0254
0.0032
45
0.9941
0.0301
0.0054

30
0.9912
0.0365
0.0080

1.05

60
0.9966
0.0215
0.0037

45
0.9966
0.0215
0.0041

30
0.9938
0.0284
0.0072

0.70

60
0.9991
0.0100
0.0013

45
0.9989
0.0107
0.0016

30
0.9989
0.0113
0.0017

0.35

60
0.9993
0.0088
0.0013

45
0.9987
0.0118
0.0025

30
0.9971
0.0181
0.0056

7
Diffusion approach
1.4

60
0.9925
0.0391
0.0061
45
0.9398
0.1052
0.0553

30
0.9386
0.1060
0.0561

1.05

60
0.9951
0.0275
0.0052

45
0.9952
0.0268
0.0057

30
0.9915
0.0354
0.0100

0.70

60
0.9574
0.0726
0.0633

45
0.9634
0.0652
0.0552

30
0.9550
0.0736
0.0704

0.35

60
0.9514
0.0739
0.0875

45
0.9464
0.0790
0.1063

30
0.6402
0.0804
0.1123

8
Verma
1.4

60
0.9926
0.0388
0.0060
45
0.9780
0.0635
0.0201

30
0.9792
0.0616
0.0190

1.05

60
0.9859
0.0467
0.0153

45
0.9792
0.0561
0.0252

30
0.9894
0.0354
0.0100

0.70

60
0.9783
0.0517
0.0231

45
0.9805
0.0476
0.0294

30
0.9921
0.0308
0.0123

0.35

60
0.9702
0.0579
0.0536

45
0.9702
0.0589
0.0591

30
0.9968
0.0197
0.0062

9
Twoterm exponential
1.4

60
0.9437
0.0956
0.0457
45
0.9397
0.0960
0.0553

30
0.9281
0.0969
0.0563

1.05

60
0.9595
0.0740
0.0438

45
0.9525
0.0802
0.0579

30
0.9531
0.0785
0.0555

0.70

60
0.9914
0.0313
0.0127

45
0.9919
0.0295
0.0122

30
0.9906
0.0324
0.0147

0.35

60
0.9880
0.0356
0.0215

45
0.9887
0.0352
0.0223

30
0.9891
0.0355
0.0214

10

Simplified Fick’s diffusion equation
1.4

60
0.9525
0.0977
0.0382
45
0.9510
0.0948
0.0450

30
0.9508
0.0948
0.0449

1.05

60
0.9689
0.0693
0.0337

45
0.9627
0.0752
0.0452

30
0.9647
0.0723
0.0418

0.70

60
0.9522
0.0769
0.0709

45
0.9552
0.0722
0.0678

30
0.9677
0.0623
0.0506

0.35

60
0.9573
0.0693
0.0770

45
0.9453
0.0755
0.0970

30
0.9505
0.0779
0.0972

11
Midilli–Kucuk equation
1.4

60
0.9998
0.0068
0.0001
45
0.9958
0.0140
0.0007

30
0.9996
0.0095
0.0003

1.05

60
0.9992
0.0117
0.0008

45
0.1548
0.3830
1.0270

30
0.1217
0.3853
1.0390

0.70

60
0.3138
0.3044
1.0190

45
0.3186
0.2931
1.0310

30
0.3489
0.2912
1.0180

0.35

60
0.4369
0.2602
1.0150

45
0.4874
0.2521
1.0170

30
0.4817
0.2606
1.0190
Table 2 Results of statistical analyses on the modeling of yellow sweet pepper
Power(W/g)
Temp,°C
k
n
R2
1.4
60
0.0102
1.659
0.9963
45
0.0082
1.649
0.9945

30
0.0072
1.671
0.9992

1.05
60
0.0113
1.460
0.9963
45
0.0082
1.529
0.9961

30
0.0070
1.529
0.9929

0.70
60
0.0052
1.440
0.9963
45
0.0056
1.388
0.9989

30
0.0036
1.440
0.9891

0.35
60
0.0028
1.455
0.9982
45
0.0022
1.493
0.9891

30
0.0016
1.536
0.9878
Table 3 Parameters of page’s model
Power (W/g)

1.4
k = 0.011181.457x10^{4}T+4.286107T^{2}
1.05
k = 0.013252.84 x10^{4}T+6.683 x107T^{2}
0.70
k= 0.00233+4.555 x10^{5}T 1.109 x107T^{2}
0.35
K = 0.0027314.416 x10^{5}T+1.251 x105T^{2}
Table 4 Second order polynomial fittings of page’s model coefficients
Power(W/g)
Do(x10^{5}) m^{2}/s
E_{a}(KJ/mole)
1.4
0.8806
10.7167
1.05
1.670
12.5541
0.7
8.4479
18.7896
0.35
9.7564
21.8741
Table 5 Calculated values of diffusion coefficient and activation energy
In order to explain the drying behaviour during microwave assisted convective drying of yellow sweet pepper, 11 different thin layer drying models were compared according to their R^{2}, RMSE and RSS. The relationships between the model parameters and the drying conditions for the computation of the moisture ratio in relation to drying time were determined and reported. According to the results of thin layer microwave drying of yellow sweet pepper, Page model could be used to predict the moisture content of the product at any time of drying process with high ability between drying air temperatures of 30 and 60°C at constant air velocity of 1.5m/s. The drying rate increased remarkably with the power output and temperature of the microwaveconvective dryer where drying takes place in the falling rate period. The coefficients of this model and the apparent diffusion coefficient are the most important parameters in the moisture transfer, and they were found to be dependent on the temperature of the drying air. D_{eff} decreased from 1.21x10^{7} to 8.91x10^{8}m^{2}/s with decrease of drying temperature from 60 to 35°C which is 10^{2} to10^{3} times more than the previous investigations for food materials (range of 1011 to 109m^{2}/s) can be better explained by the effect of pretreatment (osmotic dehydration) where the texture and chemical constituents of the food were altered during rotation inside the incubatorshaker which created different channeling paths for the water molecules to migrate outward resulting greater diffusivity by subsequent microwave drying. Hence, the pretreatment helped in enhancing the diffusion coefficient by which the drying time got reduced by faster removal the moisture and thereby the final product quality could be maintained. These mathematical models can be used for online quality prediction at any time having much more practical significance and can be recommended to food industry for process design. Therefore the above research findings would be very useful for drying of yellow sweet peppers which have special nutraceutical and pharmaceutical potential. However, quality of end product using this drying system needs to be studied
None.
Author declares that there is no conflict of interest.
©2014 Swain, et al. This is an open access article distributed under the terms of the, which permits unrestricted use, distribution, and build upon your work noncommercially.
