The study was focused toward synthesis, characterization and quantification of 3-Ethyl-indole impurity in Zolmitriptan formulations by Reverse Phase High Performance Liquid Chromatography method. The synthesis of a process related impurity of Zolmitriptan was successfully carried out by Fischer indole procedure. The impurity was purified by column chromatography. Characterization was done by I.R,¹H-NMR,¹³C-NMR and GC-MS. Based on the spectral data, the structure of impurity was characterized as 3-Ethyl-indole. An efficient isocratic RP-HPLC was developed and validated according to ICH guidelines with respect to specificity, accuracy, linearity and precision. The validated HPLC method was used for detection and quantitation of 3-Ethyl-indole, a process related impurity of Zolmitriptan, from Zolmitriptan tablet formulations. The above method was found to be specific, accurate, precise, rugged and robust and can be used for routine analysis.

Keywords: zolmitriptan, fischer indole, column chromatography, iisocratic, rugged, robust, specificity, accuracy, linearity, precision

NMR, nuclear magnetic resonance; HPLC, high performance liquid chromatography; RP-HPLC, reverse phase high performance liquid chromatography; HPTLC, high performance thin liquid chromatography; TLC, thin liquid chromatography; API’s, active pharmaceutical ingredient’s; LOD, limit of detection; LOQ, limit of quantitation; FTIR, fourier transform infra red spectroscopy

In Pharmaceutical World, an impurity is considered as any other organic materials, besides the drug substances, or ingredients, arises out of synthesis or unwanted chemicals that remains with Active Pharmaceutical Ingredient’s (API’s). The impurity may be developed either during formulation or upon aging of both API’s and formulations. Presence of impurities in trace quantity in drug substance or drug product is inevitable. Therefore, their level should be controlled and monitored. They reinforce or diminish the pharmacological efficacy of the Active Pharmaceutical Ingredient’s.¹

ICH defines impurities profile of a drug materials is “A description of the identified and unidentified impurities, present in a new drug substance.” For Pharmaceutical products, impurities are defined as “substance in the product that are not the API itself or the excipient used to manufacture it ” i.e. impurities are unwanted chemical that remains within the formulation or API in small amounts which can influence Quality, Safety and Efficacy, thereby causing serious health hazards.²

Qualification of the impurities is the process of acquiring and evaluating data that establishes biological safety of an individual impurity; thus, revealing the need and scope of impurity profiling of drugs in pharmaceutical research. Identification of impurities is done by a variety of Chromatographic and Spectroscopic techniques, either alone or in combination with other techniques.^3‒5 There are different methods for detecting and characterizing impurities with TLC, HPTLC, and HPLC etc. Conventional Liquid Chromatography, particularly, HPLC has been exploited widely in field of impurity profiling; the wide range of detectors, and stationary phases along with its sensitivity and cost effective separation have attributed to its varied applications. Various regulatory authorities like ICH, USFDA, Canadian Drug and Health Agency are emphasizing on the purity requirements and the identification of impurities in Active Pharmaceutical Ingredient’s (API’s).^6‒8 According to ICH guidelines on impurities in new drug products, identification of impurities below the 0.1% level is not considered to be necessary, unless potential impurities are expected to be unusually potent or toxic. According to ICH, the maximum daily dose qualification threshold is considered as follows; ≤ 2g/day 0.1% or 1 mg per day intake (whichever is lower) ≥ 2g/day 0.05%.^9‒12

Materials reagents and chemicals

Butanaldehyde, silica gel, hydrochloric acid etc. were purchased from Merck Chemicals Pvt. Ltd. Nasik, MS, India are of AR grade. Methanol, benzene of AR grade and the acetonitrile, methanol and water of HPLC grade were purchased from Merck Chemicals Pvt. Ltd. Nasik, MS, India. The Zolmitriptan tablet formulations of different batches were purchased from local market of Kopargaon.

 Melting points were determined by open capillary method and are uncorrected. The NMR spectra were recorded on sophisticated multinuclear FT-NMR Spectrometer model Advance-II (Bruker) using dimethylsulfoxide-d6 as solvent and tetramethylsilane as internal standard for¹H and¹³C NMR. IR spectra were recorded on Shimadzu FTIR-8400S spectrophotometer using KBr disc method.

Chromatographic conditions

The quantitation of indole from formulation was carried out by HPLC method. The LC20AD Prominence Liquid Chromatography SPD20-A Shimadzu, Japan with UV-Vis detector and C18 column with dimension on 25 x 0.6cm was used for the method development with flow rate 1.0ml/min at wavelength 236nm. The methanol: acetonitrile: water in proportion of (35v:38v:27v) as a mobile phase, for development of chromatogram. The method was validation for synthesized compound and various parameters according to ICH guidelines (Q2B) were studied.

General method for 3-ethyl-indole synthesis

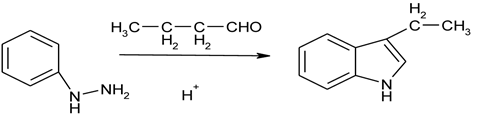

Synthesis was started by Fischer indole synthesis using phenyl hydrazine with appropriate aldehyde and hydrochloric acid was refluxed in presence of methanol for 2hrs and then filtered to offer indole derivative.¹³

Figure 9 TLC of Synthesized compound.

Preparation of standard solution

100ppm (100µg/ml) of standard solution of synthesized compound was prepared by dissolving in methanol. 10mg of standard synthesized compound was dissolved in methanol up to 100ml. From this stock, 1ml of solution was pipette out and diluted by the solvent up to 10ml to prepare 10ppm (10µg/ml) of solution

Preparation of test solution

Test solution of formulation with different concentration from 1ppm to 10ppm was prepared using same solvent. Validation parameters were carried out for impurity by calculating range, linearity, accuracy, precision, ruggedness, robustness, LOD and LOQ as per ICH guidelines.

Analytical method validation

A suitable analytical method was developed and validated for identification. New drug development requires meaningful and reliable analytical data to be produced at various stages of development.

Preparation of mobile phase

The selection of mobile phase was according to polarity and non-polarity of solvents. The methanol: acetonitrile: water was selected as mobile phase in ratio of 35:38:27 and was filtered on membrane filter (0.45μ) to remove degassing and were stirred for 10-15min.

Preparation of stock solution standard

The stock solution was prepared according to the standard procedure viz., 10mg of synthesized compound was accurately weighed on analytical balance and using mobile phase it was dissolved to make volume up to 100 ml stock solution. The sample was prepared in the ppm in the range of 1-6ppm in concentrations respectively for the method validation by HPLC.

Preparation of sample solution (formulation)

Stock solutions of 2 different batches of Zolmitriptan marketed formulation of 100ppm in 100ml volumetric flask were prepared. For the tablet formulation 20tablets from each 2tablet batch were crushed respectively. The powder of this formulation equivalent to 10mg of the drug was used to prepare the stock solution. Further dilute to 1ppm, 2ppm, and so on, were prepared by taking 0.1ml, 0.2ml and so on of standard test solution and diluting it to 10ml. Validation experiment was performed to demonstrate system suitability, linearity, precision, accuracy study, ruggedness and robustness as per ICH guidelines.

Physicochemical properties

Thin layer chromatography

The sample preparation was done by dissolving solute in Methanol.

The Mobile phase Benzene: Methanol (6:1 v/v) R_f value- 0.80 (Figure 1).

$R_f=\frac{3.8}{4.7}-R_f=0.80$

Figure 1 TLC of Synthesized compound.

Characterization of synthesized compound

The synthesized compound was characterized by using Advance Analytical Techniques such as UV

spectra, I.R spectra,¹H-NMR,¹³C-NMR and GC-MS. Following are the recorded spectra.

UV- Spectra

The λ_max of 3-ethyl-indole in methanol as solvent was found at 236nm. Since the compound substitute benzene chromophore, λ_max confirms the structure (Figure 2).

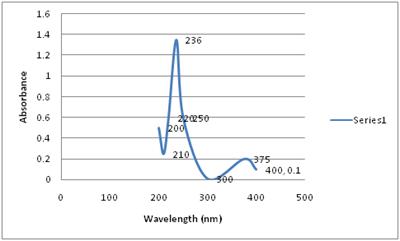

Figure 2 UV spectra of synthesized compound.

Spectral data: The major functional group are primary amine, nitro, and carbonyl group obtained peak in IR spectra are as follows.

IR (KBr) cm^-1

3341 (NH- stretching), 2850 (aliphatic –CH stretching), 2921, 2853 (aromatic C-H stretching), 1368 (C-H bending), 1297 (CH₃ bending), 744,750,766 (benzene ring bending). The spectral data confirm the structure of compound.

NMR- Spectra

¹H NMR: For recording the¹H NMR spectra of 3-ethyl-indole, the synthesized compound was dissolved in Deuteriated Dimethyl Sulphoxide and the spectrum was recorded (Table 2).

GC-MS

The Q-TOF Micro mass (YA-105) spectrometer capable of recording High Resolution Spectrum (HRMS) both in Atomic Pressure Chemical Ionization (APCI) and Electron Spray Ionization (ESR) were used for quantitation of synthesized impurities. The m/e ratio was calculated for synthesized compound. m/e for the synthesized compound was found at 145 confirms the mass of the synthesized impurity.

UV method validation of impurity

UV Method was developed for synthesized compound was carried out as per ICH (Q2B) guidelines.

Range: The range was found to be 1-18µg/ml.

Linearity: Calibration curve data was constructed in the range of 1 to 18µg/ml. Beer’s law was observed over this concentration range. The correlation coefficient (R2) was found to be 0.995. The regression equation Y= 0.054x+ 0.009 was found to be linear (Table 3 & Figure 4).

Figure 3 IR spectra of impurity 3-ethyl-indole.

Figure 4 Graph of Linearity of synthesized compound by UV.

Precision (Table 4).

Intraday precision (Table 5).

Interday precision: (Table 6).

Robustness (Table 7).

Ruggedness (Table 8 & 9).

Accuracy: The accuracy with

 known concentration of synthesized compound in formulation was determined. The recovery assessment was performed by the analysis of Zolmitriptan formulation spiked with known amount of impurity at three concentration level in triplicate of 50%. 100%, 150% and was found to be accurate as shown in above Table 10 & 11.

Limit of detection:

$LOD=\frac{3.3\times Standarddeviation}{Slope}$

$LOD=\frac{3.3\times 0.002819}{0.054}$

$LOD=0.1722$

Limit of quantitation:

$LOQ=\frac{10\times Standarddeviation}{Slope}$

$LOQ=\frac{10\times 0.002819}{0.054}$

$LOQ=0.5220$

The LOD and LOQ were found to be 172.2ng and 522.0ng respectively, which indicate the sensitivity of method (Table 12).

HPLC method validation

The ICH Q2B guidelines discuss the analytical method validation on HPLC. Currently the vast majority of process-related impurity determinations are performed by HPLC. It offered the desired sensitivity for trace level determinations with a high degree of automation. A wide variety of stationary phases and operation modes make HPLC applicable to all drug classes. The typical detection limits for process-related impurities by HPLC are 0.1% or lower and this can be routinely met in the majority of circumstances using conventional UV detectors. These methods involved the prediction of likely impurities within the synthetic process, their isolation and identification by suitable analytical techniques. The last step of the present study was to develop, validated HPLC method for detection and quantification of 3-ethyl-indole impurity in tablet formulations.

HPLC chromatograph of zolmitriptan (Figure 5 & Table 13).

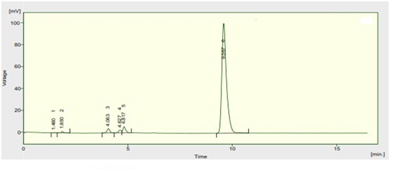

Figure 5 HPLC Chromatogram of Zolmitriptan.

HPLC chromatogram of synthesized compound (Figure 6& Table 14).

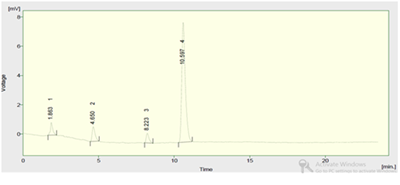

Figure 6 HPLC chromatogram of synthesized compound.
The retention time of impurity was 10.5 min and it shows a single peak which indicates purity of compound.

HPLC chromatogram of tablet (Figure 7 & Table 15).

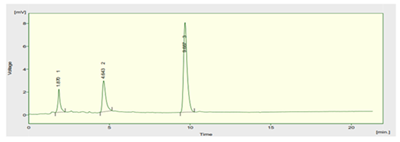

Figure 7 HPLC Chromatogram of Zolmitriptan Tablet.
The retention time of Zolmitriptan tablet was found at 9.6min.

Optimized chromatographic condition (Table 16).

Linearity (Figure 8 & Table 17).

Figure 8 Graph of linearity of synthesized compound by HPLC.
The linearity of the proposed method was estimated by regression analysis at six concentration levels in the range of 1-6µg/ml for intermediate. The correlation coefficient (R2) was found to be 0.999 and intercept Y= 99.34x+19.42 was linear.

Precision: The precision of the intermediate was quantified for repeated concentration of 4µg/ml in range and was reliable with their area of chromatogram as shown in above table. The Standard deviation (SD) and Relative standard deviation (RSD) was found to be 1.331 and 0.317 respectively (Table 18).

Intraday precision after 4hours (Table 19).

Interday precision after 24hours (Table 20).

Robustness (Table 21).

Ruggedness (Table 22 & 23).

Accuracy

Accuracy study was performed by the recovery method. The results demonstrate that the percentage recovery in tablet due to the presence of impurity in the tablet. Percentage recovery was found to be more at higher concentration level a compare to lower concentration level (Table 24).

Limit of detection:

$LOD=\frac{3.3\times Standarddeviation}{Slope}$

$LOD=\frac{3.3\times 1.3313}{98.44}$

$LOD=0.4462$

Limit of quantitation:

$LOQ=\frac{10\times Standarddeviation}{Slope}$

$LOQ=\frac{10\times 1.3313}{98.44}$

$LOQ=0.1352$

The LOD by HPLC was 446.2ng and that of LOQ 135.2ng the method is more sensitive and selective.

System suitability parameters

To verify that analytical system is working properly and can give accurate and precise results the system suitability parameters are to be set and it was found to be in stated range (Table 25).

To verify that analytical system is working properly and can give accurate and precise results the system suitability parameters are to be set and it was found to be in stated range.

Summary of method validation parameters of HPLC (Table 26).

Summary of retention time and asymmetry (Table 27).

Quantitation of synthesized compound

Impurity was not found in bulk and in tablet I & II it was found to be 0.28%.and 0.33% respectively. As per the ICH limit the amount of impurity is more than 0.1% indicates that the impurity found in tablet formulations is potential impurity (Table 28).
