Comparative study of various gates based in different technologies

Sanobar Chouhan,¹ Saurabh Chaudhary,¹ Tarun Upadhay,¹ Ajay Rupani,¹ Pawan Whig²

Verify Captcha

Regret for the inconvenience: we are taking measures to prevent fraudulent form submissions by extractors and page crawlers. Please type the correct Captcha word to see email ID.

¹Jodhpur Institute of Engineering and Technology, India
²Vivekananda Institute of Professional Studies, India

Correspondence: Pawan Whig, Vivekananda Institute of Professional Studies, India

Received: July 22, 2017 | Published: September 22, 2017

Citation: Chouhan S, Chaudhary S, Upadhay T, et al. Comparative study of various gates based in different technologies. Int Rob Auto J. 2017;3(1):262-269. DOI: 10.15406/iratj.2017.03.00046

Download PDF

Abstract

This paper provides the comparative study among various fabrication technologies for the same logical circuits based on NAND gate. The tool used for this analysis is Tanner which is an EDA tool and used for full custom designing of electronic circuits. The NAND gate is formed by CMOS only. The different technologies give varied output parameters with given input parameters. Hence, the main utilization of this study is to opt best suited technology for particular output parameter ranges for specified input parameter ranges for different applications based on logical gates. The conventional device generally used, consumes high power and is not stable with frequency variations. Therefore, a comparative analysis using different technologies is proposed, which has been useful for designing optimal conventional logics. The study is based on simulation of power consumption, noise analysis and frequency compensation technique of different gates.

Keywords: logical circuits, fabrication, tanner, CMOS

Introduction

The logic gates are electronic devices which produces logical output on basis of given one or more input.^1,2 Application of logic gates includes from small decision making devices, big calculating devices to huge super computers.^3,4 There are many logic gates to implement various Boolean logics among which two gates are considered universal. Charles Sanders Peirce showed in his work that designing of all basic logical gates is possible by using universal logical gates i.e. NAND & NOR.^5–7 But it was first published by Henry M Sheffer.⁸Here, we used NAND to study the change in output with different designing technologies. The used tool tanner is characterized by its five windows via S–edit, T–spice, W–edit, L–edit, and LVS. Using these one can analyse the circuit transients and can do AC and DC analyses. Now the questions arise are:

Why NAND only NOT NOR?
What are these different Technologies for designing?
Why these Technologies are defined by Length of Transistors?

The practical aspects of designing are sufficient for answering the above question and satisfactorily explain the consideration of NAND gate. These are explained as:

NAND only NOT NOR

Delay time in NAND gate is less than NOR gate: Series connection of PMOS increases the resistance of the circuit and hence delay time is more than NMOS.
Area required for NAND structure is less than NOR layout. The reason this is to get equivalent channel length for current modulation is more in NOR than NAND because the mobility of holes is approximately three times less than mobility of electrons.
There is less gate leakage current in NAND structure.

Size of transistors used for manufacturing is same for PMOS and NMOS in case of NAND gate whereas in NOR gate.

Different technologies and why are defined by length of transistor

The different technologies are predefined manufacturing parameters of electronics elements used for simulation and designing of circuits. In case of transistors they are defined by length of transistors.^9–11 Transistor length is used to define technologies instead of width of it because current modulation is characterized by channel length.^11–14

Logic gates

NAND gate: This is a NOT–AND gate which is equal to an AND gate followed by a NOT gate. The outputs of all NAND gates are high if any of the inputs are low. The symbol is an AND gate with a small circle on the output. The small circle represents inversion (Figure 1).

Figure 1 NAND gate circuit with its input- output waveforms.

NOT gate: The NOT gate is an electronic circuit that produces an inverted version of the input at its output. It is also known as an inverter. If the input variable is A, the inverted output is known as NOT A. This is also shown as A', or A with a bar over the top, as shown at the outputs. The diagrams below show two ways that the NAND logic gate can be configured to produce a NOT gate. It can also be done using NOR logic gates in the same way (Figure 2).

Figure 2 NOT gate circuit with its input- output waveforms.

AND gate: The AND gate is an electronic circuit that gives a high output (1) only if all its inputs are high. A dot (.) is used to show the AND operation i.e. A.B. Bear in mind that this dot is sometimes omitted i.e. AB (Figure 3).

Figure 3 AND gate circuit with its input- output waveforms.

OR gate: The OR gate is an electronic circuit that gives a high output (1) if one or more of its inputs are high. A plus (+) is used to show the OR operation (Figure 4).

Figure 4 OR gate circuit with its input- output waveforms.

NOR gate: When OR gate is followed by NOT gate then NOR gate is formed. The outputs of all NOR gates are low if any of the inputs are high. The symbol is an OR gate with a small circle on the output. The small circle represents inversion (Figure 5).

Figure 5 NOR gate circuit with its input- output waveforms.

Results after simulation of all circuits

Simulation of all above circuits designed in S–edit is done and various parameters like power consumption, input–output noise voltages and delay time etc. are obtained using T–spice and are summarized in the following Table (1–5).

Power Comparison Of Gates Using Different Data Files
		Data files(in nm)
Gates	Power(in watts)	90	180	250
AND	Maximum power	6.68E-03	1.11E-02	7.70.E-03
	Average power	1.22E-04	1.03E-04	1.01E-04
	Minimum power	7.06E-10	1.39E-04	1.32E-10
OR	Maximum power	9.17E-03	1.26E-02	8.84E-03
	Average power	1.51E-04	1.28E-04	1.21E-04
	Minimum power	1.12E-09	1.79E-10	1.60E-10
NAND	Maximum power	4.93E-03	7.74E-03	5.63E-03
	Average power	7.05E-05	7.30E-05	6.46E-05
	Minimum power	4.42E-12	1.41E-12	2.79E-11
NOT	Maximum power	4.93E-03	7.74E-03	5.63E-03
	Average power	7.05E-05	7.30E-05	6.46E-05
	Minimum power	4.42E-12	1.41E-12	2.79E-11
NOR	Maximum power	1.08E-02	1.57E-02	1.05E-02
	Average power	1.28E-04	1.17E-04	1.06E-04
	Minimum power	2.19E-10	2.12E-10	1.21E-10

Table 1 Power Comparison

Noise Voltage Comparision
		Data Files(in nm)
Gates	Measurement	90	180	250
AND	Input noise	24.38220u V	25.83463u V	27.02869u V
AND	Output noise	221.65349K V	12.28445X V	12.81874X V
OR	Input noise	24.38223u V	25.83465u V	27.02872u V
OR	Output noise	338.17777K V	16.55291X V	15.38984X V
NAND	Input noise	27.57381u V	21.13712u V	26.50244u V
NAND	Output noise	820.03865m V	12.98139 V	12.33618 V
NOR	Input noise	27.57375u V	21.13710u V	26.50240u V
NOR	Output noise	136.80313G V	174.22433T V	189.89311T V
NOT	Input noise	27.57381u V	21.13712u V	26.50244u V
NOT	Output noise	321.79163m V	2.24458 V	2.55462 V

Table 2 Noise Voltage Comparison

Rise Time Measurements
		Data Files(in nm)
Gates	Measurement	90	180	250
AND	Rise time	2.56E-09	1.34E-09	2.07E-09
	Trigger	2.09E-09	2.24E-09	2.25E-09
	Target	4.64.E-09	3.58.E-09	4.32E-09
OR	Rise time	2.57E-09	1.36E-09	2.08E-09
	Trigger	2.00E-09	2.19E-09	2.22E-09
	Target	4.56E-09	3.54E-09	4.30E-09
NAND	Rise time	3.10E-09	2.36E-09	3.09E-09
	Trigger	1.04E-07	1.03E-07	1.03E-07
	Target	1.07E-07	1.05E-07	1.06E-07
NOT	Rise time	3.10E-09	2.36E-09	3.09E-09
	Trigger	1.04E-07	1.03E-07	1.03E-07
	Target	1.07E-07	1.05E-07	1.06E-07
NOR	Rise time	2.70E-09	1.39E-09	2.39E-09
	Trigger	1.04E-07	1.03E-07	1.04E-07
	Target	1.07E-07	1.05E-07	1.06E-07

Table 3 Rise Time Measurements Table

Fall Time Measurements
		Data Files(in nm)
Gates	Measurements	90	180	250
AND	Fall time	2.34E-09	2.83E-09	3.17E-09
	Trigger	1.03E-07	1.03E-07	1.03E-07
	Target	1.05E-07	1.05E-07	1.06E-07
OR	Fall time	2.45E-09	2.81E-09	3.16E-09
	Trigger	1.03E-07	1.03E-07	1.03E-07
	Target	1.05E-07	1.05E-07	1.06E-07
NAND	Fall time	2.37E-09	2.61E-09	2.87E-09
	Trigger	1.80E-09	2.02E-09	2.06E-09
	Target	4.16E-09	4.63E-09	4.93E-09
NOT	Fall time	2.37E-09	2.61E-09	2.87E-09
	Trigger	1.80E-09	2.02E-09	2.06E-09
	Target	4.16E-09	4.63E-09	4.93E-09
NOR	Fall time	1.74E-09	2.08E-09	2.40E-09
	Trigger	2.02E-09	2.31E-09	2.31E-09
	Target	3.76E-09	4.40E-09	4.71E-09

Table 4 Fall Time Measurements

Ac Gain Measurements
	Data Files(in nm)
Gates	90	180	250
AND	-9.43E+01	-9.93E+01	-9.81E+01
OR	-9.43E+01	-9.93E+01	-9.81E+01
NOT	-4.70.E+01	-5.25E+01	-5.08E+01
NOR	-1.41E+02	-1.51E+02	-1.48E+02
NAND	-4.70E+01	-5.25E+01	-5.08E+01

Table 5 AC Gain Measurements

Graphical representation of results

The results represented in form of pie–charts are as follows for better visualization (Figure 6–17).

Figure 6 Pie Chart of Power Comparison of different gates using 90nm design file.

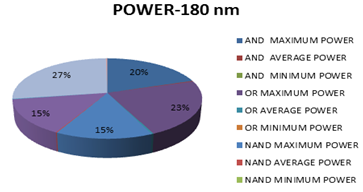

Figure 7 Pie Chart of Power Comparison of different gates using 180nm design file.

Figure 8 Pie Chart of Power Comparison of different gates using 250nm design file.

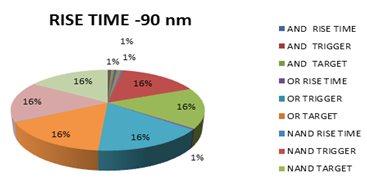

Figure 9 Rise Time Comparison of different gates using 90nm design file.

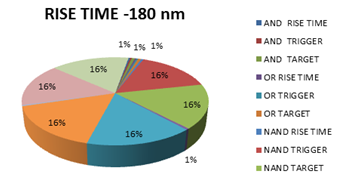

Figure 10 Rise Time Comparison of different gates using 180nm design file.

Figure 11 Rise Time Comparison of different gates using 250nm design file.

Figure 12 Fall Time Comparison of different gates using 90nm design file.

Figure 13 Fall Time Comparison of different gates using 180nm design file.

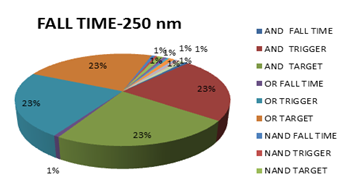

Figure 14 Fall Time Comparison of different gates using 250nm design file.

Figure 15 AC Gain Comparison of different gates using 90nm design file.

Figure 16 AC Gain Comparison of different gates using 180nm design file.

Figure 17 AC Gain Comparison of different gates using 250nm design file.

Conclusion

The result of above study can be concluded as following points:

It is known that decreasing the size of transistor the average power consumption increases with increment in minimum power and decrement in maximum power but the maximum power is highest and minimum power is minimum in 180nm.
The input noise in 180nm is minimum and output noise is decreasing with size thus if output noise can be improved by some means then 180nm technology will be the best technology among these three in terms of noise parameters.
180nm has highest gain among three technology considered.
The fall time is decreasing with decrement in size with least rise time in 180nm technology thus total transit time of 180nm is minimum than other two.

Future work

This study may be extended for further improvements in terms of power and size, besides the wiring and layout characteristics level.
