Natural disasters in the last few decades have killed several million people besides having caused financial losses and social impacts. Also, the accelerated urbanization process in recent decades worldwide has led to the cities growth, often in inappropriate areas for occupation, increasing danger and risk situations related to natural disasters. Our work identified mass movements in an urban expansion area in the Poços de Caldas municipality and evaluated the characteristics of different physical environment units and their interaction with this type of building work. Three areas with potential risks to mass movements were identified: the area that includes points P1, P2, P3 and P4, which is dangerous for the construction of residences, automobiles and passers-by; other that includes points P5, P6 and P7, in which much of its area should be of permanent preservation and could not be occupied; and the area that includes Point P8 (constructed landfill), which presents heterogeneous materials, a slope and a large number of voids in the soil that can lead to the lost of load and lift capacity, therefore to serious accidents. For the three areas, it is recommended to conduct in-depth studies that include mass movements risk areas survey and the formulation of guidelines for measures and restrain works, in order to prevent instability processes aimed at future safe engineering works. Thus, it is suggested that the municipality review the Master Plan and its areas of urban expansion, allowing the implementation of preventive measures, which reduces the possibility of potential economic losses and human lives. In addition, it is suggested the creation of a monitoring plan to coexist with situations of mass movements risk, at relatively safe levels for the population that will occupy this area of urban expansion, located in Poços de Caldas, State of Minas Gerais, Brazil.

Keywords: natural disasters, surface dynamics, geotechnical profiles, soil, landfill, environmental planning, environmental management

Natural disasters in the last few decades have killed several million people, with an annual global loss of about 150,000 people. Financial losses resulting from natural disasters already exceed $50 billion a year and do not include social impacts such as job loss, mental anguish and reduced productivity.¹ In addition to the intensity of natural phenomena, the accelerated urbanization process in recent decades worldwide, including Brazil, has led to the cities growth, often in inappropriate areas for occupation, increasing danger and risk situations related to natural disasters.² In Brazil, 493 natural disasters were officially reported, causing 183 deaths and affecting 18.5 million people.³ The main phenomena related to natural disasters in Brazil are derived from the Earth’s external dynamics, such as floods and spates, landslides and / or rockslides and storms. These phenomena usually occur associated with intense and prolonged rainfall events in the rainfall periods which corresponds to summer in the south and southeast regions and winter in the northeast region.⁴ The present work aims the identification of mass movements in an urban expansion area in the Poços de Caldas municipality (Minas Gerais State), by evaluating the characteristics of the different physical environment units and their interaction with this type of building work. This analysis can be used as an important instrument for environmental planning and management in urban expansion areas.

Fieldworks were carried out in order to recognize the study area, make a photographic survey, take coordinates and describe the relations with the original rocks and the genesis of the superficial soil, along with the identification of the superficial dynamics processes existence and/or potentiality of the existence in the urban expansion area. Afterwards, a description of the relation between the original rock and the genesis of the superficial soil (saprolite, lateritic, etc.) was carried out, identifying the existence and / or potentiality of the existence of surface dynamics processes in the study area. The vegetation, anthropic interferences and geotechnical indicators were observed according to Tables 1 & Table 2, which present all the documentation of susceptibility to the surface dynamics processes of the analyzed section.

The study area is located in the municipality of Poços de Caldas, Minas Gerais State, Brazil (Figure 1). The Europe Avenue is an important connecting route between the affluent neighborhoods of the city and was designed to meet the need of trade that residential neighborhoods need. Currently, the area has wide sidewalks, few trees, a river, some allotments and a kindergarten school, located on an artificial landfill, built to house local businesses. The urban expansion area geomorphological context comprises hills reliefs with rounded tops, showing well-developed alteration profiles. The predominant lithology is tinguaite alkaline rock and occurs in the study area within grayish outcrops, with amygdales and venules in some samples. This lithology gradesto a soil of gray-purple coloration and limonitized spots of orange color.

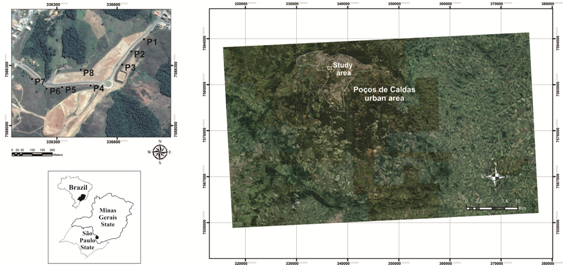

Figure 1 Location of the sampling points where the identification of mass movements was made, within the urban area and study area in Poços de Caldas, Minas Gerais, and Brazil.

Point P1 located at coordinates 21°48.05'S and 46°34,809'W at an altitude of 1339m corresponds to geological areas where the tinguaitessubstrate are highly weathered. Regarding the surface processes, it is possible to notice the existence of blocks fall, probably originated by faults that have horizontal and sub horizontal structures to the reference plane, besides being located in a water divider and therefore a strongly drained place. The relief has a convex slope and the soil profile features a saprolite soil horizon and saprolitic horizon. In the saprolite soil horizon, we observed gravel, residual soil with the source rock structures and few blocks. In the saprolitic horizon, the transition between the soil mass and the rock mass is well marked and blocks of rock with several stages of alteration and spheroidal exfoliation are present (Figure 2) (Table 3).

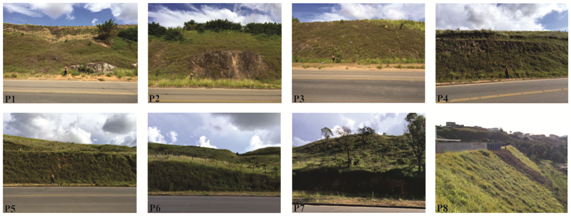

Figure 2 Sampling points (P1, P2, P3, P4, P5, P6, P7 e P8) analyzed for mass movements.

Point P2 is located at the coordinates 21°48.072' S and 46°34.827'W at an altitude of 1342m and according to the geological process, it was noted the existence of blocks fall, as described in P1. The relief presents a convex slope and the soil profile presents a rough, non-plastic and non-sticky texture and is composed of a much altered rock horizon, saprolitic horizon and saprolite soil horizon. In the much altered rock horizon, the observed rocks are in an advanced alteration stage, lacking luster and with little resistance. This point present planar gliding features (Figure 2) (Table 3). Point P3 located at the coordinates 21°48,125' S and 46°34,849'W at an altitude of 1338m does not present block fall or occurrence of another geological process of the surface dynamics, and its relief presents a rectilinear slope. The soil profile presents a silky, plastic and non-sticky texture and differs from P1 and P2 by presenting a saprolite soil horizon with few blocks/rock fragments (Figure 2) (Table 3).

Point P4, which is located at coordinates 21°48.072' S and 46°34.827'W at an altitude of 1342m, presents blocks fall along with a convex slope. The soil profile presents a rough, non-plastic and non-sticky texture and is composed of a much altered rock horizon in an advanced alteration stage, lacking luster and with lower resistance when compared to the rocks observed in the altered rock horizon (Figure 2) (Table 3).

Point P5 located at coordinates 21°48,139'S and 46°35,004'W and altitude of 1322m, corresponds to areas with lateritic soils and highly weathered tinguaites. This point does not show blocks fall or occurrence of another geological process and its relief presents a rectilinear slope. The soil presents a rough, non-plastic and non-sticky texture and is composed of the organic and lateritic horizons, saprolitesoil and saprolitic horizons. In the organic horizon there is a great amount of leaves and decomposing organic material. In the lateritic horizon, a roughness variation of the analyzed particles is observed by tactile sensation and a predominantly prismatic structure formation. In the bottom horizons, the same characteristics presented in the other analyzed points were observed, saprolite horizons with altered blocks of rock (Figure 2) (Table 3).

The Point P6 at coordinates 21°48,141' S and 46°35,040'W and an altitude of 1329m is near a slope where there is a spring, which drains its waters below the Avenue. It is a place with a concave slope relief, typical of washing/draining water areas. The main geological processes observed at this point were the several fractures formed mainly at the bottom of the slope, where there is the main drainage. The site has little variation in the alteration profile, with a lateritic colluvionar cover of approximately four meters, digging degree of two, which can be excavated with ease. The soil profile presents silky, plastic and sticky texture, prismatic structure and, like Point P5, is composed of a lateritic horizon with grains of prismatic structure (Figure 2) (Table 3). Point P7 is located after the river spring of the Point P6, at coordinates 21°48.55'S and 46°35.036'W and altitude of 1345m, on a concave to rectilinear slope with good drainage. As to the surface dynamics it is possible to notice the existence of few weathered rocks fragments (Figure 2) (Table 3). The soil presents silky, plastic and sticky texture and is composed of anorganic soil horizon and a saprolitic horizon, which grades to a lateritic one. In the organic soil horizon, as in Point P5, it is observed a great amount of organic matter and lumpy structure. Just below, there is a saprolite horizon that grade to a lateritic horizon, with prismatic structure grains and small spots (mottling). Point P8 is located at coordinates 21°48.00'S and 46°34.057'W at an altitude of 1342m, in a constructed landfill (Figure 2) (Table 3). The area presents a variety of surface material, bricks, woods and wastes, heterogeneous composition, and it is not possible to distinguish horizons. The main geological processes are soil sliding in the landfill slopes, and it is possible to record some erosive features in the form of grooves. This point presents a digging degree equal to 1, quite unstable and sliding features close to a construction. The results indicate several characteristics for the observed points and although the points present the same lithology, these have different alteration stages. In addition, some points are also differentiated by the relief drainage and type of material, such as the constructed landfill (Table 4).

The area that includes points P1, P2, P3 and P4 features a rocky substrate, marked slope and several geological processes. The digging degree equal to three makes it difficult to move earth on the surface and consequently engineering works. The rocks disintegration and blocks fall occurrence makes the area dangerous for the construction of residences, automobiles and passers-by. Points P5, P6 and P7 encompass an area that have particular characteristics that make it difficult to occupy without due technical care, as well as places that are not suitable for engineering works. Part of the area is located in the bottom portion of a slope with the intense presence of a drainage system. Moreover, much of its area should be of permanent preservation and could not be occupied. The occurrence of large rainfall events can overwhelm the drainage system present at the site and cause structural damage in the future. Preventive erosion works is recommended in this area, such as the construction of terraces and rainwater drainage systems. The area that includes Point P8 (constructed landfill) presents heterogeneous materials and a slope, which makes the constructive design of engineering works with foundations complex, so the type of work, loads, admissible settlements, characteristics of the rubble and the soil found below it must be taken into account. The topography of the region and the existence of other interferences to determine the type of foundation suitable for the site should be mandatory items for future engineering works. In large rainfall events, because of the large number of voids in the soil (heterogeneous materials), this area can lose its load and lift capacity, which can lead to serious accidents. A detailed evaluation of the materials geotechnical behavior and depth of the groundwater level is recommended. For the three areas previously mentioned, it is recommended to conduct in-depth studies that include mass movements risk areas survey and the formulation of guidelines for measures and restrain works, in order to prevent instability processes aimed at future safe engineering works.

The identification of areas with potential risks to mass movements should encourage structural actions, technical preparation of municipal employees, modernization of public attitudes laws and preparation and/or awareness of the population. Thus, it is suggested that the municipality review the Master Plan and its areas of urban expansion, allowing the implementation of preventive measures, which reduces the possibility of potential economic losses and human lives. In addition, it is suggested the creation of a monitoring plan to coexist with situations of mass movement’s risk, at relatively safe levels for the population that will occupy this area of urban expansion, located in Poços de Caldas, State of Minas Gerais, Brazil.

None

The author declares that there is no conflict of interest.

1. Keller EA. Introduction to Environmental Geology. 5th ed. UK: Pearson; 2012. 768 p.
2. Fernando Bezerra Coelho. Anuáriobrasileiro de desastresnaturais. Brasília: Centro Nacional de Gerenciamento de Riscos e Desastres; 2012. 84 p.
3. Ministério da IntegraçãoNacional. SecretariaNacional de Proteção e Defesa Civil. Brasília: Departamento de Prevenção e Preparação: NoçõesBásicasemProteção e Defesa Civil e em Gestão de Riscos; 2017. 98 p.
4. Tominaga LK, Santoro J, Amaral R. Desastresnaturais: conhecerparaprevenir. São Paulo, 1° edição: InstitutoGeológicodo Estado de São Paulo; 2009. 196 p.
5. Manual de métodos de análise de solo, 2a edição. Empresa Brasileira de Pesquisa Agropecuária. Centro Nacional de Pesquisa de Solos: Rio de Janeiro; 1997. 212 p.
6. Redaelli LL, Cerello L. Escavações. In: Oliveira AMS, Brito SNA, editors.  Geologia de Engenharia. São Paulo, 1° edição: ABGE Cap 19; 1988. 311‒330 p.
7. Pastore EL, Fontes RM. Classificação e Caracterização dos Solos. In: Oliveira AMS, Brito SNA, editors. Geologia de Engenharia. São Paulo, 1° edição: ABGE Cap 12; 1998. 197‒210 p.
