Needleless electrospun PVA/chitosan nano fiber membrane and its antibacterial property

Shuo Li, Zhijuan Pan

College of textile & Clothing Engineering, Soochow University, China

Correspondence: Zhijuan Pan, College of textile & Clothing Engineering, Soochow University, No.199 Renai Road, Suzhou, China, Tel 86 13625273222

Received: January 12, 2017 | Published: March 22, 2017

Citation: Li S, Pan Z. Needleless electrospun PVA/Chitosan nano fiber membrane and its antibacterial property. J Textile Eng Fashion Technol. 2017;1(2):79-85. DOI: 10.15406/jteft.2017.01.00014

Download PDF

Abstract

Poly vinyl alcohol (PVA), which is a low-volatility, environmentally friendly and water-soluble polymer, is suitable for needleless electro spinning. Chitosan (CS) has drawn much attention due to its excellent antibacterial properties; however, it is hard to needle lessly electro spin CS alone. Thus, a certain amount of CS was added into the electro spinning solution to fabricate PVA nano fibers with antibacterial properties. In this paper, a needleless electro spinning device with spiral disk spinnerets was used to prepare PVA with different concentrations of CS nano fiber membranes. The effects of electro spinning parameters on process stability and anti-water-soluble processing were investigated. The results showed that the electro spinning process was associated with voltage, rotation speed and collection distance. The optimal electro spinning parameters are a voltage of 75kV, a rotation speed of 11rpm and a distance of 190mm. From the comparison and analysis, 5% glutaraldehyde (GA) solution treatment is the superior method to increase the anti-water-solubility of the membrane. The antibacterial properties of PVA/CS nano fiber membranes with CS concentrations ranging from 1.0% to 1.5% were also investigated. The results showed that the inhibition rates of Escherichia coli (E. coli) were all above 99%, and those of Staphylococcus aureus (S. aureus) were all above 90%. Moreover, GA solution treatment has no effect on the antibacterial performance.

Keywords: needleless electro spinning, poly vinyl alcohol, water resistance, antibacterial properties, electrospun nano fiber, biocompatibility, water solubility, chemical stability, film-forming ability, surface tension, voltage, three-level orthogonal experiment, vapor treatment, hemiacetal reaction, oscillation method, antibacterial performance

Abbreviations

PVA, poly vinyl alcohol; GA, glutaraldehyde; CS, chitosan

Introduction

Currently, PM2.5 as a sensitive indicator has drawn public attention. Studies on new materials to filter dust, pollen and toxic materials and to effectively inhibit the growth of bacteria are needed. Electrospun nano fiber membranes, characterized by their great flexibility,1,2 light weight, high surface-to-volume ratios and porous structures, have been shown to have wide applications in many fields, especially in filtration.3−6 However, conventional single-needle electro spinning does not satisfy industrial production due to its low productivity, and electric field interference exists for multi-needless electro spinning.7 Needleless electro spinning could solve the above problems and make industrialization possible. The main techniques for needleless electro spinning currently are tip electro spinning of the liquid surface,8−14 conical wire coil spinnerets,15 multi-hole/porous spinnerets16−18 and rotary cylinder/cone/disk spinnerets.19,20 Designed a perforated pipe needleless electrostatic spinning apparatus.21 The spinning jet density was relatively high, approximately 250 times that of traditional single needle electro spinning production, but the uniformity of the fibers was poor. Designed a bubble electro spinning device inspired by the spider spinning process.22 The diameter was approximately 50nm at a lower voltage, but the diameter was volatile due to its susceptibility to the effect of bubble size. Designed a rotating spiral wire electrostatic spinning apparatus which greatly improved production.23 With the increase in voltage and the decrease in distance, the output of the nano fibers also increased, but little change in the diameter was observed.

Since needleless spinnerets require a significant amount of electro spinning solution exposed to air, which may change the mass percentage of the electro spinning solution because of volatilization, PVA, which exhibits low-volatility, water solubility, biocompatibility, chemical stability and film-forming ability, is suitable for needleless spinnerets. CS has advantages due to its antibacterial property, adsorption property, biocompatibility, non-toxicity, and ability to easily modify fabrication.24 However, it is difficult to electro spin pure CS; thus, it is a better choice to fabricate PVA and CS composite nano fiber membranes.25 Blended CS and PLA solutions of different ratios and electrospun nano fiber membranes to examine inhibition rates and water filtration. The results showed that 75% CS in the membrane inhibited bacterium from growth and led to better filtration than CS ratios of 25% and 50%. A high concentration of honey was added into CS and PVA blended solutions by Wessam A.26 They found that honey reduced the viscosity and achieved the spinning requirement. This study demonstrates the stable manufacture of PVA/CS nano fiber membranes with good antibacterial properties using a novel needleless electro spinning method.

Materials and methods

Materials

1788PVA was obtained from Changzhou Fengyuan Textile Company. CS (M-PK-1601002 viscosity: 128 mPa.s) was purchased from Zhejiang Golden-Shell Pharmaceutical Co., Ltd. E. coli (FSCC 149002 A0246B) and S. aureus were obtained from Guangdong Food Microbiological Safety Engineering Research and Development Center. Acetic acid was purchased from Sinopharm Chemical Reagent Co., Ltd. GA (50% wt% solution in H2O) was obtained from J&K Scientific, Ltd., and acetone (AR) was obtained from Shanghai Hushi Laboratorial Equipment Co., Ltd.

Electro spinning of PVA/CS nano fibers

Solutions composed of different weight ratios of PVA and CS were prepared as follows: PVA and CS (5%:1.0%, 5%:1.1%, 5%:1.2%, 5%:1.3%, 5%:1.4% and 5%:1.5%). Solutions were prepared in 1% acetic acid.

Figure 1 shows the needleless electro spinning setup (Kunshan Tungray Precision Testing Co., Ltd), which contains a stainless steel spiral disk spinneret connected to a high-voltage power, a grounded metal conveyor belt collector and a Teflon solution vessel.27 During electro spinning, the vessel was filled with the prepared PVA/CS solution with the verge of the spiral disk immersed in it. While the solution was charged with a high electrical voltage through a metal strip inside the solution vessel, PVA/CS jets were generated from the disk and collected on the rotating collector wrapped by a nonwoven substrate with 110cm in length and 30cm in width.

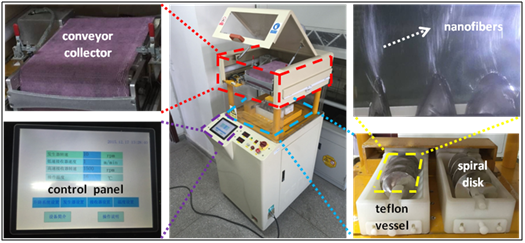

Figure 1 The needleless electro spinning setup with spiral disk spinnerets.

Characterization

The conductivity and viscosity of the PVA/CS solutions were measured via a DDS-11C conductivity meter (Shanghai Precision Scientific Instrument Co., Ltd., China) and an Ar2000 rheometer (TA Instruments.US), respectively. Surface tension was measured by DCAT21 (Data physics, Germany).

The morphologies of nano fiber membranes were examined through field emission scanning electron microscope (FE-SEM, Hitachi S-4800, and Japan) images. The diameters of nano fibers were determined using an image analyzer (Image-Pro Plus 5.0) by averaging 100 measurements in SEM images.

The antimicrobial test consulted China Standard, GB/T 20944.3-2008 Evaluation of antibacterial property of textiles-Part 3: Oscillation method. Each experiment utilized a blank vial and standard cotton as control samples, while 0.75g of PVA/CS nano fiber membranes with different concentrations of CS was set as the samples. After adding a certain concentration of E. coli and S. aureus, respectively, the samples and control samples were sterilized and placed inside an Erlenmeyer flask at 24˚C for 1 h under oscillation with an oscillation speed of 150r/min. Living bacteria concentrations were calculated before and after the oscillation, and then, the inhibition rate was calculated according to Equation 1:28

Y= ( W t Q t ) W t X100 MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGWj0Jf9crFfpeea0xh9v8qiW7rqqrFfpeea0xe9Lq=Jc9 vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=x fr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaqcfaOaamywai abg2da9maalaaabaWaaeWaaeaacaWGxbWaaSbaaeaacaWG0baabeaa cqGHsislcaWGrbWaaSbaaeaacaWG0baabeaaaiaawIcacaGLPaaaae aacaWGxbWaaSbaaeaacaWG0baabeaaaaGaamiwaiaaigdacaaIWaGa aGimaaaa@45E7@

Where,

Y: Inhibition rate

Wt: Mean living bacteria of blank vial after the shock

Qt: Mean living bacteria of samples after the shock

Results and discussion

Solution properties

Table 1 shows the conductivity and surface tension of PVA/CS blended solutions. The surface tension and conductivity of the solutions increased with the addition of CS, which was in favor of the electro spinning ability. However, CS led to difficulties in the electro spinning process because of its high viscosity Figure 2. The maximum concentration of CS was 1.5% in combination with 5% PVA.

Solutions

Conductivity (ms)

Surface Tension mN/m

1.0%CS+5%PVA

1.293

40.837±0.029

1.1%CS+5%PVA

1.311

40.898±0.030

1.2%CS+5%PVA

1.404

41.264±0.028

1.3%CS+5%PVA

1.372

41.604±0.030

1.4%CS+5%PVA

1.403

42.049±0.030

1.5%CS+5%PVA

1.576

41.049±0.030

Table 1 Conductivity and surface tension of PVA/CS blended solutions

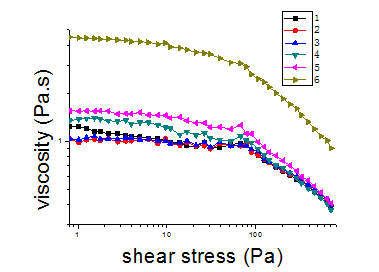

Figure 2 Variation of viscosity with shear rate increase: (1) 5% PVA and 1.0% CS, (2) 5% PVA and 1.1% CS, (3) 5% PVA and 1.2% CS, (4) 5% PVA and 1.3% CS, (5) 5% PVA and 1.4% CS, (6) 5% PVA and 1.5% CS.

Optimization of the electro spinning parameters

Nano fiber membranes of 5% PVA blended with 1.3% CS was fabricated in order to examine the optimal parameters during the electro spinning process. Figures 3−5 show the changes of the nano fiber diameter at different voltages, collection distances and rotation speeds. Figure 3 shows the changes of the nano fiber diameter with the increase of voltage at a constant distance of 180 mm and rotation speed of 10rpm. The average fiber diameter of nano fibers decreased initially, and then did not decrease until the voltage was greater than 80 kV. This was due to the spinning solution not being able to be fully stretched under the lower electrostatic field force. However, when the voltage increased to 83kV, more solution was available to be stretched from the spiral disk. Thus, the fiber diameter increased sharply.

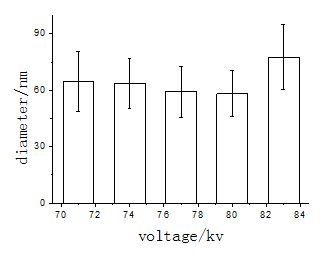

Figure 3 Changes of PVA/CS nano fiber diameters with different voltages.

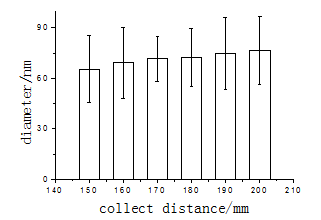

Figure 4 Changes of PVA/CS nano fiber diameters with different collection distances.

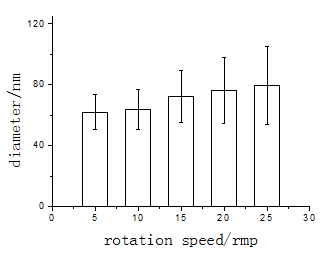

Figure 5 Changes of PVA/CS nano fiber diameters with different rotation speeds.

Figure 4 shows the changes of the nano fiber diameter under different collection distances at a rotation speed of 15 rpm and voltage of 74kV. The average fiber diameter was minimum when the collection distance was 150 mm, and the fiber diameter reached a maximum when the distance was 200mm. The decrease in the collection distance led to an increase in the electrostatic field force on the jets, which caused sufficient stretching. Figure 5 shows the changes of the nano fiber diameter under different rotation speeds at a constant distance of 180mm and a voltage of 74kV. With the increase of spiral disk rotation speed, the fiber diameter increased from 62nm to 80 nm, since more solution was ejected from the spiral disk.

After the single factor analysis of electro spinning voltage, collection distance and rotation speed, we used an orthogonal experiment method of three factors and three levels Table 2 to analyze the optimal electro spinning parameters. The results of a three-factor and three-level orthogonal experiment are shown in Table 3. According to range analysis, electro spinning under a voltage of 78kV, a rotation speed of 11rpm, and a collection distance of 190 mm resulted in the most fine and uniform fibers with a diameter of 59.85nm and CV of 17.75% Figure 6. As the voltage was the least impacting factor, the rated voltage of the setup was set to 80kV. If the voltage was set too high, it would easily cause the discharge phenomenon because of high humidity. Furthermore, when reducing the voltage to 75kV while keeping the other parameters constant, the fiber diameter was 60.95nm and CV was 22.41%. There was no significant intergroup difference with 78kV. Considering all of the above factors, the optimal electro spinning process parameters were voltage of 75kV, rotation speed of 11 rpm and distance of 190 mm.

S.No

A (voltage/kV)

B (Flow Rate/ml/h)

C (Collection Distance/cm)

1

72

7

170

2

75

11

180

3

78

15

190

Table 2 Orthogonal table of three factors and three levels

Experiment

A (Voltage/kV)

B (Rotation Speed /rpm)

C (Distance/mm)

Diameter (nm)

CV (%)

1

1

1

1

86.09

38.44

2

1

2

2

96.19

22.89

3

1

3

3

90.64

22.76

4

2

1

2

72.69

24.03

5

2

2

3

60.95

22.41

6

2

3

1

110.39

24.16

7

3

1

3

77.45

26.58

8

3

2

1

70.4

29.53

9

3

3

2

87.28

29.4

k1

92.97

80.74

90.96

k2

80.34

75.85

85.39

k3

78.38

96.1

76.35

R

14.59

20.25

14.61

Table 3 Results of three factors three levels orthogonal experiment

Figure 6 SEM image of PVA/CS nano fiber membrane generated at a voltage of 78 kV, rotation speed of 11 rpm, and collection distance of 190 mm.

Anti-water-soluble processing

Heat treatment of PVA/CS nano fiber membranes: To improve the water resistance of the prepared PVA/CS nano fiber membranes, heat treatment was used due to it can help increasing the degree of crystallinity of PVA/CS29 What’s more, it is a simple and environmental friendly way. By heat treatment, the will rise, to increase Differential scanning calorimetry analysis was used to investigate the melting points of PVA and CS. From Figure 7, the melting points of PVA and CS were found to be 190˚C and 279.9˚C. Excessive heating above 190˚C resulted in the destruction of the PVA quality. However, cross-linking could not be achieved27 if the temperature is too low. Thus, the heat temperature was set at 180˚C. Figure 8 shows the immersion of PVA/CS nano fiber membranes for 1h after heating treatment for different times. After heat treating the nano fiber membranes for 3h and 4h, the membranes were immersed in water (25˚C). The fibers swelled to a large degree shown in Figure 8a & b, and most of the interspace of nano fibers was blocked which hindered the air permeability and changed the morphology of the nano fibers immensely. However, heat treatment for 5h did not alter the morphology of the fibers basically Figure 8(c). Considering the degree of fiber swelling and the fiber morphology, 180˚C heat treatment for 5 h was the most preferable condition. It is worth noting that upon physical cross-linking by heating, a change in the color of the nano fibers from white to yellow was observed.

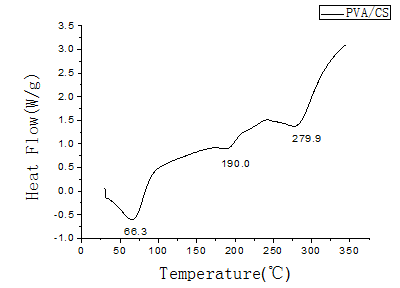

Figure 7 Differential scanning calorimetry analysis of PVA/CS nano fiber membrane.

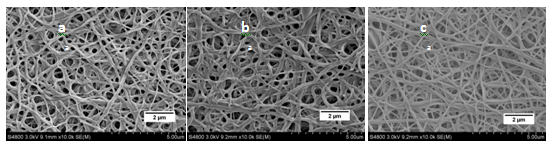

Figure 8 SEM images of immersed PVA/CS nano fiber membranes after heat treatment for different times: (a) heat treatment for 3 h, (b) heat treatment for 4 h, and (c) heat treatment for 5 h.

GA vapor treatment: GA is a volatile liquid and can react with -OH in PVA, which can improve the water resistance of the nano fiber membranes. Vapor treatment is a mild way to decrease the damage to nano fibers during the process. Figure 9 shows the PVA/CS nano fiber membranes immersed in water for 1 h after exposure to GA vapor for different times. It can be observed that with an increase in GA exposure time, the degree of fiber swelling was reduced. However, the fiber membranes became yellow as shown in Figure 11(b) and brittle, which are not suitable for future applications.

GA solution treatment: GA could have acetal and hemiacetal reaction with PVA and CS to get higher water stability. PVA/CS nano fiber membranes were immersed into 5% GA solution (acetone as the solvent) for 0.5h, followed by repeated washing using deionized water. Then, the membranes were placed into a vacuum drying oven at 40˚C for 24h to remove the GA residues. Figure 10 shows the GA solution treatment of PVA/CS nano fiber membranes. It can be seen that the membranes exhibited good anti-water-soluble properties. After immersion in water for 1 h, no difference was observed in the fiber morphology, and the color of the membrane remained unchanged Figure 11(a). Figure 11 shows images of immersed PVA/CS nano fiber membranes in deionized water after different anti-water-soluble treatments. The original sizes were 4 cm×4cm. It can be clearly seen that the heat-treated membrane shrank considerably Figure 11 (c). The dimensional change rate was 25%, which was the largest Table 4. Furthermore, the color of the membranes Figure 11b & c turned yellow obviously. However, the membrane treated by GA solution Figure 11(a) retained its original shape and color; meanwhile, there was minimal, if any, weight loss. These results agreed with the fact that there was a great increase in the degree of water resistance when treated by GA solution.

Sample Treatment

Before Immersing in Water W0/mg

After Immersing in Water W1/mg

Weight Loss Rate Wc/%

Size After Immersing L/cm

Dimensional Change Rate Lc/%

The original sample

12.6

1.1

91

-

-

GA vapor

7.03

6.65

5

4×4

0

GA solution

18.07

18.01

3

4×4

0

Heat treatment

2.95

2.9

2

3×3

25

Table 4 Weight loss and dimensional change rate of PVA/CS nano fiber membranes after different treatments

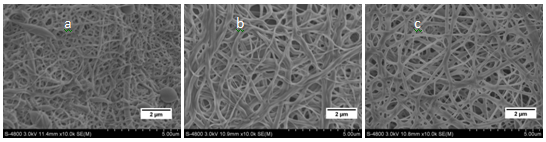

Figure 9 Pictures of immersed PVA/CS nano fiber membranes in water for 1 h after GA vapor treatment for (a) 36 h, (b) 48 h, and (c) 60 h.

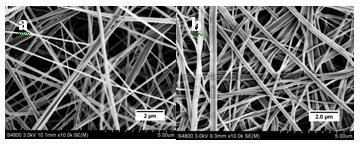

Figure 10 Pictures of PVA/CS nano fiber membranes after GA solution treatment: (a) before immersion in water and (b) after immersion in water for 1 h.

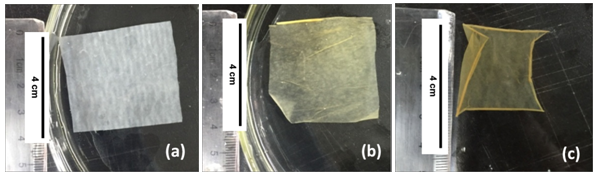

Figure 11 Images of immersed PVA/CS nano fiber membranes in deionized water after different anti-water-soluble treatments. (a) GA solution treatment, (b) GA vapors treatment, and (c) heat treatment at 180˚C for 5 h.

Antibacterial activity

The antibacterial properties of PVA/CS nano fiber membranes were studied using the oscillation method. Membranes with different CS concentrations from 1.0% to 1.5% were added into diluted bacteria solution oscillating at 24˚C for 18 h and then poured onto plates with agar to culture at 37˚C for 24h.  E.coli and S. aureus were used as representative Gram-negative and Gram-positive microorganisms, respectively. Under the same conditions, PVA/CS efficiently inhibited the growth of E. coli and S. aureus, and the antibacterial resistance to E.coli was higher than that to S. aureus, as shown in (Table 5) (Table 6). Inhibition rates of all membranes to E.coli were above 99% and above 90% to S. aureus, thus indicating a high level of antibacterial activity. Considering that the test samples treated by GA solution may have bad effects to bacteria, control experiments were done using the heat treated membranes. As shown in Table 6, the inhibition rates were 90.5% and 91.4%, respectively, thus showing no statistically significant differences. Thus, the GA solution treatment of PVA/CS fiber mat had no obvious influence on its antibacterial performance.

Samples

Inhibition Rate (%)

1.0%+5%PVA (GA solution treatment)

99.9

1.1%+5%PVA (GA solution treatment)

99.6

1.2%+5%PVA (GA solution treatment)

99.9

1.3%+5%PVA (GA solution treatment)

99.9

1.4%+5%PVA (GA solution treatment)

99.9

1.5%+5%PVA (GA solution treatment)

99.6

Table 5 Inhibition rates of PVA/CS nano fiber membranes to E. coli

Samples

Inhibition Rate (%)

1.0%+5%PVA (GA solution treatment)

97.3

1.1%+5%PVA (GA solution treatment)

96.2

1.2%+5%PVA (GA solution treatment)

94.6

1.3%+5%PVA (GA solution treatment)

92.1

1.4%+5%PVA (GA solution treatment)

99.3

1.5%+5%PVA (GA solution treatment)

90.5

1.5%+5%PVA (heat treatment)

91.4

Table 6 Inhibition rates of PVA/CS nano fiber membranes to S. aureus

Conclusion

A needleless electro spinning device was used to fabricate PVA/CS nano fiber membranes. The electro spinning voltage, collection distance and rotation speed were varied to obtain optimal electro spinning parameters, i.e., voltage of 75kV, rotation speed of 11rpm and distance of 190mm. Three different methods were researched to increase the anti-water-soluble property. Based on the performances of the membranes and nano fibers, GA solution treatment is the better method, since its weight loss rate is 5% and nearly no size and color changes are observed after immersion in water. The antibacterial properties of PVA/CS nano fiber membranes with different CS concentrations were tested, and the results showed that the inhibition rates to E. coli are all above 99% and inhibition rates to S. aureus are above 90%. From the control experiments, it was found that GA solution treatment has no obvious influence on the antibacterial activity. With superfine nano fibers and splendid antibacterial properties, the fabricated PVA/CS membranes could be used in air conditioning filters and other related fields.

Acknowledgements

None.

Conflict of interest

Author declares there is no conflict of interest in publishing the article.
