Industries all over the world face an uphill battle in meeting the material needs of a rising global population at a time when natural resources are dwindling. By replacing harsh chemicals with biologically derived alternatives and at the same time minimizing water and energy use, sustainability is at heart of the world’s growth. Perhaps nowhere has the impact of modern biotechnology been more widely felt than in the application of industrial enzymes? Enzymes represent lucrative option to substitute harsh chemicals used in processing operations in different industries. Enzymes being target specific and biodegradable are looked upon as lucrative source for providing clean and green substitute to harsh chemicals used in different industries. Pectinase is one of the enzymes that acts as alternative to chemicals used in different textile processing operations. The current demands of the world’s biotechnological industries are enhancement in enzyme productivity and development of novel techniques for increasing their shelf life. These requirements are inevitable to facilitate large-scale and economically feasible formulation. Immobilizing pectinase by suitable technique allows its reusability and in turn will make pectinase economical. In this research, immobilization of pectinase on knitted nylon 6,6 fabric is studied which showed immobilized biocatalyst could be used successively; effectively upto three cycles.

Keywords: marine pectinase, bacillus subtilis, enzyme, immobilization, nylon 6,6

Enzymes are biocatalysts, which enhance the rate of chemical reactions. They are naturally occurring substances, capable of catalysing specific chemical reactions and hence called ‘biocatalysts’. Enzymes act on substrate molecule by hydrolysis, beta elimination mechanism etc. Like all catalysts, enzymes work by lowering the activation energy for a reaction and thus dramatically accelerating the rate of the reaction. As with all catalysts, enzymes are not consumed by the reactions they catalyze, nor do they alter the equilibrium of these reactions. However, enzymes do differ from most other catalysts by being much more specific.

Enzymes being selective and specific in action catalyze desired reaction, excluding side reactions and thereby eliminating generation of undesirable by products. Thus using enzymes in industry, higher productivity is achieved, reducing material cost. Further purification and downstream processing is reduced as product is achieved in relatively pure from, free from contaminants.¹

Enzymes offer substantial and increasingly important advantages over chemical catalysts; they are derived from renewable resources, are biodegradable, work under relatively mild conditions of temperature and pH, and tend to offer exquisite selectivity in both reactant and product stereochemistry. As concerns about the environment mount with population pressures and the industrialization of the planet, the need to find more benign methods for the production of goods and provision of services leads to further interest in enzymes.²

Enzymes can be of Plant, animal and microbial origin. Microbial enzymes have several advantages over enzymes from plant and animal sources by virtue of their great variety of catalytic activities, cheaper in cost, regular abundant supplies at even quantity and relatively more stability. Major target of modern enzyme technology continues to be providing substitutes for chemical processing in several industries including textile, pharmaceutical, leather, wood pulp, production of speciality chemicals, industrial catalysis etc. Further enzymes have been used as research tool in biotechnology and molecular biology. The global industrial enzymes market is projected to reach USD 6.30 Billion by 2022 in terms of value, at a CAGR of 5.8% from 2017.³

Although the advantages of replacing chemical treatments with enzymes are often compelling from a societal and environmental viewpoint, enzymes must compete economically with often entrenched and extremely inexpensive traditional chemical processes.²

Marine microbial enzymes

Now-a-days microorganisms are being used due to their broad biochemical diversity, feasibility of mass culture, regular supply due to absence of seasonal variations, ease of genetic manipulation and high degree of stability than enzymes derived from plants and animals.⁴ Several industrial enzymes are derived from terrestrial sources. Whereas marine environment which encompasses about 71 % of the earth’s surface and a vast resource of useful enzymes has remain unexplored. Marine ecosystem is a habitat with remarkably high and diverse microbial cell densities. Consequently, the microbial inhabitants of such environment must have adapted their cellular machinery to thrive in the extreme conditions of temperature, pressure, pH, salinity, etc. Earlier reports suggest their salt-tolerating capacity of above 1.7M, hyperthermostability (80–108˚C), barophilicity (60MPa), cold adaptivity, and alkali stability.⁴ Marine microorganisms take active part in the mineralization of complex organic matter through degradative pathways of their metabolism in the marine environments and contribute to the secondary production in sea. Microbial hydrolysis of organic matter plays an important role in substrate turnover in aquatic environments.⁵ Most of the organic compounds produced in natural waters have a polymeric structure.⁶ They cannot be directly taken by bacteria and they must be hydrolysed through the action of exo and endoenzymes and converted into monomeric low molecular weight substrates. These are rapidly assimilated by bacteria.⁷

Depending on habitat and ecological function, marine bacteria and fungi secrete variety of hydrolytic enzymes such as Pectinase, Amylase, Lipase, Protease etc. Marine microbial enzymes have now become focal point of interest and few enzymes have been isolated from sea water and sediment. With increase in demand of the industrially valuable enzymes, selection of their potent source has become need of hour. Valuable extremophilic marine microorganisms capable of producing various hydrolytic enzymes like proteases, lipases, pectinases, etc. are inhabiting the harsh marine environments such as deep ocean, sediments, hydrothermal vents, polar oceans and extremely saline bodies of water.

Pectinase and its application

Pectinases are a diverse group of enzymes that catalyze breakdown of pectic substances. Pectin is present as a cementing substance in plant cell wall and it maintains structural integrity and cohesion of plant tissue.⁸ Depending on mode of action, pectinases are classified as esterases, depolymerases (hydrolases and lyases), and protopectinases.⁹ Acidophilic pectinases have been used widely in extraction and clarification of fruit juices,¹⁰ maceration of plant tissues, liquefaction and saccharification of biomass and isolation of protoplast. Alkaline pectinases are mainly used in the degumming and retting of fiber crops¹¹ and pretreatment of pectic wastewater from fruit juice industries.¹² Alkaline pectinases are also being used in paper making,¹³ scouring of cotton,¹⁴ oil extraction,¹⁵ coffee¹⁶ and tea fermentation,¹⁷ production of oligosaccharides as functional food components¹⁸ and extraction of DNA from plants.¹⁹ Different enzymes such as amylase, lipase, pectinase, and cellulase have been studied in scouring of natural fabrics. Out of these enzymes, pectinases are most promising enzymes and different organisms producing pectinases are being researched.

Enzymes in textile industry

Textile wet processing involves series of operations ranging from desizing, scouring, bleaching followed by dyeing and finishing. These operations involve use of harsh chemicals such as caustic soda, concentrated acid and salt solutions which are finally discharged into effluents, causing pollution of soil and water, affecting aquatic life. However, enzymes bestow green key to minimize pollution resulting from textile processing operations. Amylase, lipase, protease, cellulase, pectinase etc. are some of the enzymes that can be used as substitute to different chemicals used in textile wet processing steps. Amylase find application in desizing of cotton fabric wherein amylase act on starch used as sizing agent to facilitate weaving (added impurity) from cotton fabric and aids in its removal. Cellulase has been studied for defibrillating cotton for surface smoothness and to obtain stone washing effects. Lipase has been used for wet reduction of polyester fabric and protease for degumming of silk and scouring of wool. Different enzymes such as amylase, lipase, pectinase, and cellulase have been studied in scouring of natural fabrics in combination. Out of these enzymes, pectinases are most promising enzymes and different organisms producing pectinases are being researched. Enzymes such as laccases and peroxidises have been used in effluent treatment. Different enzymes are being researched upon for their subsequent use in textile processing as till now only amylase and cellulase have achieved commercial success.

Immobilization of marine pectinase

The major demands of the world’s biotechnological industries are enhancement in enzyme productivity and development of novel techniques for increasing their shelf life. These requirements are inevitable to facilitate large-scale and economically feasible formulation. Enzyme immobilization provides an excellent base for increasing availability of enzyme to the substrate with greater turnover over a considerable period of time. Biocatalysis i.e. catalysis using enzymes has been widely accepted in diverse sectors owing to their ease of production, substrate specificity and green chemistry.

Enzyme-based strategies are increasingly replacing conventional chemical methods in both laboratories and industries with attributes like efficiency, quicker performance and multifarious use. However, for commercialization of these biocatalysts, their reusability factor becomes mandatory, failing which they would no longer be economic. Maintenance of their structural stability during any biochemical reaction is highly challenging. Consequently, immobilized enzymes with functional efficiency and enhanced reproducibility are used as alternatives in spite of their expensiveness.

Immobilized biocatalysts can either be enzymes or whole cells.²⁰ Whole cell immobilization consists of high density of cells physically confined on a solid phase or in pellets or clumps and in which cell movement is restricted. Cell immobilization has existed or been exploited long before it became recognized as potentially valuable in industry. Microorganisms in natural habitats such as soil, marine, alimentary canal, dental plaque or in the ‘Orleans’ process of vinegar production where cells are immobilized on wood shavings, the activated and trickling filter treatment of wastewater, may be seen as examples of immobilized cells.²¹

Advantages of immobilized biocatalysts

The advantages of immobilized enzymes beside reuse are as follows;

1. They can be easily separated from the reaction mixture containing any residual reactants and products and further can be reused in subsequent reaction.
2. Immobilized enzymes are more stable over broad range of pH and temperature.
3. Prolonged availability curtails redundant downstream and purification processes.
4. Enzymes are not discharged in effluent.
5. Immobilized systems specially lend themselves to continuous processes.
6. Reduced costs in industrial production.
7. Greater control of the catalytic effect.
8. Superior ease of new applications for industrial and medical purposes.

Enzyme immobilization

It refers to artificial restriction of enzyme’s mobility. Immobilization confines enzyme to a phase (matrix/support) different from the one for substrates and products. Inert polymers and inorganic materials are usually used as carrier matrices. Apart from being affordable, an ideal matrix must encompass characteristics like inertness, physical strength, stability, regenerability, ability to increase enzyme specificity/activity and reduce product inhibition, nonspecific adsorption and microbial contamination²² Immobilization is one of the most promising techniques for highly efficient and economically competent biotechnological processes in the field of environmental monitoring, biotransformation, diagnostics, pharmaceutical and food industries. There are four different methods of immobilizing enzymes viz. Adsorption, Covalent bonding, Entrapment and Affinity immobilization.

An attempt is made in this research to immobilize pectinase on knitted nylon 6,6 fabric by covalent attachment of enzyme molecules which will allow its reusability and in turn will make pectinase economical in use. The literature survey shows that knitted nylon fabric gives better yields as compared to nylon beads and hence, the substrate chosen was knitted nylon 6,6 fabric.²³

Immobilization of marine pectinase on nylon

Acid hydrolysis of nylon 6, 6: The knitted nylon fabric (3cm×3cm) was used as substrate for immobilization of marine pectinase. In order to cleave amide bonds of the nylon polymer and create more –COOH and -NH₂ groups on its surface, hydrolysis of nylon was carried out using HCl of varied molarity. The samples were placed in beaker and hydrolysis of nylon 6,6 was carried out at 30˚C for 1 hour using HCl of different molarity. Hydrochloric acid concentration was varied from 1M, 2M, 3M, 4M. After hydrolysis, the fabric pieces were rinsed with water and later with phosphate buffer, pH 7.0. After optimizing acid concentration, time required to achieve sufficient acid hydrolysis was optimized.

Knitted nylon fabric samples were treated with 1.25% and 2.5% gluteraldehyde solution (v/V) prepared in 0.2M Tris buffer (pH 9.0) for 30 mins at 250 rpm and MLR 1:20. Glutaraldehyde was employed to act as cross linking agent between hydrolyzed nylon and pectinase enzyme. After treatment, the fabrics were washed thoroughly with Distilled water in order to remove unreacted glutaraldehyde and then rinsed with 0.2M Phosphate buffer (pH 7.0).

Activated nylon samples were then immersed in 0.5M 1, 6-hexanediamine solution keeping MLR as 1:20 and allowed to react for 120 mins. Samples were then washed thoroughly with D/W and then rinsed with 0.2M Phosphate buffer (pH 7.0). After introduction of spacer, all nylon samples were then reactivated with 2.5% and 1.25% gluteraldehyde solution (v/V) prepared in 0.2M Tris buffer (pH 9.0). Treatment is given for 30 mins at 250 rpm, keeping MLR at 1:20. Fabrics were washed thoroughly with D/W in order to remove unreacted glutaraldehyde and then rinsed with 0.2M Phosphate buffer (pH 7.0).

Immobilization of marine pectinase on functionalized nylon

Functionalized nylon fabrics were then incubated overnight with marine pectinase at pH 9.0 and at 4˚C. Supernatant was then analysed for pectinase activity (by DNSA method) and protein content by Folin- Lowry method. Two schemes were followed for studying immobilization of marine pectinase on functionalized nylon fabric. In first scheme, marine pectinase was allowed to react with hydrolyzed nylon fabric activated by glutaraldehyde, whereas in second scheme, spacer molecule was introduced and nylon fabric was reactivated with glutaraldehyde which was later treated with marine pectinase.

Determination of activity of immobilized pectinase

Activity was determined by DNSA method and absorbance was recorded at 540 nm. To perform an assay, 0.07gm of immobilized nylon sample was soaked in tris buffer and 0.5% Polygalacturonic acid (substrate) and incubated for 30 mins at 40˚C to carry out pectinase assay. After incubation, the nylon fabric was removed with forcep, rinsed with D/W and stored for reuse. 1.0ml DNSA reagent was then added to assay test tubes and kept in boiling water bath for 5 minutes; test tubes were cooled and absorbance was recorded at 540 nm. Activity of marine pectinase was determined in U/mg of substrate used. To compare activity of immobilized pectinase with that of free pectinase, Conversion factor of 0.0043 was used to convert activity of immobilized pectinase from U/mg to U/ml. Conversion factor was derived from ratio of volume of marine pectinase used for immobilization (1ml) to Weight of nylon fabric taken (230mg).

Definition of yield

Immobilization yield (IY%) is defined as follows: IY% = (U_imb/U₀)×100. Where U₀ is the number of enzymatic units present in the solution used for immobilization, U_imb are the immobilized units evaluated as the difference between U₀ and those remaining in the supernatant at the end of the adsorption.

Effect of pH on immobilized pectinase activity

To asses effect of pH on immobilized pectinase, different buffers (20mM) namely, Phthalate-HCl buffer (pH 3.0), Acetate buffer (pH 5.0), Phosphate buffer (pH 7.0), Tris buffer (pH 9.0) and Carbonate bicarbonate buffer (pH 11.0) were employed. The pectinase assay was carried out at mentioned pH values at 40˚C for 30 min.

Effect of temperature on immobilized pectinase activity

Optimum temperature for immobilized pectinase activity was determined by incubating immobilized pectinase enzyme, with 0.5% PGA at various temperatures ranging from 0˚C to 80˚C in Tris buffer (pH 9.0) for 30 mins. Further DNSA method was followed as mentioned above to determine activity of immobilized pectinase.

Reusability of Immobilized marine pectinase

To check reusability of Immobilized marine pectinase, 0.07gm of immobilized nylon sample was soaked in tris buffer and Polygalacturonic acid (substrate); and incubated for 30 mins at 40˚C to carry out pectinase assay. After incubation and before adding DNSA reagent, the nylon fabric sample was removed using forceps from test tube and washed with D/W to evaluate further residual pectinase activity. This procedure was repeated until pectinase activity was decreased upto 25% of initial immobilized pectinase activity.

Statistical analysis

It is to be noted that all the experiments were conducted in triplicate and results were expressed as mean ± standard deviation. Student’s T test was used to analyse data and statistical significance was declared at p<0.05.

Effect of HCl concentration on hydrolysis of nylon

Nylon-6,6 has only few free end groups which could be used for covalent attachment of enzyme molecules. In order to increase the amount of potentially reactive groups on nylon 6,6 surface; it was subjected to partial acid hydrolysis. Acid hydrolyzes amide (–CO–NH–) groups that lead to the increase in the yield of free amino and carboxyl groups on the polymer surface. Both the carboxyl and amino groups of the partially hydrolyzed nylon can be used for the direct attachment of the enzyme molecules. Various chemical reactions have been utilized in enzyme immobilization.²⁴ Although the reaction mechanisms are varied, most of them select amine groups in enzymes, including -NH₂ of lysine residue and the -NH₂ terminal, as the reaction target. The reason is, first most of the proteins show many lysine residues that are usually not involved in catalytic site. Secondly amine groups are polar and they are usually exposed to the medium on the protein surface. Finally, amino groups, when they are unprotonated, are very reactive, without previous activation.²⁵

To determine optimum HCl concentration, activity of immobilized pectinase was determined, using each concentration of HCl. As can be seen from (Figure 1) (Figure 2), 3M HCl was found to be optimum to achieve hydrolysis of nylon. Increasing concentration of HCl to 4M lead to no appreciable increase in immobilized enzyme activity. Using both scheme I and scheme II, 3M HCl concentration was taken as optimum concentration to achieve maximum immobilized pectinase activity. It is also reported 2.9 M HCl to be optimum to achieve hydrolysis of nylon 6,6.²⁶

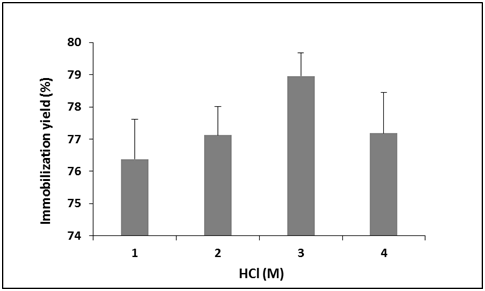

Figure 1 Effect of acid hydrolysis on immobilization of marine pectinase in presence of spacer.

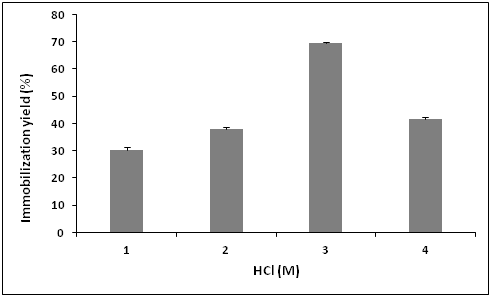

Figure 2 Effect of acid hydrolysis on immobilization of marine pectinase in absence of spacer.

Effect of treatment time on hydrolysis of nylon by HCl

Treatment time of 60 minutes was found to be optimum to achieve maximum immobilization yield of marine pectinase both in presence and absence of spacer (Figure 3)(Figure 4). Prolonged hydrolysis of nylon using 3M HCl, lead to no appreciable increase in immobilized pectinase activity. Prolonged hydrolysis must have generated more–NH₂ groups leading to multiple binding sites linked to individual pectinase molecules. This in turn might lead to some inactivation of the marine pectinase or modification or masking of catalytic sites which would be consistent with the fall in apparent activity at longer hydrolysis times

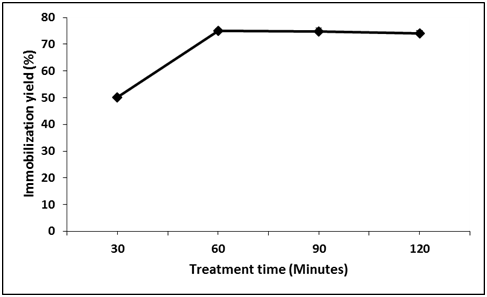

Figure 3 Effect of treatment time on hydrolysis of Nylon by HCl in presence of spacer.

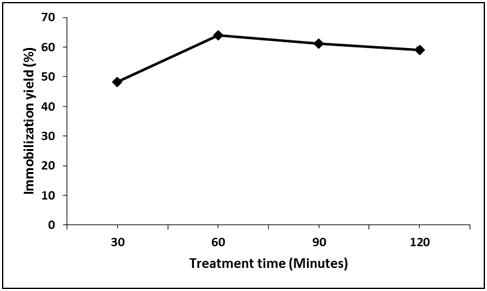

Figure 4 Effect of time on hydrolysis of Nylon by HCl in absence of spacer

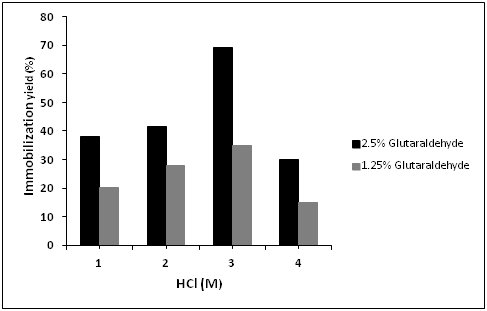

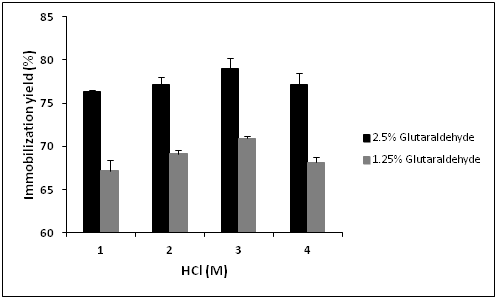

Effect of glutaraldehyde concentration on pectinase immobilization

1.25% and 2.5% glutaraldehyde solution prepared in Tris buffer were used as cross linking agent for immobilization of pectinase enzyme. The role of glutaraldehyde is considered to be a cross linking agent wherein, the proximal aldehyde group in each glutaraldehyde molecule would link in the classical Schiff’s base fashion with the amine groups of the spacer molecules, leaving the distal aldehyde group available for covalent enzyme coupling. Different scientists have reported different concentrations of glutaraldehyde for immobilizing different enzymes on various supports.

As can be observed from Figure 5 and Figure 6, 2.5% glutaraldehyde is optimum to achieve maximum immobilization yield both in presence and absence of spacer than 1.25% glutaraldehyde. It is indicated that low concentrations of glutaraldehyde were not able to form sufficient crosslinkages to effect precipitation of the enzyme.²⁷ At higher concentrations; the extent of crosslinking was high enough to form a tight structure by excluding water molecules to insolubilize the enzyme derivative. However, higher concentration of glutaraldehyde leads to negligible immobilization yield of marine pectinase. This may be because of extensive cross linking those results in distortion of enzyme structure. With this distortion, the accessibility and accommodation of the substrate may be reduced, thus affecting the retention of biological activity.²⁸

Figure 5 Effect of glutaraldehyde concentration on pectinase immobilization in presence of spacer.

Figure 6 Effect of glutaraldehyde concentration on pectinase immobilization in absence of spacer.

Thus it was observed that immobilization yield of marine pectinase on nylon is higher in presence of spacer, 1,6 hexanediamine. The introduction of a hydrophilic spacer could increase the immobilized enzyme’s stability.

The other purpose of using a spacer is to enable the immobilized enzyme to be in a less tight spatial confirmation, i.e. providing more space between the cross-linked enzyme molecules and the surface of the support matrix to facilitate the said molecules maintain their predetermined spatial arrangement for proper enzyme function. Moreover, the presence of an amino containing spacer, such as 1,6 hexanediamine, will increase the binding points on the carrier resulting in enhancement in immobilized activity.²⁶

Effect of pH on activity of immobilized pectinase

As can be observed from Figure 7, pH 9 is found to be optimum for maximum immobilized pectinase activity. Free pectinase also showed maximum activity at alkaline pH 9.0. Further line graph for effect of pH on free and immobilized pectinase follows similar pattern.

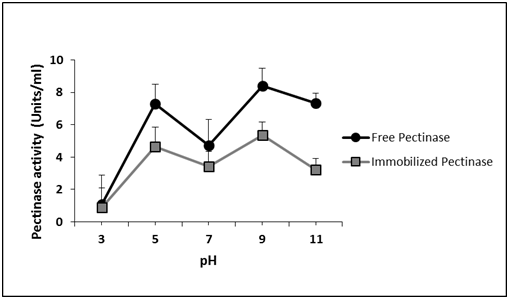

Figure 7 Effect of pH on immobilized pectinase.

Effect of temperature on immobilized pectinase

The optimum temperature of the free pectinase was 60˚C but after the immobilization via crosslinking on nylon, a shift in such temperature was observed and the immobilized pectinase exhibited the highest activity at 80˚C (Figure 8), since hydrophobic and other secondary interactions of the immobilized enzyme might impair conformational flexibility needing higher temperatures for the enzyme molecule to recognize and attain a proper conformation in order to retain its reactivity.²⁹ Thereafter, a loss in activity above 80˚C might be due to the denaturation of some enzyme molecules.

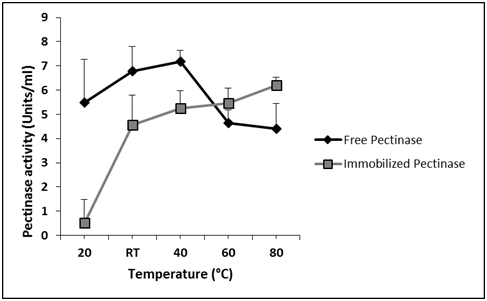

Figure 8 Effect of temperature on immobilized pectinase.

Lower activity of the immobilized pectinase has been observed during these assays as compared to the free enzyme. It might be due to decreased affinity of pectinase for the substrate caused by internal diffusion of the immobilized enzyme.³⁰

Reusability of enzyme

Pectinase enzyme immobilized on nylon could be used successfully up to 3 wash cycles. To determine reusability of pectinase, residual activity of immobilized pectinase was determined after each wash cycle. After 3 wash cycles immobilized pectinase showed 25% of its initial activity. Thus the immobilized enzyme activity decreased with increasing number of uses. These results could be explained by the inactivation of enzyme caused by the denaturation and the leakage of enzyme from support upon use and diffusion inside the matrix limiting accessibility of enzyme.³¹ As an outcome, the immobilized enzyme offers repeated uses whereas the free enzyme can only be used one time except when recovered from the reaction mixture without any denaturation.³² The immobilized pectinase retained more than 75% residual activity after first cycle; 39% on its second cycle and 21% after third cycle.

Marine environment represents untapped and rich source of both chemical and biological diversity. Marine microorganisms have evolved greatest metabolic and genetic diversity in order to adapt to extreme conditions. In order to increase reusability of marine pectinase, it was immobilized on knitted nylon 6,6, fabric using glutaraldehyde as cross linking agent. Under optimized conditions immobilization yield was found to be 78% and 69% in presence and in absence of spacer respectively. Immobilized pectinase showed higher optimum temperature as compared to free pectinase while optimum pH remained same. Immobilized pectinase biocatalyst could be used repetitively up to 3 cycles.

Thus, it can be stated extracellular pectinase produced by marine B. subtilis was successfully immobilized on nylon 6,6.

I would like to acknowledge UGC for fellowship and contingency.

There is no conflict of interest
