Fabric defect detection using fourier transform and gabor filters

Cristina Modranga,1 Raluca Brad,2 Remus Brad1

1Department of Computer Science, Lucian Blaga University of Sibiu, Romania
2Department of Industrial Equipments, Lucian Blaga University of Sibiu, Romania

Correspondence: Remus Brad, Computer Science Department, Lucian Blaga University of Sibiu, 10, Victoriei Blvd., 550024 Sibiu, Romania, Tel 407 2333 3051

Received: October 24, 2017 | Published: December 12, 2017

Citation: Modrâng? C, Brad R, Brad R. Fabric defect detection using fourier transform and gabor filters. J Textile Eng Fashion Technol. 2017;3(4):684-688. DOI: 10.15406/jteft.2017.03.00107

Download PDF

Abstract

This paper introduces a new method used to solve the problem of texture defects detection and localization. The analysis focuses mainly on the detection of texture materials, which represents texture with a high degree of homogeneity, focusing on the textile’s periodicity properties. Although the field research has followed several directions, the developed application uses frequency domain analysis using Fourier transform and Gabor filters in the texture detection process. The processing system has the ultimate goal of detecting portions of the image in which different textures or non-textures are represented. It is considered to be non-texture, any defect in the material, which alters the periodic physical structure of the texture.

Keywords: fabric defect detection, fourier transform, analysis methods, autocorrelation

Introduction

Nowadays, fabric defect detection is mainly operated based on human inspection. This method is a subjective one, depending on a large number of factors that can influence the human observer, such as the intensity of the lights, the fatigue or the experience of the human observer.1 This is why, in order to reduce the inspection process costs and to increase the products quality, this process needs to be done by computer vision.

The state of the art in research studies followed several directions, with some researchers focusing on the exploration of the device of fabric image acquisition, while other researchers have moved on to develop algorithms for fabric model analysis. The methods used can be classified into two large categories: optical analysis methods and image analysis methods.

Image-based methods can be categorized into three categories: frequency-based analysis methods, space-based analysis methods and combined methods.2 We mainly focus on the frequency-based analysis methods, which can be classified into two groups: methods using Fourier transform and methods using wavelet transforms.

The Fourier transform was originally presented by Imaoka3 to process the fabric image and estimate the fabric pattern. It has been reported that the overall accuracy of these methods would be about 80%. Wood4 used in 1990 the Fourier transform and autocorrelation functions to model the spatial periodicity of the fabric pattern. A series of characteristics of the two-dimensional power spectrum and the autocorrelation pattern were extracted and it has been estimated that the measurement accuracy can reach less than two fiber per inch.

In 1996, Xu5 used Fast Fourier Transform to calculate the power spectrum of the fabric and used the logarithmic operation to compress the spectrum to obtain the grayscale image spectrum. Further, Xu determined the peak points of the power spectrum on the directions of the periodic structure of the texture and separately extracted the frequencies of these periodic structures, both in the horizontal and the vertical direction. Finally, the images can be rebuilt based on the filtered power spectrum, which only keeps the peak points in the spectrum.

Sari-Saraf and co.6 used the Fourier transform for detecting defects in the fabric. The method they presented examines and performs a one-dimensional diagram, which is a mathematical technique used to validate image integrity. The one-dimensional diagram is created by integrating the points in every ring of the two-dimensional spectrum in the frequency range. The rings are concentric, with different radius, and are used to monitor the fabric structure at the fiber level. The most important advantage is that their approach it is less sensitive to the background noise.

An approach to the wavelet transforms is presented in the article,7 using a Gabor filterbank, obtained by varying the parameters of the Gabor filter, such as: orientation, frequency, phase, wavelength. The filter response resulting from the convolution between the input image and the filter values ​​will contain low energy points for the non-defective image portions and high energy points for the defective portions of the image. On the filtered image, a strong binarization operation is applied, resulting in a binary image where the white-colored pixels (intensity 255) are the defect areas in the original image, and the pixels in black (intensity 0) represent the fault-free areas in the image. The algorithm was tested on textile images showing 16 different defects that are present in fabrics produced in textile plants and has an accuracy of 83.5% on these examples. Another aproach described in,8,9 where a bank of Gabor filters was used for texture segmentation, in order to separate different patterns of fabric from an image.

The poposed processing scheme

The Gabor filter bank was generated by tunning the frequency (u) and the orientation of the filters (Ө). The parameter Ө can be varied using two methods: with a 30 degree orientation separation angle10 or with a 45 degree orientation separation angle. The frequency parameter u takes the values: 1√2, 2√2, 4√2, ..., (N / 4) √2, where N is the width of the image on which the filter is applied. All Gabor filters in the bank are applied to the input image, resulting in a number of images equal to the number of filters in the bank. A method of extracting properties is applied to these filtered images, such as: using the magnitude received in response to filtering, applying an image smoothing method, using only the actual component from the filter response, using a nonlinear sigmoid function, etc (Figure 1).

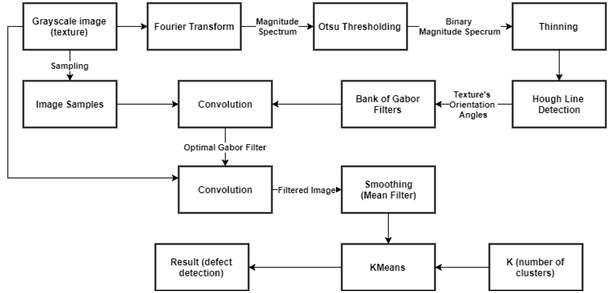

Figure 1 Defect detection processing framework.

Texture orientation using fourier transform

The Fourier Transform is a mathematical operation that decomposes a signal (any waveform in the real world) into a sum of sinusoidal signals.11 The Fourier transform decomposes a function or a signal represented in a given representation domain (the time domain, the spatial domain, etc.) into the frequencies it is composed of. In image processing, the input signal is represented in the spatial domain (x,y). Let N be the width and M be the height of the texture, and f(x,y) the gray level intensity of the pixel at the position (x,y). The Fourier transform of the image is given by equation (1), for frequency variables u=0 ... N-1 and v=0 ... M-1.

The resulting function is a complex function in the frequency domain, which contains the same information as the original function, but in another form of representation, which is easier to analyze in image processing. From the Fourier Transform of the image, we extract the magnitude spectrum, which represents the quantity of each frequency present in the original signal and keeps information about the physical representation of the texture. The magnitude spectrum is calculated based on the equation (2), where Fr(u) is the real part of the complex Fourier transform result and Fi(u) is the imaginary part.

F( u,v )=  x=0 N=1 y=0 M=1 f( x,y ) e j2π( ux N + vy M )   MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVCI8FfYJH8YrFfeuY=Hhbbf9v8qqaqFr0xc9pk0xbb a9q8WqFfeaY=biLkVcLq=JHqpepeea0=as0Fb9pgeaYRXxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaKqzGeaeaaaaaa aaa8qacaWGgbqcfa4aaeWaaOWdaeaajugib8qacaWG1bGaaiilaiaa dAhaaOGaayjkaiaawMcaaKqzGeGaeyypa0JaaiiOaiabggHiLVWaa0 baaKqbagaajugWaiaadIhacqGH9aqpcaaIWaaajuaGbaqcLbmacaWG obGaeyypa0JaaGymaaaajugibiabggHiLVWaa0baaKqbagaajugWai aadMhacqGH9aqpcaaIWaaajuaGbaqcLbmacaWGnbGaeyypa0JaaGym aaaajugibiaadAgajuaGdaqadaGcpaqaaKqzGeWdbiaadIhacaGGSa GaamyEaaGccaGLOaGaayzkaaqcLbsacaWGLbWcpaWaaWbaaeqabaqc LbmapeGaeyOeI0IaamOAaiaaikdacqaHapaClmaabmaapaqaa8qada WcaaWdaeaajugWa8qacaWG1bGaamiEaaWcpaqaaKqzadWdbiaad6ea aaGaey4kaSYcdaWcaaWdaeaajugWa8qacaWG2bGaamyEaaWcpaqaaK qzadWdbiaad2eaaaaaliaawIcacaGLPaaaaaqcLbsacaGGGcaaaa@7302@ (1)

M( u )=F( u )=  F r 2 ( u )+ F i 2 ( u )      MathType@MTEF@5@5@+= feaagKart1ev2aqatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVCI8FfYJH8YrFfeuY=Hhbbf9v8qqaqFr0xc9pk0xbb a9q8WqFfeaY=biLkVcLq=JHqpepeea0=as0Fb9pgeaYRXxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaKqzGeaeaaaaaa aaa8qacaWGnbqcfa4aaeWaaOWdaeaajugib8qacaWG1baakiaawIca caGLPaaajugibiabg2da9mXvP5wqSX2qVrwzqf2zLnharyGqHrxyUD gaiuaacaWFcuIaamOraKqbaoaabmaak8aabaqcLbsapeGaamyDaaGc caGLOaGaayzkaaqcLbsacaWFcuIaeyypa0JaaiiOaKqbaoaakaaak8 aabaqcLbsapeGaamOraiaadkhal8aadaahaaqabeaajugWa8qacaaI YaaaaKqbaoaabmaak8aabaqcLbsapeGaamyDaaGccaGLOaGaayzkaa qcLbsacqGHRaWkcaGGGcGaamOraiaadMgal8aadaahaaqabeaajugW a8qacaaIYaaaaKqbaoaabmaak8aabaqcLbsapeGaamyDaaGccaGLOa GaayzkaaaaleqaaKqzGeGaaiiOaiaacckacaGGGcGaaiiOaaaa@6654@ (2)

For textured images, the magnitude spectrum represents a small number of components in the frequency domain, and it is periodic in the direction given by the physical structure of the periodicity in the analyzed texture. Forward, we process the peaks from the magnitude spectrum to extract the texture orientation angles.

In order to eliminate the frequencies that have a low rate of apparition and keep only the peaks, we apply an adaptive thresholding operation on the spectrum. We propose Otsu’s method to get the optimal threshold value.

Unsupervised image thresholding

In image processing, Otsu’s method is an algorithm used to perform clustering-based image thresholding.12 The algorithm assumes that the input image contains only two classes of pixels: foreground and background pixels, then calculates the optimal threshold value that best separate the two classes (the intra-class variance is minimal).

Otsu’s method finds the threshold value by exhaustively search for the threshold that minimizes the intra-class variance σ 2 w(t) MathType@MTEF@5@5@+= feaagKart1ev2aqatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVCI8FfYJH8YrFfeuY=Hhbbf9v8qqaqFr0xc9pk0xbb a9q8WqFfeaY=biLkVcLq=JHqpepeea0=as0Fb9pgeaYRXxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaKqzGeGaeq4Wdm xcfa4aaWbaaSqabeaajugWaabaaaaaaaaapeGaaGOmaaaajugibiaa dEhacaGGOaGaamiDaiaacMcaaaa@3EE0@  that represents the weighted sum of the variances of the two classes (equation 3). The weights w0 and w1 represents the probabilities of the two classes, separated by the threshold value t (equation 4 and 5).

σ w 2 ( t )=  w 0 ( t ) σ 0 2 ( t )+  w 1 ( t ) σ 1 2 ( t )   MathType@MTEF@5@5@+= feaagKart1ev2aqatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVCI8FfYJH8YrFfeuY=Hhbbf9v8qqaqFr0xc9pk0xbb a9q8WqFfeaY=biLkVcLq=JHqpepeea0=as0Fb9pgeaYRXxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaKqzGeaeaaaaaa aaa8qacqaHdpWClmaaDaaabaqcLbmacaWG3baaleaajugWaiaaikda aaqcfa4aaeWaaOWdaeaajugib8qacaWG0baakiaawIcacaGLPaaaju gibiabg2da9iaacckacaWG3bqcfa4damaaBaaaleaajugWa8qacaaI Waaal8aabeaajuaGpeWaaeWaaOWdaeaajugib8qacaWG0baakiaawI cacaGLPaaajugibiabeo8aZTWaa0baaeaajugWaiaaicdaaSqaaKqz adGaaGOmaaaajuaGdaqadaGcpaqaaKqzGeWdbiaadshaaOGaayjkai aawMcaaKqzGeGaey4kaSIaaiiOaiaadEhal8aadaWgaaqaaKqzadWd biaaigdaaSWdaeqaaKqba+qadaqadaGcpaqaaKqzGeWdbiaadshaaO GaayjkaiaawMcaaKqzGeGaeq4Wdm3cdaqhaaqaaKqzadGaaGymaaWc baqcLbmacaaIYaaaaKqbaoaabmaak8aabaqcLbsapeGaamiDaaGcca GLOaGaayzkaaqcLbsacaGGGcGaaiiOaaaa@6BE3@ (3)

w 0 ( t )=  i=0 t=1 p( i ) MathType@MTEF@5@5@+= feaagKart1ev2aqatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVCI8FfYJH8YrFfeuY=Hhbbf9v8qqaqFr0xc9pk0xbb a9q8WqFfeaY=biLkVcLq=JHqpepeea0=as0Fb9pgeaYRXxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaKqzGeaeaaaaaa aaa8qacaWG3bqcfa4damaaBaaaleaajugWa8qacaaIWaaal8aabeaa juaGpeWaaeWaaOWdaeaajugib8qacaWG0baakiaawIcacaGLPaaaju gibiabg2da9iaacckajuaGdaaeWbqaaKqzGeGaamiCaKqbaoaabmaa paqaaKqzGeWdbiaadMgaaKqbakaawIcacaGLPaaaaeaajugWaiaadM gacqGH9aqpcaaIWaaajuaGbaqcLbmacaWG0bGaeyypa0JaaGymaaqc LbsacqGHris5aaaa@526B@ (4)

w 1 ( t )=  i=t N p( i ) MathType@MTEF@5@5@+= feaagKart1ev2aqatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVCI8FfYJH8YrFfeuY=Hhbbf9v8qqaqFr0xc9pk0xbb a9q8WqFfeaY=biLkVcLq=JHqpepeea0=as0Fb9pgeaYRXxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaKqzGeaeaaaaaa aaa8qacaWG3bWcpaWaaSbaaeaajugWa8qacaaIXaaal8aabeaajuaG peWaaeWaaOWdaeaajugib8qacaWG0baakiaawIcacaGLPaaajugibi abg2da9iaacckajuaGdaaeWbqaaKqzGeGaamiCaKqbaoaabmaapaqa aKqzGeWdbiaadMgaaKqbakaawIcacaGLPaaaaeaajugWaiaadMgacq GH9aqpcaWG0baajuaGbaqcLbmacaWGobaajugibiabggHiLdaaaa@5036@ (5)

After the threshold value t is calculated, we eliminate the frequencies that have a rate of apparition lower than t, and keep only the peaks from the magnitude spectrum.

The thinning block also operates on the magnitude spectrum, and reduces the neighborhoods of pixels set to value 255 in one pixel. This process is essential to the next block step because a large number of pixels set desired for the visual effect, but they make the line detection process more difficult. Figure 2 shows the amplitude spectrum after the thinning process (left) and before the thinning process (right). From the spectrum, it is noticed that the points removed by the thinning operation do not provide additional information on the texture orientation.

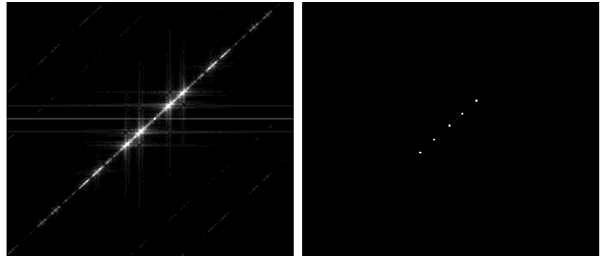

Figure 2 The magnitude spectrum before and after tinning.

Texture angle estimation by line detection

Line detection in the magnitude spectrum provides information regarding texture orientation. We detect all the lines from the spectrum that pass through the origin point (N/2, M/2). Hough line detection detects lines that pass through multiple points in the image, providing information about the line’s length and orientations.

Hough transform works with polar coordinates, where the line equation is defined by the equation (6), where ρ represents the length of the perpendicular from the origin to the detected line, and Ө is the angle made by the perpendicular to the Ox axis.

ρ=x cosθ+y sinθ MathType@MTEF@5@5@+= feaagKart1ev2aqatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVCI8FfYJH8YrFfeuY=Hhbbf9v8qqaqFr0xc9pk0xbb a9q8WqFfeaY=biLkVcLq=JHqpepeea0=as0Fb9pgeaYRXxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaKqzGeaeaaaaaa aaa8qacqaHbpGCcqGH9aqpcaWG4bGaaiiOaiGacogacaGGVbGaai4C aiabeI7aXjabgUcaRiaadMhacaGGGcGaci4CaiaacMgacaGGUbGaeq iUdehaaa@479D@ (6)

The algorithm operates using a structure called accumulator, which is a two-dimensional array of dimensions equal to the number of possible combinations for the ρ and Ө values: ( ρ max MathType@MTEF@5@5@+= feaagKart1ev2aqatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVCI8FfYJH8YrFfeuY=Hhbbf9v8qqaqFr0xc9pk0xbb a9q8WqFfeaY=biLkVcLq=JHqpepeea0=as0Fb9pgeaYRXxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaKqzGeaeaaaaaa aaa8qacqGHsislcqaHbpGCl8aadaWgaaqaaKqzadWdbiaad2gacaWG HbGaamiEaaWcpaqabaaaaa@3DB0@ , ρ max MathType@MTEF@5@5@+= feaagKart1ev2aqatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVCI8FfYJH8YrFfeuY=Hhbbf9v8qqaqFr0xc9pk0xbb a9q8WqFfeaY=biLkVcLq=JHqpepeea0=as0Fb9pgeaYRXxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaKqzGeaeaaaaaa aaa8qacqaHbpGCl8aadaWgaaqaaKqzadWdbiaad2gacaWGHbGaamiE aaWcpaqabaaaaa@3CC3@ )and ( θ max MathType@MTEF@5@5@+= feaagKart1ev2aqatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVCI8FfYJH8YrFfeuY=Hhbbf9v8qqaqFr0xc9pk0xbb a9q8WqFfeaY=biLkVcLq=JHqpepeea0=as0Fb9pgeaYRXxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaKqzGeaeaaaaaa aaa8qacqGHsislcqaH4oqCl8aadaWgaaqaaKqzadWdbiaad2gacaWG HbGaamiEaaWcpaqabaaaaa@3DA6@ , θ max MathType@MTEF@5@5@+= feaagKart1ev2aqatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVCI8FfYJH8YrFfeuY=Hhbbf9v8qqaqFr0xc9pk0xbb a9q8WqFfeaY=biLkVcLq=JHqpepeea0=as0Fb9pgeaYRXxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaKqzGeaeaaaaaa aaa8qacqaH4oqCl8aadaWgaaqaaKqzadWdbiaad2gacaWGHbGaamiE aaWcpaqabaaaaa@3CB9@ ), initializet to 0.

We iterate the processed magnitude spectrum and foreach frequency peak (pixel with the maximum intensity), we increment the position in the acumulator that satisfies the equation (6). After the verification of all the frequency peaks in the magnitude spectrum, the maximum points in the accumulator indicate the presence of some straight lines. High acumulator values indicate that many points in the image have complied with the equation of that line. From the acumulator, we extract the angle indices of a number of maximum points. In this paper, we propose to extract all angle indexes for the values bigger than the maximum value of the accumulator divided 2. This set of orientation angles will be the input for creating the bank of Gabor filters and represents all the angles for which the texture keeps the periodical structure.

Generation of optimal oriented gabor filters

In spatial domain, an 2D Gabor filter represents a Gaussian kernel function modulated by a sinusoidal plane wave, and it's one of the most suitable option for texture segmentation and clasification and boundary detection.13 The mathematics of the Gabor filters is presented in the equation (7), where x and y represents the pixel coordinates, σ represents the variance of the Gaussian kernel, f represents the frequency of the texture and Ө is the orientation parameter.

g e ( x,y )=  e 1 2   x 2  +  y 2 σ 2 sin( 2πf( xcosθ+ ysinθ ) ) MathType@MTEF@5@5@+= feaagKart1ev2aqatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVCI8FfYJH8YrFfeuY=Hhbbf9v8qqaqFr0xc9pk0xbb a9q8WqFfeaY=biLkVcLq=JHqpepeea0=as0Fb9pgeaYRXxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaKqzGeaeaaaaaa aaa8qacaWGNbWcpaWaaSbaaeaajugWa8qacaWGLbaal8aabeaajuaG peWaaeWaaOWdaeaajugib8qacaWG4bGaaiilaiaadMhaaOGaayjkai aawMcaaKqzGeGaeyypa0JaaiiOaiaadwgal8aadaahaaqabeaajugW a8qacqGHsisllmaalaaapaqaaKqzadWdbiaaigdaaSWdaeaajugWa8 qacaaIYaaaaiaacckalmaalaaapaqaaKqzadWdbiaadIhal8aadaah aaadbeqaaKqzadWdbiaaikdacaGGGcaaaiabgUcaRiaacckacaWG5b WcpaWaaWbaaWqabeaajugWa8qacaaIYaaaaaWcpaqaaKqzadWdbiab eo8aZTWdamaaCaaameqabaqcLbmapeGaaGOmaaaaaaaaaKqzGeGaci 4CaiaacMgacaGGUbqcfa4aaeWaaOWdaeaajugib8qacaaIYaGaeqiW daNaamOzaKqbaoaabmaak8aabaqcLbsapeGaamiEaiGacogacaGGVb Gaai4CaiabeI7aXjabgUcaRiaacckacaWG5bGaci4CaiaacMgacaGG UbGaeqiUdehakiaawIcacaGLPaaaaiaawIcacaGLPaaaaaa@74F6@ (7)

A bank of Gabor filters, which represents a set of Gabor filters with different parameters, are applied to a number of samples of the defective texture, and the filter with the best response is taken into consideration and applied to the entire image. The frequency and the phase of the sinusoidal wave, the variance of the Gaussian kernel and the filter orientation represents the filter parameters. We keep the variance constant, σ =3.5, the oprimal value found after testing.

The choice of the filters parameters is one of the most important part of the entire process, because the tuning of the Gabor filters is a NP-hard problem, so we need to reduce the bank of filters in order to choose the filters with the best accuracy. The ideal Gabor filter is the one with the frequency equal to the texture frequency and with the orientation of the texture.

Because the frequency of the texture can't be extracted without any apriori information about the real size of the texture in centimeters, we choose to aproximate it based on the image size in pixels. The choice for aproximation is presented in,14 where the frequency parameter u takes values between 1√2, 2√2, 4√2, ..., (N/4) √2, where N represents the width of the texture.

For tuning the orientation parameter, we use the orientation angles detected in the previous step, applying the Hough transform on the magnitude spectrum. We generate the bank of filters and search for the filter with the best response. From the input image, we randomly extract a number of N=4 samples of the size of the filter and apply each filter to the samples extracted. We decided to use N number of samples and not a single sample because the textures are not perfectly periodic and the filter is not always mapped to a periodic portion of the image, and can also catch areas where only part of the periodical structure is represented from which the image is formed or edge areas.

Thus, with a larger number of samples, the correct filter has more chances to have the sum of the smallest convolution result in unfavorable cases, and the probability of defect decreases. The filter bank is incrementally sorted by the sum of convolution in absolute value for the N samples, then the first filter in the bench is selected as the correct one and it is further used in processing. The selected filter is applied over the image, representing the response of the image filtered with the optimum Gabor filter

The response of the filtered image with the optimum Gabor filter undergoes a strong smoothing operation, resulting in a uniform image of different shades of gray depending on the texture in the image or the defective and non-defective areas. For smoothing, a 25×25 filter was used, replacing the value of each pixel in the image with the average of its neighbors.

Defect detection by pixel classification

The K-Means algorithm is an unsupervised learning algorithm that solves the problem of automatically grouping data from a set based on their common features. The basic idea of ​​the algorithm is to divide the data according to its similarity into a number of k clusters, k decided in the initialization phase. Each cluster has a class center of randomly selected coordinates. The coordinates of the class center represent a set of different values ​​depending on the data representation in the data set. Generally, for grouping points or pixels in k distinct classes, the two spatial coordinates x and y are used. However, this grouping method is not feasible, so the coordinates of the class center will be the image intensity in grayscale, representing an integer between 0 and 255.

For each pixel in the image, the similarity between the current pixel and all k class centers is calculated. The pixel will associate with the class center of which it has the strongest similarity. The most commonly used method for calculating similarity is the Euclidean distance between two points, but for this specific problem, we use the difference of class center intensity and the current pixel’s intensity. After iterating through the entire image, it is assumed that all the pixels in the image associated with a class center form a cluster. In order for the class center to best characterize associated data (pixels), it must be at the center of the cluster. Thus, for each cluster, the class center moves in the center of the associated points.

Then the entire algorithm is repeated, until each pixel in the image remains associated with the same class center for two iterations in a row. At the end of the algorithm, data in the dataset is grouped into k clusters and the image is segmented in k regions. Each of the k regions can have 0 pixels, all the pixels from the image, or a number between the two limits of pixels associated, depending on the number of different textures or non-textures in the image. For a texture non-defective, only one cluster will contain all the pixels. When the pixels from the image will be associated to two or more clusters, we can conclude that the input image contains more than one texture or non-texture, so we can spot the defective area.

Experimental results

Based on the test results, it was found that the response time is directly proportional to the size of the input image. Small image sizes below 512×512 pixels are preferred. The quality of the response depends on the physical structure of the image and the periodicity of the texture, but also on the size and type of the defect in the image. Images with highly periodic and homogeneous structures are classified with much better accuracy than images where the textures do not follow a perfect pattern of yarn jointing. Therefore, textures with fine stitch patterns are preferred.

The result of the application also depends on the number of class centers of the K-Means algorithm. If the number of classes is less than the number of textures and non-textures in the input image, the similar areas as intestines in the image will be grouped into the same cluster. Therefore, it is preferred that the number of clusters be greater than or equal to the number of textures and non-textures in the image. On the basis of the experiments, it was determined that a number of class’s k of a value between 2 and 6 is sufficiently large for most of the input images.

Experimental results are shown in Table 1 below, where textures with various defects have been analyzed. It can be seen that the processing chain quite well separates the defect areas from the faultless areas. Certain areas of the image that are not part of the defect area are classified as defective because some portions deviate from the general structure of the texture.

Input Image

Filtered Image with the Selected Gabor Filter

Smoothed Image

Result (Classified Image)

Table 1 Results on different texture defects
