Knitted fabrics are the preferred structures in athletic wear in which demand for comfort is a key requirement. Heat and liquid sweat generation during athletic & exercise activities must be transported out and dissipated to the atmosphere. A key property influencing such behaviors is porosity. Two parameters that characterize it are pore size and pore volume. One of the objectives in this research was to come up with models that can predict inter yarn pore size and pore volume for simple weft knitted structures, from fabric particulars, such as courses and Wales, count, yarn size, stitch density, thickness and other geometrical details of the fabric, which characterize the structure. Such a model was developed that was based on the geometry of the unit cell of a single loop. The experimental work in this project involved using a set of 16 knitted fabrics that differ in course count and examining their pore structure and porosity related characteristics. The values of pore size and pore volume were calculated, those of pore size were measured with image analysis, and other parameters. The effects of course count and washing on stitch density, stitch length, fabric thickness and pore size are examined in details.

Keywords: knitted fabrics, porosity, air permeability, thickness

Comfort is the perceived psychological feeling of a wearer under current conditions of the physical activities and the environment. Knitted fabrics are known for their excellent comfort properties. They possess high extensibility under low load allowing comfortable fit on any part it is pulled onto.^1–3 As clothing is directly in contact with the human body, it interacts with the skin continuously and dynamically during wear, triggering tactile, thermal and moisture related sensations.^4,5 The process of transferring heat and moisture in the clothing determines the state of thermo-physiological comfort of the wearer. To achieve the ideal comfort level, heat and sweat generation must be transported out and dissipated to the atmosphere. Porosity is one of the key properties influencing such behavior.^6–8 While models exist for characterizing pore size and volume in woven and nonwoven materials, not much information exists on how to characterize it in knitted fabrics. The objective of this research is to come up with models that can predict pore size and pore volume from fabric particulars, such as courses and Wales count, yarn size and other geometrical details of the fabric, which characterize the structure.^9–12 The fabric samples are limited to the simplest of all knit structures, the jersey or plain knitted fabrics, which are commonly found in many apparel applications. Pore volume plays an important role in determining the amount of air trapped in a material or the amount of fluid the structure would hold.^13–16 Pore size is a parameter that determines the rate at which fluids are imbibed by porous materials. In the construction of the pore size model, the single loop is taken as a unit cell. The plain-knit structure essentially consists of this unit cell repeating itself in both the length and the width directions.^17–22

In the research work on the review of literature, among other relevant topics, the geometrical structure and parameters of a plain knitted structure. The stitch length model proposed by Peirce is particularly discussed in detail.¹² His equation for stitch length is utilized in the current study in which pore size is estimated using a model.

Using a controlled set of 16 fabrics that differed in course count, the values of pore size and pore volume are calculated. Pore size is measured with image analysis and other parameters. The role of pore size, pore volume and airpermeability in determining a fabric's fluid holding, and air transport properties are examined and discussed.

Material

I have done this research work of the cotton knitted grey fabrics. In this work, I have used combed cotton yarn different type of count 18 Ne, 24 Ne, 30 Ne and 36 Ne. I have used this in four types of cotton grey fabrics as shown in Figures 1(a)–(d). The details of the yarns tested are furnished in the Table 1 as follows.

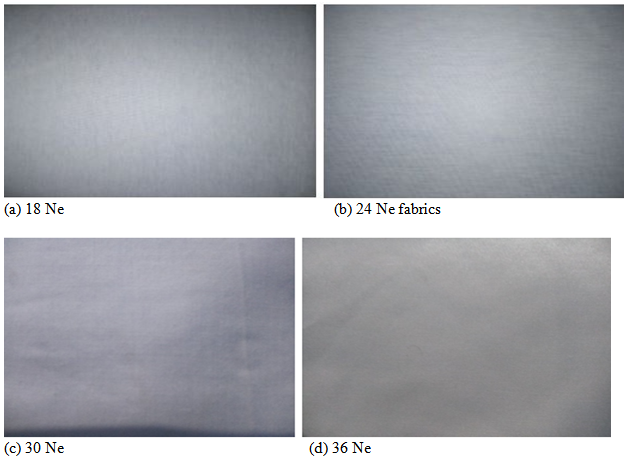

Figure 1 Cotton knit fabrics.

Each of the four types of yarn is used for making single jersey knitted fabric samples on a circular knitting machine with following parameters.

Preparation of fabric sample

Using each type of yarn, four samples, with four different stitch lengths namely 2.8, 3.0, 3.2, 3.4 mm were knitted on the same machine under same operating conditions. Therefore, the total no. of samples manufactured is 4x4=16. Care was taken to maintain yarn input tension at all 48 feeders within range of 10-12cN as per show Table 2.

Methods

Wet Processing and finishing of fabrics: Wet-processed for used in grey fabric the following recipe in bleaching: Hydrogen peroxide - 2%, Caustic soda - 2%, Wetting agent -0.8%, Anti-crease agent - 0.6%. The temperature was maintained at 90˚C and the running time was 60 minutes used. Subsequently, the fabrics were given compaction treatment and each fabric sample was separately set in the compaction machine to achieve the nominal finishing targets. All the fabric samples were stitched end to end to ensure that the same chemicals and processing conditions are maintained during wet processing. This will ensure the elimination of any variability on the fabric properties during wet processing. The fabric samples were kept in the lab for 48 hours and then following fabric parameters were measured by following standard procedure.

Stitch length

For measuring stitch length, a simple device was fabricated. The description of the device is given below:

Description: A wooden board of dimension 25"*10" was taken and a cm scale was fixed on the same. A suitable clip was pasted at the top side of the board. The sample yarn from the fabric was unrevant from the fabric, the fabric being marked for 50 Wales. The marked position on the yarn sample was clipped on the board such that 2 ends of the yarn are clipped forming a loop was measured directly from the scale. If L is the length of the loop then the length of yarn sample is 2L. Therefore, the stitch length will be 2L/50.

GSM

The weight of the fabric in g/m² was measured by cutting the fabric with the help of a round type GSM. cutter and weighing the fabric on electronic balance weight 0.0001gm accuracy. The area of the fabric was 100cm² therefore the weight obtained on the balance was multiplied by 100 to obtain the GSM.

Thickness

Thickness testing was carried out as per BS EN ISO 9073-2:1995. The thickness of fabric in mm was measured by the thickness tester at the weight of 20 g/f. A fabric sample is placed under the weight of 20g/f on a thickness tester and the thickness of fabric sample is displayed on the meter. Here the weight varies from 20g/f to 1000g/f.

Porosity (%)

The porosity (%) was determined by formula given by Skinkle 1940: where A- Area of sample (m²), W- Weight of the sample (g), T- thickness of the sample (cm), D- density of fabric (g/cm³) using the equation (i).

$P=\frac{100(AT-W/D)}{AT}$ (i)

Air permeability

Air permeability was carried out as per ASTM D737-04 using FX 3300 air permeability tester. It measures the air permeability of the fabric sample at 98 atmospheric pressure and suction area 15.07cm². A fabric sample is placed on the m/c and air permeability is displayed on the monitor screen of the machine. The unit in which fabric sample is measured is cc/sec/cm².

This chapter is divided into several sections. The first deals with the single jersey knitted fabric characteristics such as the yarn diameter, stitch length, stitch density, thickness of the fabric. These experiments were performed on the knitted fabric and the following results were obtained which was furnished in Tables 3 & 4.

Following are the results of effect of different parameters along with porosity which is shown with the help of graphs

Relation between stitch length and porosity at different counts

This Figure 2 shows the relationship between stitch length and porosity. It shows the effect of stitch length variation porosity. It shows the linear relationship i.e. as the stitch length increases porosity increases.

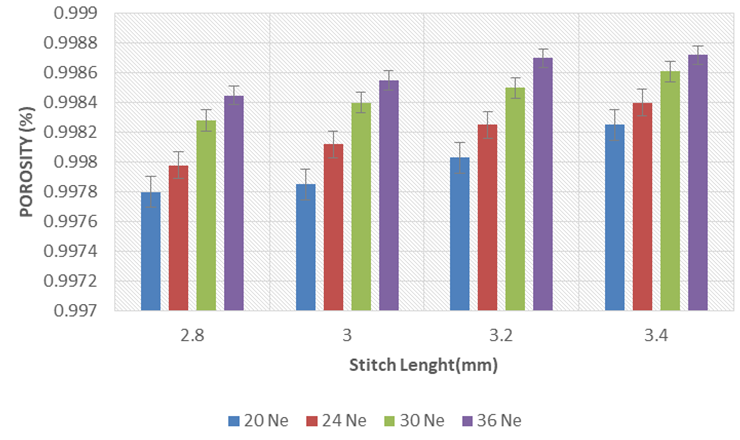

Figure 2 Relation between stitch length and porosity (%) with different Count.

Relationship between stitch length and air permeability at different counts

This Figure 3 shows the relationship between air permeability and stitch length at different counts. It shows that air permeability varies with stitch length variation. It states that air permeability increases as stitch length increases. It shows the linear relationship between stitch.

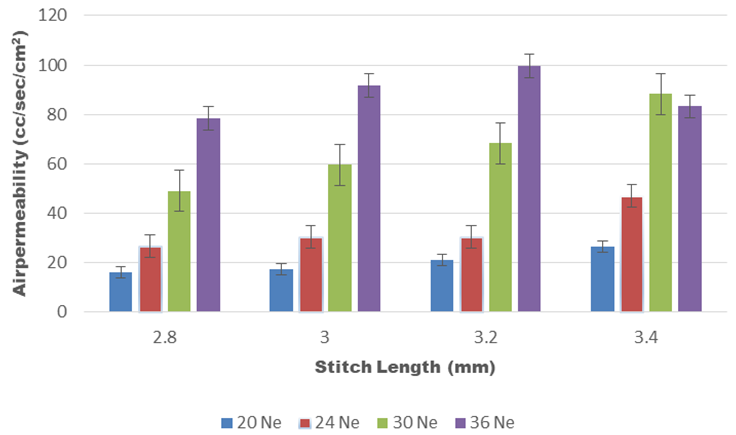

Figure 3 Relation between stitch length and air permeability with different count.

Relationship between stitch length and area % of porosity at different counts

This Figure 4 shows the relationship between stitch length and area % age of porosity at different counts. It shows that area % age of porosity varies with stitch length. It states that as the stitch length increases area % age of porosity increases. It shows the linear relationship between area % age of porosity and stitch length.²¹

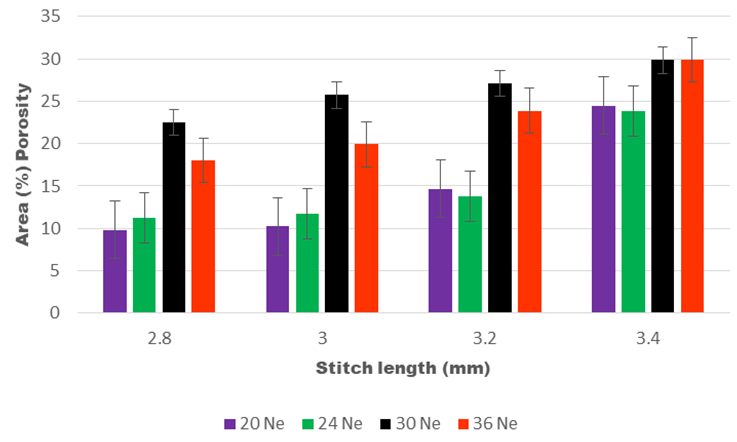

Figure 4 Relation between stitch length and Area (%) Porosity with different count.

Relationship between air permeability (cc/sec/cm²) and porosity

Air permeability is an important factor in comfort of a fabric as it plays a role in transporting moisture vapor from the skin to outside atmosphere. The assumption is that vapor travels mainly through fabric spaces by diffusion in air from one side of the fabric to the other. The relation between them is shown below Figure 5.

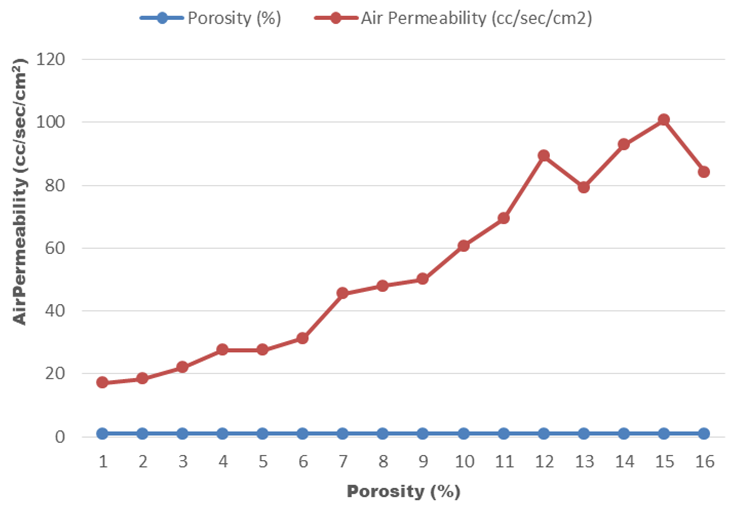

Figure 5 Relationship between air permeability and porosity.

This figure 5 shows the relationship between air permeability and porosity. It shows the effect on the porosity due to air permeability.²⁰ Here the graph shown that as the air permeability increases porosity increases and it shows the linear relationship between air permeability and porosity (Table 4).

Relationship between Thickness and porosity is following

Thickness vs porosity: This Figure 6, Tables 3 & 4 shows the relationship between thickness and porosity. It shows the effect on the porosity due to thickness (mm). It shows as the thickness decreases porosity increases.¹⁹ It shows the linear relationship between thickness and porosity.

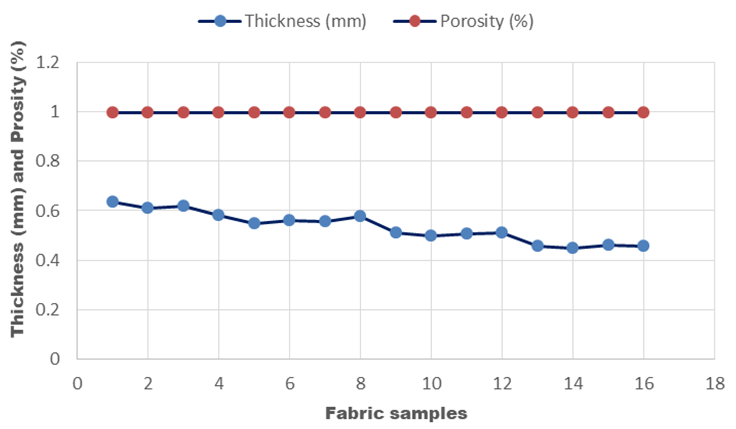

Figure 6 Relationship between thickness and porosity.

1. The study can provide useful guidelines to instrument developers regarding possible ways to obtain more structurally-related pore size parameters. In addition to this main objective, important factors such as fabric construction parameters and fabric state (dry or washed) were also examined.
2. The main conclusion of this study is that there is a noticeable difference between the model-based estimated pore size values and the measured values.
3. The pore size values decreased with increase in course density and they decreased due to increase in stitch density. Stitch density and fabric weight were found to be strongly correlated. As the stitch density increased, fabric weight also increased.
4. Air permeability has direct relationship with pore size. An increase in pore size led to an increase in air permeability. The fabric with the lowest stitch density has the best air permeability. The same fabric also has the best rate of moisture absorption.
