Background: Esophageal cancer remains public health concern for many countries. The objective of the current study was to identify (if any) Epstein Barr Virus (EBV) in tissue specimens obtained from Sudanese patients diagnosed with esophageal cancer.

Methodology: In the current study, we retrieved 102 formalin fixed paraffin wax processed tissue’s blocks obtained from patients with esophageal carcinomas. All tissue samples were retrieved from histopathology laboratories in Khartoum City, Sudan and subsequently investigated by PCR method for the presence of EBV. All specimens were previously diagnosed with esophageal carcinoma.

Results: Out the 102 patients, 6 (5.88%) were found to be positive for EBV by PCR, while 96 (94.12%) were found to be negative. Of the 56 males 5/56 (8.9%) were found to be positive for EBV and 51/55(91.1%) were found to be negative. Of the 46 females, 1/46 (2.2%) were found to be positive for EBV and 45/46(97.8%) were found to be negative. The risk associated with male sex was and OR (CI) = 4.5(0.51-39.99), P = 0.18.

Conclusion: EBV might play some roles in the etiology of esophageal carcinoma in Sudan. Sustainable preventive strategies are required to reduce the epidemiology of esophageal cancer in Sudan.

Keywords: esophageal cancer, EBV, Sudan, molecular detection, esophageal carcinoma, etiology, adenocarcinomas

EBV, Epstein Barr virus; EC, esophageal carcinoma; AC, adenocarcinomas; CMV, cytomegalovirus; LMP1, latent membrane protein 1; SDS, sodium dodecyl sulfate; EBNA-4, EBV nuclear antigen-4; RRs, relative risks; NPC, nasopharyngeal carcinoma; PCR, polymerase chain reaction

Esophageal carcinoma (EC) is one of the most frequent cancers, particularly in Asia, and it is the sixth cause of the global cancer deaths.¹ Most of the esophageal carcinomas developed from the stratified squamous epithelial lining of the esophagus, hence, adenocarcinomas (AC) arising from columnar glandular cells that replace the squamous epithelium cells.² Several risk factors have been incriminated for the development of esophageal cancer such as; viruses,³ tobacco smoking, alcohol drinking,⁴ gastro-esophageal reflux,⁵ susceptibility genes,⁶ low levels of intake of fruits and vegetables ⁷. The association between viral infection and esophageal cancer was well established for several viruses including; human papillomavirus, particularly subtype 16, herpes simplex virus 1, Epstein-Barr virus (EBV) and cytomegalovirus (CMV). Nevertheless, the exact pathogenesis of the viral action in addition to geographic variations in infection rates of these viruses yet requires more work.⁸ EBV is one of the oncogenic viruses that have been found to be linked to Burkitt's lymphoma, Hodgkin's disease, nasopharyngeal carcinoma, gastric carcinoma, breast cancer, and leiomyosarcoma.⁹ However, whether EBV is associated to esophageal SCC still controversial: there are limited studies and their conclusions vary.¹⁰ The association between EBV and several cancers have been reported in many studies from Sudan. Most of these studies inspected the relationship between EBV and cancers such as, Burkitt's lymphoma,¹¹ nasopharyngeal carcinoma¹² and breast cancer.¹³ Therefore, the aim of this present study was to identify (if any) EBV in Tissue specimens obtained from Sudanese patients diagnosed with esophageal cancer.

This is a retrospective descriptive study examined 102 Sudanese patients with esophageal cancer of whom, 56 were males and 46 were females (males’/females’ ratio, 1.20:1.00), their ages ranged between 21 and 98years with mean age and STD of 59.5±1.6 years old. These patients with esophageal carcinomas, were investigated for the presence of EBV using LMP1 (Latent membrane protein 1).

DNA extraction

DNA was extracted adopting procedure described by Ahmed et al.,¹³ DNA was extracted from paraffin-embedded samples, by immersing tissue section in xylene to dissolve the paraffin from the tissue, and then rehydrated using a series of ethanol washes. Proteins and harmful enzymes such as nucleases were digested by proteinase K. Buffer containing denaturing agent (sodium dodecyl sulfate (SDS)), was added to facilitate digestion.¹⁴ Nucleic acids were purified from the tissue lysate using buffer saturated phenol and high speed centrifugation. Following phenol extractions, RNase A was added to eliminate contaminating RNA. Additional phenol extractions following incubation with RNase A were used to remove any remaining enzyme. Sodium acetate and isopropanol were added to precipitate DNA, and high speed centrifugation was used to pellet the DNA and facilitate isopropanol removal. Washing with 70% ethanol was performed to remove excess salts, followed by centrifugation to re-pellet the DNA.^15,16 DNA is re-suspended in distilled water; quantified and stored at −20°C Purified DNA was subsequently used in downstream applications of PCR.

DNA quantification

To evaluate the DNA quantification after DNA extraction, we had analyzed DNA measurement using a NanoDrop spectrophotometer.

PCR

EBV genome was detected by PCR using two primers that targets EBV nuclear antigen-4 (EBNA-4) 5′-GAGGAGGAAGACAAGAGTGG and 5′GATTCAGGCGTGGTCCTTGG3′ and latent membrane protein-1 (LMP1) 5′CCGAAGAGGTTGAAAACAAA3′and 5′GTGGGG GTCGTCATCATCTC 3′. Any case detected EBNA-4 and/or LMP-1was considered positive indicating the presence of EBV.

Molecular identification by polymerase chain reaction

Polymerase chain reaction (PCR) was carried out for amplification of target EBV genome by using genomic DNA template (1.5L of EBV detection). PCR was performed in a total volume of 23L for EBV. Master mix that contained 1L of 10mM dNTP mixed (2.5mM dATP, 2.5mM dGTP, 2.5mM dCTP, and 2.5mM dTTP), 1.5L of 25mM MgCl2, 2.5L of 10 PCR buffer (10m MTrisHCl [pH 8.3], 50mM KCl), 1L Taq polymerase (approximately 1 U), 1.5L forward primer and 1.5L reverse primer. Volume was completed to 25L per reaction mixed with doubled distilled water (ddH2O). The master mix of all samples was mixed by vortexing in a sterile 0.2-mL PCR tube. Amplification was then set in an initial denaturation stage at 94°C for 5minutes, then 30 cycles of 94°C for 30 seconds, and annealing at 55°C for 30seconds, followed by ex- tension at 72°C for 90seconds and a final extension stage at 72°C for 5minutes.

The study was approved by Faculty Research Board, Faculty of Medical Laboratory Science, Sudan University for Science and Technology. This in addition to the fact that, the authors followed the tenants of the Declaration of Helsinki.

The data were analyzed for presence of EBV in esophageal cancer tissues. Relative risks (RRs) and 95% confidence intervals (95% CIs) were calculated. Data management was done using Statistical Package for Social Sciences (SPSS version 16). SPSS was used for analysis and to perform Pearson Chi-square test for statistical significance (P value). The 95% confidence level and confidence intervals were used.

In the current study, we retrieved 102 formalin fixed paraffin wax processed tissue’s blocks obtained from patients with esophageal carcinomas of which, 91/102(89.2%) specimens were with squamous cell carcinoma and 11/102(10.8%) were with adenocarcinoma). Of the 102 study subjects 56/102(55%) were males and 46/102(45%) were females their age ranging from 21 to 98years old with a mean age of 60years. The majority of the study populations were at the age older than 66years constituting 38 patients followed by age ranges, (both 56-65 and<45years) and 46-55years, representing 24 patients for each and 16 patients, respectively, as indicated in Figure 1.

Figure 1 Description of the study population by age.

Of the 102 patients, 6/102(5.88%) were found to be positive for EBV by PCR, while 96 (94.12%) were found to be negative. Of the 56 males 5/56 (8.9%) were found to be positive for EBV and 51/55(91.1%) were found to be negative. Of the 46 females, 1/46 (2.2%) were found to be positive for EBV and 45/46(97.8%) were found to be negative. The risk associated with male sex was and OR (CI)= 4.5(0.51-39.99), P = 0.18. Of the 91 Squamous cell carcinomas, 5/91(5.5%) were found to be positive for EBV and 86/91(94.5%) were found to be negative. Of the 11 Adenocarcinomas, 1/11(9.09%) was found to be positive for EBV and 10/11(90.91%) were found negative. The risk associated with Squamous cell carcinoma was, OR (CI) = 0.58(0.06-5.48), P = 0.64. As indicated in Table 1 & Figure 2.

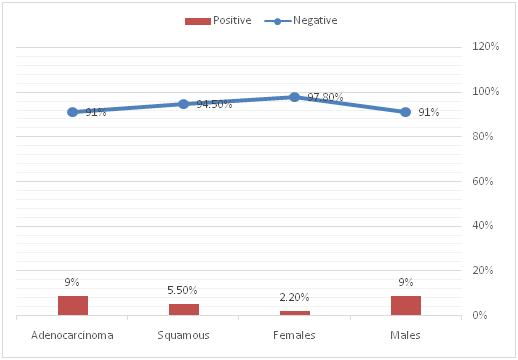

Figure 2 Descriptions of EBV positive with PCR among sex and cancer types.

In regard to the association between EBV infection status and age distribution, the highest positive cases were found among elder age ranges 66+years, representing 4/6(66.7%) followed by 56-65, 46-55, constituting 1/6(16.7%), for each group, whereas, none of the patients at age group < 45 years was found with positive infection, as indicated in Table 2 & Figure 3.

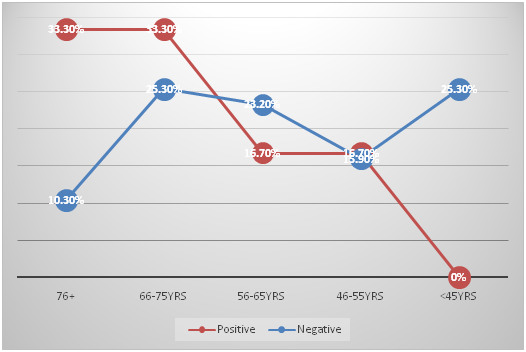

Figure 3 Description of PCR results of EBV by age.

The etiology of esophageal cancer still obscure; several risk factors have been incriminated which differ for different for geographic regions. Infection with EBV has been proposed as a risk factor for esophageal cancer. Few studies has been performed to clarify the association between EBV and esophageal carcinoma, and the findings are somewhat debated in most occasions.¹⁷

Geographical variations in the incidence of esophageal cancer indicates the variable presence of carcinogens including virtues. In the presence study the prevalence of EBV in the studied samples was approximately 5.9%. To the best of our knowledge no study from the Sudan investigated the link between EBV and Esophageal cancer. Even so, there are some studies from Sudan, which has indicated the presence of EBV in Sudan and linked EVB infection to several cancers. In a study screened Sudanese patients with Nasopharyngeal Carcinoma (NPC), for the presence of Epstein Barr Virus (EBV), using Polymerase Chain Reaction (PCR), and EBV genes were identified in 61.3% of the patients, of whom 63% were found among males and 37% were among females. The study concluded that EBV is prevalent in the Sudan and responsible of the great majority of cases of NPC.¹³

In study from Sudan to investigate the association of EBV in childhood leukemia, EBV infections were found in 36.3% of the 80 patients with leukemia.¹⁸ In another study, EBV genome was identified in 55.5% (n = 90) of breast cancer tissues as compared to 23% in control tissue samples (p = 0.0001). Using ISH, EBV signal was noticed in all 18 breast cancer biopsies inspected whereas, all 5 normal breast tissue biopsies confirmed were negative for EBV. The study present evidence of a strong link between EBV and breast carcinoma in Sudanese patients, and substantial epigenetic silencing of tumor suppressors that may probable be a consequence or an association with viral oncogenesis.¹⁹ Another study investigated 82 tissue samples for the presence of the virus using PCR, EBV was identified in 62.2 % samples and couldn't be identified in 37.8 % tissue samples. Out of the 51 infected tissues, 64.7 % were found among males and 66.7% were found among females.²⁰

In the present study, EBV infection was identified in 83.3% of the males and only 16.7% of the females. Studies in this context, however, showed conflicting findings in cancers other than esophagus. Nasopharyngeal carcinoma is relatively comparable with our findings,¹³ whereas, EBV infection is more frequent among females compared to males. In the current study, EBV infection was detected in 83.3% of the squamous cell carcinoma and only 16.7% of the adenocarcinoma. It was found that EBV infection is usually associated with esophageal squamous cell carcinoma rather than adenocarcinoma. In study investigated 72 esophageal squamous cell carcinomas and 40 adenocarcinomas, EBV was detected in 7 cases of the squamous cell carcinoma and in only one case of the adenocarcinoma.²¹ Some studies have shown that EBV is associated with carcinoma infiltrating lymphocytes rather than squamous cancerous cells. In a study screened 36 surgically resected esophageal cancer lesions from 36 patients mainly with esophageal squamous cell carcinomas, no EBV positive cancer cell in any tested esophageal squamous cell carcinoma. Numerous EBV positive tumor-infiltrating lymphocytes in the basaloid squamous cell carcinomas.²²

In regard to the association between EBV infection status and age, the highest positive cases were found among elder age ranges 66+years, representing 66.7%. The relationship between age and EBV infection in esophageal cancer might be attributed to the early exposure to the virus which may somehow be the same as in Burkitt’s lymphoma and its link to factors augmenting EBV infection.²³ The penetrating growing of Milk Bush (Euphorbia) predominantly in the western parts of Sudan, which accelerate chance of infection with EBV.¹³

EBV might play some roles in the etiology of esophageal carcinoma in Sudan. Sustainable preventive strategies are required to reduce the epidemiology of esophageal cancer in Sudan.

The authors would like to thank people at histopathology at Khartoum Teaching Hospital, Soba University Hospital, Ibensina and National Health Laboratory, Khartoum for helping in the sample collection and Institute of Endemic Diseases for helping in molecular tests.

Authors declare there are no conflicts of interest.

1. Yuwei Zhang. Epidemiology of esophageal cancer. World J Gastroenterol. 2013;19(34):5598‒5606.
2. Blot Wj, Devesa Ss, Fraumeni JF. Continuing climb in rates of esophageal adenocarcinoma: an update. JAMA. 1993;270(11):1320.
3.  Xi R, Pan S, Chen X, Hui B, et al. HPV16 E6-E7 induces cancer stem-like cells phenotypes in esophageal squamous cell carcinoma through the activation of PI3K/Akt signaling pathway in vitro and in vivo. Oncotarget. 2016;7(35):57050‒57065.
4. Ye Xh, Huai Jp, Ding J, et al. Smoking, alcohol consumption, and the risk of extrahepatic cholangiocarcinoma: a meta-analysis. World J Gastroenterol. 2013;19(46):8780‒8788.
5. Pohl H, Wrobel K, Bojarski C, et al. Risk factors in the development of esophageal adenocarcinoma. Am J Gastroenterol. 2013;108(2):200‒207.
6. Palles C, Findlay Jm, Tomlinson I. Common Variants Confer Susceptibility to Barrett's Esophagus: Insights from the First Genome-Wide Association Studies. Adv Exp Med Biol. 2016;908:265‒290.
7.  Wang A1, Zhu C, Fu L, et al. Citrus Fruit Intake Substantially Reduces the Risk of Esophageal Cancer: A Meta-Analysis of Epidemiologic Studies. Medicine (Baltimore). 2015;94(39):e1390.
8. Zhang Dh, Zhang Qy, Hong Cq, et al. Prevalence and association of human papillomavirus 16, Epstein-Barr virus, herpes simplex virus-1 and cytomegalovirus infection with human esophageal carcinoma: a case-control study. Oncol Rep. 2011;25(6):1731‒1738.
9. Thompson Mp, Kurzrock R. Epstein-Barr virus and cancer. Clin Cancer Res. 2004;10(3):803‒821.
10. Wenjia Xu, Zhongshun Liu, Qunchao Bao, et al.Viruses, Other Pathogenic Microorganisms and Esophageal Cancer. Gastrointest Tumors. 2015;2(1):2‒13.
11. Veress B, Malik MO, Satir AA, et al. Burkitt’s lymphoma in the Sudan. Afr J Med Med Sci. 1976;5(2):115‒119.
12. Yahia ZA, Adam AA, Elgizouli M, et al. Epstein Barr virus: a prime candidate of breast cancer aetiology in Sudanese patients. Infect Agent Cancer. 2014;9(1):9.
13. Ahmed HG, Suliman RSAG, Abd El Aziz MS, et al. Molecular screening for Epstein Barr virus (EBV) among Sudanese patients with nasopharyngeal carcinoma (NPC). Infect agents cancer. 2015;10:6.
14. Hilz H, Wiegers U, Adamietz P. Stimulation of proteinase K action by denaturing agents: application to the isolation of nucleic acids and the degradation of ‘masked’ proteins. Eur J Biochem. 1975;56(1):103‒108.
15. Joseph Sambrook. Molecular Cloning: A Laboratory Manual. Cold Spring Harbor Laboratory Press: USA; 2001.
16. Pikor LA, Enfield KSS, Cameron H, et al. DNA extraction from paraffin embedded material for genetic and epigenetic analyses. J Vis Exp. 2012;49:e2763.
17. Xu W, Liu Z, Bao Q, et al. Viruses, Other Pathogenic Microorganisms and Esophageal Cancer. Gastrointest Tumors. 2015;2(1):2‒13.
18. Ahmed HG, Osman SI, Ashankyty IM. Incidence of Epstein-Barr virus in pediatric leukemia in the Sudan. Clin Lymphoma Myeloma Leuk. 2012;12(2):127‒131.
19.  Yahia ZA, Adam AA, Elgizouli M, et al. Epstein Barr virus: a prime candidate of breast cancer aetiology in Sudanese patients. Infectious Agents and Cancer. 2014; 9(1):9.
20. Edreis A, Mohamed MA, Mohamed NS, et al. Molecular Detection of Epstein - Barr virus in Nasopharyngeal Carcinoma among Sudanese population. Infectious Agents and Cancer. 2016;11:55.
21. Awerkiew S, zur Hausen A, Baldus SE, et al. Presence of Epstein-Barr virus in esophageal cancer is restricted to tumor infiltrating lymphocytes. Med Microbiol Immunol. 2005;194(4):187‒191.
22. Yanai H, Hirano A, Matsusaki K, et al. Epstein-Barr virus association is rare in esophageal squamous cell carcinoma. Int J Gastrointest Cancer. 2003;33(2‒3):165‒170.
23. Yagi KI, Rahman ES, Abbas KE, et al. Burkitt's lymphoma in the Sudan. Int J Oral Surg. 1984;13(6):517‒527.
