Our laboratory contains a collection of thousands of Salmonella typhimurium LT2 and LT7cultures, including mutants (the Demerec collection). Milislav Demerec started the collection of mutants over five decades ago at Carnegie Institute of Genetics, Cold Spring Harbor, L.I., NY. Upon his retirement, Dr. Demerec and the collection moved to Brookhaven National Laboratories. Upon Dr. Demerec’s death, the collection (archived in quintuplicate) was divided and distributed to Kenneth Sanderson (who now maintains the official Salmonella Center, Calgary, Canada), Philip Hartman, Princeton University, and to Abraham Eisenstark, U. Missouri (see History of Collection, below). Thus, each of us had a complete collection.

Keywords: salmonella typhimurium, archival storage, viability, aged bacteria

These cultures of Salmonella typhimurium, both wild type and mutants, were stored mainly for the ability to start fresh cultures and to note any genomic changes that may have occurred during storage. In this report there is no intent to relate to any evolutionary events. To do this would require precisely designed experimental methods. In addition to this brief Mini Review, we now report an example use of these archived Salmonella mutants in exploring genomic changes among survivors after the last 4-6 decades of storage in LB agar stabs stored in sealed small tubes (Eisenstark lab), the genomic change results observed in recent experiments (with co-investigators, J. Kian Mehr and J. Ransdell). The successful use of immortal HeLa cells in research initiated deliberation about life in assumed non-viable cells. After decades of stem cell research, scientists are deliberating the use of mammalian skin stem cells even in the initiation of normal baby dogs and perhaps human babies.

Our research efforts have focused on immortality among bacterial cells. In search of survival strategies, our recent studies revealed numerous mutations in Salmonella typhimurium cells that had been sealed in LB agar stab vials and stored for the last 4-6 decades. The mutant isolates that were conserved in over 20,000 vials were progeny derived from the same S. typhimurium LT2 and LT7 strains (Figure 1).

Note – Figure 1 can go here. + legend

Figure 1 Sample of storage of archived cultures of S. typhimurium LT2 and LT7. Over 2000 vials remain in 10 boxes containingimmortal cultures that remain important for genomic studies.

Among studies in our laboratory of decades-old archived cultures of resting stage Salmonella typhimurium LT2, we have observed a series of diverse mutation patterns. The mutations included deletions, duplications, frame shifts, inversions and transpositions, and losses in carbon and nitrogen metabolism.^1-6

Most recently, an archived genetically engineered strain of LT2 has been used to target and impede metastasis in human prostate tumor cells.^7,8

(This history is now archived by American Society of Microbiology in a series of letters from Joshua Lederberg). To inaugurate the collection, the initial Lilleengen Salmonella typhimurium LT1-LT23was sent to Demerec by Joshua Lederberg, who obtained them through the Swedish Embassy. From these, Demerec and colleagues chose LT2 to construct a gene linkage map, using the newly discovered transducing phage P22.⁹ Phage P22 was found in the glycogenic P22 strain.

In addition to the use of the archived strains, standard bacteriology materials and methods were used.¹⁰ In a recent experiment, 100 new archived tubes of S. typhimuriumLT2were opened, one-third after storage of 19 months, another third after 33 months, and another third after 12 years and nine months. The methods for scoring genomic changes are described under Results.

For this mini review, earlier results will only be summarized, and below are the results from the 100 newly archived tubes. Note that samples were taken at three different time periods. The basis for this was to verify that, with increasing time, there was increasing variance in phenotypes. For decades, experiments using these archived mutants have provided interesting insights on genomic changes that occur in assumed dormancy.^1-6,11 In our most recent set of experiments, we focused on scoring three specific phenotypic changes:

1. Altered growth spreading when archived

Lls are touched on LB agar plate, as observed in Figure 2.

2. Diversity of phage types among archived cells

Phage Tests

Although phage testing has been a very useful scheme for identifying differences among bacterial strains, it displayed fewer differences in his case than either of the other two tests. The phage that we chose is listed in Table 1. We used these to phage test 65 archived strains.

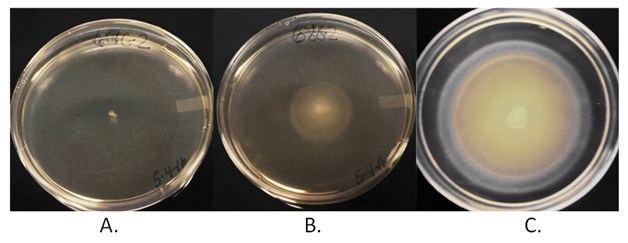

Figure 2 This migration phenotype was chosen because different migration patterns reflected a mutation in any one of a number of genes. There are over 70 genes in wt. S. typhimurium LT2.
Example of migration patterns among archive mutants.

A. Loss of motility mutant

B. Partial loss of motility mutant

C. LT2 wild type motility

14028 competition (see Phage P153 lysis pattern below)

The lysis patterns were:

Phage O-1- WT clear plaques 2/65, extra ring of growth in plaque.

Phage P22- Displayed cloudy plaques.

Phage P27- Cloudy plaques.

Phage P53- Cloudy,14/65 clear, 1/65 extra ring of growth.

Phage P95- Cloudy, 21,65 clear.

Phage P126- Normal clear plaques, 4/65 no visible plaque, 61/65 tiny clear spot only.

Phage P153-15/65 normal clear plaques, 2/65 cloudy, 48/65 tiny clearspots. Plaques of Phage P153 only arose when two other strains, S. typhimurium 2239 and 14024 where placed in competition with each other, resulting in the induction of a prophage harbored by one of the competing hosts.

3. Diversity of colony sizes of archived cells on LB agar plates.

[Figure 3 can go here]

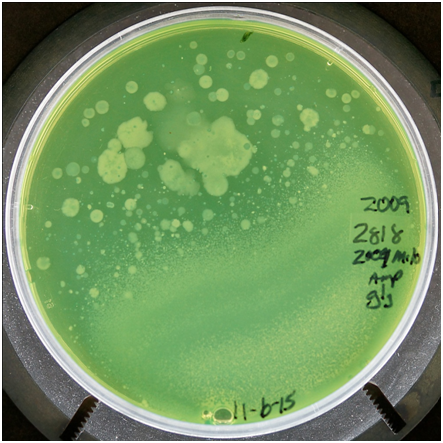

Figure 3 Example of differences in colony size and morphology when a single archived culture is streaked on an LB agar plate. The larger blotched colonies are not contaminants. They are mutants that have lost typical colony edges.

We now know that facultative S. typhimurium can survive in sealed agar stabs, with depleting nutritional and oxygen supply. How much longer? The future generations of bacteriologists will be receiving the collection with the mandate to test for immortality and for future genomic changes (the genomic DNA sequences of a few archived strains are on record; also, all the Lillengen strains have been microarrayed). The concept of mutational change has had an interesting history. Starting with that of Darwin [offspring diversity-natural selection], challenged by Lysenko [environment as mutagen], clarified by Watson and Crick [chromosomal double helix knowledge], [occurrence only upon DNA replication], observations of mutations in resting, non-DNA synthesizing cells by Ryan,¹² and the abundance of mutants among non-growing archived cells.

Among studies in our laboratory of decades old archived cultures of resting stage Salmonella typhimurium LT2, we have observed a series of diverse mutation patterns. The mutations included deletions, duplications, frame shifts, inversions and transpositions, and losses in carbon and nitrogen metabolism. A joy in the study of “Microbial Genetics” is to note “Eureka Moments,” especially those that involve contemporary scientists. Starting with some earlier history, the book by Charles Darwin On the Origin of Species (mutation-selection), Lysenko (environment as mutagen), the attack of Lysenkoism by Demerec, Dobzhanski of Lamarckan concepts of the heritability of acquired characteristics. Soon after, molecular geneticists tackled “mutation”. The Luria concept of errors in replicating DNA was refined to include alterations among resting, non-replicating DNA, especially the experiments of Frances Ryan,⁴ who showed that resting cell DNA could incorporate radioactive isotopes and 5-bromuracil. Among our own experiments, studies revealed that numerous mutations continue to occur in S. typhimurium LT2. Our immortal S. typhimurium LT2 strain, after some genomic engineering, is now a key experimental tool in targeting and impeding prostate tumor metastasis in TRAMP mice.^12,13

Aging in higher organisms

Although there are many scientific studies on human aging, such as at the Newcastle University Institute for Ageing in Newcastle, G.B., investigators have not overlooked the need to understand factors at the biochemical and molecular level among the simpler organisms, including bacteria and viruses, such as the information in this Mini Review. We have enjoyed this venture. As might be expected, other microbiologists have provided very interesting data to the aging process in bacteria.^15-17 Investigators have viewed the question of whether aged organisms, from bacteria to humans, have longevity advantage over parental wild type.¹¹

This Mini Review emphasizes that S. typhimurium, stored for several decades in sealed vials, may still be capable of revival and genomic changes.

Numerous undergraduate, graduate, post doctorate, and laboratory technicians performed experiments that led to this review. Also, we recognize all individuals who have been involved in establishment of the strain collection, especially Dr. Demerec’s associate, Prof. James Wyche, who brought our share of the collection plus the original stock books, from Long Island to our lab. Currently, we acknowledge the tedious stenographic work through many edits of this mini review, Alycia McGee and Anna Vaclavek.

Professor Eisenstark designed all experiments describedor referenced in this mini review. The most recent experiments were performed by co-authors Jackie Kian Mehr and Joey Ransdell.

The authors declare no conflict of interest. The funding sponsors had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, and in the decision to publish the result.

1. Nishioka Y, Demerec M, Eisenstark A. Genetic analysis of aromatic mutants of Salmonella typhimurium. Genetics. 1967;56(2):341–351.
2. Holmes AJ, Eisenstark A. The Mutation Effect of Thymine–Starvation on Salmonella Typhimurium. Mutat Res. 1968;5(1):15–21.
3. Eisenstark A, Eisenstark R, Van Dillewijn J, et al. Radiation––sensitive and recombinationless mutants of Salmonella typhimurium. Mutat Res. 1969;8(3):497–504.
4. Rabsch W, Helm RA, Eisenstark A. Diversity of phage types among archived cultures of the Demerec collection of Salmonella entericaserovar Typhimurium strains. Appl Environ Microbiol. 2004;70(2):664–649.
5. Nishioka Y, Eisenstark A. Sequence of genes replicated in Salmonella typhimurium as examined by transduction techniques. J Bacteriol. 1970;102(2):320–333.
6. Kazmierczak RA, Gentry B, Mumm T, et al. Salmonella Bacterial Monotherapy Reduces Autochthonous Prostate Tumor Burden in the TRAMP Mouse Model. PloS one. 2016;11(8):e0160926.
7. Choe E, Kazmierczak RA, Eisenstark A. Phenotypic evolution of therapeutic Salmonella entericaserovar Typhimurium after invasion of TRAMP mouse prostate tumor. mBio. 2014;5(4):e01182–e01214.
8. Sanderson KE. Revised linkage map of Salmonella typhimurium. Bacteriol Rev. 1967;31(4):354–372.
9. Zinder ND, Lederberg J. Genetic exchange in Salmonella. J Bacteriol. 1952;64(5):679–699.
10. Sutton A, Buencamino R, Eisenstark A. rpoS mutants in archival cultures of Salmonella entericaserovar typhimurium. J Bacteriol. 2000;182(16):4375–4379.
11. Eisenstark A. Genetic diversity among offspring from archived Salmonella enterica ssp. entericaserovar typhimurium (Demerec Collection): in search of survival strategies. Annu Rev Microbiol. 2010;64:277–292.
12. Edwards K, Linetsky I, Hueser C, et al. Genetic variability among archival cultures of Salmonella typhimurium. FEMS Microbiol Lett. 2001;199:215–219.
13. Finkel SE, Kolter R. Evolution of microbial diversity during prolonged starvation. Proc Natl Acad Sci USA. 1999;96(7):4023–4027.
14. Lenski RE, Mongold JA, Sniegowski PD, et al. Evolution of competitive fitness in experimental populations of E. coli: what makes one genotype a better competitor than another? Antonie Leeuwenhoek. 1998;73(1):35–47.
15. Papadopoulos D, Schneider D, Meier–Eiss J, et al. Genomic evolution during a 10,000–generation experiment with bacteria. Proc Natl Acad Sci USA. 1999;96(7):3807–3812.
16. Erickson M, Newman D, Helm RA, et al. Competition among isolates of Salmonella enterica spp. entericaserovarTyphimurium: role of prophage/phage in archived cultures. FEMS Microbiol Lett. 2009;294(1):37–44.
17. Gómez JM. Aging in bacteria, immortality or not–a critical review. Curr Aging Sci. 2010;3(3):198–218.
