Journal of
eISSN: 2473-0831

Analytical & Pharmaceutical Research

Research Article Volume 4 Issue 6

Ultra-Violet Spectrophotometric Method for Estimation and Validation of Amlodipine in Bulk and Tablet Formulation

Bina Gidwani, Laxmikant Patel, Anshita Gupta, Chanchal Deep Kaur

Correspondence: Chanchal Deep Kaur, Associate Professor and Vice-Principal of Shri Rawatpura Sarkar Institute of Pharmacy, Kumhari, Durg (C.G.), India

Received: October 31, 2016 | Published: May 31, 2017

Citation: Gidwani B, Patel L, Gupta A, Kaur CD (2017) Ultra-Violet Spectrophotometric Method for Estimation and Validation of Amlodipine in Bulk and Tablet Formulation. J Anal Pharm Res 4(6): 00125. DOI: 10.15406/japlr.2017.04.00125

Download PDF

Abstract

In the present work an inexpensive, easy, mercurial, particular, sensible and reproducible and spectrophotometric method has been developed and validated for the estimation of amlodipine in pure drug and Marketed Tablet Formulation. Analysis was carried out at 338nm for pure drug amlodipine and 355nm for amlodipine marketed tablet formulation. The main purpose of the investigation was to measure that how much percentage of drug present in marketed tablet formulation for the estimation of amlodipine besylate tablet and amlodipine pure drug using methanol as a solvent, a simple method has been developed. The accuracy of the method was assessed by dues studies and was found to be in spectrum of 99.80% of amlodipine pure compound and 99.20% of amlodipine marketed tablet formulation. The LOD were found 0.132 and 0.141µg/ml of amlodipine pure drug and LOQ were 0.416 and 0.427µg/ml of marketed tablet respectively. The result were validated found to be fair and met the admissible criteria.

Keywords: amlodipine, validation, spectroscopy, tablet

Abbreviations

MB, Mitochondrial diseases; mtDNA, mitochondrial DNA; MRI, magnetic resonance imaging; GTCS, generalized tonic-clonic seizure; HSV, herpes simplex virus; ENMG, electroneuromyography

Introduction

Validation is a process of establishing documentary evidence demonstrating that a procedure, process, or activity carried out in production or testing maintains the desired level of compliance at all stages.1 A wide variety of procedures, processes, and activities need to be validated, the field of validation is divided into a number of subsections including the following: (Smith Alice E. et al 1996).47

Process validation is defined as the collection and evaluation of data, from the process design stage throughout production, which establishes scientific evidence that a process is capable of consistently delivering quality products.3 Anti–hypertensives are a class of drugs that are used to treat hypertension (high blood pressure). Antihypertensive therapy seeks to prevent the complications of high blood pressure, such as stroke and myocardial infarction. Evidence suggests that reduction of the blood pressure by 5mmHg can decrease the risk of stroke by 34%, of ischaemic heart disease by 21%, and reduce the likelihood of dementia, heart failure, and mortality from cardiovascular disease.4 There are many classes of anti–hypertensives, which lower blood pressure by different means. Among the most important and most widely used drugs are thiazide diuretics calcium channel blockers, ACE inhibitors,angiotensin II receptor antagonists (ARBs), and beta blockers.5

Calcium channel blockers are drugs used to lower blood pressure. They work by slowing the movement of calcium into the cells of the heart and blood vessel walls, which makes it easier for the heart to pump and widens blood vessels. As a result, the heart doesn't have to work as hard, and blood pressure lowers.Calcium channel blockers are prescription medications that relax blood vessels and increase the supply of bloodand oxygen to the heart while also reducing the heart's workload. Examples of calcium channel blockers include Amlodipine (Norvasc), Diltiazem (Cardizem, Tiazac), Felodipine, Isradipine, Nicardipine (Cardene SR), Nifedipine (Procardia), Nisoldipine (Sular), Verapamil (Calan, Verelan, Covera–HS) etc. In the present study amlodipine and its besylate salt is used. Structures are shown in Figure 1 & 2.

Figure 1 Chemical structure of Amlodipine.

Figure 2 Chemical structure of Amlodipine Besylate.

Materials

Chemicals and solvent

Amlodipine was supplied as a gift sample by Vigor Pharmaceuticals Pvt. Ltd., Mumbai, Maharashtra (India). The marketed formulation tablets of amlodipine besylate 5mg Amlip Cipla Company were purchase from local market. Extra pure methanol was purchased from E. Merck Ltd, Mumbai, India. All other chemicals and solvents used for the study were of analytical grade.

Apparatus

Digital balance, FTIR instrument, double beam UV Visible spectrophotometer (1800) with resolution of 1nm & 0.5mm slit width and a pair of 1cm matched quartz cells was used to measure absorbance of the resulting solutions.6

Experimental work

Solubility studies: In order to find an ideal solvent in which the drug amlodipine was completely soluble, solubility studies were carried out. Various solvents like distilled water, methanol, ethyl alcohol, 0.1M HCL, Chloroform, Acetic acid, Acetone etc. Firstly, for the measurement of solubility firstly 5 mg of pure drug taken in a measuring cylinder and 1ml of distilled water is added, then add 2, 3, 5, 10, 30, 100….and this procedure flowing to all organic solvents.7

Preparation of standard stock solution

By dissolving 10mg amlodipine in 10ml methanol, standard solution of amlodipine was prepared. Later it was transferred into a 100ml volumetric flask and volume was made up to mark with methanol to make the solution of 100µg/ml concentration.8,9

Preparation of working standard solution

In order to obtain working standard solution of amlodipine, prepared stock solution were further diluted with methanol. The absorbance of each solution was then measured at 338nm with methanol as blank. Accurately weight 10mg of pure drug taken in clean dry 100ml of volumetric flask and dissolved in small volume of 10ml methanol in 100ml volumetric flask and volume make up into the 100ml up to the mark. The concentration range 10, 20, 30, 40, 50mcg/ml were prepared from stock solution of pure drug than calibration curve was plotted and the correlation coefficient was calculated. Same procedure flowed for the tablet formulation. Graph was plotted by taking concentration of drug on X–axis and absorbance on Y–axis.10

Determination of maximum wavelength (λmax)

By scanning within range of 200–400nm of a particular concentration of amlodipine solution is against a corresponding reagent blank, maximum wavelength is determined.9–11

Analysis of marketed tablet and pure drug of amlodipine

Twenty commercial tablets were emptied and powdered. Firstly 10mg amlodipine powder was accurately weighed and then transferred to 10mL volumetric flask and sonicated to dissolve the drug completely. Then it was filtered through 0.45μ filter and the volume is made up to 10mL with methanol to get a concentration of 1mg/mL stock solution. Furthermore, 1.0mL of the above stock solution was pipetted into a 10mL volumetric flask and diluted up to the mark to obtain required concentrations of amlodipine. The absorbance of the solution was measured at 338nm bulk compound and marketed tablet 355nm and amount of drug recovered was determined.9

Method validation

As per the International Conference on Harmonization (ICH) guidelines Validation of an analytical method is done Q2 (R1) (ICH, 2005).12 In general, validation is defined as the process used for the confirmation of its validity i.e. the analytical procedure employed for a specific test is suitable for its intended use. Also, validation is considered as an integral part of any good analytical practice.13 The results of method validation are used to judge the quality, trustworthy and regularity of analytical result. The USP has published specific guidelines for method validation for compound evaluation. According to USP, there are eight important parameters for validation: Accuracy, Precision, Specificity, Limit of detection, Limit of quantitation, Linearity and range, Ruggedness, Robustness.14

Accuracy

The nearness of the test result which is obtained by the true value or reference result are expressed by the accurate analytical procedure. The recovery test or experiments for accuracy were performed by taking known amount of the drug (amlodipine) in the place. According to ICH guidelines dues studies were carried out by applying the standard addition method.15 The experiment was performed at three different levels i.e. 80%, 100% and 120% of standard concentration of amlodipine. The solutions were prepared according to the above mentioned procedure and then analyzed. The percentage of recovery were calculated from the calibration curve. All the experiments were performed in triplicate.9

Precision

Precision (repeatability) of an analytical method is a measurement of its nearness of agreement (degree of scatter) between a series of measurement by carrying out the analysis from multiple sampling of the same identical sample under the certain situation. The Intra and Inter–day precision of the marketed formulation was analyzed on the same day at different time intervals and on different days respectively. Precision of the method (intra–day precision) was estimated by carrying out six independent assays of test samples of amlodipine. The intermediate precision (inter–day precision) of the method was also determined at different days with two different analysis in the laboratory.

Linearity

Test result are obtained by analytical method in which linearity is its ability, which are directly proportional to the concentration of analyte in the sample within a given range. From this standard stock solution various concentration of the solution were prepared and the absorbance was measured. Regression equation and correlation coefficient were determined by plotting the graph between absorbance and corresponding concentration.16,17

Specificity

Analysis of Marketed formulations (tablet of amlodipine) was done to estimate the presence of impurities, degradants and excipients in the sample and was compared with standard drug. For this the λmax and absorbance of reference standard solution and sample solution was measured.18

Robustness and ruggedness

The robustness of an analytical procedure is a measure of its capacity to remain unaffected by small, but deliberate variations in method parameters and provides an indication of its reliability during normal usage.12 Robustness is evaluated during the development phase and is depended on the type of procedure used in the study. Moreover, robustness of sample shows the reliability of an analysis with respect to the variations in parameters of the method used in study. To determine the ruggedness the same procedure was carried by another analyst and the results was compared with the same previous procedure. In the present work, Robustness of the proposed method was determined by changing the λmax of the analysis by ±1.0nm. % Mean recovery (± % confidence interval) as well as % relative error was reported.19,20

Sensitivity and limit of detection (LOD) and limit of quantitation (LOQ)

Sensitivity of the method was determined with respect to limit of detection (LOD) and limit of quantitation. According to ICH guidelines, the limit of detection is the lowest amount of analyte in a sample that can be detected and the limit of quantitation is the lowest amount of analyte in a sample which can be quantitatively determined with suitable precision and accuracy.9,16 We have considered standard deviation of the responses and the slope for calculation of LOD and LOQ. They are expressed as under:

LOD= 3.3σ S LOQ= 10σ S MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVCI8FfYJH8YrFfeuY=Hhbbf9v8qqaqFr0xc9pk0xbb a9q8WqFfeaY=biLkVcLq=JHqpepeea0=as0Fb9pgeaYRXxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaKqzGeGaamitai aad+eacaWGebGaeyypa0tcfa4aaSaaaOqaaKqzGeGaaG4maiaac6ca caaIZaGaeq4WdmhakeaajugibiaadofaaaGaaGPaVlaaykW7caWGmb Gaam4taiaadgfacqGH9aqpjuaGdaWcaaGcbaqcLbsacaaIXaGaaGim aiabeo8aZbGcbaqcLbsacaWGtbaaaaaa@4CFC@

Where σ =the standard deviation of y–intercepts of regression line.

S = the slope of the calibration curve.

The LOD and LOQ were determined separately through calibration curve. The residual standard deviation of a regression line or the standard deviation of y–intercepts of regression lines were used to calculate the LOD and LOQ.9

Assay

Twenty tablets were accurately weighed and a quantity of tablet powder equivalent to 5mg of amlodipine besylate was weighed and then dissolved in 100ml methanol. The solution was then filled and further diluted to obtained final concentration of 25mcg/ml. The sample solution was analyzed and the % of drug content was determined from the absorbance using the regression equation obtained in the calibration.21

Results and Discussion

Solubility studies

Determination of the solubility studies of marketed tablet formulation and vent was added & later on in the same way solvent is increased like 2, 3, 4, 5, 10, 30….& the results were determined as given in Table 2.

Very soluble

Less than 1 Part

Freely soluble

From 1 to 10 parts

Soluble

From 10 to 30 parts

Sparingly soluble

From 30 to 100 parts

Slightly soluble

From 100 to 1000 parts

Very slightly soluble

From 1000 to 10000 parts

Practically soluble

More than 10000 parts

Table 1 The solubility criteria as per BP

S.no.

Solvent

Pure Drug Amlodipine

Marketed Tablet Formulation

1

Distilled Water

Poor soluble

Poor soluble

2

Methanol

Freely Soluble

Freely Soluble

3

Ethyl alcohol

Soluble

Soluble

4

0.1M HCL

Freely Soluble

Freely Soluble

5

Chloroform

Slightly soluble

Slightly soluble

6

DSMO

Freely soluble

Freely soluble

7

Benzene

Poor soluble

Poor soluble

8

Acetic acid

Soluble

Soluble

Table 2 Solubility study of pure amlodipine and marketed tablet

Analysis of absorbance maxima pure drug amlodipine

The absorption curve showed characteristic absorption maxima at 238nm for amlodipine (pure drug). The resulting spectrum (graph between absorbance and wavelength) is shown in Figure 3.

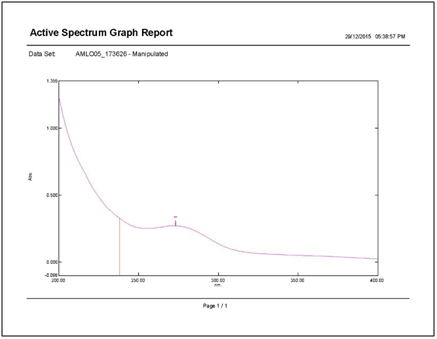

Figure 3 λ max of amlodipine (Pure drug) by UV-spectrophotometer (Shimadzu 1800).

Analysis of absorbance maxima marketed tablet formulation

The absorption curve showed characteristic absorption maxima at 355nm for amlodipine (marketed tablet formulation). The resulting spectrum (graph between absorbance & wavelength) is shown in Figure 4.22–28

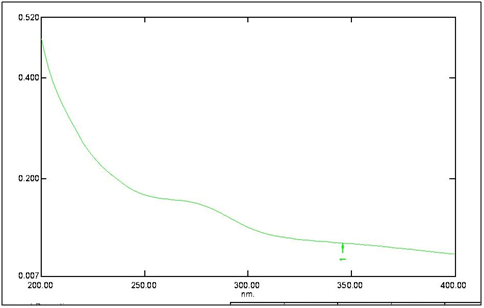

Figure 4 λ max of amlodipine (tablet formulation) by UV-spectrophotometer (Shimadzu 1800).

Preparation of calibration curve of pure drug

The calibration curve was plotted by taking different concentration of drug on x–axis and absorbance on y–axis and is shown in Figure 5 of pure drug amlodipine. The drug (amlodipine) obeys Beer’s law in the concentration range of 10–50μg/ml with coefficient of correlation (R2) = 0.997.29–32

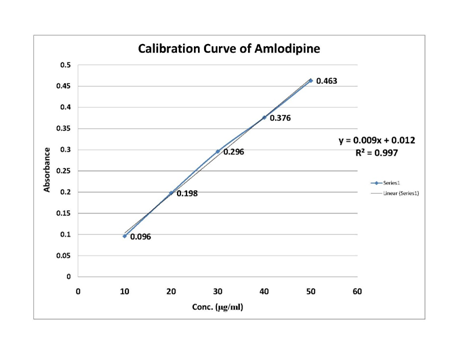

Figure 5 Calibration curve of amlodipine bulk compound.

Preparation of calibration curve of marketed tablet formulation

The calibration curve was plotted by taking different concentration of drug on x–axis and absorbance on y–axis and is shown in Figure 6 marketed tablet formulation. The drug (amlodipine) obeys Beer’s law in the concentration range of 10–50μg/ml with coefficient of correlation (R2) = 0.990. And wavelength is 355nm.33,34

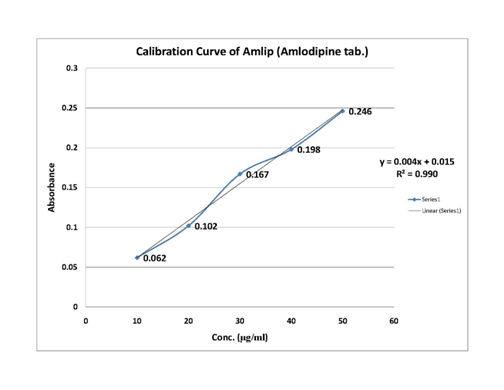

Figure 6 Calibration curve of amlodipine marketed tablet formulation.

FTIR study of pure drug

FTIR studies of pure amlodipine drug by using of FTIR instrument. The same amount of drug are used for measurement and KBr used as a alkali halide mixture compound. The range fixed in 4000–200nm. And there functional group and wavelength is determine. Results of functional groups are shown in Table 3.35–37

S. No.

Functional group

Wavelength (nm)

1

Alkanes. a) C – H stretching Methyl group ( -CH2 )
b) C – C stretching
c) C – H bending

3000-2840
1200-1800
1385-1380

2

Alkenes. a) C=C unconjugated
b) C=C conjugated

1667-1640
1650-1600

3

Alkynes. a) C – H

700-610

4

Mononuclear aromatic hydrocarbons a) C – H bending
b) C – H stretching

1300- 1000
3100-3000

5

Aldehydes. a) C=O stretching
b) C – H stretching

1740- 1720
2830- 2695

6

Amides. a) N – H bending

1655- 1620

7

Amines. a) N – H stretching
b) C – N stretching

1650- 1580
1250-1020

8

Organic halides. a) C – Br

690-515

Table 3 FTIR of pure amlodipine drug

Analysis of pure drug amlodipine and tablet formulation

The commercially available bulk compound and marketed tablet of amlodipine were analyzed and the % recovery of bulk drug in formulation ranged from 99.6–99.8% and formulated tablet range obtained from 98.60–98.80. The results are shown in Table 4 and 4.1. From the results it can be concluded that the % drug content in marketed formulations is almost similar to pure drug.

Formulation

Label Claimed Amount (mg)

Amount Recovered

% drug Recovered

Mean

Standard Deviation

% RSD

Amlip

5 mg

4.93

4.95

4.94

98.6

4.92

0.0216

0.43906

Amlip

5 mg

4.94

4.94

4.93

98.8

Amlip

5 mg

4.89

4.91

4.92

97.8

Table 4 Analysis of the tablet formulation

Formulation

Label Claimed Amount (mg)

Amount Recovered

% drug Recovered

Mean

Standard Deviation

% RSD

Amlodipine

5 mg

4.98

4.97

4.99

99.6

4.98

0.00817

0.00164

Amlodipine

5 mg

4.99

4.98

4.99

99.8

Amlodipine

5 mg

4.97

4.97

4.98

99.4

Table 4.1 Analysis of the pure drug

Accuracy of pure drug amlodipine

The accuracy of the proposed method was estimated through recovery studies at three levels i.e. 80, 100 and 120%. The results of the recovery studies and its statistical evaluation are summarized in Table 5. The recovery values for amlodipine pure drug ranged from 99.12 to 99.8%.38–41

Level of Recovery (%)

Label Claimed Amount (mg)

Amount of Pure Drug (mg)

% Recovery

Statistical Analysis

Mean (%)

SD

% RSD

80

5

4.1

102.5

100.1

0.0665

0.0664

80

5

3.97

99.25

80

5

3.95

98.75

100

5

4.96

99.02

99.07

0.01247

0.0125

100

5

4.97

99.4

100

5

4.94

98.8

120

5

5.97

99.5

99.33

0.4714

0.00474

120

5

5.96

99.33

120

5

5.96

99.33

Table 5 Evaluation of accuracy study of pure drug amlodipine

Accuracy of pure amlodipine & marketed tablet formulation

To determine the accuracy of the proposed method, recovery study is carried out by adding different amount 80%, 100%, 120% of tablet formulation sample of amlodipine besylate within the linearity range and results obtained are shown in Table 5.1. The recovery values of amlodipine tablet formulation range is all most similar to the pure drug.42–45

Level of Recovery (%)

Label Claimed Amount (mg)

Amount of Pure Drug (mg)

% Recovery

Statistical Analysis

Mean (%)

SD

% RSD

80

5

3.96

99

99.08

0.007417

0.004760

80

5

3.97

99.25

80

5

3.96

99.0

100

5

4.99

99.80

99.53

0.009428

0.009418

100

5

4.97

99.40

100

5

4.97

99.40

120

5

5.98

99.60

99.43

0.008165

0.008211

120

5

5.96

99.30

120

5

5.97

99.40

Table 5.1 Evaluation of accuracy study of tablet formulation

Precision of pure drug amlodipine and tablet formulation

The developed UV–spectroscopic method found to be precise values is the %RSD of (pure drug) values of the repeatability and intermediate precision studies were <0.0083% and <0.0972%, respectively and tablet formulation values of the repeatability and intermediate precision studies were <0.0291% and <0.00479%, respectively. The results of intermediate inter–day summarized in Table 6 & 6.1 and intra–day precision study are summarized in Table 7 & 7.1.46–50

Time

Amount of Drug (mg) Claimed

Amount of Drug Recovered

Statistical Analysis

Mean (%)

SD

% RSD



Morning



5 mg

4.94



98.6



±0.004714



0.00478

4.93

4.93



Afternoon



5 mg

4.91



98



±0.008165



0.00832

4.89

4.9



Evening



5 mg

4.89



97.6



±0.004714



0.00482

4.88

4.88

Table 6 Evaluation of intraday precision study (pure drug)

Time

Amount of Drug (mg) Claimed

Amount of Drug Recovered

Statistical Analysis

Mean (%)

SD

% RSD

Morning

5 mg

4.79

93.2

±0.094163

0.10103

4.62

4.57

Afternoon

5 mg

4.73

92.466

±0.0899

0.09722

4.51

4.63

Evening

5 mg

4.59

88.333

±0.13888

0.15722

4.25

4.41

Table 6.1 Evaluation of intraday precision study (tablet formulation)

Day

Amount of Drug (mg) Claimed

Mean Amount of Drug Recovered

Statistical Analysis*



Mean (%)

SD

% RSD




Day 1

5 mg

4.69

93.8

±0.0301

0.032



Day 2

5 mg

4.56

91.2

±0.0296

0.0291



Day 3

5 mg

4.44

88.8

±0.281

0.0301



Table 7 Evaluation of inter-day precision study of pure drug
*n=3 (average of 3 determinations).

Day

Amount of Drug (mg) Claimed

Mean Amount of Drug Recovered

Statistical Analysis*

Mean (%)

SD

% RSD

Day 1

5 mg

4.94

99

±0.008165

0.00824

Day 2

5 mg

4.92

98.4

±0.004714

0.00479

Day 3

5 mg

4.79

95.8

±0.008165

0.00852

Table 7.1 Evaluation of inter-day precision study of tablet formulation

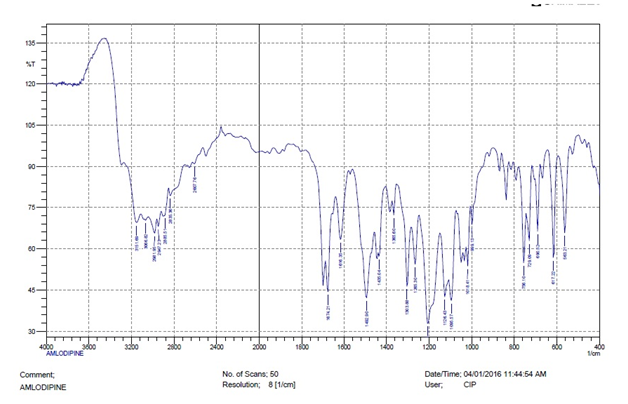

Figure 7 IR spectra of pure amlodipine compound.

Linearity of pure drug amlodipine and tablet formulation

The linearity of the method was demonstrated over the concentration range of 10–50mcg/ml of concentration. Accurately weight 10mg of pure drug taken in clean dry 100ml of volumetric flask and dissolved in small volume of 10ml methanol in 100ml volumetric flask and volume make up into the 100ml upto the mark. The concentration range 10, 20, 30, 40, 50mcg/ml were prepared from stock solution of pure drug than calibration curve was plotted and the correlation coefficient was calculated. Same procedure flowed for the tablet formulation drug. The linearity of the response of the drug (amlodipine) was observed in concentration range from 10 –50µg/ml and it obeyed Beers law (Table 8).51,52

Concentration (µg/ml)

Mean Absorbance (±SD)

0

0

10

0.096

20

0.198

30

0.296

40

0.376

50

0.463

Table 8 Linearity data pure drug amlodipine

Concentration (µg/ml)

Mean Absorbance (±SD)

0

0

10

0.062

20

0.102

30

0.167

40

0.198

50

0.246

Table 8.1 Linearity data tablet formulation

Linearity data tablet formulation

The linearity of the method was demonstrated over the concentration range of 10–50mcg/ml of concentration. Accurately weight 10mg of tablet formulation drug taken in clean dry 100ml of volumetric flask and dissolved in small volume of 10ml methanol in 100ml volumetric flask and volume make up into the 100ml upto the mark. The concentration range 10, 20, 30, 40, 50mcg/ml were prepared from stock solution of pure drug than calibration curve was plotted and the correlation coefficient was calculated. And calibration curve for amlodipine tablet Y = 0.004x + 0.015. The calibration curve was found to be linear with the correlation coefficient (R2) = 0.990.

Specificity of pure drug amlodipine and tablet formulation

The presence of excipients in the formulation does not interfere with the analysis of drug. Thus, the proposed method was found specific and selective for the drug. The results are shown in Table 9 of pure drug and marketed tablet formulation Table 9.1.

Sr. No

Drug Amount Claimed (mg)

Amount of Drug Recovered

% Drug Recovered

Mean

SD

%RSD





1

5

4.98

99.6

99.73

±0.004714

0.004726



2

5

4.99

99.8



3

5

4.99

99.8



Table 9 Specificity study of pure drug

Sr. No

% Excipient

Drug Amount Claimed (mg)

Amount of Drug Recovered

% Drug Recovered

Mean

SD

%RSD

1

5

5

4.89

97.8



2

10

5

4.75

95.01

95.27

±0.09843

0.10331

3

15

5

4.65

93



Table 9.1 Specificity study of marketed tablet formulation

Robustness of pure amlodipine and tablet formulation

The evaluation data for robustness study at 10μg/ml concentration is summarized in Table 10 for pure drug & 10.1 for marketed tablet formulation.

Sr. No

Concentration

Absorbance at 337nm

Absorbance at 338nm

Absorbance at 336nm

Absorbance at 339nm

1

0.462

0.462

0.461

0.462

2

0.461

0.462

0.461

0.462

3

0.462

0.462

0.460

0.461

4

0.460

0.461

0.459

0.459

5

0.461

0.459

0.459

0.460

Mean

0.4612

0.4611

0.460

0.4608

SD

0.000748

0.001166

0.000894

0.001160

% RSD

0.16218

0.25287

0.19434

0.25173

Table 10 Evaluation data of Robustness study pure drug

Sr. No

Concentration

Absorbance at 355nm

Absorbance at 356nm

Absorbance at 354nm

Absorbance at 357nm

1

0.371

0.371

0.370

0.371

2

0.370

0.369

0.369

0.371

3

0.371

0.369

0.368

0.370

4

0.369

0.368

0.368

0.369

5

0.369

0.368

0.367

0.370

Mean

0.370

0.3693

0.3684

0.3701

SD

0.000894

0.001095

0.00102

0.000894

% RSD

0.24162

0.2964

0.27687

0.24162

Table 10.1 Evaluation data of Robustness study tablet formulation

Ruggedness of pure drug amlodipine and tablet formulation

The evaluation data for ruggedness study at 10μg/ml concentration is summarized in Table 11 for pure compound & Table 11.1 for tablet formulation.

Concentration

Absorbance at 338nm

Analyst 1

10µg/ml

0.458

10µg/ml

0.458

10µg/ml

0.457

10µg/ml

0.456

10µg/ml

0.456

Mean

0.4570

SD

0.000849

%RSD

018577

Table 11 Ruggedness study of pure drug

Concentration

Absorbance at 355nm

Analyst 1

10µg/ml

0.365

10µg/ml

0.365

10µg/ml

0.363

10µg/ml

0.363

10µg/ml

0.362

Mean

0.3636

SD

0.0012

%RSD

0.33003

Table 11.1 Ruggedness study of marketed tablet formulation

LOD and LOQ of pure drug amlodipine and tablet formulation

The detection limits and quantitation limits of amlodipine (Pure) were found to be 0.132 and 0.416µg/ml respectively And The detection limits and quantitation limits of amlodipine (bulk) were found to be 0.141 and 0.437µg/ml respectively These results prove that microgram quantity of the drug sample can also be determined accurately and precisely.

Assay

Twenty tablet were accurately weighed and a quantity of tablet powder equivalent to 5mg of amlodipine besylate was weighed and dissolved in 100ml methanol. The solution was then filled and diluted further to obtained final concentration of 25mcg/ml. The sample solution was analyzed and the % drug content was determined from the absorbance using the regression equation obtained in the calibration. So the analyzed the marketed tablet and pure drug and resulting that the % purity of pure and tablet formulation is similar. Results are shown in the Table 12.

Drug

Label claim (mg/tab)

Amount estimated (mg/tab)

% purity



Amlodipine pure drug



5 mg

4.99



99.8

4.98

4.99

Tablet formulation

5 mg



4.96



99.2

4.98

4.97

Table 12 Assay of marketed tablet formulation

The equation of the calibration curve for amlodipine pure compound was Y = 0.009x + 0.012, the calibration curve was found to be linear with the correlation coefficient (R2) = 0.997.

Formula used for calculation

  1. % Relative standard deviation=  Standard deviation of measurements mean of measurements Χ100 MathType@MTEF@5@5@+= feaagKart1ev2aqatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVCI8FfYJH8YrFfeuY=Hhbbf9v8qqaqFr0xc9pk0xbb a9q8WqFfeaY=biLkVcLq=JHqpepeea0=as0Fb9pgeaYRXxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaKqzGeaeaaaaaa aaa8qacaGGLaGaaiiOaiaadkfacaWGLbGaamiBaiaadggacaWG0bGa amyAaiaadAhacaWGLbGaaiiOaiaadohacaWG0bGaamyyaiaad6gaca WGKbGaamyyaiaadkhacaWGKbGaaiiOaiaadsgacaWGLbGaamODaiaa dMgacaWGHbGaamiDaiaadMgacaWGVbGaamOBaiabg2da9iaacckaju aGdaWcaaGcpaqaaKqzGeWdbiaadofacaWG0bGaamyyaiaad6gacaWG KbGaamyyaiaadkhacaWGKbGaaiiOaiaadsgacaWGLbGaamODaiaadM gacaWGHbGaamiDaiaadMgacaWGVbGaamOBaiaacckacaWGVbGaamOz aiaacckacaWGTbGaamyzaiaadggacaWGZbGaamyDaiaadkhacaWGLb GaamyBaiaadwgacaWGUbGaamiDaiaadohaaOWdaeaajugib8qacaWG TbGaamyzaiaadggacaWGUbGaaiiOaiaad+gacaWGMbGaaiiOaiaad2 gacaWGLbGaamyyaiaadohacaWG1bGaamOCaiaadwgacaWGTbGaamyz aiaad6gacaWG0bGaam4CaaaacqqHNoWqcaaIXaGaaGimaiaaicdaaa a@8D76@
  2. % Recovery =  Amount found  Amount added  Χ100 MathType@MTEF@5@5@+= feaagKart1ev2aqatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVCI8FfYJH8YrFfeuY=Hhbbf9v8qqaqFr0xc9pk0xbb a9q8WqFfeaY=biLkVcLq=JHqpepeea0=as0Fb9pgeaYRXxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaKqzGeaeaaaaaa aaa8qacaGGLaGaaiiOaiaadkfacaWGLbGaam4yaiaad+gacaWG2bGa amyzaiaadkhacaWG5bGaaiiOaiabg2da9iaacckajuaGdaWcaaGcpa qaaKqzGeWdbiaadgeacaWGTbGaam4BaiaadwhacaWGUbGaamiDaiaa cckacaWGMbGaam4BaiaadwhacaWGUbGaamizaiaacckaaOWdaeaaju gib8qacaWGbbGaamyBaiaad+gacaWG1bGaamOBaiaadshacaGGGcGa amyyaiaadsgacaWGKbGaamyzaiaadsgacaGGGcaaaiabfE6adjaaig dacaaIWaGaaGimaaaa@61D6@
  3. Amount found =  Mean test absorbance  Mean standard absorbance  Χ standard concentration MathType@MTEF@5@5@+= feaagKart1ev2aqatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVCI8FfYJH8YrFfeuY=Hhbbf9v8qqaqFr0xc9pk0xbb a9q8WqFfeaY=biLkVcLq=JHqpepeea0=as0Fb9pgeaYRXxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaKqzGeaeaaaaaa aaa8qacaWGbbGaamyBaiaad+gacaWG1bGaamOBaiaadshacaGGGcGa amOzaiaad+gacaWG1bGaamOBaiaadsgacaGGGcGaeyypa0JaaiiOaK qbaoaalaaak8aabaqcLbsapeGaamytaiaadwgacaWGHbGaamOBaiaa cckacaWG0bGaamyzaiaadohacaWG0bGaaiiOaiaadggacaWGIbGaam 4Caiaad+gacaWGYbGaamOyaiaadggacaWGUbGaam4yaiaadwgacaGG Gcaak8aabaqcLbsapeGaamytaiaadwgacaWGHbGaamOBaiaacckaca WGZbGaamiDaiaadggacaWGUbGaamizaiaadggacaWGYbGaamizaiaa cckacaWGHbGaamOyaiaadohacaWGVbGaamOCaiaadkgacaWGHbGaam OBaiaadogacaWGLbGaaiiOaaaacqqHNoWqcaGGGcGaam4Caiaadsha caWGHbGaamOBaiaadsgacaWGHbGaamOCaiaadsgacaqGGaGaam4yai aad+gacaWGUbGaam4yaiaadwgacaWGUbGaamiDaiaadkhacaWGHbGa amiDaiaadMgacaWGVbGaamOBaaaa@8A25@
  4. Amount added =weight/volume MathType@MTEF@5@5@+= feaagKart1ev2aqatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVCI8FfYJH8YrFfeuY=Hhbbf9v8qqaqFr0xc9pk0xbb a9q8WqFfeaY=biLkVcLq=JHqpepeea0=as0Fb9pgeaYRXxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaKqzGeaeaaaaaa aaa8qacaWGbbGaamyBaiaad+gacaWG1bGaamOBaiaadshacaGGGcGa amyyaiaadsgacaWGKbGaamyzaiaadsgacaGGGcGaeyypa0Jaam4Dai aadwgacaWGPbGaam4zaiaadIgacaWG0bGaai4laiaadAhacaWGVbGa amiBaiaadwhacaWGTbGaamyzaaaa@5015@
  1. Calculation of limit for stability study:
  1. Limit=   Absorbance of standard initialabsorbance of standard at time interval absorbance of standard initial  Χ100 MathType@MTEF@5@5@+= feaagKart1ev2aqatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVCI8FfYJH8YrFfeuY=Hhbbf9v8qqaqFr0xc9pk0xbb a9q8WqFfeaY=biLkVcLq=JHqpepeea0=as0Fb9pgeaYRXxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaKqzGeaeaaaaaa aaa8qacaWGmbGaamyAaiaad2gacaWGPbGaamiDaiabg2da9iaaccka caGGGcqcfa4aaSaaaOWdaeaajugib8qacaWGbbGaamOyaiaadohaca WGVbGaamOCaiaadkgacaWGHbGaamOBaiaadogacaWGLbGaaiiOaiaa d+gacaWGMbGaaiiOaiaadohacaWG0bGaamyyaiaad6gacaWGKbGaam yyaiaadkhacaWGKbGaaiiOaiaadMgacaWGUbGaamyAaiaadshacaWG PbGaamyyaiaadYgacqGHsislcaWGHbGaamOyaiaadohacaWGVbGaam OCaiaadkgacaWGHbGaamOBaiaadogacaWGLbGaaiiOaiaad+gacaWG MbGaaiiOaiaadohacaWG0bGaamyyaiaad6gacaWGKbGaamyyaiaadk hacaWGKbGaaiiOaiaadggacaWG0bGaaiiOaiaadshacaWGPbGaamyB aiaadwgacaGGGcGaamyAaiaad6gacaWG0bGaamyzaiaadkhacaWG2b GaamyyaiaadYgaaOWdaeaajugib8qacaWGHbGaamOyaiaadohacaWG VbGaamOCaiaadkgacaWGHbGaamOBaiaadogacaWGLbGaaiiOaiaad+ gacaWGMbGaaiiOaiaadohacaWG0bGaamyyaiaad6gacaWGKbGaamyy aiaadkhacaWGKbGaaiiOaiaadMgacaWGUbGaamyAaiaadshacaWGPb GaamyyaiaadYgacaGGGcaaaiabfE6adjaaigdacaaIWaGaaGimaaaa @A4CA@

Summary & conclusion

The quantitative estimation & validation parameters of the pure drug and marketed tablet were compared. The quantitative estimation of pure drug and marketed tablet formulation was compared with the absorption maxima of the pure drug and marketed tablet formulation. Then calibration curve is plotted pure drug and marketed tablet formulation separately. Then for the assessment of various functional groups present in FTIR studies were performed. Various functional groups and peak were analyzed and compared with the standard which proved that the drug was Amlodipine. Also, the assay of the marketed tablet formulation was determined in which 99.2% of the drug was obtained and pure drug amlodipine 99.8%. Then validation parameter was also determined according to USP 8 parameters like Accuracy, Precision, Specificity, Limit of detection, Limit of quantitation, Linearity, Ruggedness, and Robustness. These all parameters were studied between the pure drug and marketed tablet formulation. And resulting were the all validation parameter values similar to the marketed tablet formulation.

On the basis of the results obtained, it can be concluded that Quantitative method for estimation of drug in pure form and in commercially available marketed formulations is simple, accurate, precise, specific, selective, cost–effective, convenient, reproducible and reliable which meets the required acceptance criteria. This analytical method can be used for its intended purpose. For all the validation parameters, the values of standard deviation and %relative standard deviation were low which indicate higher degree of precision. This method can be successfully employed in future for routine estimation, quantification and quality control of pharmaceutical dosage forms.

Acknowledgments

None.

Conflicts of interest

None.

References

  1. The Indian Pharmacopoeia commission, Indian Pharmacopoeia, Gaziabad, India, 2007;pp. 714.
  2. Smith Alice E. Validation & verification protocol, 1996.
  3. Vermesan Anea. Validation & Verification of knowledge band system. Computer Science, UK, 1999.
  4. Thomas AB, Sheetal NJ, Shweta BD, et al. Estimation of Amlodipine Besylate and Telmisartan in Tablet Dosage Form. Pharm Tech. 2014;2(2):1334–1341.
  5. Nelson Mark Drug treatment of elevated blood pressure. Australian Prescriber 2010;33(4):108–112.
  6. Sharma K, Agrawal SS, Gupta M. Development and Validation of UV spectrophotometric method for the estimation of Curcumin in Bulk Drug and Pharmaceutical Dosage Forms. IJDDR. 2012;4(2):375–380.
  7. www.nlm.nih.gov/mesh/
  8. Mishra P, Gupta Alka, Shah K. Simultaneous estimation of atorvastatin calcium and amlodipine besylate from tablets. IPCS. 2007;69: 831–833.
  9. Gidwani Bina, Vyas Amber. UV–spectrophotometric method for estimation of altretamine in Bulk and pharmaceutical solid dosage form, 2014.
  10. Thomas Asha B. Simultaneous Spectrophotometric Esti–mation of Amlodipine Besylate and Telmisartan in Tablet Dosage Form. Der Pharma Chemica. 2004;4(2):725–730.
  11. Behera S, Ghanty S, Ahmad F, et al. UV–Visible Spectrophotometric Method Development and Validation of Assay of Paracetamol Tablet Formulation. J Anal Boanal Techniques. 2012;3: 6–11.
  12. ICH Validation of analytical procedures: text and methodology. ICH Guideline Q2 (R1), Switcherland, 2005.
  13. ICH Stability testing of new drug substances and products. ICH, Q1A (R2), International Conference on Harmonization, Switcherland, 1996.
  14. ICH Guidance for industry in; Q2B Validation on Analytical Procedures: Methodology. IF PMA, Switcherland, 1996.
  15. Ludwig H. Validation of Analytical Methods and Procedures. ICH, USA, 2007.
  16. Sahu R, Patel VB. Simultaneous spectrophotometric estimation of hydrochlorothiazide and bisoprolol fumarate in combined dosage forms. Indian J Pharma Sci 2006;pp. 764–767.
  17. Jain HK, Agarwal RK. Spectrophotometric method for simultaneous estimation of amlodipine besylate and lisinopril in tablets. Indian Drugs 2000;37:196–199.
  18. Dahima R, Ashish P, Sanjay N. Formulation and evaluation of mouth dissolving tablet containing amlodipine Besylate solid dispersion. Chem Tech. 2010;2(1):706–715.
  19. Jain Nilesh Spectrophotometric Method Development and Validation for Quantitative Estimation of Amlodipine Besylate in Bulk Drug and their Dosage Forms by Using Hydrotropic Agent. Eurasian J Anal Chem. 2010;5(3):212–217.
  20. Gajjar Anuradha K, Shah VD. Simultaneous uv–spectrophotometric Estimation of rosuvastatin and ezetimibe in their combined dosage forms. International Journal of Pharmacy and Pharmaceutical Sciences. 2010;2(1):131–138.
  21. Bernard Shyni Spectrophotometric method of estimation of Amlodipine besylate using hydrotropic solubilization. Journal of Applied Pharmaceutical Science. 2011;1(9):177–180.
  22. Kakde D, Jain D, Shrivastava V, et al. Cancer Therapeutics Oppor–tunities, Challenges and Advances in Drug Delivery. Journal of Applied Pharmaceutical Science. 2011;1(9):1–10.
  23. Singh E, Sharmak S, Pareek A, et al. Phytochemistry, traditional uses and cancer chemopreventive activity of Amla (Phyllanthus emblica):The Sustainer. Journal of Applied Pharmaceutical Science. 2011;2(1):176–183.
  24. Murthy Nandagudi Srinivasa, S Shalini, G Suman, Srekantaiah Pruthvish, Aleyamma Mathew Changing Trends in Incidence of Ovarian Cancer – the Indian Scenario. Asian Pac J Cancer Prev. 2009;10(6):1025–1030.
  25. Indian Pharmacopoeia Vol II. Published by the Controller of Publication, New Delhi, India, 2014;pp. 1045–1047.
  26. Block JH, Beale JM (2004) Wilson and Grisvold’s Textbook Organic Medicinal and Pharmaceutical Chemistry. Wolters Kluwer, London, UK, pp. 631.
  27. Tripathi KD (2004) Essentials of Medical Pharmacology. (5th edn), Jaypee Brothers Medical Publishers, New Delhi, India, pp. 496.
  28. Davidson AG (2002) Ultraviolet–visible absorption spectrophotometry. In: Beckett AH, et al. (Eds.), Practical Pharmaceutical chemistry, (4th edn), CBS Publishers and distributors, New Delhi, India, pp. 275–278.
  29. Ghiorghis A, Talebian AH. High–pressure liquid chromatography separation of potential impurities of Altretamine. Journal of Liquid Chromatography. 1991;14(12):2331–2349.
  30. Bernard Shyni UV – Spectrophotometric Estimation of Amlodipine Besylate by Using Hydrotropic Solubilization with 1 M Sodium Acetate.  Research Journal of Pharmaceutical, Biological and Chemical Sciences. 2014;5(4):693–700.
  31. British High Commission Landon. The British Pharmacopoeia, UK, 2009;pp. 5872–5877.
  32. Santhosh MK, Sreedevi A, Kalyani L, et al. Development and validation of a stability indicating HPLC method for analysis of Altretamine in bulk drug and pharmaceutical formulations. Indian Journal of Research in Pharmacy and Biotechnology. 2013;1(6):778–785.
  33. Mandloi Dk, Tyagi PK, Rai VK, et al. Journal of Chemical and Pharmaceutical Research. 2009;1(1):286–296.
  34. Baghel US, Singhal M, Gupta MM, et al. Journal of Chemical and Pharmaceutical Research. 2009;1(1):271–275.
  35. Helmut G, Alex W. Hand Book of Analytical Techniques. (3rd edn), Wiley Inter Science, New York, USA, 2001;pp. 283–326.
  36. Chapman KG (1993) Validation terminology. In: Reddy IR, et al. (Eds), Pharmaceutical process validation, (2nd edn), New York, USA, pp. 587–596.
  37. Jampana Praveen Kumar, Rajesh BH, Raveendra GB. Visible spectroscopic method for estimation of Amlodipine besylate in tablets. IIPCBS. 2014;4(1):173–177.
  38. Bailey LC. Chromatography. In: Gennaro AR (Eds.), The science and practice of pharmacy, (20th edn), Remington, Lippincott Williams & Wilkins, Philadelphia, USA, 2001;pp. 587–613.
  39. Sanchaniya PM, Mehta FA, Uchadadiya NB. Development and Validation of an RP–HPLC Method for Estimation of Chlorpheniramine Maleate, Ibuprofen, and Phenylephrine Hydrochloride in Combined Pharmaceutical Dosage Form. Chromatograph Research International 2013;1–6.
  40. Loni AB, Hosmani A, Gote A, et al. Spectrophotometric Estimation of Tolterodine Tartarate in Bulk And Tablet Dosage Form. Am J PharmTech Res. 2013;3(6):162–167.
  41. Beckett AH, Stenlake TB (1997) Practical pharmaceutical chemistry. (4th edn), CBS Publisher and Distributor, New Delhi, India, pp. 277–280.
  42. Masih Manisha, Abhilasha M, Nandy BC. Spectrophotometric simultaneous estimation of amlodipine besylate and losartan potassium in tablet dosage forms. Asian Journal of Pharmaceutical and Clinical Research. 2014;7(4):61–63.
  43. Vora DN, Kadav AA. Development and validation of a simultaneous HPLC method for estimation of bisoprolol fumarate and amlodipine besylate from tablets. Indian J Pharm Sci. 2008;70(4):542–546.
  44. Chitlange SS, Imran M, Sakarkar DM. RP HPLC method for simultaneous estimation of amlodipine and metoprolol in tablet formulation. Asian J Pharm Sci 2008;2: 232–234.
  45. Che–Ming Jack Hu, Santosh Aryal, Liangfang Zhang. Nanoparticle–assisted combination therapies for effective cancer treatment. Ther Deliv. 2010;1(2):323–334.
  46. Clande Jean. CADP protocol validation and verify–cation toolbox, 2005.
  47. Masih Abhilasha. Simultaneous spectrophotometric estimation of amlodipine besylate and telmisartan in tablet dosage form, 2012.
  48. Patil VP, Devdha SJ, Angadi SS, et al. New Ecofriendly Validated Spectrophotometric Method for the Estimation of Amlodipine Besylate in Bulk Drug Using Ninhydrin. Asian Journal of Biomedical and Pharmaceutical Sciences. 2013.
  49. Pradhan Kishanta Kumar Method Development, Validation and Stability Study of Irbesartan in Bulk and Pharmaceutical Dosage Form by UV–Spectrophotometric Method. International Journal of Pharmaceutical & Biological Archive. 2011;2(4).
  50. Madan Mohan RM, Jyothirmai K, Mahidhar R, et al. A Novel Review on Anti–Hypertensive Drug Combination– Atenolol and Amlodipine. International Journal of Pharmaceutical and Chemical Sciences. 1996;2(2):1086–1089.
  51. Law M, Wald N, Morris J. Lowering blood pressure to prevent myocardial infarction and stroke: a new preventive strategy. Health Technol Assess. 2003;7(31):1–94.
  52. Nelson MR, McNeil JJ, Peeters A, et al. PBS/RPBS cost implications of trends and guideline recommendations in the pharmacological management of hypertension in Australia, 1994–1998. Med J Aust. 2001;174(11):565–568.
Creative Commons Attribution License

©2017 Gidwani, et al. This is an open access article distributed under the terms of the, which permits unrestricted use, distribution, and build upon your work non-commercially.
