Journal of
eISSN: 2473-0831

Analytical & Pharmaceutical Research

Research Article Volume 11 Issue 3

In silico studies of essential oil components from Indian herbal formulation against RdRp enzyme in Covid-19 virus

Alok K Hazra,1 Chandreyi Ghosh,2 Sirshendu Chatterjee,2 Tuhin K Biswas,3 Srikanta Pandit,3 Tapas K Sur4

1Analytical Research Division, Chromogen, Howrah, India
2Department of Biotechnology, Techno India University, India
3Research Unit, JB Roy State Ayurvedic Medical College & Hospital, India
4Multidisciplinary Research Unit, RG Kar Medical College & Hospital, India

Correspondence: Tapas Kumar Sur, Research Scientist II, Multidisciplinary Research Unit (DHR-ICMR), R.G. Kar Medical College & Hospital, Department of Health & Family Welfare, Government of West Bengal, Khudiram Bose Sarani, Kolkata–700004, West Bengal, India, Tel +91 8017575428

Received: September 15, 2022 | Published: September 23, 2022

Citation: : Hazra AK, Ghosh C, Chatterjee S, et al. In silico studies of essential oil components from Indian herbal formulation against RdRp enzyme in Covid-19 virus. J Anal Pharm Res. 2022;11(3):95?100 DOI: 10.15406/japlr.2022.11.00407

Download PDF

Abstract

Ayush Kwath (AK), a traditional herbal remedy from India, is used to treat viral and bacterial infections of the respiratory tract. A GC-MS analysis of essential oils isolated from AK revealed 52 components, of which 10 had known medicinal uses. These substances included α-zingiberene, α-curcumene, cinnamaldehyde, β-caryophyllene), β-bisabolene, β-sesquiphellandrene, D-limonene, β-eudesmene, β-elemene and a-copane. A simulation of in silico molecular docking was run to target the SARS-CoV-2 RNA dependent RNA polymerase (RdRp) enzyme. In comparison to other compounds, β-eudesmene has the highest binding energy (-7.3 Kcal/mole), and ADMET predictions are promising for its medicinal potential. As a result, it was concluded that the β-eudesmene component of AK ligand's essential oil may have the ability to prevent SARS-CoV-2 replication via the RdRp enzyme.

Keywords: ayush kwath, herbs, essential oils, molecular docking, β-eudesmene, RdRp, SARS-CoV-2, Covid-19

Abbreviations

RdRp, RNA dependent RNA polymerase; SDF, structure data format; EO, Essential oil; TIC, total peak area; AK, Ayush Kwath; RI, retention index

Introduction

Essential oil (EO) is generally made up of a combination of monoterpenes, sesquiterpenes, and their oxygenated derivatives, which have a variety of chemical structures and multifaceted bioactivities that include antibacterial, antiviral, and anticancer properties.1 Recent research suggests that EO may have promise as a treatment for SARS-CoV-2.2 Traditional Indian medicine uses the herbal remedy Ayush Kwath (AK) to treat viral respiratory infections. The herbs utilized in AK, including Ocimum sanctum (leaf),3 Zingiber officinale (rhizome),4 Cinnamomum zeylanicum (stem bark)5 and Piper nigrum (fruit)6 are regarded as rich sources of EO and immunomodulatory properties. According to reports, O. sanctum suppresses the NF-β classical pathway and functions as a key defensive mechanism to boost immunological response to infection.7 Additionally, C. zeylanica blocks anti-CD3-induced p38, JNK, ERK1/2, and STAT4 activation, changing the inflammatory responses mediated by T-cells.8 Z. officinale prevented the multiplication of viruses.9 Furthermore, P nigrum promotes T and B cell proliferation while inhibiting GATA3 and demonstrating immune-stimulating effects.10

In addition to in vitro investigations, other researchers suggest that certain chemicals found in different EOs may have anti-Covid-19 infection properties.11 The replication of RNA from an RNA template typically requires the enzyme RNA dependent RNA polymerase (RdRp), and there is a strong sequence similarity (96%) between SERS-CoV and SARS-CoV-2 for RdRp.12 The agents that target the RdRp of SARS-CoV may therefore also target RdRp of SARS-CoV-2. Remdesivir is a frontline medication for SARS-CoV-2 infection and a possible RdRp inhibitor.13 In light of this, the current investigation was carried out for the first time to identify and quantify the bioactive components of EOs from AK and evaluate their antagonistic potentialities against the RdRp enzyme from the SARS-CoV-2 virus using in silico molecular docking.

Material and methods

Extraction of essential oil

Highly pure O. sanctum (leaves), C. zeylanicum (stem bark), Z. officinale (rhizome) and P. nigrum (fruit) were purchased from a nearby market to prepare AK. The materials were combined into a fine powder in a 4:2:2:1 (w/w) ratio, which was then stored at 4ºC in a sterile container. Essential oil (EO) extraction was performed by hydro-distillation method using Clevenger’s apparatus. In brief, 25g AK was boiled with water at 100ºC for 3h. EO was dried over anhydrous sodium sulphate and stored in amber glass vial at 4ºC for further investigation.

GC-MS analysis of essential oil

GC-MS was carried out to isolate and identify the constituents of AK essential oil (Agilent 7890B GC with 5977A MSD, Agilent, USA). An effective separation was achieved using HP-5ms (5% diphenyl-95% dimethyl polysiloxane) capillary column (30m x 0.25mm ID and 0.25μm film thickness). The optimal oven temperature was programmed to start at 80°C for 2minutes, then rise to 220°C at a rate of 4°C/min, and lastly to 280°C at 5°C while maintaining the ultimate temperature for 5minutes. The flow rate of the carrier gas, helium, was kept constant at 1ml/min. The temperature of the MS transfer line was set at 280°C while the injector was set at 220°C. 1μl of EO samples were injected with a 10:1 split ratio. Prior to injection, EO samples were dissolved in 10% v/v hexane. The 70ev ion source was used in EI mode to achieve fragmentation within the mass range of 50-550m/z. By matching the mass spectra to those in the NIST 14.1 library, all the components of essential oils were identified. By using the instrument software MassHunter, the abundance of EO components was quantified as a relative percentage of the total peak area (TIC). By analysing EO using GC-FID under the same conditions as GC-MS, each component's retention index (RI) was calculated. Chromatography of a mixture of homologous series of n-alkanes C6–C24 was also carried out at the same time.

In silico molecular docking and dynamics

Using the SAVES 6.0 server, the crystal structure of the SARS-CoV-2 RdRp complex with Remdesivir was obtained and verified.14 The crystal structure of receptor protein RdRp (PDB:7B3B) of SARS-CoV-2 presented in Figure 1A, the Ramachandran plot of SARS-CoV-2 RdRp PDB:7B3B VADAR (Volume, Area, Dihedral Angle Reporter) shown in Figure 1B, and the PDB:7B3B structure validation by Verify3D presented in Figure 1C. The structural quality of the target protein was determined using PROCHECK server. The CASTp website was used to assess whether amino acids were present in the active site. The selected EO bioactive chemicals' structure data format (SDF) was obtained from the PubChem database and then converted to PDB format using Open Babel.15 Chem sketch data are presented in Figure 2. Using Autodock 4.2 tools, the protein and ligands were converted to PDBQT format.16 The common drug Remdesvir, which has demonstrated inhibitory actions against RdRp, was downloaded and compared. Using Autodock 4.2 and AutodockVina, all separated chemicals were docked into a 3D X-ray structure.17 The Broyden-Fletcher-Goldfarb-Shanno algorithm was used by AutodockVina. Finally, Bovia Discovery Studio Visualizer was used to display the binding complexes. Additionally, the SwissADME website measured Adsorption, Distribution, Metabolism, and Excretion (ADME) characteristics and pHCSM measured toxicity level.18

Figure 1 The crystal structure of receptor protein RdRp of SARS-CoV-2.
A=Ramachandran plot of SARS-CoV-2 RdRp; B=Volume, Area, Dihedral Angle Reporter; C=structure validation by Verify3D

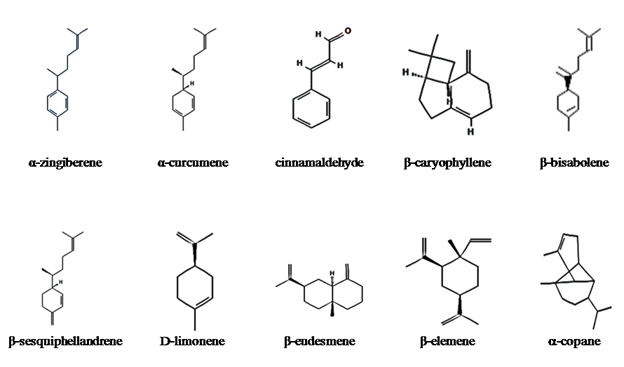

Figure 2 Structure of selected compounds as ligands for SARS-CoV-2 RdRp enzyme.

Results

GC-MS of essential oil

The yield of EO from AK was 0.33% (w/w), and GC-MS analysis revealed a total of 52 components for EO (Table 1). The primary constituents that were determined to be present included α-zingiberene (12.3%), α-curcumene (9.2%), cinnamaldehyde (6.7%), β-caryophyllene (6.2%), β-bisabolene (6.1%), β-sesquiphellandrene (4.9%), D-limonene (4.1%), β-eudesmene (3.9%), β-elemene (3.4%) and a-copane (3.5%). The GC-MS chromatogram is given in Figure 3.

No.

Name

Class

RIa

EO (%)

No.

Name

Class

RIa

EO (%)

1

α-Pinene

MH

942

0.48

27

α-Farnesene

SH

1509

0.82

2

Camphene

MH

953

0.6

28

β-Bisabolene

SH

1512

6.1

3

β-Pinene

MH

981

0.65

29

γ-Cadinene

SH

1518

3.53

4

D-Limonene

MH

1032

4.16

30

L-calamenene

SH

1524

1.07

5

γ-Terpinene

MH

1063

0.33

31

Cadina-1(10),4-diene

SH

1527

2.27

6

Linalool

OM

1101

0.57

32

β-Sesquiphellandrene

SH

1529

4.91

7

Camphol

OM

1169

0.88

33

α-Calacorene

SH

1545

0.63

8

Terpinen-4-ol

OM

1179

0.63

34

Elemene

OS

1550

2.76

9

α-Terpineol

OM

1191

0.72

35

Germacrene B

SH

1560

0.47

10

α-Citral

OM

1272

0.36

36

trans-Nerolidol

OS

1565

1.29

11

Cinnamaldehyde

OM

1284

6.77

37

Caryophyllene oxide

OS

1582

1.53

12

δ-Elemene

MH

1340

0.39

38

trans-Sesquisabinene hydrate

OS

1583

0.68

13

Eugenol

OM

1359

0.65

39

β-Copaen-4α-ol

OS

1590

1.39

14

Cyclosativene

MH

1371

0.32

40

Viridiflorol

OS

1593

0.57

15

α-Copaene

MH

1378

3.56

41

Zingiberenol

OS

1621

1.12

16

β-Elemene

SH

1393

3.4

42

Ledene oxide-(II)

O

1632

0.69

17

β-Caryophyllene

SH

1419

6.26

43

Cubenol

OS

1644

0.43

18

Aromandendrene

SH

1441

0.38

44

δ-Cadinol

OS

1647

1.56

19

α-Caryophyllene

SH

1457

1.02

45

α-Eudesmol

OS

1655

0.64

20

γ-Gurjunene

SH

1475

0.53

46

α-Cadinol

OS

1658

0.47

21

γ-Muurolene

SH

1478

1.53

47

7-epi-trans-sesquisabinene hydrate

OS

1675

1.31

22

α-Curcumene

SH

1486

9.23

48

Aromadendrene oxide

OS

1679

0.66

23

β-Eudesmene

SH

1489

3.91

49

α-Bisabolol

OS

1687

0.67

24

β-Guaiene

SH

1493

0.7

50

Benzyl Benzoate

OS

1766

1.13

25

Epicubebol

OS

1495

0.94

51

β-Costol

OS

1782

1.15

26

α-Zingiberene

SH

1497

12.33

52

Gerany-p-cymene

OS

1981

0.48

Total identified [No.]

52

Total identified [%]

99.63

Monoterpene hydrocarbons (MH)[%]

8.6

Oxygenated monoterpenes (OM)[%]

10.58

Sesquiterpene hydrocarbons (SH)[%]

57.45

Oxygenated sesquiterpenes (OS)[%]

21.21

Others (O)[%]

1.79

Table 1 Identification of bioactive components presents in essential oils of Ayush Kwath (AK)

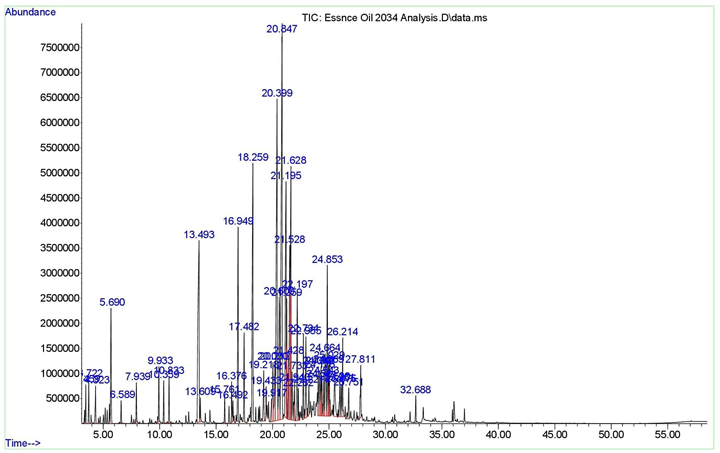

Figure 3 GC-MS chromatogram of essential oil.

Molecular docking

The binding affinity of selected EO compounds namely α-curcumene, β-caryophyllene, α-zingiberene, cinnamaldehyde, β-bisabolene, α-copaene, β-eudesmene, D-limonene, β-sesquiphellandrene, and β-elemene, range between -5.4 kcal/mol and -7.3 kcal/mol (Figure 4). Among the ten chemicals docked, β-eudesmene displayed the highest binding energy (-7.3), compared to Remdesivir although interacts with three amino acid residues of corona virus RdRp such as LEU371, ALA375 and TRP509. In the RdRp binding site, the β conformation with alkyl and pi-alkyl interactions was seen for β-eudesmene (Figure 5). Key residues were depicted in a violet colour ball and stick model, and the compound was depicted in a green colour ball and stick model to reflect the RdRp structure (Figures 5A & B). With a pink dotted line, the β-eudesmene illustrating hydrogen, hydrophobic, and van der Waals interactions inside active binding sites of RdRp are displayed in Figure 5C.

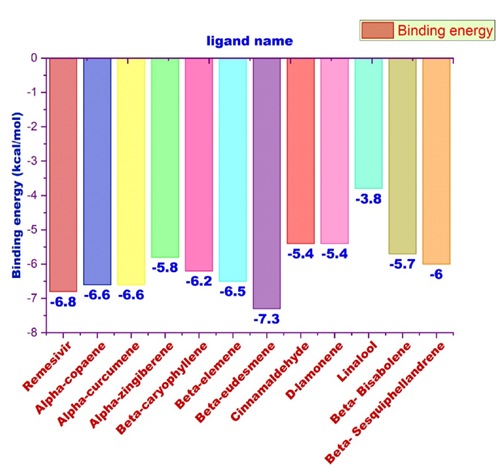

Figure 4 Binding energy of selected essential oils with RdRp.

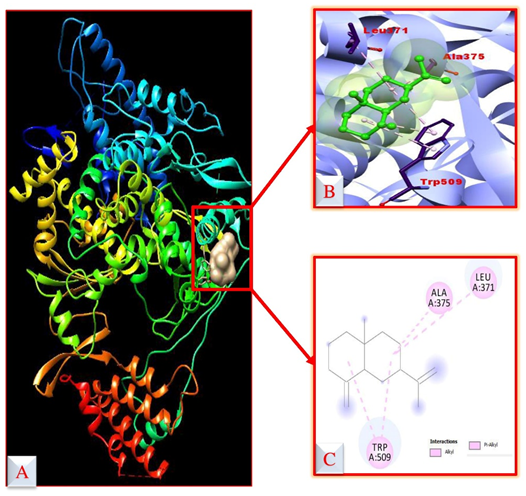

Figure 5 Interaction of β-eudesmene with RdRp.
A=solid ribbon model; B=active sites of amino acid residues; C= hydrophobic interactions

Table 2 provides an overview of the pharmacokinetic parameters. The bioavailability score for all substances was 55% and the human intestine absorption rate was higher than 93. All of the chosen compounds were moderately permeable, as indicated by the estimated Caco-2 cell absorption being larger than 1.4. With the exception of α-curcumene and cinnamaldehyde, computed metabolism revealed that inhibition of the enzyme CYP2C9 was prominent for all substances. Figure 6 depicts the bioavailability radar of β-eudesmene. The optimal zone for each property, including size (SIZE), polarity (POLAR), flexibility (FLEX), insolubility (INSOLU), unsaturation (INSATU), and lipophilicity (LIPO), was indicated by the pink area in Figure 6. The substances have demonstrated neither AMES toxicity nor carcinogenicity.

1

2

3

4

5

6

7

8

9

10

               ADME

Blood-Brain Barrier

0.591

0.716

0.788

0.44

0.788

0.855

0.816

0.728

0.787

0.803

Human Intestinal Absorption

94.168

94.097

93.87

96.882

94.553

95.385

95.937

95.408

94.668

93.793

Bioavailability Score

0.55

0.55

0.55

0.55

0.55

0.55

0.55

0.55

0.55

0.55

Caco-2 Permeability

1.561

1.414

1.414

1.654

1.419

1.396

1.428

1.402

1.408

1.411

Aqueous solubility (LogS)

-6.06

-5.513

-5.926

-2.113

-6.112

-5.594

-6.419

-3.543

-6.055

-6.363

Skin permeation (Log Kp)

-1.168

-1.594

-1.276

-2.345

-1.236

-1.901

-1.606

-1.744

-1.223

-1.213

CYP2C19 inhibitor

NO

YES

YES

NO

NO

YES

YES

NO

YES

YES

CYP2C9 inhibitor

NO

YES

YES

NO

YES

YES

YES

YES

YES

YES

CYP2D6 inhibitor

YES

NO

NO

NO

NO

NO

NO

NO

NO

NO

CYP3A4 inhibitor

NO

NO

NO

NO

NO

NO

NO

NO

NO

NO

Renal Organic Cation Transporter Inhibitor

NO

NO

NO

NO

NO

NO

NO

NO

NO

NO

 TOXICITY

AMES Toxicity

NO

NO

NO

YES

NO

NO

NO

NO

NO

NO

Carcinogens

NO

NO

NO

NO

NO

NO

NO

NO

NO

NO

Oral Rat Acute Toxicity (LD50) mol/kg

1.742

1.552

1.568

1.869

1.648

1.5

1.539

1.877

1.584

1.479

Rat Oral Chronic Toxicity

1.426

1.425

1.322

1.98

1.348

1.389

1.489

2.352

1.314

1.317

(log mg/kg_bw/day)

Maximum tolerated dose (human) (log mg/kg_bw/day)

0.751

0.214

0.358

0.862

0.416

-0.241

-0.004

0.776

0.273

0.102

Table 2 ADME and toxicity results of selected components presents in essential oils of Ayush Kwath

Figure 6 Bioavailability radar for the compound β-eudesmene.

Discussion

Numerous plant essential oils have also been studied for a range of bioactivities, such as antimicrobial, antifungal, antioxidant, anticancer, and antiviral.1 To the best of our knowledge, there is no report on EO of AK to combat Covid-19 infection. Major chemicals found in EO derived from O. sanctum include eugenol, caryophylline, β-elemene, and D-germacrene.19 EO of O. sanctum exhibit strong antiviral activity against a number of viruses, including Herpes Simplex, HIV, and Adenovirus, and they may be a useful bioresource in the fight against Covid-19.3 The major components of Z. officinale EO were α-zingiberene, β-bisabolene, β-sesquiphellandrene, α-curcumene.20 In EO of C. zeylanicum, significant amounts of cinnamaldehyde stereoisomers were identified21 and antiviral activity against influenza virus was noted.22 According to reports, P. nigrum fruit's EO contains higher concentrations of D-limonene, β-caryophylline, β-bisabolene, α-copaene and has the potential to be antiviral.6 In the current investigation, it was found that EO of AK exhibits the chemical characteristics of EO from each of its constituent parts. The primary constituents identified and quantified constituents were α-zingiberene > α-curcumene > cinnamaldehyde > β-caryophyllene > β-bisabolene > β-sesquiphellandrene > D-limonene > β-eudesmene > β-elemene > and a-copane. Recent studies by Gautam et al.23 and Rastogi et al.24 describe the potential for Indian herbs to be employed in a variety of traditional formulations, including AK to treat Covid-19.

SARS-CoV-2 acute infection has been linked to several proteins. Numerous molecular docking studies on the macromolecular targets of Covid-19 have previously been conducted.25 Hence, the interactions between the ten EO found in AK and the RdRp enzyme from SARS-CoV-2 were further studied using molecular docking simulations. In silico methods have also been used to assess medications that are readily available on the market.26 The enzyme RNA-dependent RNA polymerase, or RdRp, is crucial for the replication of RNA from an RNA template. These enzymes are good candidates for antiviral chemotherapeutic targets because they are essential for viral replication.27 With the highest binding energy, β-eudesmene showed the best docking outcomes. Silva and colleagues11 reported docking of numerous EO and components against all potential SARS-CoV-2 protein targets, but only find a weak docking with the target RdRp enzyme. As a result, this study suggests that EO's minor components, including β-eudesmene, would have significant therapeutic potential in addition to its main constituents. Viral membranes are easily penetrated by EOs due to their hydrophobicity, which causes membrane rupture. Numerous EOs were examined by Vimalanathan and Hudson28 for potential direct effects on the main influenza virus surface proteins, suggesting that contact is a potential mechanism for the antiviral activity. Furthermore, EOs have a variety of active phytochemicals that can work together to inhibit several viral replication stages. These phytochemicals can also have beneficial effects on the host respiratory system, including bronchodilator and mucolytic.

Conclusion

Potential essential oils were found in Ayush Kwath (AK), one of which, β-eudesmene, demonstrated a considerable reduction in binding energy with RdRp sites as evident from in silico studies and was consequently anticipated to inhibit the pathogenic process of SARS-CoV-2 in the respiratory tract. According to this viewpoint, the current work represents an important step in the creation of a pharmacological weapon to battle SARS-CoV-2 that is based on the herbal remedies in India.

Acknowledgments

Authors are thankful to Mr. Rantim Bhattacharya for his technical help and M/s Envirocheck, Kolkata for providing instrumental facility.

Conflicts of interest

Authors declared no conflicts of interest.

Acknowledgments

None.

References

  1. Ma L, Yao L. Antiviral effects of plant-derived essential oils and their components: an updated review. Molecules. 2020;25(11):2627.
  2. Asif M, Saleem M, Saadullah M, et al. COVID‑19 and therapy with essential oils having antiviral, anti‑inflammatory, and immunomodulatory properties. Inflammopharmacology. 2020;28:1153–1161.
  3. Tshilanda DD, Ngoyi EM, Kabengele CN, et al. Ocimum Species as Potential Bioresources against COVID-19: A Review of Their Phytochemistry and Antiviral Activity. Int J Pathogen Res. 2020;5:42–54.
  4. Cameroa M, Lanave G, Catella C, et al. Virucidal activity of ginger essential oil against caprine alphaherpesvirus-1. Vet Micro. 2019;230: 150–155.
  5. Utchariyakiat I, Surassmo S, Jaturanpinyo M, et al. Efficacy of cinnamon bark oil and cinnamaldehyde on anti-multidrug resistant Pseudomonas aeruginosa and the synergistic effects in combination with other antimicrobial agents. BMC Comp Alternative Med. 2016; 16:158–165.
  6. Morsy NFS, El Salam EA. Antimicrobial and Antiproliferative Activities of Black Pepper (Piper nigrum L.) Essential Oil and Oleoresin. J Essential Oil Bearing Plants. 2017;20:779–790.
  7. Hemalatha R, Babu KN, Karthik M, et al. Immunomodulatory activity and Th1/Th2 cytokine response of Ocimum sanctum in myelosuppressed swiss albino mice. Trends Med Res. 2011;6:23–31.
  8. Lee BJ, Kim YJ, Cho DH, et al. Immunomodulatory effect of water extract of cinnamon on anti-CD3-induced cytokine responses and p38, JNK, ERK1/2, and STAT4 activation. Immunopharmacol Immunotoxicol. 2011;33:714–722.
  9. Chopra RN. Glossary of Indian medicinal plants. New Delhi, India: Council of Scientific and Industrial Research; 1956.
  10. Nahak G, Sahu RK. Phytochemical evaluation and antioxidant activity of Piper cubeba and Piper nigrum, J Appl Pharmaceutical Sci. 2011; 1:153–157.
  11. Silva J, Figueiredo P, Byler K, et al. Essential oils as antiviral agents. Potential of essential oils to treat SARS-CoV-2 infection: an in-silico investigation. Int J Mol Sci. 2020;2:3426.
  12. Morse JS, Lalonde T, Xu S, et al. Learning from the past: possible urgent prevention and treatment options for severe acute respiratory infections caused by 2019-nCoV. Chem Bio Chem. 2020;21:730–738.
  13. Wang M, Cao R, Zhang L, et al. Remdesivir and chloroquine effectively inhibit the recently emerged novel coronavirus (2019-nCoV) in vitro. Cell Res. 2020;30:269–271.
  14. Jin Z, Du X, Xu Y, et al. Structure of Mpro from COVID-19 virus and discovery of its inhibitors. Nature. 2020;582:289–293.
  15. O’Boyle NM, Banck M, James CA, et al. Open Babel: An open chemical toolbox. J Cheminform. 2011;3:33.
  16. Morris GM, Huey R, Lindstrom W, et al. Autodock4 and AutoDockTools4: automated docking with selective receptor flexiblity. J Comput Chem. 2009;16:2785–2791.
  17. Trott O, Olson AJ. AutoDockVina: improving the speed and accuracy of docking with a new scoring function, efficient optimization and multithreading. J Comput Chem. 2010;3:455–461.
  18. Daina A, Michielin O, Zoete V. SwissADME: a free web tool to evaluate pharmacokinetics, drug-likeness and medicinal chemistry friendliness of small molecules. Sci Rep. 2017;7:42717.
  19. Raseetha VS, Cheng SF, Chuah CH. Comparative study of volatile compounds from genus Ocimum. Am J Appl Sci. 2009;6:523–528.
  20. Mahboubi M. Zingiber officinale Rosc. essential oil, a review on its composition and bioactivity. Clin Phytosci. 2019;5:6–18.
  21. Gotmare S, Tambe E. Identification of chemical constituents of cinnamon bark oil by GCMS and comparative study garnered from five different countries. Global J Sci Frontier Res C Biol Sci. 2019;19:35–42.
  22. Choi HJ. Chemical constituents of essential oils possessing anti-Influenza A/WS/33 virus activity. Osong Public Health Res Perspect. 2018;9:348–53.
  23. Gautam S, Gautam A, Chhetri S, et al. Immunity against COVID-19: Potential role of Ayush Kwath. J Ayurveda Integr Med. 2022;13(1):100350.
  24. Rastogi S, Pandey DN, Singh RH. COVID-19 pandemic: A pragmatic plan for Ayurveda intervention. J Ayurveda Integr Med. 2022; 13:100312.
  25. Gentile D, Patamia V, Scala A, et al. Putative inhibitors of SARS-CoV-2 main protease from a library of marine natural products: A virtual screening and molecular modeling study. Mar Drugs. 2020;18:225.
  26. Beck BR, Shin B, Choi Y, et al. Predicting commercially available antiviral drugs that may act on the novel coronavirus (SARS-CoV-2) through a drug-target interaction deep learning model. Comput Struct Biotechnol J. 2020;18:784–790.
  27. Chen S, Luo H, Chen L, et al. An overall picture of SARS coronavirus (SARS-CoV) genome-encoded major proteins: Structures, functions and drug development. Curr Pharm Des. 2006;12:4539–4553.
  28. Vimalanathan S, Hudson J. Anti-influenza virus activity of essential oils and vapors. Am J Essen Oils Nat Prod. 2014;2:47–53.
