Abstract

The internet of things (IoT) is applied to many areas due to wide area connectivity and massive amount of information processing capability. It can be applied to the smart grid for sensing, monitoring and controlling the grid state information. The IoT enabled sensors are used to sense the grid state information, and then H-infinity algorithm is adopted to estimate the system states. Simulation result using the micro grid illustrates that the proposed algorithm can estimate the system states within a short period of time. Consequently, this framework is valuable to design the smart energy management systems in future.

Keywords: H-infinity algorithm, smart energy management systems, micro grid illustrates, power system situation, wireless sensor networks

Abbreviations

IoT, Internet of things; KF, kalman filter; PCC, point of common coupling; DRR, distributed energy resource.

Introduction

The internet of things (IoT) can be applied to many areas such as smart grid, air conditioning system, smart agriculture and transportation systems.^1,2 The main component of IoT framework is the wireless sensor networks. Basically, the energy management system uses the sensing information to estimate the micro grid states so that the power system situation awareness and security will be enhanced.³ The weighted least squared based AC state estimation is presented in.⁴ In Salinas,⁵ proposes a Kalman filter (KF) based centralized energy theft detection algorithm. In Keller,⁶ proposes a modified unknown input KF algorithm for the state filtering of network controlled systems subject to random cyber attacks. All the KF based approaches are required to know the exact noise statistics which are generally unknown at the energy management system. In fact, the H-infinity based micro grid state estimation is proposed in Rana,⁷ but it does not analysis the estimation performance considering sensor faults and large disturbances. Motivated by the aforementioned analysis, this paper proposes an H-infinity based micro grid state estimation using the IoT embedded sensors. The bold case upper and lower letters are used for matrix and vector notations.

Micro grid and IoT enabled sensors

Generally speaking, the micro grid provides clean, green and sustainable energy to the user.^8,9 In the distribution power system, the micro grid is connected to the feeder circuit. To illustrate, Figure 1 shows a distribution test feeder where the distributed energy resource (DER) is connected to the Point of Common Coupling (PCC) through coupling inductor. Basically, the DER is represented by voltage source Vs which is connected to the PCC whose bus voltage is denoted by Vb. The coupling inductor exists between them. After applying KVL, KCL and discretization process, the discrete-time state-space framework is written as follows:

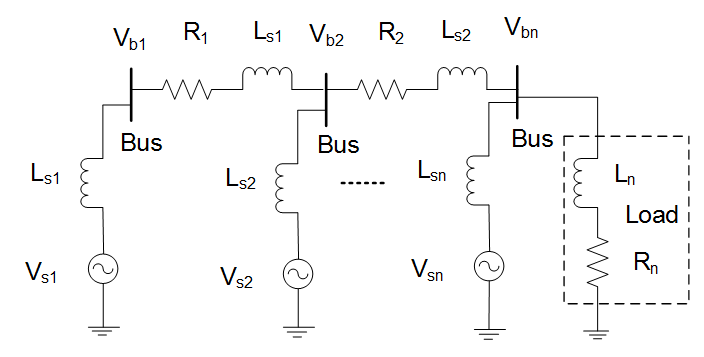

Figure 1 The n-bus system connected to DERs.¹⁰

$s (t + 1) = F s (t) + B u (t) + v (t)$ (1)

Where F is system state matrix, s(t) is the system state, B is the input matrix, u(t) is the system control effort, and v(t) is the system noise whose covariance matrix is Q(t). The detail parameters are given in¹⁰ Figure 1. The measurement from the IoT embedded sensor is given by:

$z (t) = H s (t) + w (t)$ (2)

Where z(t) is the measurement information, H is the sensing matrix and w(t) is the noisy measurement whose covariance matrix is R(t). Basically, the sensing measurement is used for state estimation at the energy management system. In the energy management system, the H-infinity filter is applied for state estimations.^7,12,13

Simulation results

Considering typical parameter in,^10,11 the simulation result is presented in Figure 2. Figure 2 shows the PCC voltage deviation at bus 1 and its estimation result. It is observed that the H-infinity can able to estimate the system state within 20 iterations. Other system states have almost similar estimation performance.

Figure 2 PCC voltage deviation at bus 1 when sensors sense system state directly.

Conclusion and future work

This article proposes an H-infinity based micro grid state estimation algorithm using the IoT based sensors. After representing the micro grid in a state-space framework, the IoT enabled smart sensors are deployed to obtain the sensing state information. In the energy management system, an H-infinity based optimal filtering approach is adopted and verified through numerical simulations. It shows that H-infinity algorithm can able to estimate the micro grid states. In future, we will also apply the control algorithm to stabilize the micro grid states.
