Identification and control of the lateritic mineral pulp storage process

MsC Deynier Montero Góngora,1 Ing Dioslider Matos Cantillo,2 Leonardo Rodriguez Mestre3

1Center for Energy Studies and Advanced Technology of Moa “CEETAM”, Cuba
2Electrical Engineering, Cuba
3Economy, Cuba

Correspondence: Deynier Montero Gongora, Center for Energy Studies and Advanced Technology of Moa “CEETAM”, Cuba, Tel 24-604476

Received: December 08, 2017 | Published: March 21, 2018

Citation: Góngora MDM, Cantillo IDM, Mestre LR. Identification and control of the lateritic mineral pulp storage process. Int Rob Auto J. 2018;4(2):102-105. DOI: 10.15406/iratj.2018.04.00101

Download PDF

Abstract

The experimental identification of the pulp storage process that links the plant complex: Thickeners - Leaching, from the company Cmte. Pedro Sotto Alba of the Moa municipality, with the scoop of knowing the dynamics of the process for its better study and understanding. It explains the fundamental techniques and methods of identification as well as the input signal to excite the system. The experiments that were carried out are described, the mathematical models obtained are validated and the best parameters of the controller are simulated to optimize the control of the level of pulp in the storage tank. Finally, an economic and environmental assessment of the technical proposal is made.

Keywords: experimental identification, mathematical models, controller, pulp level

Abbreviations

Cmte, commander; PSA, pedro sotto alba de moa; PID, proportional integral derivative; SBSA, pseudo random binary signals

Introduction

At present, modern control systems in a global context are a fundamental role in the development of solutions to problems or problems presented in domestic and industrial applications. The main contributions of modern control systems at industrial level contribute to technological innovation, profitability and maintainability of the processes to which it is controlled. According to Caldas et al.,1 to design a control strategy that guarantees the existing demands, a mathematical model must be available that describes the dynamics of the process. This is based on the mathematical process that can be detected through a dynamic or static system; in short, that effectively controls any variable that occurs within any system using a model that represents its physical structure in communication with the controller of that process. However, this task is complex, because it must be governed by the laws that are involved in each of the processes. In this sense, the identification of dynamic systems provides a tool capable of generating methods that allow in a much simpler way, to establish mathematical models with an adequate level of accuracy. In the company Cmte. Pedro Sotto Alba de Moa, specifically in the process of storage of pulp from the leaching plant, it is important to maintain control of the level of it in the storage tank. To achieve this task, we take into account the available pulp capacity of the Thickeners plant and the one demanded by the Leaching Plant, guaranteeing a certain pulp flow balance. In the PSA Operations Manual (2007), a clear mention is made of the main variables that intervene in the pulp storage process, which covers the plant complex Thickeners - Leaching, as well as the characteristics of the process that were taken into account in the present work. The inefficiencies in the control of the level of pulp that takes place in the storage tank of the leaching plant are taken as the research problem. To solve the problem, the objective of the research is to obtain a mathematical model of the process, through the application of experimental identification techniques, which allows the optimal parameters of the system controller to be proposed.

Current state of control and automation of the process

A Supervision and Control System (Citect: Version 7.10) is installed in the plant complex Thickeners - Leaching, in Figure 1 you can see details of it. In each output of the thickeners there is a pump governed by a speed controller and in turn by a PI control, located in Programmable Automata of the Siemens family. The purpose of this control is to maintain an adequate level of mineral pulp in the leaching plant. According to the capacity demanded by this plant and the sedimentation characteristics of each thickener tank, it will be the specific flow pumped. In this way a total flow is obtained in the mineral storage tank, which is measured by leveling radar. There are also two intermediate booster pumps to help pumping due to the high viscosity of the ore.

Figure 1 Process Supervision System Pulp Storage.

Materials and methods

It is not difficult to realize that obtaining a mathematical model that describes the process from the phenomenological point of view would be extremely complicated, since the physical-chemical processes involved would lead to differential equations systems in partial derivatives, consequently non-linear and variable over time, we opted for experimental identification to obtain approximate models for different points of operation Nath et al.2 In this case, for the formal mathematical modeling of this process, an experimental identification method was used, consisting in applying as excitation to the system, sequence of positive and negative steps to the flow of pulp of entrance to the storage tank, which constitute an approximation to the white noise, with special characteristics. Several experiments were performed with the SBSA, applying sequences of order 5 to the openings of the regulating valves of air flow to homes 4 and 6; variables that were added to the Citect as a result of this study. Several replicas of the sequences were also planned in order to achieve an adequate length of the input signal and the historical records corresponding to the following variables were taken: Pulp flow (Fp) and Tank level (NT). From the analysis of the steps responses prior to the system, a time constant of 7 minutes (NT) was estimated. Hence the decision to use a sampling period of measured signals of 3 seconds. For the identification process, the data was pre-processed. This consisted of suppressing the constant levels and making the average of them is zero. Then the filtering was done following the recommendations of Añez & Scarano.3 A group of data was selected to estimate the model and another part to validate it. Simple input and simple output models were determined in correspondence by the proposal by Estrada et al.,4 with structures Output Error (OE), Box Jenkins (BJ), Auto Regressive with exogenous input (ARX), for different orders. The models were transformed into transfer functions, which are easier to associate with a real plant. To process the data, the Identification Toolbox of the MATLAB professional package Ljung5 was used, which contains tools for obtaining mathematical models of dynamic systems based on the observed input-output data. The following describes the performance of one of the experiments carried out: 667 data were taken corresponding to the variables (NT and Fp). In this case, the variable speed drives experienced a variation of 20 to 99% of their total travel. Figure 2 shows the measurements of the input and output variables.

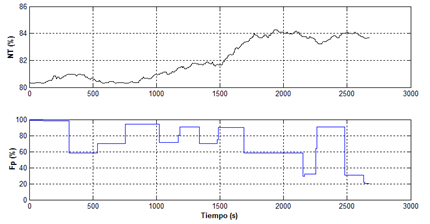

Figure 2 Input data & output of experiment # 1.

For NT, the best model BJ22221 was obtained with an adjustment of 78.67%, which is a model of order 2. NT( s ) Fp( s ) = 2.941* 10 5  s + 1.305* 10 6   s 2  + 0.01049 s + 7.393* 10 7    MathType@MTEF@5@5@+= feaagKart1ev2aqatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVu0Je9sqqrpepC0xbbL8F4rqqrFfpeea0xe9Lq=Jc9 vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=x fr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaqcfaieaaaaaa aaa8qadaWcaaWdaeaapeGaamOtaiaadsfadaqadaWdaeaapeGaam4C aaGaayjkaiaawMcaaaWdaeaapeGaamOraiaadchadaqadaWdaeaape Gaam4CaaGaayjkaiaawMcaaaaacqGH9aqpdaWcaaWdaeaapeGaaGOm aiaac6cacaaI5aGaaGinaiaaigdacaGGQaGaaGymaiaaicdapaWaaW baaeqajuaibaWdbiabgkHiTiaaiwdaaaqcfaOaaiiOaiaadohacaGG GcGaey4kaSIaaiiOaiaaigdacaGGUaGaaG4maiaaicdacaaI1aGaai OkaiaaigdacaaIWaWdamaaCaaajuaibeqaa8qacqGHsislcaaI2aaa aaqcfa4daeaapeGaaiiOaiaadohapaWaaWbaaeqajuaibaWdbiaaik daaaqcfaOaaiiOaiabgUcaRiaacckacaaIWaGaaiOlaiaaicdacaaI XaGaaGimaiaaisdacaaI5aGaaiiOaiaadohacaGGGcGaey4kaSIaai iOaiaaiEdacaGGUaGaaG4maiaaiMdacaaIZaGaaiOkaiaaigdacaaI WaWdamaaCaaabeqcfasaa8qacqGHsislcaaI3aaaaaaajuaGcaGGGc GaaiiOaaaa@7346@  (1)

With respect to the validation of the models, residue analysis (prediction errors) was carried out, taking into account that certain assumptions were made with respect to noise Ljung & Guo.5 Figure 3 show that, the function of correlation of the residues is within the levels of confidence and the function of cross-correlation between the residues and the input, reflects its independence, since it does not leave the reliability intervals. For the validation of the model, the comparison of the output of the model with the real output was made, which is shown in Figure 4, where it is observed that the output of the model is quite close to the real one. Regarding the configuration of the zeros and poles of this model, its stability is evidenced by the fact that the two poles are located in the left half plane of the complex plane (Figure 5).

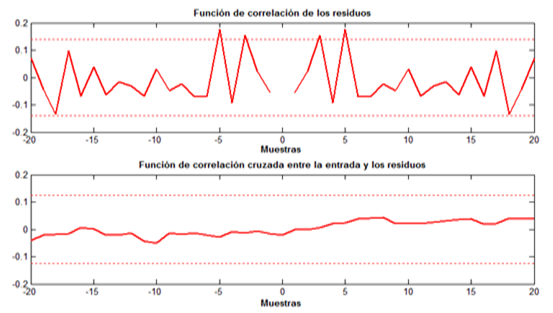

Figure 3 Residue test for the estimated model bj 22221.

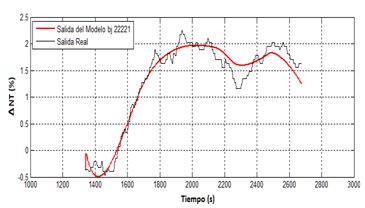

Figure 4 Real Output minus Output of the Simulated Model bj 22221.

Figure 5 Map of poles and zeros of model bj 22221.

Driver adjustment
To find the best tuning of the closed loop controllers, the PID Tuner graphic interface, invoked by the pidtool command from the Command Windows of the MATLAB, was used. For the simulation (Figure 6), a comparison between different configurations of the controllers adapted to the pulp level control loop in the tank was taken into account, which allowed selecting the most suitable configuration. As shown in Figure 7, the blue curve that represents the response of the plant in closed loop for a unit step input, exhibits a steady-state error of 0.36, which differs greatly from the unit step input in magnitude. Analytically we can corroborate it by means of the expression:

Figure 6 Simulation in the Matlab Simulink for different control configurations.

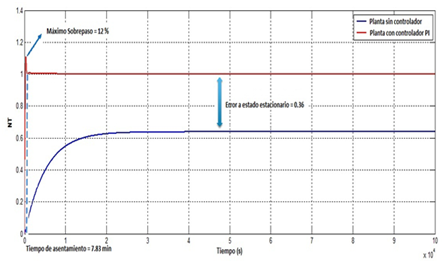

Figure 7 Pulp level for two control configurations.

e ss =li m s0  s* 1 1+G( s )H( s ) *Fp( s ) MathType@MTEF@5@5@+= feaagKart1ev2aqatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVu0Je9sqqrpepC0xbbL8F4rqqrFfpeea0xe9Lq=Jc9 vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=x fr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaqcfaieaaaaaa aaa8qacaWGLbWdamaaBaaajuaibaWdbiaadohacaWGZbaapaqabaqc fa4dbiabg2da9iaadYgacaWGPbGaamyBa8aadaWgaaqaa8qacaWGZb GaeyOKH4QaaGimaaWdaeqaa8qacaGGGcGaam4CaiaacQcadaWcaaWd aeaapeGaaGymaaWdaeaapeGaaGymaiabgUcaRiaadEeadaqadaWdae aapeGaam4CaaGaayjkaiaawMcaaiaadIeadaqadaWdaeaapeGaam4C aaGaayjkaiaawMcaaaaacaGGQaGaamOraiaadchadaqadaWdaeaape Gaam4CaaGaayjkaiaawMcaaaaa@53C6@  (2)
Substituting Fp (s) for a unit step and G (s) H (s) for model bj22221 is:
e ss =s* 1 1+li m s0 2.941* 10 5  s + 1.305* 10 6   s 2  + 0.01049 s + 7.393* 10 7            * 1 s   MathType@MTEF@5@5@+= feaagKart1ev2aqatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVu0Je9sqqrpepC0xbbL8F4rqqrFfpeea0xe9Lq=Jc9 vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=x fr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaqcfaieaaaaaa aaa8qacaWGLbWdamaaBaaajuaibaWdbiaadohacaWGZbaapaqabaqc fa4dbiabg2da9iaadohacaGGQaWaaSaaa8aabaWdbiaaigdaa8aaba WdbiaaigdacqGHRaWkcaWGSbGaamyAaiaad2gapaWaaSbaaeaapeGa am4CaiabgkziUkaaicdaa8aabeaapeWaaSaaa8aabaWdbiaaikdaca GGUaGaaGyoaiaaisdacaaIXaGaaiOkaiaaigdacaaIWaWdamaaCaaa beqcfasaa8qacqGHsislcaaI1aaaaKqbakaacckacaWGZbGaaiiOai abgUcaRiaacckacaaIXaGaaiOlaiaaiodacaaIWaGaaGynaiaacQca caaIXaGaaGima8aadaahaaqcfasabeaapeGaeyOeI0IaaGOnaaaaaK qba+aabaWdbiaacckacaWGZbWdamaaCaaabeqcfasaa8qacaaIYaaa aKqbakaacckacqGHRaWkcaGGGcGaaGimaiaac6cacaaIWaGaaGymai aaicdacaaI0aGaaGyoaiaacckacaWGZbGaaiiOaiabgUcaRiaaccka caaI3aGaaiOlaiaaiodacaaI5aGaaG4maiaacQcacaaIXaGaaGima8 aadaahaaqcfasabeaapeGaeyOeI0IaaG4naaaaaaqcfaOaaiiOaiaa cckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaai iOaaaacaGGQaWaaSaaa8aabaWdbiaaigdaa8aabaWdbiaadohaaaGa aiiOaaaa@864F@  (3)
Reducing and calculating e ss =0.3616 MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVCI8FfYJH8YrFfeuY=Hhbbf9v8qqaqFr0xc9pk0xbb a9q8WqFfeaY=biLkVcLq=JHqpepeea0=as0Fb9pgeaYRXxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaKqbacbaaaaaaa aapeGaamyzamaaBaaajuaibaGaam4CaiaadohaaeqaaKqbakabg2da 9iaaicdacaGGUaGaaG4maiaaiAdacaaIXaGaaGOnaaaa@3FBA@

Results and discussion

From the simulation of the controllers for the pulp storage process (Figure 8), it is estimated that the proposed controller has a settling time of 7.83 min and a surpass of 12%, which is lower than the current controller's performance. 11.83 min and 22% (Figure 9). The consultation with technologists and plant operators allowed us to assume that approximately in a normal day of operation, the control of the pulp storage process is moved from automatic to manual 2 times. In this way, the economic benefit is presented from the point of view of the power consumption of the three-phase motor installed in the Thickeners plant, which is governed by the variable speed drive, to maintain the level of pulp in the tank. When the process switches from manual to automatic; the response of the level in closed loop with both controllers, allows estimating an economic saving through the behavior of the transitory regimes. It is determined that for 11.83 minutes, the engine presents the following data as average (In=54.6 A, Vac=312.8 V, cosα=0.58). The active power is then calculated as:

Figure 8 Simulation in the Matlab Simulink to compare two controller.

Figure 9 Pulp level using two controller.

P= 3 *V*I*cosα MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVCI8FfYJH8YrFfeuY=Hhbbf9v8qqaqFr0xc9pk0xbb a9q8WqFfeaY=biLkVcLq=JHqpepeea0=as0Fb9pgeaYRXxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaKqbacbaaaaaaa aapeGaamiuaiabg2da9maakaaabaGaaG4maaqabaGaaiOkaiaadAfa caGGQaGaamysaiaacQcaciGGJbGaai4BaiaacohacqaHXoqyaaa@4166@ (4)

Resulting, P=17.2kW MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVCI8FfYJH8YrFfeuY=Hhbbf9v8qqaqFr0xc9pk0xbb a9q8WqFfeaY=biLkVcLq=JHqpepeea0=as0Fb9pgeaYRXxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaKqbacbaaaaaaa aapeGaamiuaiabg2da9iaaigdacaaI3aGaaiOlaiaaikdacaWGRbGa am4vaaaa@3D2A@

Figure 9 with the proposal of the new parameters for the PI controller, the transient time is reduced to 7.83 min, and consequently the power consumption is reduced to 11.38 kW. After the subtraction of both consumptions, a saving of 5.82 kW is evidenced, which represents once a day and to complete the daily analysis, this value is multiplied by 2, resulting in 11.63 kW. This allows determining that for a year with 365 days, a total of 4 245.48 kW is saved. When establishing an economic consumption in freely convertible currency (CUC), the company Cmte. Pedro Sotto Alba has an equivalent of 200 CUC for 1000 kW, then for an annual consumption of 4 245.48 kW; a saving of 849 CUC is reported. In order to evaluate the expenses related to the adjustment and implementation of the technical proposal, an approximate time of 3 days is estimated with the use of 2 workers. Table 1 shows the breakdown by workers according to their category.

Description

Quantity

Daily cost
 (CUC)

Total cost (CUC)

Advanced technician

1

5

15

Average technician

1

3.73

11.19

Total cost of salary

26.19

Table 1 Salary expenses

The cost of the total investment is determined by the expression c inv = c tsal MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVCI8FfYJH8YrFfeuY=Hhbbf9v8qqaqFr0xc9pk0xbb a9q8WqFfeaY=biLkVcLq=JHqpepeea0=as0Fb9pgeaYRXxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaKqbacbaaaaaaa aapeGaam4yamaaBaaajuaibaGaamyAaiaad6gacaWG2baajuaGbeaa cqGH9aqpcaWGJbWaaSbaaKqbGeaacaWG0bGaam4CaiaadggacaWGSb aabeaaaaa@413F@ (5)

c inv =26.19CUC MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVCI8FfYJH8YrFfeuY=Hhbbf9v8qqaqFr0xc9pk0xbb a9q8WqFfeaY=biLkVcLq=JHqpepeea0=as0Fb9pgeaYRXxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaKqbakaadogada WgaaqcfasaaiaadMgacaWGUbGaamODaaqcfayabaGaeyypa0JaaGOm aiaaiAdacaGGUaGaaGymaiaaiMdacaWGdbGaamyvaiaadoeaaaa@4236@
Recovery time of the investment
The recovery time of the investment is given by the relationship between the investment made and the energy saved.

T Amortization = Inversion Saved Energy MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVCI8FfYJH8YrFfeuY=Hhbbf9v8qqaqFr0xc9pk0xbb a9q8WqFfeaY=biLkVcLq=JHqpepeea0=as0Fb9pgeaYRXxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaKqbakaadsfada WgaaqcfasaaiaadgeacaWGTbGaam4BaiaadkhacaWG0bGaamyAaiaa dQhacaWGHbGaamiDaiaadMgacaWGVbGaamOBaaqcfayabaGaeyypa0 ZaaSaaaeaacaWGjbGaamOBaiaadAhacaWGLbGaamOCaiaadohacaWG PbGaam4Baiaad6gaaeaacaWGtbGaamyyaiaadAhacaWGLbGaamizaa baaaaaaaaapeGaaiiOa8aacaWGfbGaamOBaiaadwgacaWGYbGaam4z aiaadMhaaaaaaa@5853@  (6)
T= 26.19CUC 849CUC =0.03years MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVCI8FfYJH8YrFfeuY=Hhbbf9v8qqaqFr0xc9pk0xbb a9q8WqFfeaY=biLkVcLq=JHqpepeea0=as0Fb9pgeaYRXxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaKqbakaadsfacq GH9aqpdaWcaaqaaiaaikdacaaI2aGaaiOlaiaaigdacaaI5aGaam4q aiaadwfacaWGdbaabaGaaGioaiaaisdacaaI5aGaam4qaiaadwfaca WGdbaaaiabg2da9iaaicdacaGGUaGaaGimaiaaiodaqaaaaaaaaaWd biaadMhacaWGLbGaamyyaiaadkhacaWGZbaaaa@4BF1@

The time in which the investment is recovered is approximately 36 days and with the savings levels the investment becomes feasible. Once the configuration of the new parameters of the PI controller has been implemented, the binding objects of the plant complex will be operated more efficiently: Thickeners - Leaching and can reduce the faults that due to overflow of the tank, cause pulp spillage at the environment.
