The origin of Saturn’s dense rings is still unclear. Here we propose a mechanism of the genesis of Saturn’s dense rings from ice particles (chunks) of the protoplanetary cloud. It shows how Saturn could create rings after the emergency of its magnetic field. We take into account the force of diamagnetic expulsion and the Tchernyi-Kapranov effect: the process of magnetic anisotropic accretion. The force of diamagnetic expulsion acts on the particles together with the gravitational and centrifugal force. As a result, the orbits of ice particles of different sizes move into the plane of magnetic equator, where their energy is minimal. Ultimately, every particle acquires its stable orbit in magnetic equator plane, and the net force prevents its radial and vertical shift. The process described here is likely to contribute to the genesis of a stable disk-shaped structure of dense rings, formation of sharp edges of rings and gaps, and separation of particles (chunks) in rings. Previous theories are not questioned here, but they are complemented with the magnetic interaction, which accounts for the Tchernyi-Kapranov effect: mechanism of magnetic anisotropic accretion of ice particles.

Keywords: origin of Saturn’s rings, Tchernyi-Kapranov effect, magnetic anisotropic accretion, diamagnetism of cosmic ice, orthorhombic ice XI

Questions about the origin, evolution, and age of Saturn’s dense rings remain unclear since G. Galilei first saw Saturn’s rings in 1610. J. Maxwell proved that the rings consist of separate particles,^1,2 and G. Kuiper predicted (1947) that the particles of dense rings are made up of ice. The Cassini space probe (2004-2017) found particles radii from 1 cm to 10 m, they are composed of 90-95% water ice, and can take form of chunks.^3,4-9-19,51 There exist a number of hypotheses on the origin of planetary rings and physical causes of their existence. E.g.: the rings are the result of tidal disruption of a migrating moon within Saturn’s circumplanetary disk; the structure of the rings is determined by orbital resonances with satellites; rings are debris maintained by the gravitational quadrupole moment of the planet; rings are a result of moon-moon collision disruption; rings are debris of the outer planet moons from collisions with comets or meteorites; rings originate from tidal disruption of a passing large comet; rings are a result of rapid viscous spread of the debris; the existence and evolution of rings are explained with a gravitational viscous turbulent model of differential orbiting of colliding debris; the ring system is a product of cosmogonic implications of gravito-electrodynamic and magneto-gravitational interactions of the charge grains of dusty plasma or condensation from a partially corotating plasma; rings are the relic of the protosatellite disk; rings arise from volcanic activity on a moon of Saturn.^3-19 Unfortunately, none of these models provides a convincing explanation for many of the observed features of the dense rings, their stability and location in the equatorial plane.^3,4,12,16 In addition, there is no clear understanding of the fine structure of the rings, their extreme flatness and sharp edges, unusual separation of particles, etc.

There is an opinion that among the possible physical forces that maintain Saturn’s dense rings stability, nongravitational ones can be significant.^3,4,6,7 Saturn's rings contain dense and diffuse matter. The origin of the diffuse rings was discussed in.^6,7 Also many authors have often mentioned that there must be another force that can help to understand the origin of dense rings.^3,4,12,16 Previously, we assumed that the superconductivity of particles is responsible for the location of Saturn’s rings in the plane of its magnetic equator and for the separation of particles, and several observed electromagnetic phenomena were explained from this standpoint.^20-32 However, to date there is no experimental evidence that cosmic ice may be superconductive. In this article, we try to take into account the influence of Saturn’s magnetic field due to the diamagnetism of their ice particles superimposed on the gravitational field.

The Tchernyi-Kapranov effect: magnetic anisotropic accretion in the origin of Saturn’s dense rings

The Cassini space probe measured that the ratio of the heavy and light hydrogen isotopes in the ice of dense rings is the same as in ice on the Earth.³³ Ice XI is stable below 73K.³⁴ And we have proposed that it may be the main polymorphic modification of ice in Saturn's rings, and it is diamagnetic.^35,36  This suggests that in the gravitational models of the rings origin, additional interaction of Saturn’s magnetic field with diamagnetic ice particles (chunks) of the protoplanetary cloud should be taken into account.

Following V. Safronov’s theory of the small nebula,³⁷ our concept^38-47 states that after the emergence of Saturn’s magnetic field and diamagnetic expulsion force which start to act on ice particles together with gravitational and centrifugal force, all orbits of the particles inside the protoplanetary cloud started tilting towards the magnetic equator plane. The Cassini probe discovered that Saturn’s magnetic equator coincides with its geographical one. Tchernyi-Kapranov effect means magnetic anisotropic accretion of the magnetized ice particles (chunks) in the process of the origin of Saturn’s dense rings.^39-47 Eventually, the protoplanetary cloud collapsed into a disk of rings with particles (chunks). At the end of this process, all the particles were trapped inside a three-dimensional magnetic well in the plane of Saturn's magnetic equator and formed a disk-like system of rings. For an orbiting particle, the gravitational force is counterbalanced by the centrifugal force and the force of diamagnetic expulsion. It should be demonstrated how a protoplanetary cloud could collapse into a disk of rings (Figure 1).

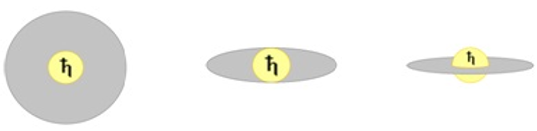

Figure 1 Transformation of Saturn’s protoplanetary cloud into a disk of dense rings after the emergence of Saturn’s magnetic field and its interaction with the ice particles: from a to b to c.

To this end, we need to solve the problem of how all orbits of diamagnetic ice particles in the Saturn’s protoplanetary cloud, after the emergence of Saturn’s magnetic field, end up in the plane of magnetic equator and create a system of rings with well-separated particles and fine structure of the rings. It is important to note that Saturn has a spherically symmetric gravitational field and an axisymmetric magnetic field. The solution of the problem is based on the fundamental electromagnetic approach proposed by in.^38-47

First, the problem of a sole diamagnetic spherical particle in the gravitational and magnetic fields of the planet is formulated. Under an assumption of the constant orbital radius, the problem of the diamagnetic particle motion after the emergence of the planetary magnetic field is reduced to an equation for the azimuthal angle θ of the particle motion:^38,39

$\ddot{\theta }+{\dot{\theta }}^2\cot \theta -(A+Bco{s}^2\theta )\cot \theta =0$    (1)

where A and B are the constants related to the gravitational and magnetic forces, respectively. The analytical solution of this equation shows that all stable orbits of ice particles are locked in the magnetic equator plane. In the Saturn’s gravitational field only (i.e., if the Saturn’s magnetic field was zero), the ratio of the particle’s angular velocity components is extremely unlikely, which apparently disproves the purely gravitational theory of stability of Saturn’s rings. If the additional axisymmetric magnetic force is exerted on the particles, their circular orbits fall on the magnetic equator plane, as it follows from the equation solution and as established in several spacecraft missions to Saturn.

We then consider the model of Saturn’s dense rings as spatially separated and uniformly magnetized spherical particles in a disk-shaped structure consisting of the identical spheres with uniform planar density. We find that the magnetization $(M_d)$  and magnetic moment $(m_d)$ of a particle in the disk-shaped structure is much higher than that of a sole sphere due to the alignment of many magnetic dipoles with the field. And the ratio of the corresponding parameters for the spherical particle in the disk and for the sole particle is

$\frac{M_d}{M_0}=\frac{m_d}{m_0}={\left[1-\frac{\pi R^3\sigma \left(\mu +{\mu }_0\right)}{r_0\left(\mu +2{\mu }_0\right)}\right]}^{-1}$    (2)

Where μ and μ₀ are magnetic susceptibilities of the particle material and free space, respectively; R is the particle radius; σ is the planar density of the particles in the disk of rings, for tightly packed balls in hexagonal packaging $0<\sigma <\pi /2\sqrt{3}=0969$ ; and r₀ is the distance between the particle centers. In the disk structure, the force of diamagnetic expulsion into the weak field region is stronger, and the magnetic well in the magnetic equator is deeper.

Separation of particles, sharp edges, stability and age of the dense rings

The magnetic well of the disk of rings with ice particles disturbs the pattern of dipole magnetic field lines of Saturn (Figure 2).

Figure 2 Deformation of Saturn’s dipole magnetic field lines by the disk of dense rings.

An earlier explanation for the sharp edges in the dense rings was based on the synchronization phenomenon due to which the epicyclic rotational phases of particles in the ring, under certain conditions, become synchronized with the phase of external satellites.⁴⁸ However, this only explains the irregularities at the edges of the rings. We propose a new explanation of both sharp edges of rings and separation of particles.^49,50 The structure of rings is a result of the particle redistribution in the areas of magnetic field gradient variations within the magnetic equator plane due to the different magnetic force components. The force components are as follows. In the vertical direction, $F_z=-m_0\partial H/\partial z$ where $m_0$  is the magnetic moment of particle and $\partial H/\partial z$  is the gradient of the magnetic field along the axis of the magnetic dipole. The force of the diamagnetic expulsion that forms sharp edges of the ring is $F_r=-m_0\partial H/\partial r$  where $\partial H/\partial r$  is the gradient of the magnetic field along the radius of the ring. The accidental break in the ring will be stabilized by the diamagnetic expulsion force component $F_{\phi }=-m_0{r}^{-1}\partial H/\partial \phi$  where $r^{-1}\partial H/\partial \phi$  represents the gradient of the magnetic field in the tangential direction.

The magnetic field in the plane of dense rings is inhomogeneous. Magnetic field lines will tend to pass through the areas of the highest magnetic flux density, and particles will be accumulated in areas with low magnetic flux density. The magnetic flux density gradient repels particles from each other and also clears gaps inside the ring system, forming a stiff fine structure of separated rings. The magnetic flux density inside each ring will be lower than in the surrounding space. The difference in the flux density will cause an inward magnetic pressure on each ring, so the rings will have sharp edges (Figure 3).^25,26

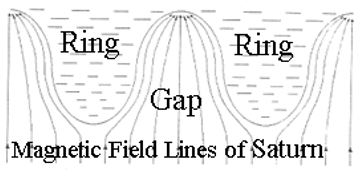

Figure 3 Dense and rarefied areas of particles as a system of dense rings.

Features of the disk-shaped ring structure provide sufficient stability of the particle orbits and of the entire ring system. The resilience to the vertical shift is due to the minimum energy of the particles at the equator, and the horizontal orbit stability is ensured by the inhomogeneity of the magnetic field along the radius.

In this article, we emphasize the importance of the magnetic field of Saturn in the origin and evolution of its dense rings. It is demonstrated how Saturn could create stable dense rings by means of its dipole magnetic field together with gravitational field. The key role of the new mechanism plays the Tchernyi-Kapranov effect: magnetic anisotropic accretion of diamagnetic ice particles of the protoplanetary cloud in the origin of dense rings.

It follows from our consideration that the age of the dense rings is close to the age of Saturn’s magnetic field, and the rings may be as old as the Solar System, which coincides with the opinion presented in ⁵¹. James Clerk Maxwell, the founder of the electromagnetic theory, was close to solving the problem of the origin of dense rings when he proved in 1856 that Saturn’s rings consist of separate particles,^1,2 but the information that the particles (chunks) are composed mainly of water ice,^3,4,11,12 which is likely diamagnetic,^{34-36,38-47,49,50} was obtained by the outstanding Cassini space probe 150 years later, during orbiting Saturn in 2004-2017.

None.

Authors declare there is no conflict of interest.

1. Maxwell JC. On the Stability of the Motion of Saturn’s Rings. Monthly Notices of the Royal Astronomical Society. 1859;19:297–304.
2. Brush SG, Everitt CWF, E Garber E. (eds.) Maxwell on Saturn’s Rings. Cambridge, MA: MIT Press; 1983.
3. Cuzzi JN, Burns JA, Charnoz S, et al. An Evolving View of Saturn’s Dynamic Rings. Science. 2010;327(5972):1470–1475.
4. Esposito LW. Composition, Structure, Dynamics, and Evolution of Saturn’s Rings. Annual Review of Earth and Planetary Science. 2010;38:383–410.
5. Tsygan AI. What Maintains Saturn’s Rings? Astronomicheskii Zhurnal. 1977;54:870–874.
6. Alfvén H. Solar System History as Recorded in the Saturnian Ring Structure. Astrophysics and Space Science. 1983;97:79–94.
7. Horányi M, Burns JA, Hamilton DP. The Dynamics of Saturn's E Ring Particles. Icarus. 1992;97(2):248-259.
8. Fridman AM, Gorkavyi NN. Physics of Planetary Rings: Celestial Mechanics of Continuous Media, Germany: Springer–Verlag; 1999.
9. Schmidt J, Ohtsuki K, Rappaport N, et  al. Dynamics of Saturn’s Dense Rings. in  Dougherty M, L. W. Esposito LW, and Krimigis SM. (eds.) Saturn from Cassini–Huygens. 2009;413–458.
10. Charnoz S, Morbidelli A, Dones L. Did Saturn’s Rings Form during the Late Heavy Bombardment? Icarus. 2009;199:413–428.
11. Canup RM. Origin of Saturn’s Rings and Inner Moons by Mass Removal from a Lost Titan–sized Satellite. Nature. 2010;468:943–946.
12. Crida A, Charnoz S. Solar System: Recipe for Making Saturn’s Rings. Nature. 2010;468: 903–905.
13. Hyodo R, Charnoz S, Genda H, et al. Formation of Centaurs’ Rings through Their Partial Tidal Disruption during Planetary Encounters. The Astrophysical Journal Letters. 2016;828:L8.
14. Ćuk M, Dones L, Nesvorný D. Dynamical Evidence for a Late Formation of Saturn’s Moons. The Astrophysical Journal. 2016;820(2):16.
15. Hyodo R, Charnoz S, Ohtsuki K, et al. Ring Formation around Giant Planets by Tidal Disruption of a Single Passing Large Kuiper Belt Object. Icarus. 2017;282:195–213.
16. Estrada P, Durisen R, Cuzzi J. After the Cassini Grand Finale, Is There a Final Consensus on Ring Origin and Age? AGU Meeting. New Orleans. 2017,298112.
17. Charnoz S, Canup RM, Crida A, et al. The Origin of Planetary Rings System. in Tiscareno MS, Murray CD (eds.). Planetary Rings Systems. 2018;5017–5038.
18. Tiscareno MS, Nicholson PD, Cuzzi JN, et al. Close–range Remote Sensing of Saturn’s Rings during Cassini’s Ring–Grazing Orbits and Grand Finale. Science. 2019;364(6445):1017–1027.
19. Ida S. The Origin of Saturn’s Rings and Moons. Science. 2019;364(6445):1028–1030.
20. Pospelov AYu, Tchernyi VV, Girich SV. Planet’s Rings: Superdiamagnetic Model and New Course of Investigations. Proc. SPIE 42nd Annual meeting. San Diego, CA. 1997, Small Spacecraft, Space Environments and Instrumentation Technologies. SPIE. 1998;3116:117–128.
21. Tchernyi VV, Pospelov AYu, Girich SV. Are Saturn Rings Superconducting? (Super diamagnetism and possible superconductivity of planetary rings). Huntsville Space Physics Colloquium. University of Alabama, Huntsville. NASA Marshall Space Flight Center. 1999.
22. Tchernyi VV. Possible Superconductivity of Saturn’s Rings. Colloquia: Spring/Summer, Institute for Astronomy. University of Hawaii. Honolulu, HI, 2002.
23. Tchernyi VV, Chensky EV. Movements of the Protoplanetary Superconducting Particles in the Magnetic Field of Saturn Lead to the Origin of Rings. IEEE Geoscience and Remote Sensing Letters. 2005;2(4):445–446.
24. Tchernyi VV, Chensky EV. Electromagnetic Background for Possible Magnetic Levitation of the Superconducting Rings of Saturn. Journal of Electromagnetic Waves and Applications. 2005;19(7):987–995.
25. Tchernyi VV, Pospelov AYu. Possible Electromagnetic Nature of the Saturn’s Rings: Superconductivity and Magnetic Levitation. Progress in Electromagnetic Research (PIER). 2005;52:277–299.
26. Tchernyi VV, Pospelov AYu. About Hypothesis of the Superconducting Origin of the Saturn’s Rings. Astrophysics and Space Science. 2007;307(4):347–356.
27. Tchernyi VV. To Discovery of Initial Formation (Origin) of the Sombrero Rings of Saturn: the Role of Electromagnetism. International Astronomical Union, Assembly. XXVII General Assembly. Symposium 263. Icy Bodies of the Solar System. Aug. 3–14, 2009. Rio de Janeiro, Brazil, Abstract book, 263:56,63–64.
28. Tchernyi VV. About Role of Electromagnetism to the Saturn Rings Origin – To the Unified Theory of the Planetary Rings Origin. International Journal of Astronomy and Astrophysics. 2013;3(4):412–420.
29. Tchernyi VV. The Meissner Effect and Quantum Trapping of the Particles of the Protoplanetary Cloud Produce a Stable System in the Form of Saturn’s Rings. Bulletin of the Moscow Region State University. Series: Physics–Mathematics. 2018;4:54–65.
30. Tchernyi VV, Pospelov AYu. Quantum Locking and the Meissner Effect Lead to the Origin and Stability of the Saturn’s Rings System. International Journal of Astronomy and Astrophysics. 2018;8(1):104–120.
31. Tchernyi VV, Kapranov SV, Pospelov AYu. Contribution of Electromagnetism to the Saturn’s Rings Origin and Stability. 235th Meeting of the American Astronomical Society, Honolulu, HI, Sun, Solar Syst., Milky Way, 385.02, 2020.
32. Tchernyi VV, Kapranov SV, Pospelov AYu. Contribution of Magnetism to the Origin and Stability of the Rings of Saturn due to Superconductivity of Protoplanetary Iced Particles. Earth and Planetary Astrophysics. 2020.  https://arxiv.org/abs/2004.13212 (Accessed 28 April 2020).
33. Clark RN, Brown RH, Cruikshank DP, et al. Isotopic Ratios of Saturn’s Rings and Satellites: Implications for the Origin of Water and Phoebe. Icarus. 2019;3212:791–802.
34. Hemley R. Effects of High Pressure on Molecules. Annual Review of Physical Chemistry. 2000;51:763–800.
35. Tchernyi VV, Kapranov SV. To the Problem of the Properties of Ice of the Saturn’s Rings Particles. 238th Meeting of the American Astronomical Society, 7–9 June 2021, Session: Circumstellar Disks and The Solar System, 316.08.
36. Tchernyi VV, Kapranov SV. To the Problem of the Properties of Saturn’s Rings’ Ice. Research Notes of the American Astronomical Society. 2021;5(10):255.
37. Safronov SV. Evolution of the Protoplanetary Cloud and Formation of the Earth and Planets. Washington, D.C. NASA, 1972.
38. Tchernyi VV, Kapranov SV, Pospelov AYu. Diamagnetic expulsion as a possible cause of the origin and stability of Saturn’s rings. Phys Astron Int J. 2018;2(2):121–126.
39. Tchernyi VV, Kapranov SV. Contribution of Magnetism to the Origin of Saturn’s Rings. The Astrophysical Journal. 2020;894(62):6.
40. The Mystery of Saturn’s Rings Solved by Magnetism? 2019.
41. AAS Journal Author Series: Vladimir Tchernyi on 2020ApJ…894…62T, 2020.
42. Tchernyi V, Kapranov SV, Pospelov AYu, et al. Importance of Magnetic Anisotropic Accretion and Quantum Phenomena for the Saturn’s Rings Origin, Formation and Stability of Particles. 43rd COSPAR Scientific Assembly. Sydney, Australia. B0.1, 2021.
43. Tchernyi VV. The Role of Magnetic Field of Saturn for the Rings Origin. Short courses, SC06. XXXIV URSI General Assembly and Scientific Symposium. Rome, Italy. 28 Aug – 4 Sept 2021. 3 h lecture. 29 sept 2021.
44. Tchernyi VV, Kapranov SV. How Saturn Could Create Rings by Itself. The Third Force of Diamagnetic Expulsion and the Mechanism of the Magnetic Anisotropic Accretion of the Origin of Saturn’s Rings. https://arxiv.org/abs/2104.03967 (Accessed 8 April 2021)
45. Tchernyi VV, Kapranov SV. How Could Saturn form Rings Involving the Third Force of Diamagnetic Expulsion and the Mechanism of Magnetic Anisotropic Accretion. Europlanet Science Congress. 13–24 Sept 2021. EPSC2021–362.
46. Tchernyi VV, Kapranov SV. How Saturn Could Create Rings by Itself. The Role of the Third Force of Diamagnetic Expulsion and the Mechanism of the Magnetic Anisotropic Accretion. 53rd Annual DPS Meeting of the American Astronomical Society, 3–8 Oct 2021. Session: Origins, Formation and Dynamical Systems. 411.07.
47. Tchernyi VV, Kapranov SV. How the Third Force of Diamagnetic Expulsion and the Mechanism of Magnetic Anisotropic Accretion Allowed Saturn to Create Rings by Itself. The Twelfth Moscow Solar System Symposium (12M–S3). Russian Space Research Institute of Russian Academy of Sciences. 11–15 Oct 2021. 12M–S3–SB–12. Abstract Book: 296–297.
48. Shepelyansky DL, Pikovsky AS, Schmidt J, Spahn F. Synchronization Mechanism of Sharp Edges in Rings of Saturn. Monthly Notices of the Royal Astronomical Society. 2009;395(4):1934–1940.
49. Tchernyi VV, Kapranov SV. Modeling of the Saturn’s Rings Origin and Separation of Their Particles. 53rd Lunar and Planetary Science Conference. 7–11 March 2022. The Woodlands, Texas. 53LPSC. W643. No. 1638.
50. Tchernyi VV, Kapranov SV. The Role of Diamagnetism in the Separation of Particles and Sharp Edges of the Saturn's Rings. https://arxiv.org/abs/2204.03414 (Accessed 7 April 2022)
51. Crida A, Charnoz S, Hsu H–W. Are Saturn’s Rings Actually Young? Nature Astronomy. 2019;3:967–970.
