Statistical quantification of Zanjan City structures based on FEMA 154

Arash Kamali Asl,1 Alireza Farzampour,1 Kiarash Nasserasadi2

1Department of Civil Engineering, Sharif University of Technology, Iran
2Department of Civil Engineering, University of Zanjan, Iran

Correspondence: , Tel 1-802-8254949

Received: July 03, 2017 | Published: July 27, 2017

Citation: Kamali-Asl A, Farzampour A, Nasserasadi K. Statistical quantification of Zanjan City structures based on FEMA 154. MOJ Civil Eng. 2017;3(2):271-275. DOI: 10.15406/mojce.2017.03.00065

Download PDF

Abstract

After introducing the code provisions for vulnerability assessment of the buildings, only more important structure such as state buildings and schools have been retrofitted. Since the most of the cultural and economic costs after any earthquake are associated with the residential buildings, it is important to have a rapid procedure for investigating the vulnerability level of the structures. There are several reasons to rationalize the lack of the vulnerability assessment for residential buildings such as limited financial resources for local governments, and the lack of a generalized mechanism. In this study, the visual vulnerability assessment of the residential buildings in the city of Zanjan, one the major cities located in Iran, has been investigated. In order to perform the rapid vulnerability assessment of the buildings, different approaches have been proposed. The method introduced by ATC-21, later proposed in FEMA-154, is one of the mostly-accepted assessment methods. The goal of the rapid vulnerability assessment of the buildings is to evaluate the most possible number of the buildings over a relatively short period of time, which buildings vulnerability level would be estimated based upon and the general defects’ type could be determined.

Keywords: urban vulnerability assessment, building defects, visual rapid inspection, Zanjan City

Introduction

The approach for rapid vulnerability assessment is based on visual inspection.1–4 In this approach, which has been extensively used in large scale, by visual inspection of the buildings a set of parameters would be investigated, from which the buildings vulnerability level could be evaluated. Figure 1 indicates the collected data for any typical building according to FEMA P-154 (FEMA, 2015). The collected information would be enriched by supplemental data which helps to have an accurate estimation of building vulnerability level. Next, based on the statistical analysis, the sources of the residential buildings vulnerability are determined. As it is represented in Figure 1, the assigned “Basic Score” based on the type of the lateral seismic system is in-between 1 and 3.6. According to the characteristics of each building, there are either positive or negative scores added to this “Basic Score”, which indicates the actual vulnerability level for any specified structure. Subsequently, the building vulnerability score is compared with the upper and lower band limits to conclude if the building is safe, or it needs any retrofit, or it is out of the normal operating conditions and should be demolished.

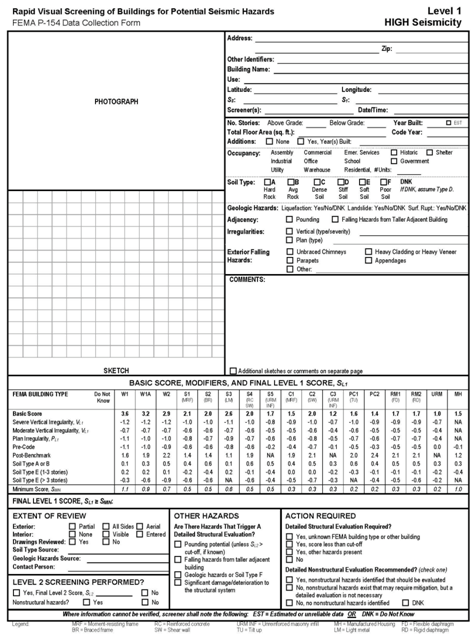

Figure 1 The data collection form used in this study (FEMA P-154).

Based on the appendices of FEMA 154, there is a designed evaluation form to supplement the original vulnerability assessment forms of FEMA 154 which has 27 questions regarding the general assembly of the building. The questions on this form are divided into 7 general categories which would be elaborated as follows:

  1. General information of the building to distinguish any building.
  2. Structural information such as the type of the seismic bearing system, whether the building has been designed based on seismic codes, having the same lateral seismic resisting (SR) system in height and plan, etc.
  3. Questions regarding the irregularity in buildings, specifically in height which can significantly affect the seismic behavior of the building.
  4. Consistency in transferring the lateral seismic and gravity loads which could affect the seismic behavior of the structures during the earthquakes.
  5. Questions regarding the architectural considerations since they might affect the seismic behavior and structural design of the buildings.
  6. The quality of the materials used in the building is one of the important factors contributing to the seismic response of the buildings; therefore, some of the questions are associated with the quality of building materials.
  7. Finally, the building vulnerability level would be determined. In addition, any other considerations are noted in this last section of questions.

In this study, the mentioned vulnerability level estimation procedures could be utilized for any city in general. In order to better evaluate the seismic vulnerability of Zanjan’s buildings, some of the buildings throughout the city were randomly chosen. To be consistent through the sampling, the city of Zanjan was divided into 13 regions in which each region has relatively the same economic, social, and cultural characteristics as well as relatively the same construction year. Figure 2 represents the city divided into 13 regions. Table 1 summarizes the characteristics of each region, i.e. the number of the chosen buildings, the general characteristic, and the general types of the buildings, and a rough estimate of the construction year. Randomly selected buildings in each region were evaluated regarding both the level of seismic vulnerability as well as the type of the defects. In the following section, an example of a safe building and an example of a vulnerable building are represented.

Region

Year of construction

Typical buildings

General characteristics

Number of chosen
buildings

1

2001-2016

RC/Steel frame

Newly-constructed, lack of some structural considerations

10

2

1991-2001

Masonry

High seismic vulnerability

12

3

2003-2016

RC/Steel frame

Newly-constructed, expectedly the safest region

10

4

1999-2008

Masonry slightly more than RC/Steel frame

Including separate towns

10

5

2001-2016

RC/Steel frame

Relatively newly-constructed, appropriate streets

10

6

1993-1998

Masonry

Some regions with Type D soil

10

7

Prior to 1993

Masonry

Irregular buildings

10

8

1998-2007

RC/Steel frame slightly more than masonry

Enhanced urban development

10

9

1999-2005

Same Masonry and RC/Steel frame

Low population density, relatively enhanced urban development

8

10

Prior to 1993

Same Masonry and RC/Steel frame

Downtown, the most populated region

10

11

1993-1999

Masonry slightly more than RC/Steel frame

The old region of the city

10

12

Prior to 1993

Masonry

Horrible urban development, very old and vulnerable buildings

10

13

1993-2001

Masonry

relatively enhanced urban development, old and vulnerable buildings

10

Table 1 General characteristic of the buildings and the 13 regions

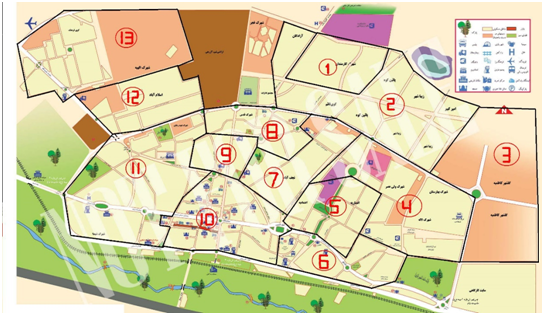

Figure 2 Different regions of the city of Zanjan.

Case presentation

Figure 3 indicates an example of safe building located in Region 3 with a RC-frame. The building does not have any problem such as irregularity in plan or height. In addition, this building is built based on seismic codes and has a soil type C. The seismic vulnerability index for the mentioned building is 3.7 which implies the satisfactory safety of the building. The vulnerable buildings are located in all parts of the city specifically in region 12. The major issues associated with these buildings as indicated in Figures 4 & 5, are utilizing masonry material and problematic distribution of the mass leading to irregularities through the height of the buildings and causing premature fractures. The seismic reliability factor for these buildings located in region 12 of the city is approximately 0.2 which is considered low.

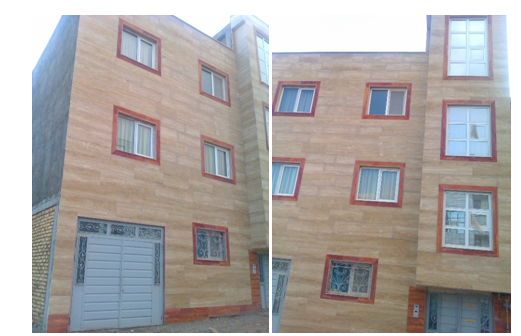

Figure 3 Safe building.

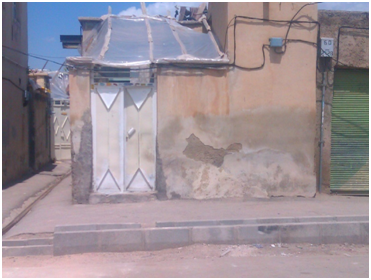

Figure 4 Vulnerable building with irregularities through the height of the buildings.

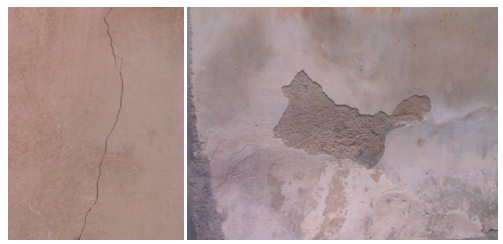

Figure 5 Issues in investigated buildings fracture poor material quality.

According to above-mentioned procedure, the rest of the buildings are investigated and associated information collected. The summary of the extracted data is indicated in Table 2. The average vulnerability factor for all the regions are indicated in the last column of Table 3. Accordingly, for the regions 3 and 5, the vulnerability factor is above the average, while for the regions 2, 7 and 12 this factor is less than the average values. The statistical investigation is done to investigate the regions with least and most building issues.

Region

Investigated
buildings


Structures
with frames

Structures
without frames

Designed based
on 2800 code

Same seismic
resisting system in Plan

Same seismic
resisting system in height

Irregularities
in plan

1

10

6

4

9

2

6

4

2

12

0

12

8

0

0

2

3

10

8

2

10

6

8

0

4

10

4

6

10

3

4

3

5

10

8

2

8

3

7

2

6

10

5

5

8

2

4

2

7

10

2

8

4

2

2

1

8

10

6

4

7

1

6

1

9

8

4

4

7

3

4

3

10

10

5

5

5

4

5

2

11

10

4

6

4

3

4

0

12

10

0

10

1

0

0

2

13

10

1

9

6

2

2

1

SUM

130

53

77

87

33

52

23

Table 2 The collected information from the all regions

Region

Investigated
buildings

Irregularities
in height

Consistency in
Seismic loading path

Consistency in
columns locations

Opening criteria
are met

Buildings with
half story

1

10

8

6

6

1

0

2

12

8

2

2

8

0

3

10

3

8

8

7

0

4

10

6

5

4

5

0

5

10

1

9

8

4

1

6

10

3

5

4

3

0

7

10

5

2

2

6

0

8

10

7

7

6

3

1

9

8

5

7

7

4

2

10

10

0

5

5

5

0

11

10

0

5

5

5

0

12

10

3

2

1

9

0

13

10

2

3

3

9

0

SUM

130

51

66

52

71

4

Table 3 Cont’d, the collected information from the all regions.

The percentage of vulnerable buildings over the total buildings in a specified region is represented in Figure 6. Based on the field observation and the gathered information from the curves the older regions show more vulnerability. This is due to the reason that the major material used for these building is masonry. The regions 2 and 12 with 100% vulnerability are appropriate examples of regions with mostly masonry structure having significant vulnerability issues. It is noted that, in some recently-built regions such as region 1, the frame systems are used but the structure have still noticeable vulnerable issues due to the irregularities in height or plan. The least vulnerable structures are those ones having frame systems as well as no irregularities in plan or height such as region 3.

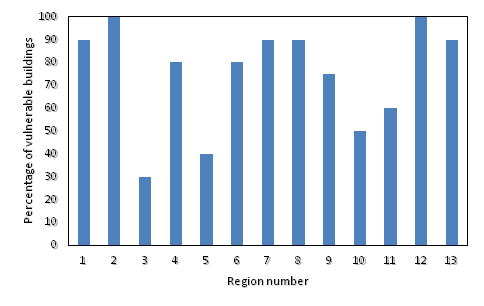

Figure 6 The percentage of vulnerable buildings over the total buildings in a specified region.

Figure 7 indicates the average vulnerability factor for different regions. If this factor is less than number 2.0, then there would be no need to have detailed assessment of the structure. Having no irregularities in plan and height of the building and having any sorts of concrete or steel frame would be highly important in increasing the vulnerability factor. However, the irregularities in seismic resisting systems are not effective in assessing the vulnerability factor. In addition, the consistency of the load path is considered as an important parameter under seismic loading conditions, which is ignored in masonry structures to some extent. Figure 8 represents the statistical investigation of the buildings in Zanjan city based on FEMA P-154. The material deficiency and the fracture in walls would make insignificant effect on vulnerability ratio factor estimation, but obviously could lead to more deterioration of the structure. The opening criteria are assumed as architectural considerations which is extensively investigated after occurrence of the events. It is noted that 75.4% of the total buildings in Zanjan city are considered vulnerable according to FEMA P-154 indicating that there is a huge need of retrofit and reconstruction Figure 8.

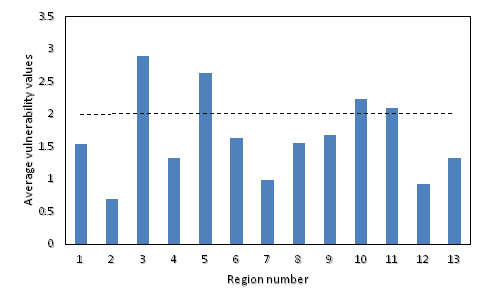

Figure 7 The Average vulnerability values.

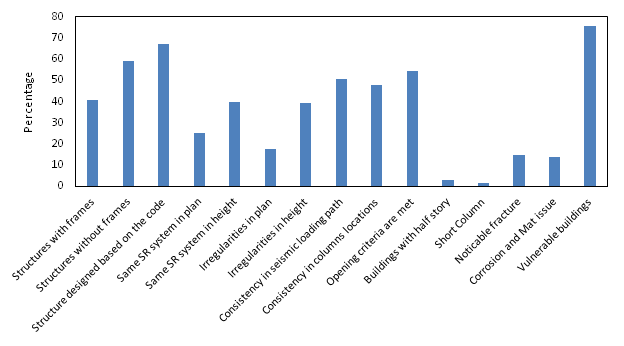

Figure 8 The collected information from the all structures.

Discussion

New procedure to evaluate the seismic reliability of the buildings are implemented to evaluate all the regions of the city. The procedure elaborated in this study could be utilized for different cities to have a quick but reliable assessment of how much building are seismic resistant. Based on the assessments of collected data, more than 80% of the regions and 75% of the constructed building are considered as vulnerable. It is worthy of notice that recently-built regions (e.g. region 1) are also evaluated as vulnerable indicating that the new methods of constructing building needs significant improvements. The major reason for such issues is due to sacrificing several criteria for having better architectural aspects; hence, the buildings are vulnerable under seismic conditions. It is worthy of mentioning that, in some newer parts of the city not only the seismic code is met but also the architectural aspects are considered; therefore, the structures are safe in overall. In general, the most significant common problem associated with the buildings are the irregularities in height of the buildings and not considering the seismic code instructions. The first problem is mostly observed in several buildings with concrete or steel frames, while the second issue is observed in masonry buildings. It is recommended not to sacrifice seismic codes and provisions for any architectural aspects, and construct the newer buildings without any irregularities in plan and height.
