We received the characteristics of the electroelastic engine for nanobiomechanics. We obtained the mechanical and control characteristics of the electroelastic engine. We investigated the regulation characteristic of the multilayer piezo engine for the elastic load.

Keywords: electroelastic engine, piezo engine; mechanical and control characteristics, nanobiomechanics.

The electroelastic engine with the piezoelectric or electrostriction effect for nanobiomechanics is used in nanomanipulator, scanning microscopy, nanopump. The use of the electroelastic engine is promising in the equipment of nanobiotechnology, microelectronics and nanotechnology. The electroelastic engine is the electromechanical device for actuating and controlling mechanisms, systems with the conversion of electrical signals into mechanical displacements and forces.^1–5 The piezo engine is used for nanoscale motion in interferometry, scanning microscopy, adaptive optics, laser systems, focusing and image stabilization systems, vibration damping, micromanipulation in cells. The electroelastic engine is provided range of movement from nanometers to microns, loading capacity up to 1000 N, fast response 1-10 ms. The multilayer electroelastic engine is designed to increase the range of movement up to tens of microns.^6–29

Let us consider the characteristics of the electroelastic engine with fixe one face in the form the mechanical characteristic and the control characteristic are used in the calculation of the control system for nanobiomechanics with using the parameters of its load. From the equation of the electroelasticity^6,7,10–28 we receive the mechanical characteristic of the electroelastic engine for nanobiomechanics in form the characteristic $S_i{\left(T_j\right)}_{}^{}$  - the relative displacement from the mechanical stress or $\Delta l\left(F\right)$  - the displacement from the force at $E=\text{const}$ . We have the mechanical characteristic in the following form

${S_i|}_{E=\text{const}}={d_{mi}{E}_m|}_{E=\text{const}}+s_{ij}^E{T}_j$ ,

where $S_i$ , $d_{mi}$ , $E_m$ , $s_{ij}^E$ , $T_j$  are the relative displacement, the electroelastic module or the piezo module, the electric field strength, the elastic compliance, the mechanical stress.

The control characteristic of the electroelastic engine for nanobiomechanics is the characteristic in the form $S_i\left(E_m\right)$  - the relative displacement from the electric field strength or $\Delta l\left(U\right)$  - the displacement from the voltage at $T=\text{const}$ . We have the control characteristic in the form

${S_i|}_{T=\text{const}}=d_{mi}{E}_m+{s_{ij}^E{T}_j|}_{T=\text{const}}$ .

For the mechanical characteristic of the electroelastic engine with controlling voltage we get the following equation

$\Delta l=\Delta l_{\text{max}}\left(1-F/F_{\text{max}}\right)$ ,

where $\Delta l_{\text{max}}$  is the maximum displacement for $F=0$  and $F_{\text{max}}$  is the maximum force for $\Delta l=0$ .

The maximum displacement of the electroelastic engine is written as the expression

$\Delta l_{\text{max}}=d_{mi}{E}_{m}l$ ,

where $l$  is the length of the engine. This length of the engine is equal to the thickness with the longitudinal piezo effect, the height with the transverse piezo effect and the width with the shear piezo effect. For the maximum mechanical stress of the electroelastic engine with controlling voltage we have the equation

$T_{\text{j max}}=d_{mi}{E}_m/s_{ij}^E$ .

The maximum force of the electroelastic engine is written as the expression

$F_{\text{max}}=T_{\text{j max}}{S}_0=d_{mi}{E}_m{S}_0/s_{ij}^E$ ,

where $S_0$  is the cross sectional area of the engine.

For the piezo engine with the transverse piezo effect and we obtain the maximum displacement and the maximum force in the form

$\Delta l_{\text{max}}=d_{31}{E}_{3}l$ ,

$F_{\text{max}}=d_{31}{E}_3{S}_0/s_{11}^E$ .

At $d_{31}$  = 2∙10^-10 m/V, $E_3$  = 6×10⁵ V/m, $l$  = 2∙10^-2 m, $S_0$  = 1∙10^-5 m², $s_{11}^E$  = 15∙10^-12 m²/N for the piezo engine with the transverse piezo effect from piezo ceramic PZT are received the maximum displacement $\Delta l_{\text{max}}$  = 2.4 μm and fhe maximum force  = 80 N (Figure 1).

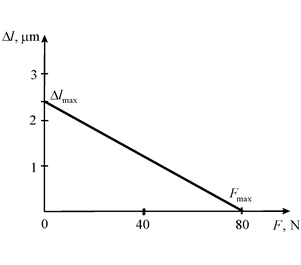

Figure 1 Mechanical characteristic of piezo engine with transverse piezo effect for nanobiomechanics.

For the regulation characteristic of the electroelastic engine with elastic force $F_{\text{max}}$  we have equation

$\frac{\Delta l}{l}=d_{mi}{E}_m-\frac{s_{ij}^E{C}_e}{S_0}\Delta l$ ,

We get the displacement of the electroelastic engine for elastic load in the form the regulation characteristic

$\Delta l=\frac{\left(d_{mi}l/\delta \right)U}{1+C_e/C_{ij}^E}$ ,

$U=E_m\delta$ , $C_{ij}^E=S_0/\left(s_{ij}^{E}l\right)$ ,

Where U  is the voltage, $\delta$  is the thickness, $C_{ij}^E$  is stiffness of the electroelastic engine at $E=\text{const}$ .

For the multilayer piezo engine with the longitudinal piezo effect we obtain the regulation characteristic in the following form

$\Delta l=\frac{d_{33}nU}{1+C_e/C_{33}^E}=k_{33}^{E}U$ ,

$l=n\delta$ , $k_{33}^E=d_{33}n/\left(1+C_e/C_{33}^E\right)$ ,

Where $k_{33}^E$  is the transfer coefficient at $E=\text{const}$ .

At $d_{33}$  = 4∙10^-10 m/V, $n$  = 16, $C_{33}^E$  = 1.5∙10⁷ N/m, $C_e$  = 0.3∙10⁷ N/m, $U$  = 90 V for the multilayer piezo engine with the longitudinal piezo effect from piezo ceramic PZT are received the transfer coefficient $k_{33}^E$  = 5.33 nm/V and the displacement $\Delta l$  = 480 nm on Figure 2. The discrepancy between the experimental data for the piezo engines and the calculation results is 10%. We received the regulation characteristic of the multilayer piezo engine for the elastic load.

Figure 2 Regulation characteristic of multilayer piezo engine with longitudinal piezo effect for elastic load in nanobiomechanics.

The mechanical and control characteristics of the electroelastic engine are used in the calculation of the control system for nanobiomechanics. The mechanical characteristic of the electroelastic engine with controlling voltage is received with used the maximum displacement and the maximum force of the engine. The regulation characteristic of the electroelastic engine is obtained for the elastic load.

None.

The authors declare, that there is no conflict of interest.

None.

1. Schultz J, Ueda J, Asada H. Cellular Actuators. Butterworth-Heinemann Publisher: Oxford; 2017. p. 382.
2. Afonin SM. Piezo actuators for nanomedicine research. MOJ Applied Bionics and Biomechanics. 2019;3(2):56‒57.
3.  Afonin SM. Condition absolute stability of control system with electro elastic actuator for nano bioengineering and microsurgery. Surgery and Case Studies Open Access Journal. 2019;3(3):307–309.
4. Zhou S, Yao Z. Design and optimization of a modal-independent linear ultrasonic motor. IEEE transaction on ultrasonics, ferroelectrics, and frequency control. 2014;61(3):535‒546.
5. Uchino K. Piezoelectric actuator and ultrasonic motors. Boston, MA: Kluwer Academic Publisher; 1997. p. 347.
6. Afonin SM. Block diagrams of a multilayer piezoelectric motor for nano- and microdisplacements based on the transverse piezoeffect. Journal of computer and systems sciences international. 2015;54(3):424‒439.
7. Afonin SM. Structural parametric model of a piezoelectric nanodisplacement transduser. Doklady physics. 2008;53(3):137‒143.
8. Afonin SM. Solution of the wave equation for the control of an elecromagnetoelastic transduser. Doklady mathematics. 2006;73(2):307‒313.
9. Cady WG. Piezoelectricity: An introduction to the theory and applications of electromechancial phenomena in crystals. New York, London: McGraw-Hill Book Company; 1946. p. 806.
10. Mason W. Physical Acoustics: Principles and Methods. Vol.1. Part A. Methods and Devices. New York: Academic Press; 1964. p. 515.
11. Afonin SM. Structural-parametric model and transfer functions of electroelastic actuator for nano- and microdisplacement. Chapter 9 in Piezoelectrics and Nanomaterials: Fundamentals, Developments and Applications. Ed. Parinov IA. New York: Nova Science; 2015. p. 225‒242.
12. Afonin SM. Stability of strain control systems of nano-and microdisplacement piezotransducers. Mechanics of solids. 2014;49(2):196‒207.
13. Afonin SM. Structural-parametric model electromagnetoelastic actuator nanodisplacement for mechatronics. International Journal of Physics. 2017;5(1): 9‒15.
14. Afonin SM. Structural-parametric model multilayer electromagnetoelastic actuator for nanomechatronics. International Journal of Physics. 2019;7(2):50‒57.
15. Afonin SM. Solution wave equation and parametric structural schematic diagrams of electromagnetoelastic actuators nano- and microdisplacement. International Journal of Mathematical Analysis and Applications. 2016;3(4):31‒38.
16. Afonin SM. Structural-parametric model of electromagnetoelastic actuator for nanomechanics. Actuators. 2018;7(1):1‒9.
17. Afonin SM. Structural-parametric models and transfer functions of electromagnetoelastic actuators nano- and microdisplacement for mechatronic systems. International Journal of Theoretical and Applied Mathematics. 2016;2(2):52‒59.
18. Afonin SM. Parametric block diagrams of a multi-layer piezoelectric transducer of nano- and microdisplacements under transverse piezoelectric effect. Mechanics of Solids. 2017;52(1):81‒94.
19. Afonin SM. Multilayer electromagnetoelastic actuator for robotics systems of nanotechnology. Proceedings of the 2018 IEEE Conference EIConRus. 2018. p. 1698‒1701.
20. Afonin SM. Electromagnetoelastic nano- and microactuators for mechatronic systems. Russian Engineering Research. 2018;38(12): 938‒944.
21. Afonin SM. Structural-parametric model of electro elastic actuator for nanotechnology and biotechnology. Journal of Pharmacy and Pharmaceutics. 2018;5(1):8‒12.
22. Afonin SM. Electromagnetoelastic actuator for nanomechanics. Global Journal of Research in Engineering. A: Mechanical and Mechanics Engineering. 2018;18(2):19‒23.
23. Afonin SM. Structural–parametric model electroelastic actuator nano– and microdisplacement of mechatronics systems for nanotechnology and ecology research. MOJ Ecology and Environmental Sciences.2018;3(5):306‒309.
24. Afonin SM. Static and dynamic characteristics of multilayered electromagnetoelastic transducer of nano- and micrometric movements. Journal of Computer and Systems Sciences International. 2010;49(1):73‒85.
25. Afonin SM. Static and dynamic characteristics of a multi-layer electroelastic solid. Mechanics of Solids. 2009;44(6):935‒950.
26. Afonin SM. Structural-parametric model and diagram of a multilayer electromagnetoelastic actuator for nanomechanics. Actuators 2019;8(3):1‒14.
27. Afonin SM. A block diagram of electromagnetoelastic actuator nanodisplacement for communications systems. Transactions on Networks and Communications. 2018;6(3):1‒9.
28. Afonin SM. Decision matrix equation and block diagram of multilayer electromagnetoelastic actuator micro and nanodisplacement for communications systems, Transactions on Networks and Communications. 2019;7(3):11‒21.
29. Springer Handbook of Nanotechnology. ed. by Bhushan B. Berlin, New York: Springer; 2004. p. 1222.
