Case Report Volume 2 Issue 2
University of Maine, USA
Correspondence: Sebastian Velez, School of Marine Sciences, University of Maine, Orono, USA
Received: March 20, 2015 | Published: April 10, 2015
Citation: Velez S (2015) Effects of Ultrasonic Frequencies on Schooling Behavior of American Shad (Alosa sapidissima). J Aquac Mar Biol 2(2): 00019. DOI: 10.15406/jamb.2015.02.00019
The behavioral responses of the American shad (Alosa sapidissima) to ultrasonic frequencies are of interest to the scientific community and the natural resource agencies that manage diadromous fish stocks. American shad have been reported to respond with changes in schooling behavior to different frequencies of sound. Their two regions of auditory sensitivity are from 200-800Hz and 25-150 kHz. These are relatively high frequencies for hearing in most fishes. Frequencies within this range are also used in fish population assessments. Researchers and resource managers have used 120 kHz and 200 kHz echo-sounders to visualize the number, position, and timing of fish in aquatic and marine environments. Changes in behavior, e.g. avoidance, due to these acoustic beams could bias counts used in fisheries management. In spring 2010, schooling A. sapidissima were subjected to different frequencies and power levels of acoustics while their behavior was recorded using a Dual Frequency Identification Sonar (DIDSON), operating at 1.8MHz, outside the hearing range of American shad. The number of fish within a school decreased when exposed to 120 kHz. The median number of fish per school during the control periods before and after treatment, was 23(13.5-61.5) and 36(21-64), respectively, and 9(6.25-15.25) during treatment period 5. The time schools were present in the DIDSON image was also affected by this treatment. The average time schools were present during time period 5 was 9.83s ± 1.02s, and after treatment rose to 24.6s ± 5.16s. No fish were detected while a treatment of 120 kHz was present during treatment period 8. These data are preliminary but indicate an affect of 120 kHz on American shad behavior.
The use of ultrasonic frequencies in stock assessments has become relatively common place; however, some of these frequencies are detectable by American shad (Alosa sapidissima) which respond with an avoidance behavior [1-4]. Sound is most often defined as a disturbance of density that propagates within a medium, e.g., water [5]. The properties of sound include both frequency and power levels. The frequency of sound refers to the number of times the wavelength is repeated in a given period of time while a sound’s power level refers to the total number of waves present. Because the nature of sound changes dramatically according to the medium where it is propagating, each location must be considered separately for its sound characteristics. The unique bottom type morphology of a location can affect the rate of sound attenuation depending on the hardness of the substrate present [5]. Different frequencies (sound quality) and power levels (sound quantity) can be heard according to the hearing sensitivity of the organism attempting to identify the sound [2].
The anatomy and physiology of hearing within the Order Clupeiformes, specifically in A. sapidissima, are of an extremely specialized nature unique to this group. A. sapidissima has the ability to detect sounds from 100Hz-180 kHz with two regions of enhanced sensitivity from 200Hz-800Hz and 25 kHz-150 kHz. The method by which sound can be detected in fish is through the use of the semicircular canal system which plays an integral role in the octavolateralis system. This system uses mechanosensory hair cells for signal detection and responds to sounds and similar forms of stimuli. Clupeids can detect disturbances from considerable distances and have a unique acoustic coupling between the air-filled swim bladder and inner ear, the utricle. The utricle is theorized to increase the density discontinuities within the body and allow for enhanced detection of changes in density within water caused by ultrasonic frequencies [5].
Upon reaching the ocean, these fish are often found in large schools. Schooling is defined as the polarized and synchronized swimming behavior used as a defensive mechanism during adult and juvenile stages against predation [6]. The lateral line system specializes in the response to movement and the motion of the surrounding water. These stimuli include the changes in water movement produced by other swimming fish within 1-2 body lengths within a school [5]. Fish schooling results in a combined effect of reduced masking and predator confusion which has allowed it to become such an evolutionary success [7]. The most conspicuous characteristics of schooling fish are the constancy in orientation and synchronization of speed and direction of movement between individuals [8].
The individual behavior of American shad when subjected to ultrasonic frequencies has varying degrees of intensity and can be assumed to affect schooling behavior as well [4]. In laboratory experiments conducted by Popper and Carlson [5], A. sapidissima were seen showing an intense startle response to ultrasonic frequencies. In a closely related species, Alosa pseudoharengus, individual behavior varied according to the volume, frequency, and duration of the emitted sound [4]. The behavior of individual fish to a strong stimulation, in this case an ultrasonic frequency of 120 kHz, is often referred to as a startle response. The startle response is often observed as a C-start where the body fish forms a “C” shape that points away from the sound source [5].
The trend suggests that as the intensity of the sound increases, whether by frequency or volume, the subjected schools and individuals move away from the source in a behavior resembling that of avoidance [3]. The unique auditory capabilities of Clupeiformes, allows for the application of high-frequency sounds as a deterrent to prevent entrainment in both dams and power plants [2]. Steam or hydro-powered electricity generating stations often entrain and kill fish and can therefore have a negative impact on fish populations. High frequency sounds emitted by transducers used at dams have been shown to reduce the entrainment of A. aestivalisand A. pseudoharengus for short periods of time [9]. Applying high intensity pulsed ultrasound (frequencies from 110-140kHz at power levels above 180dB) has been shown to repel several species of Clupeiformes, including A. sapidissima, A. aestivalis and A. pseudoharengus, from cold water intakes used in power plants. The use of pingers on fishing nets have also been used with the objective of repelling dolphins as by catch but have also been found to reduce the catch of targeted clupeids [10].
The use of high frequency sounds as a method for stock assessment, as well as understanding and modifying the schooling and individual behavior of A. sapidissima is a relatively new concept with promising results [2]. Using high frequency echo-sounders as a method of stock assessment for A. sapidissima has recently come into question due to the avoidance behavior witnessed by researchers [2-4,11]. These stock assessments often use frequencies of 120 kHz and 200 kHz, which can be sensed within the upper end of the hearing spectrum of A. sapidissima and can potentially elicit an avoidance behavior [11]. This reaction can thus bias the counts generated by this form of stock assessment and potentially record a smaller number of individuals than there actually are [10]. A study conducted in the Wye River in Wales examined the effects of stock assessment frequencies (200 kHz) on the behavior of migrating Alosa fallax. A. fallax, a close relative of A. sapidissima, showed an avoidance behavior to stock assessment frequencies of 200 kHz [11]. This behavior decreased the number of fish migrating up river [10]. In contrast, time periods where higher frequencies, outside the hearing range of these fishes, were used showed no observable reaction [11]. Alosa aestivalis, another closely related species to A. sapidissima, also exhibits avoidance behavior towards ultrasonic echo-sounders, further suggesting that stock assessments which use this type of equipment could lead to potential bias [10]. High frequency sounds can thus control the local distribution of A. sapidissima and other closely related species as seen in areas where hydro-power plants are found, and as a method for excluding fish from polluted or construction sites [2]. However, if these acoustic methods are used for stock assessment on Clupeiformes, the ability of these animals to detect these frequencies has the potential to cause bias and affect management practices [11]. The changes in the behavior of sound as a result of unique morphological differences between locations illustrate the need to consider each location independently.
The objective of this study is to find the potential effects elicited by ultrasonic frequencies at 120 kHz at -0dB on the schooling behavior of American Shad. If a change in schooling behavior is detected as a result of using these acoustic methods in stock assessment strategies, there could be an associated bias in the data generated. Changes in the way fisheries monitor and manage Clupeiformes can therefore be affected according to the type of stock assessment strategy used to identify the health of the population.
On May 15, 2010, schooling A. sapidissima were subjected to different frequencies and power levels of sound in the wild using specialized equipment designed to emit these sounds and record changes in behavior. The experiment took place just north of the Conte Anadromous Fish Lab in the Connecticut River at a natural rock dam where schooling A. sapidissima were prevented from moving upstream (Figure 1). Sound was emitted with a split beam digital transducer, and a Biosonics model DTX (often used as an echo sounder during acoustic stock assessments). The DTX was connected to three different transducers, each one producing a different frequency of sound with an adjustable power level (e.g. at -0dB there was no adjustment and -10dB adjusted the power of the signal to 10dB). The three frequencies used were: 120 kHz, 200 kHz, and 420 kHz. Although different frequencies and power levels were emitted throughout the study, this report focuses on the test periods when 120 kHz at -0dB were used because previous experiments showed that A. sapidissima demonstrated behavioral responses at this level [3-5].

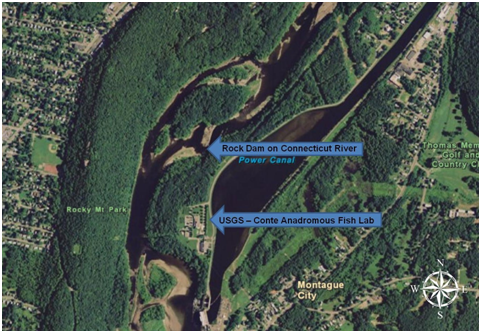

Figure 1: A satellite view of the study site on the Connecticut River in Massachusetts.
The relative position of the site to the Conte Anadromous Fish Laboratory is indicated.

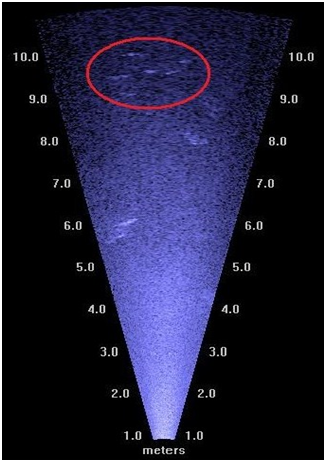

The setup of the experimental area, especially the placement of monitoring equipment and transducers was of extreme importance and integral to the study. The behavior of A. sapidissima was recorded using a Dual Frequency Identification Sonar (DIDSON), operating at 1.8MHz. The DIDSON was used as an imaging device to classify the behavior of schools and individuals. The DIDSON ran continuously from 7:18 to 19:18 on May 15, 2010. From 7:18 until 12:25 the DIDSON remained in one location relatively near shore and close to the camp set up with the river flowing from right to left. At 12:25 the DIDSON was moved approximately 5m into the river (Figure 2). At approximately 14:30 the DTX was moved from its original position, 89m downstream of the DIDSON, to approximately 3m upstream of the DIDSON. Occasionally the DTX fell over as a result of the river’s flow; at times this would delay the start of a treatment period. From 7:18:48 to 17:37:49 the DTX was activated and deactivated only when there was schooling A. sapidissima in view of the DIDSON. We did this in order to see if adding/removing the ultrasonic sound stimulus affected either schooling or individual behavior. Previous laboratory experiments found that these fish would react strongly (i.e. startle) when frequencies below 200 kHz, eg.120kHz -0dB, were present.
Figure 2: Schematic representation of the study site on the Connecticut River.
The position of the DTX (sites A-C), the DIDSON (yellow), and the camp setup (square) are indicated.

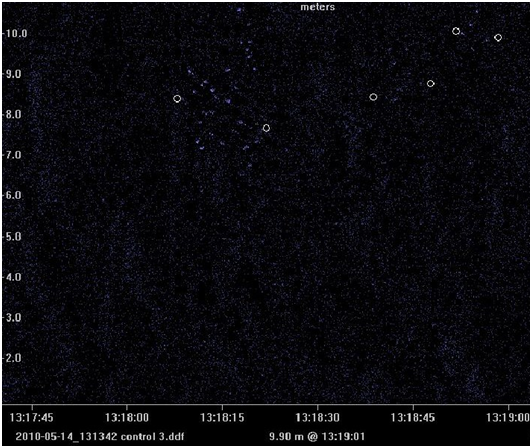

Data analysis consisted primarily of reviewing recorded images collected from the DIDSON that needed changes in resolution in order to be analyzed accurately. The software used to view and record the behavior of shad was DIDSON Control and Display V5.25. Files were named according to the date and time the DIDSON was recording. The original raw data files were separated and labeled according to the time and type of treatment being used. The data was analyzed from ten minutes prior to, during, and ten minutes after, the DTX treatment (Table 1). For each ten minute period maximum contrast was used to readily identify swimming fish. Background subtraction and a correction for beam pattern loss were also implemented to increase the accuracy of the images. An LCD2 setting for the palette was the most helpful and contrasted the fish swimming across the recorded area. Files were then played at 7-10 frames per second. This speed was essential as it was very difficult to see fish at lower frame speeds, and too difficult to count fish at higher frame speeds.
Date |
Time |
Treatment |
Time Periods |
5/14/2010 |
09:59:02 |
none |
1 |
5/14/2010 |
11:43:30 |
none |
2 |
5/14/2010 |
12:05:07 |
none |
3 |
5/14/2010 |
13:13:42 |
none |
4 |
5/14/2010 |
13:24:00 |
120kHz at -0dB |
5 |
5/14/2010 |
13:35:29 |
none |
6 |
5/14/2010 |
16:43:02 |
none |
7 |
5/14/2010 |
16:52:20 |
120kHz at -0dB |
8 |
5/14/2010 |
17:02:40 |
none |
9 |
Table 1: Details on analyzed time periods: times and number designation for those periods analyzed in this report. Lines with bold lettering are treatment periods.

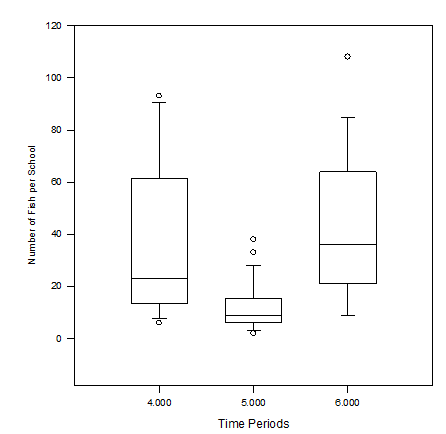

The number of fish per school was counted for multiple control periods prior to any treatment and again once acoustic treatments began. Two treatment periods (5 and 8) were analyzed in this study; both at an acoustic application of 120 kHz at -0 dB (Table 1). The variability in the number of fish per school for time periods 1, 2, and 3 (before any acoustic treatment) was high in comparison to the other time periods (Figure 5). The number of fish in a school decreased when exposed to the treatment. Higher numbers of fish per school were observed during control periods, prior to and after treatments (Figure 6). There was no schooling fish observed during treatment period 8, therefore the number of fish per school could not be quantified for this period.

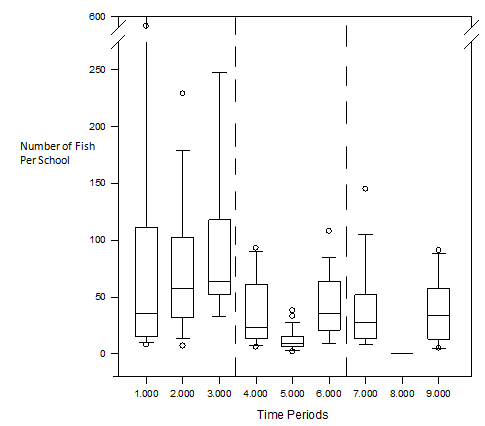

Time period 1 had the largest school with 484 individuals and a school size median of 36(15-111.5) individuals (Figure 5). Control period 1 also had the highest percentage of fish found in the first observable school of any other time period (Table 2). Time period 3 had the largest median school size, 64(52-118) individuals (Figure 5). There was a statistically significant difference between the school sizes of time periods 4 (control) and 5 (treatment) as well as between time periods 5 (treatment) and 6 (control) (Figure 6). Control period 4 had a school size median of 23(13.5-61.5) individuals while control period 6 had a school size median of 36(21-64) individuals (Figure 5). Treatment period 5 had the highest number of schools of any observed time period as well as the lowest number of observed fish (excluding treatment period 8) (Table 2). Treatment period 5 also had a school size median of 9(6.25-15.25) (Figure 5). However, this period also had the lowest number of fish per school of any period (excluding treatment period 8) (Table 2). Control periods 7 and 9 had a very similar median school size of 27(13.25-52) and 34(13-58) individuals respectively (Figure 5). No schools were observed during period 8 (Figure 5).
Treatment |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
Number of Schools |
12 |
13 |
9 |
13 |
23 |
15 |
14 |
0 |
11 |
Percent of fish moving upstream |
60.41 |
77.17 |
65.2 |
35.81 |
46 |
64.1 |
46.41 |
0 |
50.5 |
Fish/School |
81.42 |
71.77 |
90.11 |
35.23 |
12.04 |
41.47 |
30.64 |
0 |
36.36 |
Total Fish |
1013 |
933 |
529 |
458 |
289 |
622 |
515 |
0 |
400 |
Percent of fish in First School |
47.778 |
2.47 |
7.9 |
17.69 |
11.4 |
17.4 |
28.16 |
0 |
14.5 |
Mean time Schools Present |
63.08 |
34.92 |
48.11 |
16.85 |
9.83 |
24.6 |
15.93 |
0 |
16.82 |
Table 2: The factors taken into account when considering the behavioral movements of A. sapidissima during control periods and treatment types of 120 kHz at -0dB.

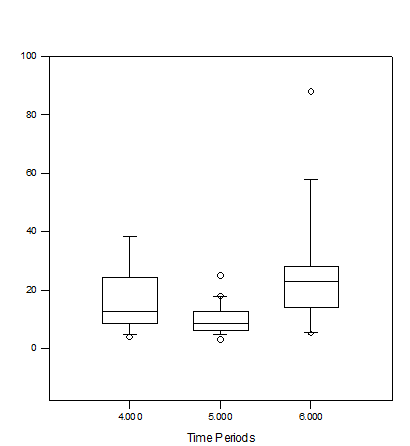

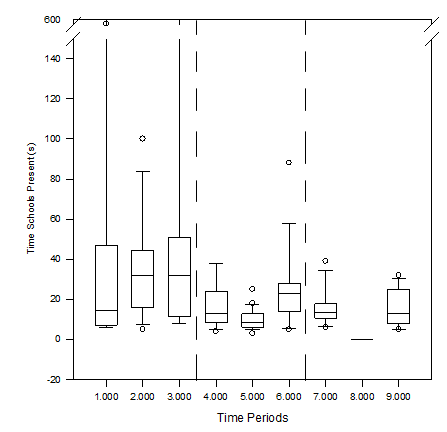

The time the schools were present in the DIDSON image was different during periods when the 120kHz-0dB was active (periods 5 and 8) and not. Treatment period 5 had the lowest median time in which schools were present of 8.5s (6.25-12.75) (excluding treatment period 8) (Figure 7). Treatment period 5 also had the lowest mean time where schools were present (Table 2). Control periods 2 and 3 had the highest median times where schools were present with 32s (16-44.5) and (11.5-51) respectively (Figure 7). There was a statistically significant difference in median school time between time periods 5 and 6 (Figure 8). The total time schools were present during control period 6 was 23s (14-28). The median time schools were present during control period 7 was 13.5s (10.75-17.75). There were no fish observed during treatment period 8 and therefore no mean time where schools were present. The total mean time schools were present during time period 9 was 13s (8-25).
Swimming speed did not vary with between time periods. The median swim speed of schooling A. sapidissima during control period 4 was 1.198m/s (1.03-1.251) and was the highest of any other time period. Control period 6 had the lowest median swim speed observed at 0.972m/s (0.917-1.188). There was a statistically significant difference in the swimming speed of individual A. sapidissima between time periods 4 and 6. The median swimming speed of schooling fish within control period 6 was 0.972m/s(0.917-1.188). Control period 6 had the lowest median swimming speed of any other time period analyzed for swimming speed. The median swimming speed of schooling fish within treatment period 8 was 1.103m/s(0.843-1.38) (Figure 9). Although there were no schools recorded during treatment period 8, swimming speeds were collected from the time at which the DTX was turned on which was when there was a school present. As a result of this, the sample size for treatment period 8 was extremely small with high variability. Those fish present at the time the DTX was turned on were identified and recorded as the swimming speed for treatment period 8.
This part is not important for the paper unless the authors provide data on urchin roe composition and references. Other than that it is only speculation. In an earlier investigation [9] it was demonstrated that the GSI is influenced by total dietary lipid (TDL) levels in the white shrimp. Higher TDL levels led to increase in the concentration of highly unsaturated fatty acids (HUFA). Because HUFA cannot be synthesized de novo by the penaeid shrimp [10] these should be present in the diet for gonad development and offspring quality. Importance of HUFA in diet of this species of shrimp has also been emphasized by Lytle et al. [11] who suggested that the profiles of these fatty acids are a comparative tool in assessing the maturation diet. Mendoza et al. [12] reported the influence of squid extracts on triggering the secondary vitellogenesis in the white shrimp. Ceballos et al. [13] are of the view that for the balanced nutrition to have effects on somatic growth land gonad development, optimum culture conditions are necessary.
Other factors examined in quantifying the schooling behavior of A. sapidissima included; identifying the proportion of fish per time period moving upstream versus downstream, identifying the proportion of fish found within the first school during a time period, and looking for individual behavioral responses, specifically C-starts and startle responses. The data suggests that the majority of A. sapidissima continued to travel upstream despite being subjected to high frequency sounds.
The lower number of fish per school during treatment periods 5 and 8 was most likely due to the treatment of 120 kHz. This was a direct result of the observed avoidance behavior of A. sapidissima, similar to behaviors previously explained by Plachta and Popper [4]. A higher number of schools present as well as a relatively small number of fish within schools during treatment period 5 could signify a change in general schooling behavior. The reduced time schools were present suggests that the larger schools of fish found during control periods may have broken up into smaller groups. These smaller schools showed an increased velocity upon being subjected to a frequency of 120 kHz -0dB. Continuous echo-locating clicks from T. truncatus have been known to cause schooling A. sapidissima to form compact schools diminishing the ability of predators to distinguish individuals in the school [4].
High variability in the number of fish per school during control periods 1, 2, and 3 can be described as a result of the size of large individual schools of fish, far larger than those found later in the day. This suggests that as the day went on the variability in the number of fish within a school decreased, which could have been a result of the barrage of treatments these fishes were exposed to throughout the experiment. The change in the number of fish per school in treatment periods 4, 5, and 6 shows that there was a decrease in the number as the frequency was activated and upon deactivation the number of fish per school increased again. The same observation took place for treatment periods 7, 8, and 9 showing that there was indeed an avoidance behavior observed towards frequencies of 120 kHz -0dB.
