An HPLC-DAD method has been optimized and validated to obtain qualitative and quantitative profiles of cupressuflavone, and amentoflavone from Cupressus sempervirens L. compared to the content of micropropagated plants. The plants analyzed were collected from two geographical sources in Egypt; Cupressus from the north coast and Cupressus from Future University (Cairo, Egypt). Isocratic reversed phase HPLC separation was achieved using a C₁₈ column (150mm×4.6mm I.D., 5μm). Good resolution between cupressuflavone and amentoflavone was achieved using a mixture of water: acetonitrile: formic acid (60: 40: 0.1%, v/v) as a mobile phase at a flow rate of 1mLmin^-1. Quantitation was achieved with photodiode array detector at the wavelength of maximum absorbance (330nm) based on peak area. The method was effective in the determination of the analyses of interest without any interference of other compounds or the matrix. The method was linear over a concentration range of 0.5-40μgml^-1 (r² >0.999) for biflavonoids. The limits of detection were 0.15 and 0.14μgml^-1 and the limits of quantitation were 0.47 and 0.43μgml^-1 for cupressuflavone and amentoflavone, respectively. Intraday and Interday precision (RSD%) was less than ±3% and intraday and Interday accuracy (RE%) of the method was found to be less than ±15% at all concentrations tested. The procedure was relatively simple, precise, rapid, reproducible, and could be routinely used for analysis of the cupressuflavone and amentoflavone flavonoids.

Keywords: Cupressus sempervirens, hplc-dad, cupressuflavone, amentoflavone, callus

HPLC, high pressure liquid chromatography; DAD, diode array detector; RSD, relative standard deviation; RE, relative error; CPF, cupressuflavone; AMF, amentoflavone; CNC, cupressus from north coast, Egypt; CFU, cupressus from future university, Egypt; MS, murashige and skoog medium; PGRS, plant growth regulators; NAA, β-naphthalene acetic acid; BA, 6-benzyladenine; GA₃, gibberellic acid; PAL, phenylalanine; K^', retention factor; Rs, resolution; α, selectivity; r², correlation coefficient; LOD, limit of detection; LOQ, limit of quantitation; SD, standard deviation

Plants belonging to the genus Cupressus are found in many regions of the world especially in the northern hemisphere. In Egypt Cupressus sempervirens L., is a perennial conifer with tiny, scaly leaves. The aerial parts of the plant have been widely used in traditional folk medicine for many years.¹ Vapors of the plant are used in the treatment of whooping cough and the aqueous extracts are used as antiseptic and dressings for the treatment of circulatory diseases such as hemorrhoids.² In 1929 gingetin was the first isolated biflavonoid from plants.³ Nowadays more than one hundred biflavonoids are well recognized from different sources .⁴ Hegnauer reported that the main natural compounds of the Cupressus genus are the biflavonoids.⁵ The presence of amentoflavone (AMF) and cupressuflavone (CPF) was firstly reported by Gadek and Quinn in the leaves of C. sempervirens L., C. lusitanica L., and C. glabra L. and considered the most common biflavonoids found in the leaves and aerial parts of Cupressus.⁶ It was interesting that biflavonoids were reported as the major chemotaxonomic chemical compounds in Cupressus genus.⁷ The chemical structures of the main biflavonoids present in cypress species are presented in Figure 1. Various biological activities have been attributed to this natural bioflavonoid such as antidiabetic, anti-inflammatory, antimicrobial, antioxidant, hypoglycemic, anticancer, peripheral vasodilatation and lipid peroxidation inhibitors.^8-10 They also have antiviral effects on some viruses including HIV, hepatitis B, HSV, HCMV, adenovirus and varicella-zoster virus and some antifungal activities.^11,12 In vivo experiments presented biflavonoids as hepatoprotective, increased RNA synthesis in hepatocytes inhibited expression of EBV gene in addition to anti-spasmogenic activities and anti-bradykinin.^13-16 Recently, it was shown that biflavonoids are effective in the management of tuberculosis and postmenopausal breast cancer.^4-17 Two TLC chromatographic methods had been used to separate and determine biflavonoids and flavonoids from C. sempervirens L..¹⁸ Although many biflavonoids have been reported in the literature, complete identification and quantitation were unsatisfying.^6-19 Romani et al.⁷ reported the first determination and quantification of the main individual polyphenols; flavonoid glycosides and biflavonoids in the leaf tissues from different Cupressus species using HPLC-DAD, HPLC-MS, and HPTLC. But these methods are very time consuming as the retention time of CPF and AMF was high and subsequently the consumption of large quantities of solvents. Thus, this study represents development and validation of new and time-saving reversed phase HPLC-DAD method and its sequential application for analysis of CPF and AMF from C. sempervirens micropropagated by tissue culture technique in addition to the native plants from two geographical sources, thus presenting a new study of the effect of growth hormones and media compositions on the selection of the best media to optimize the production of these two bioactive compounds.

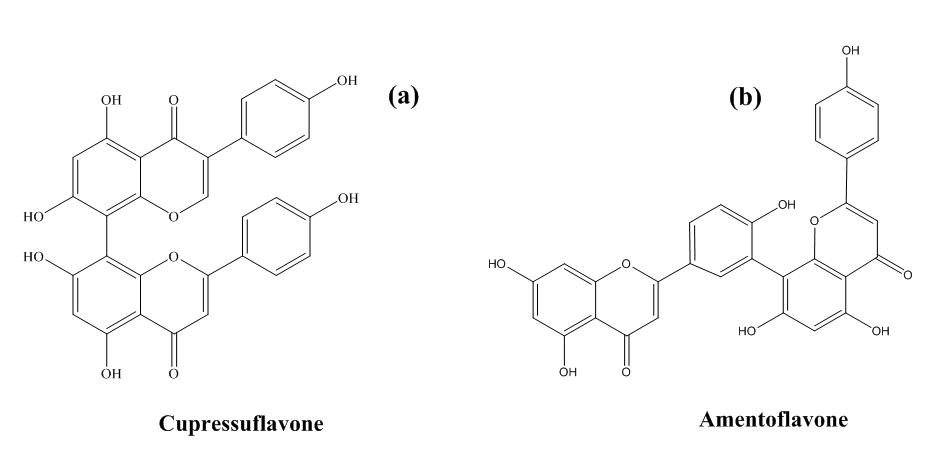

Figure 1 Chemical structures of a: Cupressuflavone (CPF); b: Amentoflavone (AMF).

Chemicals, reagents and plant

All reagents and solvents were of analytical and HPLC grade. Acetonitrile and methanol HPLC grade were purchased from (Fisher Scientific, New Jersey, USA) in addition to DMSO and formic acid laboratory grade were purchased from (Fisher Scientific, New Jersey, USA). CPF and AMF standards were purchased from (PhytoLab, Dutendorfer, Germany) (Purity> 98.0%, w/w by HPLC). For sample filtration, 0.45 pm Millex-HV Millipore filters were used. Aerial parts of C. sempervirens were obtained from two different geographical sources: the first location is the Alameen, North coast Egypt (CNC) and the other location is the gardens of Future University, Cairo, Egypt (CFU). Murashige and Skoog medium (MS)²⁰ supplemented with plant growth regulators (PGRS); β-Naphthalene acetic acid (NAA) and 6-Benzyladenine (BA) were purchased from (Sigma Cell Culture, min. 90%, St. Louis, USA). Phytagel was from (Duchefa, Haarlem, Netherlands). Gibberellic acid (GA3) Phenylalanine (PAL) was purchased from Sigma-Aldrich.

In the present method, the HPLC system used was Waters Alliance 2695e with binary HPLC pump equipped with Waters 2996 PDA detector. The acquisition and treatment of data were done by Empower 2 software. The analysis was carried out using a C₁₈ column (150 mm× 4.6 mm I.D., 5μm, Luna, Toronto, Canada).

Stock standard solutions of CPF and AMF were prepared by dissolving 5 mg of each compound in 5 mL solution mixture of acetonitrile: DMSO (1:1, v/v). The standard solutions were stored at 4 °C. Working standard solutions were prepared daily by diluting the standard stock solutions with acetonitrile. Nine points were used to construct calibration curve (0.5, 1, 2, 5, 10, 20, 25, 30, 40 µg mL^-1) for both CPF and AMF.

HPLC method was developed and validated using a C₁₈ column ((150 mm× 4.6 mm I.D., 5 μm). The column temperature was maintained at 25 ± 1oC. Good resolution between CPF and AMF was accomplished using a mixture of water: acetonitrile: formic acid (60: 40: 0.1%, v/v) as a mobile phase at flow rate 1 mL/min. The samples were filtered through 0.45µm pore size disposable filters prior to injection. The injection volume was 5 µL. The validation procedures and quantitation of the analyses were achieved with UV detection at 330 nm based on peak area.

Culture media and conditions

For production of the tissue cultured callus; autoclave used was (Harvey Sterilemax autoclave, Thermo Scientific, USA) and fluorescent tubes were from (F140t9d/38, Toshiba). Leaves explants were cut into pieces (0.5-1.0 cm) and then cultured aseptically on solid full strength basal (MS) medium²⁰ with the addition of plant growth regulators (PGRs); 0.5 mg L^-1 BA and 4 mg L^-1 NAA, along with 30 g L^-1 sucrose. The media that achieved the highest biomass selected after several trials. The MS with PGRs we choose for best callus yield and form. Then Elicitor (GA) and precursor phenylalanine were used in different concentrations. The pH of the medium was adjusted to 5.7-5.8 before being solidified with 3.0 g L^-1 phytagel, then autoclaved at a pressure of 1.06 kg/cm2 and 121°C for 15 minutes. The cultures were then incubated at approximately 25±2 °C with a 16 hr. photoperiod under cool white fluorescent tubes. Trying to enhance the production of CPF and AMF, different concentrations of an elicitor and a precursor were applied. The elicitor chosen was GA3 at concentrations of 1, 2, 4, and 8 mg L^-1, extracts abbreviated CG1, CG2, CG3, and CG4, respectively. The precursor used was PAL at concentrations of 5, 10, 20, and 40 mg L^-1, extracts abbreviated CF1, CF2, CF3, and CF4, respectively. A control medium was done on (MS) only without addition of any PGRs to compare results. The composition of all the culture media is presented in (Table 1).

From plants (in vivo) samples

An equal amount of the leaves of both plant samples under investigation (CNC, CFU) were separately air-dried and ground into a fine homogeneous powder and one gram of each was exhaustingly extracted with 15 mL HPLC grade methanol three times. The extracts were mixed, evaporated to dryness and weighed to give 110 mg and 100 mg for CNC and CFU samples, respectively. All samples prepared were kept refrigerated in amber glass vials till time of analysis. For quantitative determination of CPF content, 5 mg mL^-1 of CNC and 2.5 mg mL^-1 of CFU and for AMF analysis, 5 mg mL^-1 of CNC, and 100 mg mL^-1 of CFU were prepared in acetonitrile: DMSO (1:1, v/v) of which 5 µL was injected in triplicates and the peak areas were measured.

From the callus (in vitro) samples

 The callus replicates obtained from leaves of C. sempervirens L. with different treatments were weighted as fresh weight and then completely dried in an oven at a temperature not exceeding 45 °C and the dry weights were recorded. Each one of the nine dry callus samples was powdered in a mortar and extracted successively three times with 15 mL HPLC grade methanol. These extracts were dried under vacuum and weights are recorded and expressed as extracts dry weights as shown in (Table 2). For quantitative determination of CPF content, 10 mg/mL of the callus extracts (CF1, CF2, CF3, CF4, CG1, CG2, CG3, and CG4) as well as 10 mg mL^-1 of the callus control, were prepared in a solution mixture of acetonitrile: DMSO (1:1, v/v). For AMF analysis, 100 mg mL^-1 of each of the callus extracts (CF1, CF2, CF3, CF4, CG1, CG2, CG3, and CG4) and 100 mg mL^-1 the callus control extract, were prepared in the same solvent mentioned before. Then 5µL of each of the above solutions was injected in triplicate and the peak areas were measured.

Method validation

The developed method was validated according to the ICH guidelines²¹ for various parameters such as system suitability, limit of detection (LOD), limit of quantitation (LOQ), linearity, accuracy, precision, and robustness. Selectivity and system suitability method selectivity was evaluated by injecting standard solution mixture containing CPF and AMF (20μgmL−1) and sample extract (5.0 mg of methanol extract in 10 mL of (Acetonitrile: DMSO; 1:1, v/v). The purity of peak of interest was assessed using diode array detector. The system suitability of the proposed chromatographic conditions was studied in terms of resolution, tailing factor and repeatability of peak area.

Linearity

For linearity studies, different aliquots of CPF and AMF stock standard solution were taken in 5.0 mL volumetric flasks and diluted up to mark with acetonitrile to obtain final concentrations of (0.5, 1, 2, 5, 10, 20, 25, 30, 40 µg mL^-1) for both CPF and AMF, respectively. From the resulting solutions (5µL) were injected in triplicate in HPLC system and average area was calculated. Graph of average area and concentration was plotted and correlation coefficient (r²) was calculated (Figure 4). The linearity equation was calculated by linear regression analysis. Limit of detection and limit of quantitation

LOD and LOQ were determined as LOD = 3.3σ / S and LOQ = 10σ / S.

Where σ = standard deviation of the response and S = the slope of the corresponding calibration curve.

Accuracy

Accuracy of the method was determined by calculating recovery of sample. Accuracy was measured at three different levels (0.5, 5 and 20 μgmL^-1) of test concentrations and % recovery was calculated. Accuracy is expressed as the percent relative error (% RE) which was calculated by the following equation:

% RE= [(calculated concentration-theoretical concentration)/theoretical concentration] × 100.

The % RSD was within ±15% as required by the ICH guidelines.²¹

Precision

Repeatability (intraday) and intermediate precision (interday) were determined by triplicate injections of samples at three levels that were (0.5, 5, 20 μgmL^-1) of test concentrations of both CPF and AMF each repeated three times on three successive days. Peak area corresponding to CPF and AMF was noted at each level, concentration was determined and intraday and interday precision was expressed as % relative standard deviation (%RSD). The relative standard deviation was calculated as follows:
%RSD = (standard deviation/mean) × 100.
Acceptance criteria for precision were as follows: the %RSD was lower than 15%, for both inter- and intraday precision, according to ICH guidelines.²¹

Robustness

Robustness of the developed method was evaluated by deliberately changing method parameters such as mobile phase flow rate (0.9, 1.0 and 1.1 mL min-1), column oven temperature (24, 25 and 26°C) and detection wavelength (330, 331 and 329 nm), and their effect on peak area and retention time was observed. Which resulted in a very slight change in the retention time and tailing factor was observed. This indicates the robustness of the proposed method.

The use of mobile phase consisted of water and acetonitrile (60:40:0.1%FA) gave the optimum results to separate CPF and AMF. Peak area of each flavonoid was detected at 330 nm (Figure 2) and the column oven temperature was maintained at 25°C. The HPLC-DAD method is considered to be specific as the complete separation of CPF and AMF was observed. The average retention time ± S.D. for CPF and AMF were found to be 5.061 ± 0.0004 min. and 6.865 ± 0.0005 min., respectively, for nine replicates (Figure 3A). The method was found to be suitable for the analysis and application on tissue cultured samples as the resolution (Rs) was ≥2.62, selectivity was 1.47-3.15, and tailing factor ≤1.12. The system suitability test results of the proposed method are presented in (Table 3)). The method was found to be linear over the concentration range 0.5–40 μgmL−1 with correlation coefficient (r2) ≥ 0.999 demonstrating an acceptable data fit to the regression line. The limit of detection (LOD) and the limit of quantification (LOQ) were calculated according to the current ICH guidelines as the ratio of 3.3 and 10 standard deviations of the response (n = 9), respectively, and the slope of the calibration curve.²¹ LOD was recorded as 0.15 and 0.14 µg mL^-1for CPF and AMF, respectively and minimum concentration at which analyze can be reliably quantified; LOQs were found to be 0.47 and 0.43 µg mL^-1 for CPF and AMF, respectively (Table 4). The intraday precision and accuracy of the method was assessed by determination of three concentration level of CPF and AMF each repeated six times within a day and the interday precision and accuracy of the method was determined using three concentration level of CPF and AMF each repeated three times on three different days. Precision of the method was expressed as relative standard deviation (RSD %), the obtained results are within the accepted criteria and the precision range is 0.66%-3%, which indicates that the proposed method is precise, according to ICH guidelines.²¹ While accuracy was expressed as relative error (RE %), the obtained results are within accepted criteria less than ±15% and ranged from -3.11 to 11.68 which is consistent with ICH guidelines.²¹ The results are shown in (Table 5). The developed and validated method was successfully applied for quantitative determination of CPF and AMF. The study revealed that the CNC leaves contained a higher concentration of the active components than CFU where each gram of CNC contained 0.67, 0.46 mg of CPF, and AMF respectively, whereas the same weight of CFU had 0.35, 0.014 mg of CPF and AMF, respectively. Control callus media showed that each gram dry weight contained 1.73 and 0.013 mg of CPF and AMF, respectively. Which indicates that the MS media only (control medium) without any additives, elicitors or precursors, could produce higher amounts of CPF than native plants (CNC and CFU)? It is also clear from the results that the native plants: CNC and CFU contained higher amounts of AMF than the callus tissue cultured media, however, AMF is also produced in callus media (Table 6). Reviewing the available literature indicates that this the first attempt to analyze these biflavonoids (CPF, AMF) from tissue culture media in addition to native plants. The novelty of our method have come from the combination between tissue culture micro propagation technique and chromatographic separation techniques, attempting to determine the optimum conditions for the production of bioactive compounds (biflavonoids) by determination of the produced content. Acceptable system suitability parameters were calculated for the proposed chromatographic method which ensures that the method is adequate for the quantitative analysis of that binary mixture (Table 1). The proposed method was validated according to ICH guidelines (Table 2). In addition, this chromatographic method can successfully be applied for the simultaneous determination of both components in their tissue cultured extract or native plant extracts (Table 3). The most important feature of method development in liquid chromatography is to achieve sufficient resolution of the two studied compounds at a reasonable analysis time. To optimize the HPLC assay parameters, the mobile phase composition was studied. Several mobile phases were tried in order to achieve the best chromatographic separation. Reasonable resolution between the two compounds could not be obtained using mobile phase containing a mixture of methanol with water. Also, acetonitrile or methanol with various buffers was tried, but, the peaks of the two compounds were not resolved from each other. A mobile phase consisting of a mixture of water: acetonitrile: formic acid (60:40: 0.1%, v/v) provided the best separation of the studied compounds with a satisfactory resolution. From the literature it is well known that most flavonoids are characterized by the presence of two major absorption bands in the ultraviolet/ visible region, Band I in the 320-385 nm range and Band II in the 250- 285 nm.^22-24 The data are consistent with the recorded observations from ultraviolet spectrum of Cupressuflavone and amentoflavone (Figure 2). Hence, the selection of the wavelength maximum at 330 nm was satisfactory for determination of both CPF and AMF. The specificity of the HPLC-DAD method is determined where baseline separation was obtained between CPF and AMF with no interference from other components of the callus extract or the C. sempervirens plants extract. The representative chromatograms obtained from samples are presented in Figures 3B-3D. Complete separation of CPF and AMF was observed at the selected wavelength (Figure 3). The average retention time ± S.D. for CPF and AMF were found to be 5.061 ± 0.0004 min. and 6.865 ± 0.0005 min., respectively, for nine replicates. The system suitability parameters such as retention time, retention factor, tailing factor, the number of theoretical plates for CPF and AMF peaks were calculated. All parameters tested met the acceptance criteria on all days. The system suitability test parameters ensure the validity of the method as well as confirm the resolution between different peaks of interest. The system suitability test results of the proposed method are presented in Table 3).

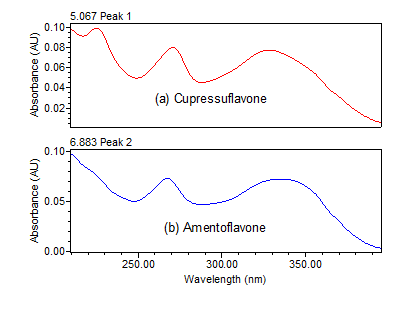

Figure 2 Ultraviolet spectrum of a: Cupressuflavone; b: Amentoflavone.

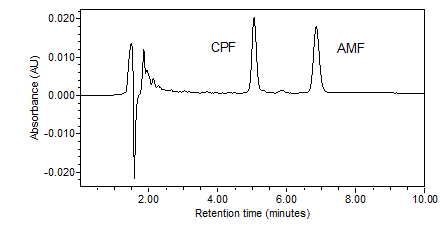

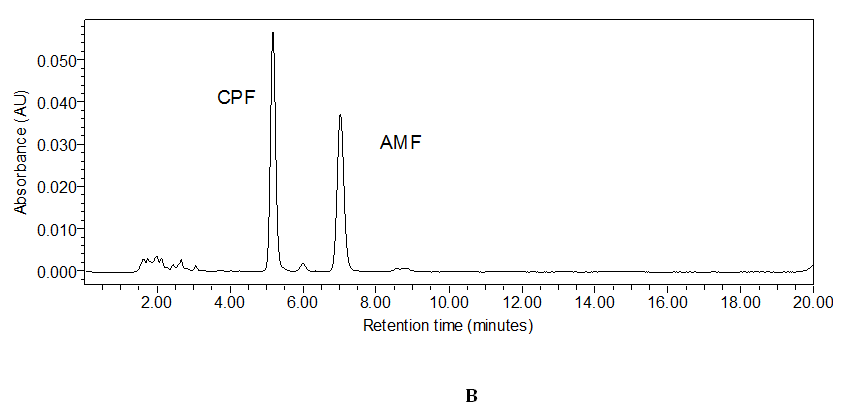

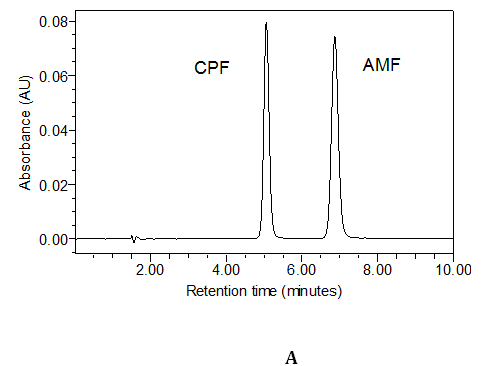

A	B

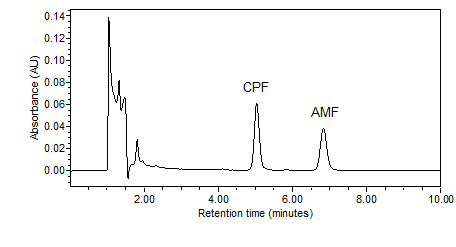

C	D

Figure 3 Ultraviolet spectrum of a: Cupressuflavone; b: Amentoflavone

Figure 4 Ultraviolet spectrum of a: Cupressuflavone; b: Amentoflavone

The developed HPLC method allows the determination of CPF and AMF in the examined in vivo plant extracts (Figure 3B, 3C). This occurred without any interference from other components despite the complex nature of the extracts that contains a large number of flavonoids and bioflavonoids.⁶ The method showed a complete separation of CPF and AMF. It is also clear from the results that the native plants: CNC and CFU contained higher amounts of AMF than the callus tissue cultured media, however, AMF is also produced in callus media (Table 6).

The developed method for qualitative and quantitative determination of Cupressuflavone and amentoflavone was validated and was successful in the determination of the analyses of interest without any matrix interference. All validation parameters were achieved and were satisfactory. The procedure was relatively simple, precise, accurate and fast as the extracts are evaluated without previous steps of purification. This study also clarified the success of callus micro propagation of C. sempervirens L. leaves in the production of these bioactive compounds, especially CPF which could be promising in the future.

The authors wish to thank Dr. Mohamed Reda Abd Almegid Abd Alhady, Dr. Reda El-Said Abo El-Fadl, and Dr. Ghada Abd El-Moneim Hegazi, for their help in preparing tissue culture samples. Tissue Culture Unit, Genetic Resources Department, Ecology and Dry Land Agriculture Division, Desert Research Center, 11753 El-Matareya, Mathaf El-Matareya St., Cairo, Egypt. This work is fully funded by the Egyptian embassy (Egyptian and Cultural Bureau), Washington DC, USA.

Author declares that there is no conflict of interest.
