Review Article Volume 2 Issue 2

Wax deposition process: mechanisms, affecting factors and mitigation methods

Muhammad Ali Theyab

Ministry of Higher Education and Scientific Research of Iraq

Correspondence: Muhammad Ali Theyab, Ministry of Higher Education and Scientific Research of Iraq

Received: January 10, 2018 | Published: March 12, 2018

Citation: Theyab MA. Wax deposition process: mechanisms, affecting factors and mitigation methods. Open Access J Sci. 2018;2(2):112-118. DOI: 10.15406/oajs.2018.02.00054

Download PDF

Abstract

Crude oil transportation in the pipelines of the cold environment is affected by the low temperature causing a problem such as wax deposition. The flow assurance in the hydrocarbon pipelines is very important due to the precipitation of the solid phase of wax on the pipe wall creating pressure abnormalities and causing an artificial blockage leading to a reduction or interruption in the production. Wax can precipitate as a solid phase on the pipe wall when its temperature (inlet coolant temperature) drops below the wax appearance temperature (WAT).

In this review, wax deposition process is discussed. Also, proposed wax deposition mechanisms are outlined including molecular diffusion, shear dispersion, Brownian diffusion and gravity settling. Furthermore, the factors affecting the wax deposition process are explained, such as pipe wall temperature (inlet coolant temperature), crude oil composition, crude oil temperature, ambient temperature, flow rate, thermal history, time and pressure. There are several mitigation methods were used in the different oil fields around the world to reduce wax deposition such as pigging, inhibitors and thermal insulation.

Abbreviations: WAT, wax appearance temperature; PPD, pour point depressants

Abbreviations

WAT, wax appearance temperature; PPD, pour point depressants

Introduction

The current work is a study of wax deposition, a phenomenon that is one of the main flow assurance problems faced by the oil industry, affecting numerous oil companies around the world. Wax deposition can result in the restriction of crude oil flow in the pipeline, creating pressure abnormalities and causing an artificial blockage leading to a reduction or interruption in the production. However, in an extreme case, this can cause a pipeline or production facility to be abandoned. The wax deposition also leads to formation damage near the wellbore, reduction in permeability, changes in the reservoir fluid composition and fluid rheology due to phase separation as wax solid precipitates. One of the important issues to be noted is that the wax deposit is not solid wax, but a gel that consists of solid wax crystals and trapped liquid. The deposit is also known to harden with time in a process termed aging.1,2 The precipitation of wax components out of the oil is responsible for changes in the waxy crude oil properties, including the gelation of oil and an increase in viscosity.3 Wax contains a high molecular weight n-Paraffin and consists of long chain alkanes with 20 to 50 carbon atoms.4 Wax can precipitate as a solid phase when the crude oil temperature drops below the wax appearance temperature (WAT): the temperature at which the first wax crystals start to form in the crude oil in a cooling process.5–7 Wax can precipitate and arises when paraffin components in crude oil precipitate and deposit on the cold pipeline wall when the inner wall temperature (inlet coolant temperature) drops below the wax appearance temperature.

The main factor that affects the wax deposition process is the low temperature, which means that subsea pipelines are especially vulnerable. Therefore, wax deposition prevention becomes very important in deep- water oil production. Wax deposition in crude oil production systems can be reduced or prevented by one or combination of chemical, mechanical, and thermal remediation methods. However, with the advent of extremely deep production, offshore drilling and ocean floor completions, the use mechanical and thermal remediation methods becomes prohibitive economically, as a result, use of chemical additives as wax deposition inhibitors is becoming more prevalent.8 The thermal methods include heat retention, active heating such as thermal insulations, bottom hole heaters, hot oil circulation and steam circulation. The mechanical removal method includes running scrappers in the borehole and pigging in pipelines at an intervention frequency. The chemical inhibitors include pour point depressants (PPD), crystal modifiers, dispersants and solvents. Occasionally in the literature wax deposition is referred to interchangeably with wax precipitation, but the two are in fact different concepts.3 Wax deposition refers to the formation of a layer of separate solid phase and the eventual growth of this layer on a surface in contact with the crude oil. Wax deposits can be formed from an already precipitated solid phase (wax) through mechanisms of shear dispersion, gravity settling and Brownian motion, or from dissolved wax molecules through a molecular diffusion mechanism.9

The precipitated wax molecules near the pipe wall start to form an incipient gel at the cold surface. The incipient gel formed at the pipe wall is a 3-D network structure of wax crystals and contains a significant amount of oil trapped within it. The incipient gel grows as time progresses and there are radial thermal and mass transfer gradients as a result of heat loss to the surrounding area, as shown in Figure 1.6 This work describe several factors that affect and control the wax deposition process in pipelines, such as pipe wall temperature (inlet coolant temperature), crude oil composition, crude oil temperature, ambient temperature, flow rate, thermal history, time and pressure. Where, wax deposition increases with an increase in the temperature difference between the bulk of the wax solution and the cold surface of the pipe).10 It is occur when the surface temperature is below both the solution temperature and the solution cloud point. Alternatively,11 stated that the crude oil composition is one of the main factors that significantly impacts wax deposition and is responsible for the pour point and viscosity reduction. The composition of crude oil comprises a mixture of molecules of different natures, there are light molecules like methane that are responsible for solid hydrate formation at high pressure and low temperature and heavy molecules such as long linear alkanes and isoparaffins that tend to change phase at low temperature in the phase of both macro and microcrystalline solids.

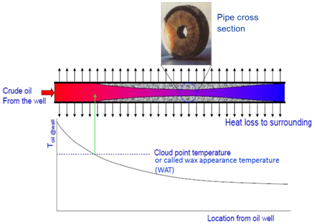

Figure 1 Wax deposition process in the hydrocarbon pipeline.46

Furthermore, the experimental time is considered to be one of the important factors that influence wax deposition inside the pipelines, where wax deposition increased by increasing the operation time,12–17 due to more and more paraffin being deposited from the fresh crude oil on the hydrocarbon pipeline, providing a greater opportunity for deposition upon the cold surface.15 On another hand, wax deposition increases with decreasing flow rate. This can be explained by the availability of more particles for deposition at the surface. As the flow rate increases to turbulent regimes, wax deposition decreases because shear dispersion increases. Thus, wax deposition gradually decreases as turbulence and flow rate increases. Moreover, the pressure drops during oil production from the reservoir to the surface facilities. Lighter hydrocarbons in the reservoir tend to be the first to leave the reservoir as the pressure falls; hence, the solubility of the wax is reduced. The WAT increases with the pressure above the bubble point pressure, for a constant composition. This phenomenon implies that an increase in the pressure in the single-phase liquid region (above the bubble point pressure) will aggravate wax deposition. It is evident that during deposition, wax crystals adhere to the pipe surface; so wax deposition can also be a function of surface properties. As the paraffin wax is deposited on a surface, it is held in place by adsorption forces. These adsorption forces are dependent on the free surface energy of both the paraffin and the surface.18 The deposits do not adhere to the metals themselves but are held in place by surface roughness.19 In this study, the mechanisms of wax deposition have been proposed to describe the formation of wax deposits on pipe walls. These mechanisms includes molecular diffusion, where wax start to deposit due to the diffusion of the dissolved molecules of the waxy components toward the pipe wall; shear dispersion mechanism illustrates the deposition of wax by the dispersion of the precipitated particles of the waxy components toward the pipe wall; Brownian diffusion mechanism describes wax deposition by the diffusion of the precipitated particles toward the wall; the diffusion of the precipitated particles is caused by Brownian motion; and gravity settling mechanism responsible for the wax deposition due to the settling of the precipitated particles of the waxy components toward the bottom of the pipe.

Material and methods

Many types of crude around the world contain dissolved waxes that can precipitate and deposit under the appropriate environmental conditions, leading to decrease production rates, equipment blockages, production shut down and creating other problems. Therefore, wax deposition must be mitigated in first place and must be removed when it already deposited. Wax deposition in crude oil production systems can be reduced or prevented by one or a combination of the mitigation methods such as chemical, mechanical and thermal mitigation methods.20 Wax deposition is highly impacted by temperature; therefore thermal methods can be applied to eliminate the problem. Thermal methods include heat retention, active heating and use of suitable exothermic chemical reactions. Thermal insulations, bottom whole heaters, hot oil circulation, steam circulation and on demand ‘intervention’ heating are appropriate for deep waters. Mechanically, Scrapers and cutters are used extensively to remove wax deposits from tubing because they can be economical and result in minimal formation damage. The mechanical removal method includes running scrappers in the borehole and pigging in pipelines at an intervention frequency. For deep waters, frequent intervention is not possible due to the long distance of the flow pipeline. With the advent of extremely deep production, offshore drilling and ocean floor completions, the use of the mechanical and thermal remediation methods has become economically prohibitive, as a result, the use of chemical additives as wax deposition inhibitors is becoming more prevalent12 due to the long distances covered by hydrocarbon flow lines; therefore, the chemical additives are the best solution for wax deposition in pipelines. To remove wax deposition chemically, solvents may be used to treat deposition in production strings and also may be applied to remediate formation damage. Chemical inhibitors have been used to reduce or prevent wax deposition in crude oil production. These inhibitors can be divided into four types: pour point depressants (PPD), crystal modifiers, dispersants and solvents.

Discussion

This section list and illustrates the main factors that affect and control the wax deposition process such as temperature differential and cooling rate, crude oil composition, experimental time, flow rate, pressure and pipe surface properties. Furthermore, describes the mechanisms that have been proposed to describe the formation of wax deposits on pipe walls, includes molecular diffusion, shear dispersion, Brownian diffusion and gravity settling.

Factors affecting the wax deposition process

Several factors affect and control the wax deposition process in pipelines, such as pipe wall temperature (inlet coolant temperature), crude oil composition, crude oil temperature, ambient temperature, flow rate, thermal history, time and pressure.21–28 Lab and field data shows that some of the most dominant factors in the deposition of waxes are:

Temperature differential and cooling rate

Wax deposition increases with an increase in the temperature difference between the bulk of the wax solution and the cold surface. Wax deposition will only occur when the surface temperature is below both the solution temperature and the solution cloud point. The impact of pipe wall cold surface (inlet coolant temperature) on wax deposition has been studied and reported in many recently-published papers, where it is considered as one of the main factors to affect wax deposition.27–29 The main conclusion in these works was that the inlet coolant temperature plays an important role in the wax deposition process; decreasing the inlet coolant temperature will increase the wax deposition, even when the crude oil temperature is above the wax appearance temperature. Initially, the rate of wax deposition is high, but it slows down as more wax is deposited on the pipe surface. The thickness of the wax layer increases and this layer acts as thermal insulation and reduces the effective temperature differential. This lowers the availability of wax crystals for further deposition.18 The size and number of crystals formed are also important for wax deposition. At a higher rate of cooling, the wax precipitates out of the oil in smaller crystals and a large number of crystals are formed because of the large number of crystallisation sites available. At a lower rate of cooling, the crystallisation process is more uniform. Thus, more uniformly packed crystals are formed that possess a relatively small surface area and free energy. The temperature differential also affects the composition of the deposited wax; if it is high, cooling is rapid and both lower and higher melting waxes crystallise simultaneously, forming a weak porous structure (owing to mal-crystallisation) with cavities full of oil.30

Crude oil composition

Stated11 that the crude oil composition is one of the main factors that significantly impacts wax deposition and is responsible for the pour point and viscosity reduction. The composition of crude oil comprises a mixture of molecules of different natures: there are light molecules like methane that are responsible for solid hydrate formation at high pressure and low temperature and heavy molecules such as long linear alkanes and isoparaffins that tend to change phase at low temperature in the phase of both macro and microcrystalline solids. There is also a transition towards more polar compounds due to the appearance of aromatic compounds and the presence of heteroatoms (oxygen, sulphur and nitrogen) in the fractions known as resins and asphaltenes31–34 mentioned in their literature review that the amount of deposited wax is impacted by the concentration of paraffin, light ends, and nucleating or inhibiting materials in the crude oil.

Experimental time

The experimental time is considered to be one of the important factors that influence wax deposition inside the pipelines.21–28 Wax deposition increased regularly during the first two hours of running the experiments in the lab rig because most of the dissolved paraffin in the crude oil was deposited on the pipe wall, but despite the reduction in the paraffin content in the crude oil, the wax deposit increased slightly with increasing experimental time. In the oil fields the wax deposition increases regularly due to more and more paraffin being deposited from the fresh crude oil on the hydrocarbon pipeline, providing a greater opportunity for deposition upon the cold surface. Lab rig studies have shown that a thermal pseudo-steady state is attained in less than 30 minutes during deposition from wax solvent mixtures under laminar and turbulent conditions.21–24 Laboratory studies have also shown a negligible increase in the mass of the deposit after 4 hours21 due to most of the wax molecules in the crude oil having been deposited on the pipe wall.

Flow rate

In laminar flow, wax deposition increases with decreasing flow rate. This can be explained by the availability of more particles for deposition at the surface. As the flow rate increases to turbulent regimes, wax deposition decreases because shear dispersion increases. Thus, wax deposition gradually decreases as turbulence and flow rate increases. Shear dispersion is predominant in turbulent flow in all stages. The flow behaviour in a flowing stream is described by the Reynolds number; above 2,000 this is often considered to be turbulent flow. The nature of the wax crystals is to adhere to the pipe surface with good cohesion among them; therefore, increasing the flow rate leads to breaking wax crystals up into smaller particles, reducing the rate of wax deposition and preventing it by minimising wax adhesion to the pipe wall. On the other hand, the wax that deposits at higher flow rates is harder and more compact due to only those wax crystals and crystal clusters being capable of firm attachment to the surface and these will not be removed from the deposit.35 Wax deposition is found to be problematic in low-flow-rate wells. Low flow rates generally affect wax deposition because of the longer residence time of the oil in the tubing. This increased residence time permits more heat loss and leads to a lower oil temperature, which in turn leads to wax precipitation and deposition. The minimum flow rate in the experimental rig to avoid deposition has been proposed to be 0.56 ft/sec.

Pressure

The pressure drops during oil production from the reservoir to the surface facilities. Lighter hydrocarbons in the reservoir tend to be the first to leave the reservoir as the pressure falls; hence, the solubility of the wax is reduced. The WAT increases with the pressure above the bubble point pressure, for a constant composition. This phenomenon implies that an increase in the pressure in the single-phase liquid region (above the bubble point pressure) will aggravate wax deposition. The situation is different below the bubble point, where the oil has a two-phase constitution. The WAT decreases with an increase in the pressure up to the bubble point pressure owing to the dissolution of light hydrocarbon back into the liquid phase. Therefore, the dissolution of light hydrocarbons caused by variations in pressure directly affects wax deposition.34 Stated that pressure is not considered an important factor for wax deposition, especially for dead or stock tank oil; but despite this, it should not be neglected. The pressure helps to reduce the wax deposition due to increasing the solubility of the wax in crude oil.

Pipe surface properties

It is evident that during deposition, wax crystals adhere to the pipe surface; so wax deposition can also be a function of surface properties. As the paraffin wax is deposited on a surface, it is held in place by adsorption forces. These adsorption forces are dependent on the free surface energy of both the paraffin and the surface). The deposits do not adhere to the metals themselves but are held in place by surface roughness.19 There is no direct correlation between wax deposition and surface roughness. However, the adhesion bond at a surface should be proportional to the total contact area and therefore related to surface roughness.36 Wax molecules move toward via diffusion and adhere at the wall. The rate of adhesion is largely governed by the temperature difference between wall and fluid.26 Low friction internal pipe surfaces will also discourage deposition, if not precipitation, as wax crystals can only adhere to pipe walls if they have a sufficiently large coefficient of friction. The cohesive strength of sample wax deposits is of little consequence if they do not adhere well to the pipe wall. Field reports suggest that wax deposits' adhesive strength is at least equal to their cohesive strength and they cling tenaciously to the pipe wall. When casting pure macrocrystalline wax onto a steel pipe wall under laboratory conditions, however, this is not the case. The wax adheres so poorly to the steel that a negligible force is required to cause gross fracture at the steel/wax interface. If a wax model is to be found that can provide robust testing of removal concepts, it needs to allow cohesive failure of simulated deposits. That is, it needs to stick well to the pipe wall.26 It can be concluded that, at the very least reduced pipe diameter and increased surface roughness creates a larger pressure drop and reduced throughput; at the worst, wax deposits can be so severe that the pipe is blocked and production ceases completely.

Wax deposition mechanisms

Wax deposition is conceptually similar to other deposition mechanisms encountered in the engineering and medical fields, such as crystallisation fouling, frost formation and atherosclerosis. A number of mechanisms have been proposed to describe the formation of wax deposits on pipe walls. These mechanisms initially proposed by37 and then by,9–14 includes molecular diffusion, shear dispersion, Brownian diffusion and gravity settling.

Molecular diffusion

For all flow conditions, oil will be in laminar flow, either throughout the pipe, or in a thin laminar sub-layer adjacent to the pipe wall. When the oil is being cooled, there is a temperature gradient across the laminar sub-layer. If the temperature is below the level where solid waxy crystals can be precipitated, then the flowing elements of oil will contain precipitated solid particles and the liquid phase will be in equilibrium with the solid phase; the liquid will be saturated with dissolved wax crystals. The temperature profile near the wall will lead to a concentration gradient of dissolved wax, and this dissolved material will be transported toward the wall by molecular diffusion. When this diffusing material reaches the solid/liquid interface, it will be precipitated out of solution. Reported that there are two stages involved in wax deposition: wax gel formation and then the aging of the deposited wax gel. Petroleum wax deposits contain some entrapped crude oil, water, gums, resins, sand and asphaltenes, depending on the nature of the particular crude oil. The trapped oil in the wax deposit causes diffusion of wax molecules into the gel deposit and counter-diffusion of oil out of the gel deposit, as shown in Figure 2. A fraction of hydrocarbons with carbon numbers above a certain value (the critical carbon number) precipitate out of the oil as stable crystals to form a gel with the remaining hydrocarbons trapped in the gel network. In the gel deposit, the fraction of molecules with carbon numbers greater than the critical carbon number increases, while that of molecules with carbon numbers lower than the critical carbon number decreases. The diffusion and counter-diffusion, leading to hardening of the gel deposit, increases the size of the deposit, and increases the amount of wax in the gel deposit; this process is called aging, the second stage of wax deposition. Molecular diffusion is therefore critical to the aging and hardening of wax gel deposits.38

Figure 2 Illustration of how wax molecules diffuse to form the wax deposit layey.38

Molecular diffusion equation

As discussed, precipitation of wax occurs at contact points between the dissolved wax solution and the cool wall surface. The experiment by37 confirmed that molecular diffusion dominates as the primary mechanism at high temperature heat flux conditions typical of subsea flow line systems. They showed that Fick’s law of diffusion can model molecular diffusion of solid wax in oil and gas flows. Thus, the rate of wax deposition can be described by the following equation:

d M w dt = ρ w D w A w dC dr = ρ w D w A w dC dT dT dr    (3.1) MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVu0Je9sqqrpepC0xbbL8F4rqqrFfpeea0xe9Lq=Jc9 vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=x fr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaqcfa4aaSaaae aacaWGKbGaamytamaaBaaabaGaam4DaaqabaaabaGaamizaiaadsha aaGaeyypa0JaeqyWdi3aaSbaaeaacaWG3baabeaacaWGebWaaSbaae aacaWG3baabeaacaWGbbWaaSbaaeaacaWG3baabeaadaWcaaqaaiaa dsgacaWGdbaabaGaamizaiaadkhaaaGaeyypa0JaeqyWdi3aaSbaae aacaWG3baabeaacaWGebWaaSbaaeaacaWG3baabeaacaWGbbWaaSba aeaacaWG3baabeaadaWcaaqaaiaadsgacaWGdbaabaGaamizaiaads faaaWaaSaaaeaacaWGKbGaamivaaqaaiaadsgacaWGYbaaaabaaaaa aaaapeGaaiiOa8aacqGHsgIRpeGaaiiOaiaacckacaGGOaGaaG4mai aac6cacaaIXaGaaiykaaaa@5E97@

Where dMw/dt is the rate of wax deposited (kg/s), ρw is the density of the solid wax (kg/mᵌ), Dw is the diffusion coefficient of the wax in the oil phase (m² /s), Aw is the area of wax deposition (m²), dC/dr is the wax concentration gradient (1/m) of wax concentration over pipe radial coordinate r (m), dC/dT is the solubility coefficient of the wax crystal in the oil phase (1/ºC) and dT/dr is the radial temperature gradient of the wall (ºC/m). The diffusion coefficient can be described as follows:

D w = C 1 μ   (3.3) MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVu0Je9sqqrpepC0xbbL8F4rqqrFfpeea0xe9Lq=Jc9 vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=x fr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaqcfa4aaubeae qabaGaam4DaaqabeaacaWGebaaaiabg2da9maalaaabaGaam4qamaa BaaabaGaaGymaaqabaaabaGaeqiVd0gaaabaaaaaaaaapeGaaiiOai aacckacqGHsgIRcaGGOaGaaG4maiaac6cacaaIZaGaaiykaaaa@44C1@

Where Ta is the absolute temperature (K), M is the molecular weight of the oil solvent (g/mol), V is the wax molar volume (cc/g mole), μ MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVu0Je9sqqrpepC0xbbL8F4rqqrFfpeea0xe9Lq=Jc9 vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=x fr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaqcfaieaaaaaa aaa8qacqaH8oqBaaa@385A@  is the dynamic viscosity (cP) and ξ MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVu0Je9sqqrpepC0xbbL8F4rqqrFfpeea0xe9Lq=Jc9 vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=x fr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaqcfaieaaaaaa aaa8qacqaH+oaEaaa@3867@  is an association parameter representing the effective molecular weight of the solvent with respect to molecular diffusion and V 0.6 MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVu0Je9sqqrpepC0xbbL8F4rqqrFfpeea0xe9Lq=Jc9 vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=x fr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaqcfaieaaaaaa aaa8qacaWGwbWaaWbaaKazfa4=beqaaiaaicdacaGGUaGaaGOnaaaa aaa@3BBE@ is proportional to the absolute temperature Ta. The association parameter ξ MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVu0Je9sqqrpepC0xbbL8F4rqqrFfpeea0xe9Lq=Jc9 vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=x fr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaqcfaieaaaaaa aaa8qacqaH+oaEaaa@3867@ and the molecular weight of the oil solvent M are constants in the equation. The diffusion coefficient in principle is proposed as a function of oil constant C1 and oil viscosity in many diffusion coefficient models.

D w = C 1 μ   (3.3) MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVu0Je9sqqrpepC0xbbL8F4rqqrFfpeea0xe9Lq=Jc9 vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=x fr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaqcfa4aaubeae qabaGaam4DaaqabeaacaWGebaaaiabg2da9maalaaabaGaam4qamaa BaaabaGaaGymaaqabaaabaGaeqiVd0gaaabaaaaaaaaapeGaaiiOai aacckacqGHsgIRcaGGOaGaaG4maiaac6cacaaIZaGaaiykaaaa@44C1@

As temperature decreases in the radial direction of the pipe, the viscosity of the oil can increase and the diffusion coefficient of the wax in oil can decrease substantially.9 It can therefore be concluded that molecular diffusion is considered as the main mechanism for wax deposition due to the diffusion of the dissolved molecules of the waxy components toward the wall; this has also been used by many wax modelling studies.

Shear dispersion

When small particles are suspended in a fluid that is in laminar motion, the particles tend to move at the mean speed and in the direction of the surrounding fluid. The particle speed is that of the streamline at its centre, and the particle rotates with an angular velocity that is half the fluid shear rate, as shown in Figure 3.39 If the particles approach a solid boundary, both linear and angular velocities will be reduced. Due to the fluid viscosity, rotating particles will impart a circulatory motion onto a layer of fluid adjacent to the particle. This rotating fluid region exerts a drag force on neighbouring particles. In a shear field, each particle passes and interacts with nearby particles in slower or faster moving streamlines. When only two particles are present, far from a wall and at a very low Reynolds number, these passing encounters result in large temporary displacements. As the particles pass, their trajectories are such that the particles curve around one another and return to their original streamline; thus, there is no net lateral displacement. If the particle concentration is high, however, then a significant number of multi-particle interactions will occur. These multi-particle collisions result in net lateral transport and dispersion of particles. Shear dispersion can be modelled by the dispersion coefficient of:37

D s = γ d 2 w φ w 10   (3.4) MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVu0Je9sqqrpepC0xbbL8F4rqqrFfpeea0xe9Lq=Jc9 vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=x fr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaqcfa4aaubeae qabaGaam4CaaqabeaacaWGebaaaiabg2da9abaaaaaaaaapeGaaiiO aiabeo7aN9aadaWcaaqaaiaadsgadaWfqaqaaiaaikdaaeaacaWG3b aabeaacqaHgpGAdaWgaaqaaiaadEhaaeqaaaqaaiaaigdacaaIWaaa a8qacaGGGcGaaiiOaiabgkziUkaacIcacaaIZaGaaiOlaiaaisdaca GGPaaaaa@4B6C@

Where γ MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVu0Je9sqqrpepC0xbbL8F4rqqrFfpeea0xe9Lq=Jc9 vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=x fr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaqcfaieaaaaaa aaa8qacqaHZoWzaaa@384B@ is the oil shear rate at the pipe wall (1/s), d w MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVu0Je9sqqrpepC0xbbL8F4rqqrFfpeea0xe9Lq=Jc9 vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=x fr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaqcfaOaamizam aaBaaabaGaam4Daaqabaaaaa@388A@  is the wax particle diameter (m), φ w MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVu0Je9sqqrpepC0xbbL8F4rqqrFfpeea0xe9Lq=Jc9 vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=x fr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaqcfaOaeqOXdO 2aaSbaaeaacaWG3baabeaaaaa@395E@  is the wax volume fraction out of the solution at the wall and D s MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVu0Je9sqqrpepC0xbbL8F4rqqrFfpeea0xe9Lq=Jc9 vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=x fr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaqcfaOaamiram aaBaaabaGaam4Caaqabaaaaa@3866@ is the shear dispersion coefficient (m²/s).

Figure 3 Long wax particle located in shear flow.39

Brownian diffusion

When suspended in oil small waxy crystals will be continually bombarded by thermally agitated oil molecules. These collisions will lead to small random Brownian movements of the suspended particles. If there is a concentration gradient of these particles, the Brownian motion will lead to a net transport, which in nature and mathematical description is similar to diffusion. Agitated oil molecules bombard precipitated wax suspended in waxy-oil flows. This creates a net irregular movement of wax particles.37 If concentration gradients exist for the wax solid, a net transport of the precipitated molecules is initiated in the direction of decreasing concentration modelled by Fick’s law of diffusion.40

d M B dt = ρ w D B A w dC dr  (3.5) MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVu0Je9sqqrpepC0xbbL8F4rqqrFfpeea0xe9Lq=Jc9 vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=x fr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaqcfa4aaSaaae aacaWGKbGaamytamaaBaaajuaibaGaamOqaaqcfayabaaabaGaamiz aiaadshaaaGaeyypa0JaeqyWdi3aaSbaaKqbafaacaWG3baabeaaju aGcaWGebWaaSbaaKqbGeaacaWGcbaabeaajuaGcaWGbbWaaSbaaKqb afaacaWG3baajuaGbeaadaWcaaqaaiaadsgacaWGdbaabaGaamizai aadkhaaaaeaaaaaaaaa8qacaGGGcGaeyOKH4QaaiikaiaaiodacaGG UaGaaGynaiaacMcaaaa@5019@

Where M B MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVu0Je9sqqrpepC0xbbL8F4rqqrFfpeea0xe9Lq=Jc9 vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=x fr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaqcfaOaamytam aaBaaajuaqbaGaamOqaaqcfayabaaaaa@391A@  is the mass of deposited wax due to Brownian diffusion (kg), dC dr MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVu0Je9sqqrpepC0xbbL8F4rqqrFfpeea0xe9Lq=Jc9 vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=x fr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaqcfa4aaSaaae aacaWGKbGaam4qaaqaaiaadsgacaWGYbaaaaaa@3A25@  is the concentration gradient over the pipe radial coordinate (1/m), A w MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVu0Je9sqqrpepC0xbbL8F4rqqrFfpeea0xe9Lq=Jc9 vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=x fr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaqcfaOaamyqam aaBaaabaGaam4Daaqabaaaaa@3867@  is the area of wax deposition (m²) and D B MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVu0Je9sqqrpepC0xbbL8F4rqqrFfpeea0xe9Lq=Jc9 vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=x fr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaqcfaOaamiram aaBaaajuaibaGaamOqaaqcfayabaaaaa@38F1@  is the Brownian diffusion coefficient (m²/s) derived by the following equation:37–40

D B = RT 6πμaN   (3.6) MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVu0Je9sqqrpepC0xbbL8F4rqqrFfpeea0xe9Lq=Jc9 vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=x fr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaqcfaOaamiram aaBaaajuaibaGaamOqaaqabaqcfaOaeyypa0ZaaSaaaeaacaWGsbGa amivaaqaaiaaiAdacqaHapaCcqaH8oqBcaWGHbGaamOtaaaaqaaaaa aaaaWdbiaacckacaGGGcGaeyOKH4QaaiikaiaaiodacaGGUaGaaGOn aiaacMcaaaa@4980@

* is the gas constant (J/(mol.K), T a MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVu0Je9sqqrpepC0xbbL8F4rqqrFfpeea0xe9Lq=Jc9 vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=x fr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaqcfaieaaaaaa aaa8qacaWGubWaaSbaaeaacaWGHbaabeaaaaa@3884@ is the absolute temperature (K), μ MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVu0Je9sqqrpepC0xbbL8F4rqqrFfpeea0xe9Lq=Jc9 vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=x fr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaqcfaOaeqiVd0 gaaa@383A@  is the oil viscosity (Ns/m²), a MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVu0Je9sqqrpepC0xbbL8F4rqqrFfpeea0xe9Lq=Jc9 vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=x fr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaqcfaOaamyyaa aa@376A@  is the Brownian particle diameter (m) and N MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVu0Je9sqqrpepC0xbbL8F4rqqrFfpeea0xe9Lq=Jc9 vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=x fr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaqcfaieaaaaaa aaa8qacaWGobaaaa@3777@ is Avogadro’s number (1/mol).

Gravity settling

Precipitated waxy crystals are denser than the surrounding liquid oil phase. Hence, if particles are non-interacting, they will settle in a gravity field and can be deposited on the bottom of pipes or tanks. For an initially uniform mixture in a vessel, there will be a beginning rate of settling, followed by a diminishing rate of deposition, which will asymptotically approach zero at complete settling. In a typically active system, as found in oil and gas pipelines, gravity settling has been found to be negligible as the suggested shear dispersion mechanism or active fluid forces create dispersion of precipitated wax particles, thereby eliminating gravity settling.37–40 However, in low flow rates, at typical shut-in conditions or in storage tanks, the gravity effect is expected to contribute to significant wax deposition particularly observed for low viscous fluids. The settling velocity U (m/s) is given by the modified Stokes’ law of settling crystals in a pseudoplastic fluid as follows:41

U =  [ gΔP a (1+n) 18 Kp ] 1/n   (3.7) MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVu0Je9sqqrpepC0xbbL8F4rqqrFfpeea0xe9Lq=Jc9 vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=x fr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaqcfaieaaaaaa aaa8qacaGGvbGaaiiOaiabg2da9iaacckadaWadaqaamaalaaabaGa am4zaiabgs5aejaadcfacaWGHbWaaWbaaeqabaGaaiikaiaaigdacq GHRaWkcaWGUbGaaiykaaaaaeaacaaIXaGaaGioaiaacckacaWGlbGa amiCaaaaaiaawUfacaGLDbaadaahaaqabeaacaaIXaGaai4la8aaca WGUbaaa8qacaGGGcGaaiiOaiabgkziUkaacIcacaaIZaGaaiOlaiaa iEdacaGGPaaaaa@53AC@

Where ΔP is the density difference (kg/mᵌ) between the settling wax and the oil, a is the particle diameter (m), n the power-law index, g the acceleration due to gravity (m/s2) and Kp is the power-law consistency index. The shear rate and shear stress relationship of a power law fluid implied in the correlation is given to be: τ = Kp γ n MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVu0Je9sqqrpepC0xbbL8F4rqqrFfpeea0xe9Lq=Jc9 vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=x fr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaqcfaieaaaaaa aaa8qacqaHepaDcaGGGcGaeyypa0JaaiiOaiaadUeacaWGWbGaeq4S dC2aaWbaaeqabaGaamOBaaaaaaa@4038@

where τ MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVu0Je9sqqrpepC0xbbL8F4rqqrFfpeea0xe9Lq=Jc9 vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=x fr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaqcfaieaaaaaa aaa8qacqaHepaDaaa@3869@ is the shear stress (N/m²) and γ MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVu0Je9sqqrpepC0xbbL8F4rqqrFfpeea0xe9Lq=Jc9 vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=x fr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaqcfaieaaaaaa aaa8qacqaHZoWzaaa@384B@ is the shear rate of the fluid (1/s).37 The other three mechanisms–Brownian diffusion, gravity settling and shear dispersion–are considered, according to the work of researchers,28–35 as secondary mechanisms that can contribute to the wax deposition and identifying which mechanism plays the primary role in wax deposition stated that the Brownian diffusion of wax particles is not likely to be valid because the wall temperature is lower than the oil bulk temperature, resulting in more precipitated wax particles at the wall than in the bulk oil. Consequently, the impact of Brownian diffusion is to transport these precipitated particles from the wall toward the bulk oil, instead of moving them toward the wall and deposit42noted that gravity settling is also believed to be insignificant as there has not been a study claiming that wax deposits are generally thicker at the bottom than the top of the pipe wall in single-phase oil flow conditions. The mechanism of shear dispersion was studied by;43 they found that the wax deposition rate did not increase with the increasing shear rate of the fluid, casting the first doubt on this mechanism for wax deposition.44–47

Conclusion

Acknowledgements

None.

Conflict of interest

Wax deposition on the hydrocarbon pipelines of the cold environment considers as one of the main fluid flow assurance challenges that face the petroleum engineers. Wax can precipitate as a solid phase on the pipe wall when its temperature drops below wax appearance temperature. It results in the restriction of crude oil flow in the pipeline, creating pressure abnormalities and causing an artificial blockage leading to a reduction or interruption in the production. Different wax deposition mechanisms, factors affecting wax deposition problem were reported. Also, were mentioned the wax mitigation methods. In the worst cases, when no of such methods is feasible to be used, production must be stopped in order to cut and replace the plugged portion of the line.
