Research Article Volume 4 Issue 1

High-temperature grain drying: an economic analysis applied to Brazilian conditions

Pricila Araujo Santana, Daniela de Carvalho Lopes, Antonio Jose Steidle Neto

Department of Agrarian Sciences, Federal University of Sao Joao del Rei, Brazil

Correspondence: Antonio Jose Steidle Neto, Federal University of Sao Joao del-Rei, MG 424, km 47, Sete Lagoas, Minas Gerais, Brazil

Received: January 29, 2020 | Published: February 27, 2020

Citation: Santana PA, Lopes DC, Steidle Neto AJ. High-temperature grain drying: an economic analysis applied to Brazilian conditions. Open Access J Sci. 2020;4(1):24-29. DOI: 10.15406/oajs.2020.04.00146

Download PDF

Abstract

Grain drying is one of the most important steps of postharvest handling. Among the artificial drying methods, the high-temperature drying is the fastest, less energy consuming and less dependent on local climate, but also more expensive. A detailed methodology for economic analysis of high-temperature grain drying, involving the main variables that affect its profitability, is presented and tested. The proposed methodology is based on the cash flow model and was tested considering Brazilian market conditions, comprising 42 simulated scenarios. The performed economic analysis can be easily adapted to other grains, countries, furnace fuels, and drying capacities as well. Results showed that all of the simulated scenarios were economically feasible provided that at least five drying cycles are performed per year. Labor, social taxes, grain type and drying capacity most affected the economic feasibility of this kind of investment, while the furnace fuel did not influence the evaluated economic indices.

Keywords: dryer, economic feasibility, modelling, postharvest, storage

Abbreviations

NPV, net present value; BCR, benefit-cost ratio; IRR, internal rate of return; PP, payback period

Introduction

Grain drying is one of the most important steps of postharvest handling, appearing as the main preservation method due to its proven flexibility, technology and reliability.1 This process is employed with the main objective of reducing the grain water content to appropriate preservation levels, comprising simultaneous heat and mass transfers between drying air and grain, in such way that the product reaches an equilibrium condition considered suitable for preserving its physical, physiological and nutritious features.2,3 Among the artificial drying methods, the high-temperature drying appears as the fastest, less energy consuming and less dependent on local climate.4,5 Although not commonly used in less developed regions due to its high initial investment, this drying technique is desirable in many industrial processes, such as in wet rice drying since it can be beneficial to the cooking quality of this product, as well as in feed industry because high temperatures tend to enhance corn starch digestibility.6

High-temperature dryers can be classified according to their operation (continuous or batch) and design (fixed bed, fluidized bed, rotating, cross-flow, concurrent-flow, mixed-flow or counter-flow). However, mixed flow column dryers are the most popular because they contribute to a better drying uniformity across the grain column since the entire width is subjected to the same air and the grain is mixed as it passes through the drier. Further, compared with the other dryers, they do not occupy grain storage space, allow drying of small grain without losses, can be built with portable units and moved easily, as well as can be simply cleaned between crops.7

In addition to the dryer design, drying capacity and stored grain, the furnace fuel is important to ensure an efficient process. Wood is a very popular fuel for grain drying, due to its low cost and high availability when compared to other fuels. However, its use presents disadvantages such as discontinuous and irregular combustion, formation of soot and toxic substances, as well as the demand for large forest plantations.8 On the other hand, the use of biomass (straw, husk, cob, bagasse and forest residues) has been increasing due to its potential for renewable energy generation and low carbon emissions.9 Replacing coal and natural gas with agricultural residues can reduce around 93% and 85% of net CO2 emissions, respectively.10 Other advantages of using agricultural residues as furnace fuels are the large amount and availability for immediate use.11

Just as important as the technical factors is the drying economic feasibility, which can be evaluated by an economic analysis performed with the main objectives of verifying all the project risks and minimizing investment failures.12,13 One of the tools used for performing this analysis is the cash flow model, representing a balance of the amount of revenues and expenses of an investment during the lifetime of the project, and indicating its feasibility by economic indices.14 Several authors already evaluated the economic feasibility of grain drying by simulations, but they considered products, dryers and, bulk volumes in isolation, as well as short project lifetimes.13,15–17 There is a need for a joint analysis involving the main technical and economic parameters of this process, also considering the effects of different grain types, furnace fuels and bulk volumes on the high-temperature drying expenses and revenues. This work presents a detailed methodology for economic analysis of high-temperature grain drying, based on the cash flow model, which allows the evaluation of revenues and expenses, as well as the impacts of the main system variables, on the economic feasibility of high-temperature drying. The proposed methodology was tested considering different Brazilian storage conditions.

Material and methods

Economics of high-temperature grain drying

The cash flow model was applied to estimate the economic returns of high-temperature drying systems considering a project lifetime of 20 years. This period was based on the average useful life of grain dryers and other equipment used in the process.18 The cash flow represents the saved amount of money resulting from the difference between revenues and expenses of grain drying during the lifetime of the project. The year zero considers no revenues and the capital investment as expenses. For the other years, revenues and expenses are calculated as:

R i = ( C   Ga Gp )  ( 1 + j ) i       MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqkY=wjYJH8sqFD0xXdHaVhbbf9v8qqaqFr0xc9pk0xbb a9q8WqFfeaY=biLkVcLq=JHqpepeea0=as0Fb9pgeaYRXxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaabaaaaaaaaape GaamOua8aadaWgaaWcbaWdbiaadMgaa8aabeaak8qacqGH9aqpcaqG GaWdamaabmaabaWdbiaadoeacaGGGcGaaiiOaiaacckacaWGhbGaam yyaiaabccacaWGhbGaamiCaaWdaiaawIcacaGLPaaapeGaaeiia8aa daqadaqaa8qacaaIXaGaaeiiaiabgUcaRiaabccacaWGQbaapaGaay jkaiaawMcaamaaCaaaleqabaWdbiaadMgaaaGccaGGGcGaaiiOaiaa cckacaGGGcGaaiiOaaaa@5352@     (1)

E i =  D i +  M i +  Q i +  L i + T i +  E i +  F i MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqkY=wjYJH8sqFD0xXdHaVhbbf9v8qqaqFr0xc9pk0xbb a9q8WqFfeaY=biLkVcLq=JHqpepeea0=as0Fb9pgeaYRXxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaabaaaaaaaaape Gaamyra8aadaWgaaWcbaWdbiaadMgaa8aabeaak8qacqGH9aqpcaqG GaGaamira8aadaWgaaWcbaWdbiaadMgaa8aabeaak8qacqGHRaWkca qGGaGaamyta8aadaWgaaWcbaWdbiaadMgaa8aabeaak8qacqGHRaWk caqGGaGaamyua8aadaWgaaWcbaWdbiaadMgaa8aabeaak8qacqGHRa WkcaqGGaGaamita8aadaWgaaWcbaWdbiaadMgaa8aabeaak8qacqGH RaWkcaWGubWdamaaBaaaleaapeGaamyAaaWdaeqaaOWdbiabgUcaRi aabccacaWGfbWdamaaBaaaleaapeGaamyAaaWdaeqaaOWdbiabgUca RiaabccacaWGgbWdamaaBaaaleaapeGaamyAaaWdaeqaaaaa@53DE@     (2)

Where: R=revenues in $, i=year considered in the cash flow, varying from 1 to the lifetime of the project, C=the number of drying cycles, Ga=amount of dried grain in kg, Gp=selling price of grain in $, j=annual inflation rate in decimal, D=depreciation cost in $, M=maintenance costs in $, Q=dry matter loss costs in $, L=labor costs in $, T=Federal tax costs in $, E=electrical energy costs in $ and F=fuel costs in $.

The number of drying cycles was added to the analysis in order to identify the minimal value required to guarantee economic feasibility for the studied condition. More drying cycles tend to improve the profitability of the grain drying. Straight-line depreciation was used to gradually allocate depreciation of the drying systems along the lifetime of the project with a 10% discount rate:19

D i =  D i1 + ( V0  0.1V0 ) / N MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqkY=wjYJH8sqFD0xXdHaVhbbf9v8qqaqFr0xc9pk0xbb a9q8WqFfeaY=biLkVcLq=JHqpepeea0=as0Fb9pgeaYRXxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaabaaaaaaaaape Gaamira8aadaWgaaWcbaWdbiaadMgaa8aabeaak8qacqGH9aqpcaqG GaGaamira8aadaWgaaWcbaWdbiaadMgacqGHsislcaaIXaaapaqaba GcpeGaey4kaSIaaeiia8aadaqadaqaa8qacaWGwbGaaGimaiaabcca cqGHsislcaqGGaGaaGimaiaac6cacaaIXaGaamOvaiaaicdaa8aaca GLOaGaayzkaaWdbiaabccacaGGVaGaaeiiaiaad6eaaaa@4D8D@     (3)

Where V0=capital investment in $ and N is the project lifetime. The year zero considers no depreciation, that is D0 is zero. Maintenance costs represented the annual expenses with repair and part replacement, considering the inflation rate. It was calculated as 3% of the capital invested on the drying system:13

M i = ( 0.03 V0 )  ( 1 + j ) i MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqkY=wjYJH8sqFD0xXdHaVhbbf9v8qqaqFr0xc9pk0xbb a9q8WqFfeaY=biLkVcLq=JHqpepeea0=as0Fb9pgeaYRXxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaabaaaaaaaaape Gaamyta8aadaWgaaWcbaWdbiaadMgaa8aabeaak8qacqGH9aqpcaqG GaWdamaabmaabaWdbiaaicdacaGGUaGaaGimaiaaiodacaqGGaGaam Ovaiaaicdaa8aacaGLOaGaayzkaaWdbiaabccapaWaaeWaaeaapeGa aGymaiaabccacqGHRaWkcaqGGaGaamOAaaWdaiaawIcacaGLPaaada ahaaWcbeqaa8qacaWGPbaaaaaa@4A60@     (4)

Dry matter losses of 0.5% due to transportation and drying were used, indicating high grain quality, but at the same time affecting the total volume of commercialized grain:20

Q i = ( 0.005 C Ga Gp  )  ( 1 + j ) i MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqkY=wjYJH8sqFD0xXdHaVhbbf9v8qqaqFr0xc9pk0xbb a9q8WqFfeaY=biLkVcLq=JHqpepeea0=as0Fb9pgeaYRXxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaabaaaaaaaaape Gaamyua8aadaWgaaWcbaWdbiaadMgaa8aabeaak8qacqGH9aqpcaqG GaWdamaabmaabaWdbiaaicdacaGGUaGaaGimaiaaicdacaaI1aGaae iiaiaadoeacaqGGaGaam4raiaadggacaqGGaGaam4raiaadchacaqG GaaapaGaayjkaiaawMcaa8qacaqGGaWdamaabmaabaWdbiaaigdaca qGGaGaey4kaSIaaeiiaiaadQgaa8aacaGLOaGaayzkaaWaaWbaaSqa beaapeGaamyAaaaaaaa@4FAF@     (5)

Labor costs mainly depended on the wage value, the number of employees, their workload and the social taxes, also considering the inflation rate:

L i = ( Ne C Lw W ( 1 + St / 100 ) )  ( 1 + j ) i MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqkY=wjYJH8sqFD0xXdHaVhbbf9v8qqaqFr0xc9pk0xbb a9q8WqFfeaY=biLkVcLq=JHqpepeea0=as0Fb9pgeaYRXxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaabaaaaaaaaape Gaamita8aadaWgaaWcbaWdbiaadMgaa8aabeaak8qacqGH9aqpcaqG GaWdamaabmaabaWdbiaad6eacaWGLbGaaeiiaiaadoeacaqGGaGaam itaiaadEhacaqGGaGaam4vaiaabccapaWaaeWaaeaapeGaaGymaiaa bccacqGHRaWkcaqGGaGaam4uaiaadshacaqGGaGaai4laiaabccaca aIXaGaaGimaiaaicdaa8aacaGLOaGaayzkaaaacaGLOaGaayzkaaWd biaabccapaWaaeWaaeaapeGaaGymaiaabccacqGHRaWkcaqGGaGaam OAaaWdaiaawIcacaGLPaaadaahaaWcbeqaa8qacaWGPbaaaaaa@5782@     (6)

Where Ne=number of employees, Lw=employee annual workload in h, W=wage cost in $, and St=social taxes in % of wage.

Other taxes and fees related to the high-temperature drying process corresponded to a percentage of the capital invested in the system, discounting the inflation rate:

T i = ( V0 Tr )  ( 1 + j ) i MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqkY=wjYJH8sqFD0xXdHaVhbbf9v8qqaqFr0xc9pk0xbb a9q8WqFfeaY=biLkVcLq=JHqpepeea0=as0Fb9pgeaYRXxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaabaaaaaaaaape Gaamiva8aadaWgaaWcbaWdbiaadMgaa8aabeaak8qacqGH9aqpcaqG GaWdamaabmaabaWdbiaadAfacaaIWaGaaeiiaiaadsfacaWGYbaapa GaayjkaiaawMcaa8qacaqGGaWdamaabmaabaWdbiaaigdacaqGGaGa ey4kaSIaaeiiaiaadQgaa8aacaGLOaGaayzkaaWaaWbaaSqabeaape GaamyAaaaaaaa@4954@     (7)

Where Tr=taxes index in % capital investment.

Electrical energy and fuel costs were calculated based on the dryer consumption and the drying time:

E i = ( C Kc Dt Ck )  ( 1 + j ) i      MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqkY=wjYJH8sqFD0xXdHaVhbbf9v8qqaqFr0xc9pk0xbb a9q8WqFfeaY=biLkVcLq=JHqpepeea0=as0Fb9pgeaYRXxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaabaaaaaaaaape Gaamyra8aadaWgaaWcbaWdbiaadMgaa8aabeaak8qacqGH9aqpcaqG GaWdamaabmaabaWdbiaadoeacaqGGaGaam4saiaadogacaqGGaGaam iraiaadshacaqGGaGaam4qaiaadUgaa8aacaGLOaGaayzkaaWdbiaa bccapaWaaeWaaeaapeGaaGymaiaabccacqGHRaWkcaqGGaGaamOAaa WdaiaawIcacaGLPaaadaahaaWcbeqaa8qacaWGPbaaaOGaaiiOaiaa cckacaGGGcGaaiiOaaaa@51BA@     (8)

F i = ( C Fa Cf + Fc )  ( 1 + j ) i MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqkY=wjYJH8sqFD0xXdHaVhbbf9v8qqaqFr0xc9pk0xbb a9q8WqFfeaY=biLkVcLq=JHqpepeea0=as0Fb9pgeaYRXxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaabaaaaaaaaape GaamOra8aadaWgaaWcbaWdbiaadMgaa8aabeaak8qacqGH9aqpcaqG GaWdamaabmaabaWdbiaadoeacaqGGaGaamOraiaadggacaqGGaGaam 4qaiaadAgacaqGGaGaey4kaSIaaeiiaiaadAeacaWGJbaapaGaayjk aiaawMcaa8qacaqGGaWdamaabmaabaWdbiaaigdacaqGGaGaey4kaS IaaeiiaiaadQgaa8aacaGLOaGaayzkaaWaaWbaaSqabeaapeGaamyA aaaaaaa@4E8B@     (9)

Where Kc=cost of electrical energy in $kWh-1, Dt=drying time in h, Ck=electrical consumption in kW, Fa=amount of fuel required for drying in kg, Cf=cost of fuel in $kg-1, and Fc=freight cost in $. With the cashflow data, the economic indices Net Present Value (NPV), Benefit-Cost Ratio (BCR), Internal Rate of Return (IRR) and Payback Period (PP) were calculated in order to evaluate the economic feasibility of high-temperature grain drying. NPV (Eq. 10) is frequently used when making financial decisions, representing the value today of a future earning with high-temperature drying, discounting the inflation rate.21 The investment will be profitable only if NPV is greater than zero.14

NPV= V 0 + i=1 N [ ( F L ) i ( 1+ j 100 ) i ] MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVCI8FfYJH8YrFfeuY=Hhbbf9v8qqaqFr0xc9pk0xbb a9q8WqFfeaY=biLkVcLq=JHqpepeea0=as0Fb9pgeaYRXxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaiaad6eacaWGqb GaamOvaiabg2da9iaadAfadaWgaaWcbaGaaGimaaqabaGccqGHRaWk daaeWbqaamaadmaabaGaaiikaiaadAeadaWgaaWcbaGaamitaaqaba GccaGGPaWaaSbaaSqaaiaadMgaaeqaaOWaaeWaaeaacaaIXaGaey4k aSYaaSaaaeaacaWGQbaabaGaaGymaiaaicdacaaIWaaaaaGaayjkai aawMcaamaaCaaaleqabaGaeyOeI0IaamyAaaaaaOGaay5waiaaw2fa aaWcbaGaamyAaiabg2da9iaaigdaaeaacaWGobaaniabggHiLdaaaa@508C@     (10)

Where FL=cash flow in $.

BCR is a reliable accounting method to demonstrate savings from high-temperature drying systems, calculated as the quotient between the benefits and costs of the project, discounting the inflation rate (Eq. 11). High-temperature drying systems will be economically feasible only if BCR is greater than one.22

BCR = ( NPV|V0| ) / | V0 | MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqkY=wjYJH8sqFD0xXdHaVhbbf9v8qqaqFr0xc9pk0xbb a9q8WqFfeaY=biLkVcLq=JHqpepeea0=as0Fb9pgeaYRXxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaabaaaaaaaaape GaamOqaiaadoeacaWGsbGaaeiiaiabg2da9iaabccapaWaaeWaaeaa peGaamOtaiaadcfacaWGwbGaeyOeI0YdaiaacYhapeGaamOvaiaaic dapaGaaiiFaaGaayjkaiaawMcaa8qacaqGGaGaai4laiaabccapaWa aqWaaeaapeGaamOvaiaaicdaa8aacaGLhWUaayjcSdaaaa@4CC5@     (11)

PP refers to the smallest number of years in which the high-temperature drying recovers its investments by the cumulative revenues. This index was calculated iteratively by applying Eq. 12 for each year of the project lifetime until a value greater than the initial investment was found.21 Thus, PP was associated with the last year considered at the end of iterations and the drying system was profitable if this index was smaller than the project lifetime.

( Vp ) i =  ( Vp ) i1 +  ( FL ) i /  ( 1 + j / 100 ) i MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqkY=wjYJH8sqFD0xXdHaVhbbf9v8qqaqFr0xc9pk0xbb a9q8WqFfeaY=biLkVcLq=JHqpepeea0=as0Fb9pgeaYRXxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaamaabmaabaaeaa aaaaaaa8qacaWGwbGaamiCaaWdaiaawIcacaGLPaaadaWgaaWcbaWd biaadMgaa8aabeaak8qacqGH9aqpcaqGGaWdamaabmaabaWdbiaadA facaWGWbaapaGaayjkaiaawMcaamaaBaaaleaapeGaamyAaiabgkHi Tiaaigdaa8aabeaak8qacqGHRaWkcaqGGaWdamaabmaabaWdbiaadA eacaWGmbaapaGaayjkaiaawMcaamaaBaaaleaapeGaamyAaaWdaeqa aOWdbiaac+cacaqGGaWdamaabmaabaWdbiaaigdacaqGGaGaey4kaS IaaeiiaiaadQgacaqGGaGaai4laiaabccacaaIXaGaaGimaiaaicda a8aacaGLOaGaayzkaaWaaWbaaSqabeaapeGaamyAaaaaaaa@578D@     (12)

Where Vp=annual recovered value in $.

The IRR equates the NPV to zero, providing valuable information about the return on high-temperature drying systems. In this study IRR was calculated iteratively by inverse Lagrange interpolation.21 Worthwhile drying systems have IRR greater than the attractiveness rate, considered as the minimum acceptable return percentage that this kind of project must earn in order to be profitable.

Testing the cash flow model applied to high temperature grain drying

Brazilian high-temperature drying systems were considered during the tests, due to the large grain production verified in this country, and taking account that the grains play an important role in the Brazilian agricultural scenario as commodities, both for internal consumption and exportation.

Three high-temperature dryer volumes (83.9 m3; 104.9 m3 e 227.1 m3) were simulated considering the most common designs found in Brazil.23–25 These were mixed-flow column dryers with double air recirculation system, which demand less electrical energy, resulting in higher thermal efficiency and in better drying uniformity. Additionally, two furnace fuels (wood and grain residues) and seven grain types (peanut, rice, coffee, bean, corn, soybean and wheat) were used, based on their market importance in Brazil, totaling 42 simulation scenarios.26

High-temperature drying times and electrical energy consumptions were simulated based on the average technical features of the dryers (Table 1), as well as on common grain and air conditions. In this study it was considered the grain drying from 20 to 13% (w.b). Further, the air heating from 20 to 110°C was applied, following the specified by the dryer manufacturers (Table 1).23–25

Small dryer

Middle dryer

Large dryer

Static capacity (m3)

83.9

104.9

227.1

Nominal capacity (t h-1)

40

60

125

Airflow (m3 h-1)

72,000

1,08,000

2,25,000

Required heat (kcal h-1)

18,00,000

27,00,000

56,25,000

Required power (cv)

25

40

75

Table 1 Technical features of dryers considering soybean drying and water content reduction from wet-basis 18 to 13%

Time of each drying cycle was estimated by dividing the grain volume by an effective drying capacity, adjusted according to the nominal capacity of the dryer, grain type and grain moisture contents before and after the drying process (Eq. 13). The correction factor for product type was estimated since original technical features of dryers refer to soybean. This correction factor was calculated based on the nominal capacity of the dryer and the different grain bulk densities, resulting in the values of 1.113, 0.968, 1.160, 0.740, 0.746, 1.000 and 0.683 for peanut, rice, coffee, bean, soybean and wheat, respectively. The correction factor for grain water content (Eq. 14) was calculated following recommendations of Valente et al.,12 considering that dryers were designed to reduce the grain water content from 18 to 13 % (w.b.).

Ce = Cn fp fu MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqkY=wjYJH8sqFD0xXdHaVhbbf9v8qqaqFr0xc9pk0xbb a9q8WqFfeaY=biLkVcLq=JHqpepeea0=as0Fb9pgeaYRXxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaabaaaaaaaaape Gaam4qaiaadwgacaqGGaGaeyypa0JaaeiiaiaadoeacaWGUbGaaeii aiaadAgacaWGWbGaaeiiaiaadAgacaWG1baaaa@430E@     (13)

Fu = 1  0.1544 ( Ui  18 ) + 0.014863  ( Ui  18 ) 2  0.0005942  ( Ui  18 ) 3 MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqkY=wjYJH8sqFD0xXdHaVhbbf9v8qqaqFr0xc9pk0xbb a9q8WqFfeaY=biLkVcLq=JHqpepeea0=as0Fb9pgeaYRXxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaabaaaaaaaaape GaamOraiaadwhacaqGGaGaeyypa0JaaeiiaiaaigdacaqGGaGaai4e GiaabccacaaIWaGaaiOlaiaaigdacaaI1aGaaGinaiaaisdacaqGGa WdamaabmaabaWdbiaadwfacaWGPbGaaeiiaiaacobicaqGGaGaaGym aiaaiIdaa8aacaGLOaGaayzkaaWdbiaabccacqGHRaWkcaqGGaGaaG imaiaac6cacaaIWaGaaGymaiaaisdacaaI4aGaaGOnaiaaiodacaqG GaWdamaabmaabaWdbiaadwfacaWGPbGaaeiiaiabgkHiTiaabccaca aIXaGaaGioaaWdaiaawIcacaGLPaaadaahaaWcbeqaa8qacaaIYaaa aOGaai4eGiaabccacaaIWaGaaiOlaiaaicdacaaIWaGaaGimaiaaiw dacaaI5aGaaGinaiaaikdacaqGGaWdamaabmaabaWdbiaadwfacaWG PbGaaeiiaiaacobicaqGGaGaaGymaiaaiIdaa8aacaGLOaGaayzkaa WaaWbaaSqabeaapeGaaG4maaaaaaa@6C82@     (14)

Where Ce=effective drying capacity in t h-1, Cn=nominal drying capacity for soybean in t h-1, fp=correction factor for product in decimal, fu=correction factor for water content in decimal, and Ui=initial grain water content in % wb.

Energy consumption was estimated by multiplying the required power of the dryer by 0.7355 and by the drying time, resulting in the consumption in kWh. The amount of fuel was calculated considering a furnace efficiency of 80%.27

Mc = 60 ρ Q cp ( Ts  Ta ) / ( η PCI )   MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqkY=wjYJH8sqFD0xXdHaVhbbf9v8qqaqFr0xc9pk0xbb a9q8WqFfeaY=biLkVcLq=JHqpepeea0=as0Fb9pgeaYRXxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaabaaaaaaaaape GaamytaiaadogacaqGGaGaeyypa0JaaeiiaiaaiAdacaaIWaGaaeii aiabeg8aYjaabccacaWGrbGaaeiiaiaadogacaWGWbGaaeiia8aada qadaqaa8qacaWGubGaam4CaiaabccacaGGtaIaaeiiaiaadsfacaWG HbaapaGaayjkaiaawMcaa8qacaqGGaGaai4laiaabccapaWaaeWaae aapeGaeq4TdGMaaeiiaiaadcfacaWGdbGaamysaaWdaiaawIcacaGL PaaapeGaaiiOaiaacckaaaa@56DF@     (15)

Where Mc=fuel consumption in kg h-1, ρ=drying air density in kg m-3, Q=drying airflow rate in m3 min-1, Cp=specific heat of drying air in kJ kg-1°C-1, Ta=ambient air temperature in °C, Ts=drying air temperature in °C, η=furnace efficiency in decimal, and PCI=low calorific value of fuel in kJ kg-1.

Table 2 presents the yields, collecting availability factors and low calorific values of the grain residues used in this study.27,28,29 Yields and collecting availabilities were evaluated to compare the amount of biomass required as furnace fuel with values generally used for adequate soil fertilization and protection, animal feed and other agricultural practices. The low calorific value of wood was simulated as 12,970 kJ kg-1 (Table 2).28

Residue

Yield
(tdb/t)*

Collecting availability
(%)

Low calorific value
(kJ/kg)

Soybean straw

2.3

30

14,600

Corn straw

1.68

40

17,700

Rice straw

1.55

40

16,000

Rice husk

0.19

40

16,000

Wheat straw

2.9

40

12,400

Bean straw

1.16

40

14,000

Coffee husk

2

50

15,500

Peanut husk

1.04

25

12,900

Table 2 Yields, availability factors and low calorific values of the studied grain residues
*tdb expresses tons of residues in dry basis and t expresses tons of grain

The average capital investments of high-temperature systems, including furnace and dryer costs, were obtained from Brazilian manufacturers, corresponding to $79,792.09, 98,020.79 and 171,585.36 for small, middle and large dryers, respectively.23–25 Table 3 shows the bulk volumes, which varied for equal dryer sizes due to their different densities, as well as average selling prices (obtained by agribusiness websites), which were different depending on the grain type (Table 3).



Grain bulk volume (ton)

Grain

Selling price

Small dryer

Middle dryer

Large dryer

($ ton-1)

83.9 m3

104.9 m3

227.1 m3

Peanut

464.09

42.87

53.6

116.05

Rice

212.71

49.5

61.89

133.99

Coffee

2,049.72

41.95

52.45

113.55

Bean

690.71

62.93

78.68

170.33

Corn

127.07

62.93

78.68

170.33

Soybean

295.58

52.86

66.09

143.07

Wheat

174.03

67.54

84.44

182.82

Table 3 Average selling prices of grain used in simulations and bulk volumes depending on the dryer size

The simulated annual inflation rate was 10% and represented the percentage increase in the prices over a year.22,30 Costs of electrical energy ($0.11 kWh-1) were based on the current fees in Brazil.31,32,33 Labor costs were simulated as R$22.10 per employee per day and social taxes were 68% of the payroll.34 Other taxes and fees related to the low-temperature drying process corresponded to 10% of the capital invested in the system.26 Further, an attractiveness rate of 7% was employed, representing a perceived quality and utility of grain drying systems and contributing to the evaluation of their economic feasibility.13,14 An average wood cost of $0.04 was used based on data from agribusiness websites, while grain residues were considered costless since they are recycled from the cultivation area. Further, during the studied period, the real (R$) to US dollar conversion was $3.62.30

After all economic analyses were performed by using the proposed model, the simulated scenarios were compared among themselves and the main factors that affected their economic feasibility were evaluated. All calculations and analyses were accomplished by using electronic worksheets.

Results

All of the 42 simulated scenarios were profitable when performing at least five drying cycles per year. VPLs ranged approximately from $276 thousand to $22 million at the end of the 20 years considered as project lifetime (Figure 1).

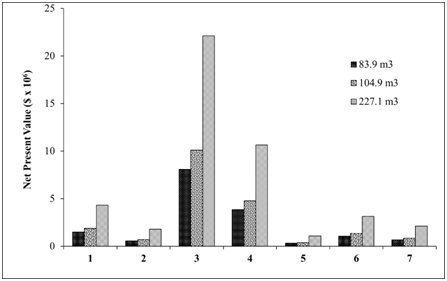

Figure 1 Average Net Present Values (NPV) of the simulated scenarios considering small (83.9 m3), middle (104.9 m3) and large (227.1 m3) volume dryers.

Figure 2 shows the average BCRs for different grain types and dryer capacities, which ranged from 2.8 to 127.9.

Figure 2 Average Benefit-Cost Ratios (BCR) of the simulated scenarios considering small (83.9 m3), middle (104.9 m3) and large (227.1 m3) volume dryers.

As shown in Figure 3, IRRs were between 27.2 and 100.0%, with high value grain and large dryers resulting in greater returns. Among the 42 simulated high-temperature drying processes, 20 resulted in immediate PPs, with emphasis on drying small, middle and large volumes of coffee, bean and peanut. In all other scenarios PPs varied from 1.5 years when drying wheat to 3.5 years for corn drying. Other variables which were important during the economic analysis were the electrical energy consumption, drying time and amount of fuel required for drying. Their values varied according to the grain and fuel types, as well as dryer capacity. The average electrical energy consumptions were 18.39, 29.42 and 55.16 kW for small, middle and large high-temperature drying systems, respectively. On the other hand, the average drying times were most affected by grain type, with averages of 1.1, 1.5, 1.1, 2.6, 2.6, 1.6 and 3.0 hours for peanut, rice, coffee, corn, soybean and wheat, respectively. The amounts of fuel for each simulated scenario are presented in Table 4.

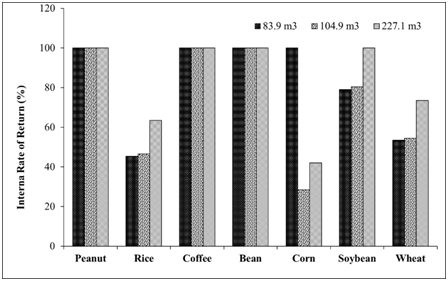

Figure 3 Average Internal Return Ratios (IRR) of the simulated scenarios considering small (83.9 m3), middle (104.9 m3) and large (227.1 m3) volume dryers.

Dryer

Small

Middle

Large

Small

Middle

Large

Wood

Grain residues

Peanut

970.27

1213.13

2626.33

975.54

1219.71

2640.58

Rice

1311.23

1639.43

3548.24

1062.92

1328.96

2877.1

Coffee

927.29

1159.39

2509.98

775.93

970.15

2100.29

Bean

2180.38

2726.13

5901.85

2019.97

2525.56

5467.64

Corn

2162.85

2704.2

5854.38

1584.87

1981.55

4289.91

Soybean

1355.33

1694.56

3668.59

1204.01

1505.37

3259.01

Wheat

2535.59

3170.24

6863.31

2652.14

3315.97

7178.8

Table 4 Biomass and wood amounts (kg) required as furnace fuel for different high-temperature drying systems in Brazil

Discussion

The proposed model has been found reliable and satisfactory. The costs and revenues simulated in this study agreed well with the market and literature data, with monetary corrections.12,13,15,17,35 The smallest NPVs were observed when drying corn, rice and wheat in small and middle high-temperature dryers, while the greatest returns were verified for drying of large volumes of coffee and bean. Major contributors for these results were selling prices of grain and dried bulk volumes. This is well demonstrated in the particular case of rice and wheat, which resulted in average NPVs of $1.02 and 1.21 million, respectively. Selling prices of these products are greater than corn and smaller than the other grain types, but rice is around 18.2% more expensive than wheat. However, considering a same dryer capacity it is possible to dry a volume of wheat approximately 26.6% greater than rice due to their bulk densities. Generally, large dryers were responsible for greater NPVs for a same grain type and high cost grains resulted in greater revenues along the lifetime of the project.

Smallest values of BCR index were also found for corn, rice and wheat drying, demonstrating a lower profitability for these investments in Brazil, while coffee stood out as more cost-effective, followed by bean, peanut and soybean, respectively. Following the NPV and RBC trends, IRRs were always well above than the minimal attractiveness rate of 7% recommended by Mugabi & Discroll13 and Marquezan14 as the minimum acceptable return percentage that grain drying systems must earn in order to be economic feasible. Even for corn, rice and wheat, which presented lower IRRs, high-temperature grain drying appears as a low risk and profitable investment for all simulated scenarios. Greater PP values indicate that the capital invested in the high-temperature drying will be committed for several years, resulting in riskiest projects. However, the PPs obtained in this study corresponded to less than one fifth of the project lifetime, confirming the high-temperature grain drying as a worthwhile and low risk investment in Brazil.

Selling prices of grain strongly affected the economic results since high value products, such as coffee, bean and peanut, are capable of generating greater revenues along the lifetime of the project, contributing to a faster recovery of the invested capital, as well as easily covering the process expenses. These results agreed with those presented in another works that evaluated high-temperature drying costs.13,15,19,35 Another important variable is the dried bulk volume, since for all grain types, large dryers were more profitable even presenting greater initial investments. According to Costa et al.19 this behavior can be justified by the fixed costs associated with the drying process, which are independent of the dryer capacity and drying cycles. These include insurance, taxes, fees and inflation rate.

When considering high-temperature dryers the required initial investment is the variable of major impact on the system implementation. Comparing this initial capital with that required by low-temperature drying systems it is observed an average difference of 67%.20,24,25,36 On the other hand, this high initial investment is partially offset by the reduced process costs, such as electrical energy and labor, due to the short drying time observed in this kind of system.

Furnace fuel did not considerably influence the economic indices when evaluated separately. Although a large amount of wood was required when simulating the high-temperature drying, this fuel has a low cost in Brazil, what explains the slight economic difference between scenarios where only the furnace fuel varied. The low costs of wood and grain residues as furnace fuels were also observed by Valente et al.,12 Lim et al.37 However, costs of both wood and grain residues tend to increase depending on different freight values, as well as labor required for prepare these fuels to be used into the furnace. In the case of wood, the distance between the dryer and the fuel supplier tends to affect the freight cost directly, as well as the region where the wood is acquired.

Despite the similar economic results of wood and grain residues in relation to high-temperature drying, it is important to emphasize the benefits of using biomass as alternative fuel for this process. Wood combustion is generally incomplete and did not liberate all available chemical energy, also generating toxic gases, such as the polycyclic aromatic hydrocarbons (PAHs). These organic compounds are formed during the pyrolysis of some organic materials and are considered environmental pollutants, since they are non-biodegradable, and are also known to have carcinogenic potential.8

On the other hand, grain residues present greater combustion efficiency, can be found in large amounts and are easily available for immediate use. These fuels also present, in many situations, low calorific values greater than those of wood and thus possess high energy contents. Furthermore, biomass can be converted into heat with very low carbon emissions, contributing to more sustainable agricultural practices.10,37 Another advantage of using grain residues as furnace fuel during grain drying is that this practice does not detrimentally affect traditional agricultural management, such as tillage, heating and animal feed. According to Wang and Mendelsohn,38 15% of crop residues in field is sufficient for providing adequate soil fertilization and protection, while 25% is generally used for animal feed and industrial raw materials. Simulations performed in this study showed that around 1.9, 2.8, 3.3, 3.5, 3.5, 3.8 and 8.75% of the biomass from plantations was required as furnace fuel for high-temperature drying of coffee, bean, soybean, wheat, rice, corn and peanut, respectively. In all these cases residue availability was guaranteed for other agricultural practices.

Conclusion

All simulated scenarios were economic feasible and considered as low-risk investments since operating at least five drying cycles per year. High-temperature drying of large volumes (from 227.1 m3) of coffee and bean stood out as more profitable, resulting in greater NPV, BCR and IRR values. The smallest returns were observed when drying small and middle volumes of corn and rice. The factors that main affected the profitability of high-temperature drying were the grain type, dryer size, labor, social taxes and initial investment. Generally, high cost grains and large dryers were responsible for greater revenues along the lifetime of the project. The furnace fuel did not interfere considerably in the evaluated economic indices. However, the use of grain residues as drying fuel was recommended due to their environmental benefits. The proposed methodology requires both technical and economic knowledge about the high-temperature grain drying, including several data about the dryer and grain, as well as economic data, such as inflation rate, tax values and prices. But, it can be applied to other grains, country market conditions, furnace fuels, and drying capacities as well.

Acknowledgements

The authors thank the Coordination for the Improvement of Higher Education Personnel (CAPES) for the the Master degree grants.

Conflict of interest

There were no conflicts of interest.
