Research Article Volume 5 Issue 1

Effects of different levels of phosphorus and bradyrhizobium inocula on the productivity and protein content of mungbean (vigna radiata l. wilczek)

Abdul Hannan,1 Muhammad Shamsul Huda,1 Mahbuba Sultana,2 Md Robiul Alam,3 Md Ariful Islam3

1Seed Technology Division, Bangladesh Agricultural Research Institute, Joydebpur, Gazipur-1701, Bangladesh
2Bangladesh Agricultural Development Corporation, Gabtoli, Dhaka, Bangladesh
3On-Farm Research Division, Bangladesh Agricultural Research Institute, Pabna, Bangladesh

Correspondence: Md Ariful Islam, On-Farm Research Division, Bangladesh Agricultural Research Institute, Pabna, Bangladesh, Tel 01744898441

Received: August 16, 2022 | Published: September 7, 2022

Citation: Hannan A, Huda MS, Sultana M, et al. Effects of different levels of phosphorus and bradyrhizobium inocula on the productivity and protein content of mungbean (vigna radiata l. wilczek). Open Access J Sci. 2022;5(1):32-39. DOI: 10.15406/oajs.2022.05.00173

Download PDF

Abstract

Phosphorus (P) is one of the major limiting nutrients to mung bean production. However, the use of imbalance P nutrient and lack of inocula decreased the mungbean yield in Bangladesh. Therefore, this study has been untaken to study the effect of different phosphorus levels and Bradyrhizobium inocula on the yield and protein content of mungbean. Treatment comprised of four levels of phosphorus - P0, P30, P60, P90 (0, 30, 60 and 90 kg P2O5 ha-1 respectively) and strains of  Bradyrhizobium inocula - I0, I1, I2 and I3 (not inoculated, inoculation with BINA-MB-THA 301, BINA-MB 441 and BINA-MB 301). The highest seed yield (1066.3 kg ha-1) was obtained from P60 followed by P90 (957.7 kg ha-1) and P30 (870.5 kg ha-1) while the lowest seed yield (578.9 kg ha-1) was obtained from the control. Protein content was highest (24.5 %) in P90, followed by P60 (24.4%) and P30 (24.4 %), and the lowest (24.1 %) was obtained from control. Inoculation of seed increased the yield and yield components, and harvest index. Better performance of the yield components and protein content of seed was found with the inoculants I1. The I1 strain produce the highest seed yield (982.5 kg ha-1) while the lowest yield (670.5 kg ha-1) was obtained from uninoculated control plot. The highest protein content of mungbean seed (25.3 %) was estimated when I1 strain of Bradyrhizobium was used for seed inoculation. Among the treatment combinations, P60I1 provided better growth and yield performance and increased protein content of mungbean.

 Keywords: rhizobium strain, inoculation, yield, protein content, orthogonal comparison

Introduction

Mungbean (Vigna radiata L. Wilczek) is one of the major and short duration pulse crops grown in pre-monsoon season of Bangladesh. It belongs to the family Leguminosae and sub family Papilionaceae. The crop is commonly known as green gram, golden gram, mung dal, mungbean but most commonly as ‘Mung’ in Bangladesh. It is an excellent source of easily digestible protein which complements the stable rich diet in the country. Mungbean seed contains 51 % carbohydrate, 26 % protein, 1 % fat, 4 % minerals, 3 % vitamins and 10 % moisture.1 Mungbean covered an area of 44006.32 hectares with a production of 37054 tonnes in 2019-20.2 The average yield of mungbean is about 0.842 t ha-1, which is very low compared to the potential yield (1.5-1.6 t ha-1) of mung bean in Bangladesh.3 The yield difference between potential and actual yield indicates the wide scope for increasing yield of mungbean in Bangladesh with improved management practices and by using proper doses of fertilizer.

Optimum amount phosphorus supply is important to fix nitrogen in the soil by the legumes. As mungbean is a legume crop, it responds well to added phosphorus.4 Phosphorus deficiency causes yield reduction by limiting plant growth.5 It influences nutrient uptake by promoting root growth and nodulation.6 The use of phosphorus nutrient has steadily increased overtime. The P consumption in 1981 was 80000 ton which in 2016 increased to 210000 ton in Bangladesh.7 Mungbean responds favourably to phosphorus fertilization.8 Phosphorus enhance the uptake of nitrogen, thus increase nitrogen content in the crop which increase protein content of mungbean.9

Presently, a number of organisms like Rhizobium/Bradyrhizobium have been identified to use as biological agent for fix atmospheric nitrogen by symbiotic process with legume crops and make it available to the plants. Bangladesh Institute of Nuclear Agricultural (BINA) isolated some Rhizobium/Bradyrhizobium strains especially for mungbean cultivar. To reduce the production cost and to fulfill the demand, more pulse production could be achieved through seed inoculation with Rhizobium/Bradyrhizobium. As per Franco,10 Rhizobium/Bradyrhizobium strains in association with the host plant were able to fix approximately 20 % of the atmospheric nitrogen through the world annually. Singh et al.11 reported that seed inoculation of mungbean with Bradyrhizobium increased the protein content of mungbean. Hence, there is a large scope of utilizing the biological nitrogen fixing technology for obtaining more protein rich food from mungbean and also to improve the nitrogen status of soils by selecting efficient strains of mungbean inocula. The use of effective strain of mungbean inocula can play a vital role in improving yield and soil health. The strains of mungbean inocula identified by BINA which are suitable for better yield performance of mungbean, but the potentialities of different strain of Bradyrhizobium may vary depending upon the soils and climatic conditions. Therefore it is urgently needed to verify the potentialities of different strains of Bradyrhizobium in mungbean crop. Limited studies are available to find out the effect of phosphorus and inoculum separately, however, to the best of our knowledge, no studies on the combined effect of these two factors on mungbean are available in Bangladesh. Considering the above facts, the present study has been undertaken to find out the optimum level of phosphorus and suitable Bradyrhizobium strain to achieve high yield and protein content of mungbean.

Material and methods

Site of the research

The field experiment was conducted at the Agronomy Field Laboratory, Bangladesh Agricultural University (BAU), Mymensingh, during the period of March to June (2013) in the Kharif-1 season to study the effect of phosphorus level and different strain of Bradyrhizobium inocula on the yield performance and protein content of mungbean (cv. BINA Mung-2). Geographically the experimental field was located at 24.750 north latitude and 90.500 east longitude at an altitude of 18 m above the mean sea level.

Initial Soil properties at 0-15 cm soil depth

The soil is belongs to the Old Brahmaputra Alluvium Soil under Agro-Ecological Zone 9 (AEZ-9, Old Brahmaputra Floodplain) under Sonatala series.12 The experimental site falls into Non-calcareous Dark Grey Floodplain soils (Aeric Haplaquept). The land topography was medium high, silty loam soil texture.  The soil was sampled from six to seven random spots at 0-15 cm depth of the experimental plot and analyzed for both physical and chemical properties. The initial soil characteristics at 0-15 cm soil depth before laying out the experiment are presented in Table 1

Soil properties

value

pH

6.5

Electrical Conductivity (dS m-1)

0.26

Organic Carbon (%)

0.94

Total N (%)

0.09

Available P (mg kg-1)

6.6

Available S (mg kg-1)

11.5

Available Zn (mg kg-1)

0.8

Available Fe (mg kg-1)

55.4

Available B (mg kg-1)

0.3

Exchangeable K (me %)

0.07

Textural class

Silt loam

Sand (%)

60

Silt (%)

18

Clay (%)

22

Bulk density (g cm-3)

1.35

Table 1 Soil physico-chemical characteristics at 0-15 cm soil depth before starting the experiment

Weather condition during study period

The experimental site is under a subtropical monsoon climatic region with a mean monthly maximum and minimum temperature of 29 °C and 19 °C, respectively, with total rainfall of 217 mm during the mungbean growing season (Figure 1). During the mungbean growing seasons (March-May), the highest rainfall of 125 mm was received in April, followed by 76 mm in 2011, while only 5.1 mm and 21.4 mm of rainfall was received in February and March, respectively in 2013. Most of the rainfall was received in April, accounting for nearly 44 % of the total rainfall.

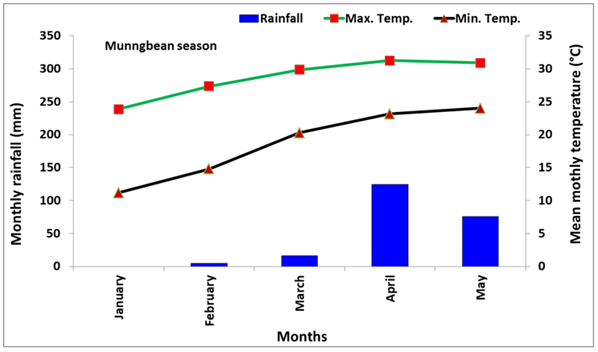

Figure 1 Mean monthly temperature and total rainfall during mungbean growing season of the research area, recorded from the local weather station.

Treatments and experimental design

BINA Mung-2 was used as the test crop. The cultivar is suitable for growing in the summer season.13 Four levels of Phosphorus @ 0, 30, 60 and 90 kg P2O5 ha-1 form TSP were applied and four inocula namely not inoculated (I0), Inoculation with BINA-MB-THA 301 (I1), Inoculation with BINA-MB 441 (I2), Inoculation with BINA-MB 301 (I3) were used in the experiment. Fresh seeds of mungbean were dipped in the culture broth for 18-20 minutes. The experiment was laid out in a Randomized Complete Block Design (RCBD) having three replications. The unit plot size was 4.0 m x 3.0 m.

Crop management

Mungbean seeds were sown in the furrow on 7th March, 2013. The line to line distance was 30 cm with continuous sowing in the line. Other than phosphorus, the crop was fertilized during final land preparation at the rate of 20 kg N ha-1 as urea, 20 kg K ha-1 as muriate of potash (MP), 10.8 kg S ha-1 as gypsum and 1 kg B ha-1 as boric acid, as recommended by the Pulses Research Centre, Bangladesh Agricultural Research Institute. All fertilizers were applied by broadcasting and were mixed with soil thoroughly. Weeding and thinning were done at 18th and 35th days after sowing (DAS). Plant to plant distance was maintained at 6-7 cm. During the experimental period, there was heavy rainfall for several times. Hence, irrigation was not necessary but it was essential to drainage the excess water from the field. Jute hairy caterpillar and pod borer were successfully controlled by the application of Malathion 57 EC @ 1.5 L ha-1 at the time of 50 % pod formation stage (55 DAS). At the time when 80 % of the pods turned brown colour, the crop was assessed to attain maturity. The crop was harvested on 21st May, 2013 from pre-selected 4.0 m2 area.

Data and their estimation procedures

Yield components for mungbean, i.e. plant height (cm), branches plant-1, pods plalnt-1, sterile pods plalnt-1, aborted ovule pod-1, pod length (cm), seeds pod-1, dry weight plant-1 (g), 1000-seed weight, seed and stover yield were recorded using 1 m2 quadrate from three places in each plot. The pods of each plot were harvested by hand picking as per maturity. Data on yield components were collected from five randomly selected plants plot-1. Before harvesting, five plants were selected and uprooted randomly from each of the plot for data recording. Harvest index was calculated with the help of following formula: Harvest index ( HI % ) =   Seed yield Biological yield   x 100  MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqkY=MjYdH8pE0xbbL8F4rqqrFfpeea0xe9Lq=Jc9vqaq pepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=xfr=x b9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaaeaaaaaaaaa8qaca WGibGaamyyaiaadkhacaWG2bGaamyzaiaadohacaWG0bGaaeiiaiaa dMgacaWGUbGaamizaiaadwgacaWG4bGaaeiia8aadaqadaqaa8qaca WGibGaamysaiaabccacaGGLaaapaGaayjkaiaawMcaa8qacaqGGaGa eyypa0JaaiiOaiaacckadaWcaaqaaiaadofacaWGLbGaamyzaiaads gacaqGGaGaamyEaiaadMgacaWGLbGaamiBaiaadsgaaeaacaWGcbGa amyAaiaad+gacaWGSbGaam4BaiaadEgacaWGPbGaam4yaiaadggaca WGSbGaaeiiaiaadMhacaWGPbGaamyzaiaadYgacaWGKbaaaiaaccka caGGGcGaamiEaiaabccacaaIXaGaaGimaiaaicdacaGGGcaaaa@6AD1@

Seed yield was recorded at 11 % moisture content. Stover weight was determined after oven-drying at 70 ◦C to a constant weight. Seed and stover yields were taken from the central part of each plot after discarding the border rows. The collected data were compiled and tabulated properly for statistical analysis. Protein content of mungbean seed was estimated by the standard micro Kjeldahl method (total nitrogen estimation method).14

Statistical analysis

The collected data were compiled and analyzed statistically using the analysis of variance (ANOVA) technique with the help of MSTAT-C programme and the mean separation were adjudged by Duncan’s Multiple Range Test.15

Results and discussion

Effect of phosphorus on growth and yield of mungbean

Different phosphorus levels had significant effect on plant characters, yield and yield attributes of mungbean (Table 2). Plant treated with P60 gave the tallest plant (70.0 cm) and it was statistically identical with P30 (67.8 cm) and P90 (67.1 cm). Plant grown without phosphorus (control) produced the shortest plant (64.4 cm) though it was identical to the plant when received P90 (67.1 cm). These findings are collaborate with the results reported by Patel and Patel16 and Imran et al.17 where they observed that plant height of mungbean showed superiority at 60 kg P205 ha-1 followed by 40 kg P205 ha-1. The highest number of branches plant-1 (2.6) was counted from the treatment P60 which was statistically similar to P90 (2.5) and P30 (2.4). The lowest number of branches plant-1 (1.8) was counted from control.

Level of phosphorus (kg/ha P2O5)

Plant height (cm)

Branches/ plant

Pods/ plant

Sterile pods/ plant

Aborted ovule/pod

Pod length (cm)

Seeds/ pod

Dry weight/ plant (g)

P0

64.4b*

1.8b

10.5c

2.1a

1.8a

4.8d

8.4c

10.4d

P30

67.8a

2.4a

13.2b

1.9b

1.3c

5.6b

9.2b

11.2c

P60

69.9a

2.6a

15.0a

1.4c

1.0d

6.1a

9.8a

12.3a

P90

67.1ab

2.5a

14.2ab

2.0ab

1.4b

5.3c

9.5ab

11.8b

CV (%)

5.4

13.2

5.7

8.4

6

3.7

5.4

4.5

Table 2 Effects of phosphorus level on various plant characters, yield and yield attributes of mungbean

The results are in agreement with the findings of Singh et al.6 where they reported that number of branches plant-1 of mungbean increased with increased level of phosphorus up to 26.4 kg P ha-1. Different levels of phosphorus significantly affected the number of pods plant-1 (Table 3). Highest number of pods plant-1 (15.0) was recorded from P60 treatment. From the study it was observed that P30 and P90 gave the identical number of pods plant-1 but statistically lower than P60. The lowest number of pods plant-1 (10.5) produced from control treatment (P0). The results suggested that the number of pods plant-1 increases with the increased level of phosphorus up to P60, and afterwards it started to decline. These findings are in close conformity with the findings of Rao et al.18,19 where they reported that number of pods plant-1 increased significantly with increasing phosphorus levels from 0 to 50 kg ha-1. The plants of control plot (that received no phosphorus fertilizer) produced significantly the highest number (2.1) of sterile pods plant-1. It was statistically similar with high doses of phosphorus fertilizer (P90). However, P90 and P30 produced statistically identical number of sterile pods plant-1. On the other hand, the lowest number of sterile pods plant-1 was observed from P60 treatment. The result indicated that both higher and lower doses of phosphorus beyond P60 enhanced the production of more sterile pods plant-1. The highest number of aborted ovules pod-1 (1.8) was recorded from control (P0) treatment which differed significantly from other phosphorus levels. The lack of phosphorus nutrients might be affected the phenological development of the crop and increased the rate of abortion, which led to produce the maximum number of aborted ovules pod-1. The lowest number of aborted ovules pod-1 (1.0) was recorded from P60. The result indicated that P60 significantly reduced the number of aborted ovules pod-1. The result of the study further indicated that both lower and higher doses of phosphorus increased abortion of ovules pod-1. Plant received P60 significantly increased the pod length (6.1 cm) which was followed by P30 (5.6 cm) and P90 (5.3 cm). The shortest pod length (4.76 cm) was measured form the control (P0) plot. A highly significant variation was observed among phosphorus levels in respects of the number of seeds pod-1. It was observed that P60 produced the highest number of seeds pod-1 (9.8) which was statistically identical to the crop treated with P90 (9.5). The lowest number of seeds pod-1 (8.4) was counted form the control plot. This might be due to the insufficiency of phosphorus nutrient, which lowers the uptake of other nutrients and hampers the growth and development, flowering and pod setting of the crop and resulted in lower number of seeds pod-1 in control (P0) plot. These findings are closely related with the findings of Patel and Patel16 who found that the number of seeds pod-1 increased significantly with increasing levels of phosphorus from 0 kg ha-1 to 60 kg ha-1. Dry weight plant-1 significant affected due to different levels of phosphorus. Maximum dry weight plant-1 (12.27 g) was found from P60 while the lowest dry weight plant-1 (10.42 g) was obtained from the control plot.

Bradyrhizobium strain

Plant height (cm)

Branches/plant

Pods/plant

Sterile pods/plant

Aborted ovules/pod

Pod length (cm)

Seeds/pod

I0

64b*

2.0b

11.5c

2.4a

2.0a

5.0c

8.4b

I1

70 a

2.7a

15.5a

1.5d

0.9d

5.7a

9.6a

I2

68 a

2.5a

12.8b

1.7c

1.2c

5.5b

9.6a

I3

67a

2.2b

11.9bc

1.8b

1.3b

5.5b

9.4a

CV (%)

5.4

13.2

8.39

8.4

6

3.7

5.4

Table 3 Effects of Bradyrhizobium strain on various plant characters, yield and yield attributes of mungbean
I0 – Not inoculated; I1 – Inoculation with BINA-MB-THA 301; I2 – Inoculation with BINA-MB 441 and I3 – Inoculation with BINA-MB 301

* In a column, means followed by the different letters differ significantly at 5 % levels of probability

The highest 1000-seed weight (25.2 g) was recorded from P60 treatment which was followed by P90 (23.6 g) (Figure 2). The crop was fertilized with P90, P30 and control gave statistically identical results.  These findings are partly similar with the findings of Reddy et al.20 where they observed that application of 50 kg P2O5 ha-1 resulted highest 1000-seed weight of mungbean. The seed yield was significantly influenced by different phosphorus levels (Figure 2). It was found that P60 produced the highest seed yield (1066 kg ha-1) while the lowest seed yield (578.9 kg ha-1) was obtained from the control. Seed yield increased due to the application of P60 fertilizer, it might have fulfilled the requirements of the crop which helped better uptake of other plant nutrient at balance proportion to result in better plant growth and subsequently improve the yield contribution attributes and finally increased the seed yield. Significantly the highest stover yield m-2 (476.7 g) was produced by the crop when received P60. The lowest amount of stover yield (3576 kg) obtained from control plot (Figure 2). The highest plant height, number of branches plant-1, number of pods plant-1, number of leaves plant-1 might be contributed to increase stover yield of mung bean. Similar finding was found by Sharma et al.21 reported that stover yield of mungbean increased with increase of phosphors up to or equivalent of 60 kg P2O5 ha-1. Different phosphorus levels exerted a significant influence on the harvest index of mungbean (Figure 2). Harvest index was recorded maximum (22.7 %) with P60. The harvest index was statistically similar under P90 and P30 treatments. The lowest harvest index (15.8 %) was obtained from the control plot. Response curve in orthogonal comparison in regression indicates that the optimum phosphorus level for mungbean cultivation was 63 kg P2O5 ha-1 and its corresponding seed yield should be 1307.0 kg ha-1 and seed yield would be reduced by 0.98 kg ha-1 for reducing 1 kg of phosphorus fertilizer (Figure 3). These findings are similar with the findings of Raundal et al.22 where they reported that application of 60 kg P2O5 ha-1 significantly increased the seed yield of mungbean.

Figure 2 Effects of phosphorus level on thousand seed weight – TSW (a), seed yield (b), stover yield (c) and harvest index (%) (d) of mungbean.
p0 = No phosphorus, P30 – 30 kg P2O5 ha-1, P60 – 60 kg P2O5 ha-1, P90 – 90 kg P2O5 ha-1

>

Figure 3 Response curve showing the relationship between level of phosphorus and seed yield of mungbean; P0 = No phosphorus, P30 = 30 kg P2O5 ha-1, P60 = 60 kg P2O5 ha-1 and P90 = 90kg P2O5 ha-1

.

 The estimated protein content of Mungbean seed varied significantly due to different phosphorus levels (Figure 4).  The highest protein content of mungbean seed was recorded from P90 treatment. The lowest protein content was estimated from the control plot. The figure indicates that the protein content of mungbean seed increased with the increased phosphorus levels.

Figure 4 Protein content of mungbean as influenced by phosphorus levels; P0 = No phosphorus, P30 = 30 kg P2O5 ha-1, P60 = 60 kg P2O5 ha-1 and P90 = 90 kg P2O5 ha-1

.

Effect of Bradyrhizobium strain

Different strain of  Bradyrhizobium had significant effect on plant height, number of branches plant-1, number of sterile pods plalnt-1, number of aborted ovule pod-1, pods number plant-1, Pod length, number of  seeds pod-1 , dry weight plant-1, stover yield, seed yield kg ha-1 , thousand seed weight and harvest index (Table 2). The tallest plant (70 cm) was obtained when crop was treated with I1 strain which was statistically identical to I2 (68 cm) and I3 (67 cm). The shortest plant height (64 cm) was obtained from the crop when the seed were uninoculated. These might be due to continuous nitrogen supply by Bradyrhizobium inoculum to the plant after a stage of growth and ultimately enhanced plant height. These results are close related with the findings of Kavathiya and Pandey23 stated that inoculated seed gave significantly increased plant height compared with uninoculated control. Significantly the maximum number of branches plant-1 (2.7) was found when the seeds were inoculated with I1 strain which was statistically similar with I2 (2.5). The lowest branches number plant-1 was noticed from the control plot (2.0), though it was statistically identical to the crop treated with I3 (2.2).The plot treated with I1 produced the maximum number of pods plant-1 (15.5). The inoculum strain I2 and I3 produced statistically identical number of pods plant-1 12.8 and 11.9 respectively, where I3 and I0 gave statistically similar result and the lowest pod number plant-1(11.5) was observed from control (I0) strain.

The highest number of sterile pods plant-1 (2.4) was found from the control plot (I0) followed by inoculation of seed with I3 and I2 strain. The lowest number of sterile pods plant-1 (1.46) was obtained when the crop was treated with I1 strain of Bradyrhizobium. The highest number of aborted ovules pod-1 (2.0) was counted from the control plot (I0) and the lowest number of aborted ovules pod-1 (0.9) was counted from the plot treated with I1 strain of Bradyrhizobium. This might be due to the highest potential of I1 for more nitrogen fixation which enhanced more uptakes of other nutrients and thus reduced the sterility of the crop and produced lower number of aborted ovules. Different strain of Bradyrhizobium showed a significant effect on the pod length of mungbean. The highest pod length (5.7 cm) was measured when the seed was treated with I1 strain of the inoculum. The crop treated with I2 and I3 strain produced statistically identical pod length. The lowest pod length (5.0 cm) was measured from the control (I0) treatment. The crop treated with I1 strain produced the highest number of seeds pod-1 (10.0) which was statistically similar with I2 (10.0) and I3 (9.4). The lowest number of seeds pod-1 (8.4) was counted from control treatment. The result indicated that inoculated plant produced higher number of seeds pod-1 and increased the pod length than that of uninoculated plant. The lowest dry weight plant-1 (10.2 g) was obtained from the control plot.

Inoculated and uninoculated plants showed significant variation on the 1000-seed weight of mungbean (Figure 5). The highest 1000-seed weight (25.94 g) was measured when the seed was treated with I1 strain of Bradyrhizobim. The lowest 1000-seed weight (22.0 g) was observed from uninoculated treatment (control). Seed yield of mungbean was significantly the highest (982.50 kg ha-1) when I1 strain of Bradyrhizobium was used for seed inoculation and the lowest (670.50 kg ha-1) from the control plot (Figure 5). The crop treated with I1 produced highest amount of stover yield m-2 (4451 kg ha-1) followed by the treatment I2 and I3 (Figure 5). But the Bradyrhizobium strain I2 and I3 produced statistically identical stover yield. These findings are in close conformity with the findings of Chowdhury et al.24 reported that mungbean seed inoculation with Bradyrhizobium strain significantly increased the stover yield by about 50%. Harvest index was also significantly affected by different strain of Bradyrhizobium (Figure 5). The highest harvest index (20.58%) was recorded in the crop treated with I1 strain of Bradyrhizobium which was statistically identical with I2. The lowest harvest index (18.0 %) was calculated in control plot.

Figure 5 Effects of Bradyrhizobium strain on thousand seed weight – TSW (a), seed yield (b), stover yield (c) and harvest index (%) (d) of mungbean
I0 – Not inoculated; I1 – Inoculation with BINA-MB-THA 301; I2 – Inoculation with BINA-MB 441 and I3 – Inoculation with BINA-MB 301

.

Bradyrhizobium strain played a significant role on protein contain of mungbean (Figure 6). It was observed that the maximum protein content (25.28%) was obtained when the seeds were inoculated with I1 strain of Bradyrhizobium, which was followed by I2 and I3 strains of Bradyrhizobium. The minimum protein content (22.84%) was estimated from the seeds of control plot. This might be due to the absence or minimum number of Bradyrhizobium bacteria present in the soil, that could not supply sufficient nitrogen as to the requirements of the crop by the process of biological nitrogen fixation and ultimate low nitrogen content of the seed, thus finally reduced the protein content of mungbean seed.

Figure 6 Effects of Bradyrhizobium strain on the protein content of mungbean seed
I0 – Not inoculated; I1 – Inoculation with BINA-MB-THA 301; I2 – Inoculation with BINA-MB 441 and I3 – Inoculation with BINA-MB 301

.

Interaction effect of different phosphorus level and Bradyrhizobium strain

Different phosphorus levels and Bradyrhizobium strain interacted to  influence sterile pods number plalnt-1 , aborted ovules number pod-1 , seed yield, stover yield and protein content (%) of mungbean but did not significant to influence the plant height, number of branches plant-1 , pods number plant-1,pod length, number of  seeds pod-1 , dry weight plant-1, thousand seed weight and harvest index (%) (Table 4 and Figure 7).

Figure 7 Interaction effects of phosphorus level and different Bradyrhizobium strain on yield (a), stover yield (b), harvest index (%) (c) and protein content (%) (d) of mungbean
P0 = No phosphorus, P30 =30 kg P2O5 ha-1, P60 =60 kg P2O5 ha-1 and    P90 =90 kg P2O5 ha-1

I0 – Not inoculated; I1 – Inoculation with BINA-MB-THA 301; I2 – Inoculation with BINA-MB 441 and I3 – Inoculation with BINA-MB 301

.

The tallest plant (73.2 cm) was found from the plant treated with P60I1. The shortest plant (58.7 cm) was obtained with P0I0. This might be due to the lack of phosphorus and nitrogen element of the plant which reduced the cell division, carbohydrate and protein synthesis and also lowers the normal activity of the cambium tissue which results shorter plant height. The maximum number of branches plant-1 (2.9) was counted when P60 interacts with I1 and the lowest number of branches plant-1 (1.6) was recorded from P0I0. The highest number of pods plant-1 (18.5) was obtained from P60I1 and the lowest number of pods plant-1 was observed with P0I0 (8.3). Significantly the highest number of sterile pods plant-1 (2.9) was counted in P0I0. This might be due to the insufficiency of phosphorus and nitrogen nutrients which lowered the plant growth and development, flowering and fruit setting and finally increased the pod sterility of mungbean. The lowest sterile pods number plant-1 (1.0) was counted from the crop treated with P60I1 which was statistically identical with P60I2. The highest number of aborted ovules pod-1 (3.2) was significantly observed from the control plot (P0I0) and the lowest number of aborted ovules pod-1 (0.8) was counted when P60 treated with I1 and it was statistically identical with P60I2 (0.9) and P30I1 (0.8). The highest pod length (6.3 cm) was obtained by P60 when coupled with I1 strain of Bradyrhizobium and the shortest pod length (4.4 cm) was recorded from the control (P0I0) plot. However the highest number of seeds pod-1 (10.1) was counted when P60 used coupled with I1 strain of Bradyrhizobium. The lowest number of seeds pod-1 (7.1) was counted from the control plot where neither phosphorus nor inocula were given. The maximum dry weight plant-1 (13.8 g) was obtained when P60 interacts with I1 strain of Bradyrhizobium and the lowest dry weight plant-1 (8.88 g) was recorded in control plot (P0I0). Significantly the highest seed yield (1226 kg ha-1) was obtained when P60 was used with I1 strain of Bradyrhizobim and the lowest amount of seed yield (432.3 kg ha-1) was found from the control plot (P0I0) (Figure 7). The highest seed yield was obtained from P60I1 that might be due to the sufficient amount of available phosphorus from P60 and adequate level of nitrogen supplied by the high potential I1 strain of Bradyrhizobium bacteria by fixing atmospheric nitrogen through the process of biological nitrogen fixation. Significantly the maximum stover yield m-2 (5129 kg ha-1) was obtained when the crop was treated with P60I1 and the lowest straw yield m-2 (3311 kg ha-1) was recorded in control (P0I0) plot (Figure 7).

In case of 1000-seed weight was not significantly affected by phosphorus fertilizer and combined use of Bradyrhizobium strain inoculation (Table 4). However, the highest 1000 seed weight (27.7g) was found when P60 coupled with I1 strain of Bradyrhizobuim.  The lowest 1000-seed weight (21.7 g) was recorded from control (P0I0). Numerically the maximum harvest index (23.7 %) was recorded when P60 interacts with I2 strain of Bradyrhizobium. The lowest harvest index (14.2 %) was calculated from the absolute control plot (P0I0) (Figure 7).

Level of phosphorus x Bradyrhizobium strain

Plant height (cm)

Branches/plant

Pods/ plant

Sterile pods/ plant

Aborted ovules/ pod

Pod length (cm)

Seeds/pod

Dry weight/plant (g)

TSW(g)

P0I0

59

1.6

8.3

2.9a*

3.2a

4.4

7.1

8.9

21.7

P0I1

67

2.1

13.7

1.7fgh

1.0ij

4.9

9

11.9

25.5

P0I2

65

1.9

10.3

1.8efg

1.4ef

4.8

8.8

10.8

24.9

P0I3

66

1.7

9.5

1.9def

1.4de

4.8

8.8

10.1

24.3

P30I0

66

2.1

11.8

2.5b

1.8b

4.9

8.1

10.1

22.3

P30I1

70

2.7

14.4

1.6gh

0.8k

6

9.3

12.4

25.2

P30I2

68

2.6

12.6

1.7efgh

1.2g

6

9.7

11.3

24.6

P30I3

67

2.3

12

2.0de

1.3fg

5.9

9.7

11

22.6

P60I0

67

2.2

13.7

2.0de

1.3fg

5.6

9.2

11

22.4

P60I1

73

2.9

18.5

1.0k

0.8k

6.3

10.1

13.8

27.7

P60I2

70

2.8

14.6

1.1jk

0.9jk

6.2

10

12.6

26.2

P60I3

70

2.3

13.3

1.3ij

1.1hi

6.2

10

11.8

24.5

P90I0

62

2.2

12.2

2.4bc

1.7c

5

9.1

10.8

21.1

P90I1

70

2.9

15.4

1.5hi

1.2gh

5.5

9.9

13

25.4

P90I2

69

2.7

13.6

2.0de

1.3efg

5.3

9.8

12.1

24

PI3

67

2.4

12.8

2.1cd

1.5cd

5.3

9.4

11.4

24

CV (%)

5.4

13.2

8.9

8.4

6

3.7

5.4

4.5

2.92

Table 4 Interaction effects of phosphorus level and different Bradyrhizobium strain on various plant characters, yield, yield attributes and protein content of mungbean
I0 – Not inoculated; I1 – Inoculation with BINA-MB-THA 301; I2 – Inoculation with BINA-MB 441 and I3 – Inoculation with BINA-MB 301

* In a column, means followed by the different letters differ significantly at 5 % levels of probability

Interaction effect of phosphorus and Bradyrhizobium strains found significant effect in case of protein content of mungbean (Figure 7). When P60 used with I1 strain of Bradyrhizobium produced the highest protein content (25.9 %) of mungbean seed which was statistically identical with P90 at the same strain of Bradyrhizobium. Significantly the lowest protein content (22.5 %) was estimated from the seed of absolute control plot.

Conclusion

The major objective of this study was to evaluate to study the effect of different phosphorus levels and strains of Bradyrhizobium inocula on the growth, yield and protein content of mungbean compared with control (not inoculated and no phosphorus levels). In accordance with our hypothesis, the highest seed yield was obtained from 60 kg P2O5 ha-1 while the lowest seed yield was obtained from the control. However, the orthogonal comparison in regression shows that 63 kg P2O5 ha-1 is the optimum phosphorus level for the maximization of yield. With increasing phosphorus levels up to 90 kg ha-1, the protein content of mungbean seed increased. Inoculation of seed significantly increased the yield components, seed and stover yield, and harvest index of mungbean. The inoculants I1 (BINA-MB-THA 301) of Bradyrhizobium increased seed yield of mungbean and protein content of mungbean seed. In a nutshell, among the treatment combinations, 60 kg P2O5 ha-1 with the inoculants I1 (BINA-MB-THA 301) of Bradyrhizobium improved crop growth and yield, and protein content of mungbean in Bangladesh. Nevertheless, the result of the present study could be verified further experimentation in different agro-ecological zones of Bangladesh.

Acknowledgments

The authors acknowledged the Bangladesh Agriculture University, Mymensingh, Bangladesh for supporting to conduct the experiment. We are also thankful to Professor Selim for his valuable suggestions throughout the study period.

Competing interest

The authors declare that they have no conflicts of interest that could have appeared to influence the work reported in this paper.

Funding

The authors received no direct funding for this research.

References

  1. Afzal MA, Murshad ANMM, Bakar MMA. Mungbean Cultivation in Bangladesh, Pulse Research Station, Bangladesh. Agricultural Research Institute, Gazipur, Bangladesh, 13. 2008.
  2. Bangladesh Bureau of Statistics. Statistical Year Book of Bangladesh, Statistics Division, Ministry of Planning, Government of the People’s Republic of Bangladesh, Dhaka. 2020.
  3. Bangladesh Agriculture Research Institute. KRISHI PROJUKTI HATBOI (Handbook on Agro-Technology). 9th edn, Bangladesh Agricultural Research Institute, Gazipur-1701, Bangladesh. 2020.
  4. Sarkar RK, Banik P. Response of mungbean (Vigna radiata) to nitrogen, phosphorus and molybdenum. Indian Journal of Agronomy. 1991;36(1):91–94.
  5. Poelhman JM. The mungbean. Oxford & IBH Publishing Co. Pvt. Ltd., New Delhi, India, 1991. p. 14–27.
  6. Singh OP, Tripathi PN, Singh R. Effect of phosphorus and sulphur nutrition on summer mungbean (Vigna radiata). Inidan Journal Agricultural Science. 1999;69(11):798–799.
  7. Bangladesh Agricultural Research Council. Fertilizer Recommendation Guide. Bangladesh Agricultural Research Council (BARC), Farmgate, Dhaka. 2018. p. 1–233.
  8. Chovati PK, Ahlawat RPS, Trivedi SJ. Growth and yield of summer mungbean (Vigna radiata) as affected by different dates of sowing, Rhizobium inoculation and levels of phosphorus. Indian Journal of Agronomy. 1993;38(3) 492–494.
  9. Soni KC, Gupta SC. Effect of irrigation schedule and phosphorus on yield, quality and water use efficiency of summer mungbean (Phaseolus radiatus). Indian Journal of Agronomy. 1999;44(1):130–133.
  10. Franco AA. Contribution of the Legume-Rhizobium symbiosis to the ecosystem and food production. In: Limitations and Potentials for Biological Nitrogen Fixation. In: Debereiner J, et al., editors. Pienum Press, New York, 1978. p. 65–74.
  11. Singh H, Rathore PS, Mali AL. Influence of phosphate and inoculation on nutrient uptake, recovery and response of applied phosphorus on green gram (Phaseolus radiatus). Indian Journal Agronomy. 1994;39(2):316–318.
  12. FAO. Land Resources Appraisal of Bangladesh for Agricultural Development. Report 2. Agro-Ecological Regions of Bangladesh. UNDP, FAO, 1998. p. 212–221.
  13. BINA. Grismakalin Moog Kalair Unnata Jat (Bangla). Booklet. BINA, Mymensingh, Bangladesh, 1998. p. 4.
  14. AOAC. Official Methods of Analysis (14th edn). Association of Official Analytical Chemists, Arlington, V.A. 1984.
  15. Gomez KA, Gomez AA. Statistical Procedure for Agricultural Research. 2nd Edition. John Wiley and Sons. New York, 1984. p. 643–645.
  16. Patel FM, Patel LR. Response of mungbean (Vigna radiata) varieties to phosphorus and Rhizobium inoculation. Indian Journal of Agronomy. 1991;36(2):295–297.
  17. Imran Khan AA, Inam I, Ahmad F. Yield and yield attributes of Mungbean (Vigna radiata L.) cultivars as affected by phosphorous levels under different tillage systems. Cogent Food and Agriculture. 2016;2(1):1151982.
  18. Rao GP, Shrajee AM, Rao RK, et al. Response of mungbean (Vigna radiata) cultivars of levels of phosphorus. Indian Journal of Agronomy. 1993;38(2):317–318.
  19. Rao VU, Rao AS. Dual inoculation of VAM and Rhizobium in blackgram and mungbean (Vigna radiata). Legume Research. 1993;16(3-4):119–126.
  20. Reddy SN, Singh BG, Rao IVS. An analysis of dry matter production, growth and yield in mungbean and black gram with phosphate fertilization. Journal Maharashtra Agricultural University. 1990;15(2):189–191.
  21. Sharma YM, Dikshit PR, Turkar OR, et al. Effect of Rhizobium culture with different starter doses of nitrogen and phosphorus on yield, nutrition and nodulation of summer mungbean (Vigna radiata). Bharatia Krishi Pattrika. 1993;8(2):106–114.
  22. Raundal PU, Sabale RN, Dalvi ND. Effect of phospho-manures on crop yield in mungbean-wheat cropping system. Journal Maharashtra Agricultural University. 199;24(2):151–154.
  23. Kavathiya YA, Pandey RN. Interaction studies on Meloidogyne javanica, Bradyrhizobium species and Macrophomina phaseolina in Mungbean. Journal Mycology and Plant Patholology. 2000;30(1):91–93.
  24. Chowdhury MMU, Ullah MI, Mahmmud ZU. Dry matter production in mungbean (Vigna radiata L. Wilczek) as influenced by Bradyrhizobium inoculation and phosphorus application. Institute of Post Graduate Studies in Agriculture, Salna, Gazipur 1703, Bangladesh Legume Research. 2000;23(1):15–20.
