Mechanical and electrochemical behaviour of aluminum-based hybrid composites reinforced with silicon carbide and pride of barbardos seed ash produced by stir casting

Olaniran Oladayo,1,2 Alege Kehinde Sikirat1

1Department of Metallurgical and Materials Engineering, Federal University of Technology, Nigeria
2 Department of Chemical Engineering, Texas Tech University, USA

Correspondence: Olaniran Oladayo, Department of Metallurgical and Materials Engineering, Federal University of Technology, P.M.B 704, Nigeria

Received: September 27, 2019 | Published: October 18, 2019

Citation: Oladayo O, Sikirat AK. Mechanical and electrochemical behaviour of aluminum-based hybrid composites reinforced with silicon carbide and pride of barbardos seed ash produced by stir casting. Material Sci & Eng. 2019;3(5):178-182. DOI: 10.15406/mseij.2019.03.00110

Download PDF

Abstract

Aluminum matrix composite (AMCs) represent a class of MMCs with low density, high stiffness and strength, superior wear resistance, controlled co-efficient of thermal expansion, high fatigue resistance and better stability at elevated temperature. These properties made AMCs a good candidate for the design of a wide range of components for advanced applications. This research focus on mechanical and electrochemical behavior of developed Aluminum 6063 hybrid composites containing 0:10, 2.5:7.5, 5:5, 7.5:2.5 and 10:0 wt.% pride of Barbados seed ash (PBSA) and silicon carbide (SiC) as reinforcements. Different characterization techniques were used to evaluate the mechanical behavior. Similarly, electrochemical studies were carried out using potentio-dynamic polarization technique at room temperature. The results show that the yield strength, ultimate tensile strength and percentage elongation of the hybrid composites increase with increase in PBSA content while the hardness is decreased. Electrochemical test revealed that hybrid Al/2,5wt. % PBSA had superior corrosion resistance.

Keywords: composite, matrix, pride of barbados, hardness, hybrid, polarization potential, current density

Abbreviations

AMCs, aluminum matrix composite; PBSA, pride of barbados seed ash; HAMCSs, hybrid aluminum metal composites

Introduction

Aluminum matrix composite (AMCs) represent a class of MMCs having characteristics of low density, high stiffness and strength, superior wear resistance, controlled co-efficient of thermal expansion, high fatigue resistance and better stability at elevated temperature. These properties made AMCs a good candidate for the design of various components for advanced engineering applications.1 It has been found that the use of AMCs in engine applications can reduce the overall weight, fuel consumption and pollution in the automobiles and aircrafts.2 MMCs reinforced with ceramic particles are very promising materials for structural applications due to excellent combination of properties.3 AMCs reinforced with either silicon carbide (3.18g/cm3) or alumina (3.9g/cm3) particles are attractive materials for aviation.4,5 Some of the reinforcements are denser than aluminum alloys (2.7g/cm3) and therefore increase the weight of the composites produced depending on the quantity of the reinforcement added.6 Moreover, ceramic particles addition to the Al-alloy increases the hardness and thereby making machining more difficult.6 Hybrid composites, in most cases possess superior strength than monolithic composite. The properties of the hybrid reinforcements (primary and secondary) can be combined to attain better material properties. More so, the use of stir casting method for production of AMCs reduces the cost of the composite.7 Current trends in AMCs show growing concern in the production of hybrid Aluminum Metal Composites (HAMCSs) with better physical and mechanical properties. Resent researches have shown that agro/industrial waste materials such as fly ash, graphite, rice husk ash, amongst others, can be successfully used as a complementary reinforcement in AMCs.7,8 Furthermore, the use of hybrid reinforcements increases the service performance of the composites by the formation of new features. These agro/industrial wastes can reduce the cost of aluminum composites. Secondly, the weight of the composite can be manipulated due to lower density of this agro/industrial waste materials.3 Thirdly, these composites can also offer competitive physical and mechanical properties.7 This research investigates the mechanical and corrosion behavior of Aluminum-hybrid composite produced by reinforcing Aluminum 6063 with pride of Barbados seed ash and silicon carbide via double stir casting method.

Materials and method

Aluminum 6063 served as the matrix of the composite. Pure silicon carbide (SiC) particles having average particle size of 30µm and pride of barbardos seed ash (PBA) were used as reinforcements for the hybrid composites. Dried pride of barbardos seeds were gathered and placed in a metallic drum and fired in open air to allow for thorough combustion. The ash produced from the burning process was allowed to cool for 24 hours after which it was removed from the drum. The ash was then conditioned in a furnace at a temperature of 65oC for 3 hours. The ash seeds were further ground using ball mill and sieved with a sieve shaker to obtain ashes with mesh size under 73 µm. Two steps stir casting process was used for the development of the composites. Charge calculation was used to determine the quantity of pride of barbardos seed ash (PBSA) and silicon carbide (SiC) required to prepare 10 w.% reinforcement (in the Al matrix) consisting of 0:10, 2.5:7.5, 5:5, 7.5:2.5 and 10:0 pride of barbardos seed ash (PBSA and silicon carbide weight percent respectively. The PBSA and silicon carbide particles were initially preheated individually at 250oC to remove moisture and also helps improve wettability with the molten aluminum 6063. The aluminum 6063 billets were charged into a gas-fired crucible furnace (fitted with a temperature probe), and heated to temperature of 750oC (above the liquid us temperature of the alloy) to ensure complete melting of the alloy. The liquid alloy is then allowed to cool in the furnace to a semi solid state (slurry) at temperature of about 600oC. The preheated PBSA and SiC particles were then introduced into the melt at this temperature and stirring of the slurry was done manually for 5-10 minutes. The slurry was then superheated to 800oC and second stirring performed using a mechanical stirrer. This stirring procedure was done at a speed of 400 rpm for a total of 10 minutes before casting into prepared sand moulds inserted with chills.

Material test

Mechanical and electrochemical tests were carried out on the developed hybrid composites.

Wear test

The wear resistance was evaluated using the Taber wear index. A 10mm thick circular disc sample with a 0.6mm hole drilled at the center was subjected to wear test on a Taber rotary platform abrader for a total time of 15minutes. The initial weight of the samples were taken prior to wear test, the samples were then cleaned and weighed after the test to record the weight of the abraded sample. The Taber index was determined using the equation below.

W= BA 400 X 1000 MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVu0Je9sqqrpepC0xbbL8F4rqqrFfpeea0xe9Lq=Jc9 vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=x fr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaqcLbsacaWGxb Gaeyypa0tcfa4aaSaaaOqaaKqzGeGaamOqaiabgkHiTiaadgeaaOqa aKqzGeGaaGinaiaaicdacaaIWaaaaiaadIfaqaaaaaaaaaWdbiaacc kacaaIXaGaaGimaiaaicdacaaIWaaaaa@43ED@

Where W is the wear Index, A and B are the weight (Mass) before and after abrasion while 400 is the number of test cycles (revolution per minutes).

Tensile test

Tensile tests were performed on the developed hybrid composites with the specifications of ASTM 8M-91 standard. The samples for the test were machined to round specimen configuration with 6mm diameter and 30mm gauge length. The test was carried out at room temperature using an Instron universal testing machine operated at a strain rate of 10m/s. Three repeats tests were performed and average value was taken to guarantee reliability of the generated data. The tensile properties evaluated were from the stress-strain curves. The properties are ultimate tensile strength (σu), 0.2 % offset yield strength (σy), and strain to fracture (ɛf).

Hardness test

The hardness of the composites was evaluated using INDENTEC Micro-hardness Tester 2015 Model. Prior to testing, a flat and smooth surface samples were prepared from each develop composite composition. A load of 100 gf was applied on the samples and the hardness profile was deduced following standard procedures. Multiple hardness tests were performed on each sample and the average value recorded as a measure of the hardness of the sample.

Electrochemical test

Electrochemical study was carried out on the hybrid composites using ASTM-G5 standard (2011).9 The surfaces of the samples were ground, polished and washed with distilled water, degreased in acetone and finally dried in air. The electrochemical property of these hybrid composites were studied using Princeton Autolab Potentiostat (Model PGSTAT 204N computer controlled) and the data were analyzed by the general purpose electrochemical Nova software (GPES) version 49. The set up was done using 3.0 % NaCl solution at room temperature. The polarization curves were measured at a scan rate of 0.25mV/s. The pitting potential was determined as the potential at which the current density exceeded 100 µA/cm2 and stable for more than 1 minute. The electrolyte was replaced after each scan.

Results and discussion

Table 1 shows multiple hardness values of different hybrid composition with their average hardness values. The result revealed that the hardness value of the unreinforced composite (control sample) was higher than both single reinforced and hybrid composites. In addition, the single reinforced Al/SiC composite has higher hardness values than the hybrid. The hardness of the hybrid composites decreases with increasing wt. % pride of Barbados seed ash. This observation was favorable with what has been reported on Al-Mg-Si reinforced with other agro-waste ash (BLA and RHA);7 reported that the hardness of the composites reduces with increasing RHA content in Al-Mg-Si/Al2O3RHA composites. This reduction could be attributed to the low hardness of silica (the main constituent of the ashes) in comparison with synthetic reinforcements SiC and Al 6063). This low value of hardness is favorable for improving machinability.10 The Al/10 wt. % PBSA (sample 4) has a higher hardness value compared with Al/10 wt. % SiC (sample 1) for the single reinforced composite and the developed hybrid reinforced composites. The developed hybrid reinforced composite Al/2.5 wt.% SiC/7.5 wt.% PBSA (sample 4) showed a higher hardness resistance while compare to other developed hybrid reinforced composites.

Composition

Hv1

Hv2

Hv3

Hv4

Average Hv

AL alloy

46

44.5

46.1

43.7

45.075

AL/10 0wt.% SiC

44.5

45.5

46.1

43

44.775

AL/7.5 wt.% SiC/2.5 wt.% PBA

45.8

44.8

44.3

42.4

44.325

AL/50 wt.% SiC/50 wt.% PBA

45.9

43

44

44

44.225

AL/2.5wt.% SiC/7.5 wt.% PBA

37.8

42

44.3

42.3

41.6

AL/10 wt.% PBA

40.97

40.97

40.97

40.97

40.97

Table 1 Average hardness value of the aluminum 6063, single reinforced composites (Al/SiC and Al/PBSA) and aluminum hybrid composite (Al/SiC/PBSA)

Table 2 shows the wear index values of the Aluminum 6063, single reinforced composites (Al/Sc and Al/PBSA) and the developed Aluminum Hybrid composite. It was observed that the wear index of the unreinforced composite (control sample) was higher than both single reinforced and hybrid composite. Likewise, the single reinforced Al/SiC composite (sample 1) has higher wear rate than the single reinforces Al/PBSA and the developed hybrid composites, as expected. It was observed that samples, 4 and 5, containing PBSA have a wear rate close to that of single reinforced composite (Al/PBSA). It was also seen that wear rate of the developed hybrid composites decreases with increasing wt. % of PBSA. It was expected that the single reinforced composite (sample 1) should have highest wear rate because of the highest hardness value it possesses. The single reinforced composite (sample 5) was observed to have a superior wear resistance while compared to developed reinforced hybrid composites (samples 2 - 4). In relationship with hardness values, it could be deduced that decrease in hardness led to reduction in the wear rate of the hybrid composite. This result was in agreement with11 where Al (A356.2) alloy composite was reinforced with rice husk ash (RHA). From Figure 1, it was observed that the ultimate tensile strength (UTS) of the unreinforced sample (control sample) was higher than sample 2 and equal in value with sample 4. The single reinforced composites (Al/SiC and Al/PBSA) also revealed an improvement in the UTS than the unreinforced sample. Likewise, the UTS of Al/PBSA was higher than Al/SiC. The UTS of the hybrid composites increases with percentage increase in PBSA. However, there was a sudden drop in UTS at sample 4. This may be due to uneven/non uniform distribution of the reinforcement during casting.11 Results of yield strength of Aluminum 6063 single reinforced composites (Al/SiC and PBSA) together with the hybrids composites (Al/SiC/PBSA) is presented in Figure 2. From the results, it was observed that the yield strength of the unreinforced sample (control sample) was higher than samples 1 and 4 while the single reinforced composites (Al/SiC) and Al/PBSA) showed an improvement in the yield strength than the unreinforced sample. Furthermore, it was also seen that the yield strength of Al/PBSA is higher than Al/SiC. The yield strength of the hybrid composites increases as the percentage composition of the PBSA increases.12 There was also a sudden increase in the yield strength at sample 5 which may be attributed to inhomogeneous mixture during casting. The recorded improvement could be due to the increasing number of stress concentration points at the poles of the reinforcing particles. This led to decrease in micro-yielding stress with increase in reinforcement’s contents. Figure 2 is the result of the % Elongation of Aluminum 6063, single reinforced composites (Al/SiC and Al/PBSA) and Aluminum hybrid composites (Al/Sic/PBSA). The results revealed that the single reinforced composites has higher % Elongation than unreinforced sample (control sample). It was observed that the % Elongation increases as the wt. % of PBSA increases. This result contradicted the report of Prasad et al., which stated that the ultimate tensile strength (UTS) and yield strength (YS) of Al/x%SiC/x%RHA (x ranges from 0 – 8W.%) hybrid composite increased with increase in the weight fraction of reinforcements, while the elongation decreased.11 However, the improvement in the % elongation may be attributed to the absence of hard ceramic phase in the composites, which decreases the brittleness of the developed composites.

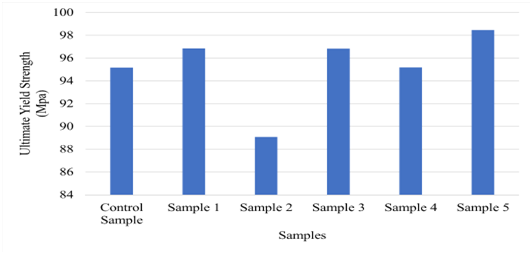

Figure 1 Variation of Ultimate Tensile Strength and % elongation of aluminum 6063, single reinforced composites (Al/SiC and Al/PBSA) and aluminum hybrid composite (Al/SiC/PBSA).

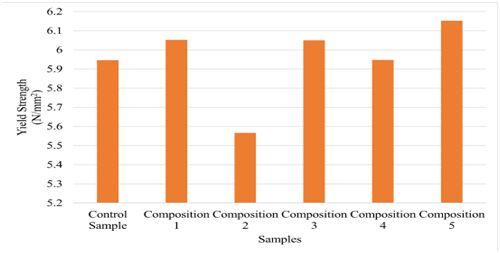

Figure 2 Variation of Yield Strength of aluminum 6063, single reinforced composites (Al/SiC and Al/PBSA) and aluminum hybrid composite (Al/SiC/PBSA).

Samples

Composition

Initial weight (g)

Final weight (g)

Wear loss (g)

Control sample

AL alloy

15.12

14.839

0.281

Sample 1

AL/10 0wt.% SiC

16.706

16.485

0.221

Sample 2

AL/7.5 wt.% SiC/2.5 wt.% PBA

15.974

15.808

0.166

Sample 3

AL/50 wt.% SiC/50 wt.% PBA

14.1

13.986

0.114

Sample 4

AL/2.5wt.% SiC/7.5 wt.% PBA

13.078

13.035

0.093

Sample 5

AL/10 wt.% PBA

14.048

13.963

0.085

Table 2 Wear rate of the aluminum 6063, single reinforced composites (Al/SiC and Al/PBSA) and aluminum hybrid composite (Al/SiC/PBSA)

Table 3 shows the corrosion potentials and corrosion current densities of the Aluminum 6063, single reinforced composites (Al/SiC and Al/PBSA) and Aluminum hybrid composite (Al/SiC/PBA) while Figure 3 presents the potentiodynamic polarization curves for Aluminum 6063 and the developed composites. Figure 3 also presents the corrosion potential (Ecorr) and corrosion current density (Icorr). From the data, it was observed that the corrosion potentials (Ecorr) of the composites decreased with increase in PBSA content up to 7.5wt. % PBSA (samples 2 - 4) and then increased (10wt. % PBSA). But the corrosion current density (Icorr) increases with increase in PBSA content up to 10wt. % PBSA. This implies that, the stability of the composites appears to increase with PBSA content up to 7.5 wt. % (as informed by the decreasing corrosion potentials to more positive values with the PBSA content), the corrosion rates actually decreased (from kinetics point of view and judging from the decreasing corrosion current density values) with the PBSA addition. Further addition of PBSA from 7.5 to 10wt. % (samples 4 and 5) made the composite more susceptible to corrosion by decreasing the corrosion potential below that of other three composites. It also decreased the corrosion current. This means that both from thermodynamics and kinetics considerations, samples 4 and 5 containing 7.5 and 10 wt. % PBSA are more susceptible to corrosion than other composites produced. It should be noted that although increasing PBSA content from 7.5 to 10wt. % (samples 4 and 5) increased the susceptibility of the composites to corrosion, it was however observed that it passivated higher than the other composites with highest passivity region in Figure 3.8

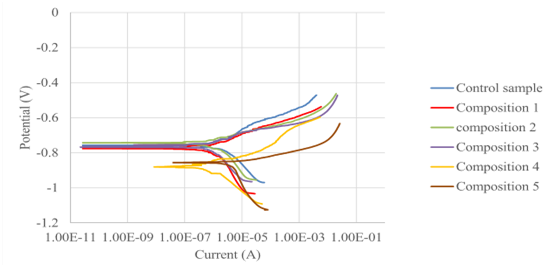

Figure 3 Polarizaion curves of aluminum 6063, single reinforced composites (Al/SiC and Al/PBSA) and aluminum hybrid composite (Al/SiC/PBSA).

Sample

Weight ratio of SiC and PBA

Ecorr (mV)

Icorr (μA)

Control sample

 -

-754.574

-1.704

Sample 1

10:00

-772.613

-0.935332

Sample 2

7.5:2.5

-741.352

-0.615395

Sample 3

5:05

-745.422

-0.347146

Sample 4

2.5:7.5

-889.764

-0.347146

Sample 5

0:10

-866.912

-3.904

Table 3 Corrosion potentials and corrosion current densities of aluminum 6063, single reinforced composites (Al/SiC and Al/PBSA) and aluminum hybrid composite (Al/SiC/PBSA)

Conclusion

The mechanical properties and corrosion behavior of Aluminum 6063 matrix composites containing 0:10, 2.5:7.5, 5:5, 7.5:2.5 and 10: 0wt. % pride of barbardos seed ash (PBSA) and silicon carbide (SiC) as reinforcements was studied. From the results, it was concluded that:

  1. The yield strength, ultimate tensile strength and percentage elongation of the hybrid composites increases with increase in PBSA content while hardness decreased.
  2. According to the electrochemical test, it was observed that the samples 2 and 3 containing PBSA hybrid composites had higher corrosion resistance in comparison to the PBSA hybrid (sample 4) and single reinforced Al/PBSA composites. The hybrid reinforced Al/2.5 wt. % PBSA composite (sample 3) had superior corrosion resistance.
  3. Production of low cost Aluminum matrix hybrid composites using PBSA as a complementing reinforcement shows a great promise for hardness, ductility and wears resistance applications judging from the good hardness, ductility and wear properties exhibited by the hybrid containing 5 and 7.5 wt. % PBSA.

Funding

None.

Acknowledgements

None.

Conflicts of interest

Authors declare that there is no conflict of interest.

References

  1. Surappa MK. Aluminium matrix composites: Challenges and Opportunities. Sadhana. 2003;28(1-2):319‒334.
  2. Boopathi M, Arulshri KP, Iyandurai N. Evaluation of mechanical properties of aluminium alloy 2024 reinforced with silicon carbide and fly ash hybrid metal marix composites. Am J Appl Sci. 2013;10(3):219‒229.
  3. Jaswinder S, Amit C. Characerizaion of hybrid aluminium matrix composites for advanced applications –A review. J mater res technol. 2016;5(2):159‒169.
  4. Miracle DB. Metal matrix composites- from science to technological significance. Compos Sci Technol. 2005;65:526‒540.
  5. Gowri SMC, Jayashree PK, Raviraj S, et al. Individual and Combined Effect of Reinforcements on Stir Cast Aluminium Metal Matrix Composites- A Review. Int J of Curr Eng and Tech. 2013;3(3):1‒13.
  6. Gurcan AB, Baker TN. Wear behavior of Al6061 aluminium alloy and its composites. Wear. 1995;188:185‒191.
  7. Alaneme KK, Ademilua BO, Bodunrin MO. Mechanical properties and corrosion behavior of aluminium hybrid composites reinforced with silicon carbide and bamboo leaf ash. Tribol Ind. 2013;35(1):25‒35.
  8. Alaneme KK, Fatunwase BA, Omotoyinbo JA, et al. Corrosion and wear behavior of stir-cast aluminium-based hybrid composites reinforced with silicon carbide and corn cob ash. Corrosion Institute of Southern Africa. 2015;1(2):1‒8
  9. ASTM G5-94. Standard Reference Test Method for Making Potentiostatic and Potentiodynamic Anode Polarization Measurement. 2011.
  10. Rajmohan T, Palanikumar RS. Evaluation of mechanical and wear properties of hybrid aluminium matrix composites. Trans Non Ferrous Mater Soc China. 2013;23:2509‒2517.
  11. Prasad DS, Shoba C, Ramanaiahet N. Investigations on mechanical properties of aluminum hybrid composites. J Mater Res Technol. 2013;3(1):79‒85.
  12. Chawla N, Shen Y. Mechanical behavior of particle reinforced meal matrix Composites. Adv. Eng. Matter. 2001;3(1):357‒70.
