Abstract

This work presents a systematic study on the influence of the synthesis conditions in nickel ferrite (NiFe2O4) doped polyvinylidene fluoride (PVDF) composites films. The synthesis of nickel ferrite was performed by the Pechini method by different thermal treatments conditions. The NiFe2O4 powders were ccharacterized by X-ray diffraction (XRD) to check the phases and estimate the particle size. Variables such as concentration and particle size of NiFe2O4, time and temperature of solvent removal were controlled during the composites synthesis. The composites samples were prepared by the solid-state solutions method and were characterized by Fourier Transform Infrared Spectroscopy (FT-IR), which were estimated the relative percentages of β phases and the identification of the incorporation of dopant (NiFe2O4) in the polymer matrix (PVDF). In addition to verify the inclusion of NiFe2O4 nanoparticles in the polymer, the samples were microscopic characterized.

Keywords: PVDF, β phase, nickel ferrite, pechini synthesis, nanoparticles

Introduction

The technological development and recent increases of the scientific research are responsible for the production and use of new materials in the manufacturing of technological devices construction.1 In this way polymeric materials such as polycarbonate (PC), polypropylene (PP) and polyethylene terephthalate (PET), polyvinylidene fluoride (PVDF), among others, are progressively replacing the traditional materials used in engineering, such as steel and aluminum, since they have higher corrosion resistance, low price and the possibility of recycling.2–4 Polymers, in general, are substances constituted by large molecules, macromolecules, which, in turn, are formed by repeating units, called monomers, connected by reactions called polymerization.5 The wide use of polymer materials is, mainly, due to its low cost and good mechanical properties due to its molecular mobility, which is influenced by the chemical nature of the macromolecules, the molecular mass, the presence or absence of branching and crosslinking, the degree of crystallinity, the presence or absence of plasticizer, filler, additives, orientation and other aspects related to the thermal history of the particular sample.6 Among the polymers we can highlight the polyvinylidene fluoride (PVDF), which has been extensively studied due to its attractive pyro and piezoelectric properties (when present predominantly in the β phase) as well as its flexibility, excellent processability, chemical stability and mechanical strength.7 It combines the characteristics of a plastic with those of a piezoelectric and pyroelectric element and presents an excellent combination of processability and mechanical strength. This facilitates large-scale production giving it some advantages over conventional ceramic materials.8–10 In this work, we present the result of the influence of doped ferrite on PVDF, analyzing the structural formation of the polymeric matrix.

Materials and methods

Nickel ferrite synthesis

The synthesis of nanoparticles of Nickel Ferrite (NiFe2O4) was based on the Pechini method, which consist of obtaining polyester from citrates. After the synthesis of the citrate solution, a polyalcohol, such as ethyleneglycol, is added to promote polymerization. To perform the synthesis of the nickel ferrite, 30.06g of citric acid (C6H8O7) was solubilized in 120ml of ethanol (C2H8O) under stirring at room temperature. The precursors were added to the solution, with the 3.87grams nickel chloride II being hexahydrate (NiCl2 6H2O) and the 9.29grams iron nitrate III nanohydrate (Fe(NO3)3 9H2O). For the best solubilization of the precursors 4 drops of nitric acid (HNO3) were added until the solution became slightly acidic, at approximately pH=6. The solution was stirred at 70 ºC for 20 minutes. To this solution was added 17.5ml of ethyleneglycol (C2H6(OH)2). Until its saturation, at approximately 80ºC, when the gel is formed. The calcining of the gel occurred after 4 hours at a temperature of 380 ºC. After calcining, thermal treatment was done at different temperatures (400ºC, 500ºC, 600ºC and 700ºC), for 4 hours. The NiFe2O4 were structural analyzed by X-Ray Diffraction (XRD), and its particle size were also estimated.

Formation of polymer composites

Nickel-ferrite PVDF composites were synthesized from the PVDF dissolved in N,N- Dimethylformamide (DMF) under slow stirring at the rate of 40mg of PVDF/ml of DMF. Doping was performed from 4.0mg, 8.0mg and 12.0mg of NiFe2O4/ml of DMF. After homogenization of both solutions, they were mixed at constant agitation (Biomixer, QL 901) for 2 minutes at room temperature. The final solutions were dried at different controlled temperatures and times. The PVDF composites were characterized by the techniques of X-ray diffraction (XRD), Fourier transform infrared spectroscopy (FT-IR) and Optical microscopy (OM).

Experimental techniques

For X-ray diffraction measurements was used XRD - 7000, in the range of 20 to 60 degrees with steps of 2 degrees per minutes at room temperature. The particle size were estimated using the Debye-Scherrer equation,11 assuming a spherical form of the NiFe2O4 nanocrystals. The width of the diffraction peak is given by the convolution of a family peak considering also instrumental parameters to this process.12 The FT-IR spectra were obtained at the Jasco FT-IR- 4100, at room temperature, directly in the films. For these analyzes, were used measurements of 128 cycles with resolution of 2.0cm-1 in the region of 4000 to 400cm-1. This technique was also used to evaluate the incorporation of the dopants in the polymer matrix and the structural changes caused by the addition of dopants in the polymer film, besides quantifying the β phase relation in the film.13 Optical microscopy measurements were performed at room temperature using an Opton optical microscope, model Tim 108. The area corresponding to polymer and nickel ferrite in each film were estimated using the Image Pro Plus (version 6.0). The porosity was expressed by the values of the relative area of the pores on the surface of the film.14

Results and discussion

Characterization of nickel ferrite

Figure 1 shows the X-ray diffraction patterns of a-400ºC; b-600ºC and c-700ºC thermal treated NiFe2O4, respectively. In all patterns the characteristic peaks of the crystallography plane of the spinel phase of NiFe2O4 are observed, in approximately in 30º, 35º, 37º, 43º, 53º and 57º, referring to the crystallographic planes (220), (311), (222), (400), (422) and (511), respectively. The most intense peak relative to the plane (311) is characteristic of the inverse spinel structure (JCPDS 10-0325). As the thermal treatment temperature increases peaks of NiFe2O3 becomes more tight and intense evident, revealing a better crystallization of the sample. Also, as small amount of spurious phase of iron trioxide (Fe2O3), (JCPDS 01-089-0598) was observed in all samples. The presence of iron trioxide shows the temperature during the calcining process was not enough to favor ferrite formation.15-18 The Scherrer equation was used to estimate the crystalline size of the ferrite particles. The results are shown in Table 1. The samples have crystalline size directly proportional to the thermal treatment temperature, since the thermal energy favors the growth of the grains.18

Figure 1 X-ray diffraction NiFe2O4 at different temperatures of thermal treatment.

Thermal treatment

Estimated particle size

400ºC

24 nm

600ºC

26 nm

700ºC

27 nm

Table 1 The average particle size as a function of the heat treatment temperature, estimated using the Scherrer equation

Structural characterization of PVDF

PVDF polymers have different crystalline forms, among them the alpha (α), beta (β), gamma (γ) and delta (δ) forms can be identified and even quantified by Fourier Transform by Infrared (FT-IR). Figure 2 shows the spectrum of the pure PVDF obtained by dissolving the PVDF powder in DMF, drying at 50 ºC for 6 hours. Figure 2 shows the absorption bands characteristic of the crystalline phase α at 1182, 975,795, 612 and cm-1 and the absorption attributed to the β phase at 1401, 1064, 879 and 840 cm-1. In the bands corresponding to the amorphous part of the PVDF (600 and 880 cm-1) small peaks are observed, since they are overlapped by the 612 cm-1 (α) and 879 cm-1(β) bands. The characteristic phase γ was not observed in the absorption region, however, the band observed at 840 cm-1 is common for both the β phase and the γ phase. The absorption attributed to the δ phase were not observed.19-23 To observe the relationship between formation of the β phase and the synthesis parameters, the intensity of peaks around 763 and 840 cm-1 of the FTIR spectra were used to evaluate the relative amount of β phase, according to the reference protocol.13 In Figure 3, the influence of drying time at constant temperature of 50ºC was clearly observed. The highest formation of the β phase was 86 % with drying time of 16 hours and the lower formation of the β phase was 70 % with the drying time of 23 hours. The drying of 6 hours and 10 hours remained as intermediates. So, 16 hours of drying time at 50ºC can be used as default for this system.

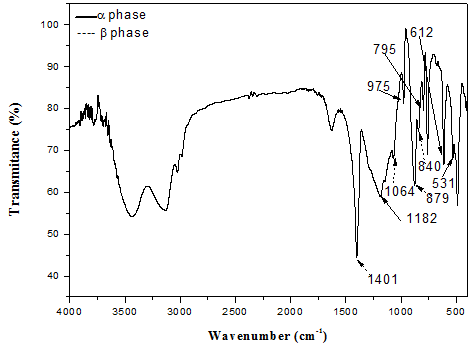

Figure 2 FTIR spectra of pure PVDF samples.

Figure 3 Fraction of β phase in pure PVDF films as a function of drying times at temperature of 50ºC.

Characterization of composites

Regarding the percentage of β phase in nickel ferrite doped samples Figure 4 shows the amount of β phase as a function of estimated ferrite particle size for different weight % of nickel ferrite added in PVDF polymers. The higher amounts of β phase (higher than 90%) are observed for the smaller sizes of doping particles, regardless the amount of ferrite added. The amount of dopant added only have significant influences for higher particles sizes (higher than 27 nm). From microscope images of composites the two phases can e identified: nickel ferrite (darker phase) and PVDF (lighter phase), as shown in Figure 5 for the composite doped with 24nm NiFe2O4 particles. The images shown a small porosity of the films, in resulting in formation of magnetoelectric composites with higher interaction between polymer and nickel ferrite.15 Also is possible to see the formation of spherical particles of PVDF, as predictable.

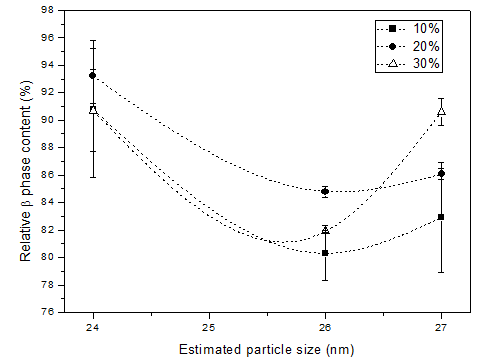

Figure 4 Fraction of β phase in PVDF composites as a function of doping particle sizes for different. concentrations of dopants.

Figure 5 Images from optical microscope of Nickel Ferrite doped PVDF composites a) 10wt.% b) 20wt.% c) 30wt.% of NiFe2O4.

Conclusion

The experimental results of the X-ray diffraction of NiFe2O4, shown a high crystallinity of the samples even for low temperatures of thermal treatment, and also a nanometric size of the particles. From FTIR characterization it was possible to detect separately the α as well as β phases of the polymer. Using the intensities of the absorbance peaks the relative amount of those crystalline phases are evaluated. It was observed the drying time favoring the majority formation of the α phase. Looking to the composites, it was verified that smaller size of dopant, increases the amount of β phase even for higher concentration of then. And as the dopant particle sizes increases the amount of dopant into the composite have significat influences on the crystalline phase formation.

Acknowledgments

The author would like to thanks CAPES, CNPq and FUNDECT for the for the financial support for conducting the research.

Conflicts of interest

The author declares that there is no conflict of interest.

References

  1. Sanchis MR, Calvo O, Garcia D, et al. Characterization of the surface changes and the aging effects of low‐pressure nitrogen plasma treatment in a polyurethane film. Polymer Testing. 2008;27:75–83.
  2. Bhowmik S, Jana P, Chaki TK, et al. Surface modification of PP under different electrodes of DC glow discharge and its physicochemical characteristics. Surface and Coatings Technolog. 2004;185:81–91.
  3. Li WT, Charters RB, Luther-Davies B, et al. Significant improvement of adhesion between gold thin films and a polymer. Applied Surface Science. 2004;233:227–233.
  4. Friedman M, Gerard Walsh. High performance films: Review of new materials and trends. Polymer Engineering & Science. 2002;42:1756–1788.
  5. Quirino WG, Sousa, Baptista L, et al. Fotodegradação de compostos orgânicos utilizados na fabricação de Oleds. Revista Brasileira de Aplicações de Vácuo. 2006;25:1–4.
  6. Rudin A. The Elements of Polymer Science and Engineering – An Introductory text for Engineers and Chemists. London. Academic Press; 1982:1–7.
  7. Nalwa HS. Macromolecular Chemistry and Physics. Journal of Macromolecular ScienceReviews. 1991;13:341.
  8. Glass AM. Pyroelectric properties of polyvinylidene fluorride and its use for infrared detection. Journal of Applied Physics New York. 1971;42(2):5219–5222.
  9. Davies GT. Electric-field-induced phase changes in poly(vinylidene fluoride). Jornal of Apllied Physics. 1978;40:4992.
  10. Tashiro T. Crystal Structure and Phase Transition of PVDF and related copolymers. Ferroelectric polymers – Chemistry, Physics and Applications. Marcel Dekker, New York. 1995.
  11. AZ´Aroff LV. The Powder Method in X-Ray Crystallography. McGraw-Hill Book Company; 1958.
  12. Alexander L, Klug HP. Determination of Crystallite size with the X-Ray Spectometer. Journal of Applied Physics. 1950;21:137.
  13. Salimi A, Yousefi AA. Analysis Method: FTIR studies of β-phase crystal formation in stretched PVDF films. Polymer Testing. 2003;22:699–704.
  14. Kestenbach HJ, Nocite, Nádia CPS, et al. Resolução Lamelar num Novo Microscópio Eletrônico de Varredura. Polímeros: Ciência e Tecnologia. 1997;1:58–66.
  15. Shuhua Qi, Yang Y, Qin Y, et al. Effect of rare earth substitution on the composite prepared by nickel ferrite with graphite nanosheet. Journal of Magnetism and Magnetic Materials. 2013;329:77–83.
  16. Gunjakar JL, More AM, Gurav KV, et al. Chemical synthesis of spinel nickel ferrite (NiFe2O4) nano-sheets. Applied Surface Science. 2008;254:5844–5848.
  17. Li X, Wei YJ, Ehrenberg H, et al. X-ray diffraction and Raman scattering stundies of Li+/e-- extracted inverse spinel LiNiVO4. Journal of Alloys and Compounds. 2009; 471:26–28.
  18. Dhiraj KR, Suresh KS, Shovan KK, et al. Electrical and room temperature multiferroic properties of polyvinylidene fluoride nanocomposites doped with nickel ferrite nanoparticles. New J Chem. 2019;43:3128–3138.
  19. Gregorio RJR, Cestari M. Effect of crystallization temperature on the crystalline phase content and morphology of poly(vinylidene fluoride). Journal of Materials Science: Part B: Polymer Physic. 1994;32:859.
  20. Lovinger AJ. Ferroelectric polymers. Science. 1983;220:1115.
  21. Shigeyoshi O, Kotaka T. Electrical properties of form III poly(vinylidene fluorede). Ferroeletrics. 1981;32:1–11.
  22. Imamura R, Silva AB, Gregorio Ji. γ → β Phase transformation induced in poly(vinylidene fluoride) by stretching. Journal of Applied Polymer Science. 2008;110:3242–3246.
  23. Chinaglia DL, Rinaldo Gregorio, Josiani Cristina Stefanello, et al. Influence of the Solvent Evaporation Rate on the Crystalline Phases of Solution-C ast Poly(Vinylidene Fluoride) Films. Journal of Applied Polymer Science. 2010;116:785–791.
