In this work, Aleppey finger turmeric rhizomes are collected from the Spices Board distribution center Kozhikode, Kerala and are planted in the five selected villages of central Kerala having different climatic conditions. Similar manuaring conditions are employed. After harvesting the collected rhizomes are dried under similar conditions and methods. All samples are extracted using solvents Acetone, Ethyl Acetate and Methanol using Soxhlet extraction. The moisture content of all the samples is determined using Dean-Stark apparatus and are compared. The colour value is determined using UV spectrophotometer. The yield and color values are compared. The total curcumin content and the percentages of Curcumin, Dimethoxy curcumin and Bisdemethoxy curcumin are determined using HPLC (High pressure liquid chromatography) and are compared.

Keywords: spectrophotometer, curcumin, physiological, flavor, antimicrobial effect, turmeric fingers, yellow colour

Spices are a group of esoteric food adjuncts, which have been in use for thousands of years. Some of the spices are also known to possess several medicinal properties¹ and are effectively used in the indigenous systems of medicine. The physiological effects of spices in most instances have been attributed to the main spice active principles present in them. Among the physiological influences the spices are documented to exhibit, their hypolipidemic and antioxidant properties have far-reaching health implications.² Turmeric is a perennial herb having 60 to 90cm height and it belongs to the family Zingebereceae and genus Curcuma. Curcuma has 42 species of which Curcuma longa is commercially cultivated.³ Turmeric is grown for its essential oil and yellow colour. Essential oil (turmerol) imparts aroma and flavour, whereas the yellow colour is due to curcumin. Turmeric has been prized as a dye for centuries.⁴ Total production of turmeric in India was 3, 03166 metric tonnes during 2004-2005.⁵ Turmeric (Curcuma longa L.) belongs to the Zingiberacea family reported to possess numerous medicinal properties including antioxidant activity, anti-protozoal activity, anti-tumour activity, anti-inflammatory activity and antivenom activity.^6–10 Due to the presence of curcumin as an active constituent and the volatile oils turmeric is widely used as a medicine for the treatment of many ailments. It is vastly used as an anti-inflammatory agent.¹¹ And hence also shows antioxidant property which is even better than the vitamin and E.¹² The rhizome extract had been studied for its anticancer activity. The other activities shown are antimicrobial effect (against bacteria, fungi).¹³ Turmeric lowers the cholesterol level and inhibits platelet aggregation and hence shows cardiovascular effects.¹⁴ Turmeric has also proven to be effective for the brain conditions like Alzheimer’s and therefore India could be considered to be resistant or having less percent of Alzheimer’s patients.¹⁵ In the present work Aleppey finger turmeric rhizomes are collected from the Spices Board distribution center Kozhikode, Kerala and are planted in the five selected villages of central Kerala having different climatic conditions. The soil samples are analyzed and the various soil parameters are compared. Then, effect of climate on curcumin content and its color values are studied in detail.

Aleppey turmeric fingers are collected from the spices board Kozhikode. Turmeric fingers are planted in all the five selected villages by the flat bed method. (Sample1: From Aikkaranadu village of Kunnathunadu taluk, Sample 2: From Valakam village of Muvattupuzha taluk, Sample 3 : From Mannamkandam village of Devikulam taluk, Sample 4 : From Konnathady village of Idukki taluk, Sample 5: From Thekkoy village of Meenachil taluk). Immediately after planting mulching finished. Mulch is a cover to the soil surface. Mulching was done by coconut leaves, jack tree leaves, plant residues etc. The effect of mulch is complex. Reduction in soil water loss occurs not only because the mulch acts as barrier preventing loss, but also because the soil radiation balance and its thermal regime are usually altered, thus influencing the evaporation rate at the surface. The soils are frequently irrigated and the weeds are removed by hand by plucking. Cow dung and wood ash are used as the additional manures. Harvesting from all the cultivated areas was done. Before harvesting the soil is first loosened with a small digger, and clumps are manually lifted. Rhizomes are cleaned by soaking in water. Curing and drying of Turmeric Rhizomes:-Turmeric rhizomes are cured before drying. Curing involves boiling fresh rhizomes in water until soft before drying. Boiling destroys the vitality of fresh rhizomes, reduces drying time and yields a uniformly colored product.¹⁶ Turmeric rhizomes collected from all the five places are separately boiled in copper vessels with water just enough to soak them and is according to the traditional method. Boiling is stopped when froth comes out, with release of white fumes having typical turmeric aroma. The cooking lasts for about 40 minutes. Then the rhizome’s are tested by pressing with fingers. Optimum cooking is attained when the rhizome’s yields to finger pressure and can be perforated by a blunt piece of wood. The cooked rhizomes are allowed to cool gradually and spread out to dry in the open in 5-6 cm thick layers on uncoated plain bamboo mats. The rhizomes from all the five places are dried separately. The rhizomes are turned over intermittently to ensure uniformity in drying. During night time they are heaped and are covered with plastic sheet. It takes twelve days for the rhizomes to become completely dry.

Figure 1 Isolation of oleoresin by distillation method.

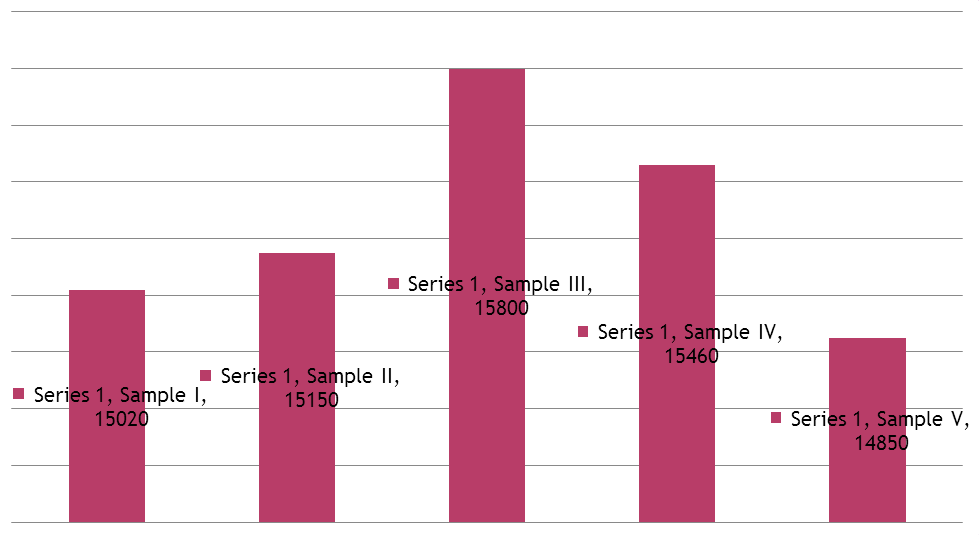

Figure 2 Curcumin colour values of the various samples.

Characterization

The following quantitative and qualitative analysis are carried out using dried turmeric rhizomes collected from various villages:

1. Sample Preparation: Dried turmeric rhizomes are powdered in a mixer grinder without undergoing excessive heating. The sample is then mixed well for 3-5 minutes until the sample is uniform.
2. Determination of Moisture Content of Turmeric Samples by Dean- Stark Method: 10g of sample is accurately weighed out in to a 250ml standard flask.

Add 75ml of toluene sufficient to cover the sample and add 3-4 boiling chips into it. Assemble the apparatus and fill the trap with toluene by pouring it through the condenser until it just fills the trap. Insert a non-absorbing cotton wool into the top of the condenser to prevent condensation of atmospheric moisture in the condenser. Give water connection through the condenser. Heat to boil and reflux at the rate of 2 drops per second for about 1 hour until all the water has been collected in the trap. Towards the last stage the rate of drops increased to four drops per seconds. Stop heating and rinse the condenser carefully with 5ml of toluene. Continue refluxing for 5 minutes, stop heating, allow the trap to cool to room temperature and note the volume of water.¹⁷

Moisture % = Volume of water in ml X100 / Weight of sample in g

Extraction of turmeric oleoresin

About 10g of the sample is taken in the extraction thimble containing a piece of cotton at the bottom. It is then placed in the inner tube of the Soxhlet apparatus. The apparatus is then fitted to a 250ml round bottom flask containing about 150ml methanol and boiling chips, and to a reflux condenser. The assembly is then placed in a heating mantle and started heating. Reflux continuously for 6hours. When the methanol starts boiling, the vapors’ rises through the left side arm into the condenser where it liquefies. The condensed solvent drips into the thimble. The hot solvent begins to fill the thimble and extracts the oleoresin from the sample. Once the thimble is filled with solvent, the side arm on the right acts as a siphon and the solvent which now contains the oleoresin drains back into the round bottom flask. The process is repeated automatically for 6 hours continuously. The extraction is also carried out using solvents Ethyl Acetate and Acetone.¹⁸

Isolation of oleoresin by distillation method

The round bottom flask containing the solvent along with the extracted oleoresin is attached to a condenser. The whole assembly is then placed in a heating mantle and started heating. The solvent starts boiling and the vapor’s begin to rise through the neck of the round bottom flask. As the vapors pass through the condenser, they will condense and drip into the collection receiver. The process is continued until almost all the solvent is removed from the oleoresin mixture. Then the remaining mixture is quantitatively transferred to a previously weighed petridish. It is then placed a hot air oven until all the solvent is vaporized. It is then again weighed. The difference weight gives the yield of oleoresin extract.¹⁹ Determination of the colour value of the Turmeric

Colour value of turmeric is determined by spectrophotometric method (IS :10925: 1984).Weigh accurately 0.1 g of turmeric powder in to a small beaker. Transfer in to a 100ml standard flask and made up to the mark with 95% ethyl alcohol. Pipette 10ml of the solution into another 100ml flask and made up with ethyl alcohol. Measure the absorbance of the extract at 425nm in 1cm cells against ethyl alcohol blank.²⁰

Colour value = absorbance x 1000

Crystallization of curcumin

50 ml of turmeric sample are extracted with 250ml of ethyl acetate in a column. Solvent is distilled off. Then again washed with little ethyl acetate. Concentrate the solution and kept for 3 days. Curcuminoids crystallizes. Filtered using vacuum pump. Washed with little solvent. Dried in an air oven. It is repeated for all the samples.²¹

Determination of colour value of curcumin

0.05g of curcumin is accurately transferred in to a 100ml stand flask. Made up to a 100ml stand flask. Made up to the mark using ethyl alcohol. From the solution 1ml is pippeted out and transferred to a 100ml standard flask. Again made up using ethyl alcohol. The absorbance of the solution is determined at 425nm using alcohol blank in a spectrophotometer.

Determination of curcumin content in turmeric samples

The curcumin content in turmeric samples are determined spectrophotometrically (ASTA method, ASTA 4^th M 18.0). Accurately 1gm of the sample is dissolved in 100ml acetone. Reflux in a water condenser for 1 hour. Cool and transferred quantitatively to a 200ml flask and made up to the mark.1ml of this solution is pipette out in to a 100ml flask and made up to the mark. The absorbance is then measured at 425nm.

% of curcumin content = 200 x absorbance x100/wt. of sample x1650

Determination of colour values of turmeric oleoresin spectrophotometrically

Weigh accurately 0.1 g of the turmeric oleoresin sample prepared into a small beaker transfer into a 100 ml volumetric flask with 95% ethyl alcohol. Made up to the mark. Pipette 10 ml of this solution into another 100 ml volumetric flask. Made up to the mark with 95% ethanol. Measure the absorbance of the extract at 425 nm in 1 cm cells against alcohol blank.

Colour value of turmeric oleoresin = absorbance x 1000

Estimation of curcuminoids by HPLC (high pressure liquid chromatography)

The HPLC analysis was carried at Neogen Food and Animal Security (India) Private limited Ltd, Ernakulam. The HPLC analysis was performed using model Agilent 1260 with the UV detector. A CAPCELL (C-18) HPLC packed column (4.6mm I.D. x250mm), type MG 5µm number AKAD/05245 was used for chromatographic separations. The mobile phase consist of acetonitrile and a buffer 0.05M KH₂PO₄ in the ratio 60:40 .The pH is 7. The separation was performed using isocratic elution (0-10 min) with a flow rate of 0.8 ml/min and the column temperature is 30⁰C.Tge injection volume was 20µl. UV detection was carried out at 424nm. Standard curcumin was obtained from sigma chemicals Germany. All other chemicals and reagents used were from E-Merck and of analytical grade.

The Soil collected from various villages are analyzed for pH, salinity, moisture content, carbonates and bicarbonates, calcium and magnesium, organic carbon, nitrogen, phosphorous and potassium content. The data obtained are given below. The pH of the soil is highest in Kunnackal village and lowest in Aikkaranadu village. The soil collected from Aikkaranadu village has high moisture content and is lowest in the soil collected from Thekkoy village. The calcium and magnesium contents are highest in Kunnackal village and is lowest in Thekkoy Village. The percentage of organic carbon is highest in Konnathady village and lowest in the soil collected from Mannamkandam village. The nitrogen content is almost same in all the villages, but a little bit high in Konnathady village. The available Phosphorus content is highest in the soil collected from Thekkoy village. Potassium content is highest in the soil collected from Aikkaranadu village .Of the above villages Mannamkandam and Konnathady are having the average temperature less than 25⁰C and are situated in the Western Ghats. Both the places are above 2000mts above sea level. The soil parameters have only little effect on the colour and curcumin content of turmeric. It may affect the yield of turmeric. The colour values of turmeric cultivated in Mannamkandam and Konnathady villages are higher. The amount of demethoxy and bisdemethoxy curcumins are also higher in the samples collected from these villages. The colour value of curcuminoids are also higher in the samples from these places. The low temperature and higher altitude in these regions may affect the colour value and the composition of curcuminoids.^22–24

The soil parameters have only little effect on the colour and curcumin content of turmeric. It may affect the yield of turmeric. The colour values of turmeric cultivated in Mannamkandam and Konnathady villages are higher. The amount of demethoxy and bisdemethoxy curcumins are also higher in the samples collected from these villages. The colour value of curcuminoids are also higher in the samples from these places. The low temperature and higher altitude in these regions may affect the colour value and the composition of curcuminoids. The yield of the oleoresin will be higher for the sample collected from Mannamkandam village and then from the sample from Konnathady village. Yield will be higher when the extraction is carried out using methanol as solvent. But the colour value of the oleoresin is higher when acetone is used as the solvent. The conclusion is that, those regions of higher ranges in Kerala were the average temperature is between 20-25 ⁰C is an ideal area for turmeric with good colour value.

None.

Authors declared that there is no conflict of interest.

1. Chandra D, Gupta SS. Anti-inflammatory and anti-arthritic activity of volatile oil of Curcuma longa (Haldi). Indian J Med Res. 1972;60:138–142.
2.  Arora RB, Kapoor V, Basu N, et al. Anti-inflammatory studies on Curcuma longa (turmeric). Indian J Med Res. 1971;59:1289–1295.
3.  Mukhopadhyay A, Basu N, Ghatak N, et al. Anti-inflammatory and irritant activities of curcumin analogues in rats. Agents Actions. 1982;12:508–515.
4. Chainani-Wu N. Safety and anti-inflammatory activity of curcumin: a component of tumeric (Curcuma longa). J Altern Complement Med. 2003;9:161–168.
5. Toda S, Miyase T, Arichi H, et al. Natural antioxidants. III. Antioxidative components isolated from rhizome of Curcuma longa L. Chem Pharm Bull (Tokyo). 1985;33:1725–1728.
6.  Singh G, Sharma S, Choudhary N, et al. Evaluation of radioprotective properties of Curcuma longa rhizome extract: A cytogenetic analysis in cancer. Pharmacognosy Communications. 2012;2:2.
7. Lutomski J, Kedzia B, Debska. Effect of an alcohol extract and of active ingredients from Curcuma longa on bacteria and fungi (author's transl)]. Planta Med. 1974;26:9–19.
8.  Negi PS, Jayaprakasha GK, Jagan Mohan Rao L, et al. Antibacterial activity of turmeric oil: a byproduct from curcumin manufacture. J Agric Food Chem. 1999;47:4297–4300.
9. Ramírez-Tortosa MC, Mesa MD, Aguilera MC, et at. Oral administration of a turmeric extract inhibits oxidation and has hypocholesterolemic effects in rabbits with experimental atherosclerosis. Atherosclerosis. 1999;147:371–378.
10. Srivastava R, Puri V, Srimal RC, et al. Effect of curcumin on platelet aggregation and vascular prostacyclin synthesis. Arzneimittelforschung. 1986;36:715–717.
11.  Lim GP, Chu T, Yang F, et al. The curry spice curcumin reduces oxidative damage and amyloid pathology in an Alzheimer transgenic mouse. J Neurosci. 2001;21:8370–8377.
12. Travis J. A spice takes on Alzheimer's disease. Science News 160:362. Verghese, J. 1993. Isolation of curcumin from Curcuma longa L. rhizome. Flavour and Fragrance Journal. 2001;8:315–319.
13. Nadkarni KM, Nadkarni AK. Indian Material Medica, 3rd edn. Bombay: Popular Prakashan Ltd; 1976;386–411.
14. Anon. Spice Statistics, Spice Board, Department of Commerce, Ministry of Commerce and Industry; 2005.
15. Kannan S. Quality improvement of turmeric. Kochi. 1991:4–5.
16. Pulla Reddy ACH, Lokesh BR. Studies on spice principles as antioxidants in the inhibition of lipid peroxidation of rat liver microsomes. Molecular and Cellular Biochemistry. 1992;111:117–124.
17.  Araujo CA, Alegrio LV, Gomes DC, et al. Studies on the effectiveness of diarylheptanoids derivatives against Leishmania amazonensis. Memorias do Instituto Oswaldo Cruz. 1999;94:791–794.
18. Huang MT, Smart RC, Wong CQ, et al. Inhibitory effects of curcumin, chlorogenic acid, caffeic acid and ferulic acid on tumor promotion in mouse skin by 12-O-tetradecanoyl phorbol 13-acetate. Cancer Research. 1998;48:5941–5946.
19. Arora RB, Basu N, Kapoor V, et al. Antiinflammatory studies on Curcuma longa. Indian Journal of Medical Research. 1971.
20. Ferreira LAF, Henriques OB, Andreoni AAS, et al. Antivenom and biological effects of ar-turmerone isolated from Curcuma longa (Zingiberaceae). Toxicon. 1992;30:1211–1218.
21. Ferreira D, Guyot S, Marnet N, et al. Composition of phenolics compounds in Portuguese pear and changes after sun-drying. Journal of Agricultural and Food Chemistry. 2000;50:4537–4544.
22. Chattopadhyay I, Biswas K, Ranjith KB. Turmeric and curcumin: biological actions and medicinal applications. Current Science. 2004;87:44–53.
23. Hong Li, Hari Prasad, Devkotad Valeria Pittalà, et al. Curcumin, the golden spice in treating cardiovascular diseases. Biotechnology Advances. 2020;38:107343.
24. Jun Wan Sh, Young-Joon Surh. Curcumin induces stabilization of Nrf2 protein through Keap1 cysteine modification. Biochemical phar macology. 2020;173:113820.
