Effect of CuO solid particles on thermal behavior of multilayer epoxy- based glass fiber composite

Md Shahinoor Alam

Department of Mechanical Engineering, Dhaka University of Engineering and Technology, Bangladesh

Correspondence: Md Shahinoor Alam, PhD Research Student, Department of Mechanical Engineering, Dhaka University of Engineering and Technology, Gazipur-1707, Bangladesh, Tel 029204613 -21

Received: February 28, 2021 | Published: March 24, 2021

Citation: Alam MS. Effect of CuO solid particles on thermal behavior of multilayer epoxy- based glass fiber composite. Material Sci & Eng. 2021;5(2):33-38. DOI: 10.15406/mseij.2021.05.00153

Download PDF

Abstract

In this research work, two types of composites’ specimens are prepared by using CaCO3, Al2O3, MgO, TiO2 and CuO as functional fillers with epoxy as matrix and glass fiber as reinforcement. Initially three composite specimens are fabricated where TiO2 particle of varying wt (4gm, 8gm, 12gm) is used with fixed wt of epoxy and glass fiber (120gm and12gm, 212gm). Similarly another three composites’ specimens are prepared where CuO is used instead of TiO2. In both the cases equal manual compression pressure is used. Thermogravimetric analysis (TGA) and scanning electronic microcopy (SEM) analysis of the prepared specimens are done with the help of calorimetric and Mountains®8 software respectively. Due to addition of TiO2 and CuO it is observed that the melting temperature (Tm) and glass transition temperature (Tg) are elevated which indicate degree of composite crystallinity established by the strong interfacial interactions of CuO than that of TiO2 particles and the amorphous region of the chain. As a result thermal stability of the composites prepared with CuO is enhanced over TiO2. Particle scanning of the composites by Mountains®8 software analysis shows that with increasing projection area and mean diameter of functional filler particles, surface outlines of the composites are smoothen which has positive correlation with CuO particles in the composites.

Keywords: composite, glass fiber, epoxy, thermal behavior, tga, fillers

Introduction

Due to design flexibility and improved thermal stability, composites have already occupied a strong position in modern industries. Tremendous work has been done for the thermosetting polymers1–4 and their composites5–7 over the decades. Epoxy resins are one of the highly used polymer matrices for their versatile applications in the engineering field.8–10 Thermal characteristics of polymer composites have got significances in structural design and applications like dimensional solidity and material nature at high temperature, load bearing capacity at certain temperature, end to end temperature transformation etc.11 Many researchers have studied the influencing factors of composites' properties12–14 and lot of modifications have been done on it to improve the thermal behavior in industrial applications. Micro and nano particle filer materials are now being used in epoxy matrix to manufacture composites with intended characteristics and enhanced performance. Due to addition of filler particles in it heat deflection temperature of epoxy is increased as well.15 Latent heat storage capacity of phase change material (PCM) composites with support material remains consistent but variation in loading is observed due to particle shape, size micro structure and molecular interaction between PCM and support material.16 Kinetic parameters of thermal decomposition can be interpreted to reduce chemical process in thermal analysis and are mainly used to find out material composition and to foresee thermal stability of composites.17 In the initial condition without modifier polymer will have limited utilization due to their thermal decomposition and low shear stress which can be enhanced by adding functional fillers with matrix.18 In composite manufacturing, it is very much essential to measure the melting and glass transition temperature of the material to ensure its proper environment for usages without any effect on it. Thermo plastics are used to increase the toughness of thermosetting resins for their high glass transition temperature.19–21 Thermogravemetric analysis (TGA) is an important thermal analysis technique which has a wide application in polymer materials' characterization.22 Through thermal analysis, properties of polymeric materials are found out as a function of temperature.

An epoxy based glass fiber composite when modified with CuO functional filler develop less thermal stress and high glass transition temperature in it resulting improved mechanical properties (impact strength: 957.008 J/m, tensile strength: 141.870 N/mm2 and flexural strength: 214.683 N/mm2).23 Composites fabricated in a sandwitch form with the help of carbon fiber and polyvinyl chloride demonstrate weak strength and enhanced susceptibility to damage when experience huge penetration from a source in an aggressive environment (-700C).24 Unstitched composites of carbon fiber reinforced polymer woven laminates experience considerable delamination and fiber damage when impacted by 6.7 J/mm in an extreme temperature (-700C ). On the other hand, stitched composites of polyimide laminates (T650-35) demonstrate similar pattern detrimental effect when impacted by 13.4 J/mm at 23 and -700C.25 The principal potential benefits of exploiting modified composites from the similar nature of fiber are to change the thermal, mechanical and physical properties to suit end use application. Therefore, the modification of the polymer matrix is essential to use it for intended purposes. Changing properties of the base materials by reinforcing fillers to the polymer matrix is very populous.26 Filler materials addition in epoxy resigns reduces the cost and improves the thermal properties of it significantly.27,28 Against this background, the aim of this research work is to investigate the influence of CuO particle on thermal behavior of multilayer epoxy based glass fiber composites modified with CaCO3, Al2O3, MgO and TiO2 or CuO.

Experimental

Composite preparation

By using hand lay-up technique initially three composite specimens are prepared with components weight as mentioned in Table 1 & Figure 1. Similarly another three composite specimens are prepared taking components’ weight as mentioned in Table 2. In the experiment 2 CuO is used instead of TiO2 which is used in earlier case (experiment 1). Light compression pressure of similar load is applied in both the cases to fabricate the required composites.

Specimen name

Fiber slabs arrangement

Components wt

Matrix material wt (gm)

Fiber glass wt (gm)

Filler particle wt (gm)

Epoxy (LY556)

Araldite (HY951)

CaCO3

Al2O3

MgO

TiO2

Total

S1

G/ G/ G/ G/ G

120

12

212

4

4

4

4

16

S2

G/ G/ G/ G/ G

120

12

212

8

8

8

8

32

S3

G/ G/ G/ G/ G

120

12

212

12

12

12

12

48

Table 1 Components weight in experiment-1

Specimen name

Fiber slabs arrangement

Components wt

Matrix Wt (gm)

Fiber glass wt (gm)

Filler particle wt (gm)

Epoxy (LY556)

Araldite (HY951)

CaCO3

Al2O3

MgO

CuO

Total

S4

G/ G/ G/ G/ G

120

12

212

4

4

4

4

16

S5

G/ G/ G/ G/ G

120

12

212

8

8

8

8

32

S6

G/ G/ G/ G/ G

120

12

212

12

12

12

12

48

Table 2 Components weight in experiment-2

Figure 1 Preparation process of sample composites.

Test procedure

Thermal gravimetric (TG) test: In purging nitrogen of TGA instrument (SDT650 serial No 0650-0180), thermogravematric analysis is done within temperature range from 50ºC to 1000ºC at a heating rate of 5ºC per minute. Thereafter, the samples concerning differential scanning calorimetric (DSC) and thermo gravimetric (TG) measurements acquired from a trial specimen for measuring heat deflection temperature (HDT) by getting it cut at a perpendicular direction from the glass mat. 25–45mg weighing sample is taken for all the specimens in each case of TGA. From thermal reaction in the instrument, the analytical data of heat flow or weight loss in percentage is plotted along y-axis against temperature along x-axis in °C. These are known as DSC and TGA curves respectively and are used for differential thermal analysis and required interpretations.

Scanning electron microscopy (SEM) test: The electronic microscopic images of fabricated composites are taken with the help of SEM machine of model Hitachi SU-1510 by preparing specimens according to ASTM standard D 5299. These micrographs are analyzed using Mountains®8 software to observe surface morphology of the prepared composites (Figure 2).

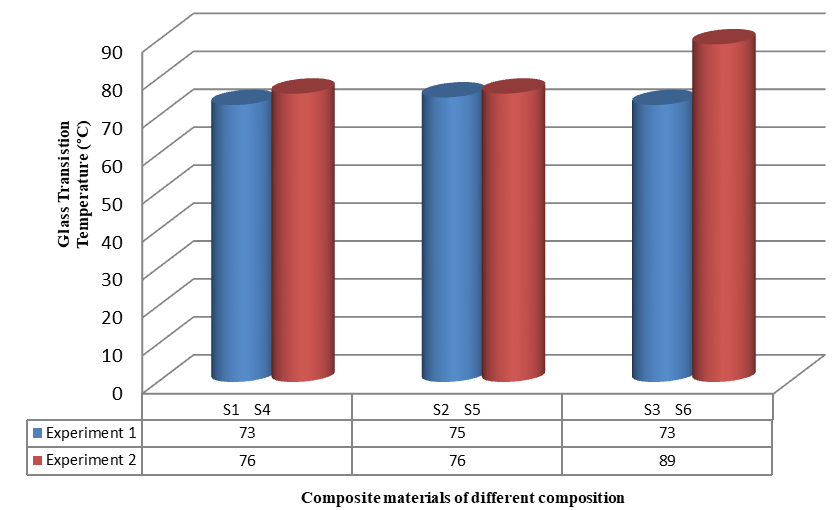

Figure 2 Comparison of glass transition temperature between the specimens of experiment1 and experiment 2.

Results and discussion

TG analysis

Due to physical change or chemical reactions there may be a change of temperature in the sample composites or visa-vis. This change of temperature is responsible for mass loss of composites. Thermal analysis generates different curves which assist us to find out important information regarding the composition and their stability in prepared composites. Unique thermogram of a particular material ensures its own testimony. DSC and TGA curve of the thermogram have got many important interpretations in analyzing fabricated composites (Figure 3 & Figure 4). Initial inflection point or starting of decomposition temperature (275ºC), first inflection point, second inflection point, subsequent inflection point as well as final temperature (Table 3) are very symbolic to analyze as well as characterize the prepared composites. Experiment condition has direct influence on reaction temperature and interval. Therefore it is difficult to determine exact values. Generally in amorphous condition, melting (Tm) is seen in a crystalline polymer and glass transition (Tg) to polymer only. A polymer may be amorphous as well as crystalline. So it is very evident that a sample will show both glass transition and melting temperature (Table 4). If CuO filler particles are added with other specified material the glass transition temperatures of the prepared composites (S4, S5, and S6) are enhanced (Table 4 & Figure 4). On the other hand if TiO2 is added the glass transition temperature of the prepared composites (S1, S2 and S3) are deteriorated (Table 4 & Figure 3). As a result the thermal stability, physical properties as well as mechanical properties of the composites fabricated with CuO will improve significantly than other type (Figure 2).

Figure 3 SEM and TGA Analysis of experiment 1 specimens.

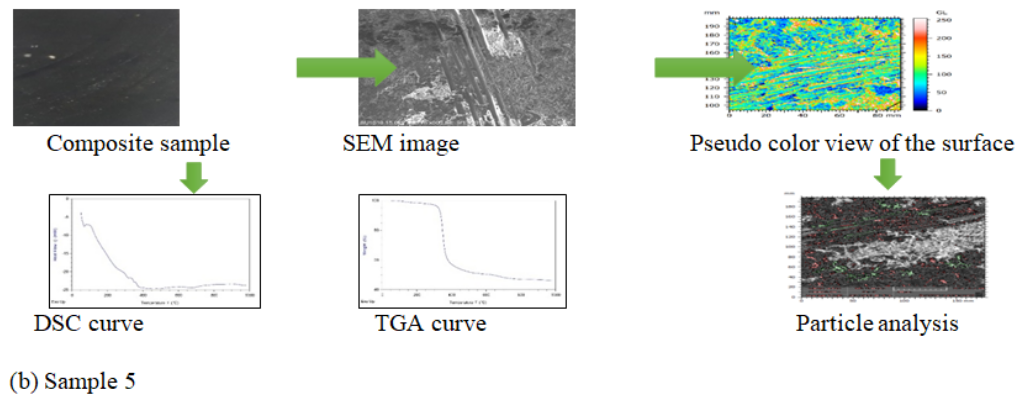

Figure 4 SEM and TGA Analysis of experiment 2 specimens.

Specimens

First inflection point (°C)

Second inflection point (°C)

Mass loss change in percentage from initial inflection point (275°C) to first inflection point

Mass loss change in percentage from first inflection points to second inflection point

S1

580

830

51.35

2.50

S2

590

840

54.20

3.25

S3

590

820

50.25

4.50

S4

575

820

47.50

2.50

S5

580

820

39.40

2.50

S6

580

900

48.10

4.00

Table 3 Mass loss change in percentage form different inflection point of prepared composites

Specimens

Glass Transition Temperature (° C)

Mass Loss Change in Percentage from 50° C to initial inflection point (275° C)

S1

73

1.65

S2

75

1.80

S3

73

1.75

S4

76

1.90

S5

76

1.60

S6

89

1.90

Table 4 Glass transition temperature and initial mass loss of prepared composites

Volatility and inflection point are two important considerations to determine the temperature range regarding the mass loss in prepared composites. At 275 ºC temperature, a persistent and reasonable wt loss (1-2%) is found in all the cases. On the other hand the smooth change in the gradient of slope with 580ºC to 590ºC temperature range could properly establish the point of inflection (Table 3 & Figure 3 & Figure 4).

SEM micrograph analysis with Mountains®8 software

The continuity of fiber, uniform distribution of filler particle and their synergism as well as the morphology of composites can be investigated well by analysis the SEM images through Mountains®8 software. Important changes in the major structure and homogeneity in filler particle distribution were seen in all the sample composites. However, when the composites are reinforced with CuO filler particles, noteworthy shift in the microstructure were noticed (Figure 4). SEM images of the composite specimens are studied with the help of Mountains®8 software and illustrated in Figure 2 & Figure 3 & Table 5. Pseudo color view of the surface and particle analysis in threshold detection method (Table 5) demonstrate that the sample composites S1, S2 and S3 are less efficacious than that of sample composites S4, S5 and S6. Again when the mean equivalent diameter and projected area of functional particles are increased, the interfacing and adhesion of particles with fibers are improved and smooth outlines of the composite surfaces are found (Figure 3 & Figure 4). However, composites prepared with CuO attributes better morphology than that of composites prepared with TiO2. Few irregularities are also seen in some composite samples which may be caused due to voids in it and insufficient bonding and adhesion among matrix, fibers and fillers (Sample S2). Lack of adhesion and stress transformation between fiber laminate and filler material is found in the microstructure of composites prepared with TiO2 than composites prepared with CuO. This indicates improved thermal stability of the composites reinforced with CuO functional fillers which is also resolved by TG analysis.

Sample composites

Mean projected area (mm2)

Mean equivalent diameter(mm)

Mean form factor

S1

1.519

0.7176

0.7673

S2

0.6075

0.5537

0.7803

S3

1.671

0.7484

0.7700

S4

0.5068

0.5485

0.7837

S5

1.085

0.6571

0.7721

S6

1.245

0.7032

0.7687

Table 5 Particle parameters of sample composites through threshold detection method

Conclusion

The adhesion, stress transformation and synergism among fibers, matrix and filler particles are well recognized in composites prepared with CuO than that of TiO2. The glass transition temperature of composites is also increased due to CuO particle addition. These ultimately enhanced the thermal stability and surface morphology of the composites which are fabricated with CuO filler particles.

Acknowledgments

Institute of Radiation and Polymer Technology (IRPT), Atomic Energy Research Establishment, Savar, Dhaka.

Institute of Energy Engineering, Dhaka University of Engineering and Technology (DUET), Gazipur, Dhaka.

Bangladesh Ordnance Factories (BOF), Gazipur, Dhaka.

Conflicts of interest

The author declares that there is no conflict of interest.

References

  1. Meng F, Zheng S, Liu T. Epoxy resin containing poly(ethylene oxide)-block-poly(-caprolactone) diblock copolymer: effect of curing agents on nanostructures. Polymer. 2006;47(21):7590–7600.
  2. Zhang D, Jia D. Toughness and strength improvement of diglycidyl ether of bisphenol-A by low viscosity liquid hyperbranched epoxy resin. J Appl Polym Sci. 2006;101(4):2504–2511.
  3. Cabanelas JC, Serrano B, Baselga J. Development of cocontinuous morphologies in initially heterogeneous thermosets blended with poly (methyl methacrylate). Macromolecules. 2005;38(3):961–70.
  4. Francis B, Thomas S, Jose J, et al. Hydroxyl terminated poly(ether ether ketone) with pendent methyl group toughened epoxy resin: miscibility, morphology and mechanical properties. Polymer. 2005;46(26):12372–12385.
  5. Pickering SJ. Recycling technologies for thermoset composite materials – current status. Composite A. 2006;37(8):1206–1215.
  6. Kim DO, Keum SW, Lee JH, et al. Thermally expandable elastomer molding process for thermoset composite materials. Composite A. 2006;37(11):2121–2127.
  7. Boyard N, Serre C, Vayer M. A physical approach to define a class A surface in polymer thermosetting composite materials. J Appl Polym Sci. 2007;103(1):451–461.
  8. May CA, Tanaka GY. Epoxy resin chemistry and technology. New York: Marcel Dekker; 1973.
  9. Baur RS. Epoxy resin chemistry. Advances in chemistry. Washington (DC): American Chemical Society; 1979.
  10. Asim M, Paridah MT, Chandrasekar M, et al. Thermal stability of natural fibers and their polymer composites. Iranian Polymer Journal. 2020;29:625–648.
  11. Potter WG. Epoxide resins. New York. Springer; 1970.
  12. Hough JA, Karad SK, Jones FR. The effect of thermal spiking on moisture absorption, mechanical and viscoelastic properties of carbon fibre reinforced epoxy laminates. Compos Sci Technol. 2005;65(7–8):1299–305.
  13. Pereira AB, de Morais AB, Marques AT, et al. Mode II interlaminar fracture of carbon/epoxy multidirectional laminates. Compos Sci Technol. 2004;64(10–11):1653–1659.
  14. Kchaou A, Turki C, Salvia M, et al. Role of fibre–matrix interface and fibre direction on dielectric behaviour of epoxy composites. Compos Sci Technol. 2004;64(10–11):1467–1475.
  15. Chinnasamy V, Subramani SP, Palaniappan SK, et al. Characterization on thermal properties of glass fiber and kevlar fiber modified epoxy hybrid composites. Journal of Materials Research and Technology. 2020;9(3):3158–3167.
  16. Reddy VJ, Yadav JS, Chattopadhya S. Phase change material loaded form-stable composites for low temperature thermal buffering application. Materials Chemistry and Physics. 2020;247:122859.
  17. Drozin D, Sozykin S, Ivanova N, et al. Kinetic calculation: Software tool for determining the kinetic parameters of the thermal decomposition process using the Vyazovkin Method. Softwarex. 2020;11:100359.
  18. Piglowska M, Kurc B, Rymaniak L, et al. Kinetics and thermodynamics of thermal degradation of different starches and estimation the OH group and H2O content on the surface by TG/DTG-DTA. Polymers. 2020;12:357.
  19. Tercjak A, Serrano E, Remiro PM, et al. Viscoelastic behavior of thermosetting epoxy mixtures modified with syndiotactic polystyrene during network formation. J Appl Polym Sci. 2006;100(3):2348–2355.
  20. Salmon N, Carlier V, Schut J, et al. Curing behaviour of syndiotactic polystyrene-epoxy blends. 1. Kinetics of curing and phase separation process. Polym Int. 2005;54(4):667–672.
  21. Francis B, Ramaswamy R, Rao VL, et al. Morphology, viscoelastic properties, and mechanical behavior of epoxy resin modified with hydroxyl-terminated poly(ether ether ketone) oligomer with pendent tert-butyl groups. Polym Eng Sci. 2005;45(12):1645–1654.
  22. Ferreira JM, Errajhi OAZ, Richardson MOW. Thermogravimetric analysis of aluminised E-glass fibre reinforced unsaturated polyester composites. Polymer Testing. 2006;25:1091–1094.
  23. Alam MS, Chowdhury MA. Characterization of epoxy composites reinforced with CaCO3–Al2O3–MgO–TiO2/ CuO filler materials. Alexandria Engineering Journal. 2020;59(6):4121–4137.
  24. Elamin M, Li B, Tan KT. Impact damage of composite sandwich structures in arctic condition. Composite Structures. 2018;192:422–433.
  25. Elamin M, Li B, Tan KT. Impact Performance of Stitched and Unstitched Composites in Extreme Low Temperature Arctic Conditions. Journal of Dynamic Behavior of Materials. 2018;4(3):317–327.
  26. Hammed N, Sreekumar PA, Francis B, et al. Morphology, dynamic mechanical and thermal studies on Poly (Styrene-Co-Acrylonitrile) modified epoxy resin/glass fibre composites. Composites Part A: Appl Sci Manuf. 2007;38:2422–2432.
  27. Yusri Helmi Muhammad, Sahrim Ahmad. Mechanical and thermal properties of glass fiber-reinforced epoxy composite with matrix modification using liquid epoxidized natural rubber. Journal of Reinforced Plastics and Composites. 2013;32(9):612–618.
  28. Alam S, Chowdhury MA. Micromechanical analysis of glass fiber reinforced epoxy composites and case study of macro-mechanical observation. Composites Theory and Practice. 2020;20:1:23–34.
