Solutions were prepared using tri-distilled water (<1µS). Urea (99,97%, Mallinckrodt); glutaraldehyde solution grade II, 25% in H₂O (Sigma-Aldrich); 0.1M phosphate buffer solution pH 6.8; Enzymatic Glycemia (Wiener Lab): 25mM 4-aminophenazone dissolution in 0.92M Tris Buffer, 55 mM phenol solution, glucose oxidase solution (1000 U/ml), peroxidase (120U/ml) and 1g/l glucose solution. Nicolet Nexus FTIR instrument was used in order to obtain the FTIR absorption spectrum in the 2000cm^-1-400cm^-1 range at room temperature. Samples were previously grounded to fine powders and dispersed thoroughly in KBr. The amorphous character of the modified glass particles was tested by X-Ray Diffraction analysis (XRD) with a Bruker D8 Advance diffractometer in continuous scan mode (Cu anode, 45kV–30 mA at 298K) between 10°<2θ<60°. Laser Scattering Particle Size and Z potential were done at room temperature in a Malvern Nano ZS90 equiment.

Modified glassy micro-particles glucose sensor (MGGS)

A commercial modified silicate glass with a high transition temperature (T_g) was employed as inorganic solid substrates. An agate ball-milled was used to obtain micro-particles and the powder was sieved with a 150 mesh.

The small fraction of particles obtained after sieved with a 150 mesh was treated through the follow steps in order to generate the modified glassy micro-particles as a glucose sensor:

1. Glassy particles were stirred in a NaOH 1M dissolution for 24 hours at room temperature. Once such alkaline treatment was finished, the aqueous glass dispersion was filtered by gravity using Whatman N° 3 paper. The solid fraction retained on the paper was washed with tri-distilled water several times until obtaining a neutral flushing liquid. Therefore, the solid fraction was dried in an oven at 75°C for 3 hours in a regular atmosphere.
2. The resulting dried powder glass was then sonicated during 30 minutes (160W) in a urea dissolution (6.95M). Therefore, the new dispersion system was again filtered, washed with distilled water and dried in an oven at 75°C 3 hours in a regular atmosphere. This treatment allows to the glassy microparticles to have the adequate anchors on its surface.
3. The treated micro-particles glasses were stirred for 2 hours in a glutaraldehyde dissolution (10 %w/w) at room temperature. Finally, this dispersion was filtered again through a Whatman N° 3 paper and washed several times with a phosphate buffer dissolution pH 6.8 until the flushing liquid conserves the pH. Finally, the decorated glassy particles were dry at 75°C for 3 hours in a regular atmosphere.
4. Finally, the anchor decorated glassy particles were mixed with the sensing molecules dissolution. At this time, we use Glycemia an enzymatic commercial product for glucose determination (Wiener lab) to guarantee the glucose molecules sensing response and to focus only on the evaluation of the new anchoring method efficiency. For this proposed, 1 g of anchor decorated glassy particles and 2 mL of the enzymatic commercial product were sonicated for 30 min in a cooling-gel bath to avoid heating to preserve the enzyme activity. In order, to finish the preparation process, the system was washed with phosphate buffer pH 6.8 and carefully stored at 4°C in a closed jar to be effectively used during three months (Figure 1).

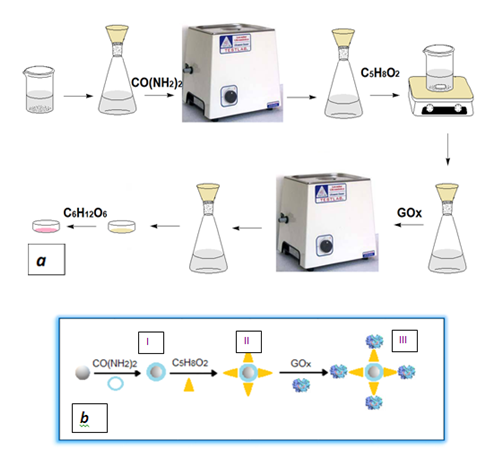

Figure 1 A) Scheme of preparation method; B) Method chemical reactions.

Material characterization

Figure 2 shows the FTIR spectrum of the silicate glass and the glassy micro-particles traded with urea dissolution after finished stage 2, i.e. glassy particles with where the N-H bonds are fixed on the glass surface and they are ready to receive the glutaraldehyde molecules. The bands observed are between 3500 cm^-1- 3400 cm^-1 and 1560 cm^-1- 1640 cm^-1 in the glassy micro-particles traded spectrum. Such response allows us to affirm that a successful anchor on the surface is reached. The set of bands between 800 cm^-1 and 1080 cm^-1 belongs to the vibration of silicon-oxygen bonds by flexion and stretching.

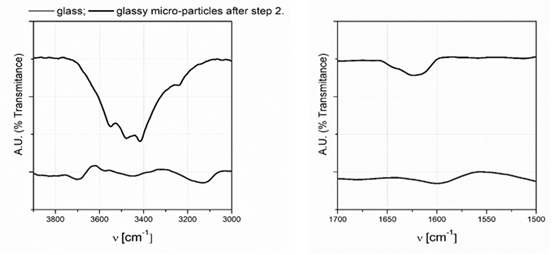

Figure 2 FTIR spectrum of the silicate glass and the glassy micro-particles traded with urea dissolution after finished stage 2.

Figure 3 shows the glass particles X Ray diffraction patterns after the treatments 2 and 4. From the results in this figure we confirm the absence of crystalline structures on the glass surface due to the fact that any peak appears.

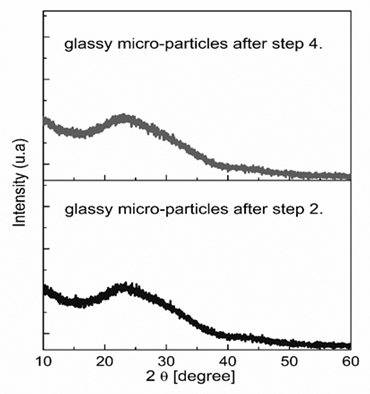

Figure 3 X ray diffraction patterns of glassy particles after the treatments 2 and 4.

The adsorption phenomena on a surface is the ability of solid substrates to attract to some molecules from the medium in which it is in contact. Such phenomena can be physical or chemical, i.e. where the interactions are due to van der Waals forces or, in the second case, the interactions are electrostatic. Therefore, the surface fundamental property is its polarity. The property and the behavior of the substrate surface is strongly affected by the surface charge and, the Zeta potential (ξ) is the indicator of surface charge and its measurement provides an understanding of its chemical behavior as a function of the medium, since the interaction with external ions depends both on the ions characteristics and on the surface characteristics. Considering the first step in our method we check the surface charge of the glass particles to ensure that optimum condition to allow the chemical reaction 3 and 4 that are explained in the next section. Table 1 shows the Zeta potential result where we confirm the optimal surface charge density¹² and Figure 3 shows the size of glass particles distribution. Figure 4 shows the result obtained of the size particle distribution through the Laser Scattering Particle Size Analyzer and Table 1 of the charge density by the particles surface obtained by Z potential method.

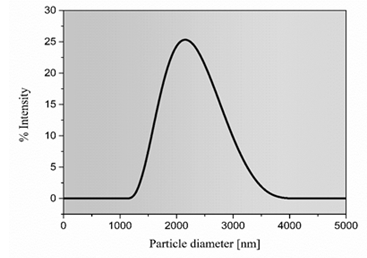

Figure 4 Laser scattering particle size distribution.

When a water film is on a glass surface two different chemical reactions are induced regulated by the pH of the solution.^13,14 When the pH is lower than 9 a leaching process takes place and resulting^15,16 in an ion-exchange where alkali ions from the glass are exchanged by H⁺ or H₃O⁺ which is enhanced if the pH is higher than 9.¹⁷

~Si—ONa + H⁺ DS i—OH + Na⁺

~Si—ONa + H₃O⁺ D Si—OH + H₂O + Na⁺

In a regulated pH condition those reactions are governed by the ion diffusion in the glass following the Fick’s law until the steady state is reached and the thickness of the modified layer over the surface remains constant. Such hydrated silicate layer is itself a new amorphous phase as we evidence in Figure 3; that new phase allows the reaction with the urea given the covalent bond with the glutaraldehyde molecules and, therefore, building the anchors on the glassy particle surface. Now, such decorated particles are able to fix to the structure the GOx (III in Figure 1B) and the sensor is ready. Glucose oxidase has been used for fabrication of biosensors for quantitative determination of glucose in body fluids, foodstuffs, beverages and fermentation liquor. This immobilized enzyme on a nanomaterial component is fundamental to develop new nanoscale devices for different applications.^5,18 Therefore, to test the sensibility and the efficiency of our glucose sensor we use different concentrations of glucose and honey aqueous dissolutions. Therefore, pure glucose dissolutions and honey dissolutions (1g/L) with glucose concentration between 0.25g/L to 1.5g/L, were employed. Honey dissolution concentration was selected in accordance with Argentine food code (CAA)¹⁹ that establishes glucose content in honey between 30-35% (w/w). Then, a visual inspection was carried out to verify the sensor response using 0.1g of MGGS with 5μL of each dissolution (Figure 5 & Figure 6). No color is observed with a glucose concentration of 0.25g/L. However, a slight pink coloration, i.e. a positive reaction indicating the presence of glucose was obtained between 0.4 to 1 g of glucose per liter. Finally, for concentrations higher than 1.5g of glucose / L the color intensity becomes stronger, evidencing that the intensity of color is correlated to the content of glucose. The developed MGGS to detect glucose has two important advantages. One of them is that the color develops in just 60 seconds and the color stabilization takes 120 seconds. On the other hand, the determination is carried out at room temperature unlike the enzymatic method. Therefore, it is a fast, low cost and sensitive proposal for the detection of glucose.

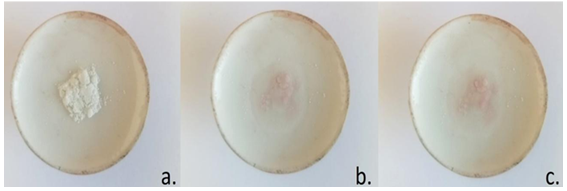

Figure 5 A) Solid sensor; B) Sensor+ Glucose 0.6g/L at t=60 sec; C. Sensor+ Glucose 0.6g/L at t=120 sec.

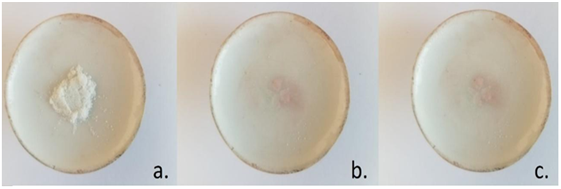

Figure 6 A) Solid sensor; B) Sensor+ Honey 1 g/L at t=60 sec; C. Sensor+ Honey 1 g/L at t=120 sec.

In this work a detailed procedure to anchor a glucose biosensor on glassy microparticles is developed using urea medium. This method is fast and effective and avoids the use of expensive chemical substances. Also, the methodology provides useful techniques to guarantee the success of each step. Finally, the screening test on glucose detection in real time was done and also, on a food that may contain glucose, honey. The sensor developed is very simple to use, is portable and only requires a visual inspection to confirm the presence of glucose only through a simple sample aqueous dilution.
