Tuberculosis (TB) is caused by Mycobacterium tuberculosis, and remains a major, worldwide health concern. The emergence of M. tuberculosis strains that are resistant to front line antimicrobacterial drugs such as isoniazid and rifampicin have greatly complicated efforts to control the spread of TB. Of the various resistance mechanisms, the most effective involves the production of β-lactamases that hydrolyze β-lactam antibiotics. One approach to overcoming resistance to β-lactam antibiotics is to find new drugs or additives that can prevent the β-lactam antibiotic from being hydrolyzed by β-lactamases. The spectrum of anti-TB drugs consisting of non β-lactam scaffolds has been expanded by the development of new boronic acid derivatives and cationic peptidic inhibitors that proved effective in neutralizing bacterial resistance, especially when administered in combination with antibiotics. The intrinsic resistance to β-lactam antibiotics was due mainly to the presence of a chromosomally-encoded gene (blaC) in M. tuberculosis for a Class A, Ambler β-lactamase (BlaC). The BlaC enzyme has already been validated as one of the leading targets of tuberculosis therapy. In the search for new β-lactamase inhibitors we employed the on-line server Pharmit (pharmit.csb.pitt.edu) to discover new 3-D pharmacophores and search different databases of chemical libraries, and commercial compounds. Autodock Vina was employed to perform molecular docking of selected compounds from ChEMBL/MolPort/ZINC databasesusingthe M. tuberculosis β-lactamase 3M6B.pdb as the target protein. This combination of 3-D pharmacophore screening and molecular docking lead to the discovery of natural products, and novel, small molecules inhibitors of Y-49β-lactamase from Mycobacterium tuberculosis. Notably new 3D-pharmacophores derived from hydroxyphenylglycine and fragments from the family of biphenyls, aromatic ketones, and stilbenes emerged as potential inhibitors of the recombinant Y-49 β-lactamase exhibiting in vitro inhibitory constants (Ki), in the low 5uM-200uM range. These newly discovered pharmacophore features enabled by in silico screening are extending the chemical space for discovery of novel and potent inhibitors of β-lactamases.

Keywords: non β-lactam scaffolds inhibitors, y-49 β-lactamase, 3-D pharmacophores Pharmit, molecular docking, autodock vina

TB,tuberculosis; Mtb, mycobacterium tuberculosi; SBDD, structure-based drug discovery

Tuberculosis (TB), caused by Mycobacterium tuberculosis (Mtb), is a worldwide health concern. The world health organization in its 2017 tuberculosis report states, “TB is the ninth leading cause of death worldwide and the leading cause from a single infectious agent, ranking above HIV/AIDS”.^1–3 The failure to control TB is due to the emergence of Mtbstrains that are resistant to first line beta lactam antibiotics, because of overuse. One of the most effective resistance mechanisms to β-lactam antibiotics involves the production of β-lactamases which cleave the amide bond in the target β-lactam ring hydrolyzing the drug before it reaches its target. The beta-lactamases are classified into four classes: A, B, C and D. These classes are based on conserved and distinguishing amino acid motifs.^1–3 Classes A, C, and D include enzymes that hydrolyze their substrates by forming an acyl enzyme through an active site serine. Class B β-lactamases are metalloenzymes that utilize at least one active-site zinc ion to facilitate β-lactam hydrolysis. One of the most efficient and prevalent mechanisms of resistance to β-lactam antibiotics is the production of β-lactamases in both Gram-negative and Gram-positive bacteria that hydrolyze the drugs before they can reach their target and exert the desired effect. These resistance mechanisms are important, and each bacterium can create a combination of defenses depending on the selective pressures placed on it.^1–4 The intrinsic resistance to β-lactam antibiotics was demonstrated to be mainly due to the presence of a chromosomally-encoded gene (blaC) in M. tuberculosis for a Class A, Ambler β-lactamase (BlaC). The BlaC enzyme has already been validated as one of the leading targets of tuberculosis therapy. This enzyme is extremely active against penicillins and cephalosporins, but weaker against carbapenems.^5–7 The BlaC enzyme can be inhibited by clavulanate, avibactam, and boronic acids.^5–10 The first β-lactamase inhibitor to be used clinically was clavulanic acid, from Streptomyces clavuligerus. When combined with traditional β-lactams such as amoxicillin and ticarcillin, clavulanic acid produces a broad-spectrum of antibiotic combinations effective against many β-lactamase-producing bacteria.^5–7

The success of clavulanic acid established β-lactamase inhibitors as one solution to the problem of β-lactam antibiotic-resistant bacteria. To date only four β-lactamase inhibitors have been approved by the Food and Drug Administration and are being clinically used: clavulanic acid; the two penicillanic acid sulfones (tazobactam and sulbactam); and most recently, avibactam. However, resistance has emerged even to these potent antibiotic combinations among formerly susceptible bacteria.^6–10 Research studies in the last decade have shown that the most promising approach to overcoming resistance to β-lactam antibiotics requires high throughput screening of new non β-lactam scaffolds, those demonstrating inhibitory activity against a large family of β-lactamases, in addition to the improvement of established antibiotics.^11–15

This research aimed to discover new β-lactamase inhibitors by employing a combination of molecular docking and biochemical kinetics assays. We first focused on discovery of novel 3D-pharmacophores and fragments from the family of diphenyl, aromatic ketone, hydroxy-phenyl derivatives and stilbene, all previously described by others to exhibit antibacterial activity.^16–19 The in vitro screening platform, using kinetics of β-lactamase inhibition with nitrocefin substrate, enabled the discovery of potential inhibitors of Y-49 β-lactamase exhibiting inhibitory constants, Ki, in the lowmM range. The finding of these novel pharmacophore features exhibiting anti-β-lactamase inhibition offered additional strength to the structure-based drug design (SBDD) approach by selectively defining the chemical space of the ligand libraries during in silico screening using the on-line server Pharmit (pharmit.csb.pitt.edu)²⁰ Specifically, we searched different databases of chemical librariesand commercial compounds such as ChEMBL/MolPort/ZINC²¹ where the pharmacophore features of the ligands could be chosen to resemble the chemical space of selected stilbenes and other small organic compounds discovered to inhibit the Y-49 β-lactamase using the in vitro, enzymatic screening assay. This strategy defined the in silico targeted screening approach for ligand profiling, and the discovery of Y-49 β-lactamase active site binders. An independent in silico screening approach used a wider chemical space for ligand profiling, albeit constrained by their physical chemical properties as defined by the Lipinski rule.²² Autodock Vina²³ was employed to perform molecular docking of selected compounds from databases using the M. tuberculosis β-lactamase 3M6B.pdb as the target protein.

This research highlights the importance of coupling the validation assays for the enzyme inhibition or ligand binding to the target protein with the optimized platform for in silico screening of 3-D pharmacophores and molecular docking, specifically tailored for each molecular target of interest. The data presented herein support the need for multiple rounds of docking and minimization of the type allowed in Pharmit. This approach improved the discovery of novel 3D-pharmacophore features, and in turn enabled drug discoveries using the SBDD method. Additionally, the new docking platforms described here may provide new avenues for overcoming β-lactamase-based resistance that remains a key clinical challenge.

Nitrocefin substrate for β-lactamase was purchased from Calbiochem, CA. Unless otherwise noted, all other chemicals, including the compounds used in kinetics for β-lactamase inhibition, were obtained from Sigma-Aldrich (St. Louis, MO).

Bioinformatics analysis of Y-49 β-lactamase

The FASTA sequence of Y-49 β-lactamase was subjected to sequence similarity search using BLASTP algorithm²⁴ and the protein hits with more than 99% sequence identity were further searched against the Brookhaven RCSB PDB database for finding of additional proteins with sequence and structural identity using the VAST (+) algorithm andmMDB database.²⁵ The top ten hits displaying more than 99% sequence identity and less than 0.25Å RMSD for their structural similarity were identified and further analyzed for the resolution and accuracy of their X-Ray structure.

Preparation of target 3M6B protein structure for analysis of protein-ligand interactions using the Molecular Operating Environment (MOE)

Molecular modeling was initially performed with MOE (from CCG, Montreal, Canada) to extract the main pharmacophore features that define the main interactions between the ligand ertapenem (RG1) and β-lactamase protein in the 3M6B.pdb structure, reported by John Blanchard group at Albert Einstein College Inc.²⁶ The MOE automatically corrected the crystallographic data, including missing loops, empty residues, chain termini or breaks, etc. using the “Structure Preparation” application. The hydrogen bonding network wand the individual atomic protonation states were optimized using the “Protonate3D” module.^27–29 The built-in 2D-diagram option was used to visualize the amino acid residues in close contact with the RG1 (ertapenem) ligand, and to identify the main hydrogen bonds, salt bridges, hydrophobic interactions, cation-π, and the ligand solvent exposure. The original pose of RG1 was minimized in the active site of β-lactamase using the Amber12: EHT force field provided by MOE that employs Amber12 parameters for macromolecules, and Extended Hückel Theory (EHT) parameterization for small molecules that accounts for electronic effects.²⁹ The contribution of each protein residue-ligand atom interaction to the final reported free energy describing 3M6B/RG1 complex was extracted using the built-in MOE algorithm after minimization, and generation of a 2D-diagram for protein-ligand interaction (the RG1 is covalently adducted to the Ser 84 in the 3M6B structure).

Virtual screening of large compound databases and SBDD using online Pharmit server (http://pharmit.csb.pitt.edu)

To assist in the discovery of active site directed β-lactamase inhibitors the online comprehensive platform Pharmit was used for analyzing the best combination of pharmacophore features: hydrogen bond acceptor; hydrogen bond donor; hydrophobic; aromatics; and electrostatics. Accordingly, a predefined pharmacophore query was generated by Pharmit based on the analysis of the complex interaction between ertapenem (RG1) and β-lactamase, provided by the structure 3M6B.pdb.²⁶ For each defined combination of pharmacophore features query, we selected and searched the pre-built compound libraries in Pharmit for matching compounds, including MolPort, CHEMBL21, ChemDiv, NCI Open Chemical Repository, PubMed and ZINC. A variety of filtering and ranking criteria were applied, including those combining drug-like properties, observing Lipinski’s “rule of five”.²² We chose any two combinations of the following: molecular mass (MW) less than 500 Da; high lipophilicity (expressed as LogP less than 5); less than 5 hydrogen bond donors; less than 10 hydrogen bond acceptors and a topological surface area (TPSA) less than 200 (a measure of drug ability to permeate the cell membranes).²² The crystallographic water found in the active site of 3M6B structure was allowed by Pharmit to be part of the receptor active site. The hits were further refined and ranked using the energy minimization option provided in Pharmit that employs the AutoDock Vina²³ scoring function (kcal/mol) and smina, a fork of AutoDock Vina with enhanced minimization functionality.²⁰ The minimization procedure enabled the optimization of both the pose and conformation of the identified hits and improved the speed of structure-based drug discovery of novel, non-beta lactam scaffolds and compounds that are potential inhibitors of Y-49 β-lactamase.

The final hits were sorted according to predicted binding affinity inkcal/mol, eliminating poses with unfavorable binding energies (e.g. >-8.0kcal/mol (more negative values are more favorable). We also included an additional scoring function, namely the minimized RMSD (mRMSD) that is the RMSD between the query-aligned pose and the minimized pose. This score provides an indication of how far the compound has deviated from the original query.²⁰ Minimized results were also thus sorted to exclude poses with significant deviations from the original query (e.g. 2Å). We performed an independent analysis of the pharmacophore features to assess the contribution to the relative free energy of interaction between the ligand hits and 3M6B protein by employing Molegro Molecular Viewer (MMV), and Molegro Virtual Docker (MVD) software. In addition, the Molegro Dock software generated EPair energy terms, expressed as MolDock scoring functions. The MolDock scoring function consisted of mainly the pairwise (PLP) steric and hydrogen bonding energy of interaction between each lead compound and the amino acid residues from the active site of target β-lactamase protein (Depicted as chain A in Table 2).

Bioinformatics of Y-49 β-lactamase primary sequence

CLC bio Sequence Viewer (version 6.5, from QIAGEN) was used to create and edit the primary sequence alignments for selected β-lactamase proteins-class A-that are important pharmacological targets, such as those from the Mycobacterium, Streptomyces, and Bacillus species using the built-in progressive alignment algorithm tools.³⁰ We selected eighteen Class A β-lactamase proteins that were known or potential pharmacological targets of interest for combating a wide range of bacterial infections, including bacteria with high resistance to antibiotics.^12,15 The sequence logos for the identified conserved motifs in beta-lactamase proteins were displayed using the built-in algorithm provided by CLC bio Sequence Viewer. The overall height of each stack indicates the sequence conservation at that specific amino acid position; the height of symbols within each stack reflects the relative frequency of the corresponding amino acid. The three-dimensional visualization of amino acids identified in the four conserved motifs was performed by molecular graphics analysis provided by UCSF Chimera package from the Resource for Biocomputing, Visualization, and Informatics at the University of California, San Francisco (https://www.cgl.ucsf.edu/chimera/).

Kinetics of Y-49 β-lactamase inhibition by different pharmacophore fragments and compounds

We measured the ability of different pharmacophore fragments and compounds to inhibit the recombinant Y-49 β-lactamase. The cloning, expression, and purification of Y-49 β-lactamase was performed using a modified workflow described elsewhere,³¹ and is the subject of another upcoming manuscript. The host for the recombinant protein expression was E. Coli Top10 (Invitrogen), containing the pTrcHis B plasmid (Invitrogen), expressing Y-49 from Mycobacterium tuberculosis. We are indebted to Douglas S. Kernodle, M. D., Vanderbilt University School of Medicine, Division of Infectious Diseases, Nashville, TN for this gift. After determining the kinetic parameters for the recombinant Y-49 β-lactamase and nitrocefin substrate (i.e., km=95±10µM and kcat=15.34±0.5sec^-1), we performed the inhibition assays using 24µM chromogenic nitrocefin substrate (ξ₄₈₆=20 500M^-1cm^-1) and 0.05-5nM enzyme concentration in a 200-250µL final volume of 25mM HEPES buffer, pH=7.4. All kinetics assays were performed in 96 microplates, and different compounds were tested at different concentrations, ranging 0.5-300µM. A BIOTEK Synergy 4 multi detection microplate reader was used to record the data by monitoring the absorption at 486nM. When present, the DMSO was kept below 5% in the final reaction mix. The reaction was initiated with the addition of the enzyme to the reaction mix containing the constant concentration of nitrocefin substrate, and different concentrations of the tested compound. The initial velocities (in µM/min) were calculated for the reaction run both in the absence (control V₀) and the presence of different inhibitor concentrations (V). The graph plotting the initial velocity (µM/min) vs the concentration of inhibitor (in µM) was used to determine the apparent inhibitory constant (Ki^(app)) by fitting the data to the Morrison equation provided by the GraphPad Prism 7.0 (GraphPad Software, La Jolla, California, USA). The following parameters were constrained during the fit with Morrison equation: Km=95µM; Et=0.00005-0.005µM and [S]=24µM. An independent assessment of Ki^(app) was performed by fitting the relative velocity (i.e. Vr=V/V₀) vs the concentration of inhibitor (in µM) and fitting the data to the equation Ki=[[I]-[E](Vr-1)]/(1/Vr-1) as described originally elsewhere.³² The experimental free energy of interaction (inkcal/mol) was calculated using the formula: DG=-RTlnKeq (where R=-0.001987kcal.K^-1.mol^-1; T=310 K (37°C); and Keq=1/Ki).

Statistics

Statistical analysis was performed using Windows GraphPad Prism 7.0 (GraphPad Software, La Jolla, California, USA). Numerical results are reported as mean +/- SE or +/-SDV when appropriate. Unless stated otherwise, the data are derived from a minimum of three independent experiments.

Development of a platform for in silico-based virtual high throughput screening and molecular docking analysis of compounds as potential active site directed inhibitors of Y49 β-lactamase

The main purpose of this research was to find new 3D-pharmacophores, i.e., non-β lactam scaffolds that are potential active site, directed inhibitors of Y-49 β-lactamase. The first step in the development of a robust platform for molecular docking and in silico-based virtual high throughput screening of compounds requires finding a suitable X-Ray structure of the protein target of interest, preferably solved at high resolution (<1.5Å).^25,27 Given that all our in vitro enzymatic assays for screening of anti β-lactamase inhibitors were conducted with the Y-49 protein we began a bioinformatics search to find the structure of the protein template well-suited for in silico-based virtual screening involving large libraries of compounds. The Y-49 recombinant β-lactamase was identified previously as being the protein produced by a chromosomal gene coming from M. tuberculosis strain H37Rv, sequenced by the Sanger Center Cambridge, UK.³¹ The complete genome of H37Rv has 3999 coding genes. The list of expressed proteins in this genome acknowledged a class “A” β-lactamase protein having the following identifiers: accession number NP_216584.1 and locus tag Rv2068c (other names for Y-49 β-lactamase: blaC, blaA Rv2068c, MTCY49.07c (6)). The FASTA sequence of Y-49 β-lactamase was subjected to sequence similarity search using BLASTP and the protein hits with more than 99% sequence identity were searched against the Brookhaven RCSB PDB database and further screened for additional proteins with sequence and structural identity using the VAST (+) algorithm and mMDB database (Figure 1) (Figure 2). This bioinformatics screening retrieved top ten hits having more than 99% sequence identity and less than 0.25Å RMSD for their structural similarity (Figure 2). One of the top ten hits, the 3M6B.pdb, revealed 100% sequence identity with Y-49 protein, except for a 42-amino acid sequence located at N-terminus of Y-49 that is used as the signal peptide for insertion in the membrane (highlighted in yellow in Figure 1B, (6)). The 100% sequence identity of the two proteins justified the use of 3M6B.pdb as a target protein in the molecular docking experiments. Moreover, any of the top ten X-Ray reported structures shown in Figure 2 could be used for further structure-based drug discovery and virtual screening of active site binders for Y-49 β-lactamase because of their 99% and higher sequence identity with the original chosen target structure, 3M6B.pdb. Thus, these structures can be used in the future to validate the drug discovery screening platform optimized using 3M6B.pdb.

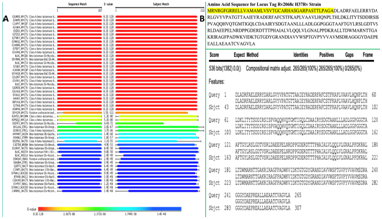

Figure 1 The protein BLAST (BLASTp) search against the annotated NCBI protein database retrieved the Y-49 protein sequence as a class A β-lactamase (A). Further alignment of the Y-49 amino acid sequence with the amino acid sequence reported for 3M6B.pdb revealed 100% identity (with no gaps) spanning 265 amino acids in both proteins, except for a 42-amino acid sequence located at N-terminus of Y-49, used for insertion into membrane (6) (highlighted in yellow) (B). 3M6B.pdb was used as a target protein in the molecular docking experiments.

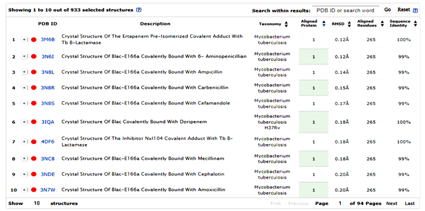

Figure 2 Top ten X-Ray structures retrieved by MMDB and VAST+ algorithm during searching for protein structures having more than 99% sequence identity with Y-49 protein.

The potential proteins target suitable for performing the molecular docking and structure-based design were tracked for their structural similarities with the original chosen target 3M6B.pdb by employing the VAST+ analysis at MMDB and NCBI (25).

To determine whether compounds known as potential inhibitors of Y-49 β-lactamase could also exhibit inhibitory activity against other class A β-lactamases from other species of Mycobacterium or related genera, we performed an independent bioinformatics analysis on the conserved amino acids motifs within the active site of Y49, and 3M6B. Specifically, we used CLC bio Sequence Viewer (version 6.5, from QIAGEN) to perform the primary sequence alignments for selected β-lactamase proteins from class A that are important pharmacological targets. These included those from the Mycobacterium, Streptomyces, and Bacillus species: Mycobacterium kansasii, the causative agent of a pulmonary infection that resembles tuberculosis; M. marinum, which is the only Mycobacterium that is not aerobic; and M. ulcerans, the third most common mycobacterial pathogen in humans, after M. tuberculosis and M. leprae.^33,34 In addition, we focused on finding the conserved amino acids motifs within the active site of Y49 protein in the β-lactamases from the Streptomyces species that are known for producing antibiotics. More than half of presently marketed antibiotics are produced by species belonging to the Streptomyces genus (A), such as cefoxitin, chloramphenicol, neomycin, streptomycin, tetracycline, and clavulanic acid.³⁵ We also investigated the sequence similarities between Y49 protein and some beta lactamases from the Bacillus species known to produce a class A β-lactamase.³⁶

The results from the primary sequence alignments are displayed in Figure 3 and highlight the presence of four distinct and highly conserved motifs within the active site of 3M6B and other β-lactamases from class A. Motif 1 consists of the sequence SXXK that contains the active site Ser84 residue. Motif 2 consists of the SDN/G loop between helices α4 and α5. This Ser142 is involved in maintaining the functional position of the two domains and the protonation of the substrate’s leaving group.^6,36 Motif 3 consists of the acidic residue Glu182 having its side chain pointing into the substrate’s binding cavity. Motif 4 consists of KTG sequence that is in the β3 strand facing the SDN/G loop on the other side of the active site Ser84. The sequence logos for the identified conserved motifs in beta-lactamase proteins are presenting schematically the sequence conservation at each specific amino acid position; the height of symbols within each stack reflects the relative frequency of the corresponding amino acid (Figure 3). The four conserved motifs within the active site of Y-49 β-lactamase were further mapped in the 3D-structure of 3M6B using the molecular graphics software “UCSF Chimera” from the Resource for Biocomputing, Visualization, and Informatics at UCSF (https://www.cgl.ucsf.edu/chimera/) (Figure 4). Consequently, the bioinformatics analysis of primary and tertiary structures of Y-49 β-lactamase revealed conserved amino acids motifs spanning the active site of many β-lactamases from class A. This information was further used to perform structure-based design for discovery of non-β lactam inhibitors of β-lactamase that could exhibit a wider antibacterial effect.

Figure 3 Analysis of the conserved motifs among the proteome of eighteen β-lactamases known as being of clinical interest. PSI-BLAST was used to identify homologues of 3M6B.pdb protein in the RefSeq and protein NCBI databases (Figure 1).

The top eighteen proteins hits from PSI-BLAST output were exported and imported in the CLC Sequence Viewer where the alignment was performed to identify conserved sequence motifs. Sequence alignment displays the four highly distinct and conserved areas among the investigated β-lactamase family. The sequence logos of four conserved motifs in beta-lactamase proteins were displayed together with the position within the amino acid sequence. The overall height of each stack indicates the sequence conservation at that position, whereas the height of symbols within each stack reflects the relative frequency of the corresponding amino acid.

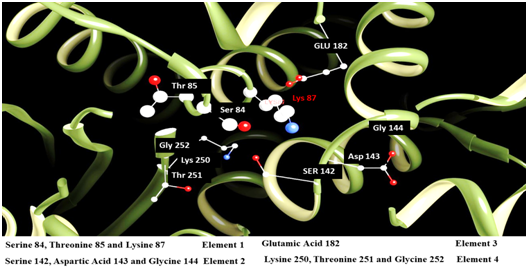

Figure 4 Three-dimensional view of 3M6B.pdb highlighting the amino acids identified by PSI-BLAST and CLC Sequence Viewer to be part of the four conserved motifs (elements) in class A β-lactamase proteins. Molecular graphics images were produced by employing the UCSF Chimera package from the Resource for Biocomputing, Visualization, and Informatics at the University of California, San Francisco (https://www.cgl.ucsf.edu/chimera/).

The 3M6B X-Ray structure allowed us to extract the coordinates of the ligand carbapenem (ertapenem (RG1)) co-crystalized as an adducted complex to the Ser84 within the active site of 3M6B, and further input these data in the molecular docking platform. We next set up to develop and optimize the platform for performing the in silico-based virtual screening of large compound databases coupled with molecular docking using the online Pharmit server (http://pharmit.csb.pitt.edu) (Figure 5). The MOE (molecular operating environment) (from CCG, Montreal, Canada) was used to extract the main pharmacophore features that define the interactions between the ligand ertapenem (RG1) and β-lactamase protein in the 3M6B.pdb structure. The MOE 2D-diagram option generated the 2D-view of the amino acid residues in close contact with the RG1 (ertapenem) ligand and displayed the main hydrogen bonds, salt bridges, hydrophobic and cation-π interactions established by RG1 within the active site of 3M6B (Figure 5A). The original pose of RG1 was minimized in the active site of β-lactamase using the Amber12: EHT force field and the contribution of each protein residue-ligand atom interaction to the final reported free energy describing 3M6B/RG1 complex was calculated (Figure 5B). Remarkable contributions to the free energy of interaction between ertapenem and 3M6B β-lactamase are provided by the backbone amide nitrogen from Thr253 and Ser84. The oxygen atoms from some active site residues’ side chains are further providing new hydrogen bonds donors (Glu182) or hydrogen bond acceptors (Ser142, Thr251) complementing the hydrogen bonding network that contribute more than “-17.0kcal/mol” to the relative free energy of interaction between RG1 and 3M6B. Selected water molecules are also contributing to more than “-5.0kcal/mol,” while the ionic interactions mediated by the side chains of Lys250 and Arg236 contribute less than “-2.0kcal/mol” to the relative free energy of interaction. Notably, the functional groups in the RG1 ligand that establish the hydrogen bonding with the above-mentioned active site residues are carbonyl, free hydroxyl, carboxylate oxygen, and protonated amino groups. Hence, these chemical functional groups on the ligand can be beneficial in the first step for defining the next pharmacophore features. The map of the ligand-protein interactions in the original RG1/3M6B structure helped us to design the main steps for the platform enabling the on-line pharmacophore searching and screening of active site directed inhibitors for Y-49 β-lactamase (Figure 5B). The structure-based drug design (SBDD) approach required, as a first step, the interactive discovery of the best combination of pharmacophore features, i.e. hydrogen bonding acceptors and donors, hydrophobics, aromatics and electrostatics interactions describing the ligand-3M6B interactions within the active site, a task that was achieved with the help of Pharmit server (http://pharmit.csb.pitt.edu). Virtual screening of large compound databases and SBDD using online Pharmit server (http://pharmit.csb.pitt.edu).

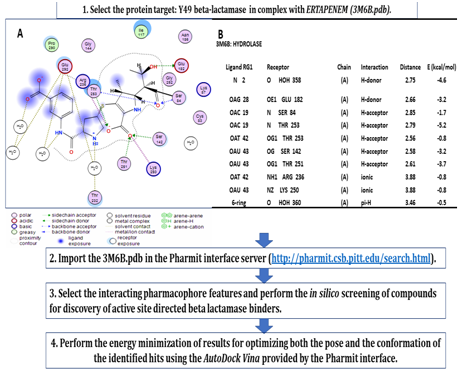

Figure 5 Workflow describing the procedure used to perform the in-silico screening of active site directed binders forY-49 β-lactamase by employing pharmacophore searching and molecular docking with AutoDock Vina provided at the Pharmit server (http://pharmit.csb.pitt.edu). The MOE (Molecular Operating Environment) package was used to extract and visualize the main protein-ligand (carbapenem ertapenem (RG1)) interactions within 5 Å from the ligand, in the target protein structure 3M6B.pdb (A). Details of the active site amino acid contribution to the free energy of interaction between the original ligand (RG1) and Y-49 β-lactamase are displayed as hydrogen bonding, electrostatic (ionic) and steric interactions with the original ligand from 3M6B.pdb (B).

In-silico mediated virtual screening of active site directed β-lactamase inhibitors was performed using the online comprehensive platform Pharmit. The best combination of pharmacophore features, i.e. hydrogen bond acceptor; hydrogen bond donor; hydrophobic; aromatics; and electrostatics were extracted from the original RG1/3M6B structure and accordingly, a predefined pharmacophore query was generated by Pharmit. For each selected pharmacophore features query we searched the compound libraries for matching compounds, including MolPort, CHEMBL21, ChemDiv, NCI Open Chemical Repository, PubMed and ZINC. The search was further restricted by applying a variety of filtering and ranking criteria, including those combining drug-like properties, observing Lipinski’s “rule of five”, as described in detail in the methods section.²² A selected example of output from in silico-mediated virtual screening and molecular docking using AutoDock Vina at Pharmit server is reported in Figures 6 & 7. The SDF files generated from the virtual ligand screening in Pharmit were used as “chemical ligand libraries” to perform the docking in AutoDock Vina using the active site coordinates of 3M6B.pdb β-lactamase that in turn produced a ranked list of docked ligands from MolPort database (displayed in Figures 6 & 7). In addition to the list of compounds displayed in Figures 6 & 7 other remarkable hits included: N2,N7-bis(2,3-dimethylphenyl)-9H-fluorene-2,7-disulfonamide (MolPort-000-687-571; characterized by an energy of interaction with 3M6B of “-9.9kcal/mol”) and N-benzyl-2-9([2,5-dimethylphenyl]amino)-5-oxo-5H-(1,3,4) thiadiazolo (2,3-b) quinazoline-8-carboxamide (MolPort-007-764-070; characterized by an energy of interaction with 3M6B of “-9.3kcal/mol”). The compounds from sulfonamides and carboxamides series were previously shown by other research groups to be inhibitors of β-lactamase.^37,38 Therefore, the original output from Pharmit validated our first platform designed to perform in silico screening of a large dataset of compounds by providing the above mentioned positive hits, i.e., known inhibitors for β-lactamase.

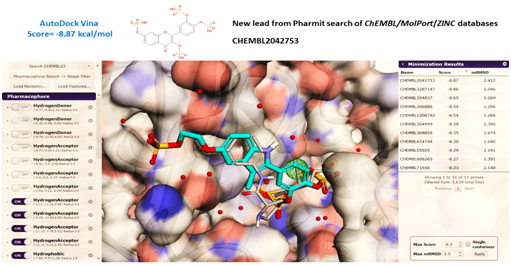

Figure 6 The pharmacophore searching page opened at the Pharmit server displaying the 3M6B.pdb structure of Y-49 β-lactamase in complex with the Ser-84 covalently adducted ertapenem (RG1), as primary query (CPK color). (A) Each pharmacophore feature has a folding menu in the Pharmacophore panel (left) where its type, location, and radius, as well as number of atoms (for hydrophobic features) or directionality can be defined (20). Filters were set to reduce the number of hits by constraining the number of hits returned for a given conformer or molecule, or the overall number of hits (3-5 conformers/molecules). Selected pharmacophore features turned on (or off) are displayed on the left panel, and the table containing the compounds hits after one selected round of in silico screening are shown in the right panel, after energy minimization using the Autodock Vina provided by Pharmit. (B) An example of a pharmacophore-aligned hit from the CHEMBIOL21 dataset for a query derived from PDB 3M6B is shown colored in blue turquoise while the original ligand is shown in CPK color (Right). The crystallographic water found in the active site of 3M6B structure is shown as red spheres. Pharmit allowed the water molecules to be chosen as part of the receptor active site.

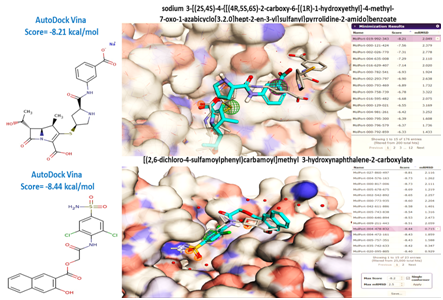

Figure 7 Independent examples of virtual screening and ranking of compounds using AutoDock Vina provided by the Pharmit server (20). The pharmacophore-aligned hits from the Molport dataset for a query derived from PDB 3M6B are shown colored in blue turquoise while the original ligand is shown in CPK color. The crystallographic water found in the active site of 3M6B structure is shown as red spheres. Pharmit allowed the water molecules to be chosen as part of the receptor active site.

Discovery of novel 3D-pharmacophores and fragments from the family of diphenyl, aromatic ketones, hydroxy-phenyl glycine, and stilbenes as potential inhibitors of Y 49 β-lactamase

The virtual screening of large chemical libraries provided by Pharmit webserver enabled us to retrieve selected pharmacophore features, displayed for some hits in Figures 6 & 7. Specifically the multiple aromatic, phenolic groups substituted with hydroxyl, sulfonic groups and carbonylated compounds from the family of benzophenone and hydroxyl-benzophenone emerged as the top pharmacophore features candidates. We inquired further using a literature search at the PubChem database (https://pubchem.ncbi.nlm.nih.gov). This database contains all pharmacological agents described to have anti-bacterial and specifically anti-MTB activity, and encompassing the above-mentioned pharmacophore features. Not surprisingly we retrieved many lead compounds from the family of stilbenes and resveratrol.^39,40 These findings prompted us to further analyze the possible relationship between the structure of diphenyl-hydroxylated compounds, e.g., stilbenes, and resveratrol, and their potential as β-lactamase inhibitors. Our motivation to investigate and determine whether there was a structure-activity relationship (SAR) between different stilbenes/resveratrol compounds and their anti- β-lactamase activity was also supported by all previous work reported on these pharmacological agents as inhibitors of some MTB strains growth.^{16–19,39,40} In 1944 Faulkner discovered the bactericidal properties of some stilbenes and diphenyl derivatives.¹⁹ The common structural feature for all tested compounds displaying bactericidal properties was the presence of one or more phenolic-type hydroxyl groups attached to the ring, and ethyl groups between the rings.^16–19 Stilbenes are small molecules with molecular weights in the range of 200 to 300g/mol. They are naturally-occurring plant secondary metabolites and are derived from the phenylpropanoid pathway. Stilbenes are structurally similar to estrogen and are produced in many unrelated plant species.^16–18 When a plant is subjected to abiotic stress, such as drought, temperature, heavy metals, and salinity, the phenylpropanoid pathway is activated, and stilbenes are produced and secreted. Stilbenes are the plant’s protective molecules; they are able to defend the plant from bacterial attack, as well as ultraviolet exposure.^16–18 The most widely studied stilbene is resveratrol which has been shown to slow the progress of cancer. Moreover, it has been known for more than sixty years that resveratrol inhibits bacterial and fungal growth in vitro.^16,17,39,40 In the last decade it has been discovered that many stilbenes with a free hydroxyl groups were active against both bacteria and fungi with MICs in the range 25-100μg/ml.^16,39,40

However, no specific molecular targets were reported to be responsible for the observed antibacterial effects of resveratrol, or of other stilbenes with free hydroxyl groups. We first hypothesized that the structural features of such compounds would enable both good hydrophobic, van der Waals contacts and hydrogen bonding networks with selected amino acids from the Y49 β-lactamase. Indeed, when we analyzed the protein template 3M6B in complex with resveratrol we found the presence of selected hydrogen bonds between the ligand and active site residues. The “ligand map” generated by Molegro Viewer enabled the 2D-representation of all favorable hydrogen bonds, steric and electrostatic interactions established between the amino acids in the active site of 3M6B and resveratrol displayed in Figure 8 and summarized in Table 2. It can be seen from Table 2 that the amino acids from the active site of β-lactamase that established the hydrogen bonding network with the original ligand ertapenem, RG1, are also involved in making selected contribution to the relative free energy of interaction between the hydroxyl groups of resveratrol and 3M6B β-lactamase (i.e., Arg236, Glu182, Ser84, Ser142, Thr251 and Thr253). In addition, new active site residues show new contribution to the relative free energy of interaction of about “-6.8kcal/mol.” Specifically, the free hydroxyl from stilbene resveratrol make favorable hydrogen bonds with side chains of nitrogen and oxygen atoms from Lys87, Ser142, Asn186, Glu292, and with the backbone amide of Ile117 of β-lactamase (Figure 8). Consequently, we further hypothesized that the presence of free hydroxyl groups substituted to the benzene rings of other natural products derived from stilbenes, diphenyl compounds and other phenyl-hydroxyl containing fragments would enable similar hydrogen networks and thus provide relatively good binding affinity for the Y49 β-lactamase. To test our hypothesis, we selected some compounds from stilbenes, diphenyl derivatives (containing different double bonds positions, alkyl and substituted hydroxyl, amino and sulfonic functional groups), in addition to resveratrol, and performed the in vitro enzymatic assays to study their ability to inhibit the recombinant Y49 β-lactamase. In addition, we used other small organic molecules and fragments reported to display anti-bacterial activities and possessing phenyl, hydroxyl, and amino functionalities, e.g., D(-)-4-hydroxyphenylglycine. D(-)-4-hydroxyphenylglycine is an important intermediate for the synthesis of penicillin, cephalosporin-type antibiotics including amoxycillin, celadroxil and cefatrizin and other semi-synthetic antibiotics, so its potential for inhibiting beta lactamase activity needed to be assessed.⁴¹ As can be seen from Figures 6 & 7, many of the selected small organic fragments and molecules are also constituents of the pharmacophore scaffolds displayed among the top drug candidates retrieved from the virtual screening of the Pharmit server. We next performed the inhibition assays using 24µM chromogenic nitrocefin substrate and 0.05-5nM enzyme concentration in a 200-250µL final volume of 25mM HEPES buffer, pH=7.4. All kinetics assays tested different compounds at different concentrations, ranging 0.5-300µM. The final Ki values were calculated from Morrison equation provided by the GraphPad Prism 7.0 (GraphPad Software) using initial rates approach described in detail in the methods. The Kis of selected compounds are reported in Table 1 together with the chemical ID structure (retrieved at PubChem database), and with the Autodock Vina predicted free energy of interaction with the target 3M6B. Table 1 also presents the experimentally-determined free energy of interaction between different compounds and β-lactamase for comparison with the theoretical prediction. It was observed that Autodock Vina predicted with more than 80% accuracy the free energy of interaction between some of the tested small organic molecules and their target protein (in this research 3M6B), as was the case with resveratrol and most of the tested stilbenes reported in Table 1. However, Table 1 also displays that Autodock Vina failed to predict with similar accuracy the affinity for some small organic fragments, such as benzylamine, hydroxybenzylamine, hydroxyglycine and 2-aminohexanol.

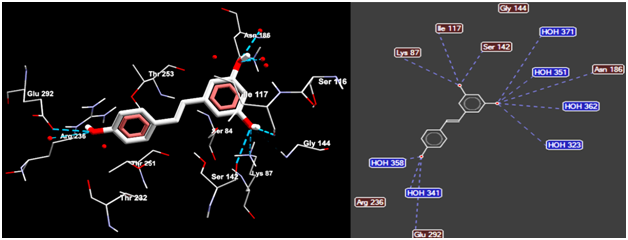

Figure 8 Molegro Viewer enabled the three-dimensional display of the structural details describing the interaction between the best docked pose of resveratrol (CPK colored) and the active site residues of 3M6B β-lactamase (left panel). AutoDock Vina was used to perform the rigid docking which predicted a free energy of about “-6.8 kcal/mol” characterizing the interaction between the resveratrol and β-lactamase. The hydrogen bonds established between the hydroxyl oxygen groups from resveratrol and the selected amino acids and water molecules in the active site of β-lactamase are displayed as dotted blue lines (right panel).

Selected kinetics traces for the assays performed with the fragment inhibitors benzophenone and 2-aminohexanol are displayed in Figure 9. It can be seen from Table 1 that benzophenone and dibenzylsulfone showed relative good inhibition against recombinant Y49 β-lactamase (K_i for benzophenone=25.42µM and K_i for dibenzylsulfone=16.56µM). We hypothesized that both compounds, having good electrophilic functional groups, could eventually be subjected to the interaction with the nucleophilic γO of the active site Ser84. The nucleophilic attack of gamma oxygen (γO) from Ser84 to the carbonyl carbon of benzophenone and the sulphur center of dibenzylsulfone (+2 oxidation state) should mimic the same interaction with a β-lactam antibiotic. This hypothesis was indirectly confirmed by the fact that the benzophenone imine and diphenyl amine had no inhibitory effect (not shown in Table 1). We explained their lack of activity being due to presence of the imine C=N bond that is less polar than C=O bond, giving the nucleophilic of γO Ser84 no attack site, and leaving the lone pair electrons of nitrogen in diphenylamine involved in π-π interactions with the phenyl groups. This resonance effect would make it less susceptible to nucleophilic attack. The requirement for having electrophilic centers and free hydroxyl groups in the structure of the pharmacophore exhibiting potential inhibitory activity against Y49 β-lactamase was further validated by the weak inhibition obtained with the diphenyl fragment that is non-polar, and that does not have electrophilic centers (relative high Ki=123µM). In addition to the requirement of having diphenyl and multiple free hydroxyl groups, the SAR presented in Table 1 shows that other fragments and 3D-chemical scaffolds could be further explored as potential anti Y49 β-lactamase inhibitors; remarkably, the scaffold provided by D(-)-4-Hydroxyphenylglycine is a new fragment lead with an inhibitory constant Ki=5µM, being followed by dibenzylsulfone with Ki=17µM.

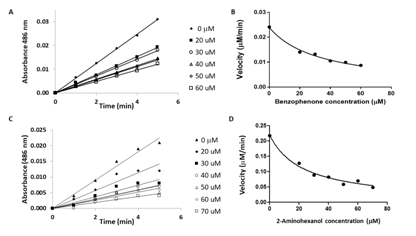

Figure 9 Selected kinetics traces run at different concentrations for the tested chemical fragments benzophenone (A and B), and 2-aminohexanol (C and D).

The SAR presented in Table 1 are, to our knowledge, the first to show one of the possible molecular mechanisms of action for some stilbenes, resveratrol and diphenyl derivatives which could explain their already reported antibacterial activities.^{16–19,39,40} Consequently, the development of stilbenes derivatives and other diphenyl compounds with selected electrophilic functionalities could provide an independent approach to develop non-β-lactam compounds inhibitors of β-lactamases from class A, and complement other approaches used today to overcome the Mycobacterium tuberculosis resistance to antibiotics.

In conclusion, the research presented herein demonstrated the successful development of an in silico-based virtual screening coupled with molecular docking platform that enabled the discovery of novel, non-β-lactam β-lactamase inhibitors of Y-49β-lactamase from Mycobacterium tuberculosis. This was accomplished by employing the 3D-pharamacophore-based virtual screening provided by the on-line server Pharmit (pharmit.csb.pitt.edu), coupled with multiple rounds of in vitro screening platform using kinetics of β-lactamase inhibition with nitrocefin substrate. Specifically, the in-silico virtual screening of large chemical datasets provided by Pharmit (such as Molport, CHEMBL21, ChemDiv, NCI Open Chemical Repository, PubMed and ZINC database) allowed us to improve the structure-based drug design and discovery of novel inhibitors of Y-49 β-lactamase. Notably, new 3D-pharmacophore and fragments from the family of diphenyl, aromatic ketone, hydroxy-phenyl glycine, stilbenes and resveratrol emerged as potential inhibitors of Y-49 β-lactamase and exhibited inhibitory constants, Ki, in the low 5uM-200uM in an in vitro enzymatic assay with nitrocefin substrate. To our knowledge, this new SBDD and SAR on stilbenes, resveratrol and hydroxylated diphenyl compounds is the first to show that their inhibitory activity against Y49 β-lactamase, possibly revealing the molecular mechanisms that explain their already reported antibacterial activities. These newly-discovered pharmacophores features are extending the chemical space for discovery of novel and potent non β-lactam inhibitors of β-lactamases.

Support for this project was provided by the CUNY Research Scholars Program, which is funded by The City University of New York and the New York City Mayor's Office.

The author declares no conflict of interest.
