Research Article Volume 3 Issue 2

Algal communities of the mardan river in ecological assessment of water quality in district mardan, Pakistan

Mursaleen ,1,2 Syed Zahir Shah, Liaqat Ali,1,2 Nadeem Ahmad,2 Izaz Khuram,2 Barinova SS3

1Department of Botany, Islamia College University, Pakistan
2Department of Botany, University of Peshawar, Pakistan
3Institute of Evolution, University of Haifa, Israel

Correspondence: Barinova SS, Institute of Evolution, University of Haifa, Mount Carmel, 199 Abba Khoushi Ave, Haifa 3498838, Israel

Received: March 24, 2018 | Published: April 10, 2018

Citation: Mursaleen, Shah SZ, Ali L, et al. Algal communities of the mardan river in ecological assessment of water quality in district mardan, Pakistan. MOJ Eco Environ Sci. 2018;3(2):82-92. DOI: 10.15406/mojes.2018.03.00071

Download PDF

Abstract

This paper represents the first results of algal species richness investigation in the Mardan River basin, the left tributary of the Kabul River, upper part of the Hindus River. Altogether 201 species and infra species of algae from six taxonomic Divisions were revealed for the communities of three sites in the Mardan River main channel and one site of its left tributary Kaltang. Diatom algae were prevailed with followed greens, charophytes and cyanobacteria. Species richness was higher in the lower part of studied river in site Mardan with 176 taxa, but community structure was similar in four studied sites. Water variables show changes with increasing by TDS, temperature and turbidity, but its dynamic demonstrated that water pollution is more correlated with organic matter than with dissolved inorganic ions in studied basin. Statistical analysis of species–environmental variables relationships with comparative floristics, diversity indices and 3D plots construction revealed that species richness was increased in high water temperature, Electrical conductivity and Total suspended solids but in lower water pH. These three parameters can be used for monitoring of the river ecosystem health because algal communities are responsible to the self–purification process in the studied Mardan River basin.

Keywords: phytoplankton, species composition, diversity indices, mardan river, pakistan

Introduction

District Mardan is a part of the Peshawar valley and was a part of district Peshawar until 1937. It became an independent district in 1937. It is an important city of Khyber Pakhtunkhwa (KP), Pakistan. It lies between 34°05' to 34°32' north latitudes and 71°48' to 72°25' east longitudes. It is bounded on the northeast by Buner district, on north and north–west by Malakand Agency, on the southeast by Swabi district, on the south by Nowshera district and on the west by Charsadda district. Total area of the district Mardan is 1,632 square kilometers.1 Generally, streams and rivers flow from north to the south and west to the east. Most of the streams fall into the River Kabul. An important stream (Kalpani) of the district comes out from Baizai and flows in southwards direction and falls into the River Kabul. The major problem of this settled and anthropogenically polluted area is the water quality decreasing during recent years. Algae represent virtually an unexplored, extensively diverse and heterogeneous group of photosynthetic organisms.2 They play a very important role in our aquatic environment.3 Environmental factors such as temperature, pH, climate etc. influence the algal growth and distribution.4 The algal community study in aquatic environment gives signal about the pollution.5 The diversity of algae was used with bioindication methods as a tool to monitor the biology of water resources in Israel,6 in seasonal variation in the Santragachi Lake, West Bengal (India),7 and in the Kabul River in Pakistan.8–10 Ecological study of the algae plays a fundamental role in knowing the aquatic system and water quality.11 Ecologically, the study of algae is one of the prime importance in their habitat.12 Ecological study of the algal flora in the River Kunhar (Pakistan) was reported for the first time by Leghari et al.13 Barinova et al.9 explored the ecology and diversity of algae of the Qishon River (northern Israel).14 Statistical and bioindication methods were used for the assessment of algal diversity and ecology in the Lower Jordan River.15 Sarim et al.16 reported freshwater algae from River Sardaryab, district Charsadda in Pakistan.16 Filamentous blue–green algal diversity and ecology were studied in standing water basins of Bulgaria.17 The interrelationship of algal biodiversity and environmental variables was investigated through various approaches.18 The distribution of the algal species and its interrelationships to aquatic habitats on the altitude of the Hindu Cush Mountain were studied of the River Valley of Swat.19 Water from municipalities provides a continuous supply of nutrient for the growth of algae.20 When pollution is in the initial stage, excessive growth and sudden change in the diversity of algae occurred.5 In Pakistan, algae have been reported from various freshwater habitats to know their environmental role and ecological distribution.21–25 Water from different sources will have its own impact on algal community.26 The aim of present work is to reveal algal species diversity in the Mardan River phytoplankton and to assess environmental impact to the riverine communities.

Materials and methods

To assess the water quality of district Mardan, four research sites (Sher Gharh, Takht Bhai, Mardan, and Katlang) were selected for sampling (Figure 1). Whereas Sher Gharh, Takht Bhai, and Mardan sites are placed in the Mardan River itself, the site Katlang is on the left tributary of the Mardan River. Water quality of these research sites become pollution with numerous pollutants from different sources as the water flow down the streams (north to south and north to west) across agriculturally used areas. During samples collection, water of Takht Bhai, Mardan and Katlang research sites are consider more polluted as there are areas that are more residential as compare to Sher Gharh research site. Algal and water samples were collected in different seasons for the year 2016. A total of 35 samples were collected from each the research sites at 120 meter radius. Algal specimens were collected regularly from water of floating habitat, attached with stones and submerged plants and on sidewalls of pond, stream and river. The collected specimens were kept in plastic bottles of 25 ml and brought to the Laboratory, Department of Botany, Islamia College University, Peshawar. The specimens were washed carefully and preserved in 4% formaldehyde solution. Morphology of different types of algal species was studied under microscope Nikon Lambda E2000 viewed at ×10, ×40 and ×100 microscope objectives. Images of the algal species were taken with the help of digital camera. Standard references of27–30 were used for identification. Micrometric measurement (length and width) for each algal specimen has taken with the help of stage and ocular micrometers. Statistical analysis of the data for the species diversity and water quality parameters correlation was doing by 3D Surface plots using the Statistica 12.0 Program. Statistical significance of the data was design with the help of Pearson correlation method (wessa.net).

Ecological diversity of the algal species (species richness, species evenness, species dominance and combine index) in the research sites communities were calculated for different seasons with the help of biodiversity indices such as:

  1. Margalef index: The Margalef index was used for measurement of species richness.
  2. Margalef index (d) = (S–1) / ln N,

    Where,

    S = number of recorded species

    N = total recorded individuals in the sample, and

    In = natural logarithm.

  3. Pielou’s evenness index: The Pielou’s evenness index was used for measurement of species evenness.
  4. Pielou’s evenness index (J′) = H′ (observed) / H′max,

    Where

    H′max and H′ is Shannon–Wiener index

    H′max = ln (S)

    S = number of recorded species.

    Value for J' ranges between 0 and 1. The higher the value for J, there will be less variation in communities between the species.

  5. Simpson's index: The Simpson's index (D) was used for measurement of species dominance.
  6. Simpson's index of dominance

    D=1-[ Σ( n-1 )/N( N-1 ) ] MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVCI8FfYJH8YrFfeuY=Hhbbf9v8qqaqFr0xc9pk0xbb a9q8WqFfeaY=biLkVcLq=JHqpepeea0=as0Fb9pgeaYRXxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaKqzGeGaaOirai aak2dacaGIXaGaaOylaKqbaoaadmaakeaajugibiaako6ajuaGdaqa daGcbaqcLbsacaGIUbGaaOylaiaakgdaaOGaayjkaiaawMcaaKqzGe GaaO4laiaak6eajuaGdaqadaGcbaqcLbsacaGIobGaaOylaiaakgda aOGaayjkaiaawMcaaaGaay5waiaaw2faaaaa@4A2C@

    Where

    n = the total number of individuals of a particular species,

    N = the total number of individuals of all species.

    Simpson's Diversity Index is a measure of diversity which takes into account the number of species present, as well as the relative abundance of each species. As species richness and evenness increase, so diversity increases. The value of D ranges between 0 and 1.

  7. Shannon–Wiener index (H′): Combined index was commonly measured with the help of Shannon–Wiener index (H′).
  8. Shannon–Wiener index H p i ( l n * p i )  or  H=-Σ p i ( l n * p i ) MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVCI8FfYJH8YrFfeuY=Hhbbf9v8qqaqFr0xc9pk0xbb a9q8WqFfeaY=biLkVcLq=JHqpepeea0=as0Fb9pgeaYRXxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaKqzGeGaaOisaG Gaaiab=jdiIkaak2dacaGIJoGaaOiCaKqbaoaaBaaabaqcLbmacaGI PbaajuaGbeaadaqadaGcbaqcLbsacaGISbGaaOOBaKqbaoaaCaaabe qaaKqzadGaaOOkaaaajugibiaakchajuaGdaWgaaqaaKqzadGaaOyA aaqcfayabaaakiaawIcacaGLPaaajugibabaaaaaaaaapeGaaOiOai aakckacaGIVbGaaOOCaiaakckacaGIGcGaaOisaiaak2dacaGITaGa aO4OdiaakchajuaGdaWgaaqaaKqzadGaaOyAaaqcfayabaWaaeWaaO qaaKqzGeGaaOiBaiaak6galmaaCaaameqabaGaaOOkaaaajugibiaa kchajuaGdaWgaaqaaKqzadGaaOyAaaqcfayabaaakiaawIcacaGLPa aaaaa@63F9@

    Where

    pi is the proportion of relative species to the total number of species.

Water temperature and pH were measured with the help of portable pH meter–8414 on the sampling point, while electrical conductivity, turbidity, total dissolved solids (TDS) and total suspended solids (TSS) were determined in the laboratory by using standard techniques.

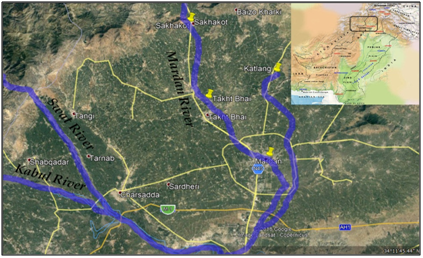

Figure 1 Sampling sites in the Mardan river basin, the left tributary of the Kabul river in Peshawar valley.

Results and discussion

Water chemistry variables

In this study, six variables related to the water chemistry across the studied sites were measured through available standard methods. Fluctuation in the physiochemical properties of the river water in the research sites were recorded (Table 1). Water temperature was increased from 18°C in site 1–Sher Gharh to 27.7°C in 3–Mardan. Water pH also increased down the river from 7.5 to 8.84. Turbidity demonstrated dramatically increasing in lower sites 3–Mardan and 4–Katlang to 98 NTU and 58 NTU respectively. In the same direction was increase Electrical conductivity (EC) from 260 μS cm–1 in 1–Sher Gharh to 607 μS cm–1 in 3–Mardan. Remarkable that EC in site 4–Katlang was comparable with EC in site 2–Takht Bhai that can assume that water pollution is more correlated with organic matter than with dissolved inorganic ions. Total dissolved (TDS) and suspended solids (TSS) values were increased from upper to lower stations and confirm the fluctuation trend of EC, which also demonstrated low influence of dissolved solids to the water quality.

Algal species diversity

A total of 201 species and infra species of algae were revealed in the Mardan River basin research sites (Table 2). Species richness was varied between sites with increasing from 122 in Sher Gharh to 176 in Mardan down the Mardan River channel. The tributary site 4–Katlang has 161 algal taxa that comparable to site 2–Takht Bhai. Table 3 and Figure 2 show that Bacillariophyta prevail in each studied community. Chlorophyta and Charophyta species richness were followed, while Cyanobacteria were on the fourth of the taxonomical position. Euglenoids and yellow–green algae were minimal diverse. These results are similar to species richness distribution in the Kabul River basin algal communities.9,10 We revealed species of algae that indifferent to the environmental change in the studied sites and can see (Table 2) that common presented taxa overall sites were mostly diatoms (24), and greens (16), while charophytes and cyanobacteria have 12 and 11 taxa respectively. Only one species of Ochrophyta and Euglenozoa were participating in all studied communities. In other hand, the unique taxa that developed in only one community of studied sites can show individual properties of the site. They are Oedogonium calcareum from Chlorophyta, Euglena deses from Euglenozoa, and Vaucheria longipes from Ochrophyta which were found in the 4–Katlang community. Therefore, these three species can be marked as unique for studied sites as peculiarity of the tributary Katlang algal community. We compare taxonomic species richness with comparative floristics program and Figure 3 show two floristic clusters one of them combined upper sites of the Mardan River (Sher Gharh and Takht Bhai) while second cluster included lower part of the Mardan River and community of its tributary (Mardan and Katlang). We combine with yellow line the hydrologically relevant sites to the main stream of the Mardan River, can be seen that yellow communities are related to different clusters. In Dendrogram can be seen also that clusters were divided on so small percent of similarity like 17% for cluster 1 and 33% for cluster 2. It can characterize each studied community as rather individual nevertheless its species richness looks like similar in Table 2. Species richness overlapping can clarify this picture and show (Figure 4) that community of the site Mardan is floristic core for all studied sites. We combine with yellow line the hydrologically relevant sites to the main stream of the Mardan River and with blue line the most overlapped communities. Dendrite show very large percent of overlapping (more than 80%) for the lower polluted sites of the Mardan River (2,3) and its tributary (4) which marked by blue line. Only upper site of the Mardan River (1) have 71% of overlapping and therefore can be marked as reference site for studied communities.

Algal diversity fluctuation in four studied sites was measured by using Margalef index used for species richness, Pielou’s evenness index used for species evenness, Simpson's index used for species dominance and Shannon–Wiener index used as a combine Index of ecological diversity (Table 4). Values for Margalef index in Mardan research site was (27.052), followed by Katlang (26.098) and Takht Bhai (25.696) research sites. Minimum species richness (21.740) was found in Sher Gharh site. Values for Pielou′s index of species evenness was maximum (0.864) in Sher Gharh research site followed by Katlang (0.860) and Mardan (0.855) research sites. Minimum species evenness (0.854) was found in Takht Bhai research site. Species dominance was high in Mardan (0.983) research site followed by Katlang (0.9826) and Takht Bhai (0.980) research sites. Minimum species dominance (0.978) was found in Sher Gharh research site. Highest valve (5.00) was recorded for combine Index of ecological diversity Shannon–Wiener in Mardan research site followed by Katlang (4.98) and Takht Bhai (4.931) research sites. Minimum valve (4.809) was recorded for combine Index of ecological diversity in Sher Gharh research site. It let us to conclude that Margalef index of species richness and Shannon–Wiener index of community structure complication can be used for assessment of the ecological state of the River Mardan because reflect the difference between reference and polluted sites, whereas Pielou’s evenness index and Simpson's index of species dominance show very close values in the studied communities. These results are similar to our calculation for the Kabul River communities.9,10 The correlations between environmental variables and species richness for the studied sites of The Mardan River were calculated on the base of Table 1 and Table 3. So, Pearson coefficients of positive correlation were significant for the pair TDS and Species Richness (0.94, p<0.03), TDS and Bacillariophyta (0.95, p<0.02), TDS and Cyanobacteria (0.97, p<0.02), TDS and Charophyta (0.93, p<0.03). In the same time, the Temperature have positive correlation with Chlorophyta (0.91, p<0.04), and with Charophyta species number (0.90, p<0.05). Given the Pearson correlation coefficients, the major environmental variables that influenced algal communities in the Mardan River can be water temperature and TDS. We then decided to construct the surface plots for these and other water variables (Table 1) and species richness in algal communities on the Divisional level (Table 3). Figure 5 shows that species richness is preferred high water temperature, Electrical conductivity and Total suspended solids but lower water pH. Similar set of variables that influenced algal communities was revealed during investigation of close placed rivers Swat and Kabul of the same Kabul River basin9,10 with using statistical methods.

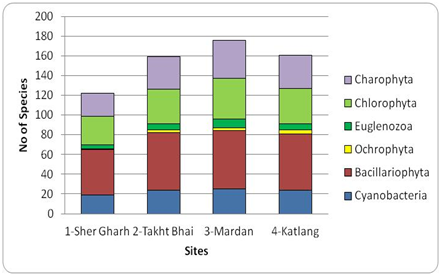

Figure 2 Taxonomical diversity fluctuations over the studied sites of the Mardan river in 2016.

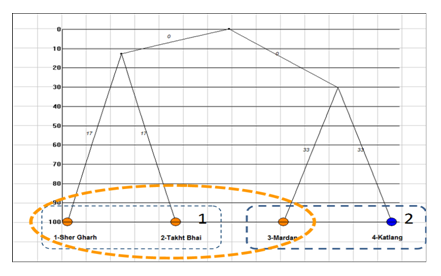

Figure 3 Taxonomical diversity comparison with Euclidean distance dendrogram for algal communities in studied sites of the Mardan river, 2016.

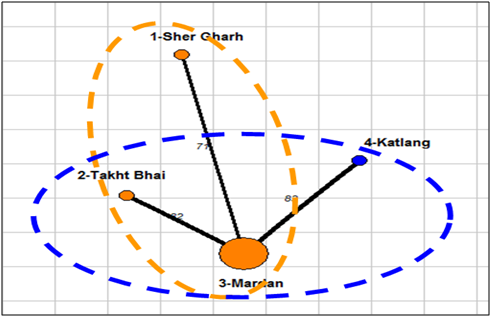

Figure 4 Taxonomical diversity overlapping dendrite for algal communities of the studied sites in the Mardan river, 2016.

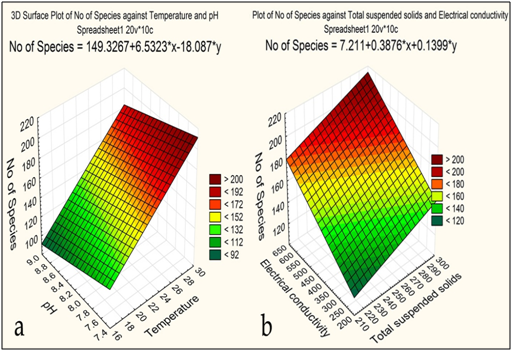

Figure 5Surface plots for algal communities and environmental variables of the studied sites in the Mardan river, 2016.

  1. Distribution of algal species richness over water pH and
  2. Temperature and over electrical conductivity and total suspended solids

No

Parameter

1-Sher Gharh

2-Takht Bhai

3-Mardan

4-Katlang

1

Temperature

18

21

27.7

26.4

2

pH

7.5

7.8

8.34

8.84

3

Turbidity

3.2

9.2

98

58

4

Electrical conductivity

260

365

607

306

5

Total dissolved solids

108

210

236

246

6

Total suspended solids

220

230

225

290

Table 1 Physiochemical parameters of the water in different localities of district Mardan

No

Taxa

1-Sher Gharh

2-Takht Bhai

3-Mardan

4-Katlang

Cyanobacteria

1

Anabaena cylindrica Lemmermann

1

1

1

1

2

Aphanocapsa grevillei (Berkeley) Rabenhorst

0

1

1

1

3

Chroococcus turgidus (Kützing) Nägeli

0

1

1

1

4

Chroococcus prescottii Drouet & Daily

1

1

0

1

5

Dolichospermum sigmoideum (Nygaard) Wacklin, Hoffmann L & Komárek

1

1

1

1

6

Gloeocapsa alpina Nägeli

0

0

1

1

7

Gloeocapsa rupestris Kützing

1

1

1

1

8

Kamptonema formosum (Boryex Gomont) Strunecký, Komárek & Smarda J

1

1

1

1

9

Limnococcus limneticus (Lemmermann) Komárková, Jezberová, Komárek O & Zapomelová

1

1

1

0

10

Limnoraphis birgei (Smith GM) Komárek J, Zapomelová E, Smarda J, Kopecky J, Rejmánková E, Woodhouse J, Neilan BA & Komárková J

0

1

0

1

11

Lyngbya lutea Gomont ex Gomont

0

1

1

1

12

Merismopedia convoluta Brébisson ex Kützing

1

0

1

1

13

Merismopedia tenuissima Lemmermann

1

1

1

1

14

Microcystis aeruginosa (Kützing) Kützing

1

1

0

0

15

Nostoc paludosum Kützing ex Bornet & Flahault

0

1

1

1

16

Oscillatoria curviceps Agardh C ex Gomont

1

1

1

1

17

Oscillatoria limosa Agardh C ex Gomont

1

1

1

1

18

Oscillatoria major Vaucher ex Forti

1

1

1

1

19

Oscillatoria ornata Kützing ex Gomont

0

0

1

1

20

Oscillatoria princeps Vaucher ex Gomont

1

1

1

0

21

Oscillatoria tenuis C.Agardh ex Gomont

1

1

1

1

22

Phormidium ambiguum Gomont

1

1

0

1

23

Phormidium diguetii (Gomont) Anagnostidis & Komárek

1

1

1

1

24

Phormidium irriguum (Kützing ex Gomont) Anagnostidis & Komárek

0

1

1

1

25

Phormidium puteale (Montagne ex Gomont) Anagnostidis & Komárek

1

0

1

0

26

Phormidium retzii Kützing ex Gomont

1

1

1

1

27

Phormidium stagninum Anagnostidis

0

1

1

1

28

Scytonema ocellatum Lyngbye ex Bornet & Flahault

0

0

1

1

29

Spirulina major Kützing ex Gomont

1

1

1

0

Bacillariophyta

30

Amphora ovalis (Kützing) Kützing

1

0

1

1

31

Asterionella formosa Hassall

1

1

1

1

32

Aulacoseira granulata (Ehrenberg) Simonsen

0

1

1

0

33

Brachysira vitrea (Grunow) R.Ross

1

1

1

1

34

Caloneis bacillum (Grunow) Cleve

1

1

1

1

35

Chaetoceros radicans Schütt F

0

1

0

1

36

Cocconeis pediculus Ehrenberg

0

1

1

1

37

Cocconeis placentula Ehrenberg

1

1

1

1

38

Cocconeis scutellum Ehrenberg

1

1

1

1

39

Craticula ambigua (Ehrenberg) Mann DG

1

1

1

1

40

Craticula cuspidata (Kutzing) Mann DG

0

1

1

1

41

Cyclotella quillensis Bailey LW

1

1

0

0

42

Cymatopleura solea var. vulgaris Meister

0

1

1

1

43

Cymbella affinis Kützing

1

1

1

1

44

Cymbella tumida (Brébisson) Van Heurck

1

1

0

1

45

Cymbella vulgata Krammer

1

1

1

0

46

Cymbopleura cuspidata (Kützing) Krammer

1

1

1

1

47

Diatoma vulgaris Bory

0

1

1

0

48

Encyonema leibleinii (Agardh C) Silva WJ, Jahn R, Veiga Ludwig TA & Menezes M

0

1

1

0

49

Fragilaria acus (Kützing) Lange–Bertalot

0

1

0

0

50

Fragilaria capucina Desmazières

0

1

1

1

51

Fragilaria crotonensis Kitton

1

0

1

1

52

Frustulia rhomboides (Ehrenberg) De Toni

1

1

1

1

53

Frustulia vulgaris (Thwaites) De Toni

1

1

1

1

54

Gomphonema angustum Agardh C

1

1

1

1

55

Gomphonema olivaceum (Hornemann) Brébisson

1

1

1

1

56

Gomphonema parvulum (Kützing) Kützing

1

0

1

0

57

Gomphonema truncatum Ehrenberg

0

0

1

1

58

Gyrosigma acuminatum (Kützing) Rabenhorst

1

1

1

0

59

Gyrosigma attenuatum (Kützing) Rabenhorst

1

1

1

1

60

Gyrosigma kuetzingii (Grunow) Cleve

0

1

1

1

61

Gyrosigma wormleyi (Sullivant) Boyer

1

1

0

1

62

Halamphora normanii (Rabenhorst) Levkov

0

1

1

1

63

Iconella robusta (Ehrenberg) Ruck & Nakov

1

1

1

0

64

Lindavia comta (Kützing) Nakov, Gullory, Julius, Theriot & Alverson

1

1

1

1

65

Mastogloia danseyi (Thwaites) Thwaites ex Smith W

1

1

1

1

66

Mastogloia smithii Thwaites ex W Smith

0

0

1

1

67

Melosira varians Agardh C

0

0

1

1

68

Meridion circulare (Greville) Agardh C

1

1

0

1

69

Navicula cryptocephala Kützing

1

1

1

0

70

Navicula exilis Kützing

1

1

1

1

71

Navicula radiosa Kützing

1

0

1

1

72

Navicula rhynchocephala Kützing

1

1

0

1

73

Navicula tripunctata (Müller OF) Bory

1

1

1

1

74

Navicula veneta Kützing

0

1

1

1

75

Neidium ampliatum (Ehrenberg) Krammer

0

1

1

1

76

Neidium dubium (Ehenberg) Cleve

1

1

1

1

77

Nitzschia commutata Grunow

0

1

1

1

78

Nitzschia filiformis (Smith W) Van Heurck

1

1

1

1

79

Nitzschia linearis Smith W

1

1

1

1

80

Nitzschia paleacea (Grunow) Grunow

1

1

1

1

81

Nitzschia scalpelliformis Grunow

0

0

1

1

82

Nitzschia sigmoidea (Nitzsch) Smith W

1

1

0

1

83

Odontidium anceps (Ehrenberg) Ralfs

1

1

1

1

84

Pinnularia globicepsGregory W

0

0

1

1

85

Pinnularia major (Kützing) Rabenhorst

0

1

1

0

86

Pinnularia microstauron (Ehrenberg) Cleve

1

1

0

1

87

Pinnularia viridis (Nitzsch) Ehrenberg

1

1

1

1

88

Placoneis gastrum (Ehrenberg) Mereschkowsky

1

1

1

1

89

Sellaphora pupula (Kützing) Mereschkovsky

0

1

1

1

90

Stauroneis acuta Smith W

1

0

1

1

91

Stauroneis anceps Ehrenberg

0

1

1

1

92

Stenopterobia sigmatella (Gregory W) Ross R

1

1

0

1

93

Surirella cruciata Schmidt AWF

0

1

1

1

94

Surirella librile (Ehrenberg) Ehrenberg

1

1

1

0

95

Surirella ovalis Brébisson

1

0

1

1

96

Tryblionella hungarica (Grunow) Frenguelli

1

1

0

0

97

Ulnaria danica (Kützing) Compère & Bukhtiyarova

1

1

1

1

98

Ulnaria ulna (Nitzsch) Compère

0

1

1

1

99

Urosolenia longiseta (Zacharias O) Edlund & Stoermer

1

0

1

1

Ochrophyta

100

Tribonema elegans Pascher

0

1

1

1

101

Tribonema minus (Wille) Hazen

0

1

1

1

102

Vaucheria longipes Collins

0

0

0

1

103

Vaucheria undulata C –Jao C

1

1

1

1

Euglenozoa

104

Euglena deses Ehrenberg

0

0

0

1

105

Euglena elastica Prescott

1

0

1

0

106

Euglena gracilis Klebs GA

1

1

1

1

107

Euglena oblonga Schmitz F

0

1

1

0

108

Euglenaformis proxima (Dangeard) Bennett MS & Triemer

0

1

1

1

109

Monomorphina pyrum (Ehrenberg) Mereschkowsky

1

1

1

0

110

Phacus acuminatus Stokes

0

1

1

1

111

Phacus elegans Pochmann

0

1

1

0

112

Phacus triqueter (Ehrenberg) Perty

0

0

1

1

113

Trachelomonas superba Svirenko

1

0

1

1

Chlorophyta

114

Acutodesmus acutiformis (Schröder) Tsarenko & John DM

0

1

1

1

115

Ankistrodesmus falcatus (Corda) Ralfs

1

1

1

1

116

Chaetophora elegans (Roth) Agardh C

1

0

1

1

117

Chaetophora pisiformis (Roth)Agardh C

1

1

1

1

118

Chlamydomonas angulosa Dill O

1

1

1

1

119

Chlamydomonas debaryana Goroschankin

0

1

1

0

120

Chlamydomonas ehrenbergii Gorozhankin

1

1

1

1

121

Chlamydomonas globosa Snow JW

0

1

1

1

122

Chlorella vulgaris Beyerinck

1

1

1

1

123

Cladophora glomerata (Linnaeus) Kützing

1

1

1

1

124

Coelastrum astroideum De Notaris

1

0

1

1

125

Coelastrum sphaericum Nägeli

1

1

1

1

126

Desmodesmus opoliensis (Richter PG) Hegewald E

1

1

1

1

127

Geminella minor (Nägeli) Heering

1

1

1

1

128

Gloeocystis major Gerneck ex Lemmermann

0

0

1

1

129

Haematococcus lacustris (Girod–Chantrans) Rostafinski

1

0

1

1

130

Hydrodictyon reticulatum (Linnaeus) Bory

1

1

1

1

131

Kirchneriella cornuta Korshikov

1

1

1

0

132

Kirchneriella obesa (West) West & West GS

1

1

1

1

133

Lychaete dotyana (Gilbert WJ) Wynne MJ

1

1

1

1

134

Monactinus simplex (Meyen) Corda

1

1

1

1

135

Monoraphidium mirabile (West & West GS) Pankow

0

0

1

1

136

Oedogonium angustistomum Hoffman

1

1

1

1

137

Oedogonium anomalum Hirn

1

1

1

1

138

Oedogonium calcareum Cleve & Wittrock

0

0

0

1

139

Oedogonium cardiacum Wittrock ex Hirn

1

1

1

1

140

Oedogonium punctatum Wittrock ex Hirn

0

1

1

1

141

Oedogonium tyrolicum Wittrock ex Hirn

0

1

1

0

142

Pandorina morum (Müller OF) Bory

0

1

0

1

143

Protosiphon botryoides (Kützing) Klebs

0

1

1

1

144

Rhizoclonium fontanum Kützing

0

1

1

0

145

Scenedesmus obtusus Meyen

0

1

1

0

146

Scenedesmus parisiensis Chodat

0

1

1

1

147

Schizomeris leibleinii Kützing

1

1

0

1

148

Selenastrum capricornutum Printz

1

1

1

1

149

Sphaerellocystis ampla (Kützing) Nováková

1

1

1

0

150

Sphaerocystis schroeteri Chodat

0

0

1

1

151

Stigeoclonium attenuatum (Hazen) Collins

0

1

0

1

152

Stigeoclonium helveticum Vischer

1

1

1

0

153

Stigeoclonium lubricum (Dillwyn) Kützing

0

1

1

0

154

Stigeoclonium nanum (Dillwyn) Kützing

1

0

1

1

155

Tetradesmus dimorphus (Turpin) Wynne MJ

1

1

1

0

156

Tetradesmus obliquus (Turpin) Wynne MJ

1

0

0

1

157

Ulothrix cylindrica Prescott

0

0

1

1

158

Ulothrix tenerrima (Kützing) Kützing

1

0

1

1

159

Ulothrix zonata (Weber F & Mohr) Kützing

1

1

1

0

Charophyta

160

Chara aspera Willdenow CL

0

1

1

0

161

Chara braunii var. schweinitzii (Braun A) Zaneveld

0

0

1

1

162

Chara globularis Thuiller

0

1

1

1

163

Chara vulgaris Linnaeus

1

1

1

1

164

Closterium acerosum Ehrenberg ex Ralfs

1

1

1

1

165

Closterium angustatum Kützing ex Ralfs

0

1

1

1

166

Closterium attenuatum Ralfs

0

1

1

1

167

Closterium baillyanum (Brébisson ex Ralfs) Brébisson

0

1

1

1

168

Closterium lunula Ehrenberg & Hemprich ex Ralfs

1

0

1

1

169

Closterium parvulum Nägeli

1

0

1

0

170

Closterium turgidum Ehrenberg ex Ralfs

1

1

1

1

171

Cosmarium biretum Brébisson ex Ralfs

1

1

1

1

172

Cosmarium botrytis Meneghini ex Ralfs

0

0

1

1

173

Cosmarium formosulum Hoff

1

1

1

1

174

Cosmarium granatum Brébisson ex Ralfs

1

1

1

1

175

Cosmarium nitidulum De Notaris

1

0

1

1

176

Cosmarium reniforme (Ralfs) Archer W

0

1

0

1

177

Cosmarium subcrenatum Hantzsch

1

1

1

1

178

Cosmarium undulatum Corda ex Ralfs

0

1

1

1

179

Mougeotia robusta (De Bary) Wittrock

1

1

1

1

180

Mougeotia scalaris Hassall

1

1

1

0

181

Spirogyra bellis (Hassall) Crouan P & Crouan H

0

0

1

1

182

Spirogyra borgeana Transeau

1

1

1

1

183

Spirogyra condensata (Vaucher) Dumortier

1

0

1

1

184

Spirogyra crassa (Kützing) Kützing

0

1

1

0

185

Spirogyra daedalea Lagerheim

0

1

1

1

186

Spirogyra formosa (Transeau) Czurda

1

1

1

1

187

Spirogyra groenlandica Rosenvinge

1

0

1

1

188

Spirogyra inflata (Vaucher) Dumortier

0

1

1

1

189

Spirogyra jugalis (Dillwyn) Kützing

0

1

1

0

190

Spirogyra maxima (Hassall) Wittrock

1

1

1

1

191

Spirogyra parvula (Transeau) Czurda

0

1

1

1

192

Spirogyra porticalis (Müller OF) Dumortier

1

1

1

1

193

Spirogyra pratensis Transeau

0

1

1

0

194

Spirogyra ternata Ripart

1

1

1

1

195

Spirogyra varians (Hassall) Kützing

1

1

1

1

196

Spirogyra weberi Kützing var. weberi

0

1

0

1

197

Spirogyra weberi var. grevilleana (Hassal) O.Kirchner

1

0

1

1

198

Zygnema giganteum Randhawa

0

1

1

0

199

Zygnema parvulum (Kützing) Cooke

1

1

0

1

200

Zygnema vaginatum Klebs

0

1

1

0

201

Zygogonium ericetorum Kützing

1

1

1

1

Total taxa

122

159

176

161

Table 2 Taxonomical content of algae in phytoplankton of the Mardan River basin sites, mean of 2016 four season sampling

Taxa

1-Sher Gharh

2-Takht Bhai

3-Mardan

4-Katlang

Cyanobacteria

19

24

25

24

Bacillariophyta

46

58

59

57

Ochrophyta

1

3

3

4

Euglenozoa

4

6

9

6

Chlorophyta

29

35

41

36

Charophyta

23

33

39

34

Total taxa

122

159

176

161

Table 3 Taxonomical composition of phytoplankton in the Mardan river in four sampling sites in 2016

No

Index

1-Sher Gharh

2-Takht Bhai

3-Mardan

4-Katlang

1

Margalef index (D)

21.740

25.696

27.051

26.098

2

Pielou′s index (J′)

0.864

0.854

0.855

0.860

3

Simpson's index (D)

0.978

0.980

0.983

0.982

4

Shannon-Wiener index (H′)

4.809

4.931

5.00

4.98

Table 4 Algal diversity indices estimation for the Mardan river algal communities, 2016

Conclusion

Our investigation in the Mardan River basin shows that water variables fluctuated dramatically with increasing of temperature and TDS in the lower part of the river and its tributary. Nevertheless, water pollution is more correlated with organic matter than with dissolved inorganic ions as can be seen in analysist of relationships between chemical and biological variables. Altogether 201 species and infra species of algae were revealed in first time in the Mardan River basin in which Bacillariophyta is prevailing in each studied community. Chlorophyta and Charophyta species richness were the next, while Cyanobacteria were on the fourth position from six revealed taxonomic Divisions. Species richness distribution over studied sites was very similar in the most of the Mardan sites and demonstrated that algae were indifferent to the environmental change in the studied river basin. Only three species can be marked as unique for studied sites as peculiarity of the tributary Katlang algal community. Comparative floristics reveals two floristic clusters in which species of communities were divided on small percent of similarity about 17%. This can characterize each studied community as rather individual nevertheless its species richness looks like similar in Divisional level. As a result of comparison, the Mardan site is floristic core of studied algal diversity that overlapped more than 80% between sites and the Sher Gharh site can be named as the referenced site for the Mardan River algal communities. Calculation of diversity indices for studied communities shows that Margalef index of species richness and Shannon–Wiener index of community structure compliance can be used for assessment of the ecological state of the Mardan River. Investigation of algal community response to the environmental variables by Pearson coefficients demonstrated positive correlation between TDS and species richness, Bacillariophyta, Cyanobacteria, and Charophyta species number, whereas water temperature stimulated Chlorophyta and Charophyta species richness. Therefore, the major variables that influenced algal communities in the Mardan River basin were water temperature and TDS. Statistical constructed 3D Surface plots also confirm that species richness increased in high water temperature, Electrical conductivity and Total suspended solids but preferred lower water pH. These three parameters can be used for monitoring of the river ecosystem health because they are influenced algal communities responsible for the self–purification process in the studied Mardan River basin.

Acknowledgements

We are thankful to the Department of Botany, Islamia College Peshawar, on providing us research facility to perform our research work in smooth environment. The work was partly supported by the Israeli Ministry of Aliyah and Integration.

Conflict of interest

None.

References

  1. District Sensus Report of Mardan District (DCR). Population Census Organization Statistics Division, Government of Pakistan Islamabad. District Census Reports; 1998. 262 p.
  2. Radmer RJ. Algal diversity and commercial algal products. Bioscience. 1996;46(4):263‒270.
  3. Green L, Addy K, Sanbe N. Measuring of water clarity. Natural Resources Facts. 1996;96(1):1‒5.
  4. Caspers H. Algal cultures and phytoplankton ecology. 3rd edition, In: Fogg GE, Thake B, editors. USA: University of Wisconsin Press; 1965. 269 p.
  5. Buragohain BB, Yasmin F. Biomonitoring of pollution by microalgae community in aquatic system with special reference to water quality of river Kolong, Nagaon, Assam, India. Int J Appl Sci Biotechnol. 2014;2(1):45‒49.
  6. Barinova S, Krassilov VA. Algal diversity and bio‒indication of water resources in Israel. IJER. 2012;1:62‒72.
  7. Ghos, S, Barinova S, Keshri JP. Diversity and seasonal variation of phytoplankton community in the Santragachi Lake, West Bengal, India. Q Science Connect. 2012;(3):1‒14.
  8. Khuram I, Ahmad N, Jan S, et al. Freshwater green algal biofouling of boats in the Kabul River, Pakistan. Oceanological and Hydrobiological Studies. 2014;43(4):329‒336.
  9. Khuram I, Barinova S, Ahmad N, et al. Ecological assessment of water quality in the Kabul River, Pakistan, using statistical methods. Oceanol Hydrobiol Stud. 2017;46(2):140‒153.
  10. Barinova S, Khuram I, Asadullah, et al. How water quality in the Kabul River, Pakistan, can be determined with algal bio‒indication. Adv Stud Biol. 2016;8(4):151‒171.
  11. Wehr JD. Freshwater Algae of North America: Ecology and Classification. 2nd edition, Elsevier; 2002. 917 p.
  12. Stevenson RJ, Bothwell ML, Lowe RL. Algal ecology: Freshwater benthic ecosystem. 1st edition, USA: San Diego: Academic press; 1996. 753 p.
  13. Leghari MK, Waheed SB, Leghorn MK. Ecological study of algal flora of Kunhar River of Pakistan. Pakistan Journal of Botany. 2001;33:629‒636.
  14. Barinova S, Anissimova OV, Nevo E, et al. Diversity and ecology of algae from the Nahal Qishon River, northern Israel. Plant Biosystems. 2004;138(3):245‒259.
  15. Barinova S, Tavassi M, Glassman H. Diversity and ecology of algae from the Lower Jordan River, Israel. Plant Biosystems. 2009;143(2):340‒360.
  16. Sarim FM, Sultana N, Nisa K. Fresh Water Algae of River Sardaryab, District Charsadda, Pakistan. Pakistan Journal of Plant Sciences. 2009;15:69‒74.
  17. Stoyanov P, Teneva I, Mladenov R, et al. Diversity and Ecology of the Phytoplankton of Filamentous Blue‒Green Algae (Cyanoprokaryota, Nostocales) in Bulgarian Standing Waters. Ecologia Balkanica. 2013;5(2):1‒6.
  18. Barinova S. Algal diversity dynamics, ecological assessment, and monitoring in the river ecosystems of the eastern Mediterranean. USA: New York, Nova Science Publishers; 2011:1‒38.
  19. Barinova S, Ali N, Barkatullah. Ecological adaptation to altitude of algal communities in the Swat Valley (Hindu Cush Mountains, Pakistan). Expert Opinion on Environmental Biology. 2013;2(2):1‒2.
  20. Hiibel SR, Lemos MS, Kelly BP, et al. Evaluation of diverse microalgal species as potential biofuel feedstocks grown using municipal wastewater. Frontiers in Energy Research. 2015;3:1‒20.
  21. Khalid MN, Mustafa S, Saleem S, et al. Studies on bioactivities and phycochemistry of Microcystisaeruginosa (cynophycota) from sindh. Pak J Bot. 2010;42(4):2635‒2646.
  22. Ali ST, Hasan M, Shameel M. Occurrence of the families Naviculaceae and Surirellaceae (Bacillariophyta) in the Punjab and NWFP, Pakistan. Pak J Bot. 2008;40(5):2143‒2148.
  23. Sarim FM, Zaman A. Some freshwater algae of District Charsadda NWFP, Pakistan. Pesh Uni Teach Assoc J. 2005;12:5‒10.
  24. Hussain F, Anjum G, Zaidi MI, et al. Fresh water algae of Hann Urak Valley Quetta. Pak J Bot. 1984;16(1):81–84.
  25. Anjum G, Hussain F. Two new algae from Peshawar valley. Pak J Bot. 1984;16(1):85‒86.
  26. Gronlund E, Froling M. Wastewater Treatment and Recycling with Microalgae in Cold Climate. Proceedings of the 20th International Sustainable Development Research Conference; 2014 June18‒20; Trondheim, Norway. Tronheim: Norwegian University of Science and Technology, Department of Product Design, Resilience–the new research frontier; 2014:317‒324.
  27. Bellinger EG, Sigee DC. Freshwater Algae: Identification and Use as Bioindicators. 2nd edition, UK: Chichester, Wiley; 2015. 296 p.
  28. Prescott GW. Algae of the Western Great Lakes area. Dubuque: Iowa, Wm C Brown Co Pub; 1962. 977 p.
  29. Transeau EN. The Zygnemataceae (fresh-water conjugate algae) with keys for the identification of genera and species, and seven hundred eighty-nine illustrations. Columbus: Ohio State Univ Press, USA; 1951. 327 p.
  30. Collins FS. The Green Algae of North America. Tufts Col lege Studies. 1909;2:79‒480.
Creative Commons Attribution License

©2018 Mursaleen,, et al. This is an open access article distributed under the terms of the, which permits unrestricted use, distribution, and build upon your work non-commercially.
