Papyrus: application of ancient bionics and biomechanics

Wlodzimierz S Erdmann

Verify Captcha

Regret for the inconvenience: we are taking measures to prevent fraudulent form submissions by extractors and page crawlers. Please type the correct Captcha word to see email ID.

Department of Biomechanics and Sport Engineering, Gdansk University of Physical Education and Sport, Academy of Tourism and Hotel Management, Poland

Correspondence: Wlodzimierz S. Erdmann, Dept. of Biomechanics and Sport Engineering, Gdansk University of Physical Education and Sport, Gdansk, Poland, Tel 48-605304939

Received: October 30, 2023 | Published: October 31, 2023

Citation: Erdmann WS. Papyrus: application of ancient bionics and biomechanics. MOJ App Bio Biomech. 2023;7(1):186-187. DOI: 10.15406/mojabb.2023.07.00193

Download PDF

Abstract

In the Egyptian part of Nile, in its central region, there is the Karnak Open Air Museum. Nearby is the New Karnak Papyrus Institute. There, a tourist guide showed to me a process of producing papyrus, that is writing or painting surface made of a plant Cyperus papyrus. This process consists of: cutting a plant onto pieces, cutting them longitudinally, treating them with a hammer and roller, immersing strips into the water, arranging them alternatively at angle of 90 degrees, squeezing in a press, and drying. In this way a kind of a surface for writing or painting is obtained.

Few years ago I was in Egypt. After visiting Cairo and Giza I flew to Luxor (ancient name Thebes). In Karnak (part of the town of Luxor) there is a huge Karnak Open Air Museum comprising Karnak Temple Complex.

My tourist guide took me to the New Karnak Papyrus Institute which was situated in the city (Figure 1).

Figure 1 Logo of Papyrus Institute.

Papyrus grows across the Nile Delta and throughout Mediterranean region (Figure 2). It is a material that was used in ancient Egypt as writing or painting surface. It was first manufactured as far back as the fourth millennium BCE. Egyptians used pith, i.e. an inner part of a stem of the papyrus plant (Cyperus papyrus). It was used not only for writing purposes but also for building boats, mats, rope and other items.^1,2 So, this was ancient bionics application of papyrus.

Figure 2 Papyrus along the banks of a Nile River (photo by Michael Shade [Wikimedia Commons]).

Papyrus was relatively cheap and easy to produce. Unfortunately, it was fragile and susceptible to both moisture and excessive dryness. The writing surface was irregular so it was not easy to write or to draw perfectly. In addition, papyrus was not elastic enough to fold without cracking.¹

While in New Karnak Papyrus Institute, my guide showed to me how ancient Egyptians produced a kind of paper from papyrus plant. There were several steps in order to obtain a sheet of writing or painting surface.

At first papyrus was collected from wet places (Figure 3). Then a stem of a papyrus was cut onto pieces of needed length and then cut longitudinally on two halves (Figure 4). Next, both halves were subjected to beating them with a wooden hammer in order to obtain flat piece (Figure 5a). After that a piece was pressed several times with a roller in order to have even, flat surface (Figure 5b).

Figure 3 Papyrus plant.

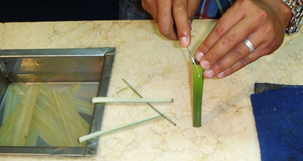

Figure 4 Cutting a stem longitudinally.

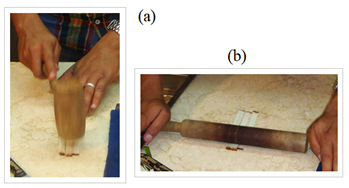

Figure 5 Mechanical treatment of a stem, by: (a) hammer, (b) roller.

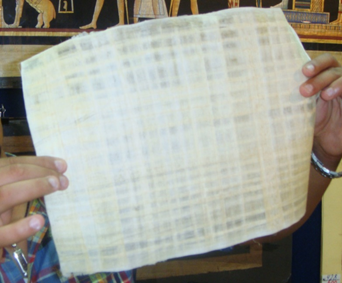

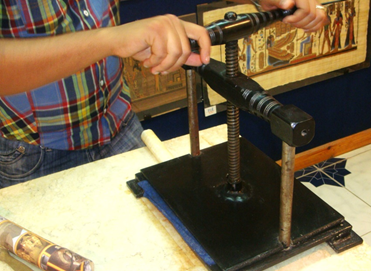

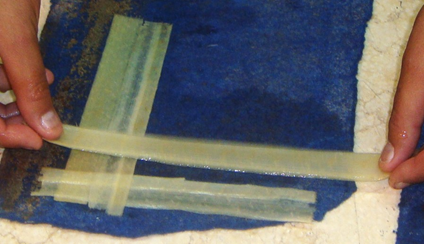

Next, strips of papyrus were immersed into the water. After few minutes they were more elastic and it was easy to arrange them alternately with an angle of 90 degrees (Figure 6). When this action was accomplished the whole sheet composed of papyrus strips was put into the pressure press (Figure 7). When the proper force was applied and a sheet was removed, after drying writing or painting surface was ready to use (Figure 8).
