Modeling and simulation to predict variation of void ration and permeability influence on E-coli transport in heterogeneous sand gravel depositions

Eluozo SN,1 Afiibor BB2

1Department of Civil Engineering, Gregory University Uturu (GUU), Nigeria
2Department of Statistics Federal Polytechnic, Nigeria

Correspondence: Eluozo SN, Department of Civil Engineering, Gregory University Uturu (GUU) Abia State of Nigeria, Nigeria

Received: August 31, 2018 | Published: October 8, 2018

Citation: Eluozo SN, Afiibor BB. Modeling and simulation to predict variation of void ration and permeability influence on E-coli transport in heterogeneous sand gravel depositions. MOJ App Bio Biomech. 2018;2(5):295–301. DOI: 10.15406/mojabb.2018.02.00084

Download PDF

Abstract

This study monitored heterogeneous deposition of void ratio in predominant sand gravel depositions, several studies had been done on transport system with relation to depth of the formation, but the study centered more on time of transport in relation to heterogeneous void ratio and permeability of sand gravel formation, the time of transport were subjected to determine the rate of transport to the Phreatic depositions, fluctuation and exponential phase of transport were observed in the study area, depth of transport were slightly evaluated in the study, but the focus of the study is more on time influenced by heterogeneous void ratio on sand gravel depositions, simulation generated predictive values that were validated with experimental values and both parameters express favorable fits for model validation, the study provide platform to monitor time of transport influenced by heterogeneous void ratio in predominant sand grave depositions. Experts will definitely use the concept to monitor time of transport of E-Coli in sand gravel formation.

Keywords: modeling variation void ratio, permeability, E-Coli, transport and sand gravel formation

Introduction

The behaviour of soil base on evaluation tools known as (SWAT)1,2 was effectively applied to simulate river flow micronutrient were found from evaluation of the Rivers,3 and E. coli fluxes.4-6 The integration of this model was done in landscape which also includes in-stream microbial processes, this concept was thoroughly applied in other to simulate management scenarios in degradation of contamination.2,3,7 The programme called SWAT permit modeling of bacteria fate and transport. even though calibration of the model for faecal fluxes seems more difficult compare to flow, it may be due to the paucity of data and inadequate understanding of E. coli biophysical process, this concept has definitely signify most important breakthrough on approximation E. coli fluxes.4,8 The system of developing modeling in regional degree has been an adopted concept in the past years by Lazure and Dumas,9 this concept was to explain currents, dilution and transport im most parts of the French coast. In recent times, it was observed that water quality variations have been realizeed, this was observed in some particular faecal contamination through bathing and shellfish harvesting areas.7-9 These concept currently applied models is to manage the impact of wastewater on the sea water.10 Expressing such knowledge has been applied to monitor the system daily flows that are simulated with a watershed model as an input into another hydrodynamic model to assess daily bacterial concentrations in estuaries.11,12 These the two conceptual model applications are used to monitor microbiological contamination in an estuary, which is crucial for coastal management.

Theoretical background

VΦct=KVt2cx2Kdcx            (1)

Nomenclature

C=E.Coli Concentration

K             =Permeability

V             =Velocity

F             =Porosity

Kd            =Decay Rate

x              =Depth

T             =Time

Let C =TX

Applying Bernoulli’s method of separation of variables

VΦT1T=KVtX11KdX1=β2      (2)

VΦT1T=β2                                (3)

KVtX11KdX1β2X=0             (4)

T=alβ2KVtt                   (5)

From (4), the auxiliary equation is

KVtM2KdMβ2=0

M=Kd±Kd2+4KVtβ22VΦ            (6)

Hence, we have

X=ACosMx+BSinMx              (7)

Combining (3) and (4), we have: -

C(x,t)=alβ2VΦt[ACosMx+BSinMx] (8)

Subject equation (8) to boundary condition

atx=0c=0 Yield: -

0=aA

i.e. C(x,t)=alβ2VΦt[ACosMx+BSinMx]  (9)

cx=Colβ2VΦt[AMSinMx+BMCosMx]

At x=0,cx=0

o=Colβ2VΦt(CosMx)                 (10)

At x=L,cL=0  yields: -

o=Colβ2VΦt[AMSinML]             (11)

Colβ2VΦt0

AMSinL=0=nπ,n=1,2,3

ML=nπm=nπL

C(x,t)=Colβ2VΦt[CosMπLx]         (12)

If x=Vt

C(x,t)=Colβ2VΦt[CosMπLVt]       (13)

If < t=dv

C(x,t)=Colβ2VΦt[CosMπLdv]

Materials and method

Standard laboratory experiment where performed to monitor the concentration of E-Coli transport at different formation. The soil deposition of the strata was collected in sequences based on the structural deposition at different locations. The samples collected at different locations generated variations at different depth producing different migration of E-Coli concentration through pressure flow at the lower end of the column. The experimental result are applied and compared with the theoretical values for model validation.

Results and discussion

Results are presented in tables and figures including graphical representation of E-Coli concentration. Figure 1 express gradual increase of the predictive E-Coli concentration from ten to forty days and suddenly experienced decrease with increase in time to lowest rate concentration recorded at one hundred and twenty days, while the experimental values gradual decrease from the optimum values recorded at ten to the lowest concentration observed at the same period, Figure 2 predictive values experienced fluctuation where the optimum values was observed at ninety day and final decrease down to the lowest rate of concentration recorded at one twenty days, while the experimental values maintained fluctuation but at different time to the lowest concentration recorded at the same time. Figure 3 observed similar condition but at different time, fluctuation were experienced from ten to two hundred days, where the lowest concentration were observed, while that of experimental values maintained similar condition, but experience higher concentration compared to that of the predictive. Figure 4 developed an exponential phase of the system were the optimum values were recorded sixty metres, while the experimental values maintained the same trend to the optimum parameters recorded at the same depth. Figure 5 predictive maintained linear increase with increase in depth to the optimum values observed at sixty metres, while that of the experimental values experienced vacillation from nine to forty days and linearly increase to the optimum at thirty nine days, Figure 6 observed gradual increase and suddenly experience decrease to lowest rate of concentration. While that of the experimental values increase in similar condition to the optimum values at hundred and fifty days, but suddenly experienced slight decrease between hundred and sixty to two hundred days, while Figure 7 gradually increase with depth to the optimum values recorded at thirty six metres and suddenly experiences decrease to the lowest concentration recorded at sixty metres, while that of the experimental values maintained the same trend of concentration to the lowest depth at sixty metres. Figure 8 predictive and experimental values developed fluctuation from twenty four to sixty metres, Figure 9 predictive observed different concentration in migration, and both parameters observed gradual increase to the optimum values recorded at two hundred days (Tables 1-10).

Figure 1 Predictive and experimental values of E-Coli concentration at different depth.

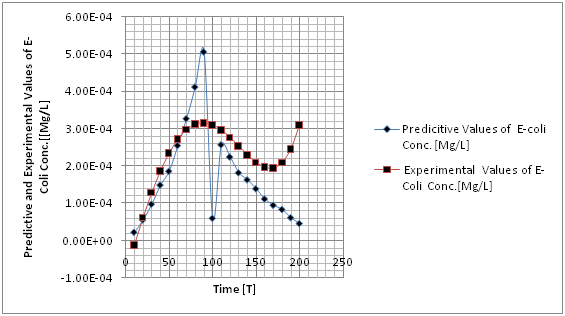

Figure 2 Predictive and experimental values of E-Coli concentration at different time.

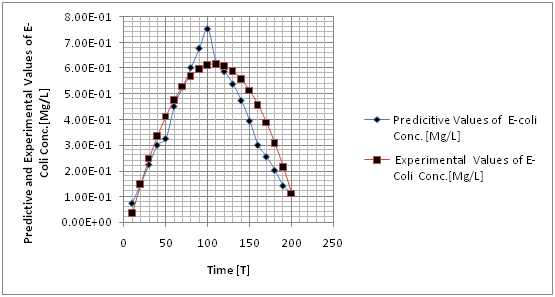

Figure 3 Predictive and experimental values of E-Coli concentration at different time.

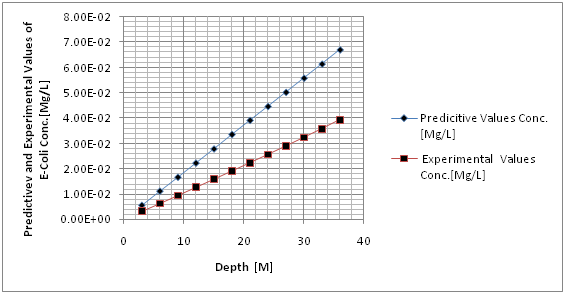

Figure 4 Predictive and experimental values of E-Coli concentration at different depth.

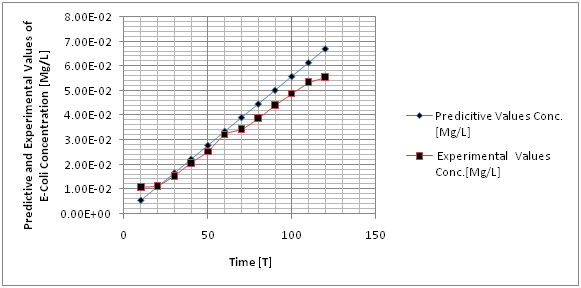

Figure 5 Predictive and experimental values of E-Coli concentration at different time.

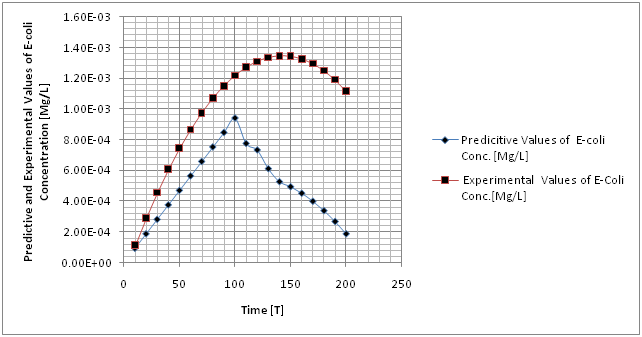

Figure 6 Predictive and experimental values of E-Coli concentration at different time.

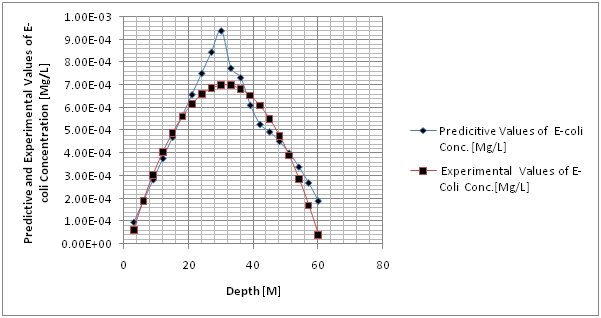

Figure 7 Predictive and experimental values of E-Coli concentration at different depth.

Figure 8 Predictive and experimental values of E-Coli Concentration at different depth.

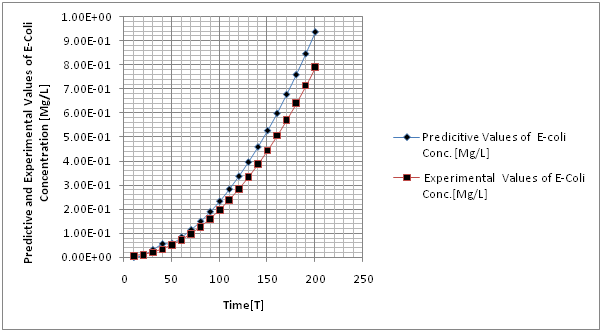

Figure 9 Predictive and experimental values of E-Coli concentration at different depth.

Time [T]

Predictive values of  E-coli conc. [Mg/L]

 Experimental  values of E-Coli  conc.[Mg/L]

10

0.1119

0.16765

20

0.1678

0.1588

30

0.1762

0.15005

40

0.1678

0.1414

50

0.1398

0.13285

60

0.1343

0.1244

70

0.1175

0.11605

80

0.1119

0.1078

90

0.1007

0.09965

100

0.0839

0.0916

110

0.0769

0.08365

120

0.0671

0.0758

130

0.0473

0.06805

140

0.0431

0.0604

150

0.0419

0.05285

160

0.0402

0.0454

170

0.0381

0.03805

180

0.0302

0.0308

190

0.0265

0.02365

200

0.0223

0.0166

Table 1 Predictive and experimental values of E-coli concentration at different time

Time [T]

Predictive values of  E-coli conc. [Mg/L]

 Experimental  values of E-Coli  conc.[Mg/L]

10

2.34E-05

-0.00001148

20

5.63E-05

0.00006232

30

9.86E-05

0.00012912

40

1.50E-04

0.00018712

50

1.87E-04

0.000235

60

2.56E-04

0.00027192

70

3.28E-04

0.00029752

80

4.13E-04

0.00031192

90

5.07E-04

0.00031572

100

6.10E-05

0.00031

110

2.58E-04

0.00029632

120

2.25E-04

0.00027672

130

1.83E-04

0.00025372

140

1.64E-04

0.00023032

150

1.40E-04

0.00021

160

1.13E-04

0.00019672

170

9.58E-05

0.00019492

180

8.45E-05

0.00020952

190

6.25E-05

0.00024592

200

4.70E-05

0.00031

Table 2 Predictive and experimental values of E-coli concentration at different time

Time [T]

Predictive values of  E-coli conc. [Mg/L]

 Experimental  values of E-Coli  conc.[Mg/L]

10

7.54E-02

0.036

20

1.51E-01

0.148

30

2.26E-01

0.248

40

3.02E-01

0.336

50

3.27E-01

0.412

60

4.52E-01

0.476

70

5.28E-01

0.528

80

6.03E-01

0.568

90

6.79E-01

0.596

100

7.54E-01

0.612

110

6.22E-01

0.616

120

5.88E-01

0.608

130

5.39E-01

0.588

140

4.75E-01

0.556

150

3.96E-01

0.512

160

3.02E-01

0.456

170

2.56E-01

0.388

180

2.04E-01

0.308

190

1.43E-01

0.216

200

1.13E-01

0.112

Table 3 Predictive and experimental values of E-coli concentration at different time

Depth [M]

Predictive values conc. [Mg/L]

 Experimental  values conc.[Mg/L]

3

5.59E-03

3.05E-03

6

1.12E-02

6.18E-03

9

1.67E-02

9.36E-03

12

2.23E-02

1.26E-02

15

2.79E-02

1.58E-02

18

3.36E-02

1.91E-02

21

3.92E-02

2.24E-02

24

4.47E-02

2.57E-02

27

5.03E-02

2.90E-02

30

5.59E-02

3.24E-02

33

6.15E-02

3.59E-02

36

6.71E-02

3.95E-02

Table 4 Predictive and experimental values of E-coli concentration at different depth

Time [T]

Predictive values conc. [Mg/L]

 Experimental  values conc.[Mg/L]

10

5.59E-03

1.10E-02

20

1.12E-02

1.15E-02

30

1.67E-02

1.55E-02

40

2.23E-02

2.08E-02

50

2.79E-02

2.54E-02

60

3.36E-02

3.23E-02

70

3.92E-02

3.45E-02

80

4.47E-02

3.88E-02

90

5.03E-02

4.42E-02

100

5.59E-02

4.88E-02

110

6.15E-02

5.33E-02

120

6.71E-02

5.55E-02

Table 5 Predictive and experimental values of E-coli concentration at different depth

Time [T]

Predictive values of  E-coli conc. [Mg/L]

 Experimental  values of E-Coli  conc.[Mg/L]

10

9.39E-05

0.000113

20

1.88E-04

0.000292

30

2.82E-04

0.000457

40

3.76E-04

0.000608

50

4.70E-04

0.000745

60

5.63E-04

0.000868

70

6.57E-04

0.000977

80

7.51E-04

0.001072

90

8.45E-04

0.001153

100

9.39E-04

0.00122

110

7.74E-04

0.001273

120

7.32E-04

0.001312

130

6.10E-04

0.001337

140

5.26E-04

0.001348

150

4.93E-04

0.001345

160

4.51E-04

0.001328

170

3.99E-04

0.001297

180

3.38E-04

0.001252

190

2.68E-04

0.001193

200

1.88E-04

0.00112

Table 6 Predictive and experimental values of e-coli concentration at different depth

Depth [M]

Predictive values of  E-coli conc. [Mg/L]

 Experimental  values of E-Coli  conc.[Mg/L]

3

9.39E-05

6.28E-05

6

1.88E-04

1.91E-04

9

2.82E-04

3.05E-04

12

3.76E-04

4.05E-04

15

4.70E-04

4.90E-04

18

5.63E-04

5.61E-04

21

6.57E-04

6.17E-04

24

7.51E-04

6.59E-04

27

8.45E-04

6.87E-04

30

9.39E-04

7.00E-04

33

7.74E-04

6.99E-04

36

7.32E-04

6.83E-04

39

6.10E-04

6.53E-04

42

5.26E-04

6.09E-04

45

4.93E-04

5.50E-04

48

4.51E-04

4.77E-04

51

3.99E-04

3.89E-04

54

3.38E-04

2.87E-04

57

2.68E-04

1.71E-04

60

1.88E-04

4.00E-05

Table 7 Predictive and Experimental Values of E-Coli Concentration at Different Depth

Depth [M]

Predictive values of  E-coli conc. [Mg/L]

 Experimental  values of E-Coli  conc.[Mg/L]

3

1.99E-03

3.20E-02

6

3.99E-02

5.30E-02

9

5.99E-02

7.40E-02

12

7.99E-02

9.50E-02

15

9.99E-02

1.16E-01

18

1.19E-01

1.37E-01

21

1.39E-01

1.58E-01

24

1.59E-01

1.79E-01

27

1.79E-01

2.00E-01

30

1.99E-01

2.21E-01

33

6.21E-02

2.42E-01

36

6.77E-02

6.77E-02

39

7.34E-02

7.88E-02

42

2.63E-02

3.22E-02

45

2.81E-02

2.55E-02

48

3.01E-02

3.22E-02

51

3.19E-02

3.05E-02

54

1.69E-02

2.11E-02

57

1.79E-02

1.89E-02

60

1.88E-02

1.78E-02

Table 8 Predictive and experimental values of E-Coli concentration at different depth

Time [T]

Predictive values of  E-coli conc. [Mg/L]

 Experimental  values of E-Coli  conc.[Mg/L]

10

2.34E-04

0.0063

20

9.23E-03

0.0116

30

3.17E-02

0.0209

40

5.63E-02

0.0342

50

5.87E-02

0.0515

60

8.46E-02

0.0728

70

1.15E-01

0.0981

80

1.50E-01

0.1274

90

1.90E-01

0.1607

100

2.34E-01

0.198

110

2.84E-01

0.2393

120

3.38E-01

0.2846

130

3.97E-01

0.3339

140

4.60E-01

0.3872

150

5.28E-01

0.4445

160

6.00E-01

0.5058

170

6.79E-01

0.5711

180

7.61E-01

0.6404

190

8.48E-01

0.7137

200

9.39E-01

0.791

Table 9 Predictive and experimental values of E-Coli concentration at different time

Time [T]

Predictive values of  E-coli conc. [Mg/L]

 Experimental  values of E-Coli  conc.[Mg/L]

10

2.34E-04

0.0063

20

9.23E-03

0.0116

30

3.17E-02

0.0209

40

5.63E-02

0.0342

50

5.87E-02

0.0515

60

8.46E-02

0.0728

70

1.15E-01

0.0981

80

1.50E-01

0.1274

90

1.90E-01

0.1607

100

2.34E-01

0.198

110

2.84E-01

0.2393

120

3.38E-01

0.2846

130

3.97E-01

0.3339

140

4.60E-01

0.3872

150

5.28E-01

0.4445

160

6.00E-01

0.5058

170

6.79E-01

0.5711

180

7.61E-01

0.6404

190

8.48E-01

0.7137

200

9.39E-01

0.791

Table 10 Predictive and experimental Values of E-Coli concentration at different depth

Conclusion

The study has express the behavior of the system in terms of deposition under variation of permeability and void ratio in E-coli transport , the litho structure in the study environment express heterogeneous deposition under the influences of heterogeneous void ratio in sand grave formation, such condition were observed to pressure the transport behaviors of E-coli in sand grave depositions, exponential and fluctuation were experienced reflecting the litho structure of the predominant sand gravel deposition, the contaminant were found to pressure in transport process to Phreatic depositions, the study observed variation of micronutrient in different deposition, these are experienced in aquitard and unconfined deposition in Phreatic regions, the study centered more on time of transport under these lithology in the study environment, these condition implies that time and structural setting determined rapid rate of transport to Phreatic beds, these expression detailed the behavior of the transport system in sand gravel region of the study area. Other studies have base more on the depth of the formation, but time in relation to structural depositions has not monitored in detail, this study express the simulation of transport time more than that depth of the transport process, the simulation defined the system process of void ratios in heterogeneous condition, it also express the void ratio heterogeneous setting in sand gravel depositions, simulation developed some high percentage of favorable fits. The study has predicted time relationship with heterogeneous setting of void ratios in sand gravel formation.
