LARM bot humanoid design towards a prototype

Marco Ceccarelli,

Verify Captcha

Regret for the inconvenience: we are taking measures to prevent fraudulent form submissions by extractors and page crawlers. Please type the correct Captcha word to see email ID.

Daniele Cafolla, Matteo Russo, Giuseppe Carbone

LARM: laboratory of Robotics and Mechatronics, University of Cassino and South Latium, Italy

Correspondence: Marco Ceccarelli, LARM: laboratory of Robotics and Mechatronics, University of Cassino and South Latium, Italy

Received: August 24, 2017 | Published: September 7, 2017

Citation: Ceccarelli M, Cafolla D, Russo M, et al. LARM bot humanoid design towards a prototype. MOJ App Bio Biomech. 2017;1(2):48–49. DOI: 10.15406/mojabb.2017.01.00008

Download PDF

Keywords

humanoid robots, design, prototypes

Introduction

Humanoid designs are elaborated at different levels with several solutions worldwide and many prototypes are available in laboratory frames for further researches and designs as well as few others are on the market for sales in some applications. Challenges are organized (the most famous one is the USA DARPA program) with the aim to stimulate new designs and improvements in challenges for more and more complicate tasks. Those tasks require multi-disciplinary designs in which the mechanical design still pay an important role both for the operation performance and cost features. The LARMbot humanoid design can be understood as the ultimate design of a mechanism based approach from a decennial activity at LARM in designing robotic structures with inspiration or replication of human bodies as an integration of those results with the common aspect in low-cost user-oriented design and operation.¹ Here the status of the design is presented with the built prototypes of the parts and an attempt of a full humanoid assembly.

The LARM bot humanoid design

The LARMbot design is a mechanism-based structure that is inspired by the muscular-skeleton structure of the human anatomy considering the bones as per the serial chains and the muscular systems per the driving parallel architectures.² In Figure 1 the main conceptual designs are shown as referring to the trunk structure as a combination of serial spine-like chain and a cable parallel manipulator, (Figure 1A),^3,4 leg system as with two tripod linear actuated mechanisms, (Figure 1B)⁵ and the full assembly as an integrated system, (Figure 1C).⁶ The mechanism designs have been protected by patent submissions. The main characteristics can be recognized in a reduced number of actuators also for an efficient operation with high performance in motion and payload, a compact light mechanical design, and a fairly easy manufacturing of the parts (via 3D printing) with commercial components, thanks to the mechanisms designs.

Figure 1 Mechanism design of the LARMbot Humanoid. A: Torso; B: Biped locomotor; C: CAD full assembly.

The LARM bot prototypes

The design activity has been combined with prototype constructions both to validate the design concepts and to conceive the humanoid integrated system. In Figure 2 the main concepts in Figure 1 are shown with the successful prototypes that are used for experimental characterization like in⁷ and for a final design of the LARMbot humanoid robot with desired characteristics of an overall size of 70 cm tall and 5 kg weight. In Figure 2A the torso prototype is shown as completed with sensing head and powered arms with a capacity of a payload of more than twice its own weight. The new developed leg systems prototype is shown in (Figure 2B) as the biped locomotion system with the two leg tripods with linear actuators supporting the torso and its payload. The first assembly of the LARMbot Humanoid is shown in Figure 2C as a successful integration of the systems that have been developed independently and for integration on such a final design. The integration of structures and their performance has required and still require adjustments both in size and operation capabilities of the components for an optimized version of the humanoid that can be later equipped with more sensors and capabilities as depending of the application fields that are planned in servicing humans in home life or in job special tasks such as assisting elderly people, working in Cultural Heritage frames or in Industrial risky environments.

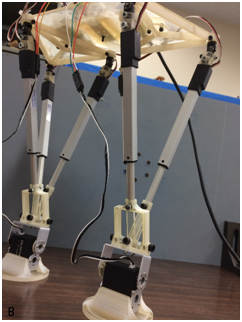

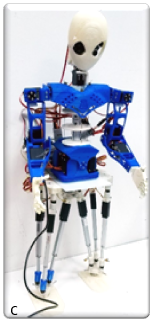

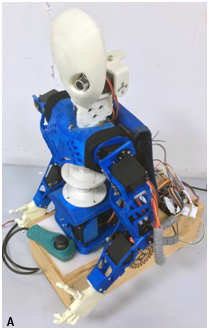

Figure 2 Prototypes of the LARMbot Humanoid. A: Torso; B: Biped locomotor; C: A firstfull assembly.

Conclusion

The LARMbot humanoid robot is designed as characterized by structures with parallel manipulator architectures and their mechanism design with low-cost features and user-oriented operation. The main focus of the current design goals is on mechanical design and its motion and payload capability, whereas complementary multisensorial and intelligent capabilities are still to be properly attached.
