This paper evaluates the effective depth of waves on the submarine at the depth of water. At the depth called the "Wave Base" the wave effects become so small that motion is negligible. This paper aimed to recommend a safe depth for calm and stable motion of a submarine. Depth of $\lambda$ /2 could be considered as the absolutely calm depth but the depth of 0.1$\lambda$ could be recommended as an operational safe and approximately calm depth for submarines. For this study, a torpedo shaped submersible is analyzed in some depths accompanying by regular surface wave. By increasing the depth, the reduction of submarine motions is evaluated. The results of this research can be used for AUVs, research submersibles and naval submarines. This analysis is performed by CFD tools of Flow-3D (V.10) software based on solving the RANS equations and VOF method. In this study a torpedo shaped submersible (Persia110) is considered. The general form and dimensions of this model is shown in Figure 1. This model has 1 DOF, free to pitch. The model has a volume of 8.38 liter, total area of 0.36 m2 and weight of 8.38 kg and transverse moment of inertia (Iyy) of 1.3 kg.m2.This model is the same in several depth in CFD method and the same for validation experiment in towing tank marine laboratory.

For validating the results of Flow-3D modeling, an experimental test has been performed on the model Persia-110 in the towing tank of Admiral Makarov University, which has 33(m) length, 2.5(m) width and 1.3(m) draft (Figure 2).

CFD analysis

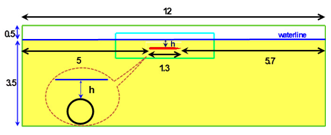

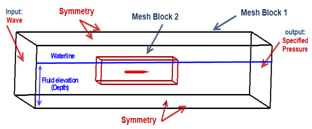

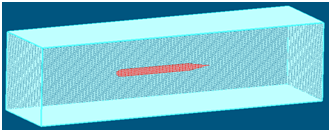

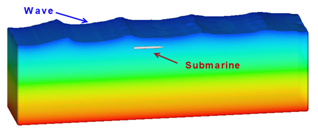

The general configurations and dimensions of domain are shown in Figure 3. The length and width are 12 and 2.6 meters. Depth is 4 meters (3.5 for draft and 0.5 for freeboard). There boundary conditions are: Input: wave, Output: Specified pressure and other sides are symmetry. The model is situated in different depths of "h" according to (Figure 3A). There are two mesh block: one block for the total domain with coarse meshes and other block for fine meshes around the object body. The accuracy of the shape of body depends on the fine meshes (Figure 3B) (Figure 3C). For producing the wave, the input boundary condition is "Wave". Flow-3D can produce regular and irregular waves. The produced wave and the situation of object under the waves are shown in (Figure 3D). The reason of selecting each parameter is mentioned below.

The defined Input boundary condition is regular wave. Here these parameters are defined in Flow-3D: wave amplitude 0.18 meters, wave period 1 second and mean fluid depth (according to the depth of domain) is 3.5 meters and current velocity is regarded zero. Based on these definitions, deep water condition is compatible because d/$\lambda$ >0.5. For deep waters according to the formula of $\lambda$ =1.56T² the wave length is 1.56 meters. Wave speed according to C=$\sqrt{\lambda }$ 1.25 is 1.56 m/s. The orbital radius of wave articles path(R) according to this formula is depended on the distance from water surface (h): R=A.e^-kh and k=2∏/$\lambda$ . Here can be stated as: 1). At the water surface, h=0 and R=A which means at the surface, the radius of orbital motion of articles equals to wave amplitude. 2) At h=$\lambda$ /2, there is R=0.043A. 3) At h=$\lambda$, there is R=0.002A. It is obvious that at the depth equal to $\lambda$/2, the circle radius is only 4% of the surface value and at the depth equal to $\lambda$, it is only 0.2% of the initial value at the surface. Therefore at the depths more than $\lambda$/2 the wave will be damped out.^1–5

Considered conditions for analyses

For studying the wave effects on the submarine, several depth for submarine situation (h) are considered according to (Figure 3) (Table 1).

The time history of pith angle in 12 conditions is analyzed. Figure 4 shows two samples of time history for h=0.1 and 0.35 meter. Table 1 represents the results for each depth. The percentage of decrease in last column is based on comparison to h=0 therefore; average=((h0-hi)/h0*100). It should be notified that the static pitch angle of this submarine is 0.34 degree.^6–10

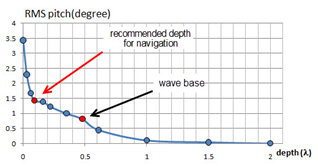

In conclusion, the results could be abstracted in the Figure 5 which fairly shows the gradient of motions versus depth of submergence. Depth of $\lambda$/2 could be considered as the absolutely calm depth but the depth of 0.1$\lambda$ could be recommended as an operational safe and approximately calm depth for submarines.

Figure 5Gradient of RMS pitch versus submergence depth of submarine.

None.

The authors declare that there is no conflict of interest.
