Frequency criterion absolute stability of electromagnetoelastic system for nano and micro displacement in biomechanics

Afonin SM

National Research University of Electronic Technology MIET, Russia

Correspondence: Afonin SM, National Research University of Electronic Technology MIET, Moscow, Russia

Received: October 21, 2019 | Published: November 19, 2019

Citation: Afonin SM. Frequency criterion absolute stability of electromagnetoelastic system for nano and micro displacement in biomechanics. MOJ App Bio Biomech. 2019;3(6):137?140. DOI: 10.15406/mojabb.2019.03.00121

Download PDF

Abstract

In this work we received the frequency criterion absolute stability of electromagnetoelastic system for nano and micro displacement in biomechanics. The aim of this work is to determine the frequency criterion absolute stability of electromagnetoelastic system for nano and micro displacement in biomechanics We used the frequency methods for Lyapunov stable control system to calculate the frequency criterion absolute stability of the control system with electromagnetoelastic actuator. In result we determined stationary set of the control system of the hysteresis deformation of the electromagnetoelastic actuator in form the segment of the straight line.

Keywords: frequency criterion absolute stability, control system, electromagnetoelastic actuator, hysteresis and butterfly characteristics, stationary set, piezoactuator, transfer function

Introduction

In this work the frequency criterion absolute stability of electromagnetoelastic system for nano and micro displacement in biomechanics is calculated. The control systems with electromagnetoelastic actuator on piezoelectric, electrostrictive and magnetostrictive effects solves problems of the precise matching in biomechanics, the compensation of the temperature and gravitational deformations of the equipment, the wave front correction in the adaptive laser system.1−14 The piezoactuator for nano and micro displacement in biomechanics is used in the scanning tunneling microscope, the scanning force microscope, the atomic force microscope, in the gene manipulator.15−31 The problems of using criteria absolute stability of the control system with electromagnetoelastic actuator for nano and micro displacement in biomechanics are discussed. The stationary set of the control system of the deformation of the electromagnetoelastic actuator is received.

Characteristic deformation electromagnetoelastic actuator

In biomechanics the electromagnetoelastic actuator on piezoelectric, electrostrictive or magnetostrictive effects is used in the control systems for the micro and nano surgical repairs, the scanning tunneling microscopes, the micro and nano robotics, the micro and nano manipulators, the injectors.1−6 The aim of this work is to receive the frequency criterion absolute stability of electromagnetoelastic system for nano and micro displacement in biomechanics, The measurements of the end face movement of the piezoactuator were made using Model 214 electronic measuring system of Caliber plant. The experimental static strain characteristic of the piezoactuator from PZT is shown in Figure 1. with the main hysteresis loops with the symmetrical voltage change and with special cycles with the asymmetric voltage change on the plates of the piezoactuator. We use the transfer function of the linear part of the systemand the hysteresis function of the relative deformationof the electromagnetoelastic actuator.16

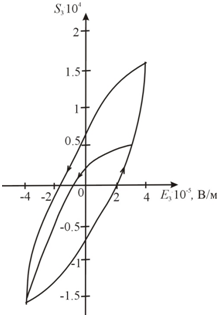

Figure 1 Hysteresis type characteristic deformation of piezoactuator from PZT for longitudinal piezoeffect with main and particular hysteresis loops.

where Sj is the relative displacement of the cross section of the actuator along j axis, Ψi is the control parameter of the actuator along i axis. The hysteresis function Sj at each time instant t depends on the behavior of the function Ψi = Ei or Ψi = Hi, where Ei and Hi are the electric field strength and the magnetic field strength on the interval [0,t], the value of t, the initial value Sj(0), and the sign of the rate Ψ′i of the field strength variation.

We have hysteresis type characteristic of the deformation of the electromagnetoelastic actuator for nano biomedicine on Figure 1. The set Sj(0)is the vertical segment [ S j 0 , S j 0 ] MathType@MTEF@5@5@+= feaagKart1ev2aqatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqkY=Mj0xXdbba91rFfpec8Eeeu0xXdbba9frFj0=OqFf ea0dXdd9vqaq=JfrVkFHe9pgea0dXdar=Jb9hs0dXdbPYxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaabaaaaaaaaape WaamWaa8aabaWdbiaadofapaWaa0baaSqaa8qacaWGQbaapaqaa8qa caaIWaaaaOGaaiilaiabgkHiTiaadofapaWaa0baaSqaa8qacaWGQb aapaqaa8qacaaIWaaaaaGccaGLBbGaayzxaaaaaa@40C9@ bounded by the points of intersection of the ordinate axis with the hysteresis loop at the maximum admissible field strength in the actuator.

In static regime we receive the stationary set N for the deformation of the piezoactuator in control system on Figure 2 for the stable linear part of the control system. We have the equation for the straight line L

where W ij ( 0 ) MathType@MTEF@5@5@+= feaagKart1ev2aqatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqkY=Mj0xXdbba91rFfpec8Eeeu0xXdbba9frFj0=OqFf ea0dXdd9vqaq=JfrVkFHe9pgea0dXdar=Jb9hs0dXdbPYxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaabaaaaaaaaape Gaam4va8aadaWgaaWcbaWdbiaadMgacaWGQbaapaqabaGcpeWaaeWa a8aabaWdbiaaicdaaiaawIcacaGLPaaaaaa@3CBE@ is the static value of the transfer function of the linear part of the control system.

Figure 2 Hysteresis type characteristic deformation of piezoactuator in control system.

E i + W ij ( 0 ) S j =0  MathType@MTEF@5@5@+= feaagKart1ev2aqatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqkY=Mj0xXdbba91rFfpec8Eeeu0xXdbba9frFj0=OqFf ea0dXdd9vqaq=JfrVkFHe9pgea0dXdar=Jb9hs0dXdbPYxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaabaaaaaaaaape Gaamyra8aadaWgaaWcbaWdbiaadMgaa8aabeaak8qacqGHRaWkcaqG xbWdamaaBaaaleaapeGaamyAaiaadQgaa8aabeaak8qadaqadaWdae aapeGaaGimaaGaayjkaiaawMcaaiaadofapaWaaSbaaSqaa8qacaWG QbaapaqabaGcpeGaeyypa0JaaGimaiaabckaaaa@44E8@

We have the stationary set N of the system in the form the marked segment of straight line L in Figure 2. Each point of intersection of the hysteresis nonlinearity with the partial loops and the straight line L corresponds to one equilibrium position. Let us consider butterfly type characteristic of the deformation of the electromagnetoelastic actuator for nano and micro displacement in biomechanics. For the actuator with the electrostrictive effect the deformation characteristic on butterfly wings is observed for unipolar change of the electric field strength on Figure 3. We obtain the particular cycle on one wing of butterfly in the form of the hysteresis loop. For butterfly type characteristic deformation of actuator in the control system the coordinate origin is moved to new zero with top dash on Figure 3.

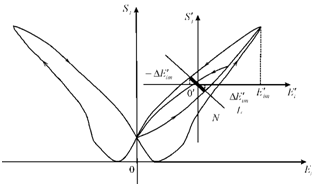

Figure 3 Butterfly type characteristic deformation of actuator with electrostrictive effect in control system.

We have for hysteresis loop on butterfly type characteristic the stationary set N of the control system marked segment of straight line L in Figure 3. For the magnetostrictive actuator the deformation characteristic has the butterfly type. We obtain the continuous function S j ( E i ) MathType@MTEF@5@5@+= feaagKart1ev2aqatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqkY=Mj0xXdbba91rFfpec8Eeeu0xXdbba9frFj0=OqFf ea0dXdd9vqaq=JfrVkFHe9pgea0dXdar=Jb9hs0dXdbPYxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaabaaaaaaaaape Gaam4ua8aadaWgaaWcbaWdbiaadQgaa8aabeaak8qadaqadaWdaeaa peGaamyra8aadaWgaaWcbaWdbiaadMgaa8aabeaaaOWdbiaawIcaca GLPaaaaaa@3D3E@ of the hysteresis loop of the piezoactuator with the quantities of the derivative

ν 1ij ,   ν 2ij [ 0, ν ij   ], ν ij =max[ d S j d E i ] MathType@MTEF@5@5@+= feaagKart1ev2aqatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqkY=Mj0xXdbba91rFfpec8Eeeu0xXdbba9frFj0=OqFf ea0dXdd9vqaq=JfrVkFHe9pgea0dXdar=Jb9hs0dXdbPYxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaabaaaaaaaaape GaeqyVd42damaaBaaaleaapeGaaGymaiaadMgacaWGQbaapaqabaGc peGaaiilaiaacckacaGGGcGaeqyVd42damaaBaaaleaapeGaaGOmai aadMgacaWGQbaapaqabaGcpeGaeyicI48aamWaa8aabaWdbiaaicda caGGSaGaeqyVd42damaaBaaaleaapeGaamyAaiaadQgaa8aabeaak8 qacaGGGcaacaGLBbGaayzxaaGaaGPaVlaacYcacaaMc8UaeqyVd42d amaaBaaaleaapeGaamyAaiaadQgaa8aabeaak8qacqGH9aqpcaqGTb GaaeyyaiaabIhadaWadaWdaeaapeWaaSaaa8aabaWdbiaabsgacaWG tbWdamaaBaaaleaapeGaamOAaaWdaeqaaaGcbaWdbiaabsgacaWGfb WdamaaBaaaleaapeGaamyAaaWdaeqaaaaaaOWdbiaawUfacaGLDbaa aaa@61F5@

where the quantities of the derivativeandare calculated using the hysteresis characteristic on Figure 1 for the maximum admissible electric field strength in the piezoactuator. The quantities  and  are the minimum and the maximum values of the tangent of the inclination angle of the tangent line to the hysteresis nonlinearity of the piezoactuator. We receive

ν 33 : ν 31 :  ν 15 =  d 33 : d 31 :  d 15 MathType@MTEF@5@5@+= feaagKart1ev2aqatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqkY=Mj0xXdbba91rFfpec8Eeeu0xXdbba9frFj0=OqFf ea0dXdd9vqaq=JfrVkFHe9pgea0dXdar=Jb9hs0dXdbPYxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaabaaaaaaaaape GaeqyVd42damaaBaaaleaapeGaaG4maiaaiodaa8aabeaak8qacaGG 6aGaeqyVd42damaaBaaaleaapeGaaG4maiaaigdaa8aabeaak8qaca GG6aGaaeiOaiabe27aU9aadaWgaaWcbaWdbiaaigdacaaI1aaapaqa baGcpeGaeyypa0JaaeiOaiaadsgapaWaaSbaaSqaa8qacaaIZaGaaG 4maaWdaeqaaOWdbiaacQdacaWGKbWdamaaBaaaleaapeGaaG4maiaa igdaa8aabeaak8qacaGG6aGaaeiOaiaadsgapaWaaSbaaSqaa8qaca aIXaGaaGynaaWdaeqaaaaa@51EF@

where the ratios of the tangents of the inclination angle of the tangent line to the hysteresis nonlinearity of the piezoactuator are proportional to the ratios of the piezomodules.

Frequency criteria absolute stability electromagnetoelastic system

The frequency methods for Lyapunov stable control system are used to determine the condition of the absolute stability of control system2 with electromagnetoelastic actuator in biomechanics. We received the sufficient absolute stability condition of the electromagnetoelastic control system with the hysteresis nonlinearity of using the Yakubovich absolute stability criterion with the condition on the derivative. This criterion is the development of the Popov absolute stability criterion.2 For the Lyapunov stable control system and the Yalubovich absolute stability criterion for the system with hysteresis provides the simplest and pictorial representation of results of the investigation of the stability of electromagnetoelastic system for nano and micro displacement in biomechanics.

We have the expression for the sufficient absolute stability condition of the system with the hysteresis nonlinearity of the electromagnetoelastic actuator using the Yakubovich absolute stability criterion with the condition on the derivative. The Yalubovich criterion is the development of the Popov absolute stability criterion.2 For the Lyapunov stabile control system the Yalubovich absolute stability frequency criterion for the system with the single hysteresis provides the simplest and pictorial representation for the stability control system. The frequency criterion absolute stability of electromagnetoelastic system for nano and micro displacement in biomechanics at ν 1ij =0 MathType@MTEF@5@5@+= feaagKart1ev2aqatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqkY=Mj0xXdbba91rFfpec8Eeeu0xXdbba9frFj0=OqFf ea0dXdd9vqaq=JfrVkFHe9pgea0dXdar=Jb9hs0dXdbPYxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaabaaaaaaaaape GaeqyVd42damaaBaaaleaapeGaaGymaiaadMgacaWGQbaapaqabaGc peGaeyypa0JaaGimaaaa@3DB3@ and ν 2ij = ν ij MathType@MTEF@5@5@+= feaagKart1ev2aqatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqkY=Mj0xXdbba91rFfpec8Eeeu0xXdbba9frFj0=OqFf ea0dXdd9vqaq=JfrVkFHe9pgea0dXdar=Jb9hs0dXdbPYxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaabaaaaaaaaape GaeqyVd42damaaBaaaleaapeGaaGOmaiaadMgacaWGQbaapaqabaGc peGaeyypa0JaeqyVd42damaaBaaaleaapeGaamyAaiaadQgaa8aabe aaaaa@40E9@ have the form

Re  ν ij W ij ( jω )1 MathType@MTEF@5@5@+= feaagKart1ev2aqatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqkY=Mj0xXdbba91rFfpec8Eeeu0xXdbba9frFj0=OqFf ea0dXdd9vqaq=JfrVkFHe9pgea0dXdar=Jb9hs0dXdbPYxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaabaaaaaaaaape GaaeOuaiaabwgacaGGGcGaeqyVd42damaaBaaaleaapeGaamyAaiaa dQgaa8aabeaak8qacaWGxbWdamaaBaaaleaapeGaamyAaiaadQgaa8 aabeaak8qadaqadaWdaeaapeGaamOAaiaabM8aaiaawIcacaGLPaaa cqGHLjYScqGHsislcaaIXaaaaa@489A@

where is the amplitude-phase characteristic of the open-loop system and in brackets j is the imaginary unity and  is the frequency.The amplitude-phase characteristic of the open-loop system ν ij W ij ( jω ) MathType@MTEF@5@5@+= feaagKart1ev2aqatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqkY=Mj0xXdbba91rFfpec8Eeeu0xXdbba9frFj0=OqFf ea0dXdd9vqaq=JfrVkFHe9pgea0dXdar=Jb9hs0dXdbPYxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaabaaaaaaaaape GaeqyVd42damaaBaaaleaapeGaamyAaiaadQgaa8aabeaak8qacaWG xbWdamaaBaaaleaapeGaamyAaiaadQgaa8aabeaak8qadaqadaWdae aapeGaamOAaiaabM8aaiaawIcacaGLPaaaaaa@424B@ on Figure 4 should be situated to the right of the straight line

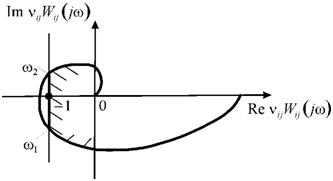

Figure 4 Absolute stability criterion of electromagnetoelastic system for nano and micro displacement, shaded corrected amplitude-phase characteristic.

Re  ν ij W ij ( jω )=1 MathType@MTEF@5@5@+= feaagKart1ev2aqatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqkY=Mj0xXdbba91rFfpec8Eeeu0xXdbba9frFj0=OqFf ea0dXdd9vqaq=JfrVkFHe9pgea0dXdar=Jb9hs0dXdbPYxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaabaaaaaaaaape GaaeOuaiaabwgacaGGGcGaeqyVd42damaaBaaaleaapeGaamyAaiaa dQgaa8aabeaak8qacaWGxbWdamaaBaaaleaapeGaamyAaiaadQgaa8 aabeaak8qadaqadaWdaeaapeGaamOAaiaabM8aaiaawIcacaGLPaaa cqGH9aqpcqGHsislcaaIXaaaaa@47DA@

for all values of ω0 MathType@MTEF@5@5@+= feaagKart1ev2aqatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqkY=Mj0xXdbba91rFfpec8Eeeu0xXdbba9frFj0=OqFf ea0dXdd9vqaq=JfrVkFHe9pgea0dXdar=Jb9hs0dXdbPYxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaabaaaaaaaaape GaeqyYdCNaeyyzImRaaGimaaaa@3B7C@

Let us consider the frequency criterion absolute stability of electromagnetoelastic system for nano and micro displacement in biomechanics on the plane of the logarithmic amplitude frequency characteristic and the phase frequency characteristic

L( ω )=Q[ φ( ω ) ],L( ω )=20lg|   ν ij W ij ( jω ) | MathType@MTEF@5@5@+= feaagKart1ev2aqatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqkY=Mj0xXdbba91rFfpec8Eeeu0xXdbba9frFj0=OqFf ea0dXdd9vqaq=JfrVkFHe9pgea0dXdar=Jb9hs0dXdbPYxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaabaaaaaaaaape Gaamitamaabmaapaqaa8qacaqGjpaacaGLOaGaayzkaaGaeyypa0Ja amyuamaadmaapaqaa8qacaqGgpWaaeWaa8aabaWdbiaabM8aaiaawI cacaGLPaaaaiaawUfacaGLDbaacaaMc8UaaiilaiaaykW7caWGmbWa aeWaa8aabaWdbiaabM8aaiaawIcacaGLPaaacqGH9aqpcaaIYaGaaG imaiaabYgacaqGNbWaaqWaa8aabaWdbiaacckacqaH9oGBpaWaaSba aSqaa8qacaWGPbGaamOAaaWdaeqaaOWdbiaadEfapaWaaSbaaSqaa8 qacaWGPbGaamOAaaWdaeqaaOWdbmaabmaapaqaa8qacaWGQbGaaeyY daGaayjkaiaawMcaaaGaay5bSlaawIa7aaaa@5E8B@

We have the corrected logarithmic amplitude frequency characteristic below the boundary curve for electromagnetoelastic system of nano and micro displacement on Figure 5 in the form

Figure 5 Absolute stability criterion of electromagnetoelastic system for nano and micro displacement, shaded corrected logarithmic amplitude frequency characteristic from phase.

L( ω )=20lg|  1/cosφ | MathType@MTEF@5@5@+= feaagKart1ev2aqatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqkY=Mj0xXdbba91rFfpec8Eeeu0xXdbba9frFj0=OqFf ea0dXdd9vqaq=JfrVkFHe9pgea0dXdar=Jb9hs0dXdbPYxe9vr0=vr 0=vqpWqaaeaabiGaciaacaqabeaadaqaaqaaaOqaaabaaaaaaaaape Gaamitamaabmaapaqaa8qacaqGjpaacaGLOaGaayzkaaGaeyypa0Ja aGOmaiaaicdacaqGSbGaae4zamaaemaapaqaa8qacaGGGcGaaGymai aac+cacaqGJbGaae4BaiaabohacaqGgpaacaGLhWUaayjcSdaaaa@4939@

We obtained for the piezoactuator from PZT the value of the maximum tangent of the inclination angle of the tangent line to hysteresis nonlinearity about 1 nm/V for longitudinal piezoeffect and about 0.6nm/V for transverse piezoeffect. We used the frequency methods for Lyapunov stable control system to calculate the condition the absolute stability of the electromagnetoelastic system for nano and micro displacement in biomechanics.

Conclusion

We received the frequency criterion absolute stability of the electromagnetoelastic system for nano and micro displacement in biomechanics. We obtained the stationary set of the electromagnetoelastic system for nano and micro displacement in biomechanics. The stationary set of the electromagnetoelastic system is the segment of straight line for hysteresis or butterfly characteristic deformation of the actuator. We determined condition of the absolute stability on the derivative for the electromagnetoelastic system of nano and micro displacement in biomechanics.
