Research Article Volume 2 Issue 2

Analysis of Metformin Applied Different Tools Computationals for Determine All the Characteristics of Drug

Norma–Aurea Rangel–Vazquez, Nancy-Liliana Delgadillo Armendariz, Claudia-Lizeth Salas Aguilar

Departamento de Metalmecanica del Instituto Tecnologico de Aguascalientes, Mexico

Correspondence: Norma–Aurea Rangel–Vazquez, Departamento de Metalmecanica del Instituto Tecnologico de Aguascalientes, Ave. Lopez Mateos #1801 Ote Fracc, Bona Gens, CP 20256, Aguascalientes, Mexico, Tel (01?52) 442 19 11 840

Received: September 02, 2015 | Published: March 17, 2015

Citation: Rangel–Vázquez N, Delgadillo-Armendariz N, Salas-Aguilar C (2015) Analysis of Metformin Applied Different Tools Computationals for Determine All the Characteristics of Drug. J Nanomed Res 2(2): 00023. DOI: 10.15406/jnmr.2015.02.00023

Download PDF

Abstract

The metformin structure was analyzed using Hyperchem software to determine the structural properties for absorption process in chitosan cross linking with genipin for medical applications. The theoretical calculations were Gibbs free energy, electrostatic potential and FTIR spectroscopy. Optimized structures and their molecular electrostatic potentials were calculated using the AM1 and PM3 method, and the results were used to calculate the molecular interactions of metformin. The quantitative structure-property relationship model was also used to estimate the activity of the chemicals on the basis their molecular structures. Fourier transform infrared (FTIR) spectroscopy reveals information about the metformin properties. The molecular electrostatic potential (MESP) is a powerful tool that has provided insights into intermolecular association and molecular properties of small molecules, for example, actions of drug molecules and their analogs. The nucleophilic and electrophilic regions were calculated using the MESP. The Log P value (P is the partition coefficient of the molecule in the water–octanol system), showed the hydrophobic character of drug.

 Keywords: Metformin, Simulation, Gibbs free energy, QSAR, FTIR

Abbreviations

FTIR, Fourier Transform Infrared; MESP, Molecular Electrostatic Potential; QSAR, Quantitative Structure-Property/Activity Relationships

Introduction

The major technological revolutions have shown how they can change drastically human life in all its aspects. One of the relatively new disciplines in this technological field is nanotechnology, where scientists and engineers from multiple fields discover fascinating phenomena and applications and provide us with new tools to design and exquisite novel materials where physics, chemistry, molecular biology, medicine, environment, chemical industries, pharmaceutical among others have place.1 In this context, the theoretical description and modeling of new nanodevices and various phenomena occurring in nanometric systems involve, in most of cases, concepts, calculation techniques, and theoretical approaches coming from diverse fields as physics, computational chemistry, biophysics, mathematics, medicine, optics, engineering, etc., where problems until a few years ago did not keep much to do, just being related in a fundamental way in the world nanotechnology.2

Currently, research in nanomaterials science is a vast and active field of research, both basic science and applied with a high degree of academic and technological competence. Such is the case of bio-nanotechnology, where the design of nanomaterials with medical applications for drug delivery, or drug transport or controlled release implants.1,3 can mimic or alter biological processes so their use in medicine could solve old problems associated with solubility, bioavailability, and cytotoxicity immune compatibility many medications traditionally used.4,5 As technology advances, the fundamental techniques of theory, modeling and simulation have been comparable to that of technological and experimental advances that have led to the development of nanoscience.

Today, thanks to the rapid development of computer technology, computer simulation has become an essential tool calculation for both experimentalists as theoretical, because through good computational model can not only be played laboratory experiments, thanks to which you can freely vary the parameters used, can prove (or distortion) theoretical models in ranges of parameters to achieve experimentally impossible for now, resolving conflicts between theoretical explanation and observation. A key role also played today displaying the results, since not only obtain numerical data that can be compared with experiments, but also get a graphic image of the process in question.3

As molecular simulation techniques are not only a useful tool for understanding and predicting the behavior of substances from a description at the molecular level, but also can predict structural, thermodynamic and transport.4 The development of empirical formulae, commonly referred to as quantitative structure-property/activity relationships (QSAR), is an attractive approach for drug and drug delivery design. These relationships are derived from empirical correlation of physico-chemical properties of the drug or carrier molecules such as molecular descriptors, lipophilicity, electronic properties (eg. steric properties molar refractivity), quantum chemical or structural data.5 In the case of nanomedicine, computer simulation is used to create three-dimensional models, which help to better understand the behavior of these nanomaterials at sub molecular level, allowing comparisons between theory and experimental data, and even make quantitative predictions, becoming a very powerful tool to design new molecules with affinity for a given receptor.6-7

AM1 and PM3 are semi empirical method designed to analyzed different materials and determine the their structural properties like to molecular geometry, FTIR, length bond, electrostatic potential and represent a standard tool for both theoretical and experimental organic chemists.8-10 We have selected PM3 and AM1 methods to compute, because these methods are fast enough to obtain results of the calculation in minute scales using an ordinary PC. Metformin (Figure 1) used in the prevention of diabetes mellitus type 2, is presented as an alternative solution for drugs that are primarily administered orally or intravenously .11 Metformin works by suppressing glucose production by the liver.12

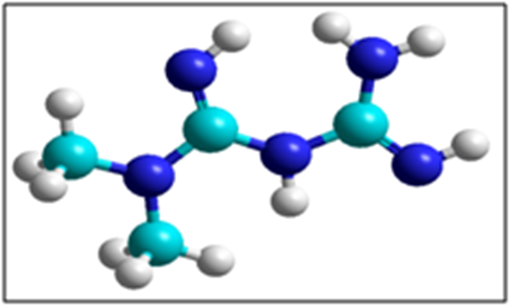

Figure 1 Metformine structure.
White: hydrogen; blue: carbon and purple: nitrogen atoms, respectively

The purpose of the present work was to determine molecular geometry, FTIR, length bond and electrostatic potential of metformin using PM3 and AM1 methods, respectively.

Material and methods

Geometry optimization

The analysis of the structure of metformin used software Hyper Chem software 8v using molecular mechanics and semi-empirical methods were generated.13 The geometry optimization (AM1 and PM3 methods) was calculated by means of the Polak–Ribiere algorithm with a gradient of 0.01 Kcal/(Å mol) in vacuum, 2 spin multiplicity, convergence limit of 0.0001, and 1550 iteration limits.

Electrostatic potential

After obtaining a Gibbs free energy or geometry optimization using AM1 and PM3 methods. Hyperchem calculated the electrostatic potential maps using menu plot molecular graph option in where we realized the 3D representation mapped isosurface in both methods.13 In fact, with these maps we can observed nucleophilic and electrophilic areas respectively, which indicate the behavior of the atomic charges.

FTIR

By vibrational and rotational option is carried out the FTIR analysis and subsequently used the vibration and rotational option of menu compute we can to appreciate the different signals from the infrared spectra, the assignment signals is realized choosing the frequency option and then is displayed the vibration signal.14-15

Results and disscusion

Properties

The interaction forces between quencher and bio- molecules may include hydrophobic force, electrostatic interactions, Van der Waals interactions, hydrogen bonds, etc.16 The set of thermodynamic data obtained applied AM1 and PM3 methods are listed in Table 1. The negative value of ΔG (Gibbs free energy) reflects the spontaneity of metformin.

Properties

AM1

PM3

ΔG (Kcal/mol)

-1745.23

-1698.712

Log P

0.350

0.35

Table 1 Properties of metformine applied simulation computational

The partition coefficient indicates the solubility of a drug in systems such as octanol/water or chloroform/water, respectively. Table 1 show the result of metformin, where the Log P value calculated was 0.35, and represents the hydrophobic properties of a substance and is considered to be a model for the absorption of molecules and widely used in oral controlled release drug delivery to obtain a desirable drug release.17 Furthermore partitioning effects apply equally to diffusion through polymer membranes.18 The analysis computational was to determine the bond length of metformin. The molecular structure along with numbering of atoms as is shown in Figure 2. The optimized structure parameter of metformin was calculated by means PM3 and AM1 and is listed in Table 2 & 3 respectively, these results is given in Figure 2. For this molecule, the structure is not planar and according to their observations, deformations of the ring depend on the characteristics.

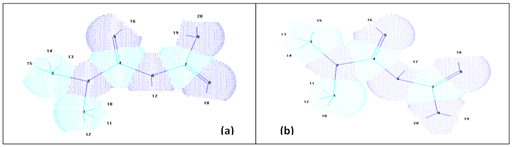

Figure 2 Metformine structure
a. AM1 method
b. PM3 method.

Bond

AM1 (Length: Å)

PM3 (Length: Å)

C1-N2

1.5006

1.5698

N2-C3

1.5051

1.5414

N2-C4

1.5229

1.3601

C4=N5

1.2962

1.2911

C4-N6

1.4556

1.3510

N6-C7

1.4399

1.3462

C7=N8

1.2875

1.2882

C7-N9

1.4152

1.3393

Table 2 Structural parameters calculated for PVP employing PM3 and AM1 methods in metformine

Bond

AM1 (Angle: °)

PM3 (Angle: °)

C1-N2-C3

98.0911

107.457

C1-N2-C4

131.127

136.876

C3-N2-C4

130.782

125.667

N2-C4=N5

116.079

122.660

N2-C4-N6

121.001

117.452

N5=C4-N6

122.920

119.887

C4-N6-C7

134.110

149.233

N6-C7=N8

116.159

124.219

N6-C7-N9

131.422

126.864

N9-C7=N8

112.419

118.917

Table 3 Structural parameters calculated for metformine employing PM3 and AM1 methods

Molecular Electrostatic Potential (MESP)

MESP is a very useful property for analyzing and predicting molecular reactive behavior. The potential has been particularly useful as an indicator of the sites or regions of a molecule that are attracted more strongly, and it has also been applied successfully to the study of interactions that involve a certain optimum relative orientation of the reactants, such as between a drug and its cellular receptor.19 The MESP values (Figure 3) was calculated between (0.056 at 0.186 eV) and (0.505 at 0.171 eV) for AM1 and PM3 respectively. The electrophilic regions were appreciated at NH groups (atoms 5 and 9) and nucleophilic regions were localized in the NH (atom 17) between carbons 4 and 7.

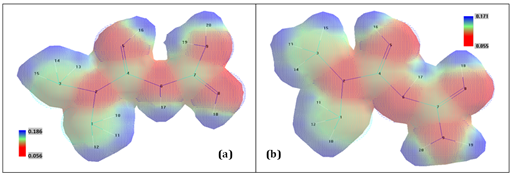

Figure 3 MESP of metformine
a. AM1 method
b. PM3 method.
White: hydrogen atoms; blue: carbon atoms; purple: nitrogen atoms

FTIR

Table 4 shows the FTIR results of metformin using AM1 and PM3 method respectively, where two characteristic bands of metformin were observed between 3615-3533 and 3446-3420 cm−1 relative to the NH primary stretching vibration so of NH secondary stretching.20-23 Usually the frequency of this vibration is decreased in the presence of hydrogen bond. The characteristic bands at 1611, 1548-1526 and 1496 cm−1 are assigned to C-N stretching.23 Metformin has strong absorption bands at 1840 and 1818 cm-1 which are due to C=N stretching vibrations. It has been reported that C–N stretching of aliphatic amine compounds is generally weak and occurs in the region 1278-1920 cm-1.20-21 The weak intensity bands in the FTIR spectra at 1611, 1548-1496, 1384-1092, 722 and 536 cm-1 have been assigned to C–N stretching vibrations.21-24

Assignments

AM1
[Frequency: cm-1]

PM3
[Frequency: cm-1]

N–H        Stretching

3615, 3533, 3446, 3420

3477, 3458-3445

C=N        Stretching

1840, 1818

1942, 1930

H-N-H    Scissoring

1753

1637

C-N         Stretching

1611, 1548, 1526, 1496

1512, 1484-1467

C-N         Bending

1384, 1164, 1092, 536

1362-1298, 1121, 618

C=N        Bending

1384

------------

C-H         Bending

1496, 1384, 1359, 722

941

N-H        Bending

1278, 532

1209, 1188

Table 4 FTIR results of metformine

Conclusion

The results confirm that the Gibbs free energy is spontaneous in both methods. FTIR analyses showed the characteristic functional groups of the metformin. The vibrational frequency calculations revealed no imaginary frequencies, indicating that a stationary point at this level of approximation was found for the compounds. It was appreciated in the various bond lengths calculated with PM3 and AM1 levels. The MESP analysis was most important for determine the stability and molecular structure of the drug.

Acknowledgments

None.

Conflicts of interest

None.

References

  1. Mendoza G, Rodriguez JL La Nanociencia y la nanotecnologia: una revolucion en curso. Perfiles Latinoamericanos. 2007;29:161‒186.
  2. McCurdy CW, Stechel E, Cummings P et al. Theory and Modelling in Nanoscience. Workshop Conducted by the Basic Energy Sciences and Advanced Scientific Computing Advisory Committees to the Office of Science, Department of Energy, USA. 2002
  3. Hofer TS From macromolecules to electrons‒grand challenges in theoretical and computational chemistry. Front Chem. 2013;1:6.
  4. Leach A Molecular Modelling: Principles and Applications(2nd edn), Prentice Hall Ltd., New Jersey, USA. 2001
  5. Haddish‒Berhane N, Rickus JL, Haghighi K The role of multiscale computational approaches for rational design of conventional and nanoparticle oral drug delivery systems. Int J Nanomedicine. 2007;2(3):315‒331.
  6. Gago BF Metodos computacionales de modelado molecular y diseño de fármacos. An Real Acad Nac Farm. 1993;253‒327.
  7. Buch I, Giorgino T, Fabritiis G Complete reconstruction of an enzyme‒inhibitor binding process by molecular dynamics simulations. Proc Natl Acad Sci USA. 2011;108(25):10184‒10189.
  8. Hwang W, Hwang Y, Lee S, Lee D Rule‒based multi‒scale simulation for drug effect pathway analysis. BMC Med Inform Decis Mak. 2013;13(Suppl 1):1‒9.
  9. Kalninsh KK Joint experimental and theoretical study of the poly (styryl sodium) and poly (α‒methyl styryl sodium) polymerization/depolymerization. P hys Chemi Chem Phys. 2001;3(20):4542‒4546.
  10. Klein E, Matis M, Lukes V, Cibulkova Z The applicability of AM1 and PM3 semi‒empirical methods for the study of NeH bond dissociation enthalpies and ionization potentials of amine type antioxidants. Polym Degrad Stabil. 2006;91(2):262‒270.
  11. Mertins O, Dimova R Binding of Chitosan to Phospholipid Vesicles Studied with Isothermal Titration Calorimetry. Langmuir. 2011;27(9):5506‒5515.
  12. El Messaoudi S, Rongen GA, De‒Boer RA et al. The cardioprotective effects of metformin. Curr Opin Lipidol. 2011;22(6):445‒453.
  13. Ravindran CA, Yoke JC, Sheau TC et al.  In vitro studies and evaluation of metformin marketed tablets‒Malaysia. J App Pharmaceut Sci. 2011;1(5):214‒217.
  14. Kumirska J, Czerwicka M, Kaczyn ski Z et al. Application of Spectroscopic Methods for Structural Analysis of Chitin and Chitosan. Mar Drugs. 2010;8(5):1567‒1636.
  15. Rangel‒Vázquez NA Computational Chemistry Applied in the Analyses of Chitosan/Polyvinylpyrrolidone/Mimosa Tenuiflore. (1st edn), Science Publishing Group, Hong Kong, pp. 2013;10‒15.
  16. Ahmad TA, Jahan R, Abdul QM et al. Spectroscopic Studies of the Interaction between Metformin Hydrochloride and Bovine Serum. Dhaka Univ J Pharm Sci. 2012;11(1):45‒49.
  17. Hardinnawirda K, Sitirabiatull I Effect of rice husks as filler in polymer matrix composites.JMech Eng Sci. 2012;2:181‒186.
  18. Narasimharao R, Reddy MA, Reddy NS Design and Evaluation of Metformin Hydrochloride Extended Release Tablets by Direct Compression. Int J ResPharmaceut Biomed Sci. 201;2(3):1118‒1133.
  19. Politzer P, Laurence PR, Jayasuriya K Molecular electrostatic potentials: an effective tool for the elucidation of biochemical phenomena. Environ Health Perspect. 1985;61:191‒202.
  20. Gary CD Analytical Chemistry. (6th edn), John Wiley and Sons, Hoboken, USA. 2003
  21. www. depa.fquim.unam.mx/amyd/archivero/Tabla_de_IR_20785.
  22. Sheela NR, Muthu S, Krishnan SS FTIR, FT Raman and UV‒Visible Spectroscopic Analysis on Metformin Hydrochloride. Asian J Chem. 2010;22(7):5049‒5056.
  23. Fahim F, Naseer A, Ahmed S, Tufail S, Bhanger MI A Green Approach for the Determination of Selected Anti‒Diabetic Drugs in Pharmaceutical Formulation by Transmission FTIR Spectroscopy. J Braz Chem Soc. 2014;25(11):2032‒2038.
  24. Renganayaki V, Srinivasan S HF, DFT Computations and Spectroscopic Study of the Vibrational and Thermodynamic Properties of Metformin. Int J Pharm Tech Research. 2011;3(3):1350‒1358.
