Closed loop system on the base of non-invasive optical glucometer

Nikolay A Bazaev,

Verify Captcha

Regret for the inconvenience: we are taking measures to prevent fraudulent form submissions by extractors and page crawlers. Please type the correct Captcha word to see email ID.

Kirill V Pozhar, Evgeniia L Litinskaia

Department of Biomedical Engineering, National Research University of Electronic Technology, Russia

Correspondence: Nikolay A Bazev, Department of Biomedical Engineering, National Research University of Electronic Technology Zelenograd, Moscow, Russia

Received: July 28, 2016 | Published: December 6, 2016

Citation: Bazaev NA, Pozhar KV, Litinskaia EL. Closed loop system on the base of non-invasive optical glucometer. J Diabetes Metab Disord Control. 2016;3(7):158-159. DOI: 10.15406/jdmdc.2016.03.00090

Download PDF

Abstract

Closed loop system for diabetes mellitus compensation was developed. The system comprises a non-invasive optical glucose meter, an insulin infusion device and algorithm for blood glucose prediction. Glucometer consists of the control unit connected to the earlap clip by optical fiber. Experimental trials show that inherent accuracy of the optical system is 0.012%, reproducibility –0.06%, RMSE in the blood glucose physiological area –17%. The system was provided with the short-term prediction algorithm, which corrects 96.5% cases of inaccurate operation of the glucometer that makes insulin infusion more physiological. The system is aimed for personal continuous blood glucose control for patients with diabetes mellitus type I.

Keywords: non-invasive glucose meter, artificial pancreas, optical, diabetes mellitus

Introduction

Diabetes mellitus is the third widespread lethal disease in the world. It is an endocrine disease, characterized by chronic increase of blood glucose concentration (BG) that occurs when pancreas is no longer available to produce enough amount of insulin. The potentially breakthrough method of diabetes mellitus therapy is the continuous closed loop blood glucose control system,¹ which is aimed to compensate carbohydrate metabolic imbalance by continuous insulin infusion. To provide adequate insulin therapy it is required to analyze BG, which can be measured by portable blood glucose meters or glucose monitors. Up-to-date commercial BG monitoring systems and glucometers are invasive.² Their application brings such disadvantages as discomfort and risk of infection. Development of a non-invasive system for continuous blood glucose monitoring seems to be a very promising direction. Such a BG monitor can work continuously and provide user with BG dynamics during a long period of time that is necessary for accurate diabetes mellitus compensation. Combination of non-invasive continuous blood glucose monitor with automatic insulin pump gives a possibility for on-line insulin infusion rate correction. Such a system must be provided with algorithms for interaction between it parts and short-term BG prediction. The latter is to predict glucose and insulin dynamics and estimate adequacy of glucometer data. Thus, possible glucometer errors or problems with tubing set bending etc. could be avoided.

In current paper we present results of our development of a closed loop system on the base of non-invasive optical glucometer.

Methodology

Non-invasive glucometer

Portable non-invasive glucose meter implement transmission spectroscopy method. Infrared radiation from laser light source spreads through tissues and reaches photodiode on the outer side. The glucometer consists of control unit and clip for earlap (Figure 1). The light source is a NIR laser photodiode with thermos-stabilization unit. The clip contains optical system and photodiode. To avoid clip heating and to reduce clip size light source is placed in the control unit, which is connected to the clip by optical fiber. The calculated blood glucose level is displayed on the display panel, saved and can be transmitted to PC or smartphone if necessary. Control unit can be connected to PC by USB and interacts with insulin pump by Bluetooth. The device powering is provided by PP3-size battery or by an AC-adapter. Calculation of blood glucose level is based on the iteration algorithm taking into consideration reference data.

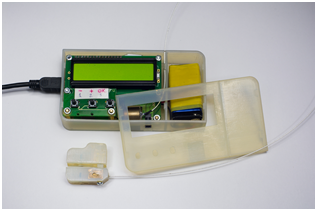

Figure 1 Non-invasive portable optical glucometer (prototype).

Insulin pump

Insulin delivery system is an automatic insulin pump with stepper motor and 3 ml insulin reservoir. The device powering is provided by AA-size rechargeable battery. The pump control unit has Bluetooth interface for data exchange with glucose meter control unit and smart phone. Smartphone application is based on user interface comprising the following functions: food intake and other factors affecting on BG dynamics data input; calibration data input; current BG and dynamics diagram visualization; error indication (Figure 2).

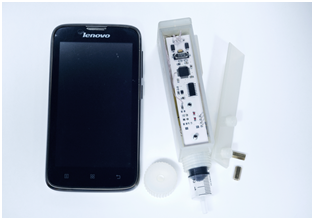

Figure 2 Insulin Pump Prototype.

Prediction algorithm

To predict BG it is necessary to have approbated on real BG tracks mathematic models of glucose and insulin regulation. Developed mathematical model takes into consideration a range of factors affecting the blood glucose dynamics³ and mechanisms of blood glucose and insulin regulation.⁴ in human body. Developed sigma-model⁴ is used as the basis of short-term prediction algorithm.⁵ that is to detect errors in operating of pump or glucometer. The model predicts the blood glucose level during next 30 minutes on the base of previous data from patient and information about meals and insulin injections. If glucometer indications differ from predicted by more than 20% the indication is considered as an error. Otherwise the glucose meter indication is considered as correct.

Experimental Trials

Adequacy of developed glucometer was estimated via Clarke Error Grid Analysis (Figure 3). None of indications falls in Е-zone of Clarke error grid, therefore the usage of the device can’t cause heavy health hazard. Inherent accuracy of the device optical system is 0,012%, reproducibility of measurement results – 0,06%. Mean error of measurements in the blood glucose physiological area is 17%. Prediction algorithm approbation showed that 96.5% cases of incorrect operation of the BGC monitor was corrected that confirms reliability of the combined system. Approbation was carried out on the basis of glucose tracks database DirecNet.⁶

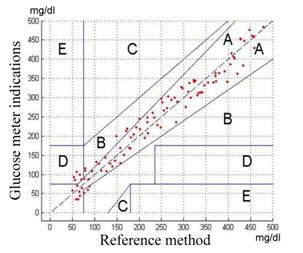

Figure 3 Non-invasive portable optical glucometer prototype measurements on Clarke Error Grid.

Results and Discussion

Results of approbation of non-invasive glucometer and algorithms for blood glucose and insulin regulation and prediction gives us optimism for further steps toward development of reliable closed loop system for diabetes compensation on the base of an optical non-invasive glucometer. The system will be applicable for constant blood glucose control for patients with diabetes mellitus type I.
