Chromosome-site interaction in the South American fruit fly

Alicia Basso, Ana Pereyra, Norberto Bartoloni

Adjunto Cátedra de Genética, Facultad de Agronomía-UBA, Argentina

Correspondence: Alicia Basso, Profesor Adjunto, Cátedra de Genética, Facultad de Agronomía-UBA Avda. San Martin 4453- (1417) C.A.B.A. Argentina

Received: January 08, 2019 | Published: March 7, 2019

Citation: Basso A, Pereyra A, Bartoloni N. Chromosome-site interaction in the South American fruit fly Anastrepha fraterculus (Wied.). J Appl Biotechnol Bioeng. 2019;6(2):57-61. DOI: 10.15406/jabb.2019.06.00175

Download PDF


The present paper aims to further analyze and explain which is the significance of genetic variation in the so-called Anastrepha fraterculus complex and to solve if chromosomal vari-ants in Anastrepha fraterculus are associated to geographic variation. Our hypothesis are: I) chromosomal variants are not randomly distributed in the South American fruit fly populations studied. II) Chromosomal variants are not reproductive isolation markers. We sampled guava fruits from Argentina, Uruguay and Brazil during at least two years, to recover Anastrepha larvae as well as adult flies. The latter were single pair mated to form laboratory strains. We studied the chromosomal pattern of 879 larvae from wild populations and derived laboratory strains. Sexual chromosome variants were associated to different strains. Banding patterns were obtained with routine and molecular cytogenetics. Strains from the most distant localities were used in crossings. We computed a log lineal analysis of the data set in order to test the hypothesis of inertia and to get probabilistic estimates of relevant parameters associated with chromosome variation. We used a test of hypothesis to determine the existence of statistically significant associations between karyotypic frequencies relative to sex chromosome variants and the natural populations. With respect to hypothesis I, analyses showed ten sexual chromosome variants [(X1, X2, X3, X4) and (Y1, Y2, Y3, Y4, Y5, Y6)] and highly significant statistical chromosome  site interaction, i.e. significant differentiation between observed data and those merely expected from random association of chromosome types with localities (inertia). When large samples from a given population were available, eight out of ten variants were found. With respect to hypothesis II, we could detect 28 different sexual karyotypes out of 34 possible combinations and it seems that no chromosome variant operates as a reproductive isolation marker. Our evidence is consistent with our previous suggestions, demonstrating that – within the regions studied- A. fraterculus is a single polymorphic species.

Keywords: Anastrepha fraterculus, population structure, polymorphisms, taxonomic status, log lineal analysis, chromosome x site interaction


The South American fruit fly Anastrepha fraterculus (Wied.) has a host range that encom-passes the fruits of a wide variety of cultivated plants. It shows preference for Psidium guayaba and is distributed into temperate to subtropical regions. In Argentina, A. fraterculus is the only economically important species within the genera Anastrepha. There is a hypothesis which states that this genus includes more than one biological species, proposing the existence of a complex of cryptic species. The confusion has been generated for several reasons.

  1. Systematic studies have not found notable sexual differences and the identification of the species is mainly based on the apex morphology of the female ovipositor.1
  2. Morphological variation was described throughout its geographical range.2
  3. High karyotypic, biochemical and molecular variations are present within and among different geographic populations of the insect.3–14
  4. Due to laboratory rearing problems many authors8,15 postulate that polymorphisms are marking either different species or that they are going through an isolation process within what may be termed the Anastrepha fraterculus complex previously proposed by Stone.2
  5. Scarcity of managed crossings, as a consequence of laboratory rearing problems.16

According to Norrbom17 the fraterculus species complex is composed by 17 groups of sibling species one of them being the fraterculus group involving 27 sibling species. Zucchi18 had fused in synonymy of A. fraterculus, 17 species of the fraterculus group.

Mexican populations

Although we have not studied Mexican populations we have summarized the cytotaxonomic study made by Bush4 on several fruit infesting Anastrepha in Mexico. The purpose was to observe if chromosome morphology would be of any use in identifying larvae. This author described the kayotypes of nine Anastrepha species but he could not find differences between the karyotypes of A. fraterculus, A. distincta and A. mombinpraeoptans.

Brazilian populations

Some authors3,7 studied the karyotype of Bra-zilian populations of the insect. Solferini & Morgante7 found karyotypic variation among populations, suggesting that two of the karyotypes belong to different cryptic spe-cies, named A. fraterculus and A. sororcula Morgante et al.6 Selivon et al.,13 studied two Brazilian geographic populations distinguishable through sexual chromosome morphology named A. sp 1 and A. sp 2; crossings among them rendered fertile offspring. Later on, the authors report four cryptic species named Anastrepha sp.1 aff. fraterculus, A. sp.2 aff. fraterculus, A. sp.3 aff. fraterculus and A. sp.4 aff. fraterculus (so named A. sp 1, A. sp 2, A. sp 3, A. sp 4.13,14

Argentinian and Uruguayan populations

Karyotypical studies in Argentine populations revealed sexual and autosomal diversity among and within regional samples and describe “fraterculus Argentina 1” (from now on fArg 1) as the most frequent karyotype present in all of them.19–21 Different polymorphisms were found within the Montecarlo population (Misiones Province), and that of the X-chromosome was distinct in relation to its X1 and X2 variants.20 The X1-chromosome was distinctive with an fArg 1 karyotype. The X2 chromosome as well as other sexual chromosomal variants of the X- and Y- were described for this population and for other Argentine populations as well. These variants – characterized through molecular banding techniques and through in situ hybridization using rDNA probes- were found in different combinations in the wild. As the laboratory strains carrying each one variant were reciprocally crossed, showed not to be reproductively isolated.20,21 The main characteristic we focused on was the statistic prediction of each chromosomal variant frequency within each population, the emphasis of the present work being on the detection of isolation barriers associated to sexual karyotypes.

Material and methods

Data studied

We sampled guava fruits from Argentina, Uruguay and Brazil during at least two years, to recover Anastrepha larvae as well as adult flies. The latter were randomly single pair mated to form laboratory strains. We studied the chromosomal pattern of 879 larvae from wild populations and derived laboratory strains. Sexual chromosome variants were isolated within different strains. Banding patterns were obtained with routine and molecular cytogenetics22–24 and assisted to recognize different sexual chromosomal variants and karyotypes.

Sampling from Argentinian, Brazilian and Uruguayan populations

The number of specimens studied in each Argentinian population was the following: 131 from Buenos Aires province [BA] (Lat 34º36’14’’ S; Long 58º22’ 54’’ W), 281 from Misiones province [MIS] (Lat 26º56' S; Long 54º24' W) and 164 from Tucumán province [TUC] (Lat 27º12' S; 65º35' W); a sample of 275 specimens from one site in Brazil [BRAZ] (Lat 31°45' S; Long 52°20' W), and 28 specimens from one location in Uruguay [URUG] (Lat 34°21′ 25″ S; Long 56°42′ 06″ W).

Reciprocal crossings

Strains from the most distant localities [BA] and [BRAZ], [BA] and [MIS] were crossed.

Statistical analysis

In order to investigate the possible existence of inertia in the data matrix, i.e., unexpected high or low observed frequencies in Location´Karyotype combination cells, and to get an estimation of such parameters, we constructed a Log Linear Additive Model25 and tested the fitting of the data to it. The statistical specification of the model is presented in the Appendix.

We tested the null hypothesis (H0:µCS(ij)=0) in order to analyze statistically significant associations between the karyotypic frequencies of each particular sexual chromosome variant and the natural populations. Moreover, we obtained a maximum likelihood (ML) estima-tion of the interaction parameters.


Chromosomal frequencies sampled from all 5 localities showed ten sexual chromosome variants (X1, X2, X3, X4 and Y1, Y2, Y3, Y4, Y5, Y6) and highly significant statistical chromo-some´site interaction, i.e. significant differentiation between observed data and those merely expected from random association of chromosome types with localities (inertia). The frequencies of chromosomes are presented in Table 1, and the corresponding single-term test results are shown in Table 2. Significant chromosome-site associations are shown in Table 3.



Chromosome Variant
































































































Table 1 Chromosome frequencies across sites

When large samples from a given population were available, eight out of ten variants were found, as evidenced for [MIS] population. The chromosome composition of A. fraterculus populations varied among localities. Within the best sampled populations ([TUC], [MIS], [BRAS]) we detected – through test of hy-pothesis- positive and negative associations between localities and some chromosomal variants. Chi square tests allowed us to reject the null hypothesis of no association, i.e. that these three populations are significantly different with respect to Y-chromosome variants distributions (c2=86.02; p<0.0001) and with respect to X-chromosome variants distributions (c2=43.57;p <0.0001).

As may be clearly seen in Table 2, data analysis demonstrated very highly significant differences in frequencies of insects both, among sites and among chromosome types, but there is also a very strong interaction effect between them. This is well illustrated in Figure 1 where it may be seen that the lines cross each other several times. The kind of interaction which is a rather qualitative one, i.e., a case of interaction where there is heterogeneity in the magnitudes of an effect and the effect has different sign in all categories.26 Figure 1 shows the site profiles. Furthermore, not all the individual effects resulted statisti-cally significant (at least, at 1% level), i.e., resulting in rejection of the null hypothesis H0: ucs(jj) = 0. Table 3, shows the statistically significant parameters according to the Wald ststistics.27

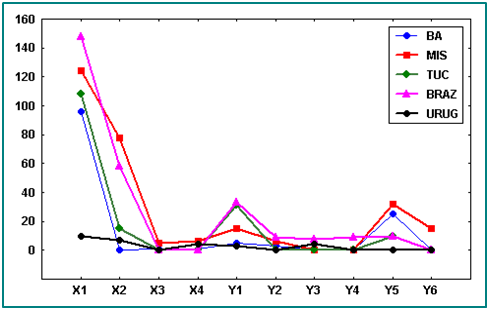

Figure 1 Chromosome frequencies across sites.


D. of F.

Marginal c2





< 0.000001




< 0.000001

C ´ S Interaction



< 0.000001

Table 2 Single-term tests for the chromosome-site data. “D. of F.” are Degrees of Freedom


Model Term

Percent Count

Effect (u)

St. Error


BA – X1





BA – X2





BA – Y5




















C ´ S

MIS – X2






MIS – Y1





MIS – Y6





TUC – X1





TUC – Y1





















Table 3 Estimates and hypothesis testing of model parameters (only tests statistically significant at 5% level are shown)

With respect to hypothesis II, among the 34 possible existing sexual karyotypes (24 for males and 10 for females), we observed 28 different combinations (Figure 2) not only in the wild but also in the laboratory strains which rendered offspring throughout more than 60 generations. It seems that no chromosome variant operates an isolation marker. Our evi-dence is consistent with the fact that variants recombine. Crosses between the most distant populations [BA] and [BRAZ], [BA] and [MIS] produced fertile offspring, suggesting that A. fraterculus is a single polymorphic species.

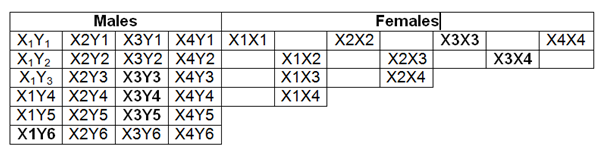

Figure 2 Possible sexual karyotypes for all 10 sexual chromosomal variants. Karyotypes not found are in bold.


In the present research, we used a data matrix with a total number of 879 larvae, i.e., an average of 207.4 larvae per population. The X1 chromosome is, by far, the most abundant one in all sites. Its frequencies are in-creased in [BA] and [TUC] but decreased in [URUG] due to interaction effects (Table 3). The X2 variant is also a very frequent chromosome although not as predominant as the X1: it was not found in [BA] (Table 1). The (ucs(jj)) was estimated in -2.7776 indicating a de-creased frequency in the order of hundreds with respect to the average frequency) and it had a statistically significant increased frequency in [BRAZ] and [MIS]. Chromosomes X3 and X4 are the rarest. Chromosome X3 was found only in [BA] and [MIS] and did not show any significant interaction. Chromosome X4 was found in [BA], [MIS] and [URUG]; it showed a positive significant interaction effect in [URUG] (Table 3).

The Y1 and the Y5 chromosomes are the most frequent of the Y’s. Chromosome Y1 showed two significant interactions with sites indicating less Y1 chromosomes than expected in [MIS] and more than expected in [TUC]. Y2 chromosome didn’t show any significantly inter-action seeming to stay in equilibrium in all sites. There seems to be more Y3 chromosomes in [BRAZ] and [URUG], than expected.

Chromosome Y5 showed a high interaction effect affecting [BA] while stays according to the expected values in the other sites. Finally, Y6 seems to be a “local” chromosome or population marker in [MIS]: it was not found in any other site. Chromosome Y6 could be found within the best sampled population and its frequency is low.

A similar chromosome to the Y6 variant was described by Selivon13 for some Brazilian populations of the insect. Solferini & Morgante7 did not state the number of speci-mens analyzed so they probably associated the absence of heterozygous females with isolation barriers. Beside these authors did not maintain laboratory colonies of Anastrepha species, so it is likely that heterozygous females for different variants were considered to belong to a different sibling species. Even more, we found the Y-chromosome variant of karyotypic form 2 Solferini & Morgante7 to be an X- chromosome which we named the X2 variant.

A biochemical study on Argentinian and Brazilian populations, demonstrated very low genetic distance between Buenos Aires and Brazil, although the geographic distance is very large.28

We could detect 28 sexual karyotypes out of 34 possible different combinations (Figure 2) maintained as laboratory colonies of the species. Our results demonstrate that A. fratercu-lus is single a polymorphic species.

Samplings allowed determination of variant frequencies. Some of them could not be de-tected probably due to sample effect. The fact that the X3 is in low frequency, determines the low probability of X3Y3, X3Y4, X3Y5 combinations. Even though X3 and Y6 were in very low frequency, a combination X3Y6 is detected due to high positive Y6-MIS interaction. Negative interaction is the cause for the low probability of detecting some variants. This is the case for X1Y6, which shows negative interaction with locations.

We studied both Northern and Southern geographic limits of the distribution of A. fraterculus: Misiones (Lat 26º56'S) and the south region of Buenos Aires (Lat 34º36’14’’ S). The population from Brazil, is located at Lat 31°45' S; Long 52°20'W. Data from ran-dom crossings among those studied samples collected from extreme regions of the insect distribution: [BA] x [BRAZ] and [BA] x [MIS], evidenced that chromosomal variants recom-bine and that they are not reproductive isolation markers. These studies were supported through statistic analysis. We found chromosomal variability among localities but we did not calculate genetic distances. According to Toro29 classical approach of using genetic distances may present several problems, pointing out that 1) genetic distances ignore within breed variation;2) genetic distances are not suitable for constructing phylogenetic trees and 3) genetic distances vary according to the marker used.

Smith Caldas analyzed a fragment of the mitochondrial gene COI for 15 spe-cies of Anastrepha, 12 of which belong to the fraterculus group. Phylogenetic relationships among the included taxa were inferred using neighbour –joining and maximum parsimony methods. The results of COI indicate the placement of one of the unplaced species A. acris, in the fraterculus group. Moreover, the presence of multiple gene pools in the nominal species A. fraterculus and the nonmonophyly of A. fraterculus are corroborated by data obtained in this study. These authors do not specify the number of specimens used in their study. As stated by Berlocher,30 intraspecific trees are more informative about population structure when they are mapped onto geographic space.

Alberti el al.,31 studied the correlation between geographical distribution and genetic variation in natural populations from Argentina and South Brazil sequencing fragments of the mitochondrial gene COII for a total of 28 individuals. Based on Templeton nested method, no clade showed any geographic pattern for the gene COII, indicating lack of sig-nificant association between haplotypic variability and geographic distribution. The analysis of nucleotide substitution distances by Neighbour joining algorithm showed that geographically distant populations exhibit low genetic distances. These authors pointed out that ecological causes of departures from random assignment of chromosomes are to be investigated. We have included some relevant geographical parameters for each location we have worked at and we did not found any relationship among chromosome frequencies and the geographical/climatic measures employed. None of the Spearman’s coefficients of correlation calculated resulted statistically significant.32

Crossings confirmed a truly recombination of chromosomal variants. The log lineal analysis of data made evident the existence of chromosome x site interaction, coming to light for the existence of sexual karyotypes (combinations) more strongly associated with a particular location. This component of the genetic variance of the studied populations is particularly relevant at present in the face of the constant climatic change. Variants are not genetically isolated but geographically linked to or specialized for a particular situation or locality.33–35


  1. Chromosomal variants in fraterculus are associated to different sites.
  2. There is variation in the frequencies of each karyotypic variant among sites and there are strong interaction effects between these two factors.
  3. Karyotypes showed that variants do not recombine at random.
  4. Chromosomal variants in the so called fraterculus complex do not behave as isolation markers.
  5. Our evidence is consistent with the fact that fraterculus is a single a polymorphic species within the geographical populations studied.
  6. Chromosome x site interaction was quantitatively asserted through ML estimations.



Conflicts of interest

The author declares there are no conflicts of interest.


  1. Zucchi RA. Taxonomia das especies de Anastrepha Schiner, 1868 (Diptera: Tephritidae) assinalados no Brasil. Tese de Doutorado, Escola Superior de Agricultura "Luis de Queiroz", Universidade de Sao Paulo, Piracicaba, SP. 1978.
  2. Stone A. The fruit flies of the genus Anastrepha. U.S. Dept Agr Misc Pub. 1942;439:1.
  3. Méndes LOT. Observacoes citológicas em "Moscas- Das- Frutas". Bragantia. 1958;17:29–39.
  4. Bush Guy L. The cytotaxonomy of the larvae of some Mexican Fruit Flies in the genus Anastrepha (Diptera:Tephritidae). Psyche. 1962;69(3):87–101.
  5. Morgante JS, Malavasi A. Genetic variability in populations of the South American Fruit Fly Anastrepha fraterculus (Tephritidae). Rev Bras Genet. 1985.8(2):241–247.
  6. Morgante JS, Selivon D, Solferini VN, et al. Evolutionary Patterns in Specialist and Generalist Species of Anastrepha. In: M Aluja, P Liedo, editors. Biology and Management. Springer. Verlag New York, Inc. 1993.
  7. Solferini VN, Morgante JS. Karyotype study of eight species of Anastrepha (Diptera: Tephritidae) Caryologia. 1987;40(3):229–241.
  8. Steck Gary. Biochemical systematics and population genetic structure of Anastrepha fraterculus and related species (Diptera: Tephritidae). Ann Entomol Soc Am. 1991;84(1):10–28.
  9. Sonvico A, Manso F, Quesada-Allué LA. Discrimination between the inmatures stages of Ceratitis capitata and Anastrepha fraterculus (Diptera: Tephritidae) populations by random amplified polymorphic DNA polymerase chain reaction. J Econ Entomol. 1996;89(5):1208–1212.
  10. Basso A, Manso. Are Anastrepha fraterculus chromosomal polymorphisms an isolation barrier? Cytobios. 1998;93:103–111.
  11. Lifschitz E, Manso F, Basso A. Karyotype study of the South American Fruit Fly, Anastrepha fraterculus (Wied.) in Argentina. En: The South American Fruit Fly, Anastrepha fraterculus (Wied.); advances in artificial rearing taxonomic status and biological studies. IAEA, Vienna, Austria. 1999. p. 21–24.
  12. Manso F, Basso A. Notes on the present situation of Anastrepha fraterculus in Argentina, En: The South American Fruit Fly, Anastrepha fraterculus (Wied.); advances in artificial rearing taxonomic status and biological studies. IAEA, Viena, Austria. 1999. p. 147–162.
  13. Selivon D, ALP Perondini, JS Morgante. A genetic-morphological characterization of two cryptic species of the Anastrepha fraterculus complex (Diptera: Tephritidae). Ann Entomol Soc Am. 2005;98:367–381.
  14. Goday C, Selivon D, Perondini ALP, et al. Cytological characterization of sex chromosomes and ribosomal DNA location in Anastrepha species. Cytogenet Genome Res. 2006;114(1):70–76.
  15. Aluja Martín. Bionomics and management of Anastrepha. Annu Rev Ent. 1994;39:155–178.
  16. Basso A, Sonvico A, Quesada-Allué LA. Karyotypic and molecular identification of laboratory stocks of the South American fruit fly Anastrepha fraterculus (Wied.). J EconEntomol. 2003;96(4):1237–1244.
  17. Norrbom AL. Pylogenetic analysis and taxonomy of the cryptostrepha, daciformis, robusta andschuasi species groups of Anastrepha Schiner. PhD. Dissertation, Pennsylvania State University, University Park. 1985.
  18. Zucchi RA. Anastrepha Schiner, 1868 (Diptera: Tephritidae): novas sinonimias. Rev Bras Ent. 1981;25:289–294.
  19. Lifschitz E, Basso A, Manso F. Variaciones cariotípicas y oviposición en Anastrepha fraterculus. Proceedings XXIII Meeting of the Argentinian Genetics Society, Buenos Aires. 1992 7 p.
  20. Manso F, Basso A. Estudio citológico y estrategia de oviposición en poblaciones de la mosca sudamericana de la fruta Anastrepha fraterculus. Proceedings XXIV Meeting of the Argentinian Genetics Society, Posadas, Misiones. 1993. 106 p.
  21. Basso A, Sonvico A, Quesada-Allué LA, et al. Comparison between chromosome variation and DNA polymorphism in the Montecarlo population of Anastrepha fraterculus (Wied.). Proceedings of the Second Meeting of the Working Group on Fruit Flies of the Western Hemisphere. Viña del Mar, Chile. 1996.
  22. Basso A, Manso F. What does karyotypic variation within and between Anastrepha fraterculus populations really mean? Proceedings of the Third Meeting of the Working Group on Fruit Flies of the Western Hemisphere. Mendoza, Argentina. 2001.
  23. Basso Alicia. Caracterización de los componentes del “Complejo Anastrepha fraterculus” (Anastrepha spp. Diptera: tephritidae, trypetinae) mediante análisis de la variabilidad cromosómica. PhD. Dissertation. Buenos Aires University, Argentina; 2003.
  24. Basso Abraham, Alicia Leonor. Reference Karyotypes and Chromosomal Variability: A Journey with Fruit Flies and the Key to Survival. In: Chromosomal Abnormalities - A Hallmark Manifestation of Genomic Instability.
  25. Agresti A. An Introduction to Categorical Data Analysis. Wiley: NY; 1996.
  26. Gail M, Simon R. Testing for qualitative interactions between treatment effects and patient subsets. Biometrics. 1985;41(2):361–372.
  27. Wald A. Sequencial Analysis. Wiley: NY. 1947.
  28. Krsticevic, Jorgelina Flavia. Análisis fisiogenético de poblaciones de Anastrepha fraterculus (Tephritidae). Tesis de Licenciatura, Facultad de Ciencias Exactas, Químicas y Naturales, Universidad Nacional de Misiones. Argentina. 2001.
  29. Toro, Miguel Angel. Genetic distances: a useful tool to be applied with caution. Journal of Animal Breeding and Genetics. 2008;125(1):3–4.
  30. Berlocher S. Genetic population structure in Tephritidae. En Fruit flies (Tephritidae): Philogeny and evolution of behaviour. Ed. Aluja & Norrbom. CRC Press. 2000.
  31. AC Alberti, VA Confalonieri, RO Zandomeni. Phylogeographic studies on natural populations of the South American fruit fly, Anastrepha fraterculus (Diptera: Tephritidae). Genetica. 2008;132(1):1–8.
  32. Marascuilo L, MacSweeney M. Non parametric and Distribution Free Methods for the Social Sciences. Brooks/Cole Pub. Co. Monterrey. 1977.
  33. Morgante JS, Malavasi A, Bush GL. Biochemical systematics and evolutionary relationships of neotropical Anastrepha. Ann Entomol Soc Am. 1980;73:622–630.
  34. Norrbom AL. The species of Anastrepha (Diptera: Tephritidae) with a grandis- type wing pattern. Proc Entomol Soc Wash. 1991;93:101–124.
  35. Sonvico A, Benseñor L, Basso A, et al. Caracterización del “Cluster “ de ADN ribosomal nuclear en poblaciones de Mosca de la Fruta, Ceratitis capitata y Anastrepha fraterculus. Prodeedings of the 36th Iberoamerican Meeting on Biochemistry, Molecular Biology and Cellular Biology. Chile. 2000. 110 p.
