Radiologic signs are recognizable, characteristic patterns used to describe abnormalities visualized on imaging modalities that ultimately aid in the diagnosis and subsequent treatment of disease. When the late pulmonary radiologist Benjamin Felson was asked about his propensity for naming signs he responded that ‘‘the name saves time, helps you remember the sign, and advertises ity They say what I mean.’’1 This pictorial essay discusses 23 classic roentgenographic signs used in thoracic imaging and presents them in alphabetic order. Its purpose is to be used as an educational review for residents, whether they are beginning their training or preparing for certification exams, and serve as a refresher and a reference to the practicing radiologist.^1-7

Radiological signs are characteristic and recognizable patterns in radiology and diagnostic imaging methods, whether in plain radiograph (XR), computed tomography (CT) or magnetic resonance imaging (MRI). They are based on common objects or patterns that we find in our routines and its recognition facilitates diagnostic reasoning.^7-9

We present five classics thoracic radiological signs in XR or CT that cannot go unnoticed.

We don't want to exhaust the topic by showing all the existing signs. Our objective is to present five signs of thoracic radiology that over time have been less and less described, but which nevertheless represent pathologies or conditions that remain current. Therefore, the reported signs have their clinical radiological importance and every student or physician, radiologist or not, must recognize and know how to interpret.

A retrospective study of chest radiographs and computed tomography scans of the chest from the digital and physical archive of Hospital Lourenço Jorge, reference hospital in the west side of Rio de Janeiro , Brazil, between the years 2019 and 2020.

Among the approximately 1300 archived radiographs of thoracic pathologies, the cases that could be representative for the topic were separated. The same was done with the approximately 1000 chest CT scans archived. The most relevant cases with the best documentation were separated. Once the pathologies were defined, a bibliographic survey and text production were performed.

Informed consent from the patients was not obtained, since the objective of the present study was to survey archived cases, which eventually had been carried out about three years ago, making any search for patients for this purpose unfeasible. The authors were concerned to avoid any type of identification in the images presented.

Golden S sign or inverted S

Dr. Ross Golden was the American radiologist who originally described this sign. With the collapse of the upper lobe and consequent deformation of the oblique fissure, the upper part of the S is formed and the lower part is formed by the contour of a right hilar mass or endobronchial lesion on the same side. This sign is related to obstructive bronchogenic carcinomas. Although initially used to describe signs of right upper lobe collapse, it can be applicable to atelectasis involving any lobe. Figure 1^1,7-11

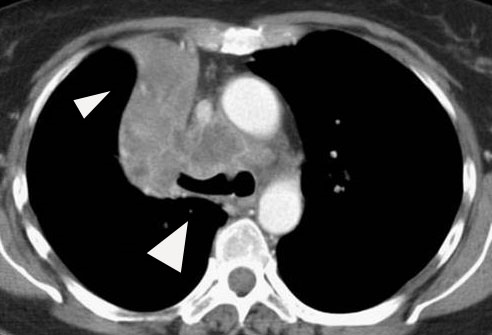

Figure 1 Chest CT after administration of intravenous contrast in the axial plane at the level of the aortopulmonary window shows a convexity in the right hilar region creating a rounded edge with the minor fissure displaced forming the lower portion of the S (large white arrowhead). The upper portion is formed by the convexity of the collapse of the upper lobe on the same side (small white arrowhead).

Sign of 1-2-3 (Garland's Triad)

It refers to a lymph node enlargement pattern characterized by right paratracheal and right and left hilar enlargement, suggesting sarcoidosis. Leo Henry Garland (1903-1966) was an Irish-born American radiologist who published his experience on radiographs of 36 cases of sarcoidosis in an article published in 1947. A combination of bilateral hilar and right paratracheal adenopathy was found in 13 cases, 7 with pulmonary alterations and 6 without, although at the onset of the disease it was present in approximately two thirds of the cases. Figure 2.^1,7-11

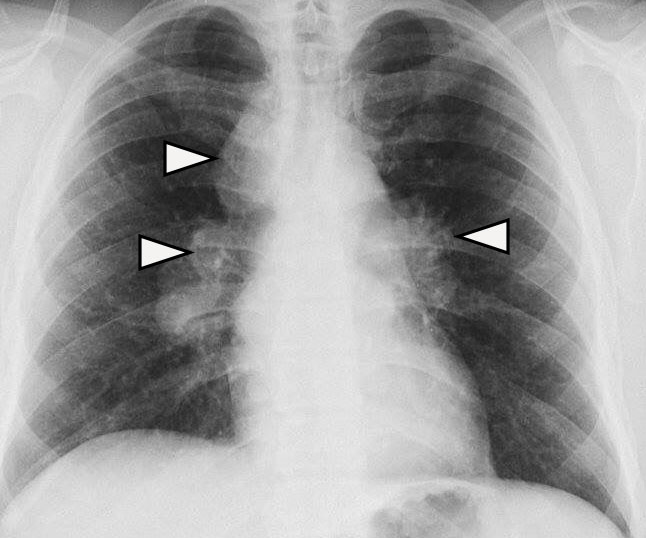

Figure 2 Frontal chest x-ray shows lymph node enlargement pattern (white arrowhead) characterized by right paratracheal and right and left hilar enlargement, suggesting sarcoidosis.

Double atrial contour sign

On frontal chest X-rays, this sign appears as a curvilinear density along the silhouette of the right atrium, signifying an enlargement of the left atrium. The sign can be seen in patients without heart disease, so there is a semiquantitative measurement to estimate the left atrial diameter described by Higgins et al in adult PA radiographs. If left atrial dimension is defined as the distance from the midpoint of the double density to the inferior wall of the left main bronchus, a distance greater than 7 cm was consistent with a diagnosis of left atrial enlargement, which was confirmed on echocardiography. Figure 3.^1,7-11

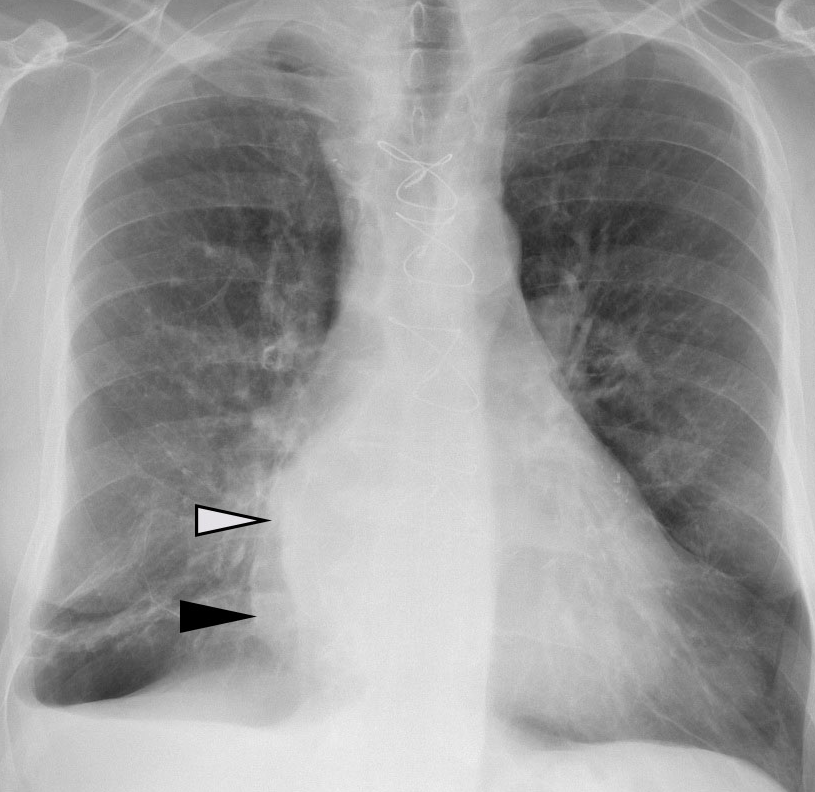

Figure 3 Frontal chest x-ray shows curvilinear density (white arrowhead) along the silhouette of the right atrium (black arrowhead), signifying an enlargement of the left atrium.

Naclerio's "V" sign

Identified on chest X-ray and depicted as two hypertransparent V-shaped lines, one along the left edge of the aorta and the other creating the continuous diaphragm sign to the left. It is produced by the presence of air between the descending aorta (vertical branch of the V) and the parietal pleura with the left diaphragm (oblique horizontal branch of the V). This sign was described in 1957 by the chest surgeon Emil A. Naclerio (1915-1985) in patients with rupture in the left posterolateral region of the esophagus, however, it is not pathognomonic, and lesions at the level of the proximal esophagus (iatrogenic or traumatic) may not present this sign. Figure 4.^1,8-11

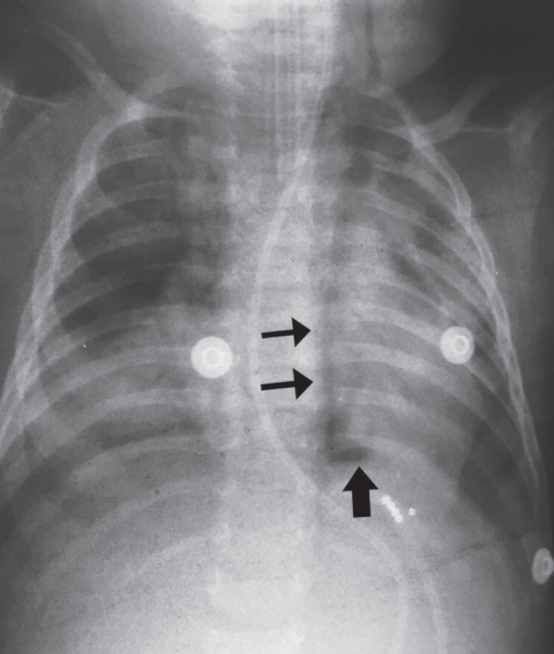

Figure 4 Naclerio's V sign. A one-year-old male, hospitalized with a diagnosis of pneumonia in the left lower lobe without satisfactory response to treatment. After the insertion of an enteral catheter, the clinical picture worsened, and a chest X-ray was requested, which showed the sign of Naclerio's V and the diagnosis of esophageal rupture with pneumoperitoneum. Vertical branch (thin arrows) and horizontal branch (thick arrow).

Continuous diaphragm signal

Continuous line of lucency extending through the midline above the diaphragm identifiable on the PA chest X-ray, representing the presence of air (pneumomediastinum) posterior to the heart and useful in differentiating a pneumothorax. Figure 5.^1,8-11

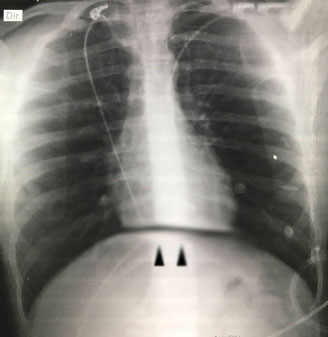

Figure 5 Chest x-ray shows a continuous lucent line in the midline representing the presence of pneumomediastinum (double white arrowhead).

Various radiological signs can be easily associated and recognized from common patterns observed in everyday life. Due to their diagnostic importance, they are fundamental for diagnostic reasoning in radiology.
