Background: Brainstem gliomas have a short survival time; chemotherapy has not improved outcome. We report the result obtained with the combination of Radiotherapy and the monoclonal antibody Nimotuzumab in a series of these tumors.

Material and methods: 40 children and adolescents treated with irradiation and Nimotuzumab were included between Jan 2009 and December 2015, all with the diagnosis of diffuse infiltrative pontine gliomas (DIPG), irradiated at the Instituto Nacional de Oncologia y Radiobiologia, in Havana, Cuba. Nimotuzumab was applied during the period receiving Radiotherapy and them monthly for one year or more.

Results: Median age at diagnosis was 7,9 years (range 3-18 years old); median survival was 18,4 months and Kaplan Meier survival was 42,5% at 2 years and 34,5% at 5 years, established till 9 years. Addition of Nimotuzumab was safe and well tolerated.

Conclusion: Combination of Nimotuzumab and Radiotherapy is safe and could increase survival.

Keywords: radiotherapy, nimotuzumab, brainstem gliomas in children and adolescents

The brainstem is defined as the pons, midbrain and medulla oblongata, and 70% to 80% of the tumors in this localization are diffuse intrinsic pontine gliomas (DIPG). They typically present short duration of symptoms (multiple bilateral cranial nerve deficits, specially VI and VII, and also ataxia) and characteristic appearance in imaging finding: histological confirmation has not been required;^1–4 there has been discussion about the histological diagnosis by biopsy.^5,6 Radiation therapy (RT) has remained the standard treatment with a low degree of efficacy and short term responses, generally with a 1 or 2 year median overall survival.^1,3,7–11 It have been attempted different strategies in order to improve the prognosis, which included the association of chemotherapy and also hypofractionation^12–19 but they not improved survival, and recent biologic drugs are combined with RT.^2,14,20–23

We tested the hypothesis that the combination of RT with Nimotuzumab, a humanized monoclonal antibody (MAb) developed at the Center of Molecular Immunology, in Havana, Cuba, can improve the survival in DIPG. The antibody was obtained by humanization of the murine antibody EGF/R3²⁴ As Nimotuzumab has a 10 fold affinity to EGFR as compared with Cetuximab; its capacity to bind EGFR is heavily dictated by cell receptor density.²⁵ Nimotuzumab preclinical and clinical characterizations have been summarized before,^16–18 and a distinguishing feature compared with other MAb is the lack of severe skin toxicity and the possibility to be used beyond progression. ^20,23,25.

This is a prospective, non-randomized clinical study conducted to assess the efficacy of the combined treatment of RT and Nimotuzumab in 40 diagnosed DIPG patients between 3 and 18 years old, included from Jan/2009 to Dec/2015 and followed continued till Dec/2017, or to the death of the cases, with a median follow-up of 46 months. Ethical Committee approved this study and a signed informed consent was obtained from patients or legal guardians before starting treatment. Diagnosis criteria was radiological finding (CT or MRI) of DIPG infiltrative lesion; involving 2/3 of pons and at least 2 of the 3 classical neurological signs and symptoms (cranial nerve palsy, corticospinal tract deficit and ataxia) lasting less than 6 months, and a Karnofsky Lansky performance status not less than 40. It was a histopathological confirmation in 3 patients. During this period no one DIPG was excluded from treatment.

Eligibility criteria were: Patients must be older than 3; follow-up no less than 6 months, Karnofsky Lansky performance status not less than 40. Patients with focal lesions of the brainstem were not eligible for this study, because focal tumors have a better prognosis.^14,26–29

Linear Accelerator was used for the radiation treatment, Gross Tumor Volume (GTV) was defined as the visible tumor, either by MRI or CT, Clinical Target Volume (CTV) accounted for subclinical microscopic disease and unappreciated tumor extension generally 1,5 cm beyond GTV planning, Planned Target Volume (PTV) was 0,3-0,5 cm beyond CTV, and could vary according to de Organ at Risk . Rt dose range from 54 to 59, 8Gy with a dose per fraction of 1,8Gy. Four patients were planned with IMRT and the rest with 3DCT.

Application of the Nimotuzumab begins with the first irradiation, and it was administered at 150mg/m² IV, weekly during the term of the RT, then every 2 weeks for 8 doses, then monthly for one year. The last patients included with Nimotuzumab the time of application was prolonged for 2 years.

Thirty-four patients (85%) received the complete Nimotuzumab schema, and in 6 there were minor interruptions of the dosage applied because these patients did not concur to the treatment options in a timely manner. Two patients were reirradiated because of local relapse. Simulation, contouring and planned procedures was done with the same parameters of first irradiation, with doses of 54 and 52Gy.

After irradiation the patient were follow every month till one year, then every 3 months, or till the moment of death.

The objective respond was evaluated according to the RECIST criteria. The same radiological technique for the initial diagnosis was used. Complete response (CR) plus Partial Response (PR) plus Stable Disease (SD) was considered acceptable with a response rate of 80% or more. Characters of the series are in Table 1.

Statistical methods

Descriptive statistics were reported as absolute frequencies and percentages for qualitative data, whereas medians and ranges were used for continuous variables. Relapse and death (whatever the cause) were considered events. Local control was defined as the absence of relapse in the irradiated primary tumor site RT field. Local control, event-free survival, and overall survival rates were estimated by the Kaplan–Meier method, and differences between groups were assessed by the log-rank test. Survival estimates refer to times of 5 years after diagnosis, and the related 95 % confidence intervals (95 % CI) were calculated all statistical tests were two-sided and a p-value of < 0.05 was considered significant. Analyses were performed using SPSS V21.

Median age of the cases at diagnosis was 7,9 years (range between 3 and 18 years old). In all cases tumor extended to the pons and in one case to 4^th ventricle, cerebellum and hypothalamus. The diagnosis was made by clinical and imaging findings, but in 3 cases it was possible a pathological examine, one with astrocytoma Grade II and 2 others astrocytoma Grade III, all of them alive. Median overall survival was 18,4 months, 95% CI (14.2-23.7) and Kaplan Meier accumulated was estimated in 42,5 % at 2 years, 34,5 % at 5 years and established till 9 years (Figure 1).

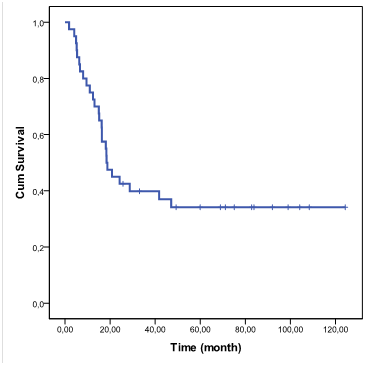

Figure 1 Overall survival function. DIPG in children and adolescents treated with radiotherapy and Nimotuzumab.

At this moment (Dec/2017) there are alive 14 patients:2 patients with 9 years, 2 for 8 years, 1 for 7years, 3 with 6 years, 2 with 5 years, 2 for 4 years, and 2 for 2 years. Two patients were reradiated because of relapse, they are one alive at 6 years and the other death in the second year:

1. By sex: There were 23 male patients (55%) and 18 female (45%).
2. By age group: In the group 0-4 years age: 9 patients (22.5%); in the group 5-9 years age: 21 patients (52,5%); in 10-14 years age:5 patients (12,5%); and in 14-18 years age: 5 patients (12,5%).
3. By dose of RT: In the group that received 54-57Gy: 16 patients (40%); in the group 57,1-59Gy: 14 patients (35%) and in 59,1-59,9: 10 patients (25%); the all group received a median dose of 57,4Gy.

Univariate analysis showed no significant differences according to sex, age and dose of irradiation, but we notice a tendency to best survival in 10-14 years age group. The combined treatment was well tolerated and no grade III or higher grade was observed. Adverse events such as vomiting, headache, fever, etc were reported in 40% of patients. Alopecia in all the irradiation fields was present in 36 patients (92,2%). At the end of irradiation there was a clinical response (CR or PR) in 39 patients (97,5 %). Only one patient had no response to radiation treatment.

DIPG comprise a group of tumors with a generally bad prognosis despite initial response to irradiation, which is the ideal and accepted treatment for those tumors, with a median survival of one year.^{1–4,7–11,17} Neither Chemotherapy or hypofractionation^12–18 nor irradiation dose escalation have improve survival, but increase toxicity.

We tested the hypothesis that Nimotuzumab concomitant with RT will increase survival in DIPG. Nimotuzumab is a humanized monoclonal antibody, EGF/R3,^21,24,25,30 with a 10 fold affinity to EGFR. It has been reported that there are overexpression and of ERRB1/EGFR,^31,32 in DIPG suggesting that this tyrosine-kinasa receptor might be a target. In other reports EGFR is overexpressed in DIPG, suggesting that EGFR dysregulation could be a therapeutic target.²⁴ Blood-brain barrier is crossed.^33,34 In high grade gliomas, after Rt and Nimotuzumab it has been pound monoclonal antibody uptake in residual lesions.³³

We compared the present series with a first group of DIPG children’s treated only with RT in the period 1992-2008 in the same institution (National Institute of Oncology and Radiobiology, in Havana), since there were no major clinical differences between the groups of patients (data not shown): in this first group of patients treated between 1992-2008 median survival time was 10 months, and the survival rate at 2 years was 15%.² A previous report with the use of Nimotuzumab and Rt in the same institution, that included only 28 patients from 2009 to 2012 showed a survival rate at 3 years of 39,7%.² The present report include the anterior patients and new patients with a total of 40 patients and a period of time extended from 2009 to 2017, with a 2 year survival of 45,5% and 34,5 at 5 years , and stablished after that period till 9 years.

In a recent report from Massimino et al.,³ of DIPG in children treated with Nimotuzumab, vinorelbine and radiation and reirradiation, the 2 years overall survival was 27 +-9%, supporting the use of Nimotuzumab in combination with RT.

We have 2 patients reirradiated, both with the application of Nimotuzumab: one received radiation treatment at the second year of evolution, and is a alive and apparently controlled after 9 years; the second at the relapse in the first year, and is death at the second year of the reirradiation. Nimotuzumab is safe and effective with a lack of skin toxicity and with the possibility to be used beyond progression.^{2,3,20,25,34,35} In this series there is a tendency to better survival in 10-14 years old group: on other reports a better outcome is observed in younger children.^3,34 Increased dose over 57Gy didn’t demonstrate better results.

Survival from DIPG irradiatedin children and adolescents is poor, no matter the use of Chemotherapy associated. But the use of RT and Nimotuzumab is a promising therapeutic option that can increase overall survival and support new trials with therapeutic combination. Reirradiation could be valuated in cases of relapse.

No potential conflict of interest exists.

1. Blaney S, Kun I, Hunter J, et al. Tumors of Central Nervous System. 5th ed. In: Pizzo P, Poplack, editors. Principles and Practice of Pediatric Oncology. Philadelphia, USA: Williams & Wilkins; 2011: 786–864.
2. Alert J, Chon I, Cabanas R, et al. Radiation Therapy and Nimotuzumab in children and adolescents with brainstem gliomas: a 5–year institutional experience. Neuro open J. 2015;2:45–50.
3. Massimino M, Biassoni V, Miceli R, et al. Results of Nimotuzumab and Vinorelbine, radiation and re–irradiation for diffuse pontinegliomas in childhood. J Neurooncol. 2014;118(2):305–312.
4. Wolff JE, Rytting ME, Vats TS et al. Treatment of recurrent diffuse intrinsic pontineglioma; the MD Anderson Cancer Center experience. J Neurooncol. 2012;106(2):391–397.
5. Kieran MW. Time of rethink the unthinkable: upfront biopsy of children with newly diffuse intrinsic pontineglioma (DIPG). Pediatr Blood Cancer. 2015;62(1):3–4.
6. Lam S, Lin Y, Auffinger B, et al. Analysis of survival in pediatric high–grade brainstem gliomas: a population–based study. J Pedatr Neurosci. 2015;10(3):199–206.
7. Wolff JE, Rytting ME, Vats T, et al. Induction treatment for diffuse pontinegliomas.Experience of M.D. Anderson Cancer Center. Anticancer Res. 2011;31(6):2265–2270.
8.  Hargrave D, Bartels V, Bouffet F. Diffuse brainstem gliomas in children: critical review of clinical trial. Lancet Oncol. 2006;7(3):241–248.
9. Jansen MH, Van Vuurden DG, Vandertop WP, et al. Diffuse intrinsic pontinegliomas:a systemic update on clinical trials and biology. Cancer Treat Rev. 2012;38(1):27–35.
10. Frazier JL, Lee J, Thomale W, et al. Treatment of diffuse intrinsic brainstem gliomas. Failed approaches and future strategies. J Neurosurg Pediatr. 3(4):259–269.
11. Veldhuijzen van Zanten SEM, Jansen MHA, Sanchez Aliaga, et al. A twenty–year review of diagnosis and treating children with diffuse intrinsic pontineglioma in the Netherlands. Expert Rev Anticancer Ther. 2015;15(2):157–154.
12. Marcus K, Dutton SH, Barnes P, et al. A phase 1 trial of Etanidazole and hyperfractionated radiotherapy in children with diffuse braiunstemgliomas. Int J Radiat Oncol Biol Phys. 2003;55(5):1182–1185.
13. Zagloul M, Eldebawy E, Ahmed S, et al. Hypofractionated conformal radiotherapy for pediatric diffuse intrinsic pontineglioma (DIPG): a randomized controlled trial. Radiother Oncol. 2014;111(1):35–40.
14. Hassan H, Pinches A, Picton S, et al. Survival rates and prognostic predictors of high grade brainstem gliomas in childhood: a systematic review and meta–analysis. J Neurooncol. 2017;135(1):13–20.
15. Jansen GO, Jansen MH, Lauwers SJ, et al. The role of hypofractionation radiotherapy for diffuse intrinsic brainstem gliomas in children: a pilot study. Int J Radiat Oncol Biol Phys. 2009;73(3):722–726.
16. Buczkowicz P, Bartels U, Bouffet E, et al. Histopathological spectrum of paediatric diffuse intrinsic pontineglioma: diagnostic and therapeutic implications. Acta Neuropathol. 2014;128(4):573–581.
17. Valdhuijzen van Zantem SME, El–Khonly J, Jansen M, et al. A phase I/II study of Gencitabine during radiotherapy in children with newly diagnosed diffuse intrinsic pontineglioma. J Neurooncol. 2017;135(2):307–315.
18. Bailey S, Howman A, Whealtey K, et al. Diffuse intrinsic pontineglioma treated with prolonged Temozolamide and Radiotherapy. Results of a United Kingdom phase II trial (CNS 2007 04). Eur J Cancer. 2013;49(18):3856–3862.
19. Negretti L, Boucireb K, Levy–Piedbois C, et al. Hypofractionated radiotherapy in the treatment of diffuse intrinsic pontineglioma in children: a single institution experience. J Neurooncol. 2011;104(3):773–777.
20. Massimino M, Bode U, Biassoni V, et al. Nimotuzumab for pediatric diffuse intrinsic pontinagliomas. Expert Opin Biol Ther. 2011;11(2):247–256.
21. Cabanas R, Saurez G, Rios M, et al. Treatment of children with high grade glioma with Nimnotuzumab. A 5–year insatitutional experience. MAbs. 2013;5(2):202–207.
22. Rivera F, Vega–Villegas ME, Lopez–Brea MF, et al. Current situation of Pantumumab, Matuzumab, Nimotuzumab and Zalutumumab. Acta Oncol. 2008;47(1):9–19.
23. Lam M, Bouffet F, Bartels U. Nimotuzumab in pediatric glioma. Future Oncol. 2009;5(9):1349–1361.
24. Hassan H, Pinches A, Picton S, et al. Survival rates and prognostic predictors of high grade brainstem gliomas in childhood: a systematic review and meta–analysis. J Neurooncol. 2017;135(1):13–20.
25. Boland WK, Bebb G. Expert opinion, Nimotuzumab, a novel anti–EGFR monoclonal antibody that retains anti–EGFR activity while minimizing skin toxicity. Expert Opin Biol Ther. 2009;9(9):1199–1206.
26. Delleretti M, Reyns N, Touzet G, et al. Diffuse brainstem glioma: prognostic factors. J Neurosurg. 2012;117(5):810–814.
27. Albright AL, Guthkelch AN, Packer RJ, et al. Prognostic factors in pediatric brainstem gliomas. J Neurosurg. 1986;65(6):751–755.
28. Fried I, Hawkins C, Scheissemann K, et al. Favorable outcome with conservative treatment of children with low grade brainstem tumors. Pediatr Blood Cancer. 2012;58(4):556–560.
29. Minturn JE, Fisher MJ. Gliomas in children. Curr Treat Options Neurol. 2013;15(3):316–327.
30. Garrido G, Tikhomitov IA, Rabasa A, et al. Bivalent binding by intermédiate affinity of Nimotuzumab: a contribution to explain antibody clinical profile. Cancer Biol Ther. 2011;11(4):373–382.
31. Gilbertson RJ, Hill DA, Hernan R, et al. ERBB1 is amplified and overexpressed in high grade diffusely infiltrative pediatric brainstem glioma. Clin Cancer Res. 2003;9:3620–3624.
32. Zarghooni M, Bartels U, Lee, et al. Whole–genoma profiling of pediatric diffuse intrinsic pontinegliomas highlights platelet–derived growth factor receptor alpha and poly (ADP–ribose) polymerase as potential targets. J Clin Oncol. 2010;28(8):1337–1344.
33. Solomon MT, Selva JC, Figueredo J, et al. Radiotherapy plus Nimotuzumab or placebo in the treatment of high grade glioma patients: results from a randomized doublé bind trial. BMC. 2013;13:299.
34. Crombet T, Figueredo J, Catala S, et al. Treatment of high–grade glioma patients with the humanized anti–e4pidermal growth factor receptors (EGFR) antibody h–R3. Cancer Biol Ther. 2006;5(4):375–379.
35. Bartels U, Wolff J, Gore L, et al. Phase 2 study of safety and efficacy of Nimotuzumab in pediatric patients with progressive diffuse intrinsic pontineglioma. J Neurooncol. 2014;16(11):1554–1559.
