Case Report Volume 1 Issue 4
The application of navigation satellite reflect signal to observation of tianjin’s sea ice in China
Wang Wei
Verify Captcha
Regret for the inconvenience: we are taking measures to prevent fraudulent form submissions by extractors and page crawlers. Please type the correct Captcha word to see email ID.
Verify Captcha
Regret for the inconvenience: we are taking measures to prevent fraudulent form submissions by extractors and page crawlers. Please type the correct Captcha word to see email ID.
Tianjin Institute of Meteorological Science, China
Correspondence: Wang Wei, Tianjin Institute of Meteorological Science, China, Tel 086-022-23358783
Received: September 13, 2017 | Published: October 16, 2017
Citation: Wei W. The application of navigation satellite reflect signal to observation of tianjin’s sea ice in China. Int J Hydro. 2017;1(4):94-95. DOI: 10.15406/ijh.2017.01.00018
Abstract
The thick sea ice is severe disaster in Bo Hai in North China. So the Monitor of sea ice is necessary to defend the sea ice disaster. Author try to monitor the sea ice with the reflect signal of navigation satellite system. Therefore, a receiver of reflect signal of navigation satellite system is developed, which can receive two new reflect signal, i.e. the vertical polarization and horizontal polarization. The equipment of receiving reflects signal locates in the coast of Tianjin in China. Finally, the retrieval thickness of sea ice are acquired with the data of reflect signals of vertical polarization and horizontal polarization. The results show that thickness of sea ice could be retrieved with polarization data of reflect signal of navigation satellite system.
Keywords: Sea ice, GNSS-R, Vertical polarization, Horizontal polarization, Observation station
Introduction
As an important part of the climate system, the sea ice has attracted more and more attention to scientists. However, due to the environment complexity of sea ice and the persistence of cloud cover, the sea ice observation is difficult with conventional instruments. With the progression of navigation satellite system, the technique has been seriously concerned for monitoring sea ice with the reflect signal of navigation satellite system. In the future, there are the rich microwave signal sources for ocean surface observations due to the existence of more than 100 satellites in network of the global navigation satellite system. Moreover, the navigation satellite reflected signal will be a new remote sensing technology with the advantage of low cost to monitor the ocean.1‒4 Scientists believe that the reflect signal of navigation satellite system can provide useful information about the sea ice.5 A lot of researches on sea ice algorithms has been done by Spanish Starlab institute with reflect signal of navigation satellite system. Some research results show that the navigation satellite reflect signal could be influenced by ice permittivity because the ice dielectric constant determines the internal state of ice, so more information of sea ice could be obtained with the navigation satellite reflect signal.6 American scholars also research the sea ice with the reflect signal of navigation satellite system based on the airborne observation near Alaska. The author studied on the sea ice detection with the reflect signal of navigation satellite system based on the coast-base observation, so paper briefly report the results of the sea ice monitoring with the reflect signal of navigation satellite system in Tianjin.
The observation station of navigation satellite reflect signal in Tianjin: In 2014, a research team of the reflect signal of navigation satellite system sets up an observation station of sea ice near the coast of Han Gu district in Tianjin. The height of receive antenna is about 4.5 m, and the azimuth of the antenna about 120° (Figure 1). The antenna is consisted of five units to receive the reflect signal of navigation satellite system, which are direct signal unit, right-handed reflect signal unit, left-handed reflect signal unit, vertical polarized reflect signal unit and horizontal polarized reflect signal unit. The processing system of reflect signal is accommodated in the observation room (Figure 2). The system's hardware device can receive five signals corresponding to the five antenna units. The software system has the data auto-process function, and can receive the Bei Dou and GPS reflect signals simultaneously. At the same place, the video cameras on the roof of the observation room are installed to record sea ice environment near the receive antenna. Because receiver of the reflect signal of navigation satellite system has been improved due to add the vertical and horizontally polarized signal units, the receiving information of the reflect signal have been enriched. The improvement is beneficial to retrieve thickness of sea ice.
(A) Antenna. (B) Equipment
Figure 1 The observation surrounding of sea ice using the reflect signal of navigation satellite system.
Figure 2 The signal processing system of reflect signal of navigation satellite system.
The research achievement of monitoring sea ice with navigation satellite reflect signal:
- The data process of navigation satellite reflect signal: In the winter, there are large areas of sea ice on the Bohai Sea in North China. In order to defend the disaster of sea ice, it is necessary to improve the monitoring capacity of sea ice. Therefore, the reflect signal of navigation satellite is introduced to obtain the sea ice information. In the data process of navigation satellite reflect signal, the polarization index is utilized to merge the vertical and horizontal polarization information. Afterwards, the classification method of the Bayesian minimum error is applied to distinguish the sea water and sea ice. The results show that the sea water and sea ice are classified well with the polarization index and the Bayesian minimum error method together.
- The retrieval depth of sea ice with navigation satellite reflect signal: The author develops a software tool with FORTRAN90 to obtain the retrieval depth of the sea ice in terms of the reflect signal of navigation satellite system. The retrieval method of sea ice depth bases on the electromagnetic theory of the reflect signal of navigation satellite system. This software can analyze the characteristics of reflect signal through the changes of dielectric constants, sea ice thickness and satellite height angles.7 According to compare the simulation results and observation data of the reflected signal of navigation satellite system, it is shown that the software tool can solve the uncertainty in the observation data analysis, and provide reliable information for the retrieval depth of sea ice using the reflect signal of navigational satellite system. Figure 3 shows the retrieval depth of sea ice acquired with observation data of reflect signal of navigation satellite system in the coast of Tianjin. The results indicate that the reflect signal of navigation satellite system has the ability to retrieve sea ice thickness.

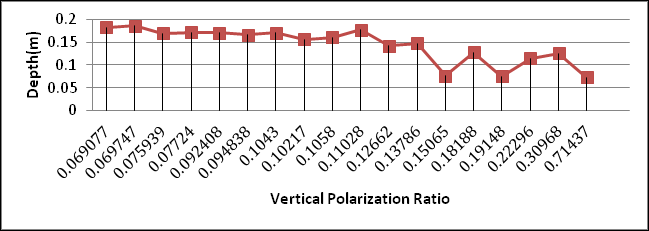

Figure 3 The retrieve depth of sea ice with the reflect signal of navigation satellite system.
Discussion
The observation experiment of the reflect signal of navigation satellite system shows that the technique can achieve the retrieve depth of sea ice, Especially in the worst marine environment which humans cannot touch. The technique with reflect signal of navigation satellite system has great development potential to monitor sea ice, and will be an ideal tool of remote sensing to monitor changes of sea ice for long time. But the theory and algorithm of the retrieval depth of sea ice need to improve. Monitoring ocean with the reflect signal of navigation satellite system is a new field of ocean remote sensing which attracts attention to scientists. In future, navigation satellite system will provide abundant and free signals for monitoring ocean.
Conclusion
The observation experiment of the navigation satellite reflected signal shows that the technology can achieve the retrieve depth of sea ice. Especially in the worst Marine environment that humans cannot touch, the sea ice monitoring with navigation satellite reflect signal has great development potential. It will be an ideal remote sensing technology to monitor sea ice changes for long time. But the theory and algorithm of the retrieval depth of sea ice need to be improved. Monitoring ocean with navigation satellite reflect signal is a new field of ocean remote sensing which is attracting the attention of scientists. In future, navigation satellites can provide abundant and free monitoring signals of sea ice.
Acknowledgement
Author thanks Professor Li Huang and Cao Yunchang for the instruction.
Conflict of interest
The works are financed by the Doctor Fund of Tianjin Meteorological Bureau and the fund of Shanghai Ocean University.
References
- Martin NM. A Passive Reflectometry and Interferometry System (PARIS): Application to ocean altimetry. ESA Journal. 1993;17:1‒25.
- Jin S, Komjathy A. GNSS reflectometry and remote sensing: New objectives and results. Advances in Space Research. 2010;46(2):111−117.
- Komjathy A, Armatys M, Masters D, et al. Retrieval of ocean surface wind speed and wind direction using reflected GPS signals. American Meteorological Society. 2004;21:1‒12.
- Zavorotny VU, Voronovich AG. Scattering of GPS signals from the ocean with wind remote sensing application. IEEE International Geosciences and Remote Sensing. 2000;38(2):951−964.
- Komjathy A, Maslanik JA, Zavorotny VU, et al. Sea ice remote sensing using surface reflected GPS signals. IEEE International Geosciences and Remote Sensing Symposium. 2000;7:1‒4.
- Melling H. Detection of features in first-year pack ice by synthetic aperture radar (SAR). International Journal of Remote Sensing. 1998;19(6):1223−1249.
- Wang W, Gao Q, Wu BG. The Simulation and Analysis of the Sea Ice Characteristics with Reflect Signal of Navigation Satellite. Transactions of Oceanology and Limnology. 2015;147(4):1‒7.
