Mini Review Volume 3 Issue 3
Doctor of Engineering Sciences, Chief Research Officer of the Tyumen Scientific Center, Siberian Branch of the Russian Academy of Sciences, Full Professor of Tyumen Industrial University, Russia
Correspondence: Konovalov Alexander Alexandrovich, Doctor of Engineering Sciences, Chief Research Officer of the Tyumen Scientific Center, Siberian Branch of the Russian Academy of Sciences; Full Professor of Tyumen Industrial University, Tyumen, Russia
Received: June 06, 2019 | Published: June 20, 2019
Citation: Alexandrovich KA. On the freezing and thawing of groundwater. Int J Hydro. 2019;3(3):225?228. DOI: 10.15406/ijh.2019.03.00184
Analyses the thermal and Physico-mechanical properties of permafrost, received a convenient formula for calculating them with the economic development of the territory the spread of everfrozen soils.
Keywords: strength, deformation, durability, creep, destruction
A huge amount of water. At negative temperatures it smerzaetsja with the containing soil, forming a special Rock-"permafrost", possessing specific thermal and physic-mechanical properties. Permafrost occupies a vast space-not less than 25% of the total land area. It serves as the foundation of buildings and sooruzhenij, a container of minerals, the habitat of animals and plants. Therefore, the study of the properties of permafrost is the primary prerequisite for successful management in the area of dissemination
In solid state physics, a kinetic (thermofluctuation) concept of strength has been developed, the essence of which is contained in the formula for durability t_{дл}_{.}^{1}
${t}_{\u0434\u043b}={t}_{\u043e}\u0435\u0445\u0440[({U}_{o}-\text{}g\u0420)/RT]$ (1)
where U_{o}»Q_{c}- activation energy of destruction; Q_{c}- latent heat of sublimation; t_{о}»10^{-13}sec - the period of thermal oscillations of atoms; RT is the average energy of atomic vibrations; T is the temperature (K); P - pressure (strength); R is the universal gas constant; g is a coefficient that has the meaning of the volume of an atom at the time of sublimation. Formula (1) is based on the idea of the local nature of the destruction of interatomic bonds, in terms of microcracks and other structural defects that serve as stress concentrators. It is obtained as a result of the generalization of numerous tensile tests of various materials, including composite and heterogeneous. It should be noted that it can also be derived analytically, based on energy - entropy considerations.^{2} From the formula (1) it follows that the durability is the final value, at P=0 it reaches its maximum, equal to t_{о}^{.}ехр(U_{o}/RT). I.e. the body is destroyed also in the absence of external pressure, under the action of time, which is the same active force of destruction as pressure and temperature. In,^{2‒4} the limitation of formula (1) is shown, its applicability mainly for materials with high melting points and at high pressures. It is hypothesized that there are two mechanisms (types) for the destruction of a solid: near the melting point, brittle (“sublimation”), which implies the breaking of interatomic bonds (U_{o}»Q_{c}) and away from it, plastic (“smelting”), which implies dilution (U_{o}»Q_{пл}). Frozen soils are destroyed mainly according to the second type.
This article develops theoretical concepts of permafrost studies in terms of the staging of soil moisture crystallization, the connections of the strength and durability of frozen soils with phase transition temperatures, with global factors and time. Much attention has been paid to an insufficiently studied phenomenon - the supercooling of the freezing soil, during which, under certain conditions, the entire temperature spectrum of its future frozen state is recorded. This opens up great opportunities for early prediction of the strain state of frozen soil and cost savings for the production of expensive field tests of frozen soils.
The main stages of soil moisture crystallization are shown in Figure1. The formation of the structure of ice starts when its temperature drops below +4°C, when the density of water begins to slowly decrease, rushing to the density of ice. Bulk crystallization of water in time is preceded by its supercooling (metastable state) below the crystallization temperature t_{кр} to the value of t_{пер} (hidden, zero stage in Figure 1). Supercooling creates a temperature difference t_{кр}-t_{пер}, which is necessary for obtaining the energy of formation of the bulk crystallization front (interface of phases). After reaching t_{пер} the temperature of the soil rises abruptly to t_{кр}, and the first ice crystals, centers of the subsequent bulk (clear) crystallization, including two stages (1 and 2 in Figure 1), appear “into the light”. On the first one, at a constant temperature t_{кр}, free water freezes, on the second - loosely bound water. The temperature of the soil before the crystallization of its moisture (when t> t_{кр}) depends on the temperature of the coolant t_{ох} and its thermo-physical properties, according to the Fourier thermal conductivity law. With its start, this dependence is blocked by the latent heat of phase transitions Q_{ф}, when the heat capacity of the moist soil becomes an effective value.^{5}

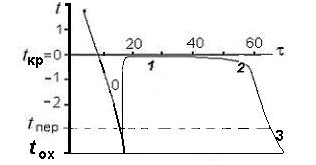

Figure 1 Stages of liquid transition to the solid phase (0, supercooling; 1, 2, crystallization of free (1) and bound (2) water; 3, cooling of frozen soil; τ, current time, min; t, current temperature, °C; t_{кр}, crystallization temperature; t_{пер}, supercooling temperature; t_{ох},- cooler temperature (temperature in the permafrost chamber).
${\u0421}_{\u044d\u0444}{}_{}={\u0421}_{\u0443}{}^{.}{\rho}_{\u0441\u043a}+\text{}{(d{W}_{\u043d}/dt)}^{.}{Q}_{\u0444}{\rho}_{\u0441\u043a}$ (2)
where С_{у}, kJ/kg degree - specific heat capacity of the freezing soil; Q_{ф}=334kJ/kg is the latent heat of crystallization of soil moisture; W_{н} -moisture due to unfrozen water; ρ_{ск}- density of the dry soil unit. The second component in (2) is hundreds of times larger than the first. Under these conditions, the crystallization front becomes a screen (“zero curtain”), protecting the freezing soil from external cooling and ensuring the constancy of t_{кр} at the ^{1st} stage. At the 2^{nd} stage, water freezes in a certain range of temperatures. Here, each t_{кр} corresponds to a certain, gradually decreasing amount of unfrozen water and, accordingly, increasing deformation. At the end of the stage, at a sufficiently low temperature of the cooler t_{ох}, a hard-frozen state is established, characterized by a temperature t_{тм}≈t_{пер}≥t_{ох}, at which practically all bound water freezes. From Figure 1 it follows that, in general, with each temperature, when the thawed soil is cooled (on the left curve), it is possible to compare the temperature of the frozen soil (on the right curve) equal to it, which determines its strain state, including strength and other physical and mechanical properties. That is, during the supercooling of thawed soil, all temperatures are consistently demonstrated, which are then repeated at the 2-stage crystallization. In the reverse process, the transition of the solid phase to a liquid, metastable state is not realized. It is not necessary because there is unfrozen water in frozen soil at almost any temperature, and the phase interface is always present.
The lower the t_{пер}, the shorter the formation time of the crystallization front, or, which is the same, the smaller the supercooling period t_{пер}. At sufficiently low t_{ох}, the value of t_{пер} becomes less than the resolution of the measuring instruments and the entire supercooling section is not recorded by observations because of its smallness. For an example the Table 1 shows the results of experiments to determine t_{кр} and t_{пер} in peated clay soils with different t_{ох}.^{3,4} From Table 1 we can see that t_{пер} is always higher than t_{ох}, and with decreasing t_{ох}, the supercooling area decreases and at t_{ох} around minus 6... 8°C goes beyond the limits of “visibility” of the devices.
Experiment no |
1 |
2 |
3 |
4 |
5 |
6 |
tох |
-3.2 |
-5.8 |
-6.4 |
-8 |
-9.8 |
-17.7 |
tпер |
-2.4 |
-2.5 |
- |
- |
- |
- |
tкр |
-0.1 |
-0.1 |
-0.11 |
-0.12 |
-0.12 |
-0.27 |
Table 1 Connection of t_{ох}, t_{пер} and t_{кр} in peat clay soils
Detailed studies of the dependence of t_{пер} on τ_{пер} were performed by S.E. Grechishchev et al.^{6} Approximation of this dependence gives.^{2}
^{ }${t}_{\u043f\u0435\u0440}/\text{}{t}_{min}={({\tau}_{\u043f\u0435\u0440}/{\tau}_{min})}^{g}$ (3)
Where t_{min} and τ_{min} - the minimum temperature and period of supercooling in the experiment, g≈0.09 is the relative change in the volume of water during freezing. With the help of (3), it is possible to establish the minimum cooling temperature t_{ох}, at which the value of t_{пер} is still observed. Let us accept the conditions of one of the experiments:^{6} loam with moisture of 26, 2%, t_{кр}=-0.4... - 0.5°C, g»0,1; t_{min}=-3,3^{о}С and τ_{min}=30s. According to the calculation with the formula (3): at t_{пер}=-4,6^{о}, the value of τ _{пер}= 1s, at-5°, it is equal to 0.43s, and at -8°, it is just 0.004s. It is clear that in this case, t_{пер} is fixed at t_{ох} not lower than -5^{о}С. If t_{ох} is lower than the temperature of the solid-permeable state of the soil t_{тм} (in loams t_{т}_{m}≈-6...-8^{о}С), supercooling is not observed, the first crystallization stage begins.
S.E. Grechishchev accepts that t_{пер}=t_{ох}. Although this equation is not observed in experiments, this assertion can be accepted if we assume an instantaneous change in temperature from t_{пер} to t_{ох}
and back, as shown in Figure 1. With an increase in t_{пер}, the duration of supercooling t_{пер} increases. As the temperature of the cooler approaches t_{кр}, the value of t_{пер} tends to an infinitely large value. The magnitude of supercooling — its temperature and duration — can be reduced and even nullified by shaking the sample, increasing the external pressure, lowering the temperature in the chamber, using various crystallization inocula. The value of g in (3) is close to the relative crystallization strain g » j_{кр} » 0,091, and the maximum supercooling (instantaneous, with the duration of supercooling equal to the period of atomic oscillations: t_{пер}=t_{ min}=t _{о}»10^{-13} sec) when substituted into the formula (3) experimental data are obtained equal to minus 22-24^{о}С. This is close to the minimum temperature at which ordinary water may still exist (not freeze).^{7} i.e. the extremes of the temperature of supercooling and crystallization are the same: about 0 and -22^{о}С.

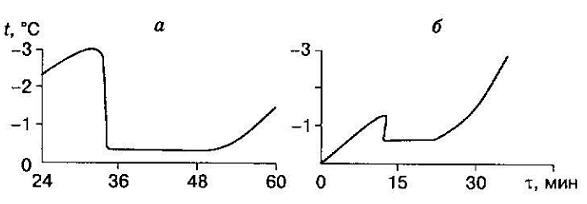

The supercooling temperature, like the crystallization temperature, depends on the pressure. But if the crystallization temperature decreases with increasing pressure, then, as experimentally established,^{2} the supercooling temperature, on the contrary, increases. This is evident from the Figure 2 shown for example: at P=0.1MPa, t_{пер}=-3.1°C; at P=5.7MPa, t_{пер}=-1.4°C.^{2}
Pressure, temperature and volumetric deformation characterizing the phase transformations of soil moisture are the main parameters of the state of frozen soils. The relationship between them in the limiting equilibrium state is governed by the Clapeyron-Clausius law, which we write in the following form.^{2,5}
_{ }$dT/T=dP\text{}({V}_{\u0442\u0432}-{V}_{\u0436})/{Q}_{\u0444}$ (4)
where T (K) is the temperature in Kelvins; Т_{о}=273(K) is the crystallization temperature at atmospheric pressure; Р-external pressure, kg/cm^{2}; V_{тв} и V_{ж} - the specific volume of the solid and liquid phases; Q_{ф} is the latent heat of ice-water phase transitions, kJ/kg.
Integrating this equation gives:
_{, }$ln\left({T}_{o}/T\right)=P({V}_{\u0442\u0432}-{V}_{\u0436})/{Q}_{\u0444}$ (5)
With T/T_{o}» 0.9... 1, which is typical for frozen soils existing in the temperature range 0... -22^{о}С (273... 251К), replacement is possible
$ln\left(T/{T}_{o}\right)\approx \left(T/{T}_{o}\right)-1=-t/{T}_{o}$ (6)
Then the equation of phase equilibrium is linearized:
${t}_{\u0444}={t}_{\u043a\u0440}=\u0420({V}_{\u0442\u0432}-{V}_{\u0436}){T}_{o}/{Q}_{\u0444}=\u0420{j}_{\u043a\u0440}{T}_{o}/{L}_{\u043a\u0440}=\u0420b$ (7)
Where t_{ф}=|Т-Т_{о}| - freezing point of water in ^{о}С with a plus sign; j_{кр}=(V_{тв}-V_{ж})/V_{ж} = 0.091 is the relative crystallization strain; L_{кр}=Q_{ф}/V_{ж} - volumetric heat of crystallization, kJ/m^{3}; b=(V_{тв}-V_{ж})T_{o}/Q_{ф}, ^{о}С// MPa.
The coefficient b depends little on temperature, rising as it decreases, in different soils from about 0.08 to 0.14 ^{o}C/ MPa; on average, b»0.1^{o}C/MPa.^{2,5} When describing melting, instead of j_{кр} and L_{кр}, relative deformation and volumetric heat of melting j_{пл}=(V_{тв}-V_{ж})/V_{тв}=0.083 and L_{пл}=Q_{ф}/V_{тв}_{.}, L_{кр}<L_{пл}, а j_{кр}>j_{пл} are substituted into (10) by about 9%.. This difference is often neglected. From formula (10), at a known temperature, the pressure of phase transformations (pore pressure) is determined: Р_{ф}=t/b, positive during crystallization of water, resulting from the impossibility of free expansion, and negative during ice melting, resulting from the free release of pore volume. The index “ф” for t and P is set when they are functions of, respectively, P and t. Unlike most other substances, water during freezing increases in volume, and the temperature (in the range of 0 ÷ - 22^{о}С) and the pressure of phase equilibrium are not in direct, but in inverse connection. At about t = –22^{о}С and P ≈ 220 MPa.^{2,7} the sign of the dependence of t_{ф} on P changes to the opposite: the value of t_{ф} begins to increase. At t <–22^{о}С ordinary water, and at P> 220 MPa, ordinary ice (ice I) does not exist (Figure 3).
The temperature and pressure at this limit, by analogy with supersaturated solutions of alloys are called eutectic (from Greek - fusible): t_{эв} ≈ –22^{o}C, Р_{эв}≈220MPa, since water at these indicators is in equilibrium with two solid phases - ice 1 and ice 3,^{7} i.e. falls under the definition of eutectic. The analysis of the actual material also showed that the spatial, mechanical, thermal and temporal parameters characterizing the boundaries of the existence of a solid phase of water are approximately similar:
$1\text{}\u2013\text{}({V}_{\u0436}/{V}_{\u0442\u0432})=1\u2013\text{}({\u0422}_{\u044d\u0432}/{\u0422}_{\u043e})={Q}_{\u043f\u043b}/{Q}_{\u0441}=1-({\u0420}_{\u044d\u0432}{}_{.\u043f\u043b}/{\u0420}_{\u044d\u0432}{}_{.\u043a\u0440})\text{}\xbb\text{}{j}_{\u043f\u043b}\xbb\text{}0,083=1/12$ (8)
$({V}_{\u0442\u0432}/{V}_{\u0436})\u20131=\text{}({\u0422}_{\u043e}/{\u0422}_{\u044d\u0432})\u20131=({Q}_{\u0441}/{Q}_{\u0438})\u20131=\text{}({\u0420}_{\u044d\u0432}{}_{.\u043a\u0440}/{\u0420}_{\u044d\u0432}{}_{.\u043f\u043b})\u20131\xbb\text{}{j}_{\u043a\u0440}\xbb\text{}0,091=1/11$ (9)
Where Q_{и} and Q_{c }- latent heat of evaporation of water and ice sublimation (at t = -22^{o}C Q_{c}=2830kJ/kg, Q_{и}=Q_{c}– Q_{пл}=2830–235=2595kJ/kg); Р_{эв}_{.}_{пл}»216MPa and Р_{эв}_{.}_{кр}=235MPa - eutectic melting and crystallization pressures (power equivalents L_{пл} and L_{кр} at t = t_{эв}=-22^{o}C). From equations (11) - (12), the linearity of the distribution of t, P and j between their extreme values and an approximate analogy of the sum-total of these equations to gas laws follows. The similarity criteria in the equations are equal to the relative deformations of ice melting and water crystallization, and their reciprocal values coincide with the number of months in the earth and lunar annual cycles, which apparently indicates a relationship between the water-ice phase transitions and planetary factors.
Let us assume that changes in durability and the work of destruction (melting) of frozen soil, related to their maxima, are proportional to:
$\Delta \u0420{V}_{\u0442\u0432}/[{\u0420}_{m}({V}_{\u0442\u0432}-V{\prime}_{\u0436})]\text{}=\Delta \u0420{j}_{\u043f\u043b}=\Delta \tau /\tau $ (10)
Where V′_{ж}_{, }increasing content of unfrozen water in thawing soil.
Replacing Δτ and ΔР with differentials, we rewrite (13) in integral form,^{4} after integrating and simple transformation of which, we get:
${({t}_{\u044d}/{t}_{\u0434})}^{j}{}^{\u043f\u043b}=\text{}(\u0420/{\u0420}_{m})\text{}=\u0420b/{t}_{\u0444}$ (11)
where P is the pressure on the frozen body; Р_{m} - the maximum pressure that this body can withstand without breaking down during elementary time, determined from equation (10); te t_{э} is the minimum (elementary) time interval adopted in this experiment (of the order of minutes^{8} with the lower limit t_{э}≈10^{-13}s — the period of thermal vibrations of an atom); td t_{д}-durability (time to destruction); j_{пл}-deformation, increasing in the process of melting ice to its maximum. In (14) there is a deformation of the steady-state creep j_{пл}, varying from a certain minimum to a limit value at which complete destruction occurs (thawing of soil ice) - j_{пл}=j_{пр}= 0.083. In frozen soils of different composition, j_{пр} may be slightly more - 0.09... 0.14.^{8} The analysis showed good convergence of the results of calculations by the formula (14) with
actual data.^{2-4 }For example, Table 2 gives the relative strength of sandy loam P/Р_{m} at t=-10°C, with different durability (t, min), obtained with various types of tests experimentally,^{8} and calculated by the formula (14) at j_{пл} =0.11 and t_{э}=1min.
t |
1) Р/Рm |
2) Р/Рm |
3) Р/Рm |
4) Р/Рm |
1 |
1 |
1 |
1 |
1 |
10 |
0.84 |
0.79 |
0.78 |
0.78 |
60 |
0.65 |
0.61 |
0.61 |
0.63 |
180 |
0.56 |
0.55 |
0.54 |
0.56 |
480 |
0.5 |
0.5 |
0.5 |
0.51 |
720 |
0.49 |
0.48 |
0.47 |
0.48 |
Table 2 Dependence of Р/Рm on t (min) under: 1) compression, 2) tension, 3) shear, 4) calculation by the formula (14)
We can note that pressure; temperature, volumetric deformation and time enter into equation (14) equally, which implies their equivalence and interchangeability. Each of them can serve as a function and the rest act as arguments. It was shown above that any temperature of supercooling of soil moisture corresponds to the temperature of its future crystallization. I.e. the strength and deformation properties of the frozen soil can be approximately determined even when it is in the thawed state, substituting t_{ф}≈t_{пер} into (14).^{9}
Formula (14) is a complete description of the process of deformation and destruction of plastic frozen soil. It differs from the well-known, firstly, by compliance with the kinetic concept of solid strength, naturally arising from the classical molecular kinetic theory, and secondly, by linking strength with phase equilibrium and deformation.
