Research Article Volume 6 Issue 4
^{1}Management Science Department, SZABIST (Karachi Campus), Pakistan
^{2}Management Science Department, SZABIST 100 (Karachi Campus) Block 5 Clifton, Pakistan
^{3}Department of Mathematics, University of Karachi, Pakistan
Correspondence: Mr. Salman Bin Sami, Management Science Department, SZABIST (Karachi Campus), Karachi, Pakistan, Tel +923333175611
Received: June 01, 2022  Published: July 21, 2022
Citation: Sami SB, Shakeel S, Salman R. Comparison of the hydrological time series modeling by the floods in river Indus of Pakistan. Int J Hydro. 2022;6(4):130140. DOI: 10.15406/ijh.2022.06.00317
Today, in the field of science and technology, huge forecasting applications are used by scholars to forecast future values. Nowadays, using estimating the flood forecasting for peak flow discharges is very common for the risk assessment annually by quantitative data collections from different resources. The very famous and longest rivers of Pakistan i.e. Indus River and other rivers too like River Jhelum, River Kabul, and River Chenab are the prime sources of flooding. These rivers are the prime tributaries of the Indus River System. Pakistan's longest river, River Indus, is connected with the seven (7) gauge stations called Dams and barrages, and they are playing a vital role in the generation of electricity and also in irrigation for Pakistan. In this research paper, we calculated the flood risk for the Indus using the streamflow discharges on the daily basis. At present, Adaptive NeuroFuzzy Inference System (ANFIS) model is widely used to analyze these hydrological time series data. Adaptive NeuroFuzzy Inference Systems (ANFIS) merges the potentiality of Fuzzy Inference Systems (FIS) and Artificial Neural Networks (ANN) to work out problems of different kinds. For this purpose, we used the data for the years from 2002 to 2012 daily (6months each year) streamflow period. In our analysis, the root means square error (RMSE) shows that the ANFIS model generated more satisfactory results than other models with minimum prediction errors. The ANFIS model is more reliable and has the feasibility of integrating the essence of a fuzzy system into the real world.^{1–28}
Keywords: neurofuzzy network, fuzzy logic, fuzzy inference system, hydrological modeling, river Indus, adaptive neurofuzzy inference systems
Nowadays, floods are a serious alarm for everyday life occurring wherever naturally in the world. Humans, animals, and all living things are influenced by the damage from the flood. It will damage not only our lives but destroys vegetation and the environment too. During floods, we can face big losses sustained to the economy. Just take a look at the past few decades for the flood experiencing countries, due to global warming situations a rapidly growing in floods.^{29} Therefore, all scientists, economists, engineers, etc. daily plan to get accurate time or want to know before the time of these events.
Ologunorisa and Abawa, in 2005, explained various methods like hydrological equipment, barometrical tools and conditions, socioeconomic elements, and a combination of hydrobarometrical and socioeconomic elements along with a geological data network to estimate flood risk.^{28}
Smith^{22} analyzed that the probability of the occurring events along with its results is also essential to be observed for estimating flood risk. Variability in water resources leads to heterogeneity in geological expansions naturally and variance in complex socioeconomic features. Khan et al.^{30} utilized historical compiled data of the highest peak discharges in Pakistan. He evaluated the flood risk of the Indus River by assessing the probabilities of the occurrence of a flood.
Several studies reveal that countries such as Pakistan, Korea, the USA, and many others widely employ barometrical parameters for flood risk assessment. Kalma and Laughlin^{11} employed an approach based on local weather data along with an area to graph or sketch flood risk. A researcher, Khan studied the risks of flood in the affected neighborhood regions of the Indus River in Pakistan. He applied a better and more efficient technique named the GIS technique. It required digital image processing, a geological data system, and remote sensing.^{29} He utilized satellite data that emphasized that it is significant to make dams to reduce flood risks. A similar procedure was adopted by Nawaz and Shafique in 2003^{26} on the river Jhelum. Various forecasting approaches for Rivers and Dams were attempted fortunately using the Linear and nonlinear regression techniques by Burn and McBean in 1985,^{7} Awwad, ElFandy, and Karunanithi in 1994.^{16,18,19 }All these researches gave a better forecast of dams’ river flow.
Selas and Smith used hydrological time series modeling to develop synthetic stream flows.^{5} Similarly, Stedinger and Taylor generated five various models by assuming stream flow images.^{6} Researchers are widely using time series forecasting in different fields like physics, engineering, medicine, and finance as well. The consistently used modeling and forecasting approaches by researchers for time series are AR (Autoregressive) method formulated in 1970,^{1} ARMA (Autoregressive moving average), and ARIMA (Autoregressive integrated moving average) disaggregation models developed by Valencia and Schaake in 1973,^{2} and many other.
Time series forecasting is considered the process that forecasts weather using time series data. These methods are applicable for time series data only for making forecasts. This time series data, utilized for months of massive stream flows such as many hours or even a day, is in the arithmetic data form.
Hassan and Ansari, in 2010, forecasted the continuous behavior of River Indus by employing various nonlinear methods.^{32} Sudheer used an ANN model for a similar goal and worked out that the ANN model required further advancements for forming the peak data flows accurately.^{24}
We have studied the ANFIS (adaptive neurofuzzy inference system) model for the Indus basin in our research. Similarly, another investigation was done by Nayaka and Sudheer, in India, in which they employed the ANFIS model for evaluating a hydrological model of time series for Baitarani River's basin stream flow in Orissa state.^{24}
Various complex hydrologic modeling systems have highly systematic tools for forecasting. These include genetic algorithms, adaptive neurofuzzy inference systems (ANFIS), and artificial neural networks (ANN). In 1965, the Fuzzy logic approach was developed so that a decisionmaking and expertise system similar to humans can be described.
Recently, Tayyab et al., 2018, have compared two decompositionbased models, ensemble empirical mode decomposition (EEMD) and discrete wavelet transform (DWT) with an artificial intelligencebased model to forecast streamflow at the upper Indus basin.^{36} Results indicate that the decompositionbased models gave better prediction accuracy, especially ensemble empirical mode decomposition outperforming all the models. Nazir et al., in 2019, employed Variational Mode Decomposition (VMD) model that is based on a denoising technique called singular spectrum analysis (SSA), Empirical Bayes Threshold (EBT), and Support Vector Machine (SVM).^{37} They applied these models to predict the daily river inflow of the Indus River Basin and compared the proposed model with others. Results showed that the suggested gave superior results and is validated for powergenerating systems and water resources management.
The main significance of the ANFIS model is that it can maintain the full capacity of the ANN method along with the method's simplicity. In 1993, TagakiSugenoKang (TSK) and Yasukawain formulated ANFIS which is the mapping of the fuzzy or fuzzyrulebased algorithms.^{8} Since the last decade, scientists are using ANFIS widely for water resources predictions. Today, numerous applications, like the prediction of water resources and planning and database management, are also using ANFIS.
This paper is organized into six sections. Section 2 defines our study area. Section 3 evaluates the materials and methods employed in this research. Section 4 provides the performance evaluation of the models. Section 5 presents results and discussion and Section 6 concludes this research.
To study the severity of damages by floods we used extensively technologies constructively or nonconstructively. The constructive approach requires measuring a large amount of time and money as well. This approach includes some facts about making dams and reservoirs and also changing the flow of rivers. On the other hand, the nonconstructive measures are dealing with relief when floods occur and planning for the forecasting of floods to provide such services to the victims. Here, for the prediction of future values with the help of past data the time series analysis forecast is used.
Pakistan is an Asian country that is in the Western zone of this subcontinent. It lies in the 2337 degrees in the north and from 6077 degrees in the east. It is comprised of five provinces, namely Sindh, Punjab, GilgitBaltistan, Balochistan, and Khyber Pakhtunkhwa, along with a tribal region as well. The weather conditions are different with variations in temperature in all these provinces.
Some regions face extreme weather like heavy rain that causes floods. One reason leading to canal floods is the melting of snow on mountains. The history of Pakistan is full of floods among which the floods in 1950, 1956, 1973, 1976, 1978, 1988, 1992, and 2010 were coped. There is variation in the graphs of floods caused from 1922 to 2010. Among all, the most disastrous, catastrophic, and unfortunate was the flood that occurred in 2010.

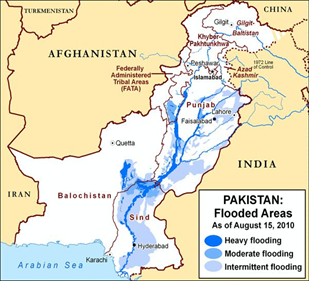

The effects of floods on the defined regions of the Indus River of Pakistan are analyzed in this research. In Figure 1, the altitude of the surrounding regions of the flooded areas of Pakistan is shown.^{34 }Heavy rainfall during the monsoon rains in Pakistan is accompanied by the melting of snow in canals. This leads to calamitous floods. Another significant reason for floods is land sliding. These disastrous floods bring various losses and damages. Few of them include losing the lives of animals and men, huge constructional losses, decomposition of agricultural land, scarcity, and an increase in water transport diseases.
In 2010, FFC (Federal Flood Commission) elucidated in their annual report that the streambed of River Indus in Sindh with the neighborhood having peak flow faced the maximum damages.^{31}
Among the extended rivers of the world, the Indus River with 1800 miles in length and seven barrages is considered the longest one. 450000 square miles approximately is the aggregate discharged region of this river. Among which 275000 square miles are in the desertification areas and the remaining is in the mountainous regions of Pakistan.

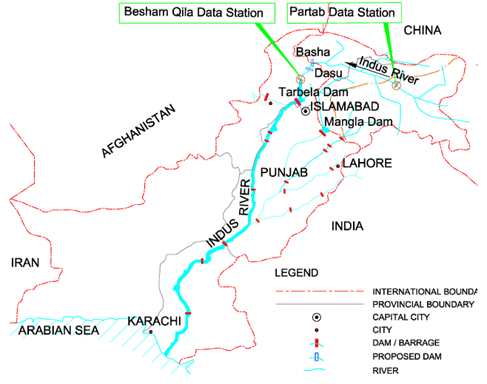

In Pakistan, River Indus runs in the southern direction starting from Ladakh in Jammu Kashmir and finally linking up with the Arabian Sea in Sindh. Figure 2 indicates the seven gauge stations that monitor the River Indus.^{35} They are Chashma Barrage, Tarbela Dam, Taunsa Barrage, Jinnah or Kalabagh Dam, Sukkur Barrage, Kotri Barrage, and Guddu Barrage.
These gauge stations record various levels of flood risk that range from medium to extremely high. Medium level flood risks are noticed at Kalabagh and Tarbela Dams. Taunsa and Chashma Barrages are observed to have highlevel flood risks. Whereas, Guddu and Kotri Barrages fluctuate from high to extremely high risks. Sukkur Barrage notices extremely high risks.
This research analysis suggests using the ANFIS approach to establish a time data series model of river flow for the Basin of River Indus in Pakistan. For this purpose, we utilize annual flood peak discharges via various gauge sites.
This section gives details on time series modeling along with forecasting. To show the fundamental structure of the series it is significant to distinguish and adopt an appropriate model. Therefore, a tailored model can provide planned future forecasting. The Time series model recognizes the relationship between the current value and the previous observation. Thus, it studies the linear or nonlinear values and suggests whether it has a sequence or relationship among the values or not. Nevertheless, various forms of time series models show different stochastic methods as well. Among them Moving Average (MA) and Autoregressive (AR),^{6,12,23} are outstanding linear time series models. We suggest a blend of both names, Autoregressive Moving Average (ARMA),^{6,12,21,23} and Autoregressive Integrated Moving Average (ARIMA) in this research. Contrastingly, Autoregressive Fractionally Integrated Moving Average (ARFIMA),^{9,17} is another model that derives ARMA and ARIMA models. For seasonal time series forecasting, one can use a distinct version of ARIMA which is the Seasonal Autoregressive Integrated Moving Average (SARIMA),^{3,6,23} model. All the modified versions of the ARIMA model are widely named the BoxJenkins Models because the BoxJenkins principle,^{1,8,12,23} drives them. The ability and simplicity of all the linear models to understand and apply are giving them remarkable attention and popularity.
Unfortunately, in various cases, time series give nonlinear patterns. To evaluate volatility in financial and economic time series it is appropriate to use nonlinear models. According to this, some widely applicable nonlinear models include Autoregressive Conditional Heteroskedasticity (ARCH) with its altered versions namely; Generalized ARCH (GARCH), Exponential Generalized ARCH (EGARCH),^{9} the Nonlinear Moving Average (NMA)^{28} model, the Nonlinear Autoregressive (NAR)^{7} model, the Threshold Autoregressive (TAR),^{8,10} model, and others.
Autoregressive integrated moving average (ARIMA) models
All ARMA models use stationary time series data. However, various time series show nonstationary behavior especially those for business and socioeconomic.^{23} Time series that possess specific or seasonal patterns also indicate nonstationary behavior.^{3,11} As ARMA models fail to evaluate widely applicable nonstationary time series so the ARIMA model,^{6,23,27} is suggested.
ARIMA models convert the nonstationary time series into stationary time series via finite differencing of data points. The mathematical representation of ARIMA (p, d, q) with lag polynomials is as follows:^{23,27}
$\phi (L){(1L)}^{d}{y}_{t}=\theta (L){\epsilon}_{t},$ i.e.
$\left(\text{1}\text{}{\displaystyle \sum _{i=1}^{p}{\phi}_{i}}{L}^{i}\right){(1L)}^{d}{y}_{t}=\left(\text{1+}{\displaystyle \sum _{j=1}^{q}{\theta}_{j}}\text{}{L}^{{}^{{}_{j}}}\right){\epsilon}_{t}\text{}$ (1)
The Autoregressive Fractionally Integrated Moving Average (ARFIMA) model is a practical inference of ARIMA models. The ARFIMA model permits noninteger values of the differencing parameter d. To model time series having long memory,^{17} ARFIMA plays a significant role. To expand the term (1− L)^{ d} general binomial theorem is applied. The contributions of various researchers proved to be significant for estimating parameters of general AFRIMA.
Adaptive neuralbased fuzzy inference system (ANFIS)
For fuzzy inference that is constructed from fuzzy logic methods and ANNs, we use the ANFIS model that is formulated by Sugeno.^{15} It uses a crosslearning rule to identify various parameters. This rule amalgamates the backpropagation gradient descent and the least square method. By applying correct membership functions, ANFIS can serve as a base to build numbers of IFTHEN rules in Fuzzy for producing prior specified input and output pairs Figure 3.^{23}
As the inference system of Sugeno fuzzy is mathematically efficient, it can be applied for adaptive, linear as well as optimization techniques. Consider a fuzzy inference of x and y as two inputs and z as one output in the 1^{st} order. Below is the widely applied rule along with two fuzzy ifthen rules:
Rule 1: If x is A_{1} and y is B_{1}， then ${f}_{1}={p}_{1}x+{q}_{1}y+{r}_{1}$
Rule 2: If x is A_{2} and y is B_{2}， then ${f}_{2}={p}_{2}x+{q}_{2}y+{r}_{2}$
Figure 4a represents the clear outcomes. This figure evaluates the inference system of fuzzy reasoning which is giving (f) as an output function while using [x, y] as the input vector. The corresponding equivalent ANFIS architecture is a fivelayer feedforward network that is using neural network learning algorithms. These neural network learning algorithms are coupled with fuzzy reasoning for mapping an input space to an output space. This is evident from Figure 4b. The literature has more details and presentations of ANFIS for forecasting hydrological time series.^{23,27,33}
We have Sugenotype, linear combinations of end parameters and their overall output in the proposed model. So, in Figure 3 the output (f) can be improved as:
$f=\overline{{w}_{1}}{f}_{1}+\overline{{w}_{2}}{f}_{2}=(\overline{{w}_{1}}x){p}_{1}+(\overline{{w}_{1}}y){q}_{1}+(\overline{{w}_{1}}){r}_{1}+(\overline{{w}_{2}}x){p}_{2}+(\overline{{w}_{2}}y){q}_{2}+(\overline{{w}_{2}}){r}_{2}$ (2)
The leastsquares method computes the end parameters $({p}_{1},{q}_{1},{r}_{1},{p}_{2},{q}_{2},{r}_{2})$ . There by, it becomes easier to project the best parameters of the ANFIS model by using a hybrid learning algorithm. To have further explanations one can cite the work by Jang and Sun.^{14}
Data used
In this paper, we have used the data collected from the source of the Federal Flood Commission (FFC), which is situated in IslamabadPakistan, comprised of 11 years recorded by the three gauge stations, Tarbela Dam, Chashma, and Sukkur Barrages, situated at different places.
Performance evaluation of the models
Various researches on the application, validation and calibration of hydrological models recommend only a few approaches to hydrological time series. To evaluate the performance we compute four criteria as stated in the next section.
Different classifications of traditional statistics are regarded as statistical work explanations. For this estimation test, we applied root mean square error (RMSE) that is given as
$RMSE=\sqrt{\frac{{\displaystyle {\sum}_{i=1}^{n}({{\displaystyle d}}_{i}^{o}}{{\displaystyle d}}_{i}^{p}{)}^{2}}{n}}$ (3)
Here, at any time t, the observed flow of the stream is denoted by ${{\displaystyle d}}_{i}^{o}$ and the predicted flow of the stream is denoted by ${{\displaystyle d}}_{i}^{p}$ .
Outcomes and analysis from ANFIS

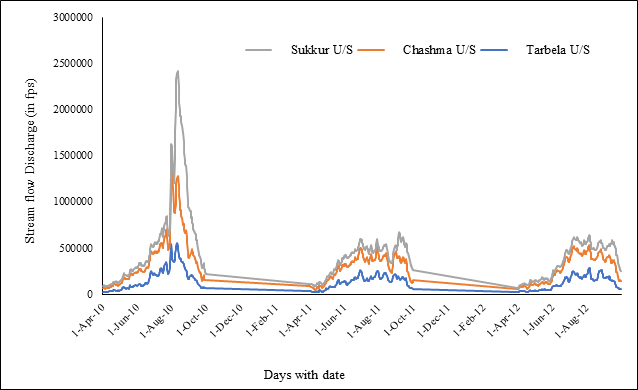

Investigation of the data reveals to us that the data we surveyed is disordered and highly varied. We can view the behavior of the flow in Tarbela Dam, Chashma, and Sukkur Barrages, from the timeline 2010 to 2012 in Figure 5.
Parameters are provided in Table 1 which are interrelated to these three stations. In Table 1, we can see that the difference between the maxima amount and the minima amount with the standard deviation is very large, therefore the modeling will be complex for the gauge stations. We notice that among the three stations Sukkur Barrage observes the highest maximum amount of peak discharge which is 1130995 fps stream flow for the period 20022011, so the range of flood risk is extremely high on it. Table 1 also shows that the least ratio of average to standard deviation is 0.94 fps which is given by Sukkur Barrage.
Estimated parameters
Tarbela Dam
Chashma Barrage
Sukkur Barrage

2002–2011
2012
2002–2011
2012
2002–2011
2012

Average (fps)
141643.2
123941
177492.7
158845.2
116962.8
81611.91
Standard deviation (fps)
88743.25
76086.45
101397.2
79063.51
124973.6
47645.55
Minimum amount (fps)
18800
26000
23493
26169
16405
15630
Maximum amount (fps)
557100
284000
957309
276745
1130995
214780
The ratio of average to standard deviation (fps)
1.6
1.63
1.75
2.01
0.94
1.71
Table 1 For 10 years & 1 year alone (2002–2011 & 2012) Estimated parameters
For the fuzzylogy network, we are considering input data for ten years (2002 to 2011) for the daily stream flow applying as training data on different models. Also, we tested different models by using the testing data for the year 2012 only and taking each gauge station’s stream flows daily data for 6 peak months’. The results in the tables shown below are as entered Input data into the neurofuzzy network.
Finding the results, we used RMSE to figure out the outputs as we can see the Tables 2 to 4 are the calculated results. For better outcomes, we used Gaussian membership functions better than the Triangular membership functions for good outcomes with the 0.001 error tolerance.
Tarbela dam results

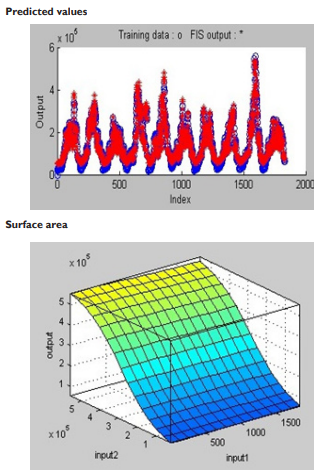

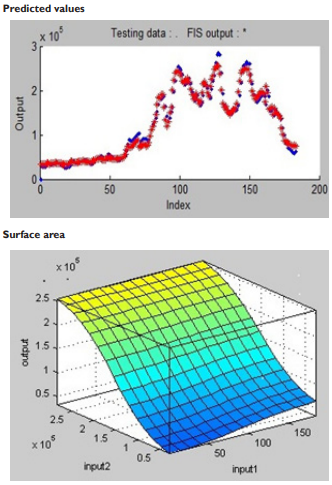

Outcomes of the Tarbela dam can be viewed in Tables 2a and 2b respectively. The Curves shown below in Figure 6a highlighted the predicted values and surface area using the applied neurofuzzy technique for the year 2012 only. Figure 6a shows in the predicted values, on the yaxis, the output data means stream values of data in fps, and on the xaxis, the index means the no. of days for the year 2012 which is 183 peak days. The Curves shown below in Figure 6b highlighted the predicted values and surface area using the applied neurofuzzy technique for the year 2002 to 2011. From Figure 6b, we are showing the predicted values. On the yaxis, the output data means stream values of data in fps, and on the xaxis, the index means the no. of days for the mentioned years which is 1830 peak days.
Serial No.
Different input variations
No. of membership functions
RMSE
1
dt, d_{t – 1}
2
113.787
2
dt, d_{t – 1}
3
108.474
3
dt, d_{t – 1}
4
105.902
4
dt, d_{t – 1}
6
104.87
5
dt, d_{t – 1}
8
97.42
6
dt, d_{t – 1}, d_{t – 2}
2
101.913
7
dt, d_{t – 1}, d_{t – 2}
3
90.465
8
dt, d_{t – 1}, d_{t – 2}
4
85.161
9
dt, d_{t – 1}, d_{t – 2}
6
68.037
10
dt, d_{t – 1}, d_{t – 2}
8
51.114
Table 2a 2012 error evaluation by daily flow prediction as testing data
Serial No.
Different input variations
No. of membership functions
RMSE
1
dt, d_{t – 1}
2
155.639
2
dt, d_{t – 1}
3
134.878
3
dt, d_{t – 1}
4
129.603
4
dt, d_{t – 1}
6
125.749
5
dt, d_{t – 1}
8
124.374
6
dt, d_{t – 1}, d_{t – 2}
2
129.476
7
dt, d_{t – 1}, d_{t – 2}
3
117.745
8
dt, d_{t – 1}, d_{t – 2}
4
114.935
9
dt, d_{t – 1}, d_{t – 2}
6
110.249
10
dt, d_{t – 1}, d_{t – 2}
8
107.461
Table 2b 2002  2011 error evaluation by daily flow prediction as training data
Chashma barrage results

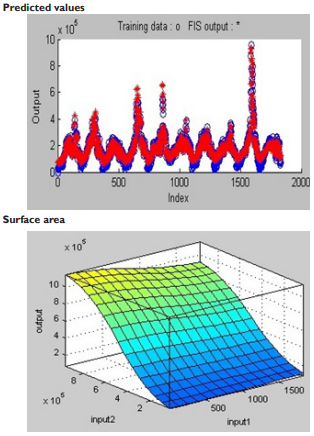

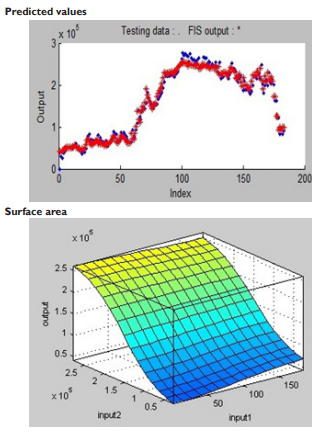

Similarly for Chashma Barrage, as we have done calculations for Tarbela Dam above, tables 3a and 3b are showing the results of the daily stream flow prediction for the year 2012 and from 2002 to 2011. The Curves shown below in Figure 7a highlighted the predicted values and surface area using the applied neurofuzzy technique for the year 2012 only. The Curves shown below in Figure 7b highlighted the predicted values and surface area using the applied neurofuzzy technique for the year 2002 to 2011.
Serial No.
Different input variations
No. of membership functions
RMSE
1
dt, d_{t – 1}
2
117.188
2
dt, d_{t – 1}
3
109.666
3
dt, d_{t – 1}
4
107.837
4
dt, d_{t – 1}
6
101.392
5
dt, d_{t – 1}
8
95.455
6
dt, d_{t – 1}, d_{t – 2}
2
114.15
7
dt, d_{t – 1}, d_{t – 2}
3
100.935
8
dt, d_{t – 1}, d_{t – 2}
4
97.08
9
dt, d_{t – 1}, d_{t – 2}
6
77.261
10
dt, d_{t – 1}, d_{t – 2}
8
69.699
Table 3a 2012 error evaluation by daily flow prediction as testing data
Serial No.
Different input variations
No. of membership functions
RMSE
1
dt, d_{t – 1}
2
186.708
2
dt, d_{t – 1}
3
169.368
3
dt, d_{t – 1}
4
162.853
4
dt, d_{t – 1}
6
156.526
5
dt, d_{t – 1}
8
156.105
6
dt, d_{t – 1}, d_{t – 2}
2
158.58
7
dt, d_{t – 1}, d_{t – 2}
3
155.167
8
dt, d_{t – 1}, d_{t – 2}
4
148.86
9
dt, d_{t – 1}, d_{t – 2}
6
141.91
10
dt, d_{t – 1}, d_{t – 2}
8
139.753
Table 3b 2002  2011 error evaluation by daily flow prediction as training data
Sukkur barrage results

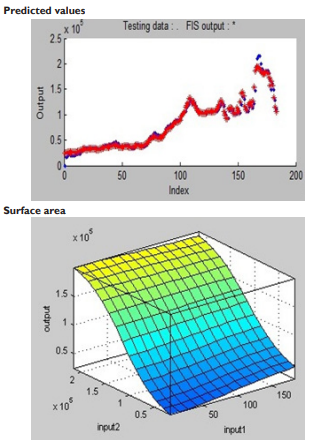

Now the outcomes for the Sukkur barrage for taking different inputs and MFs by the daily stream flow as shown below in the following Tables 4a and 4b respectively same as the above calculation techniques. The Curves shown below in Figure 8a highlighted the predicted values and surface area using the applied neurofuzzy technique for the year 2012 only. The Curves shown below in Figure 8b highlighted the predicted values and surface area using the applied neurofuzzy technique for the year 2002 to 2011.
Serial No.
Different input variations
No. of membership functions
RMSE
1
dt, d_{t – 1}
2
86.433
2
dt, d_{t – 1}
3
80.395
3
dt, d_{t – 1}
4
75.492
4
dt, d_{t – 1}
6
68.732
5
dt, d_{t – 1}
8
63.513
6
dt, d_{t – 1}, d_{t  2}
2
77.205
7
dt, d_{t – 1}, d_{t  2}
3
69.544
8
dt, d_{t – 1}, d_{t  2}
4
60.337
9
dt, d_{t – 1}, d_{t  2}
6
48.093
10
dt, d_{t – 1}, d_{t  2}
8
44.276
Table 4a 2012 error evaluation by daily flow prediction as testing data
Serial No.
Different input variations
No. of membership functions
RMSE
1
dt, d_{t – 1}
2
170.088
2
dt, d_{t – 1}
3
149.33
3
dt, d_{t – 1}
4
138.725
4
dt, d_{t – 1}
6
118.698
5
dt, d_{t – 1}
8
112.94
6
dt, d_{t – 1}, d_{t  2}
2
135.046
7
dt, d_{t – 1}, d_{t  2}
3
114.976
8
dt, d_{t – 1}, d_{t  2}
4
106.599
9
dt, d_{t – 1}, d_{t  2}
6
93.434
10
dt, d_{t – 1}, d_{t  2}
8
87.921
Table 4b 2002  2011 error evaluation by daily flow prediction as training data
Outcomes and analysis from ARIMA
For tarbela dam results
Here, we have done calculations for Tarbela Dam below. Tables 5a and 5b are completely showing the results of the daily stream flow prediction for the whole data from the year 2002 to 2012 Figure 9.
Fit Statistic
Mean
SE
Minimum
Maximum
Percentile

5
10
25
50
75
90
95

Stationary Rsquared
0.268
.
0.268
0.268
0.268
0.268
0.268
0.268
0.268
0.268
0.268
Rsquared
0.977
.
0.977
0.977
0.977
0.977
0.977
0.977
0.977
0.977
0.977
RMSE
13513.88
.
13513.88
13513.88
13513.88
13513.88
13513.88
13513.88
13513.88
13513.88
13513.88
MAPE
6.932
.
6.932
6.932
6.932
6.932
6.932
6.932
6.932
6.932
6.932
MaxAPE
326.571
.
326.571
326.571
326.571
326.571
326.571
326.571
326.571
326.571
326.571
MAE
7990.652
.
7990.652
7990.652
7990.652
7990.652
7990.652
7990.652
7990.652
7990.652
7990.652
MaxAE
163891.6
.
163891.6
163891.6
163891.6
163891.6
163891.6
163891.6
163891.6
163891.6
163891.6
Normalized BIC
19.068
.
19.068
19.068
19.068
19.068
19.068
19.068
19.068
19.068
19.068
Table 5a Model Fit
Model
Number of Predictors
Model Fit statistics
LjungBox Q(18)
Number of Outliers

Stationary Rsquared
RMSE
MAPE
Normalized BIC
Statistics
DF
Sig.

USModel_1
0
0.268
13513.88
6.932
19.068
17.372
8
0.026
0
Table 5b Model Statistics
Model description
Model type

Model ID
US
Model_1
ARIMA (0,1,10)
For chashma barrage results

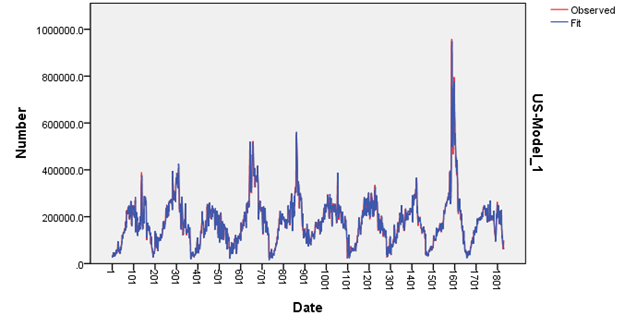

Now the calculations for Chashma Barrage are below. Table 6a and 6b are showing the outcomes of the daily stream flow prediction for the whole data from the year 2002 to 2012 Figure 10.
Fit Statistic
Mean
SE
Minimum
Maximum
Percentile

5
10
25
50
75
90
95

Stationary Rsquared
0.122
.
0.122
0.122
0.122
0.122
0.122
0.122
0.122
0.122
0.122
Rsquared
0.946
.
0.946
0.946
0.946
0.946
0.946
0.946
0.946
0.946
0.946
RMSE
23598.72
.
23598.72
23598.72
23598.72
23598.72
23598.72
23598.72
23598.72
23598.72
23598.72
MAPE
10.604
.
10.604
10.604
10.604
10.604
10.604
10.604
10.604
10.604
10.604
MaxAPE
331.573
.
331.573
331.573
331.573
331.573
331.573
331.573
331.573
331.573
331.573
MAE
15563.31
.
15563.31
15563.31
15563.31
15563.31
15563.31
15563.31
15563.31
15563.31
15563.31
MaxAE
231219.3
.
231219.3
231219.3
231219.3
231219.3
231219.3
231219.3
231219.3
231219.3
231219.3
Normalized BIC
20.208
.
20.208
20.208
20.208
20.208
20.208
20.208
20.208
20.208
20.208
Table 6a Model Fit
Model
Number of Predictors
Model Fit statistics
LjungBox Q(18)
Number of Outliers

Stationary Rsquared
RMSE
MAPE
Normalized BIC
Statistics
DF
Sig.

USModel_1
0
0.122
23598.72
10.604
20.208
1.057
2
0.59
0
Table 6b Model Statistics
Model description
Model type

Model ID
US
Model_1
ARIMA (0,1,16)
For sukkur barrage results

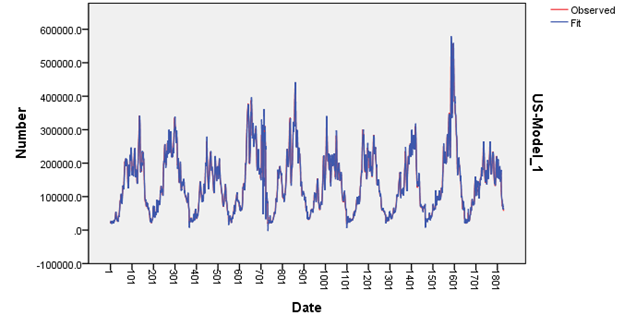

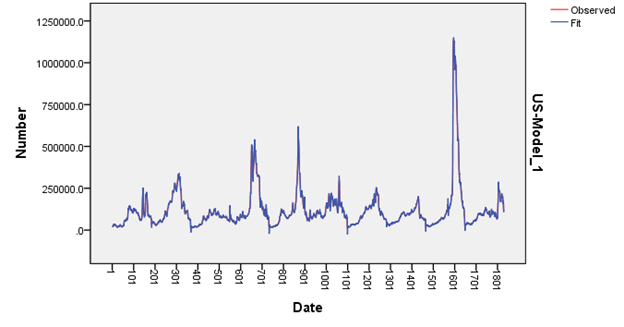

Similarly, the calculations for Sukkur Barrage are below. Table 7a and 7b are showing the complete statistics of the daily stream flow prediction for the whole data from the year 2002 to 2012 Figure 11.
Fit Statistic
Mean
Minimum
Maximum
Percentile

5
10
25
50
75
90
95

Stationary Rsquared
0.506
0.506
0.506
0.506
0.506
0.506
0.506
0.506
0.506
0.506
Rsquared
0.992
0.992
0.992
0.992
0.992
0.992
0.992
0.992
0.992
0.992
RMSE
11174.41
11174.41
11174.41
11174.41
11174.41
11174.41
11174.41
11174.41
11174.41
11174.41
MAPE
5.083
5.083
5.083
5.083
5.083
5.083
5.083
5.083
5.083
5.083
MaxAPE
338.483
338.483
338.483
338.483
338.483
338.483
338.483
338.483
338.483
338.483
MAE
4871.694
4871.694
4871.694
4871.694
4871.694
4871.694
4871.694
4871.694
4871.694
4871.694
MaxAE
246516.8
246516.8
246516.8
246516.8
246516.8
246516.8
246516.8
246516.8
246516.8
246516.8
Normalized BIC
18.663
18.663
18.663
18.663
18.663
18.663
18.663
18.663
18.663
18.663
Table 7a Model Fit
Model
Number of Predictors
Model Fit statistics
LjungBox Q(18)
Number of Outliers

Stationary Rsquared
RMSE
MAPE
Normalized BIC
Statistics
DF
Sig.

USModel_1
0
0.506
11174.41
5.083
18.663
34.701
13
0.001
0
Table 7b Model Statistics
Model description
Model type

Model ID
US
Model_1
ARIMA (0,1,16)
Discussion on flood analysis results
Now the results of the different models are applied as in Table 2a to 7b. The results obtained by ANFIS modeling are much faster and better than the ARIMA model application.
First, take a look at the ANFIS model by comparing the three gauge stations results as we can see the calculating error RMSE is showing in the ANFIS and the error reduces by increasing the inputs than MFs is shown in this ANFIS model. It is very much surprising that with the increase in the membership functions the error RMSE is slowly decreasing while the increase in the number of inputs helps to make an efficient decrease in the calculated error. So we can easily interpret that increase in the inputs is a much better option for forecasting future values.

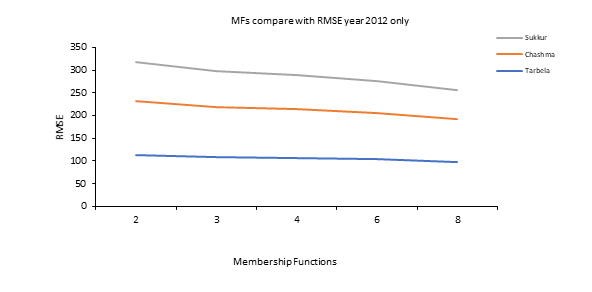

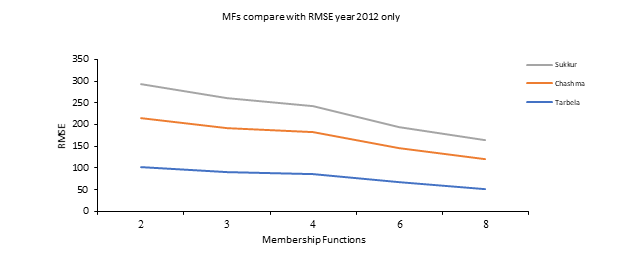

Moreover, we have found that the outcomes of the three gauge stations Tarbela, Chashma, and Sukkur indicate the good results it can be attained by the structure of the ANFIS model. We observed the best outcomes from the year 2012 for testing data with the minimum errors for all stations. In Tarbela Dam, we used the data inputs d_{t}, d_{t – 1}, d_{t – 2, }and eight membership functions (MFs) as seen in Table 2a. Similarly, Table 3a is for the Chashma barrage and Table 4a is for the Sukkur barrage with the same data input structures where the flood risk is very high. And also in Table 4b can be seen an enormous decrease in the error i.e. 87.92 for 10 years’ data using the same input structures with the same MFs as compared with the input structure of two d_{t}, d_{t–1 }input, and two MFs as 170.087. Now we can elaborate on these outputs as more inputs and MFs give the best results with minimum errors as 44.276 RMSE from the year 2012 by Sukkur barrage where always a high risk of the flood as shown in the Figure 12a and 12b for comparing the three stations results by the increase in the input data.
On the other hand, we used the ARIMA model to compare with ANFIS results and obtained a high amount of errors (RMSE) readings for all stations like Tarbela, Chashma and Sukkur barrages as 13513.881, 23598.722, and 11174.414 RMSEs respectively which is too large in amount.
We have executed an Adaptive NeuroFuzzy Inference System (ANFIS) at all three gauge stations to expect the cyclic behavior of river flow discharges. Different Input variables were applied with different membership functions by using two types of neurofuzzy systems operated 5times with 2, 3, 4, 6, and 8 MFs and with 2 & 3 data inputs. For this purpose, we accumulated ten years’ stream flow discharge data for these three gauge stations along River Indus flow and used it as training data. Another one is executed for a oneyear stream flow as testing data. The system was executed for different levels. We obtained better results by increasing the no. of inputs instead of increasing the no. of membership functions to the fuzzy network. By comparing both the models ANFIS & ARIMA, we can conclude our outcomes based on RMSE values obtained from the different models and by graphs that the model ANFIS is the better option to predict and forecast floods by the recorded daily streamflow time series data as ANFIS gave us the minimum value of RMSE mentioned in the above tables. There is a comparison between the observed and the predicted data values. We can say that the model of ANFIS can be utilized in the future as this is very adaptable, fruitful, and has many possibilities of integrating the real world's nature for the time series analysis.
The goal of writing the research paper could not have been accomplished without the participation of my respectful colleagues who contributed their expertise according to their experiences and practice and assisted me in this research seriously. I would like to thank my colleague Mrs. Sobia Shakeel from the SZABIST Karachi campus for her assistance in providing expertise in the Eviews and SPSS software by helping me to apply different tools like ARMA, ARIMA, SARIMA, etc. to our valuable data and Mrs. Reema Salman from the University of Karachi who provided insight and expertise that greatly assisted the research and appreciably improved the manuscript.
With a deep sense of gratitude, I acknowledged the University of Karachi Mathematics department which provided me the valuable realtime data on flow stream charges and trusted me. I would also convey my heartfelt affection to my Institution SZABISTKarachi campus and their IT team members who supported me throughout my work and give me confidence and time to do this valuable research. Further, I would like to thank our friends and family who continuously supported me and showed their patience for me to accomplish this special and notable research. Thank you.
The author declares there is no conflict of interest.
©2022 Sami, et al. This is an open access article distributed under the terms of the, which permits unrestricted use, distribution, and build upon your work noncommercially.
