Microwave combustion synthesis method to prepare indium tin oxide NPS for sensor

R Perumalsamy,1,2 P Ponsurya,3 A Ayeshamariam,1,5 S Nivetha,1,5 BH Abbas Shahul Hameed4

1Research and Development Center, Bharathidasan University, India
2Department of Physics, Sir Thiyagaraya College Higher Secondary School, India
3Department of Mechanical Engineering, Loyola ICAM College of Engineering and Technology, India
4Department of Mechanical Engineering, SMR East Coast College of Engineering and Technology, India
5Department of Physics, Khadir Mohideen College, India

Correspondence: A Ayeshamariam, Department of Physics, Khadir Mohideen College, India

Received: June 19, 2017 | Published: November 29, 2018

Citation: Perumalsamy R, Nivetha S, Ponsurya P, et al. Microwave combustion synthesis method to prepare indium tin oxide NPS for sensor. Electric Electron Tech Open Acc J. 2018;2(5):327-333. DOI: 10.15406/eetoaj.2018.02.00037

Download PDF


Indium tin oxide was prepared by using Microwave synthesis technique and it was characterised by using X-ray diffractometers, UV-Vis spectrometer and photoluminescence spectrometer, the as prepared samples were directly annealed for 200ºC and then characterised. Morphological studies were analysed by using Transmission Electron Microscopy and Selective area diffraction pattern. The crystal sizes were calculated and it ranges from 9 to 12nm. The band gap values were calculated and it ranges from 2.49 to 3.015eV. The photoluminescence emission started from 340nm and its excitation values were nearly its near band edge emission at 360nm.

Keywords: ITO, In2O3, SnO2 and XRD


Nanometer sized particles have unusual mechanical, optical, magnetic and electrical properties that make them of interest for novel applications. There is no universally agreed definition of a nanoparticle, However most research groups consider that particles with at least one dimension smaller than 100nm are nanoparticles and those with dimension in the range 100nm <d <~10μm are called microparticles. The physical properties of the nanoparticles can vary significantly as the particle size changes.1 The specific properties of nanoparticles include2 dispersability in an immiscible phase, uniformity and fine grain size, extremely high specific surface area, control of the scattering of light, enhanced chemical activity of atoms and molecules at the interface, absorptive capabilities, microstructure control, transport properties of small domains and in pores, controlled electronic states of atoms etc. Due to these properties, nanoparticles have numerous commercial and technological applications.3 For instance, because of their very small size (20 times smaller than the wavelength of the visible light), they do not scatter light providing new perspectives for optical coatings.4 Their large specific area make them attractive to realize chemical or physical sensors for detecting the state of chemical reactions.5 Also these nanoparticles demonstrate quantum effect resulting in material innovations in communication, data storage, non-linear optic or with special magnetic properties.6 Many of these applications deal with dispersions or coatings with enhanced specific features. Much of the demand comes from the cosmetic and pharmaceutical industries7 where they show incredible commercial potential as for example to shield the skin from particularly damaging ultraviolet irradiation.8 In the field of medicine, magnetic nanoparticles found application particularly for the precise delivery of drugs to the exact target tissue by application of external magnetic fields. Various methods were used for synthesizing nanoparticles. The first development was made by Gleiter and Siegel8 by evaporation and condensation (nucleation and growth). This method, called gas phase synthesis, is similar to the physical vapour deposition (PVD), but instead of using a substrate, liquid nitrogen is used to condense the vaporized material. The disadvantages of this method are the high temperature processing, the difficulty to control the particle size and distribution and the low production rate. Various aerosol processing techniques have been then reported to improve the production yield of nanoparticles. These include synthesis by combustion flame, plasma, laser ablation, chemical vapor condensation, and plasma spray. The chemical synthesis of nanoparticles is a promising technique to produce nanomaterials via low temperature processes. The sol-gel process (discussed in the next section) can form nanoparticles starting with precursors of different composition and structure. The institute of new materials (INM) in Saarbrucken is one of the few research centers which succeeded to produce a broad range of nanoparticles like TiO2, Al2O3, BaTiO3, ITO, ATO, etc through this process. The new materials built with these nanoparticles have already found many industrial applications.

Transparent conducting oxides (TCO) are the most common used materials to produce transparent conducting films. They are essentially based on In2O3, SnO2, ZnO, CdO, etc. These materials are usually insulators and have a wide band gap (Eg >3eV), so that they show an excellent transparency in the visible region. To get them conducting nonstoichiometry and/or appropriate dopants, like Sn for In2O3, Sb, F for SnO2, Al, Ga for ZnO, etc., should be introduced in order to create electron degeneracy in the wide band gap.6 The number of products and technologies that used these materials on a variety of substrates (glass, plastic, ceramic, metal, etc.) is growing tremendously. TCO thin films can now widely utilized for optoelectronic devices, such as flat panel displays, thin film transistors, electroluminescent devices, heat reflectors, gas sensors, organic light emitting diodes, solar cells and variety of other significant applications in demisting and deicing glass for automotive, train and aircraft (52-59).

A colloidal suspension, as defined it is a system consisting of two phases, i.e. a continuous phase in which the other phase, containing entities having at least on the 1 to 1000 nm length scale, is dispersed. The particles in the suspension undergo a Brownian motion and collide with each other. When they come close enough to each other, they stuck due to the Van der Waals attraction and aggregates are formed leading to phase separation. The aggregation of particles can be prevented or reduced by different mechanisms. The steric force is a repulsive force used to prevent the particle to come close to each other by attaching physically or chemically a surfactant or polymers to the surface of the particle. When two particles with their envelopes of organic chains approach each other, the chains in the gap between the particles lose its conformational entropy and resist a further approach. 9 This dispersion (or stabilization) repulsive force is a function of the surfactant coverage, the type of bond formed at the surface and the type of the solvent. The electric charging of the particle can arise from different mechanisms and can be manipulated and controlled by adjusting the suspension pH and by using suitable dispersants. This is done by measuring the so-called zeta potential. The electrical potential drops off exponentially with the distance from the particle and reaches a uniform value in the solvent outside the diffuse double layer. The zeta potential is the voltage difference between a plane at short distance from the particle surface and the solvent beyond the double layer when two particles come close together so that their double layers overlap, they repel each other. The strength of the electrostatic force depends on the zeta potential. If it is too small (typically less than about 25mV, the repulsive force is not strong enough to overcome the Van der Waals attraction between the particles and they start to agglomerate. A high zeta potential prevents the particle-particle agglomeration and keeps the dispersion uniform and free flowing. Therefore, the goal in most formulations is to maximize the zeta potential. This is particularly important to produce high strength ceramic materials.10


ITO powder samples were prepared by simple combustion method. (90wt %) 10.033g of Indium metal and was dissolved with HNO3 and equal amount of water is used to dilute the solution. Once in 3 hours it was warmed for about 48 hours, Indium metal dissolved in the solution. (10wt %) 1.2g of Sn metal was dissolved in the mixture of 5ml of HNO3 and 45ml of H2O. Now the reaction solution was taken by mixing 0.9ml of In(NO3)3 and 0.1ml Sn(NO3)2 with 10ml of water. 0.1 molar solution 0.5g of Urea (CONH2)2 was mixed with this mixture. This urea acting as a redox condensing agent used to precipitate ITO nano-particles. The mixture was heated at 300ºC in open air for ½ hour. Like that the same procedure was repeated for the different compositions 0.85ml of In(NO3)3 and 0.15ml Sn(NO3)2 with 10ml of water, 0.80ml of In(NO3)3 and 0.20ml Sn(NO3)2 with 10 ml of water. Microwave synthesis was adopted because of very fast nucleation process, conventional process requires multiple steps and takes long time also this process was used to produce uniformed heating, fast thermal induction, homogeneous nucleating sites. The resultant mixtures of ITO particles for different compositions were characterized by XRD. In that ITO compound was confirmed.11 The powder is then characterized to determine the phase structure and the crystallite size using XRD technique. The density and the specific (BET) surface area were also determined Figure 1.12

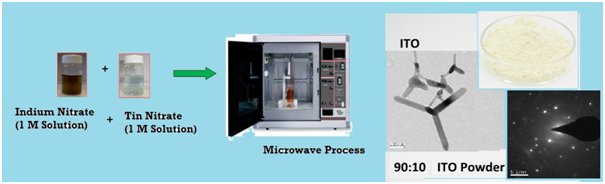

Figure 1 Experimental set up of ITO NPs at different proportions.

 Oxygen valency urea calculation In2O3 90% SnO2 10%

Formula CO (NH2)2 oxidation valency from periodic table

H = (+1)x4 = +4

N = (0)x2 = 0

C = (+4)x1=+4      = +6

O = (-2)x1 -2



Sn = (+4) x 1 = +4

N = (0) x 2 = 0 = -8

O = (-2) x 6 = -12



In = (+3) x 1 = +3

N = (0) x 3 = 0 = -15

O = (-2) x 9 = -18


1 Sn(No3)2 + 9 In(NO3)3 + n (+6) = 0

1 (-8) + 9 (-15) + 6n = 0

                -143 + 6n = 0

6n = 143

n = 23.833/100

n = 0.24gm

Two times = 0.48gm

0.48x1.5 = 0.72gm

0.48x2 = 0.96gm

The powder particles were pasted on the glass plates to find the diffusion and uniform distribution of the powder. In many reported work for very small particles, surface area is a more appropriate characteristics to assess than some size based on an equivalent diameter. Particle surface area is important, for example, in paints and pigments or when chemical reactivity is an important property, as in the setting of cement. Precipitated materials are often characterized in this manner. Amongst the several techniques available, those based on permeability and gas adsorption are probably the most popular. In the permeability methods a known quantity of air is forced through a small bed of the fine solids under a constant pressure drop, and the flow time is recorded. The theory is based on the laminar flow of fluids through porous beds, and the specific surface area of the material is calculated from Kozeny equation (Figure 2).13

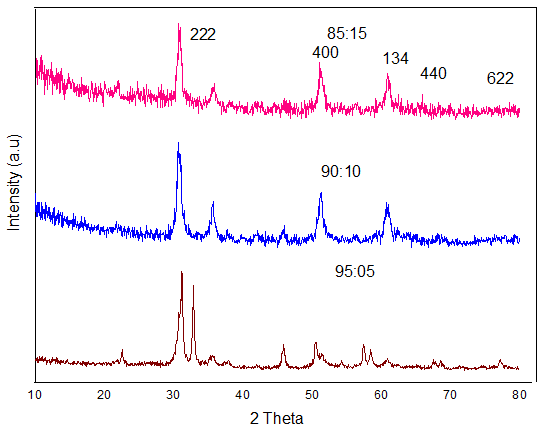

Figure 2 XRD diffraction pattern of ITO powder for three different proportions.

S 2 =( ΔP kuηL ρ 2 )( ε 3 (1ε) 2 ) MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVu0Je9sqqrpepC0xbbL8F4rqqrFfpeea0xe9Lq=Jc9 vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=x fr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaqcLbsacaWGtb WcdaahaaqabeaajugWaiaaikdaaaqcLbsacqGH9aqpjuaGdaqadaGc baqcfa4aaSaaaOqaaKqzGeGaeuiLdqKaamiuaaGcbaqcLbsacaWGRb GaamyDaiabeE7aOjaadYeacqaHbpGClmaaCaaabeqaaKqzadGaaGOm aaaaaaaakiaawIcacaGLPaaajuaGdaqadaGcbaqcfa4aaSaaaOqaaK qzGeGaeqyTduwcfa4aaWbaaSqabeaajugWaiaaiodaaaaakeaajugi biaacIcacaaIXaGaeyOeI0IaeqyTduMaaiykaSWaaWbaaeqabaqcLb macaaIYaaaaaaaaOGaayjkaiaawMcaaaaa@5884@ (1)

In the IT sectors, nano-particles are used for increasing the efficiency of electronic equipments by increasing the information storage capacity and decreasing the size and weight of the devices. While several synthesis and processing methods have been employed for making thin-films of ITO research on nano-particles, chemical methods is the best technique to synthesize ITO powdered nano-particles. Nano-particles are produced by various techniques, crystallization, precipitation, sol-gel methods, combustion and chemical vapour deposition methods.14 ITO nano-particles are synthesized here, by combustion method and its structures are characterized with XRD (X-ray Diffraction) (Figure 3–8).

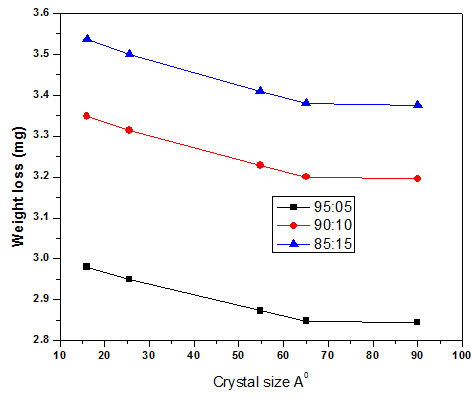

Figure 3 TGA analysis for different proportion of ITO nano powdered particle.

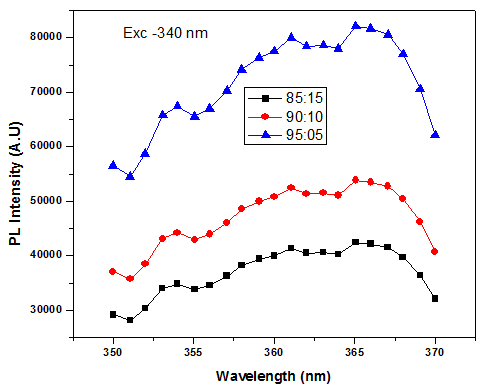

Figure 4 Photoluminescence values of ITO nanopowder.

Figure 5 Photoluminescence values of ITO nanopowder.

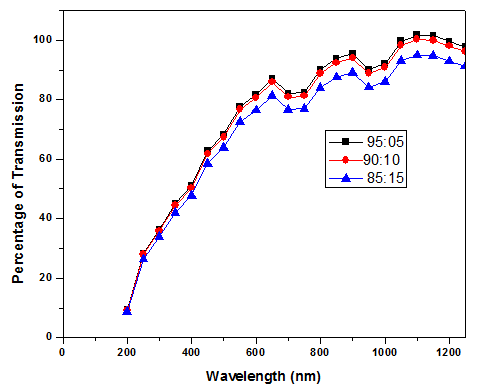

Figure 6 Percentage of transmission of ITO powder for different proportions.

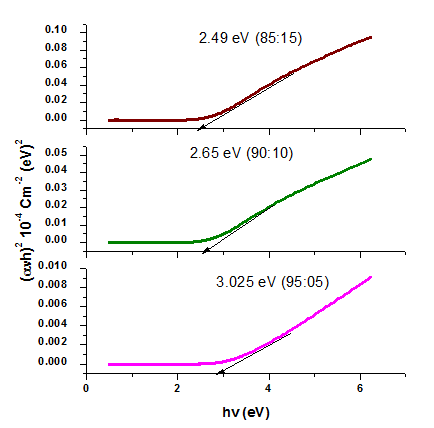

Figure 7 Bandgap values of ITO powder for different proportions.

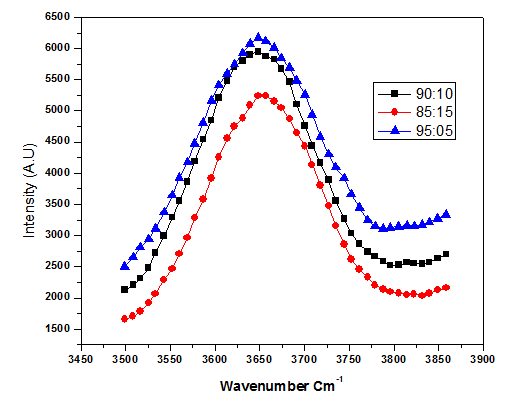

Figure 8 Raman analysis of ITO nanopowder.

Results and discussion

The X-Ray powder diffraction patterns were recorded using Panalytical X’pert Pro X-ray Diffracto meter having wavelength λ=1.5406Å. X-Ray Diffraction (XRD) is a high-tech, non-destructive technique for analyzing a wide range of materials, including fluids, metals, minerals, polymers, catalysts, plastics, pharmaceuticals, thin-film coatings, nano-particles, ceramics and semiconductors. The X-Ray Diffraction peaks could be indexed to ITO with cubic structure having lattice constant of A=10.0259Å. The growth of small dimension ITO peaks has been reported15 for different compositions. Studies of such structures are of interest because sharp tips are having same lattice planes [2,2,2.] This is useful for efficient field emission16 having potential applications in displays. The growth of peak morphology is ascribed to preferential adsorption of ITO species on some special crystallographic planes of Indium Tin Oxide. The grain size of the nano-crystalline powder is estimated by using Scherer formula

D= 0.94λ βcosθ MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVu0Je9sqqrpepC0xbbL8F4rqqrFfpeea0xe9Lq=Jc9 vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=x fr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaqcLbsacaWGeb Gaeyypa0tcfa4aaSaaaOqaaKqzGeGaaGimaiaac6cacaaI5aGaaGin aiabeU7aSbGcbaqcLbsacqaHYoGyciGGJbGaai4BaiaacohacqaH4o qCaaaaaa@44EF@ (2)

Where β full width half maximum of XRD pattern. The value of grain size varies from 9nm to 12nm for the different compositions. No. of unit cells for the ITO nano-particles was calculated by

n= 4 3 π ( D 2 ) 3 1 V MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVu0Je9sqqrpepC0xbbL8F4rqqrFfpeea0xe9Lq=Jc9 vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=x fr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaqcLbsacaWGUb Gaeyypa0tcfa4aaSaaaOqaaKqzGeGaaGinaaGcbaqcLbsacaaIZaaa aiabec8aWLqbaoaabmaakeaajuaGdaWcaaGcbaqcLbsacaWGebaake aajugibiaaikdaaaaakiaawIcacaGLPaaalmaaCaaabeqaaKqzadGa aG4maaaajuaGdaWcaaGcbaqcLbsacaaIXaaakeaajugibiaadAfaaa aaaa@4884@ (3)

where V is the volume of the cubic structure of ITO

V=a3 Aº and (4)

Lattice parameter a= d h 2 + k 2 + l 2 MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVu0Je9sqqrpepC0xbbL8F4rqqrFfpeea0xe9Lq=Jc9 vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=x fr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaqcLbsacaWGKb qcfa4aaOaaaOqaaKqzGeGaamiAaSWaaWbaaeqabaqcLbmacaaIYaaa aKqzGeGaey4kaSIaam4AaSWaaWbaaeqabaqcLbmacaaIYaaaaKqzGe Gaey4kaSIaamiBaKqbaoaaCaaaleqabaqcLbmacaaIYaaaaaWcbeaa aaa@4533@ (5)

No. of unit cells decrease when Indium composition decreases Figure 9a & Figure 9b.

Figure 9a & Figure 9b TEM and SAED micrograph for 95:05 ITO nanopowder.

Studies of such structures are of interest because sharp tips are useful for efficient field emission10 having potential applications in displays. The presence of SnO2 in In2O3 compound is indexed on the basis of JCPDS Card No-89 – 4596. For all proportion it is clear from the XRD spectra that the entire powder specimen are cubic structure and highly oriented along (222) plane. Presence of other orientations (400), (440), (622) and (134) have also been detected. The lattice parameters calculated from the most prominent peaks are found to be in agreement with JCPDS values listed in Table 1 & Table 2. Explained the results of Percentage of Phase formation = IITO/ IITO + IIO + ITO

IITO = Maximum intensity of ITO peak

IIO = Maximum Intensity of Io peak

ITO = Maximum Intensity of To peak

X ray Peak heights of ITO powder with random grain orientations.17


Size (nm)

parameter (a)

Volume (m3)

cells (m)

Surface area
from eqn1 Sq/m



























Table 1 Structural properties of ITO nanopowder























































Table 2 Peak intensity and prominent peak positions of ITO nanopowder

Figure shows the variation of the relative change in resistance of sensors S=( ( R vac R gas ) R gas ) MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVu0Je9sqqrpepC0xbbL8F4rqqrFfpeea0xe9Lq=Jc9 vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=x fr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaqcLbsacaWGtb Gaeyypa0tcfa4aaeWaaOqaaKqbaoaalaaakeaajuaGdaqadaGcbaqc LbsacaWGsbWcdaWgaaqaaKqzadGaamODaiaadggacaWGJbaaleqaaK qzGeGaeyOeI0IaamOuaKqbaoaaBaaaleaajugWaiaadEgacaWGHbGa am4CaaWcbeaaaOGaayjkaiaawMcaaaqaaKqzGeGaamOuaKqbaoaaBa aaleaajugWaiaadEgacaWGHbGaam4CaaWcbeaaaaaakiaawIcacaGL Paaaaaa@5028@ with operating temperature in the range 100˚C-250˚C. The sensitivities increase with the operating temperature (heater temperature) Top, up to 200˚C, but decreases after 200˚C and it is found to be maximum at 200˚C irrespective of the methanol concentration used. This temperature sensitive phenomenon is attributed to overcome the dynamic energy of activation and reaches the maximum value of sensitivity which satisfies the sensitizing and detection equation18 given below. For sensing reaction, gas to be detected is adsorbed with contact on the surface of the ITO film to form the Schottky contact and the electrical resistance of the sensor is changed as per the following reaction,

O 2 ( gas )+2 e  2 O +Δ H 1 MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqk0=Mr0xXdbba91rFfpec8Eeeu0xXdbba9frFj0=OqFf ea0dXdd9vqaq=JfrVkFHe9pgea0dXdar=Jb9hs0dXdbPYxe9vr0=vr 0=vqpWqaaeaabaGaciaacaqabeaadaqaaqaaaOqaaKqzGeaeaaaaaa aaa8qacaWGpbGcpaWaaSbaaSqaaKqzadWdbiaaikdaaSWdaeqaaOWa aeWaaeaajugib8qacaWGNbGaamyyaiaadohaaOWdaiaawIcacaGLPa aajugib8qacqGHRaWkcaaIYaGaamyzaOWdamaaCaaaleqabaqcLbma peGaeyOeI0caaKqzGeGaaiiOaiabgkziUkaaikdacaWGpbqcfa4dam aaCaaaleqabaqcLbmapeGaeyOeI0caaKqzGeGaey4kaSIaeyOKH4Qa euiLdqKaamisaOWdamaaBaaaleaajugWa8qacaaIXaaal8aabeaaaa a@55C5@

Then during the detection reaction, participation of oxygen which can be in molecular (O2-) or in atomic (O-) form takes place to reduce the resistance of the film and the corresponding reaction is

C H 3 OH(gas)+ O +Δ H 2 e +HCHO(gas)+ H 2 O+Δ H 3 MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVu0Je9sqqrpepC0xbbL8F4rqqrFfpeea0xe9Lq=Jc9 vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=x fr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaqcLbsacaWGdb GaamisaSWaaSbaaeaajugWaiaaiodaaSqabaqcLbsacaWGpbGaamis aiaacIcacaWGNbGaamyyaiaadohacaGGPaGaey4kaSIaam4taSWaaW baaeqabaqcLbmacqGHsislaaqcLbsacqGHRaWkcqqHuoarcaWGibWc daWgaaqaaKqzadGaaGOmaaWcbeaajugibiabgkziUkaadwgalmaaCa aabeqaaKqzadGaeyOeI0caaKqzGeGaey4kaSIaamisaiaadoeacaWG ibGaam4taiaacIcacaWGNbGaamyyaiaadohacaGGPaGaey4kaSIaam isaSWaaSbaaeaajugWaiaaikdaaSqabaqcLbsacaWGpbGaey4kaSIa euiLdqKaamisaSWaaSbaaeaajugWaiaaiodaaSqabaaaaa@6334@

On combining these two reactions,

O 2 (gas)+2C H 3 OH(gas)2HCHO(gas)+2 H 2 O+Δ H 4 MathType@MTEF@5@5@+= feaagKart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLn hiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr 4rNCHbGeaGqiVu0Je9sqqrpepC0xbbL8F4rqqrFfpeea0xe9Lq=Jc9 vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=x fr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaqcLbsacaWGpb qcfa4aaSbaaSqaaKqzadGaaGOmaaWcbeaajugibiaacIcacaWGNbGa amyyaiaadohacaGGPaGaey4kaSIaaGOmaiaadoeacaWGibqcfa4aaS baaSqaaKqzadGaaG4maaWcbeaajugibiaad+eacaWGibGaaiikaiaa dEgacaWGHbGaam4CaiaacMcacqGHsgIRcaaIYaGaamisaiaadoeaca WGibGaam4taiaacIcacaWGNbGaamyyaiaadohacaGGPaGaey4kaSIa aGOmaiaadIealmaaBaaabaqcLbmacaaIYaaaleqaaKqzGeGaam4tai abgUcaRiabfs5aejaadIealmaaBaaabaqcLbmacaaI0aaaleqaaaaa @6019@

The liberated water condenses on the sensing element, which saturates the surface and affects the sensitivity. Hence, for lower temperature operation, the surface of the sensor does not get completely desorbed, which causes only smaller change in resistance. As the temperature of the sensing element increases, hydroxyl group is desorbed and decrease in resistance is observed which in turn increases the sensitivity.19 At high temperatures, the depletion region created by the chemisorption of oxygen on the surface extends more deeply providing larger scope to more number of gaseous elements to be adsorbed thereby giving a better response. One more possibility of the partial incorporation of Sn+ ions in In3+ sites changes the carrier concentration and the work function on the surface. This allows more gaseous elements of methanol on the surface, leading to an improvement in the output response and the selectivity.20

Response of the sensor versus methanol concentration

Figure shows the variation in the sensitivity of the indium tin oxide sensor (90:10) proportion in the presence of methanol vapor of various concentrations. The concentration is varied from 200ppm to 1000ppm. As seen, with an increase in the methanol concentration, the sensitivity of the sensor varies in a linear manner and attains maximum at 1000ppm. The response seems to be quite linear for the methanol concentration variation in the range from 200ppm to 600ppm. The sensitivity saturates in higher concentrations (>600ppm), because the number of active surface states at the film surface is limited. The measured sensitivity at 200°C is estimated to be around 8 for 200ppm of methanol gas where as it increases to 23 for 1000ppm. At lower concentrations, the gas sensitivity increases steeply with increase of the gas concentration from 200 to 600 ppm, obeying the standard law of metal oxide semiconductor devices.21

Rgas = Rair (1+K[CH3OH])-m

where, [CH3OH] is the concentration of methanol in ppm, ‘K’ is the sensitivity co-efficient of CH3OH vapor and ‘m’ is the power law exponent. At higher concentration of methanol, the increase in the gas sensitivity values becomes more gradual.22–24 The mechanism of sensitivity increase may be explained as follows. With a fixed surface area for each sample, a lower gas concentration implies a lower coverage of gas molecule on the surface and hence lower surface reaction occurred. An increase in the gas concentration tries to raise the surface reaction due to large surface coverage. Further increase in the quantity of surface reactions will be gradual and slow when the saturation point on the coverage of molecules at the fixed surface area is reached. This leads to saturation levels at which the upper limit of detection can be determined.

This observed linearity of sensitivity in the lower concentration range of methanol is suited for the use of these ITO films prepared in this work in checking the concentration of methanol. These ITO films may be used in the fabrication of sensitive methanol gas sensors (Figure 10a & Figure 10b).

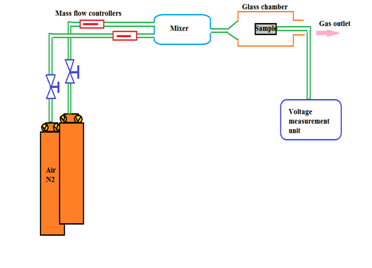

Figure 10a & Figure 10b Experimental set up of gas sensor at 95:05 ITO NPs the pellet thickness may be in o.5 micro meter 5 mm diameter and contacted with aluminium dots or gold foils.

Sensor response and recovery times

The response and recovery times are important parameters based on which sensors for desired applications can be fabricated. The response time is defined as the time required for the sensitivity to reach 90% of the equilibrium value after the test gas in injected. The recovery time is the time necessary for the sensor to attain a sensitivity of 10% above the original value in air. The transient response curve of the ITO sensors are shown in Figure 11. The variation of the sensitivity was measured at an operating temperature of 200˚C and methanol concentration of 1000ppm. Upon injection of methanol vapor, the sensitivity of ITO sensor reaches saturation in about 10 minutes.24 When dry air was introduced, the sensitivity reached to the initial value. This fact proves the reversibility of the sensing process.

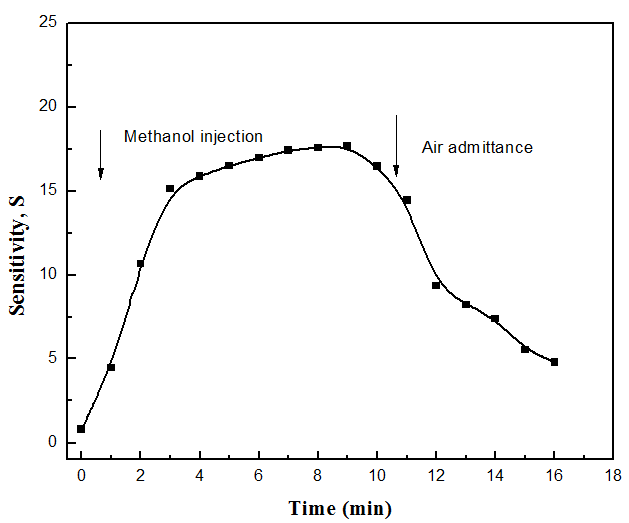

Figure 11 Transient response curve of the ITO methanol sensors for 95:05 proportions of ITO NPs.


The ITO (90:10) NPs were mounted by using two electrodes of Pt and rGO from ceramic target have been found to be sensitive to methanol vapor of varying concentrations. The characteristics of the ITO gas sensors were studied in an airtight chamber and are summarized as below. The relationship between sensitivity and concentration is found to be linear in the methanol concentration range from 200 to 600ppm. It reaches saturation in higher concentrations (>600ppm) and attains maximum at 1000ppm. The sensitivity increases with the operating temperature Top, up to 200˚C, but decreases after 200˚C and found to be maximum at 200˚C irrespective of the methanol concentration used. The sensor shows moderate response and recovery time (in minutes) (Figure 12 & Figure 13).

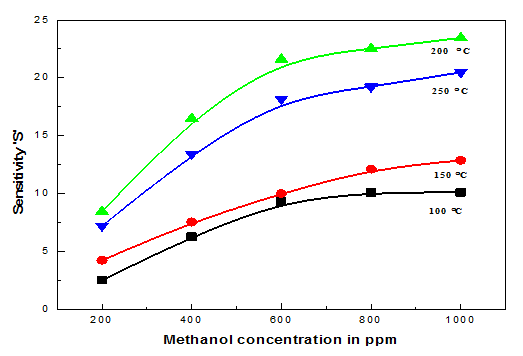

Figure 12 Variation of methanol concentration and sensitivity for the different substrate temperature of 95:05 ITO NPs.

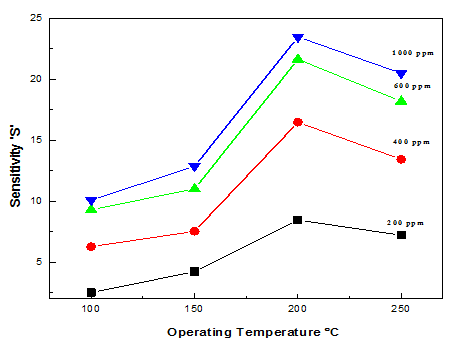

Figure 13 Variation of operating temperature and sensitivity of ITO 95:05 NPS at different ppm.
