Late Quaternary low latitude tropical pollen study often pose difficulties during microscopic identifications due to their high diversification and complex nature. This compendium is an illustrated guide to the identification of sporomorphs (pollen and spores) and non-pollen palynomorphs (NPPs) preserved and recovered from 3 gravity cores (GCs) in deltaic-sedimentary records of the Niger Delta, West Africa. The precise and reliable identification of palynomorphs and non-pollen palynomorphs (NPPs) is indispensable to permit comprehensive deduction to be made regarding past environmental change, phytoecological and biogeographical distributions of fossil pollen and NPPs. Identifications of key taxa in this study were best achieved through the direct inspection of reference materials mostly from Africa, and to some extent around the globe. Outlines of the technique(s) used to describe the taxa identified in this study were based on recording of the key species by observing: the morphological descriptions, wall composition, size, grain pores and sculptures through identification of microphotography components. The generic groups of taxa identified were linked to their distinct phylogeny such as angiosperm / gymnosperm pollen, pteridophyte/bryophyte spores and non-pollen palynomorphs (NPPs) from West Africa. The generic identification of grouping provides new insight on the basic distinction surrounding the vegetation habitat, pollen, spores and NPPs types. Thus, the current update would serve as the refinement to the previous study in the region based on the compiled taxa descriptions, photomontage (images) of sporomorphs and NPPs. This information could rejuvenate some of the misnomers on taxonomy, phytoecology, botanical family affinity, and geographical origin of sporomorph and NPPs across the West Africa, and around the globe through time.

Keywords: late quaternary, taxonomy; phytoecology, biogeography, angiosperm pollen, pteridophyte spores, Niger delta

Due to the high diversification and complex nature of low latitude tropical pollen research in palynology and palaeobotany, most researchers are often faced with difficulties in taxonomic identification and grouping of species into their family affinity. This identification and grouping are necessary in order to reflect the vegetational and ecological dynamics rather than assuming a species entity based on their morphology alone. This study present a hamonised taxonimic and photomontage update of sphoromorphs and non-pollen palynomorphs (NPPs) in relation to their phytoecology, biogeography and family/botanical affinities from the Niger Delta (Map 1). The monotonous taxonomy, phytoecology, biogeography and family/botanical affinities complexities of species has been existing since its commencement.¹ This practice is through evaluation and comparison of morphological description and identification of sporomorphs (pollen and spores) and NPPs with modern material. Later, several compendia for pollen, spores and NPP identification have been documented from different region worldwide.^2–6 The reliability of the information provided by palaeobotanists and palynologists to the study of palynomorph and NPPs is dependent on accurate visualisation or, where possible, identification and confirmation of the strewn mount assessed from the processed slides.

Given the tedious taxonomic nature associated to low latitude tropical palynomorphs and non palymorphs, few reputable substantial atlases for African pollen, spores and NPPs identification were produced over the years.^7–20

Here, this study produces a compendium of taxonomic and photomicrographsupdate with the combinination of phytoecology, biogeography and family/botanical affinities of palynomorph and NPPs from the Niger Delta. The aim is to avoid any potential wrong assignment of identified pollen to inappropriate ecology or vegetational group. For instance, this study is about the first in West Africa to separate Pteridophytes Trilete and Pteridophytes-Monolete Spores, in addition to the previous studies in the region.^14,21 In essence the pollen, spores and NPPs were first identified, described in line with correct morphological parameters to allow assignment with correct family or botanical affinity.^20,22 Before linking their description to their phytoecology and biogeography through time. Thus, in alignment with the International Palynological Congress²³ and others updates, this study adopted both the morphological and botanical (family) identification to make a concise clarification that different taxa in the same family may occur in more than one vegetation group/sub-group.^4,22,24 Sporomorphs grouped into family/botanical affinity would reduce the potential ambiguity arising from the industrial and academic understanding of different species concepts and origins due to their extensive diversity and complexity as stated above. Finally, the statistical computation of the vegetation, climate and environmental dynamics aspects of this study are already published.²⁴

The identification of palynomorph and NPPs nomenclatures /phyecological analyses undertaken in this study are based primarily on the previous.^25–30 The identification of taxa is by the examination of the grains, shape, size, wall structure, arrangement of the pores and colpi (morphological characteristics).^20,28 These were achieved by routine description of most key taxa identified. Most importantly, this study considered the grouping of each species identified under their phytoecology, family/botanical affinity and biogeographical distribution as a guide for interpretation of the palynomorphs records for future studies.²⁴ Generally, the generic nomenclature for the foraminifera test lining, fungal spores and palynodebris (NPPs) follows.^31,32 No detailed description was made of their identification, whereby such identification has been achieved using technical expertise of known specialists, and comparative data through photographs. The plate galleries of the identified pollen, spore and NPPs morphology are organised to allow ease reference and comparison of the species photos description of all pollen and spores (Plates 1–5). In addition, an annotated table with references and species names was provided as well. Given key introduction, the sections below describes the various palynomorphs (e.g., angiosperm, gymnosperm, bryospores and NPPs see Plates 1–5) identified from the gravity cores based on their morphological characteristics. Three groups of palynomorph descriptions and identifications were compiled according to the microphotography from the slides. These includes: pollen, spores and NPPs.

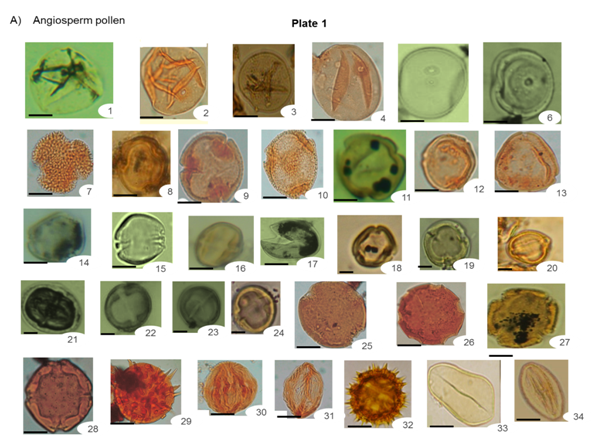

Plate 1 (A) Angiosprem pollen.

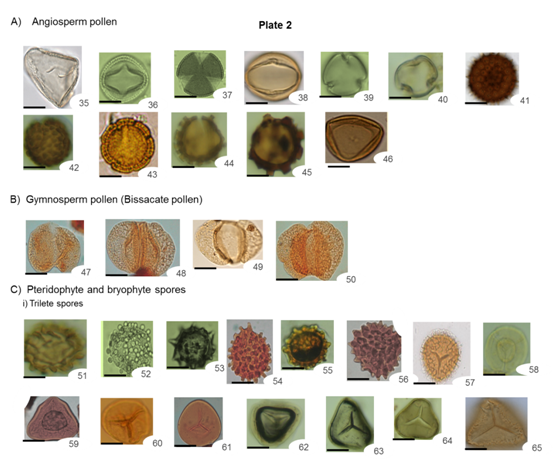

Plate 2 (A) Angiosprem pollen, (B) Gymnosperm Pollen, (C) Pteriodophyte and bryophyte spores.

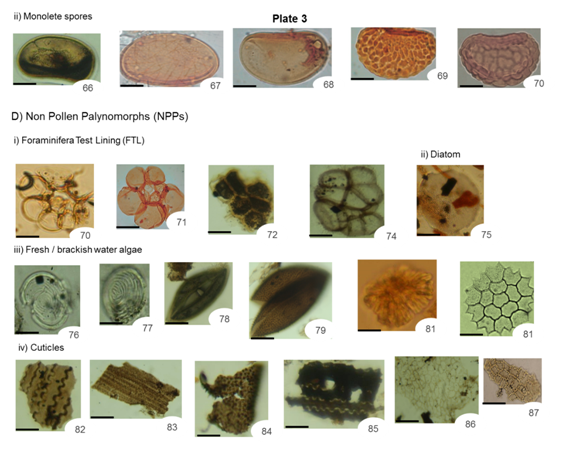

Plate 3 (D) Non pollen Palynomorphs.

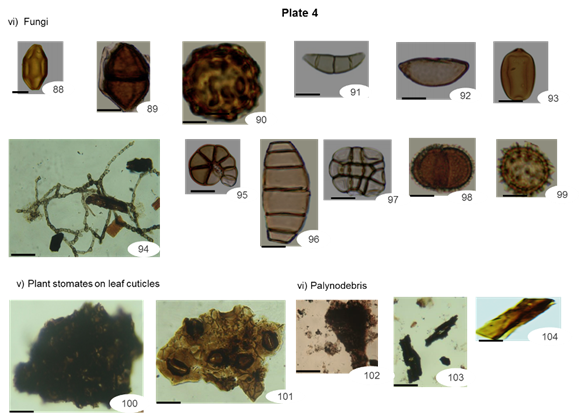

Plate 4 Fungi, Plant stomates on leaf cuticles.

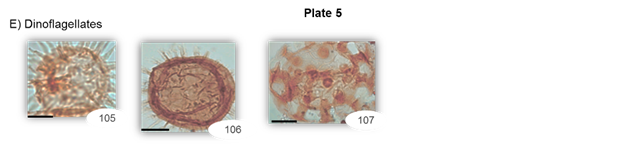

Plate 5 Dinoflagellates.

Angiosperm pollen

Family/botanical affinity: Poaceae Plate 1, Figures 1–6.

Description and remarks: Monoporate pollen grains are often referred to as pore pollen. This is because the most pronounced descriptive feature is the pore. The pore is rounded with the distinct granulate annulus (5µm). The exine is smooth and circular in shape which in size ranges between 20 and 25µm in most cases. These are ubiquitous pollen that evolved throughout the Quaternary in Africa belongs to the family Poaceae (Gramineae). In addition, it has a uniform morphology and possesses one distinct annulate pore.^11,34

Morphogenic affinity: Graminidites annulatus (Monoporites annulatus), Phytoecology: Savannah grassland

Tricolporate pollen types

Family/Botanical Affinity: Tabermaemontana / Apocynaceae; Plate 1, (Figures 8&9).

Description and remarks: The outline in polar view is rounded triangular with endexine 2µm thick. The tectum psilate is finely perforate, about 1.5µm thick with the colpus 25 to 30µm long (tapering very sharp towards the costate of about 4.5µm). The biogeographical references show that they are ubiquitous pollen within the Quaternary time frame, and mostly common in Nigeria, Cameroon and Venezuela regions.^11,24,36

Morphogenic affinity: Psilatricolporites crassus, Phytoecology: Mangrove swamp vegetation.

Family/Botanical Affinity: Euphorbiaceae/Alchornea; Plate 1, Figure 15.

Description and remarks:This type is similar to Psilatricolporites crassus except that it has a distinct operculum of about 2-2.5µm. The entire size is elongated at the equator, and with a finely perforated exine of Alchornea cordifolia ~2.5µm thick. This range in size between25 to 30µm. The species occurs throughout the Cenozoic to Quaternary.

Morphogenic affinity: Psilatricolporites operculatus, Phytoecology: Lowland rainforest

Family/Botanical Affinity: Euphorbiaceae/Amanoa; Plate 1, Figure 7.

Description and remarks: The species is a tricolporate pollen in a circular polar view with psilate sculpture. The colpus is 2µm thick and pointing towards the end of the costae. However, the endexine is less than 1µm and bacules are about 1.5µm thick, supporting single rows of curvimurate reticulum. The lumina is quite irregular in shape and are up to 6µm in length. The size of Amanoa oblongifolia is between 32 to 33µm in the GCs samples. In general, the taxon evolved through the Eocene to Recent in Nigeria and Venezuela.^11,24,36

Morphogenic affinity: Retitricolpites irregularis, Phytoecology: Lowland rainforest.

Family/Botanical Affinity: Euphorbiaceae?; Plate 1, Figures 11,13&14.

Description and remarks: The exine is thicker than 2.3µm as observed from other Euphorbiaceae mentioned above. The size is between 25-30µm with the shape is oval to broad-ellipsoidal or prolate. Most of the Euphorbiacea family common in Nigeria range from the mid-Cenozoic to Quaternary.³⁷

Morphogenic affinity: Momipites africanus, Phytoecology: Lowland rain forest

Family/botanical Affinity: Cannabaceae/Celtis; Plate 1, Figure 12.

Description and remarks: The exine is thicker, about 2.4µm with size ranging between 23-32µm. The shape is slightly oval to broad – ellipsoidal as common in the species from Nigeria which evolved in the mid-Cenozoic onwards.^24,37

Morphogenic affinity: Triporites? Phytoecology: Lowland rain forest/Open forest

Family/Botanical Affinity: Rhizophoraceae/Rhizophora; Plate 1, Figures 18–24.

Description and remarks: The pollen grain has a circular to rounded triangular shape in polar view. The sculpture is punctate to micro-reticulate with the dimension of the pollen is 1.7-2.0µm. The tiny perforation (hole) observed is less than 0.5µm in width and the exine is less than 2.0µm thick for most specimen. The specimens display a variety textures ranging from size and texture (coarseness) of the subtypes identified. These were grouped as Rhizophora because the similar taxonomy make it easy to use their gross morphology to define the palaeoecology and palaeoenvironmental change. Among species identified are Rhizophora racemosa, Rhizophora mucronata and Rhizophora mangle. The few Rhizophora identified evolved through the Cenozoic onward in Nigeria, Venezuela, Cameroon and Borneo.^{11,25,36–40}

Morphogenic affinity: Zonocostites ramonae, Phytoecology: Mangrove swamp vegetation.

Some types of tricolporate pollen that were not identified in this study are due to lack of morphological clarity on the observed pollen. The following are some pollen types:

Morphological Affinity: ?Tricolporate sp. : Plate 1, Figure 34.

Family/Botanical Affinity: Asteraceae/Vernonia-type; fenestrate; Plate 1, Figure 32.

Morphological Affinity: Tricolporate sp.

Family/Botanical Affinity: Asteraceae/Tubliflorae; Plate 2, Figure 56.

Morphological Affinity: Tricolporate echinate

Family/Botanical Affinity: Avicenniaceae/Avicennia; Plate 1, Figures 36&37.

Description and remarks: The pollen grains are monads of medium size ranging from oblate spheroidal to subprolate, isopolar, circular amb; 3-colporoidate (more common), and 3-colporate to 3-colpate. The sizes for the observed specimens range between 31 to 33µm. The dimension is 2µm wide with ectoaperture and elongate endoaperture, narrow in the first and wide in the second type. The exine is heterobrochate with interrupted muri, and thick in the mesocolpium. This specimen has been observed to evolve from the Eocene to Recent in some parts of Nigeria, Borneo, Indonesia, and Venezuela.^11,24,36

Morphogenic affinity: Avicennia spp., Phytoeoecology: Mangrove swamp

Family/Botanical Affinity: Fabaceae/Chamaecrista; Plate 1, Figures 38–40.

Description and remarks: The pollen grains are of small size between 5 to 10µm. Other pollen grains attribute are isopolar features, radial symmetry, subprolate shape, amb subcircular slightly sinu-aperturate, 3-colporate, longiaperturate, colpi with pointed apices, psilate margo- with central constriction, and slightly thicker sexine than the nexine. Studies shows that this is well-known to evolve during Eocene to Recent in some parts of Nigeria, Cameroun, Benin Republic, Brazilian Amazon.^24,41

Morphogenic affinity: Chamaecrista spp., Phytoecology: Mangrove swamp vegetation

Tricolpate pollen types

Family/Botanical Affinity: Caesalpiniodeae/Anthonotha, Berlinia-type; Plate 1, Figures 30&31.

Description and remarks: These are tricolpate pollen with a prolate shape. The proximal view is striated with one to several rows of bacules and lirae. The exine is finely striated and overall size is between 30 to 36µm on the equatorial view. This has been noted to evolve during the Eocene to Recent in some parts of Nigeria, Borneo and Cameroon.^11,24,37

Morphogenic affinity: Striatocolpites spp., Phytoeoecology: Lowland rainforest

Stephancolpate pollen types

Family/Botanical affinity: Rubiaceae/Spermacoce (Borreria sp.) Plate 2, Figures 43–45.

Description and remarks: These are polycolpate pollen grain with a circular polar view. Exine of numerous tectate-baculae are distinctly stratified and sculptured. Grains observed range in size between 38 to 41µm for the identified species. The exine is about 4-5µm in thickness and stout baculae are 3-5µm long and 0.7µm thick. It evolved through the late Miocene to Recent sediment in some parts of Nigeria and Cameroon.^24,42–44
Morphogenic affinity: Stephanocolpites sp., Phytoeoecology: Lowland rain forest

Polyporate pollen types

Family/Botanical Affinity: Clusiaceae/Symphonis globulifera, Plate 1, Figures 26–28.

Description and remarks: It consists of tetrapororoidate to tetrapororate pollen grain with four to six apertures in most cases. Their sizes (diameter) are 42-44µm with the ecto-enxinous pore between 6-7.5µm in length/thickness. The endexious pore are characteristically demarcated for most taxa identified. The exine is finely vermiculate to punctate with a smooth and comparatively thin tectum for tetraporate pollen identified. The endexine is very thick and perforated at the apertures for all forms identified in this study. It mostly evolves through Eocene to Recent in Nigeria, Cameroon, Venezuela.^{11,12,24,25,36,42}

Morphogenic affinity: Pachydermites diederixi, Phytoeoecology: Fresh water swamp/Lowland rain forest

Family/Botanical Affinity: Malvaceae/Hibiscus, Plate 1, Figure 29.

Description and remarks: This morphotype is a polyporate pollen grain with oval or circular outline. The size is 30-45µm with spines between 5-6µm long and pores between3-4µm wide. The coarseness of the wall structure and spines varies depending on the species. This type of species evolved through the Eocene to Recent in Nigeria and Cameroon.^11,42,36,45

Morphogenic affinity: Echiperiporites estelae., Phytoeoecology: Open forest

Family/Botanical Affinity: cf. Ipomoea/Convolulaceae, Plate 2, Figure 41.

This polyporate pollen was not described due to unavoidable ubiquity observed during identification.

Phytoeoecology: Mangrove swamp

Family/Botanical Affinity: Palmae/Arecaceae, Plate 1, Figure 33.

Description and remarks: There is not much literature to cover for this morpho-type, as suggested.⁴⁴ Most of the information reviewed are documented in “grey literature”. This is because of the proprietary issues associated with acquiring company data. However, an attempt to the look at the colpi relationships along with other descriptions has been taken into consideration. The generic size of Arecaceae is 58 to 60µm with a mono colpi which is 15-20µm long. The morpho-group is known to have evolved during the Eocene to Recent in Nigeria and Cameroon.^44,46,24

Morphogenic affinity: Psilamonocolpites sp., Phytoeoecology: Palmae, fresh water swamp/riverine. Table 1 & Plate 1.

Gymnosperm pollen

Family/Botanical Affinity: Podocarpaceae/ Podocarpus, Plate 2, Figures 47–50.

Description and remarks: They are bisaccate pollen with the sacci firmly attached to the body. This is usually rounded with different sacci sizes. They are bisaccate pollen with the saccates wide open in most species. The exines are thin and finely granulated. Their sacci are coarsely grained with size ranging between 25 to 30µm. The sacci are between 10 to 15µm for the types identified. They evolve through mid-Miocene to Recent in Burundi, Cameroun, Nigeria, and Southern Hemisphere.^11,36,44

Morphogenic affinity: Podocarpus clarus, Podocarpus sp., Phytoeoecology: Afromontane vegetation.

Nonangiosperm and gymnosperm groupsare described below

Family/Botanical Affinity: Nymphaceae/Nymphaea type lotus, Plate 1, Figure 46.

Description and remarks: It is a zonosulcate pollen characterised by a circular to elliptical outline. The size of the pollen ranges from 38 to 53µm. The sulcus is conspicuously broad and covers most of the pollen grain. Nymphaceae has a partly smooth and psilate exine. Nymphaceae evolves through the late Miocene to recent sediments in most West African settings and Europe.⁴⁷

Morphogenic affinity: Psilamonoporites sp., Phytoeoecology: Fresh water swamp

Family/Botanical Affinity: Cyperaceae, Plate 1, Figure 35.

Description and remarks: It is an elongated angiosperm pollen grain with granulate apertures. The size is about 19 to 22µm. The overall morphology flattens as spheroidal, narrowing towards the dorsal view. It is recorded through the Miocene to recent sediments in Nigeria and Ghana.^20,24,48

Morphogenic affinity: Cyperus sp., Phytoeoecology: Fresh water swamp

Family/Botanical Affinity: Arecaceae/ Borassus type; Plate 2, Figure 52, Table 2.

Spores

This group comprises of fern spores such as Lycopodium sp., Polypodiaceoisporites sp., Acrostichum sp., Corrusporis sp. All spores belonging to these group were separated in this study into the following types - alete, monolete and trilete spores.

Pteridophytes-monolete spores

Family/Botanical Affinity: Pteridophyta; Plate 3, Figures 66–68.

Description and remarks: These are monolete spores with size ranging from 15 to 25µm in length/diameter. These spores are similar in shape to kidney beans. The monolete mark ranges in length from 6 to 8µm for the species identified. The length of Polypodiaceae spores ranges from 45 to 64µm for most species observed. It evolved through Eocene to recent sediments. It has been documented to have been found in Indonesia, Nigeria, East Europe, East China Sea and Colombia.^24,37,49,50

Morphogenic affinity: Laevigatosporites spp., Phytoeoecology: Lowland rain forest/open forest.

Family/Botanical Affinity: Polypodiaceae, Plate 3, Figures 69&70.

Description and remarks: These are monolete spores with elliptical shape outline in polar view. It is of similar shape to the laevigate spores described above in equatorial view. It has a verrucate exine sculpture with size ranging from 35 to 48µm for the species identified. The exine sculpture is coarsely and closely spaced (diameter 2.5µm). The current taxonomic nomenclature documents that this species should be renamed as Polypodiaceoisporites sp. However, some other authors still refer to it as Verrucatosporites usmensis. It is a ubiquitous pollen that evolved through the Eocene to Recent in Nigeria, Western Europe (Germany) and Borneo.^11,24,42,52

Morphogenic affinity: Polypodiaceoisporites sp. (aka Verrucatosporites usmensis)., Phytoeoecology: Lowland rain forest/Open forest

Pteridophytes -trilete spores

Family/Botanical Affinity: Pteridophyta/fern spores? Plate 2, Figures 58&59.

Description and remarks: These are trilete spores similar to Polypodiaceosporites sp. It has a thicker exine width size which ranges from 34 to 35µm. It has smooth exine about 1.6µm thick. It is very common in Germany during the Pliocene.^50,53 They are known to occur between the Eocene and Recent in Nigeria.^14,24

Morphogenic affinity: Undulatisporites sp., Phytoeoecology: Lowland rain forest/Open forest

Family/Botanical Affinity: Pteridaceae/Acrostichum; Plate 2, Figure 65.

Description and remarks: A trilete spore with distinct spherical or ellipsoidal shape in some specimens. The exine is irregular fairly covered verrucate features. The size of Polypodiaceae spores ranges from 62 to 67µm in most of the specimens measured. The length of the trilete mark is 3µm for either side. It evolved throughout the Miocene to Recent in very few African countries like Cameroun, Congo and some North African countries.^54,55 This species is recorded in modern and ancient sediments in NW Borneo. It lives behind the brackish water mangrove vegetation, where fresh water collects in the middle of mangrove islands, with slightly raised elevations, and above high water mean level (Osterloff, pers. comm.).

Phytoeoecology: Mangrove swamp vegetation, Morphogenic affinity: Acrostichumsporites sp.

Family/Botanical Affinity: Polypodiaceae, Plate 2, Figures 62–64.

Description and remarks: They are sub-circular to triangular shaped in distal and proximal view. The size of Polypodiaceae ranges from 30 to 32µm. The trilete mark is 4µm when critically viewed. The exine is about 1.6µm in thickness/length. Evolved throughout the Early Miocene to Recent in Germany, in a few African countries like Cameroon, Congo and some North African countries (e.g. Tunisia, Morocco).^24,50,52,56

Morphogenic affinity: Polypodiaceoisporites sp., Phytoeoecology: Lowland rainforest

Family/Botanical Affinity: Lycopodiaceae, Plate 2, Figure 57.

Description and remarks: This is a trilete spore with a triangular outline view. The side of the trilete spore is slightly concave in polar view. The exine is smooth and heaving-like in the overall thickness. The size of the equatorial diameter ranges between 25 to 26µm. The trilete or laesurae arms are almost bifurcating at the radius of entire dimension. It evolves through the Late Oligocene to Recent sediment in some parts of Nigeria, Benin and Cameroon.^24,42,57

Morphogenic affinity: Lycopodium sp., Phytoeoecology: Lowland rain forest.

Bryophyte spores

Family/Botanical Affinity: Bryophyta; Plate 2, Figure 60.

Description and remarks: It is usually triangular to sub-triangular in polar view. The laesurae arms are 5µm long and nearly tamper at the equator. The margin of the laesurae arms is slightly thickened, but less than 1µm. The size of the laesurae is between 25 to 35µm. Most of the species viewed have a psilate exine of about 2µm. It mostly evolves throughout the Oligocene to Recent in some parts of Europe, Nigeria, North West Poland and Cameroon.^24,44,53

Morphogenic affinity: Stereisporites sp., Phytoeoecology: Lowland rain forest/ Open forest, Plate 3 & Table 3.

Non-pollen palynomorphs (NPPs)

These are microfossils other than pollen and spores from plants. They include micropscopic remains of algae, cyanobacteria, fungi, palynodebris, phytoplankton (dinoflatgelletes), etc. There are no detailed descriptions on the identified specimens in this study as detailed identifications has been done in recent studies.¹⁴ Below are some of the groups identified :

Dinoflagellate cysts

Polysphaeridium sp. Plate 5, Figure 105.

It evolves through the Paleogene in Colombia and Miocene to Recent in West Africa.^58,59 The observed size ranges between 34.1 to 47µm.

Lingulodinium sp. Plate 5, Figure 106.

The biogeographical references indicate that it evolves through Oligocene to Pleistocene sediments as described by many authors in different parts of the world.⁶⁰ Most of the species identified ranges between 61.4 to 65µm in size.

Tuberculodinium vancampoae, Plate 5, Figure 107.

This is a typical neritic species which evolves through the Pliocene to Recent sediment.⁶⁰ The size identified in this study is about 96µm depending on the view.

Foraminiferal Test Linings (FTLs)⁶¹

The microforaminiferal lining consist of the inner organic layer that lies between the cytoplasm and the internal surface of the test of several foraminifera such as calcareous and agglutinated.⁶¹ In this study, few were identified from the samples (Plate 3, Figures 70–75).

Algae

These are unicellular or multicellular organisms formerly classified as plants, occurring in fresh or salt water or moist ground, that have chlorophyll and other pigments but lack true stems, roots, and leaves. Below are some of the identified types without being described due to limited information: i. Botryococcus spp.; Plate 3, Figures 80&81, ii. Pseudoschizaea ozeanica; Plate 3, Figures 76&77, iii. Oviodites parvus; Plate 3, Figures 78&79, iv. Pediastrum spp.; Plate 3, Figure 81.

Fungi

These consist of diverse groups of eukaryotic single-celled or multinucleate organisms that live by decomposing and absorbing the organic material in which they grow. The species identified in this study are: i. Diporotheca sp., ii. Acroconidiellina sp., iii. Ascodesmis sp. iv. Hypha, Inapertisporites sp. v. Dyadosporites sp., (Plate 4, Figures 88–99).

Palynodebris elements

Palynodebris consist of structured and structureless elements viewed from the glass slide outside the actual pollen and spores components during sporomorphs identifications. They consist of degraded organic matter, cuticles and wood fragments. For examples: i. Cuticles/plant cell, ii. Amorphous organic matter, iii. Translucent phytoclasts, iv. Opaque phytoclasts (Plates 3,4, Figure 82–87&100–104), (Plates 4&5, Tables 4&5).

A high number of palynomorph components, including pteridophyte/bryophyte spores, gymnosperm pollen, angiosperm pollen, Foraminiferal Test Linings (FTLs), freshwater algae and fungal spores were recovered from the three studied gravity cores (GCs) (Map 1). Of the recovered components, literarily terrestrially derived forms (pollen and spores) constitute approximately 92% of the total palynomorph assemblages, whereas less than 2-3% are of marine origin (dinoflagellate cysts, FTLs). Freshwater algae, fungal spores and other types represent the remaining 6% of the total NPPs from the three GCs. On average, 25 families representing about 60-80 palynomorph species (excluding dinoflagellate cysts, unrecognised pollen and fungi) were identified (Plates 1–5). Plant tissue, such as cuticle, xylem-cell, stomata, insect-derived and palynodebris were also abundantly present (Plate 4). Similar family names exist as indicators of different ecosystem habitat groups but vary from species to species in each of the palaeo vegetation belts identified (e.g., Polypodiaceae and Euphorbiaceae belong to more than one ecosystem habitat group) (Plates 1–5). Given that the traditional taxonomic guide aided in the compilations of palynomorphs and non-pollen palynomorph in this study, sporomorphs identified provides an atlas of palynomorphs at the species, genus and family level. Thus, in addition to other studies from the African region, this study is presenting a refined update on palynomorphs, NPPs, their phytoecology, taxonomy and biogeography of species identified through time from the Niger Delta.

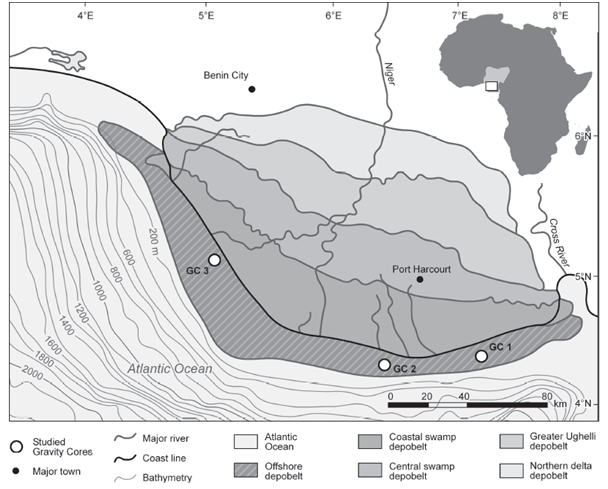

Map 1 Location of the Niger Delta and gravity cores positions (GCs).²⁴,²⁶

In addition, the discussions here also links the species and NPPs derived from the identified specimens to their phytoecology and niches. Phytoecology which relates to the nature of the fossil record relative to the original plant niche provides a robust insight on vegetation succession across the Niger Delta. Thus, the phytoecological groupings / indicators established in this study, shows the abundance of species controlled by several factors such as eustasy, climate, edaphic, restricted condition, productivity trend, salinity trend etc. Given the detail descriptions of palynomorph and NPPs identified in this study, a summary of the species phytoecological indicators and relevance niches are discussed below:

Mangrove and coastal swamp indicators

These groups of pollen/spores identified in this study are found in the narrow strip of vegetation immediately adjacent to the ocean. It consists of swampy land crossed by sandy ridges. The mangrove environment is noted for developing a rich source rock accumulation (e.g. Mahakam Delta, Eastern Kalimantan – various references). It has an abundance of organic materials which are proteinaceous and fatty. These groupings consist of pollen derivatives from mangrove swamps and tidal estuaries/creek sub-environments (Table 1). The generic environment is one of a salt tolerant intertidal marsh which has a characteristic vegetative type recognised to have covered approximately 75% of tropical coastlines. Rhizophora spp. is an important component of mangrove habitats in southern America,^62,63 in West Africa,^11,39 across Borneo / Indonesia,³⁹ Kenya, Oman and the eastern and northern sea-boards of Australia. Other mangrove pollen groups studied from the GCs include Apocynaceae, Euphorbiaceae, Avicenniaceae and Anacardiaceae (Plate 1).

Freshwater swamp and palmae indicators

Pollen and spores belonging to this group are associated with mixed fluvial alluvial plain and marine/tidally influenced coastal swamps, particularly in shallow water where the plants develop.⁶³ This study observed that most species identified could be found in estuaries. This forms a transition zone between river and oceanic (marine) environments and are subject to both marine influences, such as tides, waves, the influx of saline waters, and riverine influences, such as fresh water plumes and pervasive sediment input. The inflow of both seawater and freshwater provide high levels of nutrients in both the water column and sediment, making estuaries among the most productive natural habitats in the World. Some prominent pollen found in these groups belong to these families: Hypericaceae, Clusiaceae, Malvaceae, Asteraceae and Cyperaceae (Plates 1&2).

Lowland rainforest open forest indicators

These relative hinterland groups of pollen/spores are quite dominant in this study indicating that a good number of plant families thrive well in rainforest environments in tropical settings.^24,63 Large quantities of fossil pollen (mostly angiosperms) with botanical affinities assigned to tropical rain forest plants were recovered from the three GCs. These pollen (Nymphaceae), and spores corresponding to their existing parent assemblages are listed in Table 1. Some other prominent examples among these are fern spores, Polypodiaceae, Lycopodiaceae and Sphagnaceae (Plates 1–3).

Savannah and afromontane indicators

These groups of pollen/spores identified in this study belong to tropical grasslands with a scattering of shrubs and small and large trees. Savannah environments may be linked from soil conditions, from periodic fires caused by lightning or set by humans, or from climatic influences. Savannahs as found in western and south-western Africa, develop in regions with marked wet and dry seasons, where rainfall ranges between 100 and 400 mm (4 and 16 in) a year 1989. The most important contributor to this group is tropical grass pollen, Poaceae, which belongs to the Poaceae family, restricted principally to more open vegetation. Morley³⁹ in their study from the Niger Delta recorded a significant number of charred cuticles from the Cenozoic sedimentary deposits in the Niger Delta (Plate 3). Afromontane groups consist predominantly of the bisaccate pollen group belonging to the family of Podocarpaceae. Their morphology and buoyancy (saccates) allow them to be transported far and wide through both wind and water mediums (Plates 2–4).

Non pollen palynomorphs (NPPs) indicators

NPPs consist of non-pollen palynomorphs which were not grouped among the pollen taxa identified in this study. Among the types discussed, this study considered Foraminiferal Test Linings, fresh water algae and cuticles because of their environmental significance (Plates 3–5).

They consist of the following sub-groups: Foraminiferal Test Linings (FTLs): These are test materials from assumed juvenile foraminifera usually made of carbonaceous, porcelaneous and mineral from inner lining of the chambers. Brackish water algae indicators: These are sets of algae identified in this study thrive in water columns that have more salinity than fresh water, but not as much as sea water.^39,64 They may result from mixing of sea water with fresh water, as in estuaries, or it may occur in fossil brackish water aquifers. Technically, brackish water contains between 0.5 and 30 grams of salt per litre - more often expressed as 0.5 to 30 parts per thousand (ppt or %). Therefore, “brackish” covers a range of salinity regimes and is not considered as being precise in its definition.^39,64

Fresh water algae indicators: Refers to algae that are microscopic free-floating plants. These algae observed in this are normal and essential inhabitants of sunlit surface waters. A common form of algae in ponds is planktonic algae. Some of planktonic algae recognised from the GCs are Pediastrum spp., Pseudoschizaea ozeanica, and Ovoidites parvus belong to the freshwater green algae family Zygnemataceae (Plate 4).^65–72 Fungal spore hyphae indicators: Fungi identified in this study are a varied group of generally small organisms that derive their food from living or dead organic matter. They germinate from reproductive cells called spores, which often have a thick, resistant outer coat that protects against unfavourable environmental conditions (Plate 4).^73–81

As an addendum, it is important to conclude that this study identified low occurrences of dinoflagellate cysts taxa. Possible suggestions from previous findings made it clear that the siliciclastic influx (sedimentation rate) of palaeo discharge on Niger Delta could have affected their preservation due to overburden sedimentation stress at the shallow depth. In addition, the effects of “freshwater plumes” and “tidal inundation” originating from the ocean-land boundary have been documented to provoke the hydrologic control influencing stress on their preservation in northwest Borneo, Mississippi Delta, Amazon Delta and southern New England (USA) basins. Finally, the statistical computation of the vegetation, climate and environmental dynamics aspect of this study is already published. Thus, in addition to the published articles from the region , this compendium of taxonomic and morphological descriptions update from the Niger Delta (Nigeria) is provided to facilitate the use of tropical and non-pollen palynomorphs to aid in the proper identification past plant taxa (pollen and spores), NPPs (fungi, algae, and palynodebris elements). Each of the identified sporomorph and NPPs were grouped as indicators of different phytoecology, palaeoenvironmental change (climate / sea level change) and ecological habitats to reinforce the use of pollen atlas for the reconstructions of the African Vegetation in the future.^81–89

Palynomorphs photomontage (microphotography)

All scale bars are at 20µm except for Rhizophoraceae, which is 10µm. See taxonomy discussion section for reference depths and descriptions of some of the important taxa, which required detailed measurements.
