The study deals with the assessment of physico-chemical parameters and phytoplankton diversity of Nachiketa Tal. The lake was monitored for one annual cycle (May 2014-April 2015). A total of 71 taxa of phytoplankton belonging to 57 genera were recorded. Phytoplankton in the lake are represented by six major families, Bacillariophyceae (22), Chlorophyceae (37), Cyanophyceae (6), Xanthopyceae (2), Dinophyceae (2) and Euglenophyceae (2). The overall phytoplankton density was found to be abundant (1401±325.60 ind. l^-1) in winter season, declined in monsoon season (457.50±17.83 ind. l^-1) but the population of Cyanophyceae and Euglenophyceae was found to be high (174.33±37.09 ind. l^-1) and (24.33±5.89 ind. l^-1) respectively in summer season. Results showed that the increases in turbidity, TDS in monsoon season are the driving factors for decreasing the phytoplankton density in the lake. Pearson’s correlation and CCA calculated between environmental variables and phytoplankton diversity showed that the distribution of phytoplankton in the lake is dependent on the variabilities of physico-chemical variables.

Keywords: phytoplankton, himalaya, lake, physico-chemical

Lakes are the important natural resources present on the Earth. These are the type of productive ecosystem important for any geographical region, as they play significant role in its ecological stability.¹ The Nachiketa Tal is an important lake of Garhwal Himalaya. This lake is surrounded by dense forest of Querecus, Abies, Rhododendron and Myrica, etc. and receives its water from the watershed. The variations and distribution of phytoplankton in freshwater lake depend on its physiochemical features.² Phytoplanktons are the primary producer and play a vital role in food chain of aquatic ecosystem.^3,4 Due to this reason, phytoplanktons are usually used as an ecological indicator to assess the ecological health and the stress effects of chemical contaminants on aquatic ecosystems and they are also necessary to sustain a healthy aquatic ecosystem.^5‒8 Dynamics in the phytoplankton biomass are the result of the complex interaction of physical, chemical and biological processes. The availability of nutrients influences the diversity of the phytoplankton. From the past few decades, there is much interest to study various factors influencing the development of phytoplankton in relation to the physico-chemical attributes.^9‒12 Changes in the phytoplankton community of different types of lakes also assessed the trophic status and environmental quality of the lakes. Algae (Phytoplankton) are photoautotrophic organisms having chlorophyll ‘a’ and unicellular reproductive structures. It is highly diverse group, which are important for aquatic habitats.¹³

A preliminary study on the primary productivity of Nachiketa Tal has been done by Singh et al.¹⁴ A factual report of the water quality of the lake is also available.¹⁵ So the present study was carried out in order to determine the composition, density and diversity of Phytoplankton of Nachiketa Tal and the influence of physico-chemical variables on them.

Nachiketa Tal is located between latitude N 30°38.666’ N and longitude E 078°28.362’ E at an altitude of 2,453m above m.s.l. in Garhwal Himalaya. The area of Nachiketa Tal is 0.49 ha. It is elliptical in shape, measuring about 132 m in length and 58 m width (Figure 1). The lake remains occasionally covered with thin sheet of ice during the winter months of January and February. The lake depth varies from season to season and attains its maximum depth during rainy season and has no noticeable inlet as well as outlet. During the major part of the year, Nachiketa Tal remains shallow. The runoff from the forest deposited sediments in the lake bed. Monthly sampling was undertaken at 08:00 to 10:00 hrs during the one annual cycle (May 2014 to April 2015).

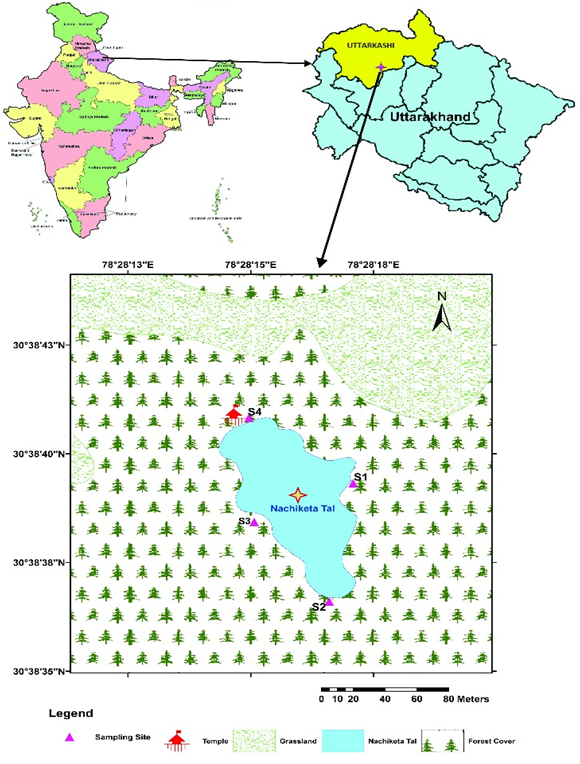

Figure 1 Location map of Nachiketa Tal with sampling sites.

Four sampling sites (S_1,­^­ S_2, S_3, S₄) were identified for covering the entire ecosystem for collecting data on the physico-chemical parameters and phytoplankton community of the Nachiketa Tal. For physico-chemical parameters, five replicates of samples from each sampling site were taken for each parameter and their mean value was computed. Water temperature was recorded with the help of the Centigrade (0-110°C) thermometer; electrical conductivity and pH of the sample were measured with the help of the Toshcon Multiparameter Analyser. Nitrates, phosphates, sulphates were determined by using Spectrophotometer (Model –UV-VIS Systronics 117 series). Dissolved Oxygen, total hardness, BOD, alkalinity, calcium, magnesium etc. were measured followed the method outlined in Wetzel and Likens,¹⁶ APHA.¹⁷

For phytoplankton, from each sampling site, five liter of sample was passed through silk plankton net of mesh size 20 µm and was fixed through 4% formalin solution into sample bottles. Enumeration of density of phytoplankton (ind. l^-1) was done by using Sedgwick Rafter counting cell. The identification of phytoplankton was done by using the Olympus CH 20i Microscope and was identified with the help of Ward & Whipple,¹⁸ Bellinger & Sigee¹⁹ and Munshi et al.²⁰ The Pearson’s correlation coefficient was used to determine the relationship among the various physico-chemical parameters and different phytoplankton. The correlation coefficient was performed using SPSS version 16.0. CCA was performed using P Aleonotological Statistics (PAST) Software version 2.10.

Physico-chemical environmental variables

The high altitude lakes are sensitive indicators of environmental changes. The water qualities of such lakes are greatly influenced by the variations in parameters like temperature and pH.²¹ The physico-chemical parameters were determined in order to observe their influence on phytoplankton density (Table 1-4). Air temperature was found maximum (22.13±1.53°C) at S₄ in summer season and minimum (10.43±2.58°C) at S₂ in winter season. Water temperature was found to be maximum (20.77±1.72°C) in summer season at S₄ and minimum (8.7±1.9°C) in winter at S₂. Electrical conductivity was highest (69.9±2.4µScm^-1) in monsoon season at S₂ and lowest (34.57±2.99µScm^-1) in winter at S₁. pH is an important parameter and has a significant role in the biological process of all aquatic organisms.²² pH was found maximum(7.280.07) at S₄ in winter season and lowest (6.59±0.01) was recorded in monsoon season at S₂. TDS in Nachiketa Tal was found maximum (36.75±0.35 mg.l^-1) at S₂ in monsoon season and minimum (16.3±1.27mg. l^-1) at S₃ in spring season. Turbidity was found maximum in monsoon (7.97±0.97 NTU) at S₂ and minimum in spring (2.96±1.15 NTU) at S₄. Maximum TDS and turbidity in monsoon season is due to the rain which transports soil and other organic matter from the watershed to the lake. The availability of dissolved oxygen is one of the most critical factors for the survival of the aquatic organisms.²³ DO was found maximum (8.57±0.45 mg.l^-1) at winter season at S₄ and minimum (6.5±0.71 mg.l^-1) at S₁ in monsoon season. Higher dissolved oxygen in winter season is also reported by Garg et al.²⁴ BOD was found to be maximum (1.5±0.14 mg.l^-1) in monsoon season at S₄ and minimum (0.57±0.12 mg.l^-1) in winter season at S_3. Similar finding was recorded by Bordoloi & Baruah.²⁵ Free CO₂ was found maximum (2.38±0.62 mg.l^-1) and minimum (1.01±0.19 mg.l^-1) at S₂ in monsoon and spring season respectively. Higher free CO₂ was also recorded in monsoon season.²⁵ Maximum water temperature in the Nachiketa Tal was recorded high in the month of summer followed by months of monsoon. Raised temperature in the monsoon season could increase the microbial decomposition of the organic matter carried out by the rain in to the lake ecosystem which in turn reduce the DO level into the water body.^25‒28 Due to the microbial decomposition, there is an increased demand of DO, resulting in the high BOD value in the monsoon season.²⁹ High microbial activities in the monsoon season also raise the level of CO₂ into the water, which is also one of the reasons of maximum CO₂ level in monsoon season. Maximum free CO₂ decreases the pH level in monsoon season.³⁰ Total alkalinity was found maximum (82.73±3.68 mg.l^-1) and minimum (53.50±11.43 mg.l^-1) in summer season and winter season respectively at S₁. Similar trend was also reported by Fathi and Flower.³¹ Calcium was found maximum (8.28±2.02 mg.l^-1) in summer season at S₁ and minimum (4.01±1.13 mg.l^-1) in monsoon at S₂. Magnesium was found to be maximum (3.82±0.11 mg.l^-1) at S₃ in summer season and minimum in monsoon season at S₁, S₃ and in autumn season at S₃. Chlorides were found maximum (5.68±0.8 mg.l^-1) in monsoon at S₂ and minimum (2.98±0.2 mg.l^-1) in autumn season at S_3.Total hardness was found to be maximum (34.67±6.11 mg.l^-1) in summer season at S₁ and minimum (21±1.41 mg.l^-1) in monsoon at S₂ and S_3. Nitrates were found to be maximum (0.372±0 mg.l^-1) in monsoon season at S₂ and minimum (0.256±0.01 mg.l^-1) in winter season at S₄. Similar finding was reported by Panigrahi et al.³² Phosphates were found maximum (0.086±0.01mg.l^-1) in monsoon season at S₁ and minimum (0.057±0 mg.l^-1) in spring season at S₃. Sulphates were found to be maximum (7.85±0.28 mg.l^-1) in monsoon at site S₃ and minimum (5.38±0.39 mg.l^-1) in S₃ at autumn.

The water system in Nachiketa Tal was mainly influenced by rainfall. So, it is estimated that any variation, whether seasonal or monthly in physico-chemical variables of Nachiketa Tal may be influenced by climatic factors and the characteristics of its catchment. The high seasonal variations in electrical conductivity in Nachiketa Tal in monsoon season were may be because of the rains which export the ions from the catchment area to the lake ecosystem. Similar trend was reported by Burna et al.³³ The nutrient like phosphates, nitrates and sulphates increases in the monsoon because the rains brought these nutrients from the catchment. The decrease of nutrients during the winter season may be due to the phytoplankton population.

Plankton community

Physico-chemical parameters of any water body alone do not provide an ideal picture of the ecological condition of the water body. The biotic community of any water body is outcome of interaction between the chemical, physical and geo-morphological characteristics of any water body.^34,35 The study of physico-chemical parameter is important to know their impact on phytoplankton and vice-versa. A total of 71 taxa belonging to 57 genera were recorded in the lake Nachiketa Tal. The phytoplankton in the lake is represented by six major families, Bacillariophyceae (22), Chlorophyceae (37), Cyanophyceae (6), Xanthopyceae (2), Dinophyceae (2) and Euglenophyceae (2). The percentage compositions (Figure 2) of these six families were Bacillariophyceae (31%), Chlorophyceae (52%), Cyanophyceae (8%), Euglenophyceae (3%), Xanthophyceae (3%) and Dinophyceae (3%). Overall, maximum density (1501 ind. l^-1) of phytoplankton was observed in January at S₁ and minimum (443 ind.l^-1) phytoplankton density was observed in July at site S₃. Seasonally_, the maximum density 1401±325.60 ind. l^-1 of phytoplankton was observed in winter season at S₁ and minimum (457.50±17.83 ind. l^-1) in monsoon season at S₂ (Figure 3). Dissolved oxygen is produced by phytoplankton biomass due to their photosynthetic activity. Therefore, dissolved oxygen was found higher, where phytoplankton count was high.¹² Density of Cyanophyceae and Euglenophyceae was found high in summer season. The present study also recorded higher dissolved oxygen and the phytoplankton during winter season and lowest during monsoon season. During the monsoon season there was an increased amount of turbidity in Nachiketa Tal due to runoff from the watershed, which transports soil and other plant and animal debris into the lake. During the period of high turbidity in the outflow zone, the nutrient concentration increased and the transparency decreased. It was found that the phytoplankton density decreased during this period. Thus, the light is an important factor for the growth of phytoplankton through the process of photosynthesis.^13,36 The Chlorophyceae was recorded as the dominant group in the lake ecosystem of Nachiketa Tal followed by Bacillariophyceae and Cyanophyceae. Similar findings were reported by Tyagi & Malik.³⁷

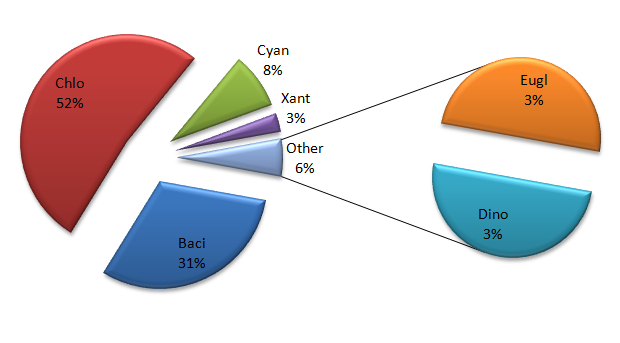

Figure 2 Percentage composition of phytoplankton in Nachiketa Tal (Chlo, Chlorophyceae; Baci, Bacillariophyceae; Cyan, Cyanophyceae; Xant, Xanthophyceae; Eugl, Euglenophyceae; Dino, Dinophyceae).

Chlorophyceae

Chlorophyceae has been recorded as the dominant component of phytoplankton followed by Bacillariophyceae, Cyanophyceae, Xanthophyceae, Dinophyceae and Euglenophyceae respectively. Hinder et al.³⁸ also recorded Chlorophyceae as a dominant groups over the other groups in Jöri lakes, Swiss Alps; Bhat et al.³⁹ also recorded Chlorophyceae as a dominant group in Bhoj wetland, a Ramsar Site. Sharma⁴⁰ also reported Chlorophyceae as dominant group in Loktak Lake. The dominating species of this group were Staurastrum manipurense, Scendesmus quardicauda, Spirogyra sp., Ankistrodermus falcatus, and Chlorella vulgaris. A total of 37 species were recorded from the Nachiketa Tal. The maximum density of Chlorophyceae (710 ind. l^-1) at S₁ in January and lowest (211 ind. l^-1) in July at S_4. Seasonally, the population of Chlorophyceae was recorded maximum (663.67±158.15 ind. l^-1) in winter season and minimum (221.5±86.97 ind. l^-1) in monsoon season. Maximum density of Chlorophyceae was recorded in winter season by Tiwari & Chauhan.⁴¹

Bacillariophyceae

The second most abundant group recorded during the present study was Bacillariophyceae. The dominant species were Cymbella sp., Navicula sp., Nitzschia sp, and Synedra sp. similar results were reported by Kumar et al.⁴² in the ponds of Badrinath. The maximum (703 ind. l^-1) density was recorded at S₁ in January and lowest (116 ind. l^-1) in August at S₃. Seasonally, the population of Bacillariophyceae was recorded maximum (629.33±126.09 ind. l^-1) in winter season and minimum (118.5±41.72ind. l^-1) in monsoon season.

Cyanophyceae

The third group dwelling Nachiketa Tal was Cyanophyceae. The dominating species were Chroococcus sp. Gloeocapsa sp., Oscillatoria sp., Microcystis sp. Density of Cyanophyceae was found maximum (184 ind. l^-1) in June and minimum (11 ind. l^-1) in December at S_3. Seasonally, it was found maximum (174.33±37.09 ind. l^-1) during summer season and minimum (12.67±8.08 ind. l^-1) during winter season. Similar findings were reported by Tiwari & Chauhan⁴¹ and Rosińska et al.^43­­ Increased temperature and long photoperiod in summer supports the increased Chlorophyceae diversity.³⁹ After the summer season, second highest density of Cyanophyceae was seen in monsoon season (121.5±20.5 ind. l^-1) in Nachiketa Tal. Jarousha⁴⁴ reported that the high concentration of nitrates in monsoon season attributed higher member of Cyanophyceae. The concentration of nitrates was found maximum in monsoon season in the lake.

Two genera of each family of Xanthophyceae, Dinophyceae and Euglenophyceae were encountered in Nachiketa Tal. The maximum density of Xanthophyceae (27 ind. l^-1) in December at S₄. Density of Dinophyceae was found maximum (52 ind. l^-1) during November and December at S₁ and at S₄ in November_. Euglenophyceae were found maximum (31 ind. l^-1) in June at site S₁. Seasonally, the maximum density of Xanthophyceae (21±7 ind. l^-1) and Dinophyceae (43.33±1 ind. l^-1) was found to be in winter season at S_1. Euglenophyceae were found maximum (24.33±5.89 ind. l^-1) in summer season at site S₁. The Shannon-Wiener diversity index was recorded maximum (3.950) in winter at S₂ and minimum (3.750) in monsoon at S₄ and the Jaccard evenness was recorded maximum (0.067) in autumn at S₁ and S₃ and minimum (0.057) in summer at S_1, S₂ and S₄ during the present study. The pollution indicating taxa like Navicula, Oscillatoria, Nitzschia, Euglena, Cymbella were encountered in almost all the four sites with varied numbers in Nachiketa Tal.^42,45 Numbers of these taxa were less at S₃ in comparison to other sites.

Statistical treatment of data

Pearson’s correlation coefficient calculated between various physico-chemicals attributes and density of phytoplankton dwelling Nachiketa Tal have been presented in Table 5. Water temperature and pH have negative correlation (r=-989, p<0.05). TDS has positive correlation with the water temperature (r=0.719, p<0.01) and electrical conductivity (r=0.771, p<0.01). Abundance of Bacillariophyceae, Chlorophyceae, Xanthophyceae, Dinophyceae is negatively correlated with water temperature (r=-0.898, p<0.01); (r=-845, p<0.01); (r=-875, p<0.01) and (r=-0.761, p<0.01) respectively. However, the abundance of Cyanophyceae and Euglenophyceae were positively correlated with water temperature (r=0.881, p<0.01) and (r=0.619, p<0.01) respectively. Turbidity is negatively correlated with Bacillariophyceae (r=-0.882, p<0.01), Cholorophyceae (r=-0.802, p<0.01) and Xanthophyceae (r=-0.721, p<0.01). However, it is positively correlated with Cyanophyceae (r=0.625, p<0.05).Turbidity may be the one of the reasons of lower phytoplankton density in the monsoon season. DO was positively correlated with Bacillariophyceae (r=0.919, p<0.01), Cholorophyceae (r=0.766, p<0.01), Xanthophyceae (r=-0.883, p<0.01) and Dinophyceae (r=0.751,p<0.01). However, it was negatively correlated with Cyanophyceae (r=-668, p<0.05). Cyanophyceae showed positive correlation with nitrates (r=-0.686, p<0.05). Phosphates are negatively correlated with the density of Bacillariophyceae (r=-0.686, p<0.05).

Canonical correspondence analysis

Canonical Correspondence Analysis (CCA) method was used to found the relationship between the physico-chemical variables and phytoplankton. It is a direct gradient analysis technique,⁴⁶ it extracts synthetic gradient from the biotic and environmental matrices and quantitatively represented by arrows in graphical biplots.⁴⁷ In the present study, the eigenvalues and the percentage of variance for each site were found to be high for axis 1 than axis 2. CCA was drawn between the 17 physico-chemical parameters and 42, 37, 41, 40 dominant phytoplankton species from S_1, S_2, S₃ and S₄respectively.

At the sampling site S₁, (Figure 4). The Eigen values were 0.124 and 0.042 for axis 1 and axis 2 respectively. The axis 1 shows 56.86 % correlation and axis 2 shows 19.26 % correlation with the physico-chemical parameters and dominant phytoplankton species. The species like Microspora sp., Staurastrum manipurense, Pinnularia sp., Synedra ulna, Chlorella vulgaris, Cymbella affinis, Frustulia sp., Scenedesmus quardicauda are strongly related with axis 1. Nitzschia sp., Navicula radiosa, Navicula sp., Ankistrodesmus falcatus, Cymbella affinis, Frustulia sp., Diatoma sp., Monoraphidium sp., Synedra ulna are positively related with the dissolved oxygen and pH. Water temperature, BOD, alkalinity, TDS, electrical conductivity, and nitrates were found to have in positive correlation with Gloeocapsa sp. and Chroococcus sp.

Figure 4 CCA biplot between physico-chemical parameters and species of phytoplankton at S1 (Dominant phytoplankton species: CLP, Closterium pseudodianae; CLS, Closterium sp. COS, Cosmarium sp.; COSU, Cosmarium subtumidium; DL, Dimorphococcus lunatus; HS, Hormidium sp.; MS, Mesotaenium sp.; MIS, Microspora sp.; MOS, Monoraphidium sp.; MSP, Mougeotia sp.; OS, Odegonium sp.; CA, Cymbella aequalis; CYM, Cymbella affinis; ES, Euglena sp.;OSS, Oscillatoria sp.; NTS, Nostoc sp.; MISP, Microcystis sp.; GS, Gloeocapsa sp.; CHS, Chroococcus sp.; SM, Staurastrum manipurense; STS, Staurastrum spp.; SP, Spirogyra sp.; SG, Selenastrum gracile; SCS, Scenedesmus sp.; SQ, Scenedesmus quadricauda; SA, Scenedesmus accuminatus; PD, Pediastrum duplex;DS, Diatoma sp.; FA, Fragilaria arcus; FC, Fragilaria capucina; FS, Frustulia sp.;NR, Navicula radiosa;NS, Navicula sp.; NAS, Navicula subtilissima; NIS, Nitzschia sp.; PS, Pinnularia sp.; SU, Synedra ulna; AF, Ankistrodesmus falcatus; AS, Ankistrodesmus spiralis;CS, Chlamydomonas spp.; CV, Chlorella vulgaris; CP, Closterium parvulum

Eigen values of 0.122 explained 53.58% correlation with axis 1 for the S₂ (Figure 5) Eigen value (0.041) explained 18% correlation with axis 2. Axis 1 was strongly related with the species like Cymbella affinis, Synedra ulna, Pinnularia sp., Microspora sp., Diatoma sp., Navicula subtilissima, Nitzschia sp., Gonatozygon sp., Closterium parvulum. Whereas, Oscillatoria sp., Ankistrodesmus falcatus, Microcystis sp., Fragilaria arcus, Gloeocapsa sp. were positively correlated with the axis 2. Dissolved oxygen and pH were positively correlated with the genera of Bacillariophyceae (Cymbella affinis, Synedra ulna, Navicula subtilissima, Nitzschia sp.). Bacillariophyceae was reported high in the winter season, when dissolved oxygen and pH were found maximum. Although the seasonal variations in water temperature, electrical conductivity, TDS, free CO₂, turbidity, nitrates negatively influence these species.

Eigen value (0.101) explained 46.68% for axis 1 and Eigen value (0.040) explained 18.77 % for axis 2 at S₃ (Figure 6). Alkalinity, TDS, water temperature, nitrates, turbidity, BOD are positively related to axis 1 and positively related with Cyanophyceae member like Gloeocapsa sp. and Chroococcus sp., which increases in summer to monsoon season, when there is an increase in water temperature, Nitrates were found in maximum concentration in monsoon season due to surface runoff in Nachiketa Tal. The dissolved oxygen and pH are negatively related with the axis 1. Phosphates were positively correlated with the Scendesmus sp. The Eigen value (0.113) explained by 50.66% of correlation at S₄ (Figure 7). Eigen value (0.046) for axis 2 explained 20.83 % correlation. Dissolved oxygen and pH were strongly related with the axis 1. Nitzschia sp., Frustulia sp., Navicula radiosa, Microspora sp., Pinnularia sp., Synedra ulna and Ankistrodesmus falcatus are positively correlated with dissolved oxygen and pH but the parameters like water temperature, turbidity, electrical conductivity, BOD and nitrates influences these species.

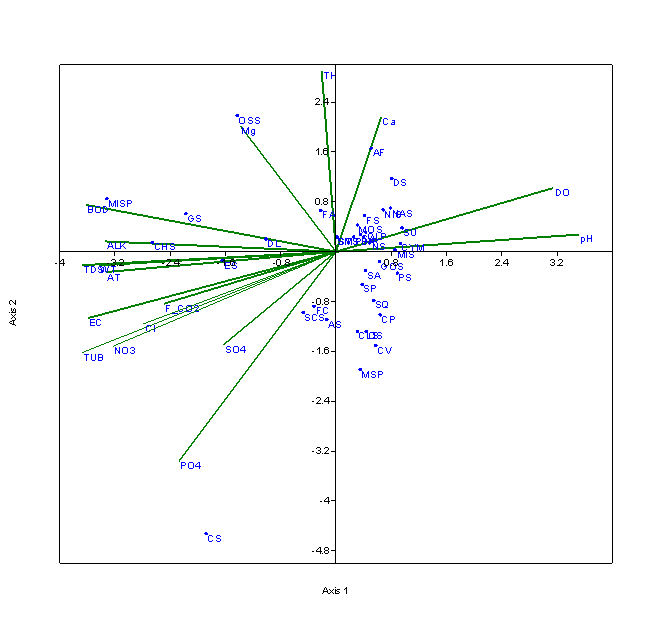

Figure 5 CCA biplot between physico-chemical parameters and species of phytoplankton at S2 (Dominant phytoplankton species: CLP, Closterium pseudodianae; CLS, Closterium sp.; DL, Dimorphococcus lunatus; GOS, Gonatozygon sp.; HS, Hormidium sp.; MIS, Microspora sp.; MOS, Monoraphidium sp.; MSP, Mougeotia sp.; OS, Odegonium sp.; CA, Cymbella aequalis; CYM, Cymbella affinis;ES, Euglena sp.; OSS, Oscillatoria sp.; MISP, Microcystis sp.; GS, Gloeocapsa sp.; CHS, Chroococcus sp.; SM, Staurastrum manipurense; STS, Staurastrum spp.; SP, Spirogyra sp.; SCS, Scenedesmus sp.; SQ, Scenedesmus quadricauda; SA, Scenedesmus accuminatus; PD, Pediastrum duplex; DS, Diatoma sp.; FA, Fragilaria arcus; FC, Fragilaria capucina; FS, Frustulia sp.; NR, Navicula radiosa; NS, Navicula sp.; NAS, Navicula subtilissima;NIS, Nitzschia sp.; PS, Pinnularia sp.; SU, Synedra ulna; AF, Ankistrodesmus falcatus; AS, Ankistrodesmus spiralis; CS, Chlamydomonas spp.; CV, Chlorella vulgaris; CP, Closterium parvulum

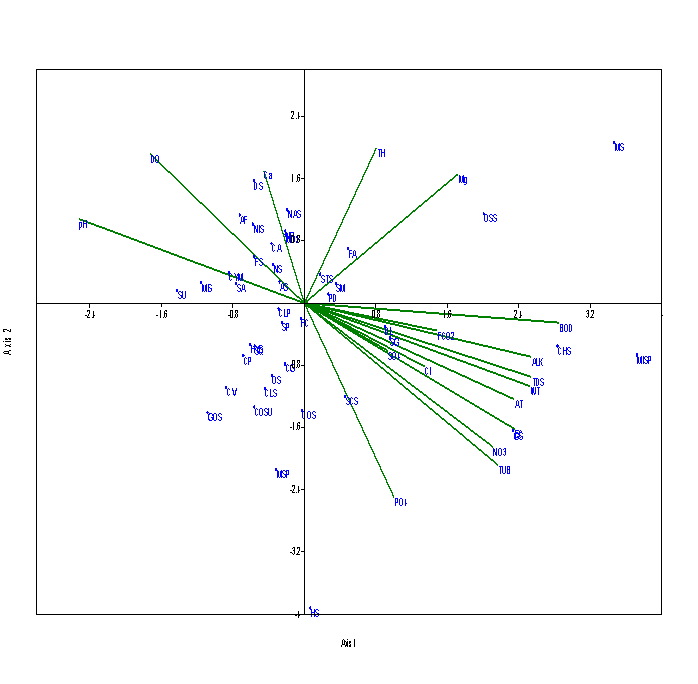

Figure 6 CCA biplot between physico-chemical parameters and species of phytoplankton at S3 (Dominant phytoplankton species: CLP, Closterium pseudodianae; CLS, Closterium sp.; COS, Cosmarium sp.; COSU, Cosmarium subtumidium; DL, Dimorphococcus lunatus; HS, Hormidium sp.; MS, Mesotaenium sp.; MIS, Microspora sp.; MOS, Monoraphidium sp.; MSP, Mougeotia sp.; OS, Odegonium sp.; CA, Cymbella aequalis; CYM, Cymbella affinis; ES, Euglena sp.; OSS, Oscillatoria sp.; MISP, Microcystis sp.; GS, Gloeocapsa sp.; CHS, Chroococcus sp.; SM, Staurastrum manipurense; STS, Staurastrum spp.; SP, Spirogyra sp.; SG, Selenastrum gracile; SCS, Scenedesmus sp.; SQ, Scenedesmus quadricauda; SA, Scenedesmus accuminatus; PD, Pediastrum duplex; DS, Diatoma sp.; FA, Fragilaria arcus; FC, Fragilaria capucina; FS, Frustulia sp.; NR, Navicula radiosa; NS, Navicula sp.; NAS, Navicula subtilissima;NIS, Nitzschia sp.; SU, Synedra ulna; AF, Ankistrodesmus falcatus; AS, Ankistrodesmus spiralis; CV, Chlorella vulgaris; CP, Closterium parvulum; CG, Cosmarium granatum;GOS, Gonatozygon sp.; HYS, Hydrodiction sp.

Figure 7 CCA biplot between physico-chemical parameters and species of phytoplankton at S4 (Dominant phytoplankton species: CLP, Closterium pseudodianae; CLS, Closterium sp.; COS, Cosmarium sp.; COSU, Cosmarium subtumidium; DL, Dimorphococcus lunatus; HS, Hormidium sp.; MIS, Microspora sp.; MOS, Monoraphidium sp.; MSP, Mougeotia sp.; OS, Odegonium sp.; CA, Cymbella aequalis; CYM, Cymbella affinis; ES, Euglena sp.; OSS, Oscillatoria sp.; NTS, Nostoc sp.; MISP, Microcystis sp.; GS, Gloeocapsa sp., CHS, Chroococcus sp.; SM, Staurastrum manipurense; STS, Staurastrum spp.; SP, Spirogyra sp.; SG, Selenastrum gracile; SCS, Scenedesmus sp.; SQ, Scenedesmus quadricauda; SA, Scenedesmus accuminatus; PD, Pediastrum duplex;DS, Diatoma sp.; FA, Fragilaria arcus; FC, Fragilaria capucina; FS, Frustulia sp.; NR, Navicula radiosa; NS, Navicula sp.; NAS, Navicula subtilissima; NIS, Nitzschia sp.; PS, Pinnularia sp.; SU, Synedra ulna; AF, Ankistrodesmus falcatus; AS, Ankistrodesmus spiralis; CS, Chlamydomonas spp.; CV, Chlorella vulgaris; CP, Closterium parvulum; GOS, Gonatozygon sp.

Phytoplanktonic density and diversity have significant correlation with the physico-chemical variables in Nachiketa Tal. The growth of phytoplankton was directly or indirectly dependent on the environmental variables of the Lacustrine ecosystem. The environmental attributes like dissolved oxygen, pH, turbidity, TDS, BOD and nutrients influenced the population of the phytoplankton dwelling in the Nachiketa Tal. Navicula, Cymbella, Nitzschia, Oscillitoria, Nostoc, Microcystis etc. were recorded indicators of the pollution under the present study. It is evident from the results that the lake is progressing from the Oligotrphic to the Mesotrophic state.

One of the authors (Vijayta Tiwari) is thankful to the University Grant Commission and H.N.B Garhwal University (A Central University) for providing Central University fellowship for undertaking the present work.

There is no conflict of interest to declare regarding the publication of this paper.

1. Chandrakiran, Sharma K. Assessment of Physico-chemical Characteristics of Sediments of a lower Himalayan Lake, Mansar, India. International Research Journal of Environmental Sciences. 2013;2(9):16‒22.
2. Cetin AK, Sen B. Seasonal distribution of phytoplankton in Orduzu Dam Lake (Malatya, Turkey). Turkish Journal of Botany. 2004;28:279‒285.
3. Reynolds CS. Phytoplankton periodicity-the interactions of form, function and environmental variability. Freshwater Biology. 1984;14(2):111‒142.
4. Khan TA. Limnology of four saline lakes in western Victoria, Australia. Limnologica. 2003;33(4):327‒339.
5. Xu FL. Energy and structural energy as ecological indicators for the development state of Lake Chao ecosystems. Ecological Modelling. 1997;99(1):41‒49.
6. Xu FL, Jørgensen SE, Tao S, et al. Modeling the effects of ecological engineering on ecosystem health of a shallow eutrophic Chinese lake (Lake Chao). Ecological Modeling. 1999;117(2-3):239‒260.
7. Xu FL, Tao S, Dawson RW, et al. Lake ecosystem health assessment: indicators and methods. Water Research. 2001;35(13):3157‒3167.
8. Yu JJ, Wei H, Wen XL, et al. The seasonal and spatial variations of phytoplankton community and their correlation with environmental factors in a large eutrophic Chinese lake (Lake Chaohu). Ecological Indicators. 2014;40:58‒67.
9. Nielsen SL, Jensen KJ, Borum J, et al. Phytoplankton, nutrients, and transparency in Danish coastal waters. Estuaries. 2002;25(5):930‒937.
10. Grenz C, Cloern JE, Hager SW, et al. Dynamics of nutrient cycling and related benthic nutrient and oxygen fluxes during a spring phytoplankton bloom in South San Francisco Bay (USA). Mar Ecol Prog Ser. 2000;197:67-80.
11. Elliot JA, Irish AE, Reynolds CS. Predicting the spatial dominance of phytoplankton in light limited and incompletely mixed eutrophic water column using the PROTECH model. Freshw Biol. 2002;47(3):433‒440.
12. Choudhary AK, Pal R. Phytoplankton and nutrient dynamics of shallow coastal stations at Bay of Bengal, eastern Indian coast. Aquatic ecology. 2010;44(1):55‒71.
13. Ariyadej C, Tansakul R, Tansakul P. Phytoplankton diversity and its relationships to the physico-chemical environment in the Banglang Reservoir, Yala Province Songklanakarin. J Sci Technol. 2004;26(5):595‒607.
14. Singh D, Rawat MS, Gusain OP. Primary Productivity in Nachiketa Tal, a high altitude lake of Garhwal Himalayas (India). European Academic Research. 2016;4(8):6462‒6478.
15. Singh D, Rawat MS, Bantwan B, et al. Water quality status of high altitude lake Nachiketa Tal, Garhwal Himalaya, Uttarakhand, India. Journal of Global Biosciences. 2017;6(5):5012‒5021.
16. Wetzel RG, Likens GE. Limnological Analyses. 2nd edn. Springer, New York; 1991. p. 1‒175.
17. APHA. Standard Methods for the Examination of Water and Wastewater. American Public Health Association. Washington, DC; 1998. p. 1‒1368.
18. Ward HB, Whipple GC. Freshwater biology. 2nd ed. Edmondson WT, editor. John Wiley & Sons, Inc., New York; 1992. p. 1‒1248.
19. Bellinger EG, Sigee DC. Freshwater Algae (Identification and Use as Bioindicators). Wiley-Blackwell; 2010. p. 1‒243.
20. Munshi JD, Roy SP, Munshi D. Manual of Freshwater biota. Narendra Publising House, Delhi; 2010. p. 1‒455.
21. Psenner R, Schmidt R. Climate-driven pH control of remote alpine lakes and effects of acid deposition. Nature. 1992;356:781‒783.
22. Welch PS. Limnology. 2nd ed, Mc Graw- Hill, Book Company, Inc., New York, Toronto, London; 1952. 538 p.
23. Sharma I, Dhanze R, Rana P. Physico-chemical parameters of lentic water bodies from Mid- Himalayan region (H.P.), India. International Journal of Fisheries and Aquatic Studies. 2017;5(2):674‒678.
24. Garg RK, Rao RJ, Uchchariya D, et al. Seasonal variations in water quality and major threats to Ramsagar reservoir, India. African Journal of Environmental Science and Technology. 2010;4(2):61‒76.
25. Bordoloi D, Baruah PP (2014) Water quality assessment using phytoplankton in a historical pond of Upper Assam. J Algal Biomass Utln. 2014;5(2):1‒7.
26. Prasad BN, Jaitly YC, Singh Y. Periodicity and interrelationships of physicochemical factors in pond. In: Adoni AD, editors. Proc. Nat. Symp. Pure and Applied Limnology, Bull. Bot. Soc. Sagar; 1985:32:1‒11.
27. Hulyal SB, Kaliwal BB. Seasonal Variations in Physico-Chemical Characteristics of Almatti Reservoir of Bijapur district, Karnataka State. IJEP. 2011;1(1):58‒67.
28. Ramulu NK, Benarjee G. Physicochemical factors influenced plankton biodiversity and fish abundance- A case study of Andhra Pradesh. Int J Lifesc Bt & Pharm Res. 2013;1(2):248‒260.
29. Anitha GS, Chandrasekhar VA, Kodarkar MS. Limnological studies on MIR Alam lake Hydrabad. Poll Res. 2005;24:681‒687.
30. Dhanalakshmi V, Shanthi K, Remia KM. Physicochemical study of Eutrophic pond in Pollachi town, Tamilnadu, India. Int J Curr Microbiol App Sci. 2013;2(12):219‒227.
31. Fathi AA, Flower RJ. Water quality and phytoplankton communities in Lake Qarun (Egypt). Aquat Sci. 2005;67(3):350‒362.
32. Panigrahi SN, Nayak BB, Acharya BC. Plankton algae as pollution index of Maipura estuary, east coast of India. J mar boil Ass Indi. 2001;43(1&2):168‒172.
33. Burna D, Deka SJ, Burman B. Seasonal diversity and habitat characteristics of Algae of wetlands in the west Garo hills, Meghalaya, India. Research Journal of Recent Sciences. 2015;4:274‒279.
34. Karr JR, Allen JD, Benke AC. River conservation in the United States and Canada. In: Boon PJ, Davies BR, editors. Global perspectives on River conservation, Science, Policy, and Practice. Wiley, New York; 2000. p. 3‒39.
35. Stevenson RJ, Pan Y.Assessing environmental conditions in Rivers and streams using diatoms. In E. F. Stoermer and J. P. Smol, (Ed.), The diatoms, Applications for the environmental and earth sciences. Cambridge University Press, Cambridge, 1990; pp.11-40
36. Graham LE, Wilcox LW. Algae. Prentice Hall, Inc New Jersey; 2000.
37. Tyagi D, Malik DS. Status of phytoplankton diversity and biomass in relation to productivity of Ram-Ganga reservoir at Kalagarh (Uttarakhand). International Journal of Fisheries and Aquatic Studies 2017;5(3):430‒434.
38. Hinder B, Gabathuler M, Steiner B, et al. Seasonal dynamics and phytoplankton diversity in high mountain lakes (Jöri lakes, Swiss Alps). J Limnol 1999;59(2):152‒161.
39. Bhat NA, Wanganeo A, Raina R. Variability in Water Quality and Phytoplankton Community during Dry and Wet Periods in the Tropical Wetland, Bhopal, India. J Ecosys Ecograph 2015;5:160.
40. Sharma BK. Composition, abundance and ecology of phytoplankton communities of Loktak Lake, Manipur, India. J Threat Taxa 2009;1(8):401‒410.
41. Tiwari A, Chauhan SVS. Seasonal phytoplanktonic diversity of Kitham lake, Agra. Journal of Environmental Biology 2005;27(1):35‒38.
42. Kumar P, Wanganeo A, Fozia Sonaullah F, et al. Limnological Study on two High Altitude Himalayan Ponds, Badrinath, Uttarakhand. International Journal of Ecosystem 2012;2(5):103‒111.
43. Rosińska J, Kozak A, Renata D, et al. Water Quality Response To Sustainable Restoration Measures– Case Study Of Urban Swarzędzkie Lake. Ecological Indicators 2017;84:437‒449.
44. Jarousha AKKH. Analysis of the polluting elements of Ramgarh lake of Jaipur (Rajasthan) India. Algal Biotechnology. Pointer Publishers, Jaipur; 2002. p. 247‒259.
45. Raina R, Subla BA, Zutshi DP. Water quality and plankton of Jhelum River. Int J Ecol Environ Sci 1982;8:11‒17.
46. Palmer MW. Putting things in even better order: the advantages of canonical correspondence analysis. Ecology. 1993;74(8):2215‒2230.
47. ter Braak CJF, Verdonschot PFM. Canonical correspondence analysis and related multivariate methods in aquatic ecology. Aquatic sciences. 1995;57(3):255‒289.
