The distribution range of Lagonosticta sanguinodorsalis was until today limited to Nigeria and north–west Cameroon, and therefore, this species was considered as endemic of these distribution areas. In its original description, this estrildid finch showed a multivarious plumages specially the red, grey, black and brown coloration. Ecologically, this sedentary species proved a high degree of fidelity to its range but no ornithological research had taken place in Northern Cameroon, and particularly in the Adamawa Plateau. This study aims to suggest a possible extension of the geographical range of L. sanguinodorsalis. In our bird survey, the Japanese mist nets have been used to capture and identify birds; moreover, measurements were taken before the specimens were released into their natural environment and muscle tissue was also taken for future molecular study. Furthermore, observations were made to characterize different habitats of the Adamawa Plateau and geographic coordinates were systematically recorded by GPS. A specimen of L. sanguinodorsalis was captured in the Adamawa Plateau at 1171 m altitude (07°37.723’N, 013°32.932’E) showing all diagnostic criteria of the species especially the blue–grey bill and bright reddish–brown back as well as the grey plumage at the top of the head. In addition, our measurements have given total size of 10.14 cm, beak length of 10.7 mm, length of tail of 46.5 mm and tarsal length of 11.8 mm. The main habitats highlighting in the Adamawa Plateau were mostly wooded environment, gallery forests, bushes, rocky outcrops, inselbergs and forestry valleys. Beyond the resemblance of their plumage coloration and also because of the similarities between the vegetation types in the Jos Plateau and the Adamawa Plateau, we suggest an extension of the range of L. sanguinodorsalis to the Adamawa Plateau. This would accordingly its endemism in large area from Nigeria to north–west and north–central Cameroon.

Keywords: endemism, range, measurements, mist nets method, sedentary bird

A large family of small passerines, the waxbills constitute a multicolored group with great specific diversity in the Afrotropical region.^1–4 It is an Old World family in which species are variously distributed in forest environments but also in savannah areas.^1,3,5,6 Typically, these small passerines are described as having a short but generally sturdy and conical bills.^2,7,8 Within this family, the shape of bills is very diverse for example small in Nigrita, massive and notched in Spermophaga, slender in Parmoptila but usually bright red or silvery or even pink as in Lagonosticta.² Most of the species within this large family are granivores; they eat ripe seeds, mainly small, and sometimes unripe but some of those are specialized for example taxa which feed only on insects.^2,3 In addition, these small passerines perch and nest in woody and herbaceous vegetation.² Their flight is often roaring and there are no migrants but many nomadic species.^2,9–11 The waxbills are mainly sedentary and some of them, especially African species, are parasitised by why dahs and indigo birds; nestlings of the host and the nest parasite regularly show similar mouth markings and identical juvenile plumages.^2,7,12 Among the parasitized taxa, L. sanguinodorsalis is listed with its main host Vidua maryae.^11,13,14 L. sanguinodorsalis is described until today as being present only in a well–defined and limited distribution range in Nigeria and north–west of Cameroon; more precisely, the species is found mainly in the Jos Plateau in central Nigeria even if recent studies have reported it near Cameroon in the Mandara Mountains.^7,13,15–17 According to some authors,^2,17 this species lives mainly in bushy and grassy rocky outcrops on the Plateau and grassy inselbergs; it is generally found in areas of 900 m above sea level. It moves single, in pairs or in small family groups along streams in the rainy season, and where small ponds remain in the dry season.² In a study carried out on the birds of the Adamawa Plateau of Cameroon, a transition area between forests and savannahs, we captured an individual of Lagonosticta sanguinodorsalis which expands the distribution range of the species by over than 17 300 sq km. To support this range extension, this study aims to provide diagnostic criteria (evidenced by photographs) which lead us to identify the species, and to compare the vegetation surrounding the capture site with information on its habitat in Nigeria.

Details on the study site

Located in north–central Cameroon, the Adamawa Plateau borders the Benue plain to the north, the western highlands to the southwest, and the South Cameroonian Plateau to the south.¹⁸ The Adamawa Plateau rises to an altitude of between 900 and 1500 m with some summits reaching 2000 m above sea level. The whole Plateau covers an area of more than 100000 sq km.¹⁹ This area has a humid tropical climate of altitude defined by two main seasons including a long rainy season that extends over seven to nine months and the Plateau is covered by tropical vegetation showing a set of plants from forest and savannah.^19–22 Furthermore, the altitude of the Adamawa Plateau and its relief generate some particular climatic conditions with annual precipitation of between 1200 and 2000 mm and monthly relative humidity averages of 40 to 50% during the dry season and 70 to 90% during the rainy season.²² Temperatures fluctuate depending on the seasons with average monthly values between 10 and 34°C.²²

 Bird sampling method

We used the Japanese mist nets to sample birds during our investigations in the forest–savannah transition zone of the Adamawa Plateau. In Ornithology, mist nets are undoubtedly the most common method used to capture small and medium–sized birds for research purposes.^23,24 In the field, mist nets were opened early in the morning (5: 00 AM) and closed late at sunset (6: 30 PM). The mist nets were attached with the mounting poles but it was also interesting to choice an appropriate mist–netting site for the success of the capture. The ensuring success of the capture in the field was closely linked to some basic elements such as the birds’ preferred flight patch, their foraging areas, roosts and shady sites. The rounds of the nets were made after every 40 minutes and the captured birds were immediately removed from the nets and identified, sometimes measured, and then released into the wild after muscle tissue removal for future molecular studies.

Identification, measurements and geographical coordinates

Our identifications followed international standard, and were based on the main morphological characteristics such as the size, the plumage coloration, the shape of the beak, the color of the eyes, the color of the beak and legs, and the arrangement of the fingers, among others, but also on geographic distribution of birds captured.^7,12 To complete these basic identifiers, some measurements were made (to the nearest 0.1 mm) using a caliper to measure some key parts of the species such as tarsal length, beak size, tail length as well as the total length of the specimen. The geographical coordinates of the investigated sites were systematically recorded using a handheld device (GPS).

Bird species collected and identified in the Adamawa Plateau

We captured 186 bird specimens belonging to 61 species according to Gill and Donsker²⁵ (Mahamat et al. in preparation). Several waxbills were identified, but the most important in our sample was without a doubt Lagonosticta sanguinodorsalis.

Diagnostic criteria for the identification of Lagonosticta sanguinodorsalis

We captured one specimen of Lagonosticta sanguinodorsalis. Given it was collected out of its known geographical range, we proceeded morphologically to take in–depth measurements following the diagnostic criteria in birds as defined by international standards for the morphological description of a species. Thus, the specimen captured in the Adamawa Plateau and identified as a specimen of L. sanguinodorsalis presented a total length of 10.14 cm with a mixed–colored plumage of grey, red, black, brown and white spots (Figure 1).

This specimen had a blue–grey, hard and conical beak with a length of 10.7 mm. Between the eyes and the basis of the beak, there were brilliant red lores (Figure 2A). The upper wing coverts and back of the specimen showed brownish plumage and the lower parts from throat to chest to upper belly were greyish red (Figure 1), whereas the crown from head to face showed light gray plumage (Figure 2B). We also noted many white spots on the plumage along of flanks (Figure 2C). The eye–ring was light gray, the iris dark brown (Figure 2D). However, in the backside part of the specimen, from the rump to the upper tail coverts, the plumage was deep red; additionally, the tail was black with red edges corresponding to rectrices which had a length of 46.5 mm (Figure 2E). The specimen’s feet were dark grey with an anisodactyl arrangement of the fingers and the tarsus measured 11.8 mm (Figure 2F).

Figure 1 Specimen captured in the Adamawa Plateau in Cameroon and identified as a Rock Firefinch, Lagonosticta sanguinodorsalis (photo by first author)

.

Figure 2 Diagnostic criteria for the identification of the Rock Firefinch, Lagonosticta sanguinodorsalis,captured in the Adamawa Plateau, Cameroon: beak (A), head (B), flank plumage (C), eyes (D), couple rump-tail (E) and feet (F) (photo by first author)

.

 Some characteristics of the habitat of Rock Firefinch captured in the Adamawa Plateau

Our specimen of Lagonosticta sanguinodorsalis was captured at an altitude of 1171 m at 07°37.723’N, 013°32.932’E. The site was a biotope made of wooded savannah, opened in some places revealing large bushes and rocks strewn with small shrubs. Present in the Vina Department over an area of 17300 sq km, this site is also surrounded by rocky outcrops, inselbergs and forest valleys showing a few pockets of tropical rainforest (Figure 3).

Figure 3 Vegetation surrounding the capture site of L. sanguinodorsalis within the Adamawa Plateau

.

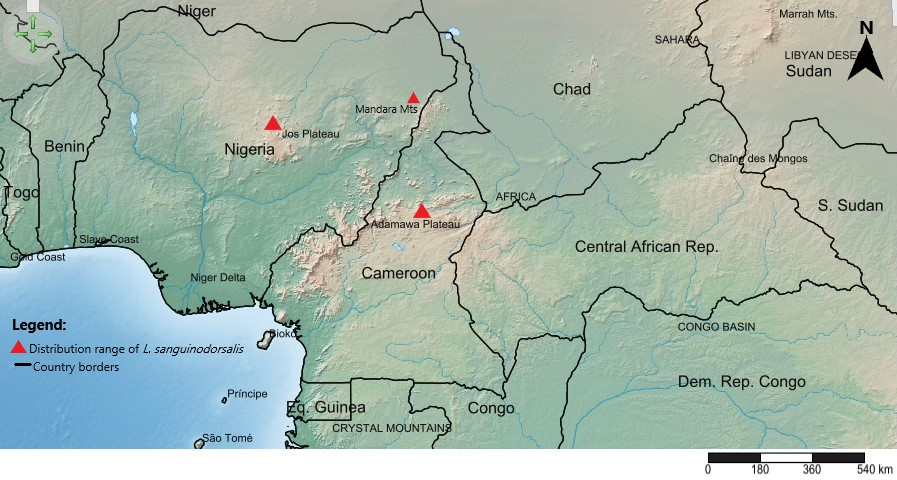

Figure 4 Distribution of the locations of L. sanguinodorsalis in Nigeria and Cameroon

.

Main morphological features of L. sanguinodorsalis

The specimen captured in the Adamawa Plateau and examined in this study showed many of the diagnostic features corresponding to Lagonosticta sanguinodorsalis such as beak form, presence of lores, and the coloration patterns of the plumage (Figures1, 2A–2B). All these morphological characteristics highlighted in our results have been mentioned in several other studies on the Rock Firefinch from the original description until ecological and breeding behaviour, population density and genetic structure studies.^{2,7,11,13,15,26–28} For instance, the combination of the blue–grey beak in the adult and the predominantly reddish–brown and shiny back in the female allow L. sanguinodorsalis to be easily identified and distinguished from other finches as already revealed by some authors.^2,7,13 Thus in L. sanguinodorsalis, morphological characteristics of identification based on the plumage coloration such as white spots in flanks (Figure 2C), the dark red covering its rump until the upper tail (Figure 2E), the black tail with red edges on the outer rectrices (Figure 2E) and the dark grey of their legs (Figure 2F) have also been mentioned by several authors.^2,7,12,13,26 However, some colors in this specimen could bring it closer to an immature of L. umbrinodorsalis; only beyond the plumage coloration, the measurements obtained on the captured specimen go in the same direction as well Mills¹⁵ who had already observed the Rock Firefinch in Northern Cameroon but unlike us who captured it in our nets. Thus, based on the tissues of the specimen captured in the field, a future molecular study with other specimens of the same locality will clarify observations made in this study.

Analysis of some measurements taken on the specimen of the Rock Firefinch captured on the Adamawa Plateau

The measurements taken on the specimen collected in the Adamawa Plateau gave a general body size of 10.14 cm (Figure1). According to Borrow and Demey^7,12 and Fry and Keith², the size in length of the adult specimens of Lagonosticta sanguinodorsalis is between 10 and 11 cm in length confirming that the overall measured size of the captured specimen was that of L. sanguinodorsalis. The measurements of its tail be 46.5mm (Figure 2E) and its tarsus be 11.8 mm (Figure 2F) were appeared quite close to those suggested by some authors^2,13 for which the length of the tail as well as that of the tarsus in female of L. sanguinodorsalis were 48 mm and 14 mm respectively while in male of Rock Fire finch, these lengths were 51 mm and 15 mm respectively. Otherwise, our results provided a value of 10.7 mm for the length of its beak (Figure 2A); however, the beak size that we measured was longer than what previous studies reported be 8.0 mm for the female and 9.0 mm for the male.^2,13 in this case, the differences observed in measurements could be due to the different stages of development of the species. But comparing the length of the beak in the specimen captured in the Adamawa Plateau (10.7 mm; Figure 2A) to that of individuals of the populations from the Jos Plateau (i.e. 8.0 mm), this difference should be an adaptation to its diet in the Adamawa Plateau which offers many various types of vegetation and therefore many types of food resources. Brandt and Cresswell¹¹ reveal that the long and slender beak of this estrildid finch should be an adaptation in order to obtain seeds buried between rocks.

Habitats and ecological behaviour of sanguinodorsalis

We collected Lagonosticta sanguinodorsalis in the forest/savannah transition area of the Adamawa Plateau, in a wooded area with rocky outcrops not far from fluent small river between rocks and valleys (Figure 3). In Nigeria, this species has been observed in various vegetation types such as grassy inselbergs, woods, bushes, rock outcrops, thickets, bushy savannah, gallery forest, etc.^{2,7,11,13,17,26} Mills¹⁵ and Languy³³ reported repeatedly sighting L. sanguinodorsalis in Northern Cameroon where the vegetation is predominantly sahelian; the Adamawa Plateau offers various types of vegetation which could explain its presence in this part of Cameroon. Several authors^9,11,29 have noted that L. sanguinodorsalis showed a high degree of site fidelity and does not respond to changes in the availability of food and water by moving to different areas like some nomadic birds in the desert or in savannah habitats where occurrence of rain and food is unpredictable. Moreover, this species prefers inselberg habitat for the nest–site requirements, and the rocky boulders might provide shelter from predators as nests are well hidden from view and serve as shade against direct sunlight and high temperatures.^11,30 Brandt and Cresswell¹¹ noticed that in order to avoid the strong inter–specific competition for food resources, L. sanguinodorsalis also appears to favor inselbergs particularly during the non–breeding season, which allows it to quietly feed on the seeds that accumulate between rocks.

Similarity between the different ranges of sanguinodorsalis

Both in Nigeria and Cameroon, there are similar characteristics in the sites occupied by Lagonosticta sanguinodorsalis. In our study on the Adamawa Plateau, L. sanguinodorsalis was captured at an altitude of 1171 m while Payne¹³reported captures at an altitude of 1280 m in the Toboru hill on the east of the Jos Plateau; Brandt and Cresswell¹¹ reported captures at altitudes between 1280 and 1320 m in the Amurum Reserve, north–east of the Jos Plateau (Table 1). Other mentions in the Mandara Mountains²⁶ correspond at altitudes comprised between 1200 and 1494 m (Table 1).

 Extension of the distribution area

The main result of this study, it is diagnostic criteria used for the identification of the specimen of Lagonosticta sanguinodorsalis captured in the Adamawa Plateau (Figures1, 2A–2F). For many years to date, this species has been considered endemic to several parts of Nigeria but to Cameroon only in northwest because no ornithological survey previously carried out in the Adamawa Plateau reported the presence of L. sanguinodorsalis.^19,31,32 Our study thus allows us to formally suggest the extension of the distribution area of the Rock Fire finch, L. sanguinodorsalis to the Adamawa Plateau in Cameroon. But a future molecular study with other specimens of this species in the Adamawa Plateau will have to confirm this presence.

Morphological descriptions and measurements carried out have allowed identification of specimen of Lagonosticta sanguinodorsalis within the Adamawa Plateau. The presence of L. sanguinodorsalis, a sedentary bird, on the Adamawa Plateau must be considered as an essential argument to support from now the extension of its distribution range from Nigeria to north–west and north–central Cameroon. L. sanguinodorsalis would develop preferences for the high altitudinal areas but further investigations in the Adamawa region would be necessary to confirm this hypothesis as well as those which require a better understanding of how it occupies the landscape, the state of its population density, its relationship with its common brood–parasite, Vidua maryae, or another within this part of the Congo Basin Forest.

We are grateful to the Rufford Small Grant foundation for its financial support which allowed us to conduct this study in the Adamawa Plateau. Many thanks to Idea Wild foundation that also supported this research by granting field materials. We are indebted to Prof. Sophie Calmé (University of Sherbrooke, Canada) for her unconditional support during the preparation of the research grant proposal and for her revisions and suggestions to improve this manuscript. We also recognize the contribution of Prof. Christiane Denys (National Museum of Natural History, France) and Dr. Armand P. Mvogo Ndongo (University of Douala, Cameroon) for their great support on the research project proposal as well as their precious comments. We also thank R.J. Dowsett for his comments that improved an early version of this manuscript. We express our gratitude to Dr. Clarisse Njua Yafi (University of Yaounde I, Cameroon), who proof read this paper. Finally, we thank our local field guides who helped us sampling birds in the Adamawa region.

Authors declare that there is no conflict of interest.

1. Sibley CG, Monroe BL. Distribution and Taxonomy of Birds of the World. New Haven CT. London. Yale University Press. 1990.
2. Fry CH, Keith S. The birds of Africa VII. Christopher Helm, London. 2004.
3. Schidelko K, Stiels D, Rödder D. Historical stability of diversity patterns in African estrildid finches (Aves:Estrildidae)?. Biological Journal of the Linnean Society. 2011;102:455–470
4. Dickinson EC. The howard & moore complete checklist of the birds of the world. 3rd edn. Princeton. NJ Princeton University Press. 2003.
5. Goodwin D. Estrildid Finches of the World. Ithaca. New York. Cornell University Press. 1982.
6. Clement P, Harris A, Davis J. Finches and Sparrows. Princeton. Princeton University Press. 1993.
7. Demey R, Borrow N. A guide to the Birds of Western Africa. Princeton University Press. Princeton and Oxford. 2001:832.
8. Schidelko K, Wüstenhagen N, Stiels D, et al. Continental shelf as potential retreat areas for Austral-Asian estrildid finches (Passeriformes: Estrildidae) during the Pleistocene. Journal of Avian Biology. 2013;44:121–132.
9. Dean WRJ. The distribution and biology of nomadic birds in the Karoo. South Africa. Journal of Biogeography. 1997;24:769–779.
10. Nicolai J, Steinbacher J. Handbuch der Vogelpflege. Prachtfinken. Afrika. Stuttgart Eugen Ulmer. 2007.
11. Brandt M, Cresswell W. Breeding behaviour, home range and habitat selection in rock firefinches Lagonosticta sanguinodorsalis in the wet and dry season in central Nigeria. Ibis. 2008;150:495–507.
12. Demey R, Borrow N. A guide to the Birds of Western Africa: 2nd edn. Princeton University Press. 2014:592.
13. Payne RB. A new species of firefinch Lagonosticta from northern Nigeria and its association with the Jos Plateau indigobird Vidua maryae. Ibis. 1998;140:368–381.
14. Abalaka JI, Jones PJ. Population densities of the Rock Firefinch Lagonosticta sanguinodorsalis and some other estrildine and viduine finches on the Jos Plateau. Nigeria. In: Harebottle DM, Craig AJFK, Anderson MD, Rakotomanana H, Muchai M (eds) Proceedings of the 12th Pan-African Ornithological Congress, 2008. Cape Town. Animal Demography Unit. 2011:131–134.
15. Mills MSL. Rock firefinch Lagonosticta sanguinodorsalis and its brood parasite, Jos Plateau indigobird Vidua maryae, in northern Cameroon. Bulletin of the African Bird Club. 2010;17:86–89.
16. Del Hoyo J, Collar NJ, Christie DA, et al. Handbook of the Birds of the World and Bird Life International Illustrated Checklist of the Birds of the World. Passerines. Lynx Edicions and Bird Life International. Barcelona. Spain and Cambridge. UK. 2016;2.
17. Bird Life International. Lagonosticta sanguinodorsalis. The IUCN Red List of Threatened Species. 2017.
18. Boutrais J. Les conditions naturelles de l’élevage sur le Plateau de l’Adamaoua (Cameroun). Série lettres et Sciences Humaines.1974;2:145–198.
19. Louette M. The birds of Cameroon An annoted check-list. Verhandeling Wetens chappen Jaargang. 1981;43:1–163.
20. Letouzey R. Etude phytogéographique du Cameroun. Paris. edns Paul Lechevalier. 1968.
21. Suchel JB. Les climats du Cameroun. Thèse de Doctorat d’Etat. Tome III.1988:472.
22. Yonkeu S. Végétation des pâturages de l’Adamaoua (Cameroun). écologie et potentialités pastorales. Thèse de doctorat. Université de Rennes I. Rennes, France.1993:243.
23. Spencer R. The ringer's manual. 2nd edn. British Trust Ornithology. Beech Grove. Tring. Hertfordshire. England. 1972:28–42.
24. Keyes BE, Grue CE. Capturing birds with mist nets. a review. North American Bird Bander.1982;7:2–14.
25. Gill F, Donsker D. IOC World Bird List (version 10.1).2020. Doi 10.14344/IOC.ML.10.1.
26.  Abalaka JI, Ottosson Ulf, Larson K. et al. Rock Firefinch Lagonosticta sanguinodorsalis in the Mandara Mountains. north-east Nigeria. a new subspecies?. African Bird Club Bulletin. 2013;17(2):210–211.
27. Abalaka JI, Hansson B. Microsatellite markers for population genetic studies of the rock firefinch, Lagonosticta sanguinodorsalis. African Zoology.2014;49(2):301–306.
28. Olsson U, Alström P. A comprehensive phylogeny and taxonomic evaluation of the waxbills (Aves: Estrildidae). Molecular Phylogenetics and Evolution. 2020;146:106757.
29. Davies S. Nomadism as a response to desert conditions in Australia. Journal of Arid Environments. 1984;7:183–195.
30. Wright D, Jones P. Population densities and habitat associations of the range-restricted Rock Firefinch Lagonosticta sanguinodorsalis on the Jos Plateau, Nigeria. Bird Conservation International.2005;15:287–295.
31. Good AI. The birds of French Cameroon: Passerines. Mémoire de l’IFAN, Centre du Cameroun. Sciences Naturelles. 1953;2:1-203.
32. Fotso R, Dowsett-Lemaire F, Dowsett R J, et al. Cameroon in important bird areas of Africa and associate dislands. priority sites for conservation. In. Fishpool LDC, Evans MI, Eds. Birdlife Conservation Series N°11. Newbury and Cambridge. UK Pisces Publications and Birdlife International. 2001:133-159.
33. Languy M. The birds of Cameroon, their status and distribution. Tervuren. Belgium Royal Museum for Central Africa. 2019.
