The continuous applications of viscoelastic fluids in biomedical engineering and industrial processes require some studies that provide better physical insights into the flow phenomena of the fluids. In this work, homotopy perturbation method is applied to investigate the simultaneous effects of slip and magnetic field on the flow of an upper convected Maxwell nanofluid through a permeable microchannel embedded in a porous medium. The results of the approximate analytical solution depict very good agreements with the results of the fourth order Runge-Kutta Fehlberg numerical method for the verification of the mathematical method used in analyzing the flow. Thereafter, the obtained analytical solutions are used to investigate the effects of pertinent rheological parameters on the flow process. It is observed from the results that increase in slip parameter, nanoparticle concentration and Darcy number lead to increase in the velocity of the upper-convected Maxwell fluid. However, when the Deborah’s number increases, the Hartmann, and Reynold numbers decrease the fluid flow velocity towards the lower plate but as the upper plate is approached, a reverse trend is observed. The study can be used to advance the application of upper convected Maxwell flow in the areas of in biomedical, geophysical and astrophysics.
Keywords: slip analysis, upper-convected Maxwell flow, viscoelastic nanofluid, magnetic field, porous medium
There have been increasing research works in the past few years on analysis of flow of viscoelastic fluid. This is due to its various applications in gaseous diffusion, blood flow through oxygenators, flow in blood capillaries have continue to aroused the research interests. However, complex rheological fluids such as blood, paints, synovial fluid, saliva, jam which cannot be adequately described by Navier Stokes. Consequently, complex constitutive relations that capture the flow behaviour of the complex fluids have been developed.1 Among the newly developed integral and differential-type fluid flow models, Upper convected Maxwell fluid model has showed to be an effective fluid model that captures the complex flow phenomena of fluids especially of the fluid with high elastic behaviours such as polymer melts. Such highly elastic fluids have high Deborah number.2‒3 In the analysis of Maxwell flow, Fetecau4 presented a new exact solution for the flow of fluid through infinite microchannel while Hunt5 studied convective fluid flow through rectangular duct. Sheikholeslami et al.6 investigated magneto hydrodynamic field effect on flow through semi-porous channel utilizing analytical methods. Shortly after, Sheikholeslami7‒9 adopted numerical solutions in the investigations of nanofluid in semi-annulus enclosure.
Flow of upper convected Maxwell fluid through porous stretch sheet was investigated by Raftari & Yildirim.10 Entophy generation in fluid in the presence of magnetic field was analyzed by Sheikholeslami & Ganji11 using lattice Boltzmann method while Ganji et al.12 explored analytical and numerical methods to analyze the fluid flow problems under the influence of magnetic field. The flow of viscoelastic fluid through a moving plate was analyzed by Sadeghy & Sharifi13 using local similarity solutions. Vajrevulu et al.14 investigated the mass transfer and flow of chemically reactive upper convected Maxwell fluid under induced magnetic field. Not long after Raftari & Vajrevulu15 adopted the homotopy analysis method in the study of flow and heat transfer in stretching wall channels considering MHD. Hatami et al.16 presented forced convective MHD nanofluid flow conveyed through horizontal parallel plates. Laminar thermal boundary flow layer over flat plate considering convective fluid surface was analyzed by Aziz17 using similarity solution. Beg & Makinde18 examined the flow of viscoelastic fluid through Darcian microchannel with high permeability.
Most of the above reviews studies focused on the analysis of fluid flow under no slip condition. However, such an assumption of no slip condition does not hold in a flow system with small size characteristics size or low flow pressure. The pioneer work of flow with slip boundary condition was first initiated by Navier.19 The slip conditions occur in various flows such as nanofluids, polymeric liquids, fluids containing concentrated suspensions, flow on multiple interfaces, thin film problems and rarefied fluid problems.19‒31 Due to the practical implications of the condition on the flow processes, several studies on the effects of slip boundary conditions on fluids flow behaviours have been presented by many researchers.19‒35 Abbasi et al.36 investigated the MHD flow characteristics of upper-convected Maxwell viscoelastic flow in a permeable channel under slip conditions. However, an analytical study on simultaneous effects of slip, magnetic field, nanoparticle and porous medium on the flow characteristics of an upper-convected Maxwell viscoelastic nanofluid has not been carried out in literature. Therefore, in this work, homotopy perturbation method is used to analyze the slip flow of an upper-convected Maxwell viscoelastic nanofluid through a permeable microchannel embedded in porous medium under the influence of magnetic field is analyzed. Also, the effects of other pertinent parameters of the flow process are investigated and discussed.
Consider a laminar slip flow of an electrically conducting fluid in a microchannel is considered. Along the y axis, magnetic fields are imposed uniformly, as described in the physical model diagram Figure 1. It is assumed external electric field is zero and constant of electrical conductivity is constant. Therefore, magnetic Reynolds number is small and magnetic field induced by fluid motion is negligible.

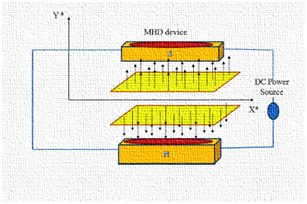

Figure 1 Flow of upper-convected Maxwell fluid between in permeable channel embedded in porous medium.
Based on the assumptions, the governing equation for the Maxwell fluid is presented as8
T=-PI+ST=-PI+S (1)
where the Cauchy stress tensor is T and S is the extra-stress Tensor which satisfies
S+λ(∂S∂t+(V⋅∇)S-LS−SLT)=μALS+λ(∂S∂t+(V⋅∇)S-LS−SLT)=μAL (2)
The Rivlin-Ericksen tensor is defined by
AL=∇V+(∇V)TAL=∇V+(∇V)T (3)
The continuity and momentum equations for steady, incompressible two dimensional flows are expressed in Eqs. (4) -(6) as
∂ˉu∂x+∂ˉv∂y=0∂¯u∂x+∂¯v∂y=0 (4)
ρnf(u∂u∂x+v∂u∂y)=−∂P∂x+∂Sxx∂x+∂Sxy∂y−σnfB2(t)u−μnfuKp,ρnf(u∂u∂x+v∂u∂y)=−∂P∂x+∂Sxx∂x+∂Sxy∂y−σnfB2(t)u−μnfuKp,(5)
ρnf(ˉu∂ˉv∂x+ˉv∂ˉv∂y)=−∂P∂x+∂Syx∂x+∂Syy∂y−μnfˉvKp,ρnf(¯u∂¯v∂x+¯v∂¯v∂y)=−∂P∂x+∂Syx∂x+∂Syy∂y−μnf¯vKp,(6)
where the effective density and effective dynamic viscosity of the nanofluid are defined as follows:
ρnf=(1−ϕ)ρf+ϕρs,ρnf=(1−ϕ)ρf+ϕρs,
μnf=μf(1−ϕ)2.5,μnf=μf(1−ϕ)2.5,
σnf=σf[1+3{σsσf−1}ϕ{σsσf+2}ϕ−{σsσf−1}ϕ],σnf=σf⎡⎢⎣1+3{σsσf−1}ϕ{σsσf+2}ϕ−{σsσf−1}ϕ⎤⎥⎦,
andSxx,Sxy,Syx and Syy are extra stress tensors and ρ is the density of the fluid. Using the shear-stress strain for a upper-convected liquid, The governing equations of fluid motion is easily expressed as16
∂u∂x+∂v∂y=0∂u∂x+∂v∂y=0(7)
u∂u∂x+v∂u∂y+λ(u2∂2u∂x2+v∂2u∂y2+2uv∂2u∂x∂y)=vnf∂2u∂y2−σnfB2(t)uρnf−νnfuKp,u∂u∂x+v∂u∂y+λ(u2∂2u∂x2+v∂2u∂y2+2uv∂2u∂x∂y)=vnf∂2u∂y2−σnfB2(t)uρnf−νnfuKp,(8)
where flow velocity component (u,v) are velocity component along the x and y directions respectively. Since flow is symmetric about channel center line, attention is given to the flow region 0<y<H. Appropriate boundary conditions are given as
y=0:∂u∂x=0,v=0y=0:∂u∂x=0,v=0(9)
y=H:∂u∂y=−βu, v=Vwy=H:∂u∂y=−βu,v=Vw(10)
where Vw and β are the wall characteristic suction velocity and sliding friction respectively.
The physical and thermal properties of the base fluid and nanoparticles are given in Table 1 and Table 2, respectively.
Base fluid |
ρ(kg/m3) |
Cp (J/kgK) |
k(W/mK) |
σ(Ω-1m-1) |
Pure water |
997.1 |
4179 |
0.613 |
5.5 |
Ethylene Glycol |
1115 |
2430 |
0.253 |
1.07 |
Engine oil |
884 |
1910 |
0.144 |
4.02 |
Kerosene |
783 |
2010 |
0.145 |
4.01 |
Table 1 Physical and thermal properties of the base fluid
Nanoparticles |
ρ(kg/m3) |
Cp(J/kgK) |
k(W/mK) |
σ(Ω-1m-1) |
Copper (Cu) |
8933 |
385 |
401 |
59.6 |
Aluminum oxide (Al2O3) |
3970 |
765 |
40 |
16.7 |
SWCNTs |
2600 |
42.5 |
6600 |
1.26 |
Silver (Ag) |
10500 |
235 |
429 |
|
Titanium dioxide (TiO2) |
4250 |
686.2 |
8.9538 |
|
Copper (II) Oxide (CuO) |
783 |
540 |
18 |
|
Table 2 Physical and thermal properties of nanoparticles
The similarity variables are introduced as:
η=yH, u=−Vwxf'(y); v=Vwf(y); k=μHβ(11)
With the aid of the dimensionless parameters in Eq. (11), the constitutive relation is satisfied. Equation (2-4) can be expressed as:
f'''−(M2+1Da)f'+(1−ϕ)2.5((1−ϕ)+ϕρsρf)Rew(f'2−ff'')+De(1−ϕ)2.5(2ff'f''−f2f''')=0 (12)
Taking boundary condition as
η=0:f''=0;f=0(13)
where Rew=VwHυ is the Reynolds number,De=λV2wυ is the Deborah’s number,M2=σB20Hμ is the Hartman parameter, Da=KpH is the Darcy’s number. For Rew>0 corresponds to suction flow while Rew<0 correspond to injection flow respectively.
Equ. (13) is a third-order differential equation with four boundary conditions. Through a creative differentiation of Eq. (12). Hence introducing fourth order equation as:
fiv−(M2+1Da)f″+(1−ϕ)2.5((1−ϕ)+ϕρsρf)Rew(f′f″−ff‴)+De(1−ϕ)2.5(2f′2f''−2ff″2+f2fiv)=0
(14)
The above Eq. (14) study satisfies all the four boundary conditions
Principles of homotopy perturbation method
The following equation is considered in explaining the fundamentals of the homotopy perturbation method [10]
A(u)−f(r)=0 r∈Ω(15)
Utilizing the boundary condition
B(u,∂u∂η)=0 r∈Γ(16)
A is the general differential operator, B is the boundary operator, f(r) is the analytical function and Γ is the boundary domain of Ω. Separating A into two components of linear and nonlinear terms L and N respectively. The Eq. (21) is reconstructed as
L(u)+N(u)−f(r)=0 r∈Ω(17)
Homotopy perturbation structure takes the form
H(v,p)=(1−p)[L(v)−L(u0)]+P[A(v)−f(r)]=0(18)
Where
v(r,p):Ωx[0,1]−R (19)
p ϵ(0, 1) is the embedding parameter and U0 is taken as the initial term that satisfies boundary condition. The power series of Eq. (24) can be expressed as:
v=v0+pv1+p2v2+p3v3+...(20)
Most appropriate solution for the problem takes the form
u=limp→1(v0+pv1+p2v2+p3v3+...)=v0+v1+v2+v3+... (21)
Application of the homotopy perturbation method to the flow problem
The homotopy pertubation method which is an analytical scheme for providing approximate solutions to the ordinary differential equations, is adopted in generating solutions to the coupled ordinary nonlinear differential e quation .Upon constructing the homotopy, the Eqs. (11)- (12) can be expressed as
(1−p)(fiv)+p(fiv−(M2+1Da)f″+(1−ϕ)2.5((1−ϕ)+ϕρsρf)Rew(f′f″−ff‴)+De(1−ϕ)2.5(2f′2f''−2ff″2+f2fiv)=0)=0(22)
Taking power series of velocity and rotation fields yields
f=f0+p1f1+p2f2+p3f3.+..(23)
Substituting Eq. (23) into (22) and collecting the like terms of the various order yields
p0:fiv0=0(24)
p1:fiv1−(M2+1Da)f″0+(1−ϕ)2.5((1−ϕ)+ϕρsρf)Rew(f′0f″0−f0f‴0) +De(1−ϕ)2.5(2f′20f″0−2f0f″02+f20fiv0)=0=0(25)
p2:fiv2−(M2+1Da)f″1+(1−ϕ)2.5((1−ϕ)+ϕρsρf)Rew(f′1f″0+f′0f″1−f1f0′′′−f0f‴1) +De(1−ϕ)2.5(2f′20f″1−2f1f″02+f20fiv1)=0=0(26)
The boundary conditions are
η=0:f0=f1=f2=...=0, f″0=f″1=f″2=...=0(27)
η=1:f0=f1=f2=...=1, f′0=−kf″0, f′1=−kf1′′, f′2=−kf2′′,...
On solving Eq. (24) applying the boundary conditions yields
f0(η)=−12(3k+1)η3+3(2k+1)2(3k+1)η
(26)
Also, solving Eq. (25) applying the corresponding boundary conditions yields
f1(η)=12{5336De(1−ϕ)2.5η9(3k+1)−32(−0.0071649(1−ϕ)2.5((1−ϕ)+ϕρsρf)Rew−0.042857De−0.0023810(1−ϕ)2.5((1−ϕ)+ϕρsρf)Rew−0.085714Dek)η727k3+27k2+9k+1+3(−0.15(M2+1Da)k2−0.1(M2+1Da)k−0.016667(M2+1Da)+0.3Dek2+0.3De(1−ϕ)2.5k+0.075De(1−ϕ)2.5)η527k3+27k2+9k+1−1420[(378De(1−ϕ)2.5k3−1890(M2+1Da)k3−189(1−ϕ)2.5((1−ϕ)+ϕρsρf)Rewk2+2268DDe(1−ϕ)2.52−1638(M2+1Da)k2−90(1−ϕ)2.5((1−ϕ)+ϕρsρf)Rewk−462(M2+1Da)k+468De(1−ϕ)2.5k)η31+54k2+12k+108k3+81k4+(−9(1−ϕ)2.5((1−ϕ)+ϕρsρf)Rew+52De(1−ϕ)2.5−42(M2+1Da))1+54k2+12k+108k3+81k4]+1560[(−8(1−ϕ)2.5((1−ϕ)+ϕρsρf)Rew−96(1−ϕ)2.5((1−ϕ)+ϕρsρf)Rewk−1764(M2+1Da)k3+1440De(1−ϕ)2.5k2+77De(1−ϕ)2.5k−364(M2+1Da)k)η1+54k2+12k+108k3+81k4+(−1428(M2+1Da)k2+3528De(1−ϕ)2.5k3−216(1−ϕ)2.5((1−ϕ)+ϕρsρf)Rewk2−28(M2+1Da)+7De(1−ϕ)2.5)η1+54k2+12k+108k3+81k4]} (27)
By the definition of homotopy perturbation method, we have
f(η)=−12(3k+1)η3+3(2k+1)2(3k+1)η+12{5336De(1−ϕ)2.5η9(3k+1)−32(−0.0071649(1−ϕ)2.5((1−ϕ)+ϕρsρf)Rew−0.042857De−0.0023810(1−ϕ)2.5((1−ϕ)+ϕρsρf)Rew−0.085714Dek)η727k3+27k2+9k+1+3(−0.15(M2+1Da)k2−0.1(M2+1Da)k−0.016667(M2+1Da)+0.3Dek2+0.3De(1−ϕ)2.5k+0.075De(1−ϕ)2.5)η527k3+27k2+9k+1−1420[(378De(1−ϕ)2.5k3−1890(M2+1Da)k3−189(1−ϕ)2.5((1−ϕ)+ϕρsρf)Rewk2+2268DDe(1−ϕ)2.52−1638(M2+1Da)k2−90(1−ϕ)2.5((1−ϕ)+ϕρsρf)Rewk−462(M2+1Da)k+468De(1−ϕ)2.5k)η31+54k2+12k+108k3+81k4+(−9(1−ϕ)2.5((1−ϕ)+ϕρsρf)Rew+52De(1−ϕ)2.5−42(M2+1Da))1+54k2+12k+108k3+81k4]+1560[(−8(1−ϕ)2.5((1−ϕ)+ϕρsρf)Rew−96(1−ϕ)2.5((1−ϕ)+ϕρsρf)Rewk−1764(M2+1Da)k3+1440De(1−ϕ)2.5k2+77De(1−ϕ)2.5k−364(M2+1Da)k)η1+54k2+12k+108k3+81k4+(−1428(M2+1Da)k2+3528De(1−ϕ)2.5k3−216(1−ϕ)2.5((1−ϕ)+ϕρsρf)Rewk2−28(M2+1Da)+7De(1−ϕ)2.5)η1+54k2+12k+108k3+81k4]} (28)

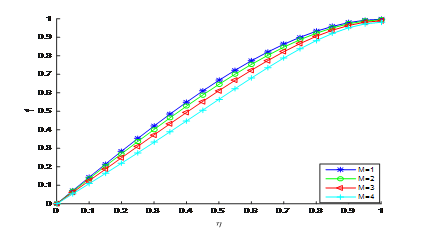

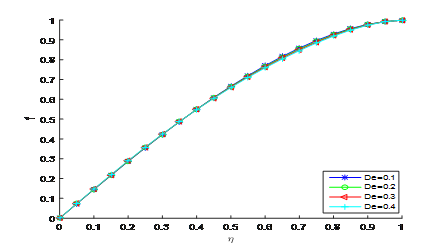

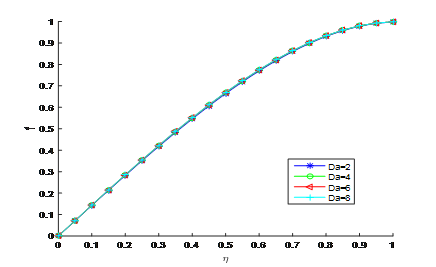

The results of the homotopy perturbation method for the problem investigated have been with the results of the fourth-order Runge-Kutta Fehlberg numerical method (for the simplified case) as shown in Table 3. As observed from the Table, good agreements are established between the results of the numerical and homotopy analysis methods. Using copper nanoparticle and water, the results obtained from the analytical solution are shown graphically in Figures 2-9, when Rew = 8, De = 0.1, M = 2, ℏ=0.1 ,Da = 2 and ϕ=0.01 , unless otherwise stated. Figure 2 depicts the influence of nanoparticle concentration (ϕ) on the flow process. As shown from the Figure, as the nanoparticle concentration increases, there is an increase in the velocity distribution. It is very important to indicate viscoelastic nature of the fluid. Therefore, the effects of Deborah’s number on the flow process are depicted in Figure 3. In the Figure, it illustrated in that increase in Deborah’s number (De) which illustrates the UCM as highly elastic fluid (such as polymeric melts) depicts decrease in fluid flow velocity. The influence of magnetic field parameter on flow of the UCM fluid under is depicted in Figure 4. As observed in the figure, the numerical increase of the magnetic or Hartmann parameter (M) shows decreasing velocity profile. This is because the applied magnetic field produces a damping effect (Lorentz force) on the flow process. This damping affects increases as the quantitative or numerical value of the Hartmann number increases. It should be noted that the effects magnetic field parameter is maximum towards the upper flow channel. In order to shown the effect of the permeability of the porous medium on the flow, effect of Darcy parameter (Da) on fluid transport is illustrated in Figure 5. Increasing Darcy number demonstrates increasing velocity profile as shown in the figure.
η |
RKFNM |
HPM |
|RKFNM-HPM| |
0 |
0 |
0 |
0 |
0.05 |
0.070154 |
0.0701 |
5.46E-05 |
0.1 |
0.139997 |
0.139899 |
9.76E-05 |
0.15 |
0.209217 |
0.209199 |
1.77E-05 |
0.2 |
0.259219 |
0.259201 |
1.76E-05 |
0.25 |
0.344546 |
0.344499 |
4.76E-05 |
0.3 |
0.410038 |
0.409999 |
3.96E-05 |
0.35 |
0.473672 |
0.473598 |
7.37E-05 |
0.4 |
0.535148 |
0.535102 |
4.59E-05 |
0.45 |
0.594153 |
0.594098 |
5.51E-05 |
0.5 |
0.650402 |
0.650348 |
5.37E-05 |
0.55 |
0.7036 |
0.703084 |
5.16E-05 |
0.6 |
0.75345 |
0.753398 |
5.19E-05 |
0.65 |
0.79968 |
0.799599 |
8.18E-05 |
0.7 |
0.842013 |
0.841977 |
3.56E-05 |
0.75 |
0.880181 |
0.88013 |
5.06E-05 |
0.8 |
0.913929 |
0.913899 |
2.94E-05 |
0.85 |
0.94301 |
0.942976 |
3.41E-05 |
0.9 |
0.967193 |
0.967159 |
3.45E-05 |
0.95 |
0.986257 |
0.9862 |
5.74E-05 |
1 |
1 |
1 |
0 |
Table 3 Comparison of results of numerical and homotopy analysis method for f(η), when De=0.1, Da-1=ϕ =M=0, K=0.1, Rew=4
Figure 2 Effecct of nanoparticle concentration number (ϕ ) on the axial velocity of the flow process.

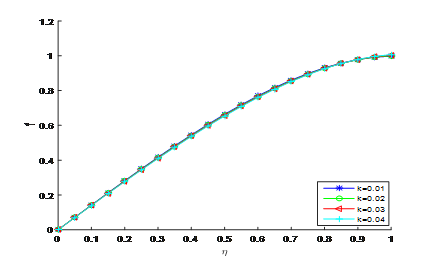

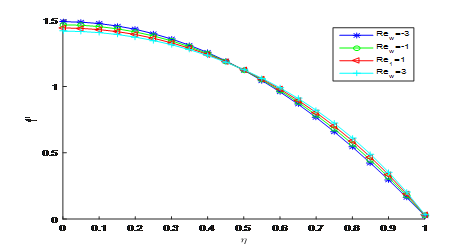

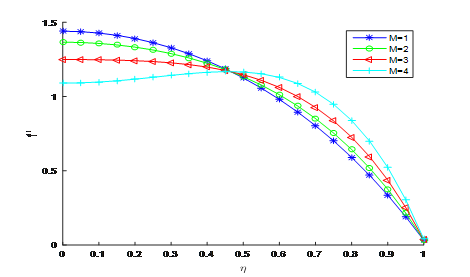

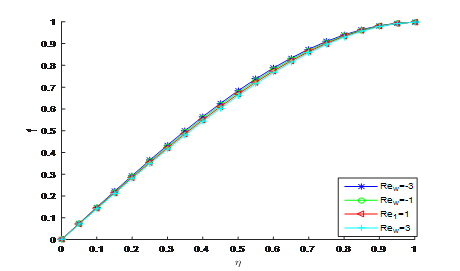

Figure 6 shows the effect of fluid slip parameter (k) on the velocity of the fluid flow. It should be noted that the slip parameter depicts that the fluid velocity at the boundary is not at equal velocity with fluid particles closest to flow boundary due to large variance in macro and micro fluid flow. As observed from the Figure 6, increasing the slip parameter leads to decreasing velocity distributions of the process. In order to show the relative significance of the inertia effect as compared to the viscous effect, the effect of Reynolds number on the flow phenomena is illustrated in the Figure 7. It is established form the graphical display that increasing Reynolds number (Rew) causes decrease in flow profile which effect is maximum towards the upper plate. Figure 8 shows the effect of Reynolds number on the radial velocity component of the flow. It is shown that increasing the Reynolds number causes decrease in velocity distribution but as flow reaches the mid plate around η=0.5 (not determined accurately) an increasing velocity distribution is seen. However, effect is minimal towards the upper plate. Also, influence of magnetic field on radial velocity is depicted in Figure 9, as shown significant increase in velocity is seen due to quantitative increase of Hartmann parameter (M) towards the lower plate while as upper plate is approached a reverse trend is observed.
