The presence of allergens and dangerous compounds in cosmetic products is a current social problem. Indeed, it can cause various coetaneous and allergic reactions. Thus, the European standard NF EN 16274, a regulation on allergens in cosmetics, request from manufacturers to write the name of the 24 allergens on their labels when they exceed a certain threshold. However, currently, only 23 of these allergens should be labelled because of a new regulation published in August 2017, the EU 2017/1410, banned the use of atranol, chloroatranol andone allergen included in the previous standard, the lyral, in cosmetic products. Therefore, a retrospective study was carried out by the EXPERTOX laboratory on cosmetic products studied by gas chromatography and mass spectrometry between January 2015 and July 2017. Products in the study are fragrances, oils, soaps, creams and raw materials used in the manufacture of cosmetics. The results show the clear predominance of allergens in perfumes and soaps while no raw material contained allergens. Linalool and limonene are two of the most common allergens in products, while four allergens in the standard are completely absent from the products analyzed. Differences according to the origin of the product are also visualized: the fragrances coming from France have more allergens than those coming from Switzerland.

Keywords: cosmetics, retrospective study, allergens, nfen16274, standard, 2017/1410regulation

GC-MS, gas chromatography mass spectrometry; LOD, limit of detection; PCS, product containing the substance

Cosmetics are believed to cause skin reactions in 15 to 20% of the population. These reactions can be either an irritant contact or an allergic contact that can lead to the appearance of eczema.¹ The irritant contact can be caused by deodorants, aftershave or shampoos. In addition, the European Scientific Committee on Consumer Safety has indicated in a report that 1 to 3% of the European population suffers from allergic reactions resulting from the exposure of the skin to certain ingredients contained in cosmetic products, especially perfumes.² Thus, since 2005, 26 substances known to be allergens must be compulsorily included on the labels of cosmetic products in order to inform consumers when those substances exceed a certain threshold in the final product. This threshold is 0.001% in a product without rinsing such as a cream and 0.01% in a product with rinsing such as a shampoo. Among these substances, 2 are natural extracts, 8 are exclusively of synthetic origins and finally, 16 can have either a natural or a synthetic origin. 56 other substances can also be characterized as being capable of causing an allergic reaction but are not necessarily indicated on the label by the producers.³

In 2013, the European ban on animal testing in the cosmetics industry led to the introduction of alternative methods for the detection and the analysis of allergens. The "European Union Reference Laboratory for Alternatives to Animal Testing" has developed three skin sensitization methods that can reveal allergens. There are two in vitro tests: the Keratinosens and the human Cell Line Activation Test and one chemical test: the Direct Peptide Reactive Assay.⁴ Self-testers are also available and recommended by many manufacturers to highlight the presence of allergens. However, they have negative points such as a lack of harmony in the conditions of use and instructions between the different sellers.⁵ In August 2017, the European Commission introduced a new regulation: the regulation number 2017/1410.⁶ Lyral®, atranol and chloroatranol have been banned from use in cosmetic products. Indeed, these are the substances that cause the most important number of allergic reactions. The measure will apply from August 23, 2019 and will be fully applicable from August 23, 2021.

The EXPERTOX laboratory uses the gas chromatography and mass spectrometry (GC-MS) for a full validation of the presence of allergens. Therefore, it is intended to apply the European and French standard NF EN 16274 and the EU 2017/1410 regulation. The first one has implemented a method of quantification and analysis of allergenic fragrances in cosmetic finished products or in the raw materials used to create them. Thus, a retrospective study, based on cosmetic products, was carried out between January 2015 and July 2017 in order to study the 24 different allergenic substances indicated in this standard and atranol and chloroatranol. The aim was to detect the presence and the distribution of allergens according to the different types of cosmetics' products and to the geographical origin of the products.

Standards, reagents and solvents

The selected compounds used in the present work are: Anise Alcohol, Amyl Cinnamal, Amylcinnamyl Alcohol, α-Isomethylionone, Benzyl Alcohol, Benzyl Benzoate, Benzyl Cinnamate, Benzyl Salicylate, Citronellol, Cinnamyl Alcohol, Cinnamal, Citral, Coumarin, Eugenol, Farnesol, Geraniol, Hexylcinnamal, Hydroxycitronellal, Isoeugenol, Lyral®, Lilial®, Limonene, Linalool, Methyl-2-octynoate were acquired from Sigma-Aldrich. All fragrance standards have a known purity. The internal standard used is: 1,4-dibromobenzene and was supplied by Sigma Aldrich. The solvent, supplied by Servilab, is Methanol. All reagents are of analytical grade. The solvent is of GC-MS analysis grade. For the quantification of atranol and chloroatranol, the samples were diluted to one-tenth in ethanol provided by servilab and analyzed by GC-MS.

The retrospective study of allergen analysis was carried out on 55 cosmetic products studied between January 2015 and July 2017 by the EXPERTOX laboratory. Among them, there are 25 fragrances (eau de toilette and eau de parfum), 13 soaps, 6 creams, 4 oils, 4 raw materials extracted from plants and used to create cosmetic products and 3 lotions. The 24 allergens indicated in the standard NF EN 16274were analyzed for each product. Their concentrations were studied according to different parameters such as the type of product and their country of manufacture. Moreover, atranol and chloroatranol were studied in 18 raw materials in 2017 but were never detected. During the analysis of the cosmetic products, it was detected that 5 allergens (limonene, linalool, citral, geraniol and citronellol) were present in more than the half of the products (Table 1). More than 80% of the studied products contained the first two allergens (81% of the products contained limonene and 89% contained linalool). It should be known that many essentials oils contain limonene and that linalool is present in many plants.⁷ Both are used in cosmetics especially for fragrances and soaps. The absorption of limonene by the respiratory route is more than 50% and may cause irritation of the upper aerodigestive tract.⁸ In contrast, dermal toxicity is low and is only caused by limonene metabolites when the compounds are oxidized.⁹ Limonene is non-mutagenic and non-carcinogenic. For linalool, when it is applied to the skin as a fragrance ingredient, it is also non-carcinogenic. For humans, after a cutaneous application with massage, the linalool is present in the blood after 5 minutes. Nevertheless, the toxicity of this allergen is not severe.¹⁰ Thus, the linalool has a sensitizing power although the number of allergic reactions due to this allergen is low and it occurs only when the linalool is oxidized in contact with oxygen.

The other three allergens (citral, geraniol and citronellol) detected in more than the half of the cosmetic products studied by EXPERTOX are mainly used for soaps and perfumes. These allergens are neither mutagenic nor carcinogenic. Essential oils, plants (for geraniol and citronellol) and some fruits (for geraniol) contain these allergens. Citral and citronellol can also be produced by chemical synthesis.⁷ The most common symptom caused by citral is a skin irritation and the inhalation can cause coughing.¹¹ Nevertheless, citral is a weak skin sensitizer. For geraniol and citronellol, some studies have been carried out. A 5-year US study showed that geraniol is involved in 1.1% (8 out of 713 cases) of patients with contact dermatitis caused by cosmetics.¹² This allergen is known to have a sensitizing effect and to cause contact allergies sometimes accompanied by a hyper pigmentation.¹³ According to another study conducted in vitro on human skin, it was shown that citronellol was rapidly absorbed in significant amounts by all layers of the skin. Thus, if the application to the skin is too high, it would cause moderate to severe skin irritation.¹⁴ Nevertheless, inhalation toxicity would be low. Citronellol would cause skin sensitization in 0.4% of individuals using cosmetics.¹⁵

In addition, 8 substances were detected in less than 10% of the products (Tables 1 & 2): cinnamyl alcohol was detected in 9% of the studied products, isoeugenol in 2% of the products, farnesol in 7% and methyl 2- octynoate in 4% of the products. The 4 other substances (benzyl cinnamate, anise alcohol, amylcinnamyl alcohol and amyl cinnamal) were never quantified in the carried out tests. These 4 substances totally absent from the cosmetics studied in the EXPERTOX laboratory have only a few studies concerning their toxicity. Nevertheless, they are neither mutagenic nor carcinogenic. Amylcinnamyl alcohol and amyl cinnamaldo not exist in natural form and they are obtained by chemical synthesis.⁷ In very large quantities, amylcinnamyl alcohol can cause hives but remains a weak skin sensitizer.¹⁶ A study published in 1999 revealed that 7 out of 179 people suspected to be allergic to allergens had a positive reaction when 20% ​​alpha amylcinnamyl alcohol was applied to them (even if it is a very high concentration).¹⁷

Lyral® was detected in 10 products during the analysis (Table 1). However, since 2017, the European Regulation has banned this substance from cosmetics products because it isconsidered as an important sensitizer and can cause a high number of allergic reactions.⁶ Indeed, a study, published in 2004 and conducted in 20 dermatological departments in Germany, showed that 62 out of 3245 patients presented a positive allergic reaction following contact with a perfume with a lyral® concentration of 5%.¹² Thus, manufacturers should remove the products containing this substance. It is important to notice that during the analysis, linalool was detected in all the perfumes (Table 1), all the soaps and all the lotions. Limonene has also beenquantified in all soaps and lotions but in a lower proportion than linalool. Finally, all the lotions contained lilial and benzyl benzoate as well. These two allergens can be obtained by a chemical synthesis and benzyl benzoate also exists in natural form.⁷ They have perfuming properties and are neither mutagenic nor carcinogenic. Both are weak skin sensitizers.¹²

Nevertheless, only three lotions were studied, so these results are not representative. Among the 55 analysis, we can notice the clear predominance of the presence of different types of allergens in eau de parfum and eau de toilette and in soaps compared to other products with respectively 20 out of 24 allergens for all fragrances and 16 out of 24 for all the soaps (Table 3). In contrast, no allergen was detected in the raw materials. However, when data are reported for one product in each category, soaps have the highest number of different allergens per product with an average of 8.9 substances for one product, one more than the fragrances (7.9 per product) and far ahead of creams (4.5), lotions (4) and oils (3.75). Moreover, the proportion of allergens present in the fragrances is higher than their proportion in the other products (Table 3). By adding the percentage of each allergenic substance (Table 1) by type of product, we can notice that the total proportion of allergen is 5.52% in the fragrances. That is 46 times more than in creams (where they represent 0.12% of the product), 30 times more than in lotions (0.18% of the product), 14 times more than in oils (0.40% of the product) and 9 times more than in the soaps (0.61% of the final product) per product (Figure 1). Moreover, the proportion of allergens in these final products is considerably higher in France with an average of 6.64% of allergens substances in the product, whereas this proportion is less than 1% in final products created in Switzerland (Figure 2).

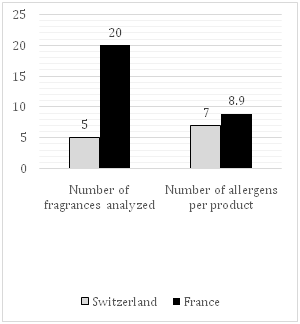

Figure 1 Comparison of French and Swiss fragrances.

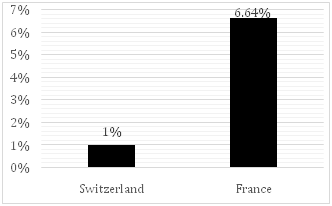

Figure 2 Proportion of allergens per fragrance.

Finally, a comparative analysis of eau de parfum and eau de toilette according to their geographical origin could be carried out. Thus, the study of allergens in fragrances produced in France (20 samples) compared to those produced in Switzerland (5 samples) indicated that the number of allergens per product was higher in France than in Switzerland with respectively 8.9 and 7 allergens The results of this retrospective study of the analysis carried out between January 2015 and July 2017 have revealed a difference in the proportion of allergens in cosmetics according to product type. It has also been shown that 5 allergens were present in most of the products (citral, geraniol, linalool, citronellol, limonene) while others were completely absent from the products analysed. Moreover, lyral® was quantified in 10 of 55 products although it has been baned by a recent legislation. These allergens are skin sensitizers, at different levels depending on the allergen. They can cause coetaneous or allergic reactions, eczema, hives etc. when the consumers are using cosmetics products. This is why, as indicated by the European standard NF EN 16274, the 24 volatile allergens must be written on the labels when their concentration exceeds a certain threshold. In addition, following regulation number 2017/1410, it will be necessary to remove products containing lyral®, atranol and chloroatranol because it is banned from cosmetic products.

None.

The author declares no conflict of interest.

1. Presles P. Cosmétiques: irritation ou allergie ? e–sante fr. 2012.
2. Chambers, Chaudry Q, Rastogi SC. Scientific Committee on Consumer Safety. Opinion on fragrance allergens in cosmetic products. 2012:3–334.
3. Poire C, Pirnay S. Les allergènes: vers un durcissement de la réglementation européenne ? Industries Cosmétiques. 2015;6:4–6.
4. Meslin M, Pirnay S. Ladverse out come pathway et létude du potentiel de sensibilisation cutané. Industries cosmétiques. 2017.
5. Meeting of the sub–group on skin allergens. Belgium: European Commission; 2017. 7 p.
6. Regulations. European Commission, Official Journal of the European Union; 2017. 3 p.
7. Paris RR, Moyse H. Précis de matière médicale. France: Masson & Cie; 1981. 518 p.
8. INRS. Dipentèneoud, l–Limonène. Fiche Toxicologiquen; 2004. 227 p.
9. Matura M, Goossens A, Bordalo O, et al.Patch testing with oxidized R–(+)–limonene and its hydro peroxide fraction. Contact Dermatitis. 2003;49(1):15–21.
10. Letizia CS, Cocchiara J, Lalko J, et al. Fragrance material review on linalool. Food Chem Toxicol. 2003;41(7):943–964.
11. Favière C. Eugénol et plantesà eugénol. France: Thesis of doctor in Pharmacy; 1995.
12. Lair PY. A propos des 26 allergènes de la directive 2003/15/CE. France; 2006. 143 p.
13. Smolinske S. CRC Handbook of food drug and cosmetic excipients. USA: CRC Press; 1992. 439 p.
14. The Flavor and Fragrance High Production Volume Consortia. The Terpene consortium Registration number, USA; 2001.
15. Frosh PJ, Johansen JD, Menné T, et al. Further important sensitizers in patients sensitive to fragrances. Contact Dermatitis. 2002;47(5):279–287.
16. Fontaine JF. Allergie aux parfums. France; 2010.
17. The Scientific Committee on Cosmetic Products and Non–Food Products Intended for Consumers. Opinion concerning fragrance allergy in consumers. 1999:63.
