The effects of EDTA on Cu²⁺ uptake by spinach (Spinacea oleracea L) seedlings replanted in hydroponic solutions in a greenhouse investigated. Four week old seedlings, were exposed to various doses of Cu²⁺ (0, 5, 10, 15, and 20mg/L) and constant concentration of EDTA (10mM). From 15 to 20mg/L Cu²⁺, there was a substantial increase in copper uptake in Chelated treatments (p<0.05) compared to Unchelated treatments of same concentrations of Cu²⁺. So, chelation enhanced Cu²⁺ uptake by spinach. The Cu²⁺-induced proline accumulation in shoots was also determined. The proline content increased significantly (p<0.05) with increasing Cu²⁺ concentrations. Free proline is known to accumulate in plants under heavy metals exposure and considered to be involved in stress resistance.

Keywords: proline, hydroponic, chelation, spinach, greenhouse, ethylene diamines tetra acetic acid [EDTA]

Copper is an essential micronutrient in plants that supports many physiological processes including plant growth and metabolism, it plays a significant role in a number of physiological processes such as the photosynthetic and respiratory electron transport chains, nitrogen fixation, protein metabolism, antioxidant activity, cell wall metabolism, hormone perception and as a structural and catalytic component of proteins and enzymes. However, when absorbed in excess quantities, Cu is highly toxic to plant growth potentially leading to physiological disorders Karimi et al.¹ It has been reported that excess Cu, at the cellular level, causes molecular damage to plants via the generation of reactive oxygen species (ROS) and free radicals.^2,3 Oxidative stress by formation of ROS and oxidation of biomolecules such as lipids, proteins, nucleic acids, carbohydrates, and almost every other organic constituent of the living cell is an important aspect of Cu toxicity. Plant cells can be protected from ROS by enzymatic defense mechanisms like superoxide dismutase (SOD), catalase (CAT), and peroxidase (POD) and nonenzymatic defense mechanisms like free amino acids especially proline, ascorbate, and glutathione and phenolic compounds. Free proline is known to accumulate under heavy metal exposure and considered to be involved in stress resistance Li et al.⁴ and Karimi et al.¹

Growth conditions and treatments

 Four week old Spinach (Spinacea oleracea L.) seedlings were carefully collected from Department Agronomy farm, Bayero University, Kano on Wednesday December, 2014 by 4.00pm. They were washed with tap water to remove excess soil, and rinsed three times with deionise water before replanting in hydroponic solution and kept in a greenhouse at 65% relative humidity, 13hrs/day 11hrs/night under 600 μ mol m-2 s-1 of light intensity, and day/night temperatures 39/23°C. Plants were supplied with the Hoagland nutrient solution (pH 6.0-6.3) which contained the following nutrients: 1mM KH₂PO₄, 2mM MgSO₄•4H₂O, 5mM KNO₃, and 5mM Ca (NO₃)₂•4H₂O and 9µM MnCl₂•4H₂O, 4.6 µM H₃BO₃, 0.8 µM ZnSO₄•7H₂O, 0.3 µM CuSO₄•5H₂O, and 0.1 µM H₂MoO₄•H₂O. Iron was supplied as Fe-EDTA (1.8 mM). Copper in five levels (0, 5, 10, 15 and 20 ppm) as CuSO₄•5H₂O were added to the nutrient solution. The concentration of EDTA used was 10mM. Each treatment in triplicates was allowed to stand for five days, after which the plants were harvested and subjected to physiological and biochemical analysis.

Proline content determination

The proline content in the shoots was determined by the method recommended by Bates et al.⁵

Atomic absorption spectrophotometric determination of Cu²⁺ in roots and shoots of harvested spinach seedlings

After five days exposure, the spinach seedlings were harvested and washed first with tap water, followed by 1% HNO3 and finally rinsed with deionised water. The roots and shoots were separated and oven dried at 60°C for 48 hours. They were ground with wooden mortar and pestle to a fine powder. A washed dried porcelain crucible was ignited on a hot electric plate for 5minutes. 2g of each sample was accurately weighed into the crucible and gently heated on hot electric plate until the smoking ceased. It was then transferred and ashed to constant weight in a muffle furnace at 5500C for 4hours. The ash was cooled in a dessicator, dissolved in 0.10M HNO₃, filtered into 50cm3 volumetric flask and made to mark. The Cu²⁺ content in the roots and shoots was analyzed using Atomic Absorption Spectrophotometer (Buck Scientific, Model 210VGP) at 324.7nm. The concentration of Cu²⁺ was reported as mg g-1 dry weight.

Analysis of variance (ANOVA) using the SPSS software was performed to check the accuracy and validity of the results. Data were expressed as mean followed by SD. Statistical significance was assumed at p<0.05.

Figure 1 shows the copper uptake by spinach (Spinacia oleracea L) seedlings grown in Chelated [EDTA 10mM] and Unchelated treatments of same Cu²⁺ concentrations. There were significant changes in Cu²⁺ uptake at different concentrations of added Cu²⁺.This finding is supported by free-ion activity hypothesis which states that “the uptake of trace metals by plants is commonly assumed to depend on the free metal-ion activity, rather than the total concentration of dissolved metal” Degryse et al.⁶ The Unchelated treatments showed significant variation (p < 0.05) in the uptake of the Cu²⁺ ion. Between 5 to 10mg/L of added Cu²⁺ the uptake was 4.79 times higher. However, no much difference was observed between 15 to 20mg/L. These results are in good agreement with the findings of Kumar et al.⁷ Ozounoudou⁸ and Karimi et al.¹ They generally reported that higher levels of applied Cu²⁺ enhanced the uptake of the ion by different plants. The changes in translocation factor (TF) and bioaccumulation factor (BF) against the concentrations of added Cu²⁺ are shown in Figures 2 & 3. According to Chen et al.⁹ translocation factor (TF) is the ratio of the concentration of a metal in the aerial part of a plant to its concentration in the root.

$$TF\left(\%\right)= \frac{\left(Concentrationofmetalintheshoot\right)}{\left(Concentrationofmetalintheroot\right)}\times 100$$

The effects of TF against concentration of added Cu²⁺, TF varied significantly with concentration of added Cu²⁺ (p < 0.05). Thus, a relatively good fraction of the accumulated Cu²⁺ was translocated to the shoots in Chelated treatments (0.2, 72.7, 32.6, 61.4, and 60.9%) more than the unchelated treatments (0.2, 28.4, 33.8, 61.1 and 33.3%) treatments. The highest values of translocation factor (TF), in Chelated and Unchelated hydroponic treatments were 72.7±0.494% and 54.4±0.0473% respectively. Thus, EDTA aids the translocation of Cu²⁺ to the shoots. This is supported with the findings of Kralova et al.¹⁰ in which EDTA was found to promote the translocation of Cu²⁺ to the shoots of Chamomile plant (matriacaria recutita L.). The Bioconcentration Factor (BCF) is the ratio of metal concentration in the root to its concentration in the solution.⁹

$$BCF\left(\%\right)= \frac{\left(Concentrationofmetalintheroot\right)}{\left(Concentrationofmetalinthesolution\right)}\times 100$$

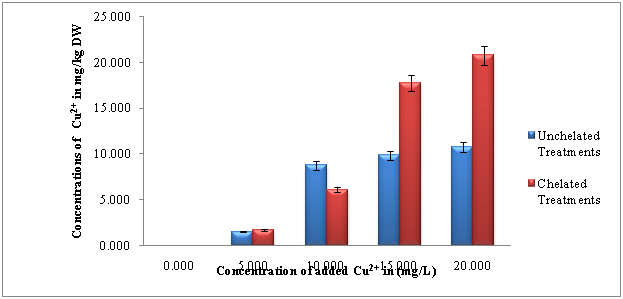

Figure 1 Copper uptake by spinach seedlings (Spinacia oleracea L) shoots in Chelated [EDTA 10mM] and Unchelated Treatments of same Cu²⁺ Concentrations grown in different concentrations of copper.

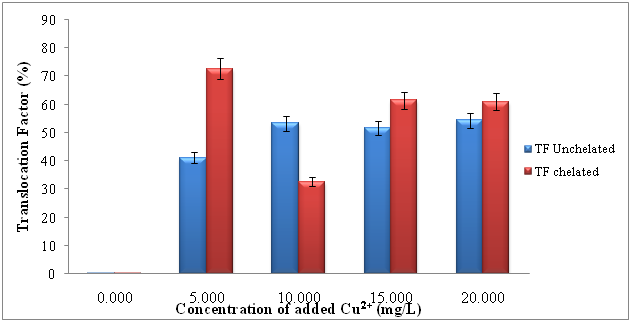

Figure 2 Translocation factor (TF) of Cu2+ in Spinach Seedlings (Spinaceae oleracea L.) grown in Chelated [EDTA 10mM] and Unchelated Treatments of same Cu²⁺ Concentrations. Vertical bars represent standard error of the mean (n = 3).

The value was used in this research to explain how the Cu²⁺ ion get closer and cluster around root of spinach of the plant from the solution to be uptake by the root. The BCF showed that the bulk concentrations of Cu²⁺ remained in the roots. Furthermore, the concentration of Cu²⁺ in the roots of Chelated hydroponic treatments is more than the unchelated hydroponic treatments. The highest BCF of Chelated hydroponic treatment was 193.0±0.055% and unchelated hydroponic treatment 171.1±0.038%. This result was in agreement with the findings of Chen et al.⁹ in which the Chelators: EDTA, EDDS and citric acid were found to enhance the Phytoextraction of Cu, Zn, and Pb into high biomass vetiver (Vetiveria zizaniodides). The effects of EDTA were visible between 24 - 48hours of replanting where the leaves appeared damaged and started to wilt. Necrosis also manifested indicating phytotoxicity as shown in plates 3.1, 3.2, 3.3, and 3.4, below To justify the Cu-uptake by the plants, proline was determined to assess the level of stress and damage caused by Cu uptake in Chelated and Unchelated treatments to the plants. Figure 4, shows Cu-induced proline accumulation in shoots. The proline content increased substantially with increasing Cu concentrations (p < 0.05). The proline contents of seedlings in Chelated treatments were relatively higher than those in unchelated treatments of same concentrations of Cu²⁺ (p < 0.05). At 20mg/L the Chelated treatments showed the highest proline accumulation (3.65±0.014µmol/g) than the unchelated treatments (3.254±0.023µmol/g). This was supported by the highest reduction in dry weight of harvested seedlings (35.90%) compared to other treatments. Similar finding was reported by Karimi et al.¹¹

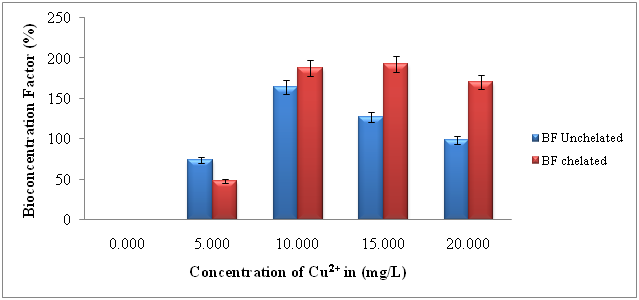

Figure 3 Bioaccumulation factor (BCF) of Cu2+ in Spinach Seedlings (Spinaceae oleracea L.) grown in Chelated [EDTA 10mM] and Unchelated Treatments of same Cu²⁺ Concentrations. Vertical bars represent standard error of the mean (n = 3).

Plate 3.1 Control after 48hour.

Plate 3.2 EDTA treatments after 48hours.

Plate 3.3 Effect of EDTA after 48hours.

Plate 3.4 EDTA treatments after five days

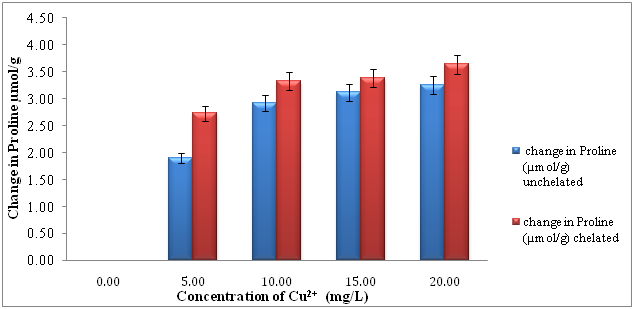

Figure 4 Proline accumulation in the shoots of spinach (Spinaceae oleracea L.) Seedlings in Chelated [EDTA 10mM] and Unchelated Treatments of same Cu²⁺ Concentrations. Vertical bars represent standard error of the mean (n = 3).

Application of various doses of Cu²⁺ (0, 5, 10, 15 and 20mg/L) and 10mM EDTA to hydroponic solutions enhance the Phytoextraction of Cu²⁺ in spinach (Spinacia oleracea L) seedlings. Varying degrees of phototoxic symptoms which include chlorosis, necrosis and reduction in dry weight of plant were observed depending on the concentration of Cu²⁺ and presence or absence of EDTA. The highest proline content was found in seedlings grown in hydroponic treated with 20mg/L Cu²⁺ and 10mM EDTA.

None.

The author declares no conflict of interest.

1. Karimi P, Khavari Nejad RA, Niknam V, et al. The Effects of Excess Copper on Antioxidative Enzymes, Lipid Peroxidation, Proline, Chlorophyll, and Concentration of Mn, Fe, and Cu in Astragalus neo–mobayenii. The Scientific World Journal. 2012;2012:1–6.
2. Erdei S, Hegedus A, Houptamann G, et al. Heavy metal induced phylogical changes in the antioxidative response system. Acta Biologoca Szendiensis. 2002;46(3–4):89–90.
3. Shaw BP, Sahu SK, Mishra RK. Heavy metal induced oxidative damage in terrestrial plants. In: Prasad MNV, editor. Heavy Metal Stress in Plants. From Biomolecules to ecosystem. 2nd ed. 2004. p. 84–126.
4. Li PZ, Surya KM, Zhao PL, et al. Copper–Induced Proline Synthesis is associated with Nitric Oxide Generation in Chlamydomonas reinhardtii. Plant Cell Physiol. 2008;49(3):411–419.
5. Bates LS, Walden RP, Teare ID. Rapid determination of free proline for water stress studies. Plant and soil. 1973;39(1):205–207.
6. Degryse F, Smolders E, Parker DR. Metal complexes increase uptake of Zn and Cu by plants: implications for uptake and deficiency studies in chelator–buffered solutions. Plant and Soil. 2006;289(1):171–185.
7. Kumar V, Yadav DV, Yadav DS. Effects of nitrogen sources and copper levels on yield, nitrogen and copper contents of wheat (Triticum aestivum L.)”. Plant and Soil. 1990;126(1):79–83.
8. Ouzounidou G. Root growth and pigment composition in relationship to element uptake in Silene compacta plants treated with copper”. Journal of Plant Nutrition. 1994;17(6):933–943.
9. Chen KF, Yeh TY, Lin CF. Phytoextraction of Cu, Zn, and Pb Enhanced by Chelators with Vetiver (Vetiveria zizanioides ):Hydroponic and Pot Experiments. International Scholarly Research Network. 2012;2012:1–12.
10. Kral’ova K, Masarovicova E. EDTA–assisted Phytoextraction of Copper, Cadmium and Zinc using Chamomile plant (Matriacaria recutita L). Ecological chemistry and engineering. 2008;15(3):213–220.
11. Ouzounidou G, Ilias I, Tranopoulou H, et al. “Amelioration of copper toxicity by iron on spinach physiology”. Journal of Plant Nutrition. 1998;21:2089–2210.
